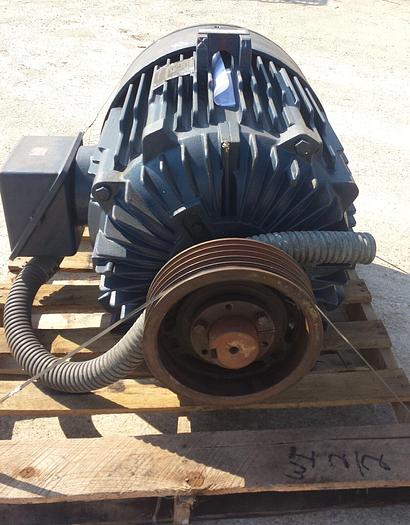

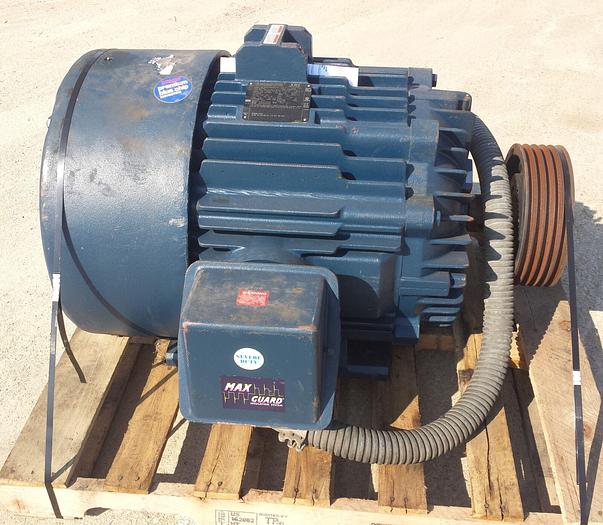

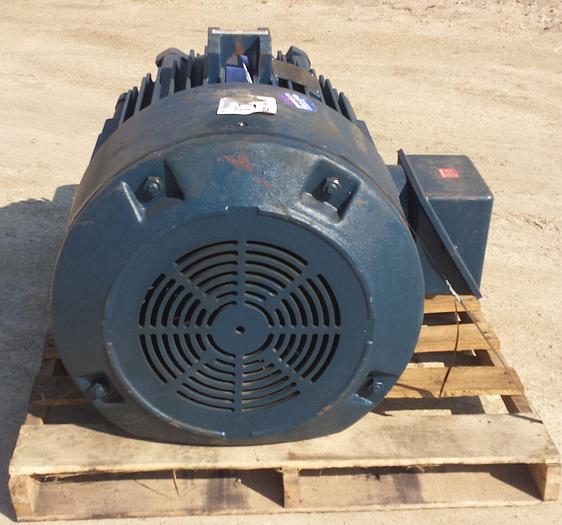

Marathon XRI 150 Hp Marine/Hazardous Duty Electric Motor
No longer available
Marathon XRI 150 Hp Marine/Hazardous Duty Electric Motor
$3,950 (USD)
Description
Rigid Base
Marathon 150 Hp Hazardous/Severe Duty Electric Motor
Rigid Base
XRI Efficiency
Continuous Duty Service Factor 1.15
Enclosure TEFC
Mounting Rigid
Orientation HORIZONTAL
Starting Type LINE OR INVERTER
Assembly F1 (F2 Modification Available)
Inverter Speed Range: CONSTANT 2:1 CE Y CSA Y UL
Recognized Construction Thermal Protection
Specifications

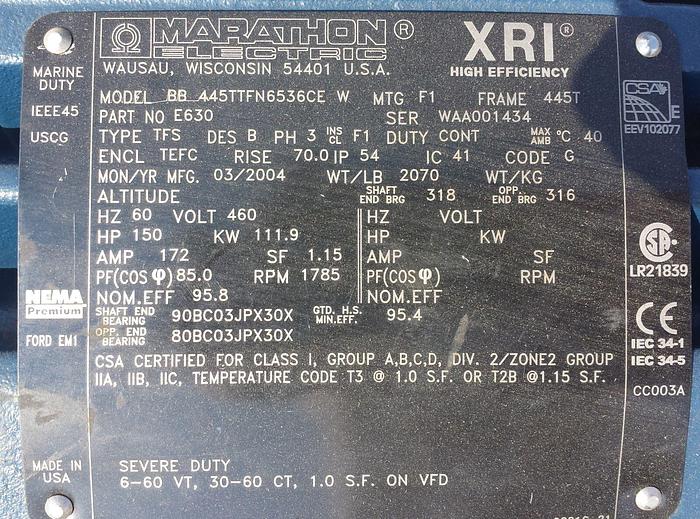

| Model | E630, 445TTFN6536 |
| Condition | Used |
| Hp | 150 |
| Voltage | 460, 3 ph, 60 Hz |
| Frame | 445T |
| Rpm | 1800 |
| Installation | MARINE/HAZARDOUS/SEVERE DUTY |
| Kw | 112 |
| Fl amps | 172 |
| Fl eff | 95.8 % |
| Insulation class | F |
| Ambient temp | 40* C |
| Nema design | B |
| Kva code | G |
| Drive end bearing | BALL IP Code 54 |
| Opposite end bearing | BALL |
| Drive end bearing size | 318 |
| Opposite end bearing size | 316 |
| Hazardous location | DIVISION 2 T2B |
