10 Ton x 37′-6″ Orley Meyer Top Running Radio Control Bridge Crane – Stahl Hoist
10 Ton x 37′-6″ Orley Meyer Top Running Radio Control Bridge Crane – Stahl Hoist
$17,500 (USD)
Description

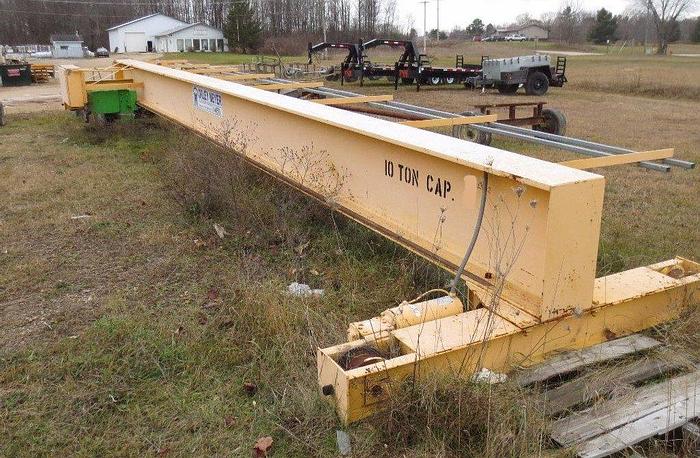

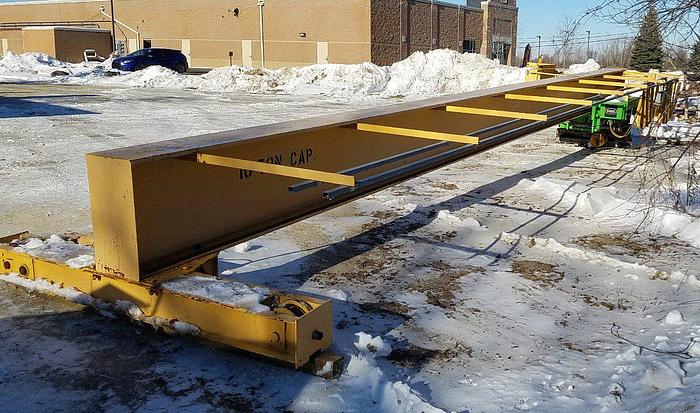

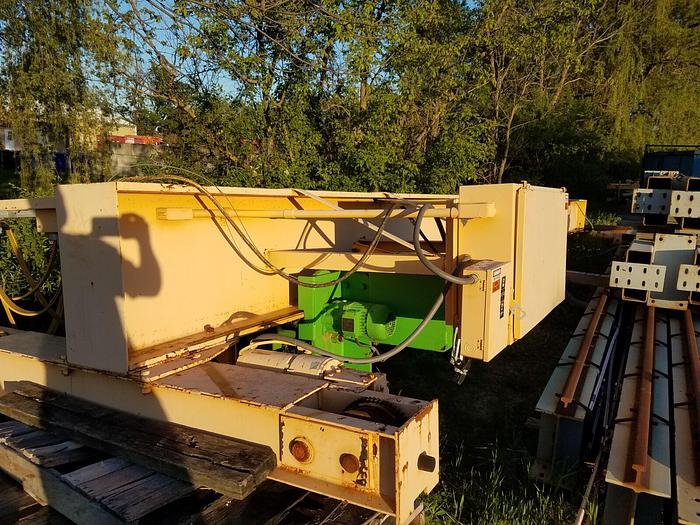

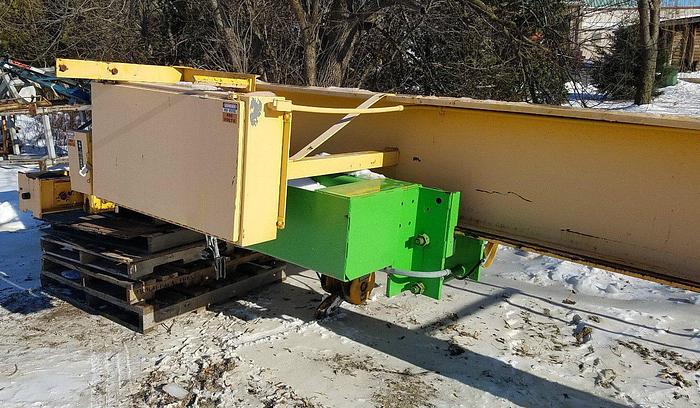

10 Ton Orley Meyer Single Girder Top Running Overhead Bridge Crane with Stahl Underslung “Spacemaster” Cable Hoist

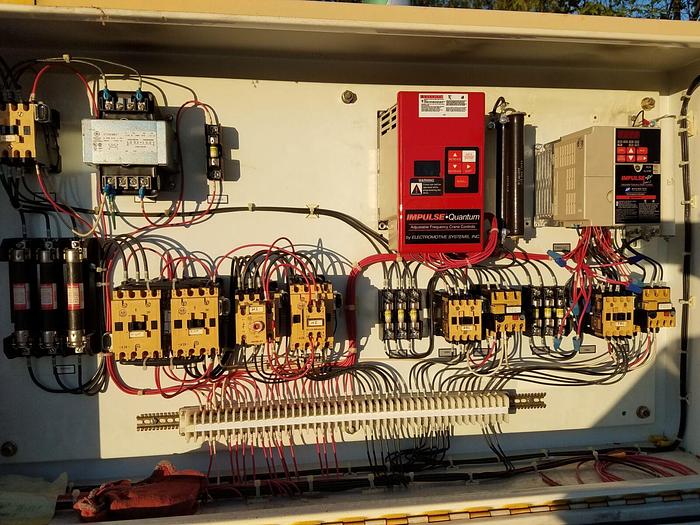

Electromotive Systems Adjustable Frequency Crane Controller
!!WIRELESS REMOTE NOT INCLUDED!!
Model: Impulse / Quantum
D.O.M.: 1994
Bridge Span 37' 6"

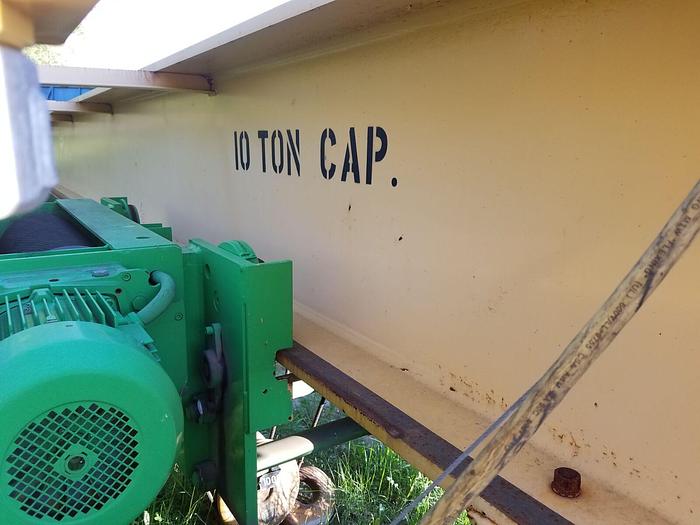

'1994' Stahl 10 Ton 2-Speed 'SPACEMASTER' Cable Hoist
Model (Type) #: AS-4025
S/N: 54-08-970
Lift Speeds: 12 / 2,0 m/min
Pull / Force: 2500 daN; FEM: 1A
Hoist Motor Electrical Spec: 6,0 / 0.90 kW. 460V, 3 ph, 60 Hz
D Motor Type 3 ph A.C. motor: 2/12A4/514
Amps: 11 / 9,0
RPM: 3400 / TPM: 510
Insulation Class: F
IP: 54
Bridge Height (truck to top of Girder): 34'' Tall
Approx. Hook Height: 30'

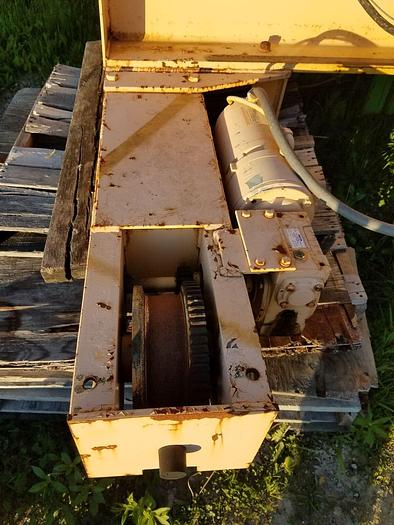

End Truck Width: 7'- 6"
Height of Girder: 25"
Diameter of Endtruck wheels: 9.5"
Hoist hook hang distance below entrucks: 35”
Specifications
| Manufacturer | Orley Meyer |
| Model | Impulse / Quantum |
| Condition | Used |
| Serial Number | 54-08-970 |
| Model (type) # | AS-4025 |
| Lift speeds | 12 / 2,0 m/min |
| D.o.m. | 1994 |
| Hoist motor electrical spec | 6,0 / 0.90 kW. 460V, 3 ph, 60 Hz |
| D motor type 3 ph a.c. motor | 2/12A4/514 |
| Amps | 11 / 9,0 |
| Insulation class | F |
| Ip | 54 |
| Bridge height (truck to top of girder) | 34” Tall |
| Approx. hook height | 30′ |
| End truck width | 7′- 6″ |
| Height of girder | 25″ |
| Diameter of endtruck wheels | 9.5″ |
| Hoist hook hang distance below entrucks | 35” |
