18" Semco RV-15 304 Stainless Steel Rotary Airlock & 1 Hp Motor 208-230/460V
18" Semco RV-15 304 Stainless Steel Rotary Airlock & 1 Hp Motor 208-230/460V
$9,500 (USD)
Available quantity:1
or
Call 414 841 4377
Description

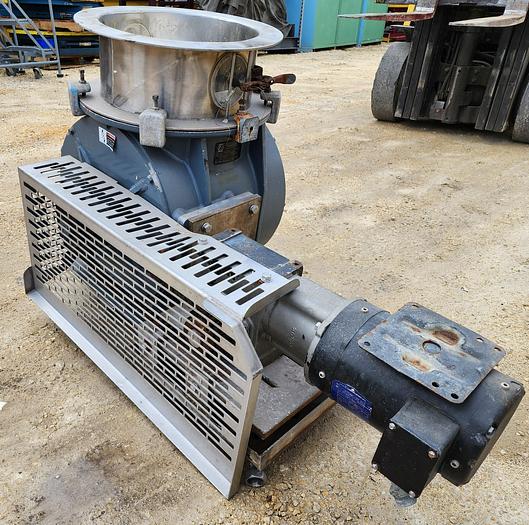

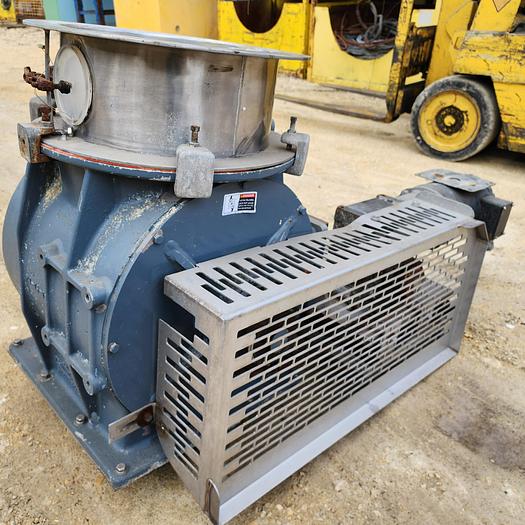

Semco Industrial Rotary Airlock
Body Diameter: 18"
Model #: RV-15
S/N: N/A
304 Stainless Steel

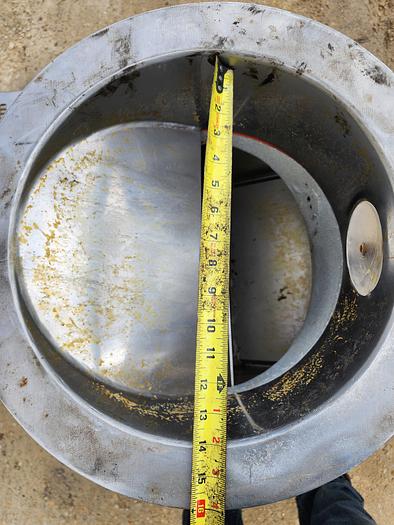

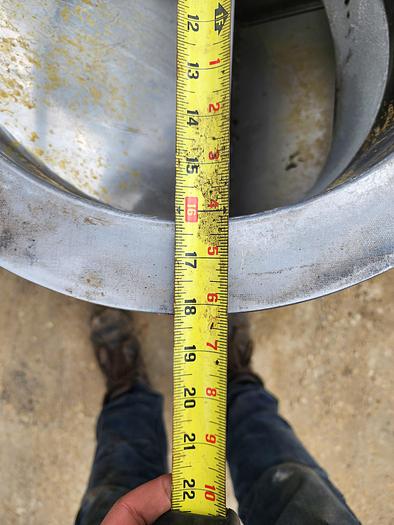

Inlet Flange Diameter: 18 1/4"
Inlet Diameter: 14"
Outlet Flange Dimensions: 18" x 18"
Outlet Diameter: 14" x 14"
Date: 12/2014
Radial Clearance: .008"-.011"
Axial Clearance: .007"-.010"
Maximum Temperature: 120* F
Vane Dimensions: 7.5" x 14"

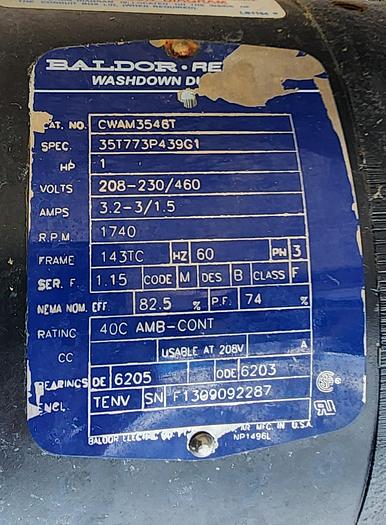

Baldor Drive Motor
Horsepower: 1 Hp
208-230/460V, 3 ph @ 60 Hz
1740 RPM
Chain Driven
Specifications
| Manufacturer | Semco |
| Model | RV-15 |
| Year | 2014 |
| Condition | Used |
| Serial Number | N/A |
| Body Diameter | 18" |
| Model # | RV-15 |
| S/N | N/A |
| Inlet Flange Diameter | 18 1/4" |
| Inlet Diameter | 14" |
| Outlet Flange Dimensions | 18" x 18" |
| Outlet Diameter | 14" x 14" |
| Date | 12/2014 |
| Radial Clearance | .008"-.011" |
| Axial Clearance | .007"-.010" |
| Maximum Temperature | 130* F |
| Vane Dimensions | 7.5" x 14" |
| Horsepower | 1 Hp |
