60" Giddings & Lewis CNC VTL 72" Swing w/Fanuc 21-IT Control & Tooling - NO PIT REQUIRED
60" Giddings & Lewis CNC VTL 72" Swing w/Fanuc 21-IT Control & Tooling - NO PIT REQUIRED
$65,900 (USD)
Available quantity:1
Description

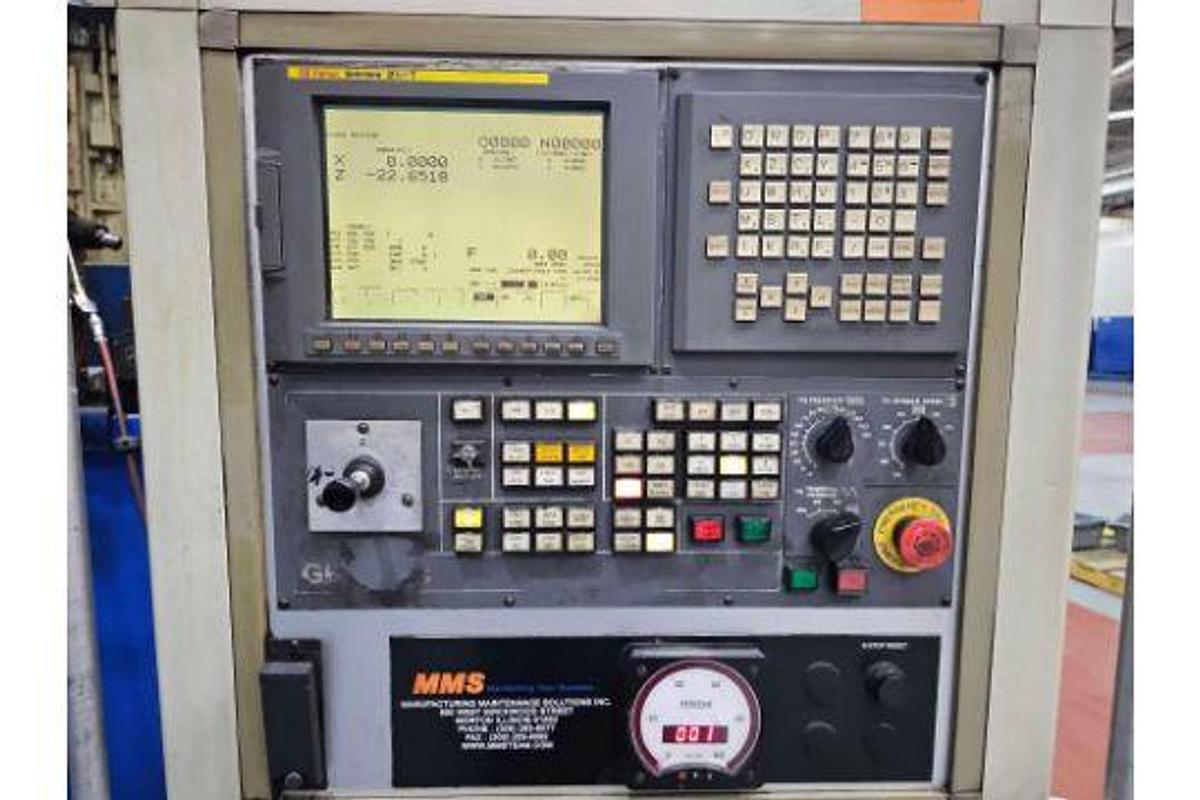

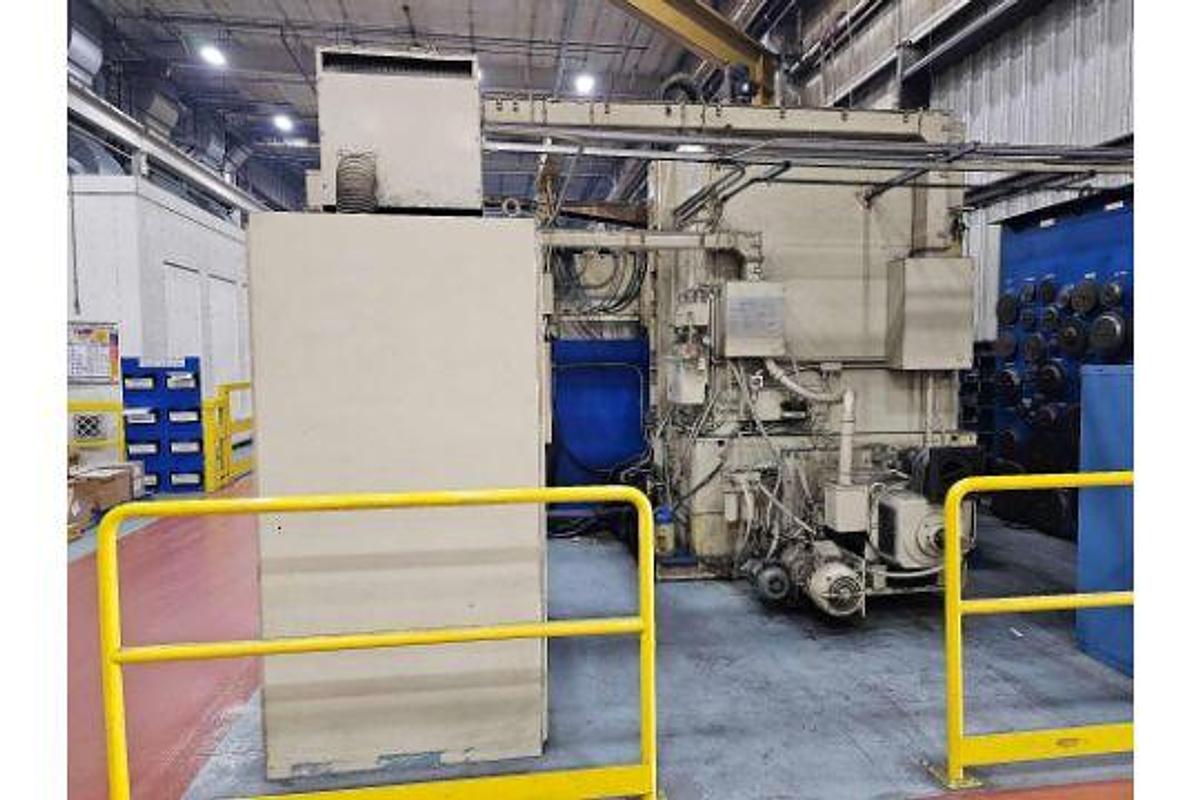

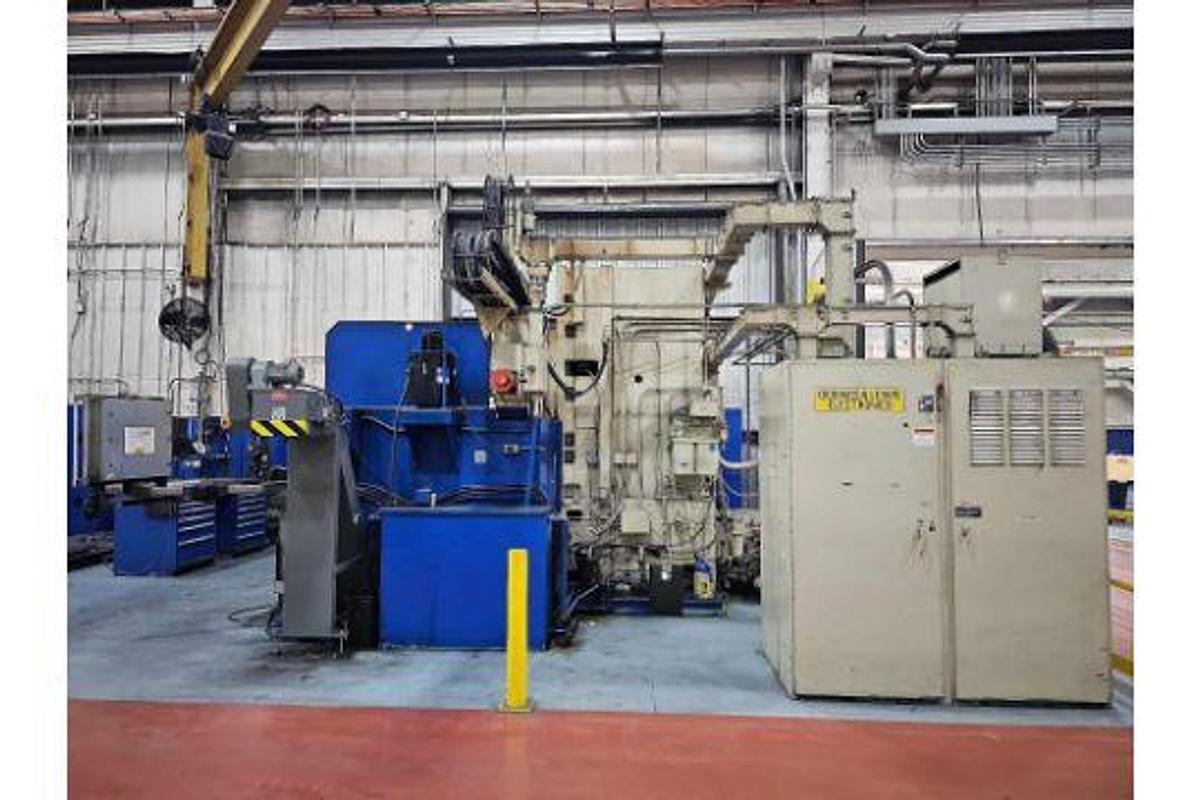

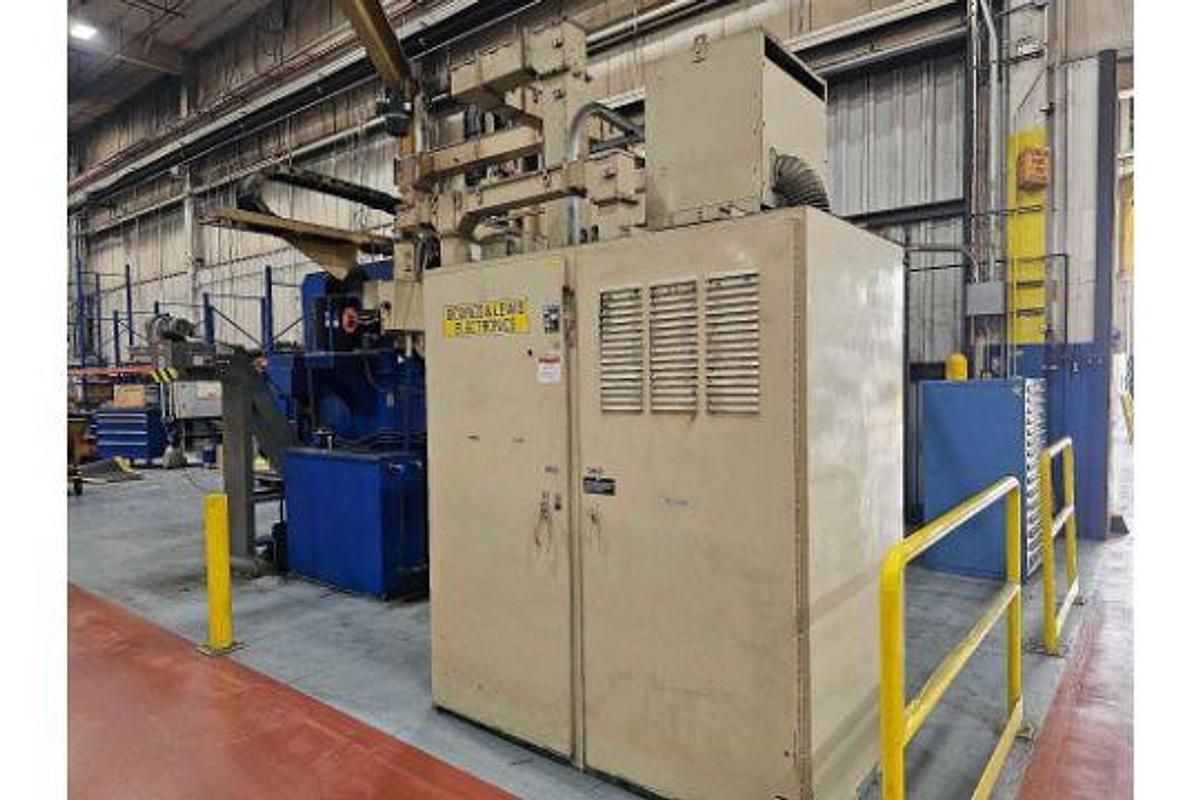

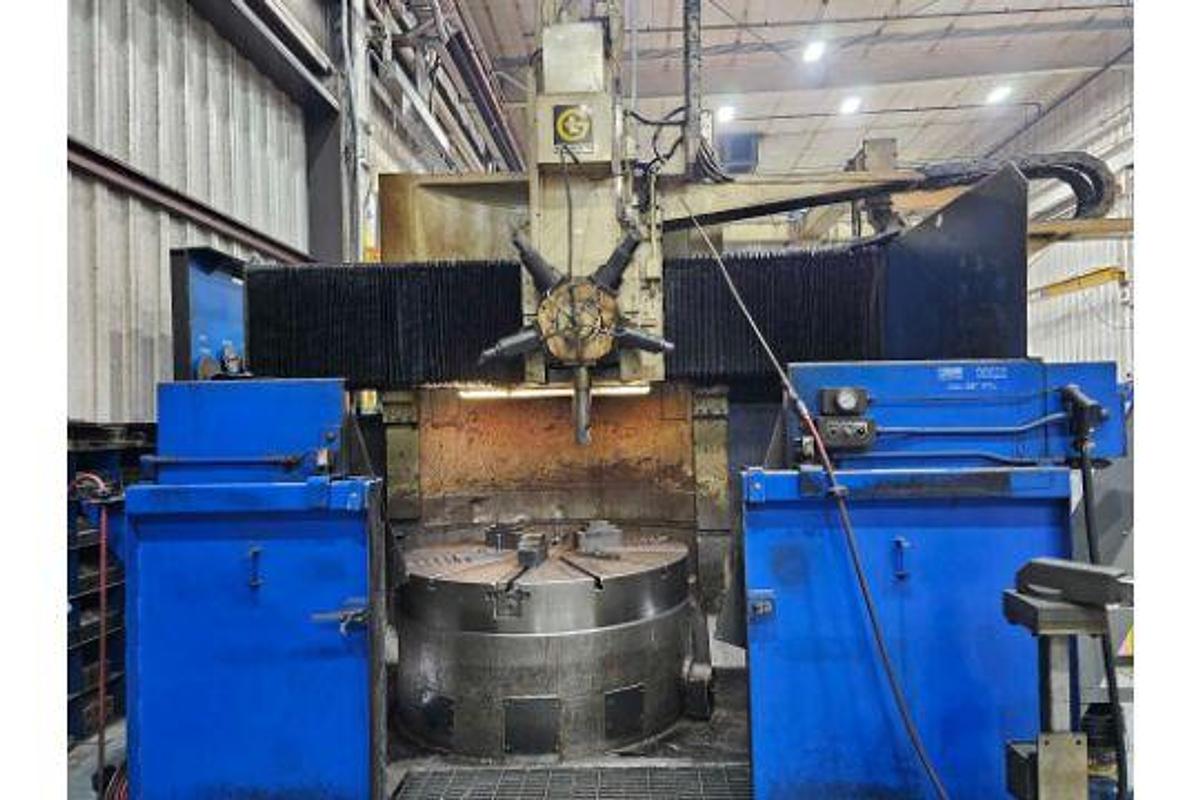

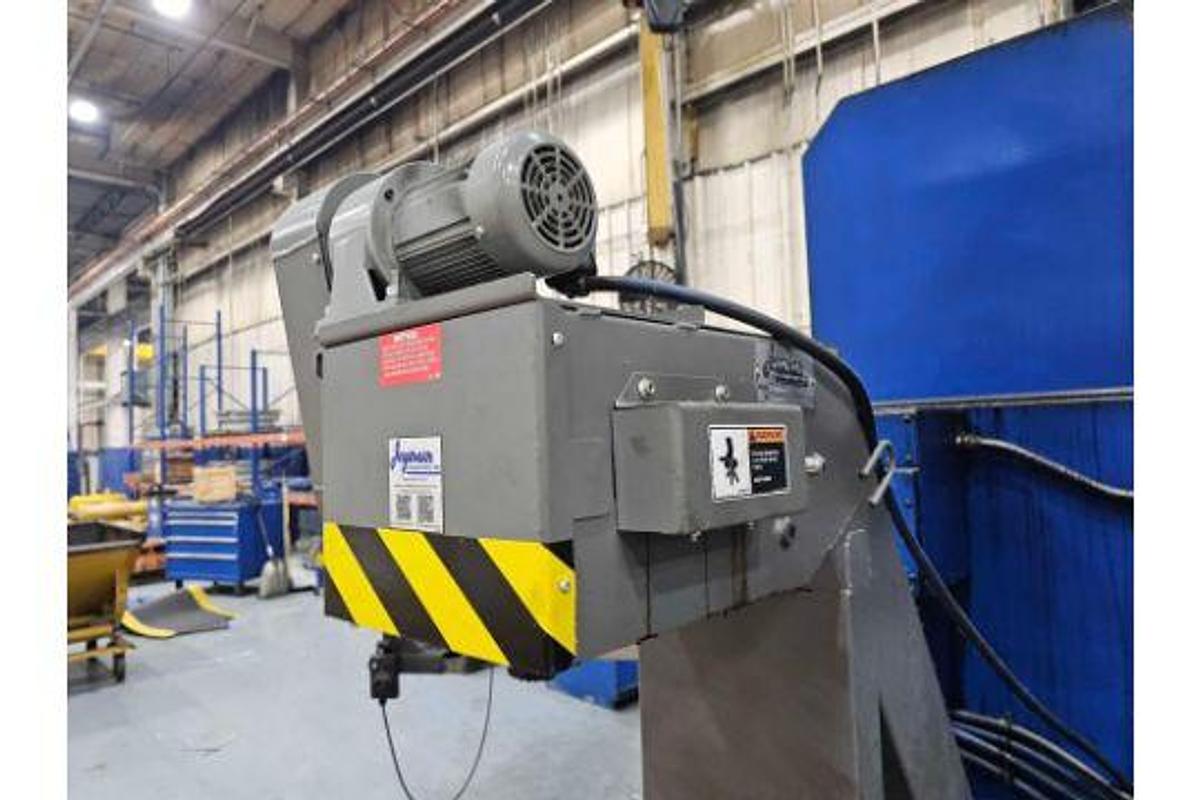

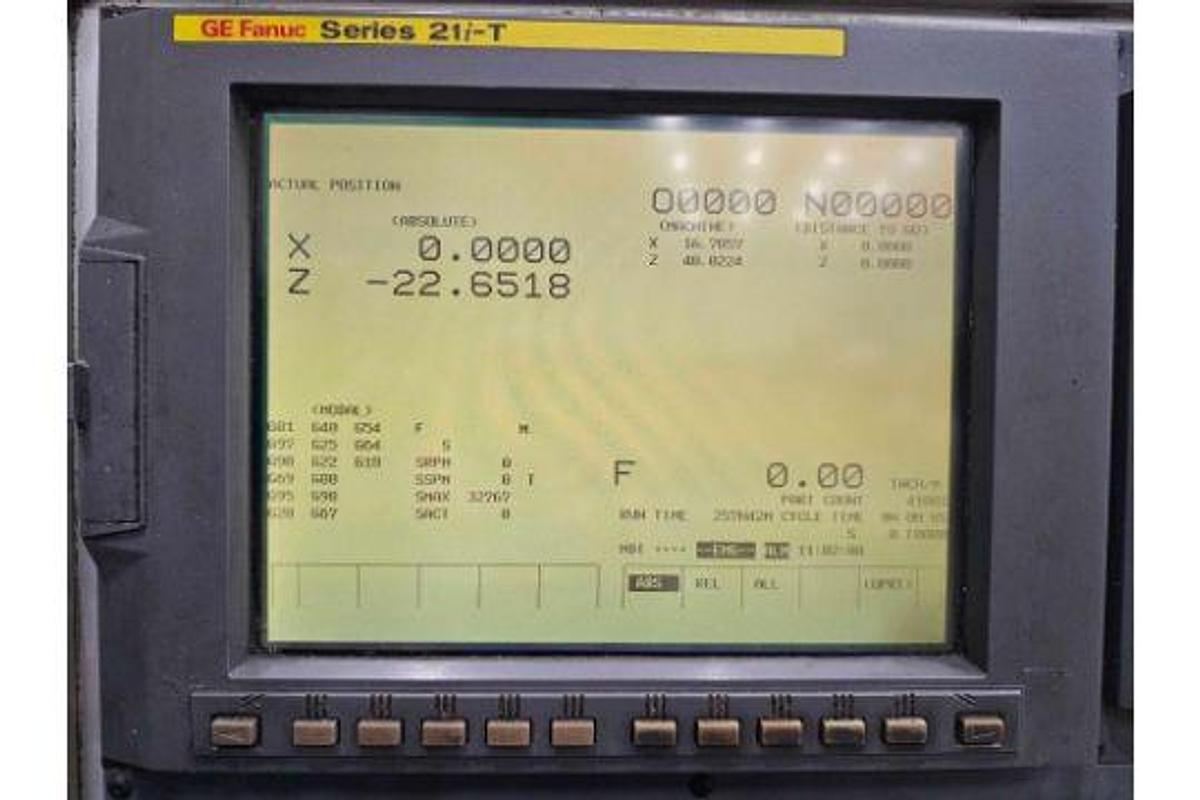

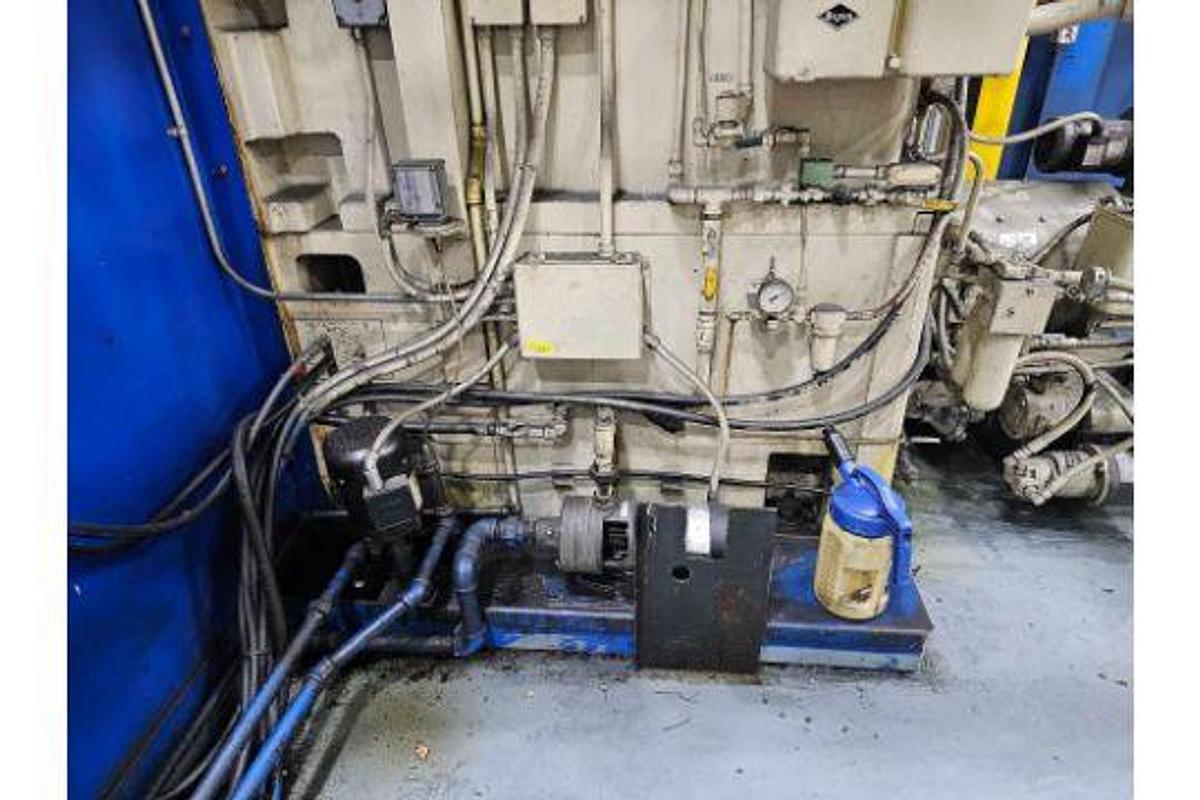

GIDDINGS & LEWIS 60" VTL WITH FANUC 21-IT CNC CONTROL
SN: 513-112-84
MACHINE HAS BEEN FULLY REBUILT - PLEASE REACH OUT WITH ANY QUESTIONS.

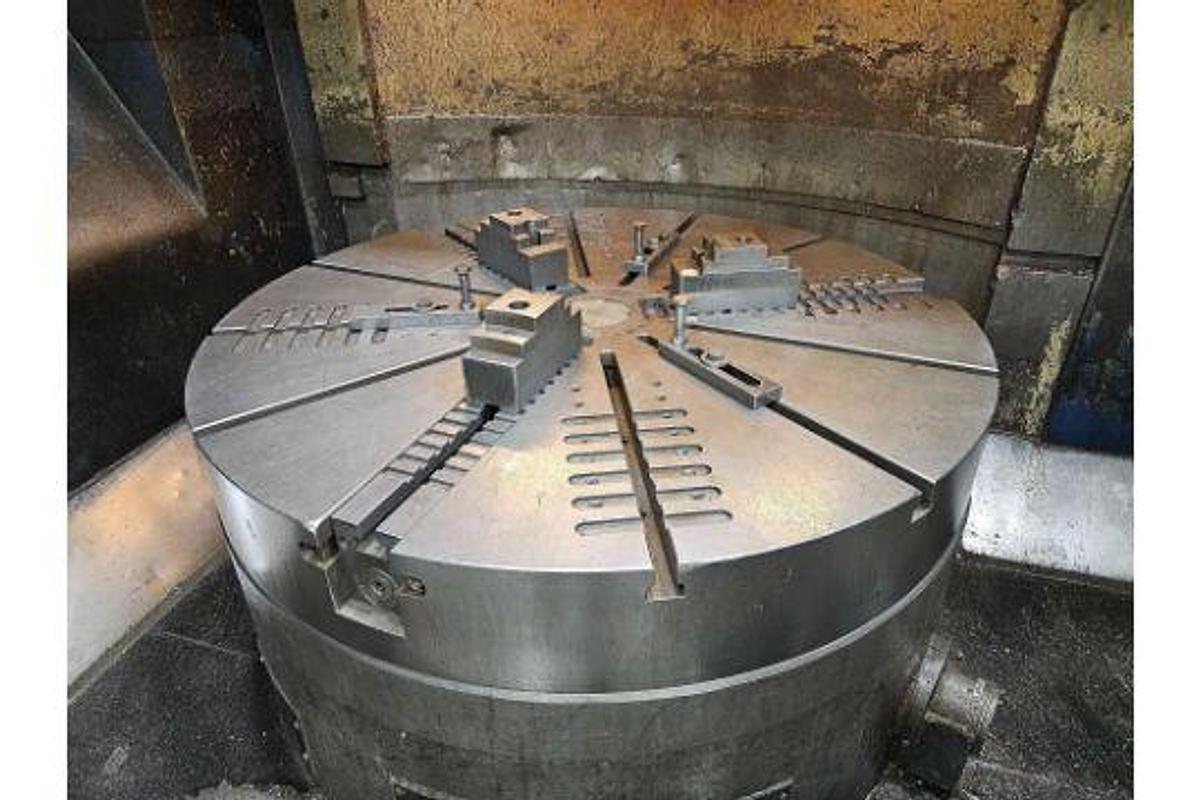

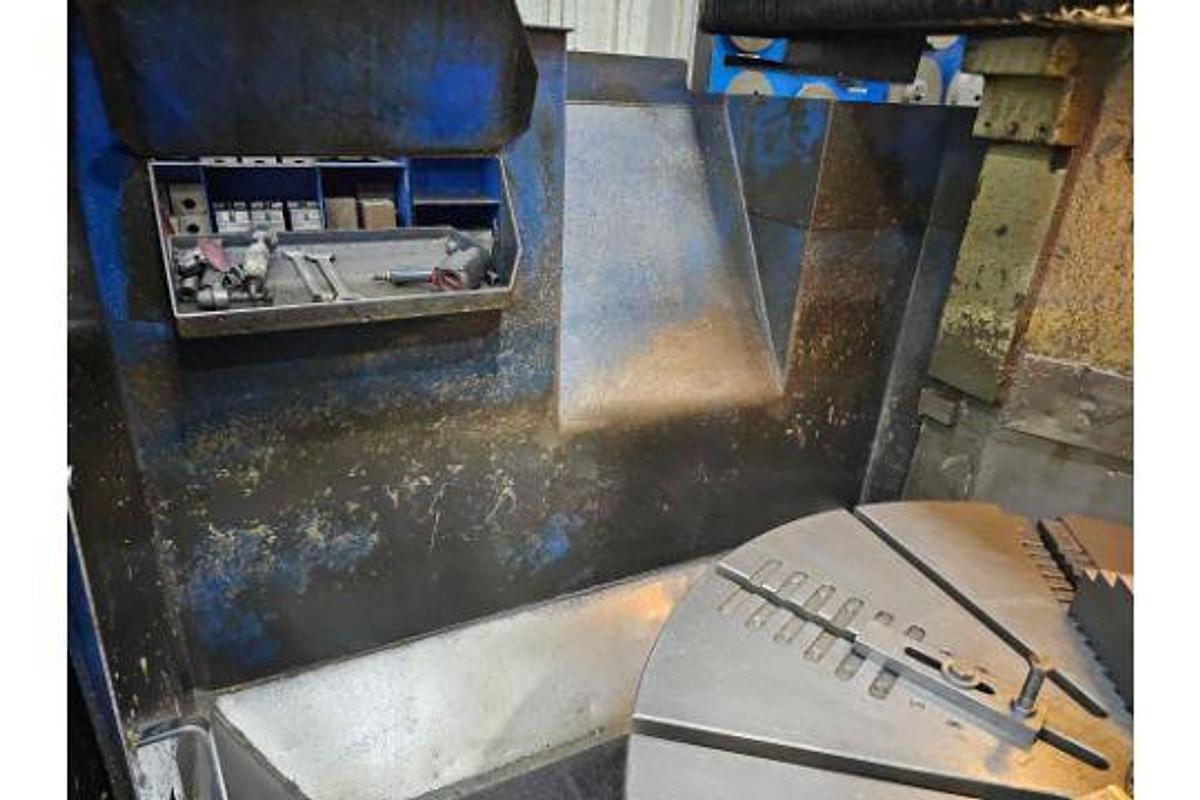

DIAMETER OF TABLE: 60”
FACING CAPACITY: 72”
HEIGHT UNDER RAIL – STD: 60”
TRAVEL OF RAIL – STD: 48”

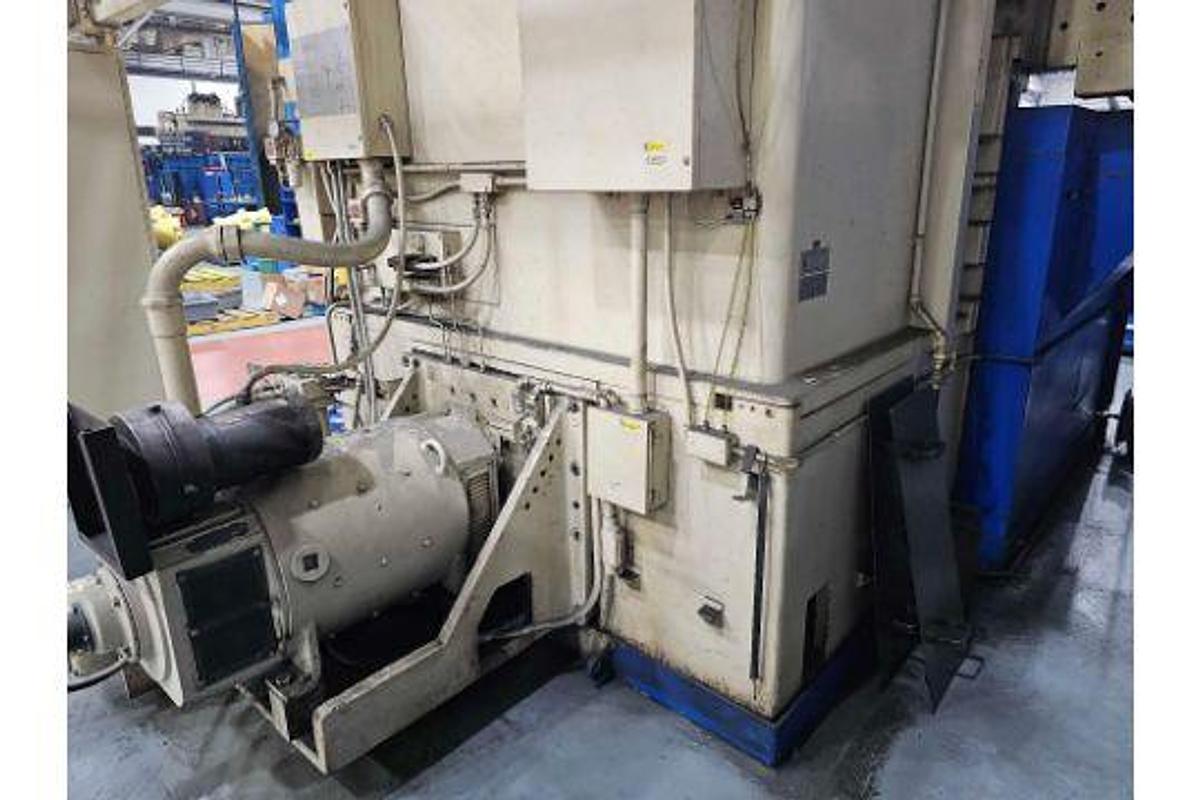

MOTOR HORSEPOWER: 50-75
TABLE SPEEDS (TWO RANGES): INFINITELY VARIABLE
FEED RATES IN EACH RANGE: INFINITELY VARIABLE
FEED RATES –
HIGH TABLE SPEED RANGE: .01-100 IPM
LOW TABLE SPEED RANGE: .01-100 IPM
SWING - ABOVE SIDE HEAD: 72
SWING – USING SIDE HEAD: 66
TRAVERSE – MAX
SIDE HEAD: 150 INCHES/MIN

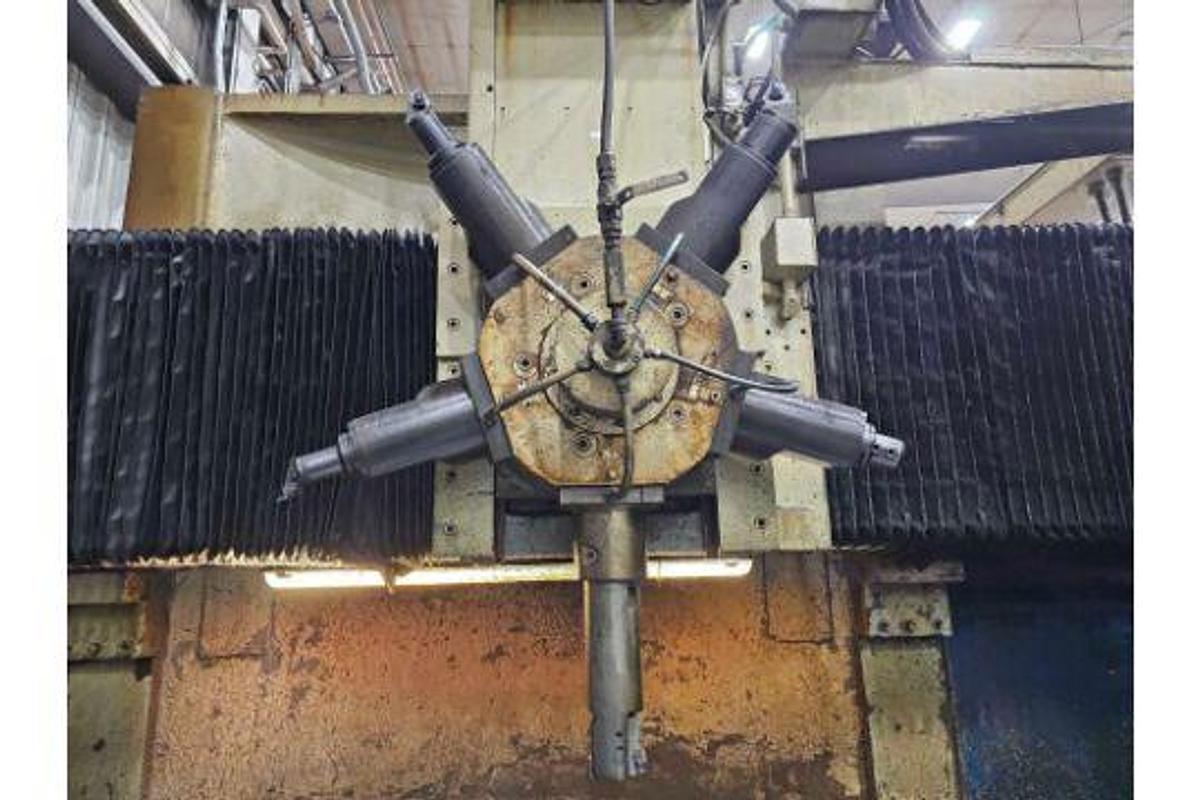

HEIGHT OVER 5 POSITION TURRET: 194.10
HEIGHT OVER PENDANT W/ RAM HC: 231.88
HEIGHT OVER PENDANT W/ TUR HD ONLY: 207.88
OVERALL HEIGHT OF RAM
38” TRAVEL – MANUAL INDEX: 193..50
50” TRAVEL – MANUAL INDEX: 205.50
62” TRAVEL – MANUAL INDEX: 217.50
38” TRAVEL – POWER INDEX: 201.88
50” TRAVEL – POWER INDEX: 213.88
62” TRAVEL – POWER INDEX: 225.88
CENTER OF TABLE TO LEFT RAIL
ONE HEAD: 70.25
TWO HEADS: 104.00
CENTER OF TABLE TO RIGHT RAIL: 104.00
J. CENTER OF TABLE TO EXTREME OF SIDE HEAD
26” TRAVEL: 114.5
32” TRAVEL: --
HEIGHT OF POWER TRAK: 202.00
CENTER OF TABLE TO FRONT OF COOLANT PAN: 42
CENTER OF MACHINE TO REAR OF MOTOR (MAX HP): VARIES WITH MOTOR SIZE & MANUFACTURER – SEE MTR SHEET
TRANSMISSION REMOVAL CLEARANCE
DISASSEMBLED: 69.00
ASSEMBLED: VARIES WITH MOTOR
CENTER OF TABLE TO PENDANT: 53
TABLE SPEED RANGE – RPM
LOW RANGE: 3-68
HIGH RANGE: 12-272
HEIGHT UNDER TURR. FACE (MAX): 69”
TRAVEL TURR. SLIDE – TOTAL VERTICAL: 36”
DIA. OF 5 TOOL HOLDER HOLES: 2.750
TOOL SIZE (MAXIMUM)” 1.5 X 1.5
TURR. HORZ. TRAVEL - RIGHT OF CTR.: 44.00
LEFT OF CTR. (1 HEAD): 43.00
LEFT OF CTR. (2 HEADS): 2.00
HEIGHT UNDER RAM FACE (MAX): 68
HEIGHT UNDER RAM FACE (MAX): 61
TRAVEL OF RAM (TOTAL): 62
TRAVEL OF RAM (TOTAL): 65
RAM PROJECTS BELOW RAIL: 54”
MIN. DISTANCE – RAM TO TURR. CENTERS: 24.62
L.H. RAM HORZ. TRAVEL
LEFT OF TABLE CENTER: 42.00
RIGHT OF TABLE CENTER: 6.00
R.H. RAM HORZ. TRAVEL
RIGHT OF TABLE CENTER: 42.00
LEFT OF TABLE CENTER (1 HEAD): 48.50
P. LEFT OF TABLE CENTER (2 HEADS): 6.00
MINIMUM BORE RAM ENTRY – SQ.RAM: 11.00
DIAMETER OF TOOL HOLDER HOLE: 3.50
T. MINIMUM DISTANCE RAM TO RAM CENTERS: WITH OR WITHOUT
COVERS

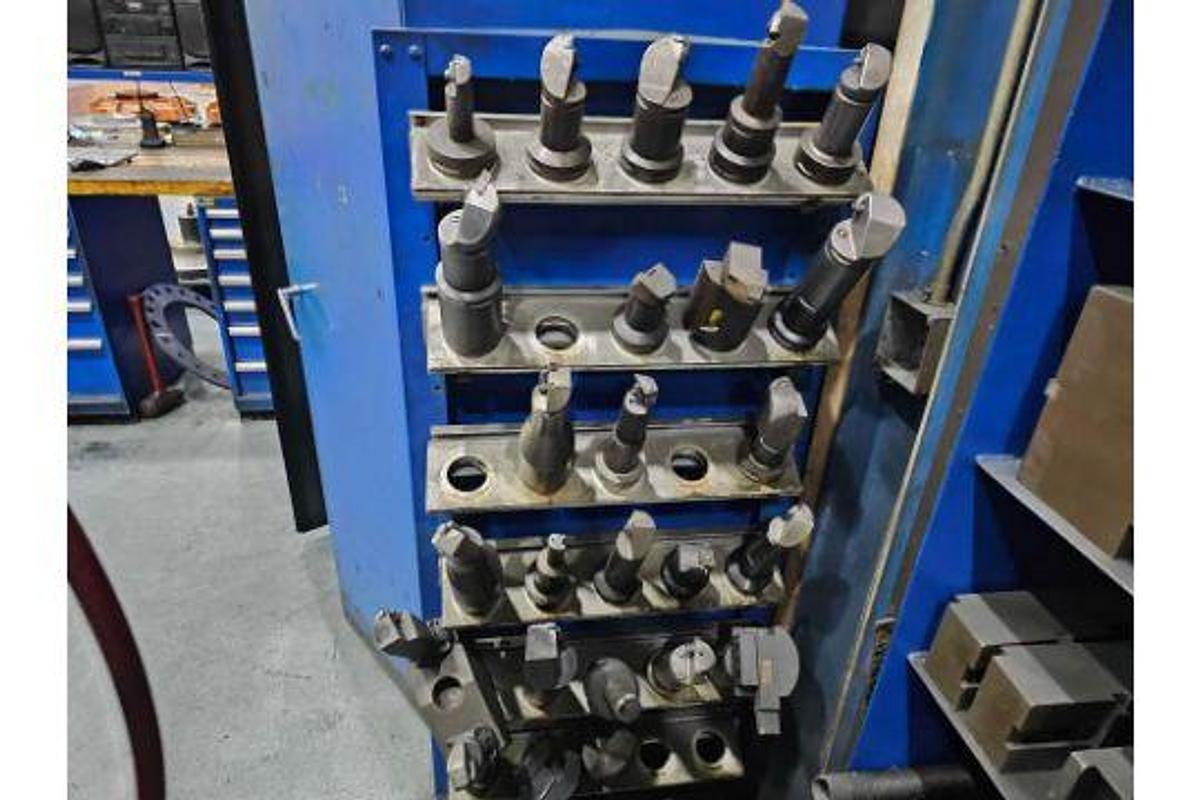

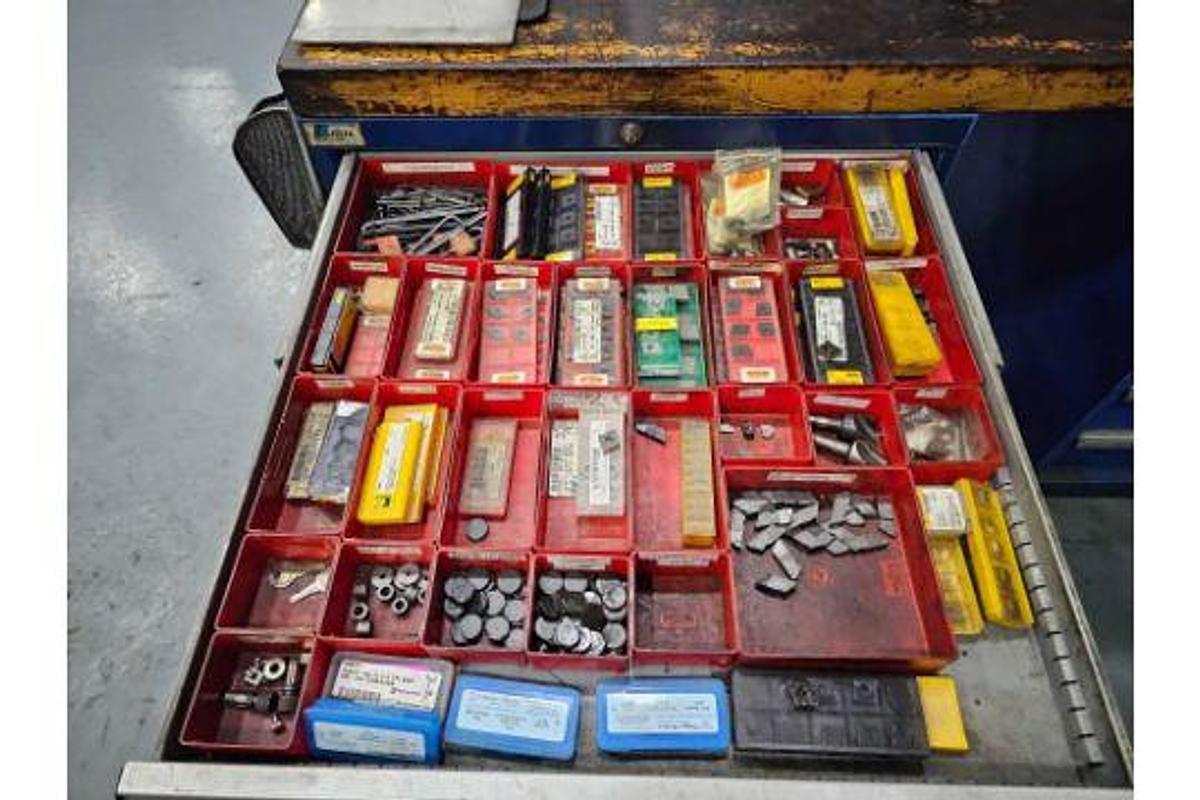

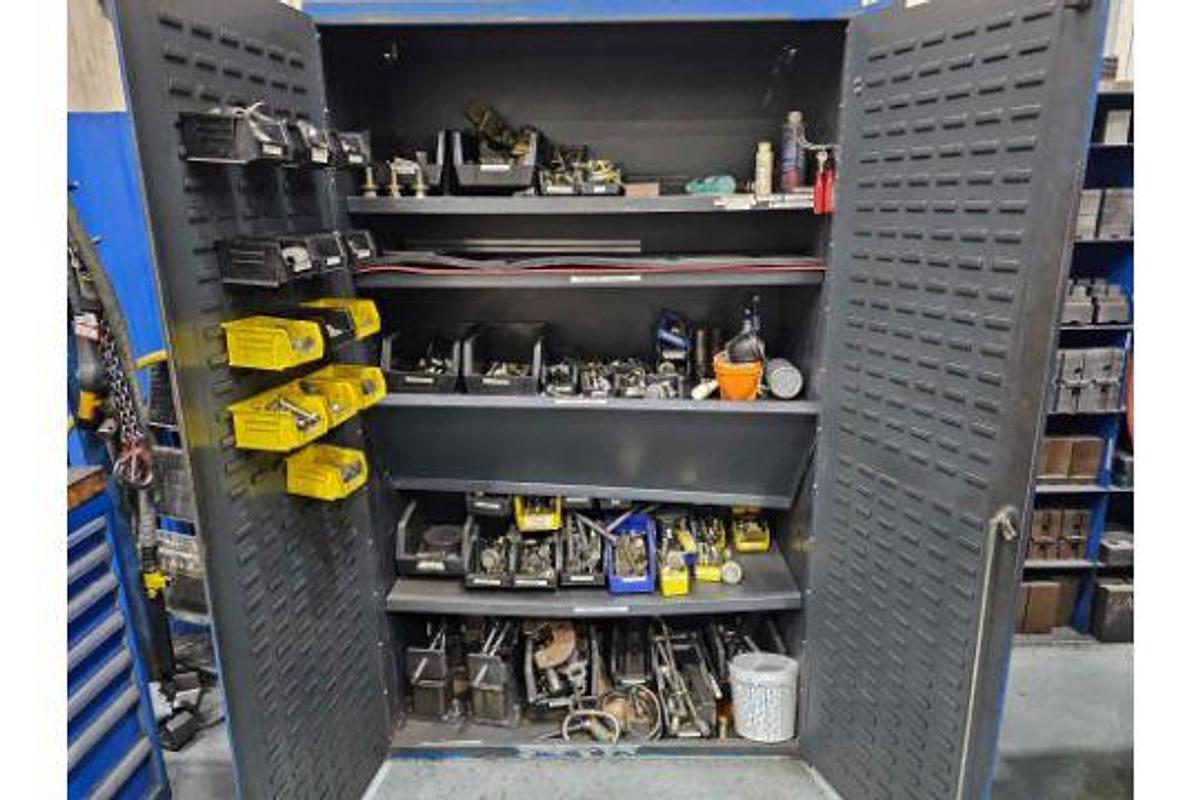

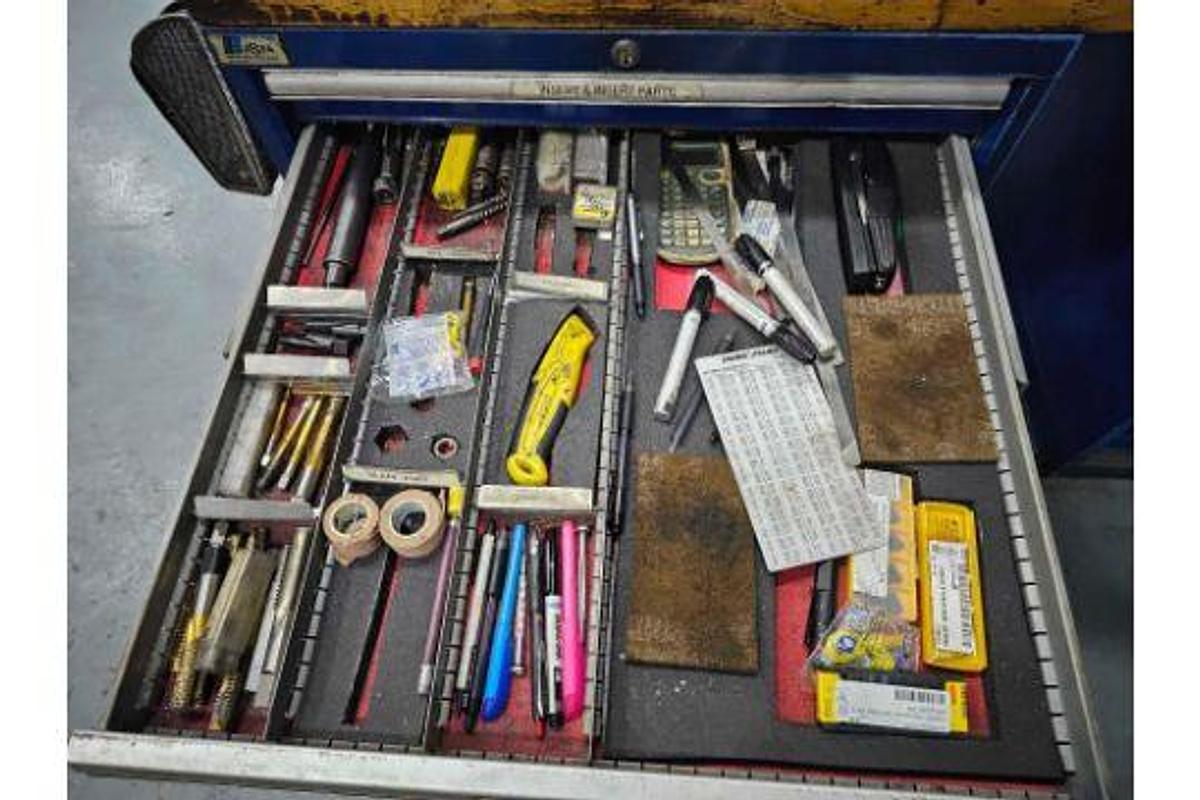

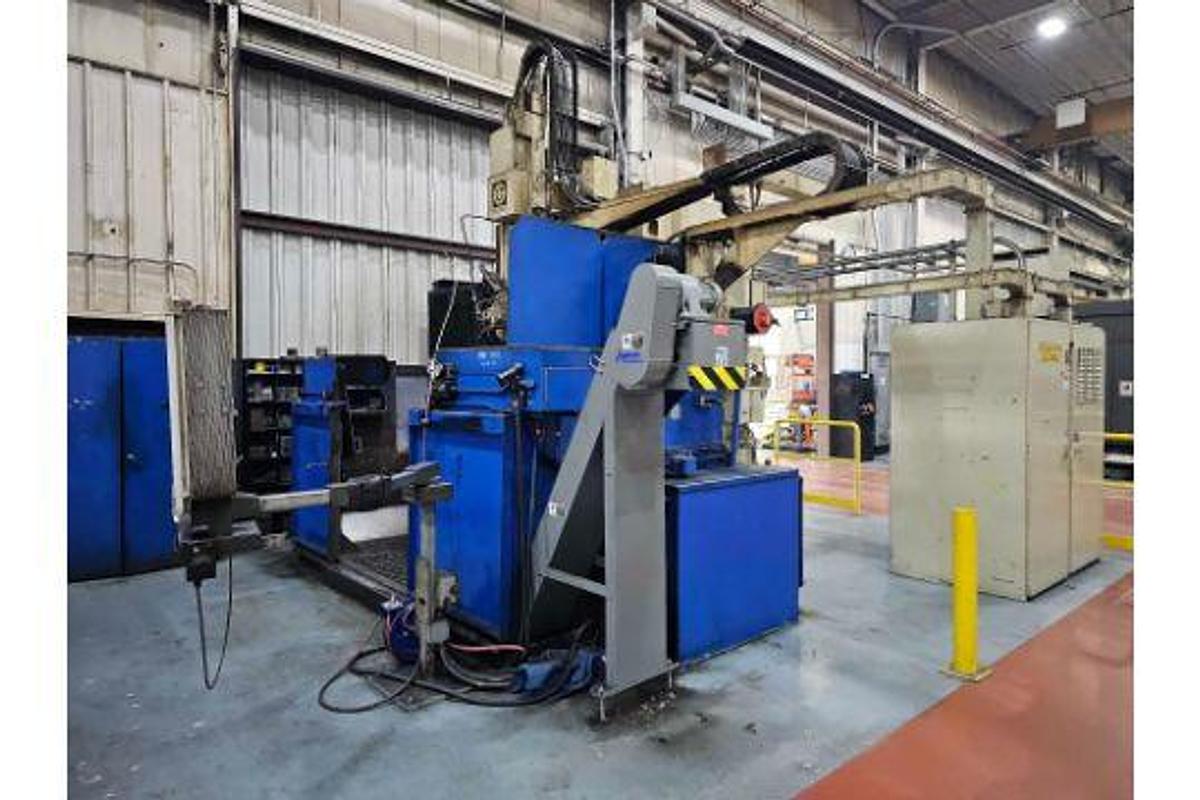

Includes Full Set of Tooling Shown, multiple cabinets of holders & carbide
Specifications
| Manufacturer | Giddings Lewis |
| Model | Vertical Turret Lathe |
| Condition | Used |
| Serial Number | 513-112-84 |
| Stock Number | J19-7 |
