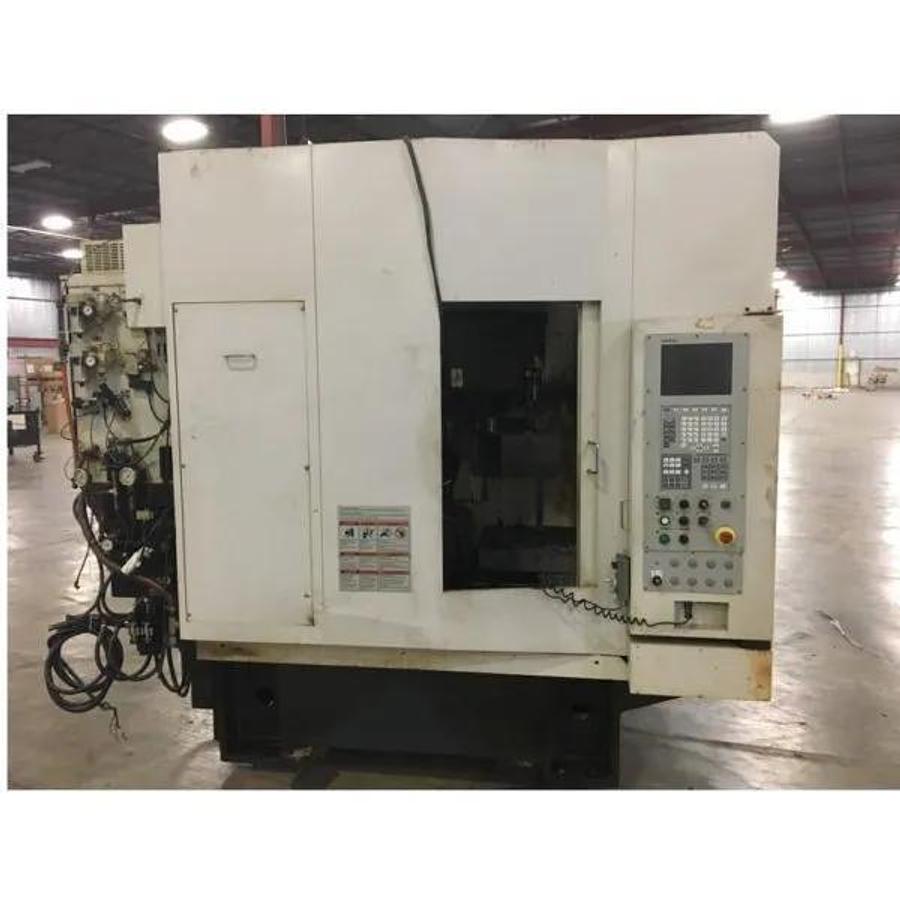

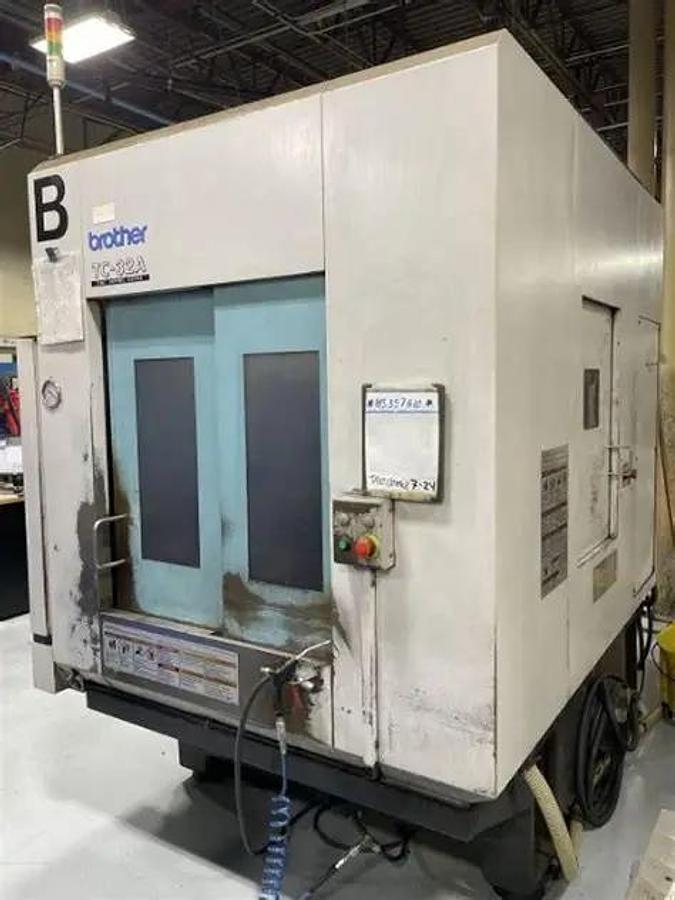

2003 Brother TC-32A High Speed CNC Drilling & Tapping Center, 26 Position ATC

Brother Twin Pallet High Speed CNC Drilling & Tapping Center

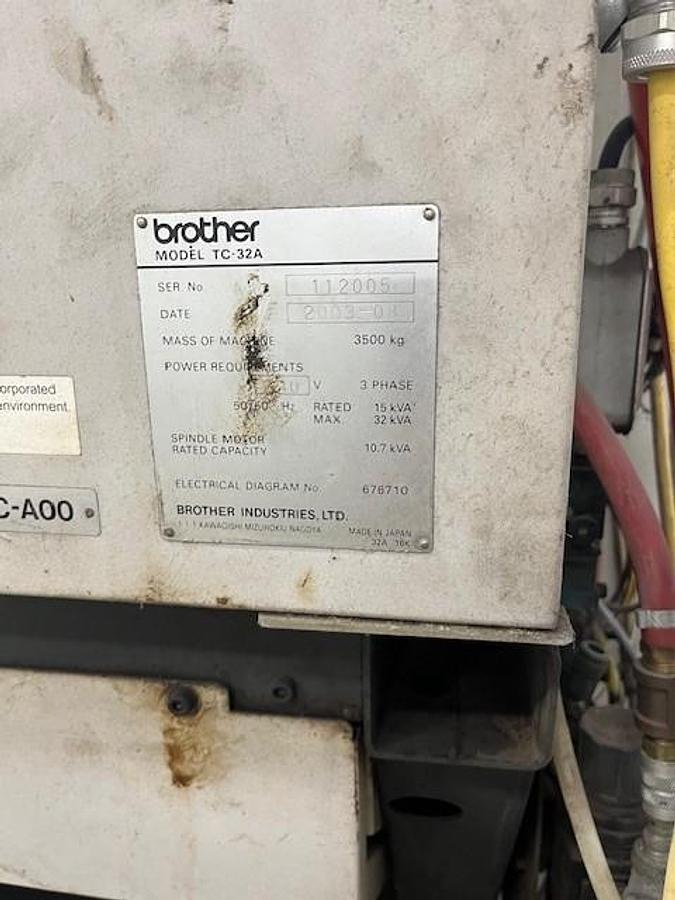

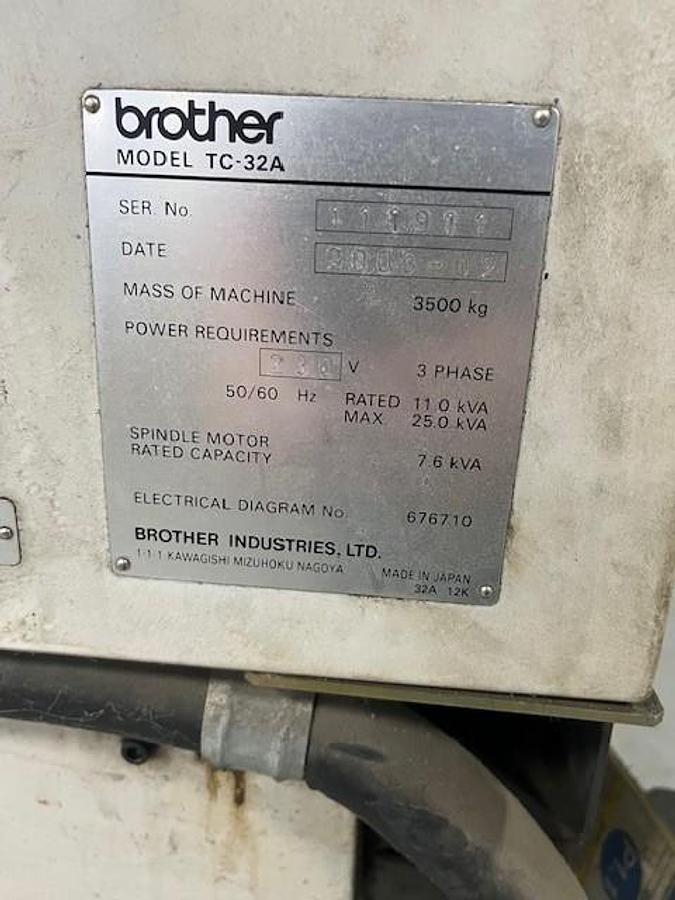

Model #: TC-32A

S/N: 111911 or 112005

230V, 3 ph @ 60 Hz

Travel:

X-Axis: 17.71 inches (450 mm), Y-Axis: 12.59 inches (320 mm), and Z-Axis: 16.14 inches (410 mm).

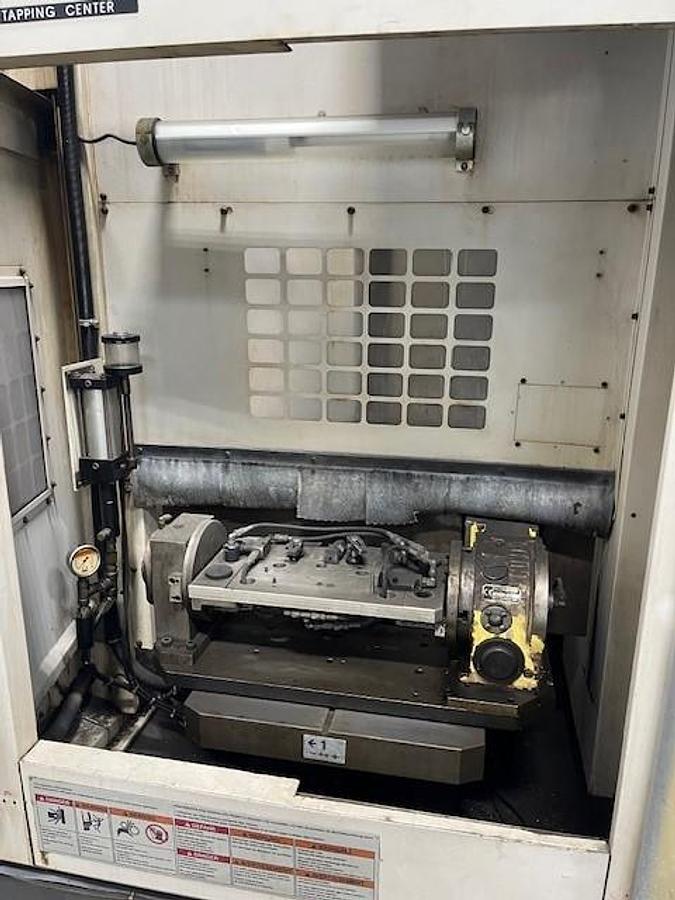

Table:

• Size: 21.65" x 13.77" (550 x 350 mm)
• Maximum load: 176 lbs (80 kg)

Spindle:

Speed: 12 - 12,000 RPM, Taper: BT-30, and Motor: 7.5 HP / 5 HP.

Other Notable Features:

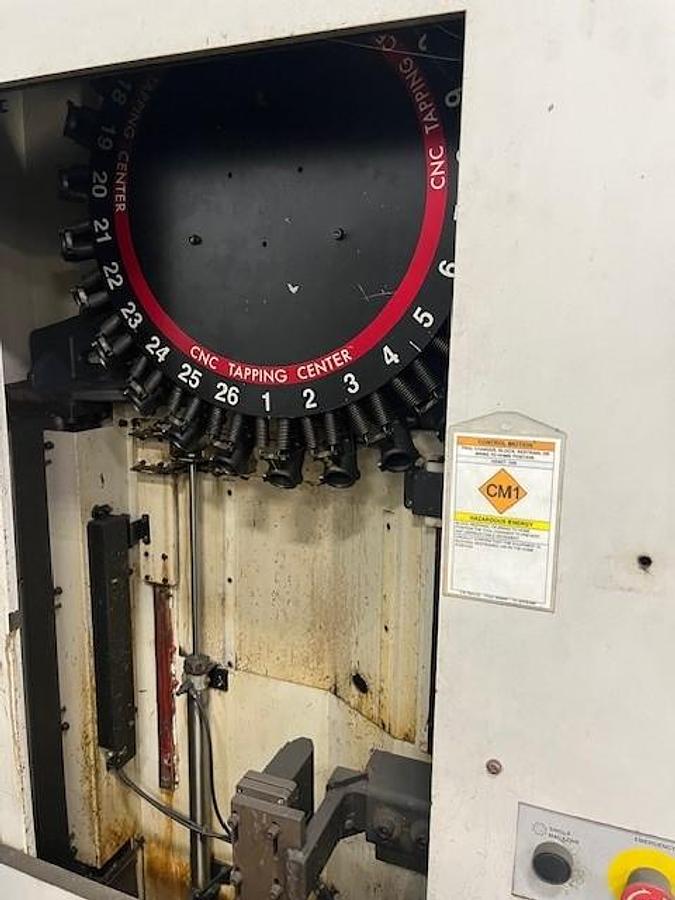

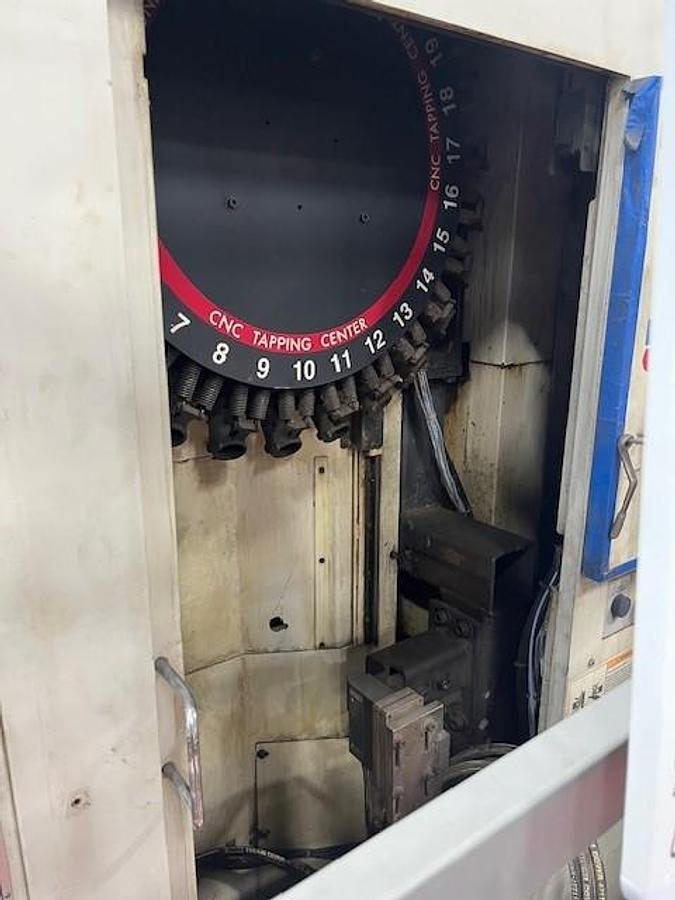

• Tool Changer: 26-tool automatic tool changer (ATC)
• Rapid Traverse: 1968 IPM (50 meters per minute)
• Cutting Feed: 787 IPM (20 meters per minute)
• Approximate Machine Dimensions: 130" x 70" x 93" (3.26 x 1.75 x 2.35 meters)
• Approximate Machine Weight: 7,700 lbs (3,500 kg)

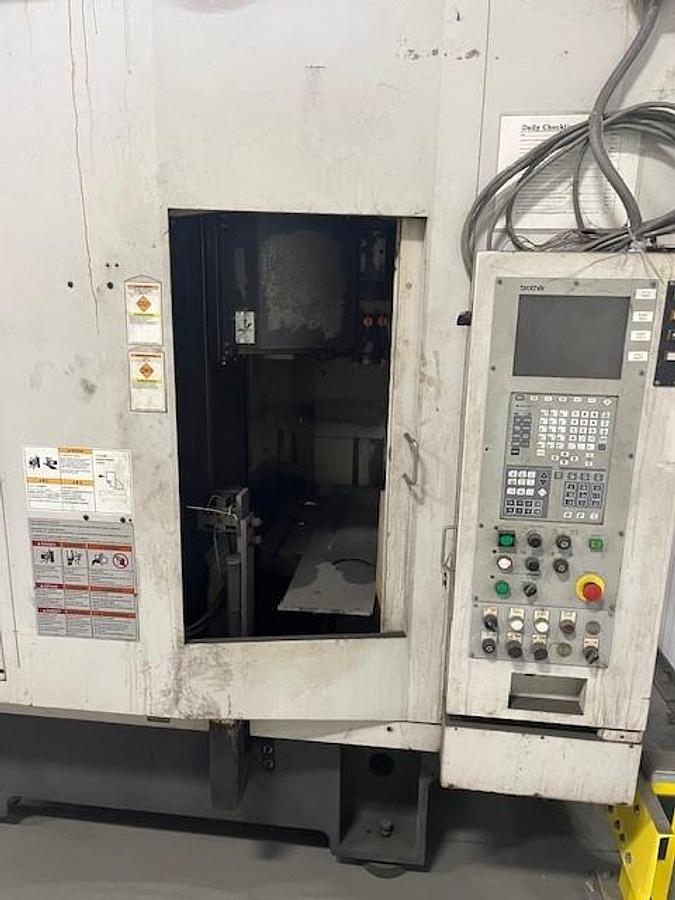

• Control: Brother CNC-A00 control system
• Coolant: Includes an external coolant filtering system
