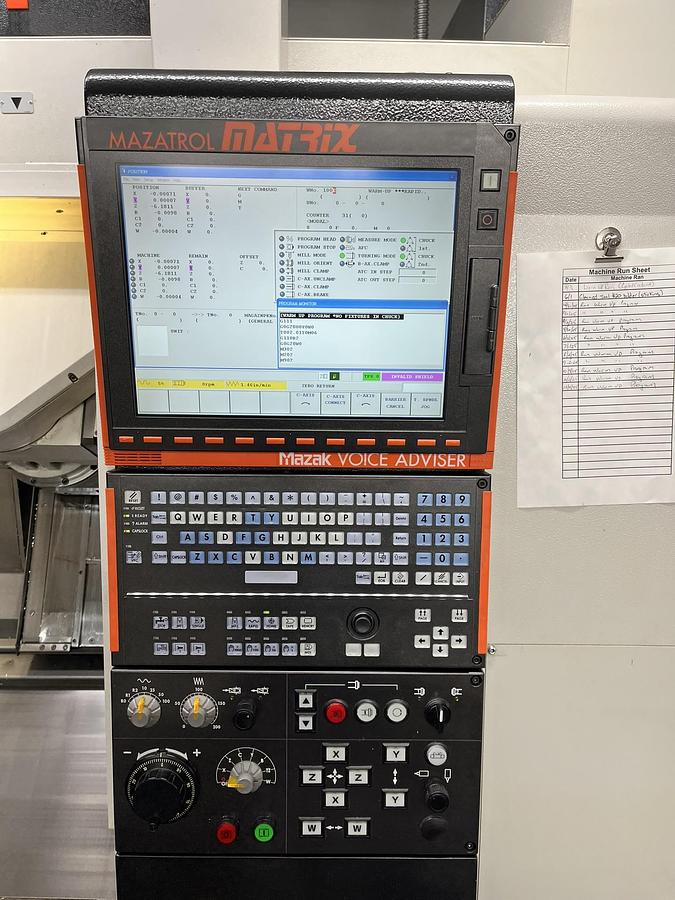

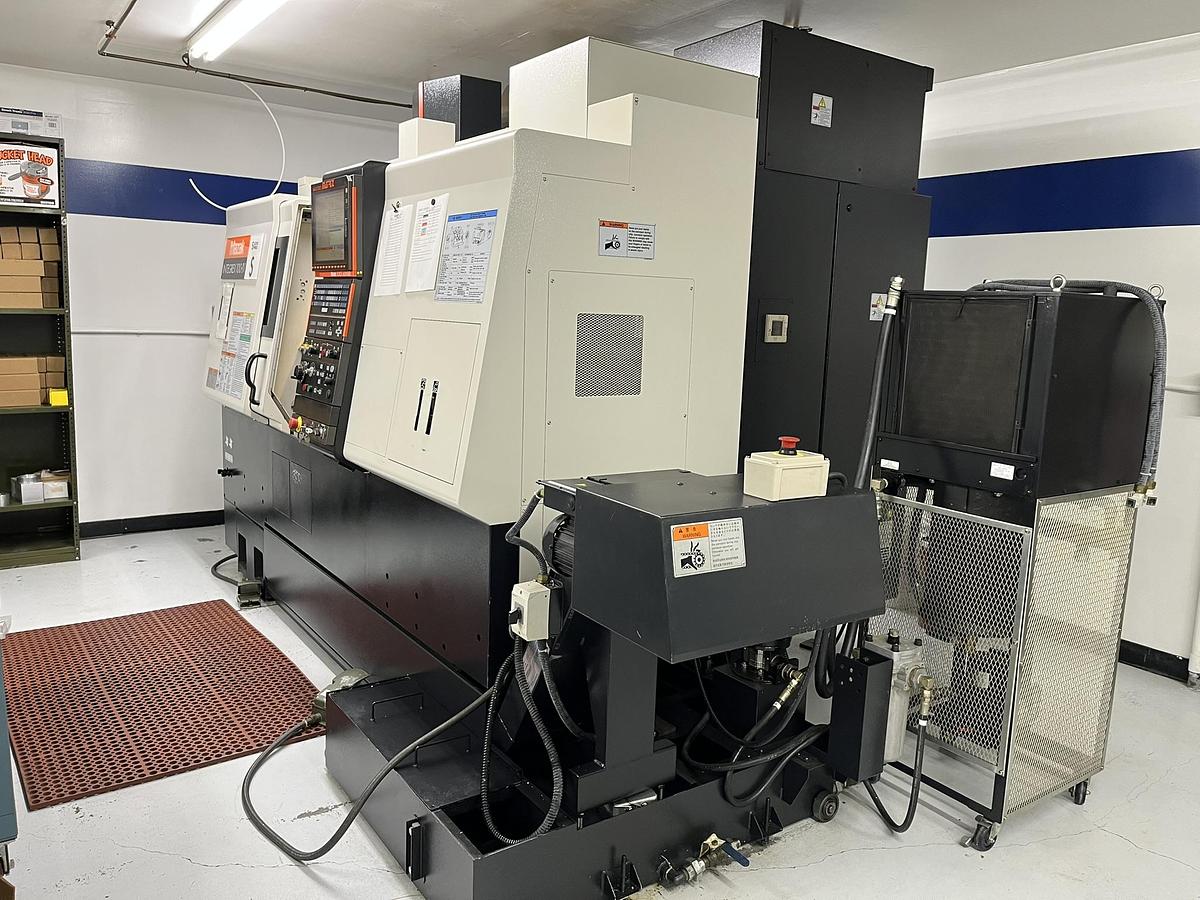

2005 Mazak Integrex 100-IVS Multi-Axis Horizontal CNC Machining Center, Mazatrol Control

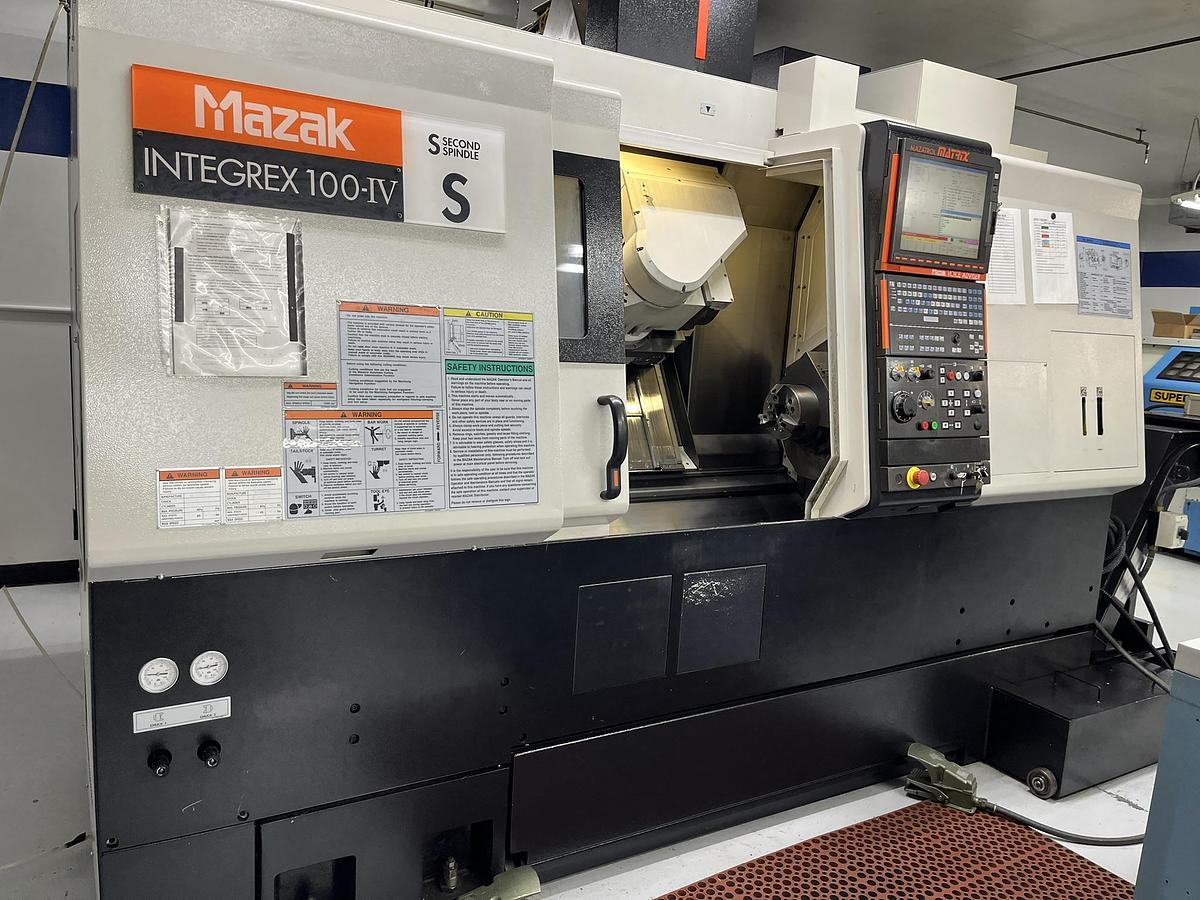

Mazak Integrex Multi-Axis Horizontal CNC Machining Center

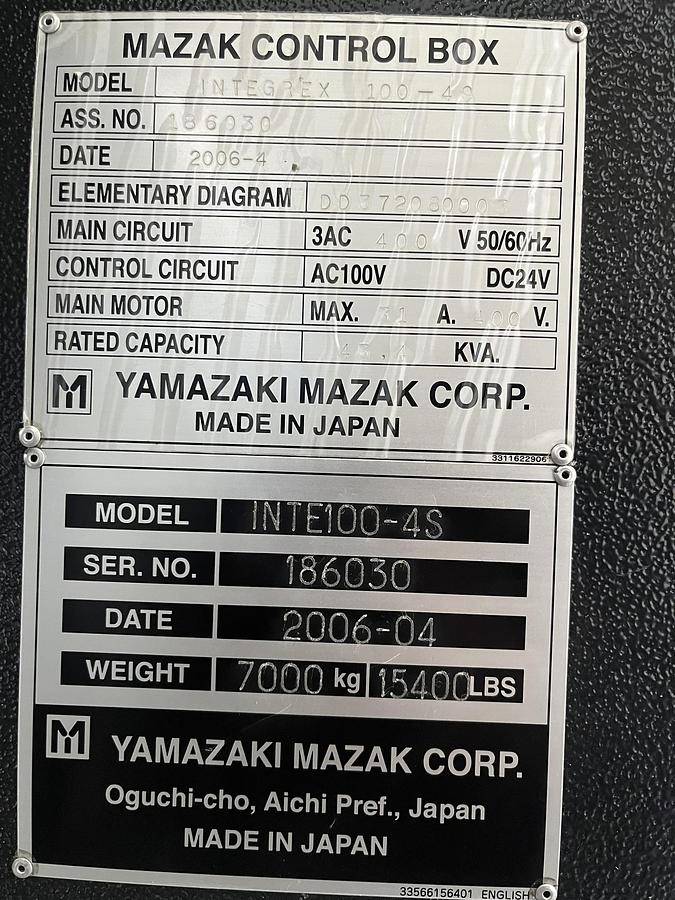

Model #: Integrex 100-IVS

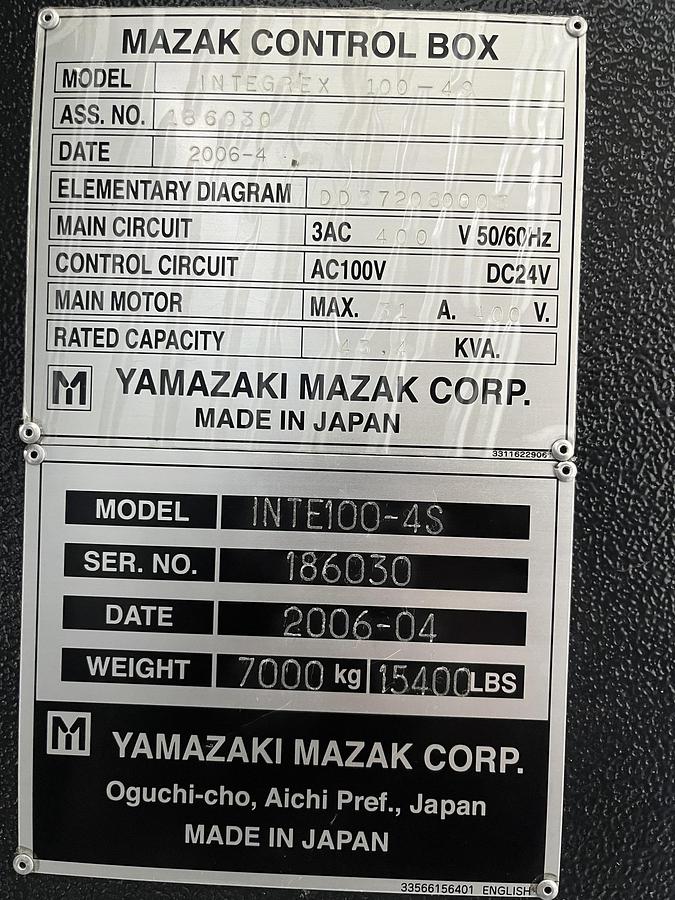

S/N: 186030

Year: 2005

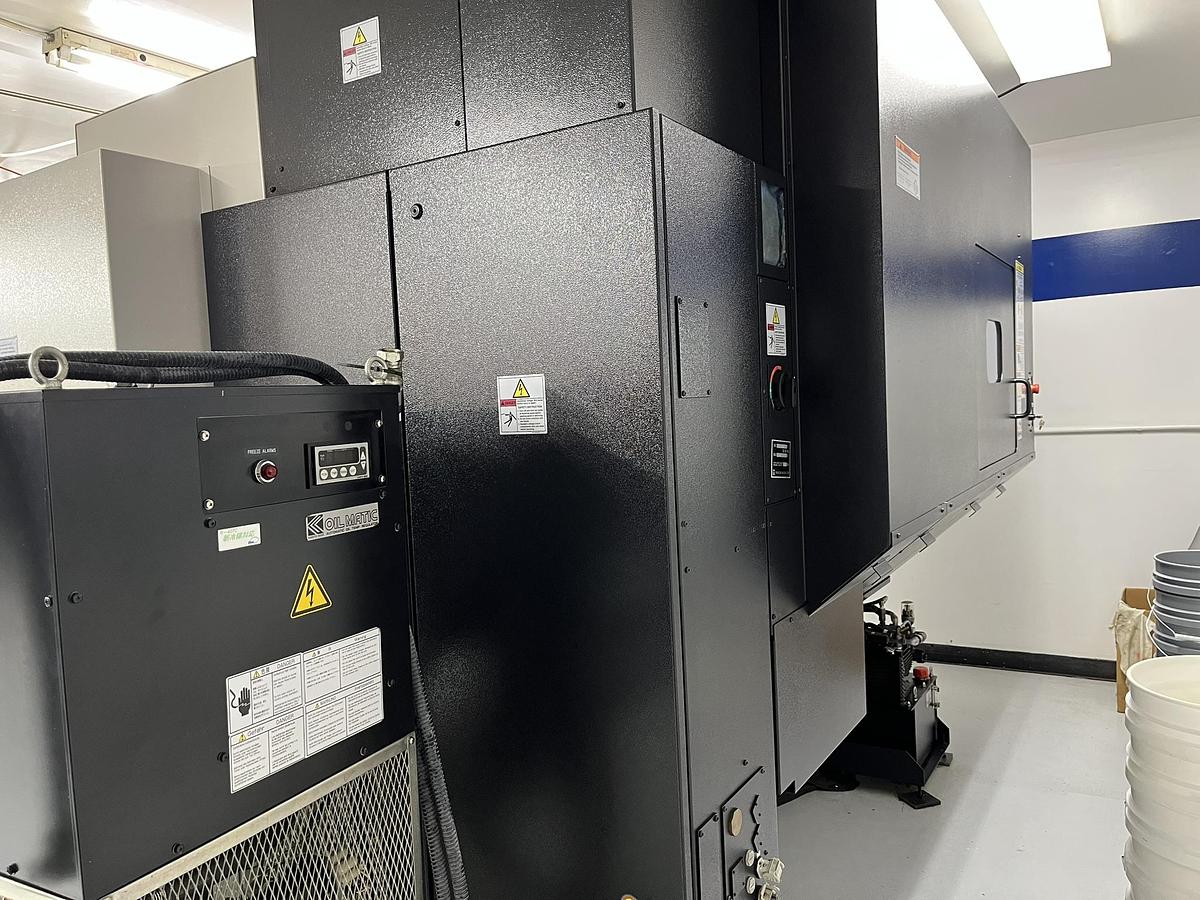

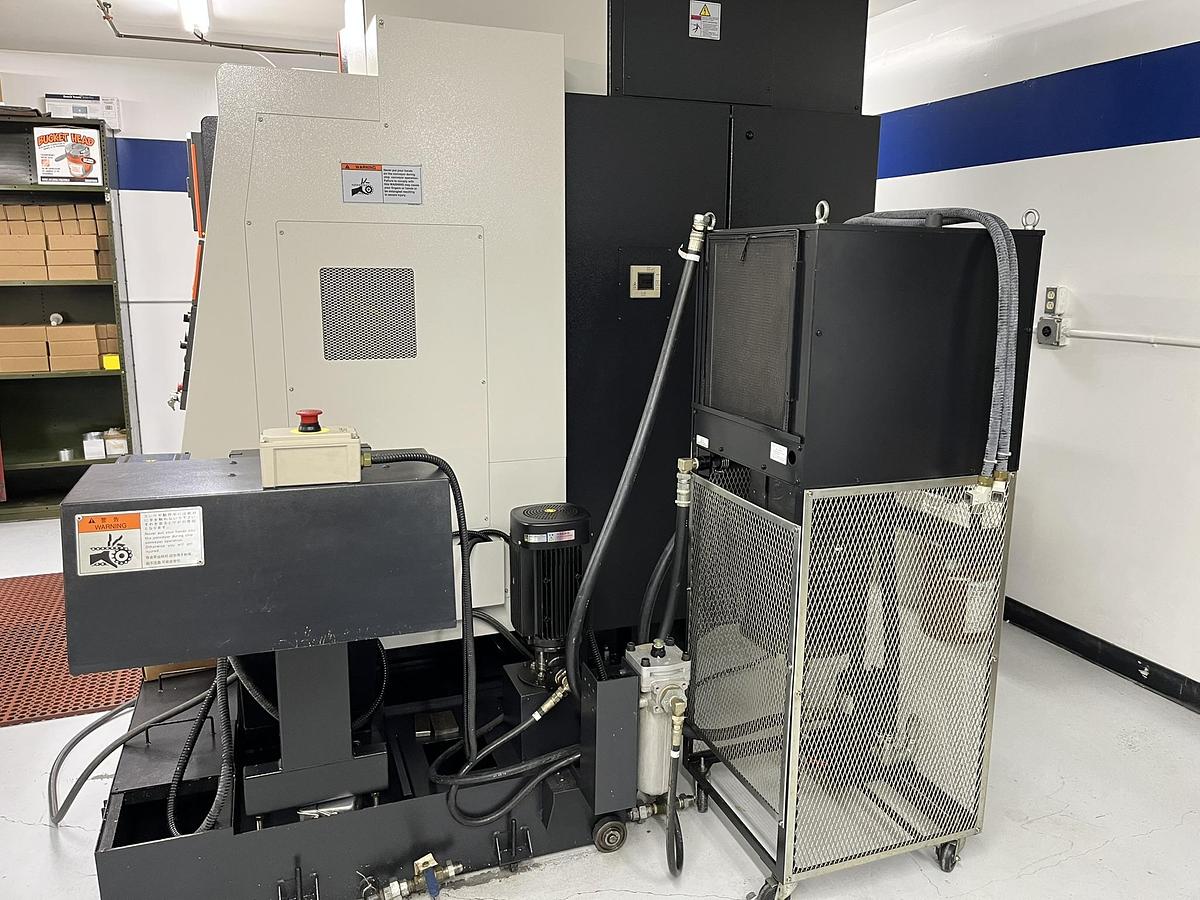

In great operating condition. Includes chip conveyor, coolant chiller, all manuals. Tooling is available at an extra cost. This machine requires special KM63 - XMZ tool holders. Used for manufacturing aluminum pistons.

Specifications: 12,000 RPM, 7.5 hp, 36.2 ft-lbs Milling Spinle

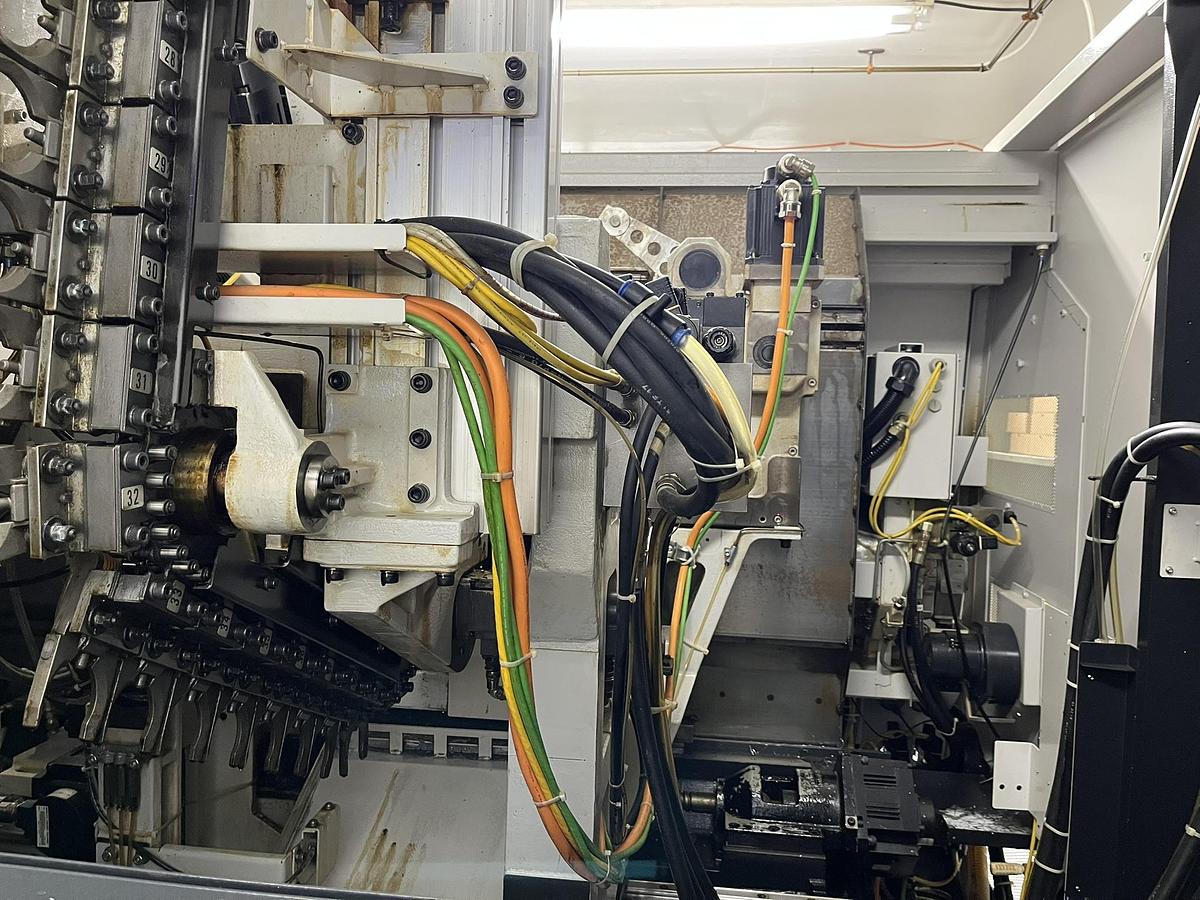

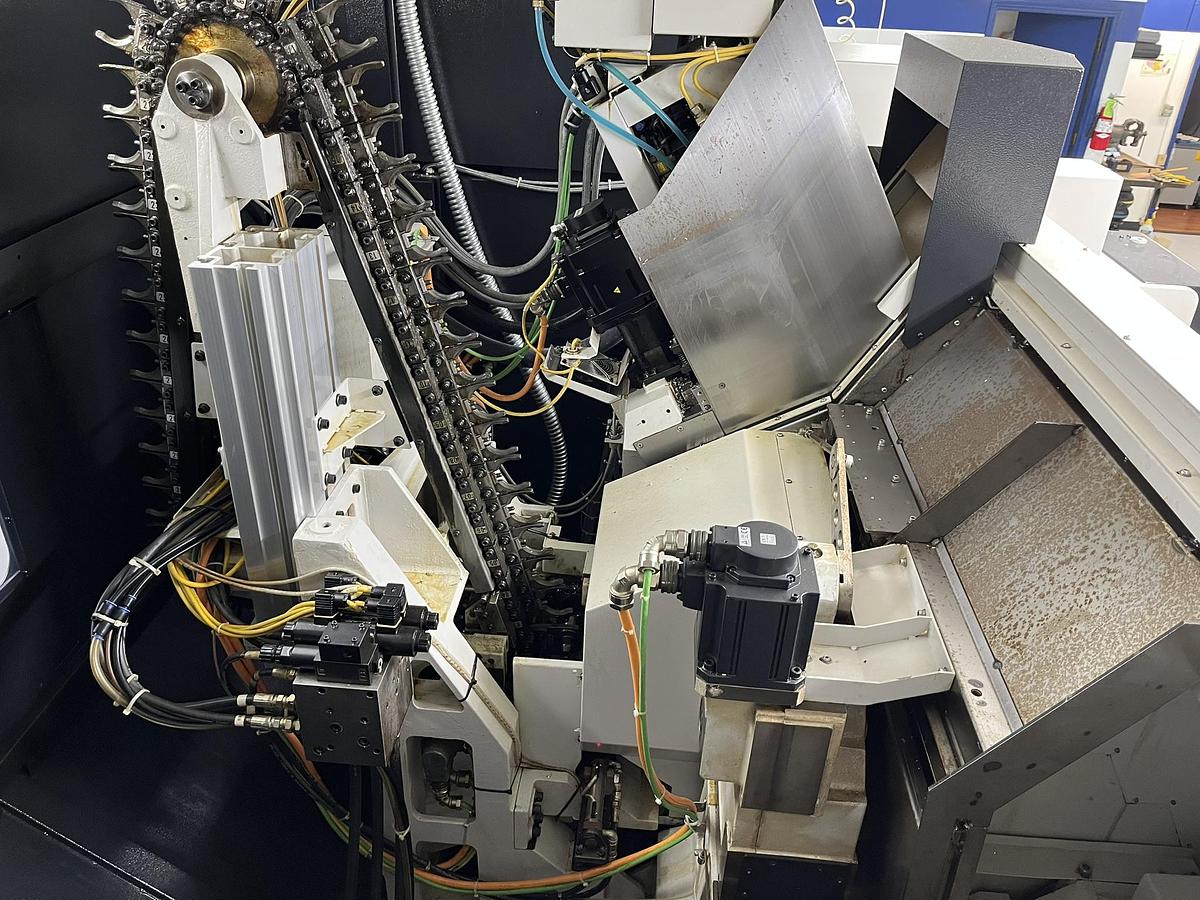

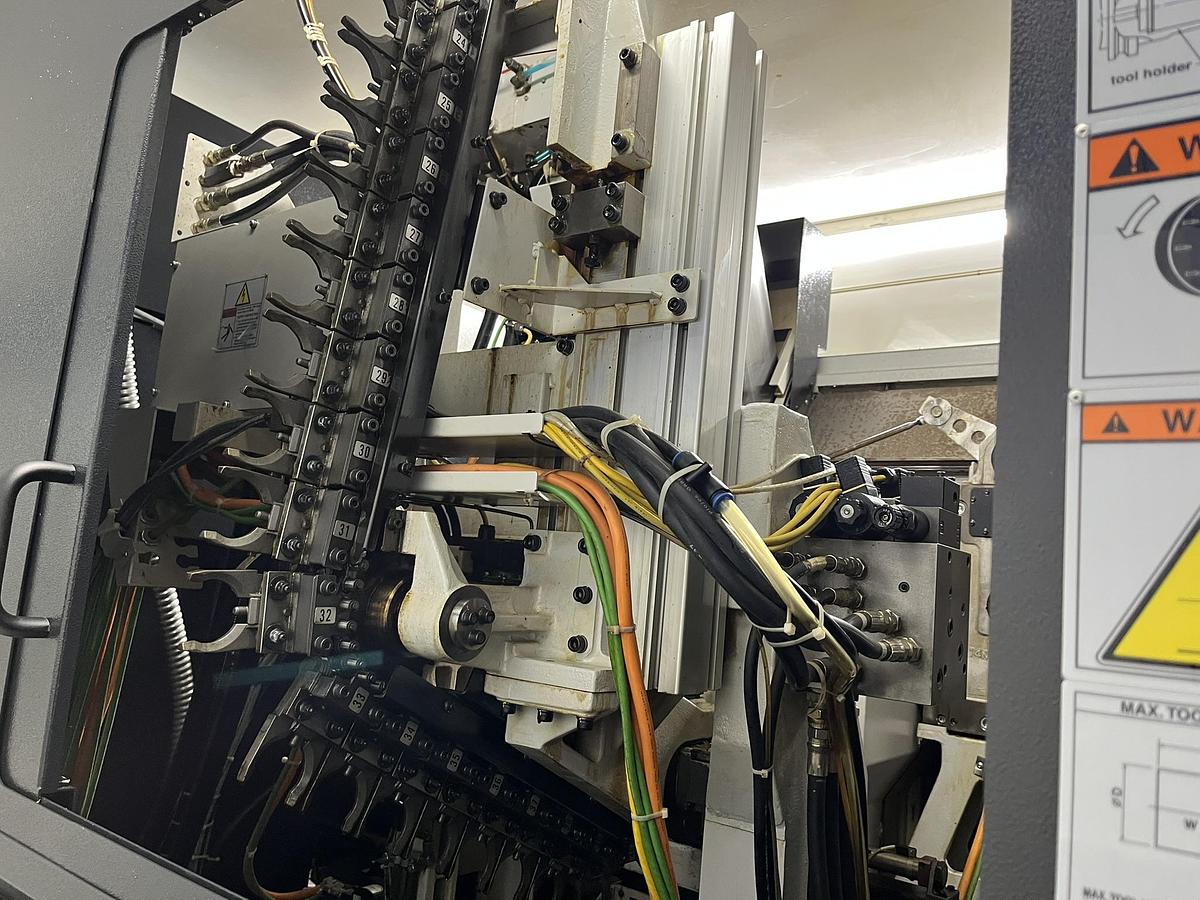

40 Tool Magazine

Y Axis: +/- 2.75"

X Axis: 16.14''

Z Axis: 31.69''

W Axis: 31.3''

B Axis: 225°

Machine Size 119" long x 85" wide x 96" tall

Machine Weight 16,300 lbs

Power Required is 32.9 KVA (Machine is wired for 240v 3 phase)

Machine has 400v transformer installed

Air Required is 72 psi / 25 CFM

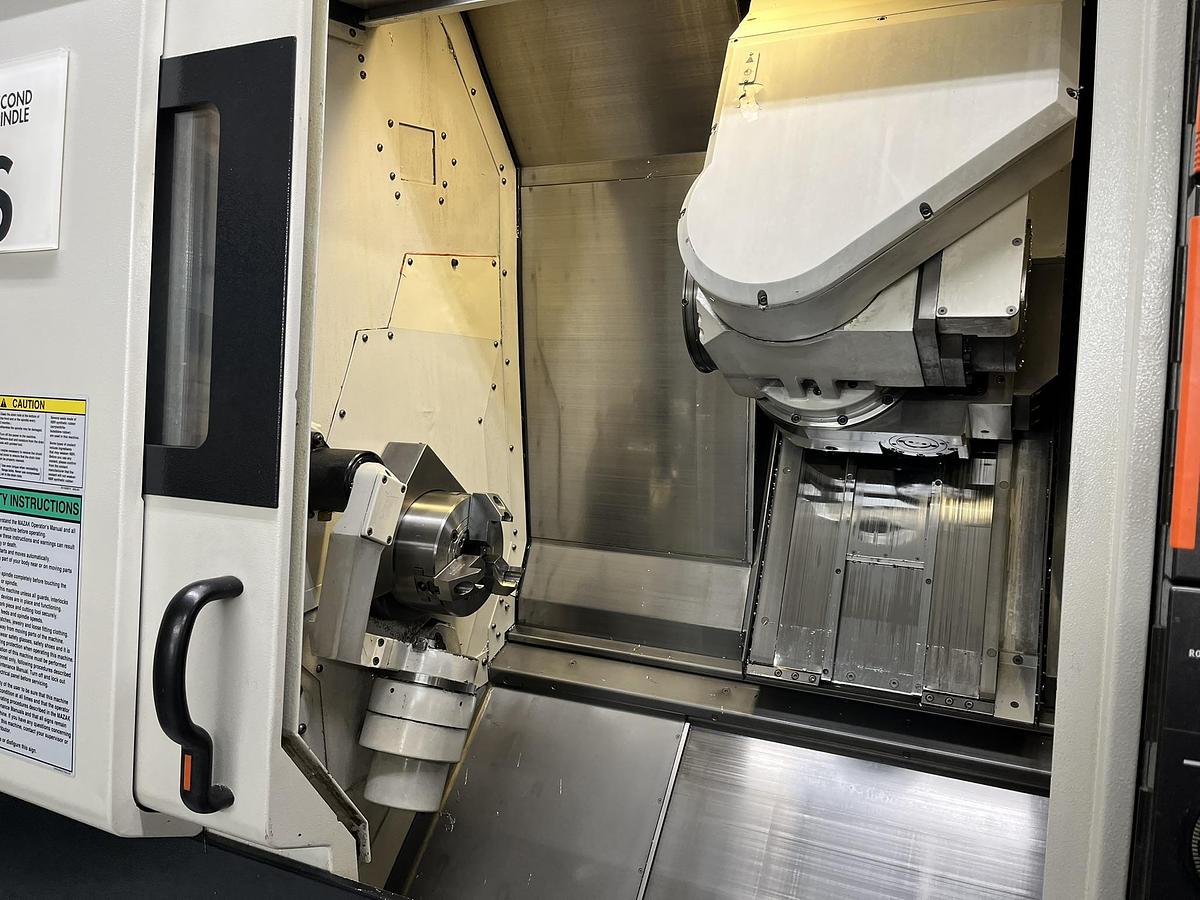

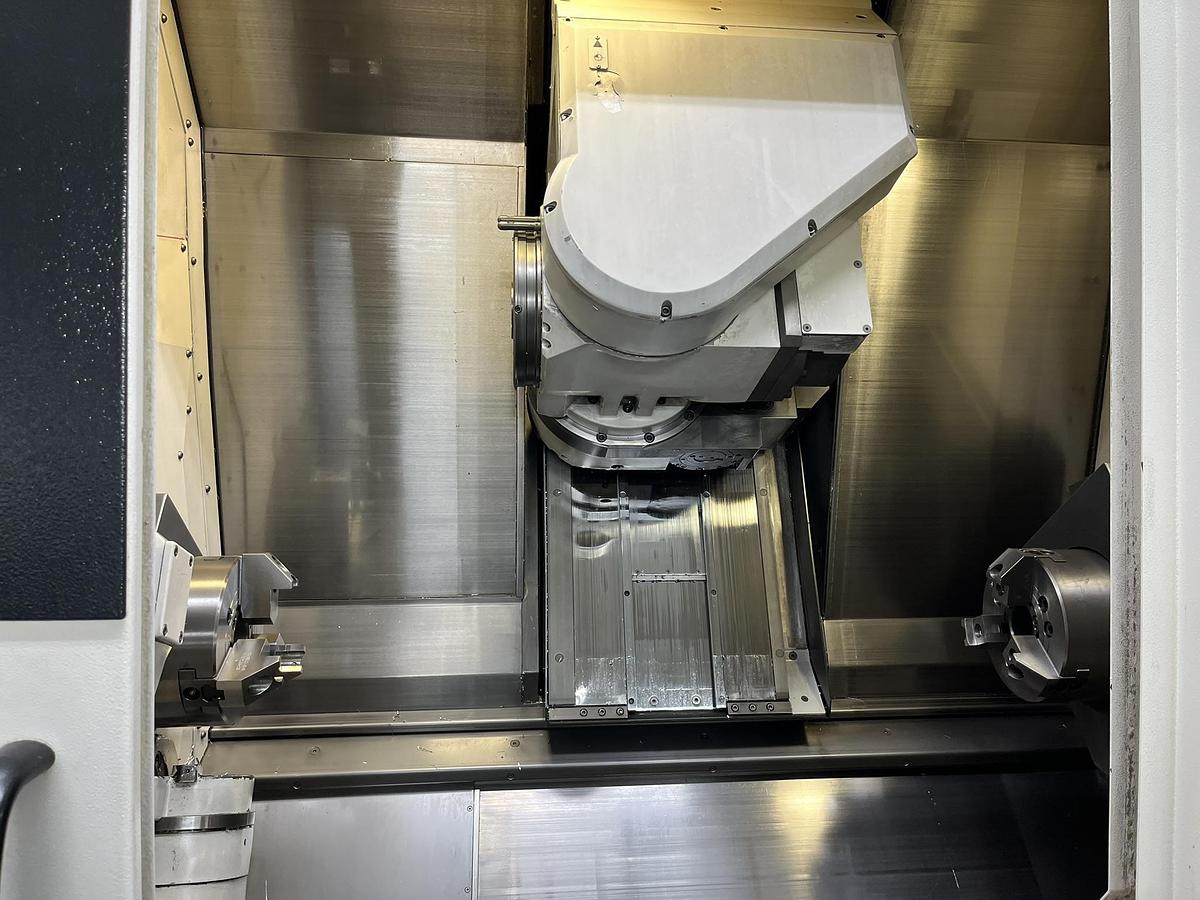

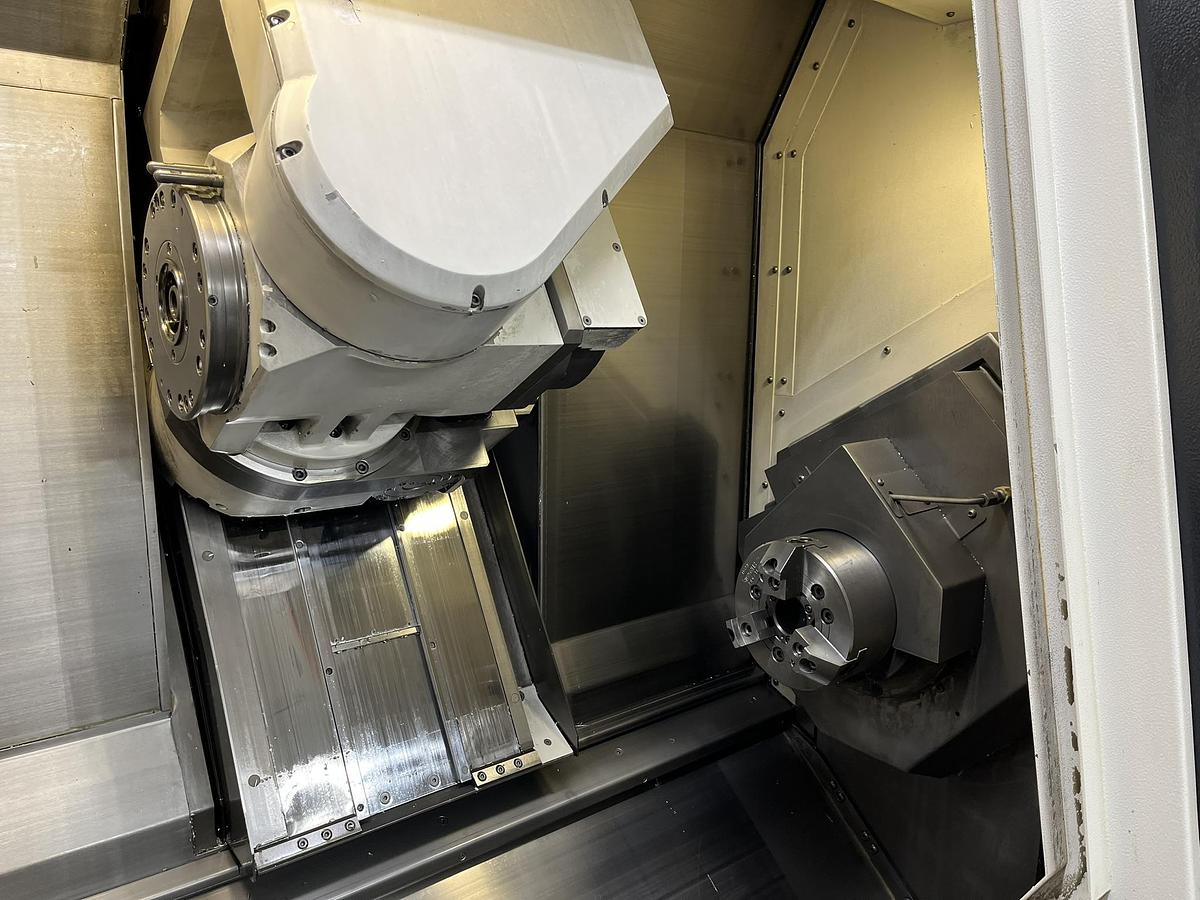

Primary & Secondary Spindles both have Kitigawa B206 chucks

Distance between chuck faces is 31.18"

Primary & Secondary Spindles both have C Axis capability

The control resolution is .00001" for linear axis and .0001° for angular axis
