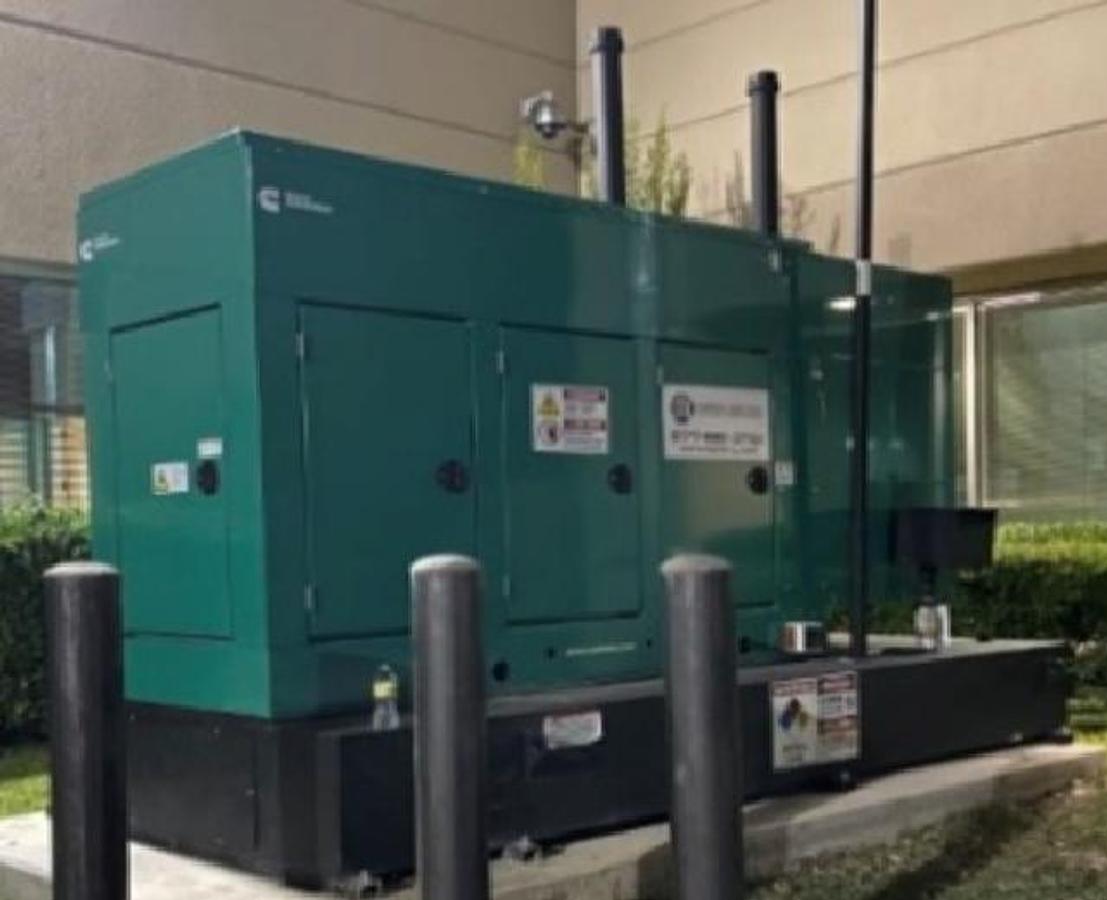

2021 Cummins 230kW DSHAD Diesel Generator Standby Genset & Fuel Tank 227/480V

Cummins 230kW DSHAD Diesel Generator Genset: Diesel,

60Hz, 230kW- Standby Rating

• Model: DSHAD 230kW

• Duty Rating: Standby Power

• Listing: UL 2200

• Emissions: Cert, EPA, Tier 2, NSPS Compression Ignition, stationary emergency

• Enclosure: Sound Attenuated Level 1 w/Exhaust System

• Fuel Tank: Subbase, 526 Gallon, UL142

• Estimated Generator Runtime Estimate at 90% Fuel Fill 473 Gallons= @ 125KW Load = 52Hrs/ 2 days

• Fuel Tank Spill / Fill Box: 5 gallons

• Fuel Tank Vent Extensions

• Voltage: o 277/480V, 3 Phase, Wye, 4 Wire

• Alternator: 60 Hz, 12 Lead Broad Range, 125/105°C

• Set Control: PCC 2.3

• Display: Control LCD

• Circuit Breaker: o At 480V = 400A, 3-Pole, UL 600, IEC 690, 80%

• Separator: Fuel/Water • Engine Cooling: Radiator, 50°C Ambient

• Coolant Heater: 208/240/480V, Below 40°F Ambient o Auto shutdown at low cooling level

• Engine Air Cleaner: Normal Duty • Remote Annunciator: RS485

• Batteries

• Battery Charger: Regulated 12A

Low Hour Unit - Started for Maintenance Purposes but Never Needed for Outages

Installed in 2022
