MPM Micro Prazision Marx GmbH Balancer Model #: 3.BMT200-1-S50

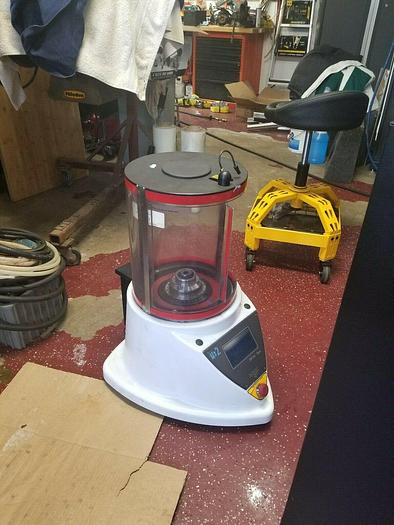

MPM 3.BMT200-1-S50 Vertical Balancer

Model: 3.BMT200-1-S50 | Type: Vertical Precision Balancer | Condition: Used - Excellent Base Unit

Precision Balancing Platform

This MPM 3.BMT200-1-S50 is a professional, German-engineered vertical balancing station designed for high-speed tool holders, grinding wheels, and small rotors. Known for its extreme sensitivity, this unit can detect unbalance as small as < 0.1 grams, ensuring your CNC spindles run smoothly at maximum RPM.

Note on Tooling: This listing is for the balancer base unit and electronics only. No tool adapters or clamping sets are included. This provides an ideal opportunity for a shop to acquire a high-end MPM frame and source only the specific adapters (SK, HSK, or BT) required for their unique production environment.

Technical Specifications

• Balancing Accuracy: < 0.1 gram.
• Weight Capacity: Up to 10 kg (22 lbs).
•

• Max Workpiece Diameter: Approx. 270 mm (10.6").
• Max Workpiece Length: Approx. 400 mm (15.7").
• Balancing Plane: 1-Plane (Static).
• Unbalance Reduction Ratio: Approx. 95%.

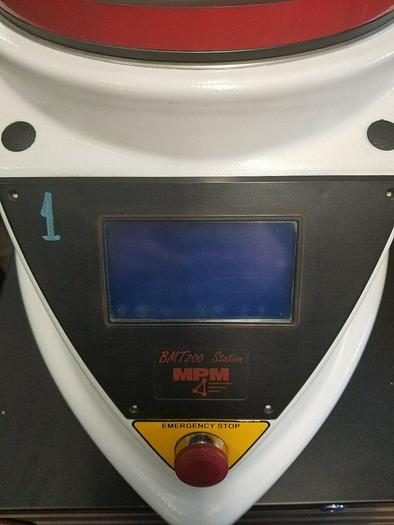

• Interface: Features the standard MPM keypad with Quickstart keys for intuitive operation.

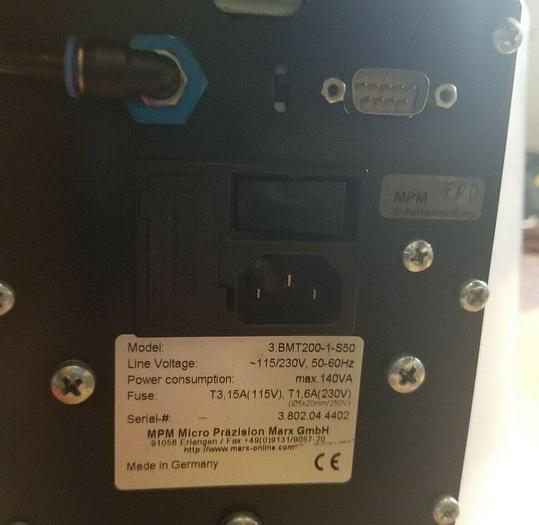

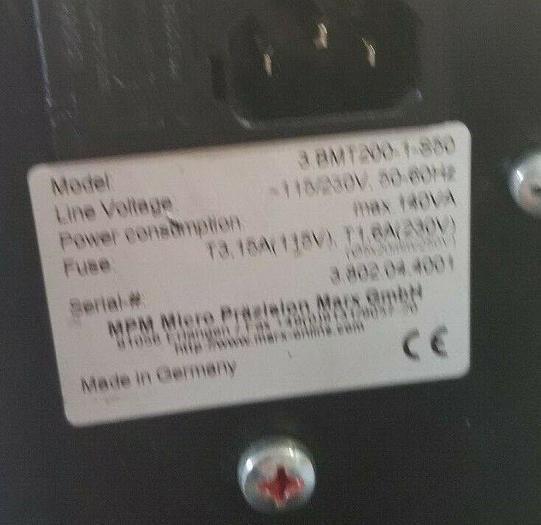

• Electrical: 115/230V, 50-60Hz Single Phase.

Key Features

• German Engineering: Built by Micro Präzision Marx GmbH for long-term industrial reliability and repeatability.
• Flexible Correction Methods: Supports unbalance correction via gram, degree, spread angle, and radial/axial drilling or milling.

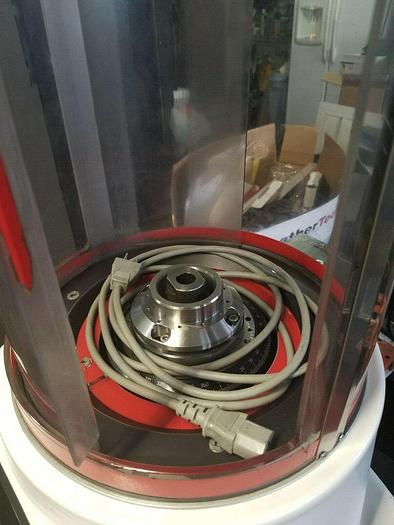

• Universal Spindle Base: The S50 spindle is a versatile foundation that accepts a wide range of MPM’s precision clamping adapters.
