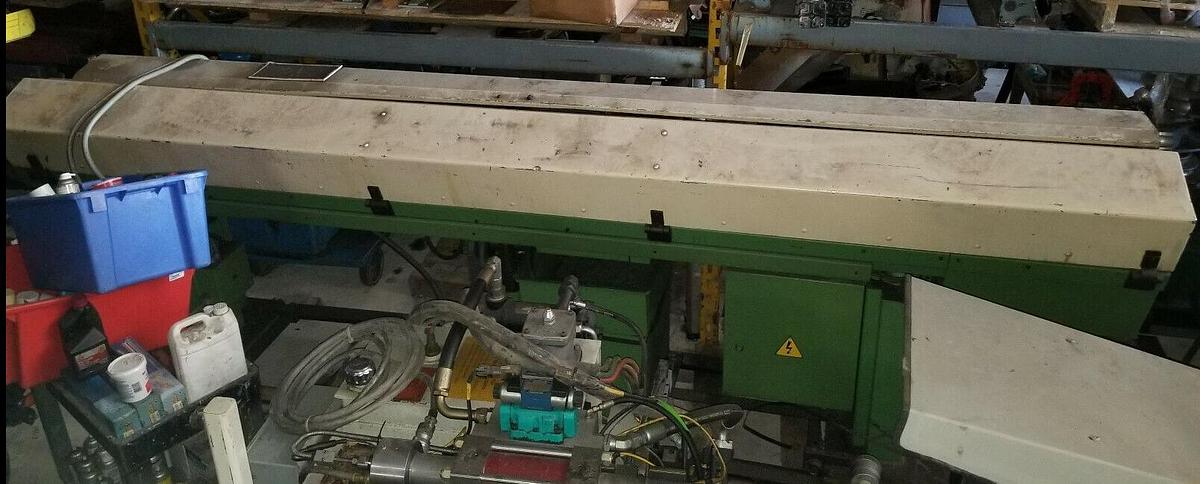

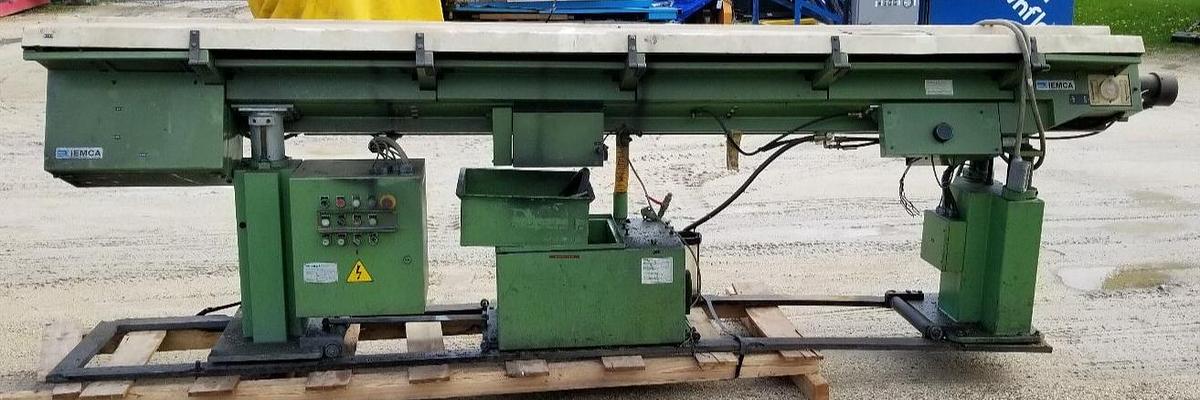

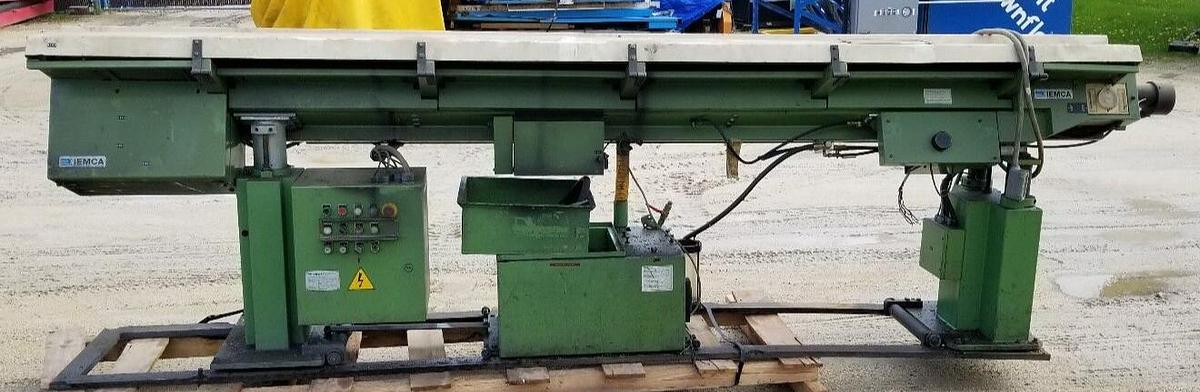

Iemca TAL/AUT 65/38 | 12' Multiple Bar Feeder | 1994 | S/N 94062624 | 230V 3PH

Iemca TAL/AUT 65/38 Automated Multiple-Bar Feeder | 12' Capacity

Heavy-Duty 65mm Capacity | 230V 3-Phase | S/N: 94062624

Available for sale is a professional-grade Iemca TAL/AUT 65/38 automated multiple-bar feeder. Manufactured in June 1994, this 12-foot capacity loader is a robust solution for high-volume CNC turning environments. Unlike modern short-loaders, this unit handles full-length bars, significantly reducing material prep time and maximizing the unattended run-time of your lathe.

Technical Specifications

• Model: TAL/AUT 65/38
• Year of Manufacture: 1994
• Serial Number: 94062624
• Bar Diameter Capacity: 5mm to 65mm (3/16" to 2-9/16")
• Maximum Bar Length: 12 Feet (3800mm)
• Magazine Width: 300mm (11.82") working width for multiple bar storage
• Electrical: 230V / 3-Phase / 60Hz (7 Amps)
• Approximate Weight: 3,000 lbs
• Dimensions: Approx. 168" L x 60" W x 26" H

Key Features & Performance

• Full 12-Foot Magazine: Designed for shops running full-length stock to minimize scrap loss and operator intervention.
• Hydrodynamic Lubrication: Features Iemca’s specialized guide channel lubrication system, which reduces friction and vibration, allowing for higher spindle speeds and better surface finishes.
• Automatic Multi-Bar Loading: The automated magazine system allows the machine to load the next bar stock into the lathe without stopping production.
• Heavy-Duty Rigidity: Built with the "heavy iron" frame common to 90s-era Iemca machines, offering superior stability compared to lighter modern alternatives.
• Wide Application Range: Capable of feeding everything from small rods up to heavy 2.5" diameter industrial bar stock.

Condition & Logistics

This unit was recently removed from a professional manufacturing facility and is in good physical condition for its age.
