CM Chisholm-Moore 5815 Meteor 1.5 Ton Electric Wire Rope Hoist 460V 2015 Monitor

2015 CM Chisholm-Moore 5815 | 1-1/2 Ton Electric Wire Rope Hoist

OVERVIEW

This is a professional-grade 2015 CM Chisholm-Moore Meteor (Model 5815). Engineered for severe-duty industrial use, this 1-1/2 Ton (3,000 lb) wire rope hoist offers superior smoothness and precision compared to standard chain hoists. It is specifically designed for high-cycle environments like CNC machine loading, steel fabrication, and assembly lines.

TECHNICAL SPECIFICATIONS

• Manufacturer: CM Chisholm-Moore (Columbus McKinnon)
• Model / Series: 5815 / Meteor

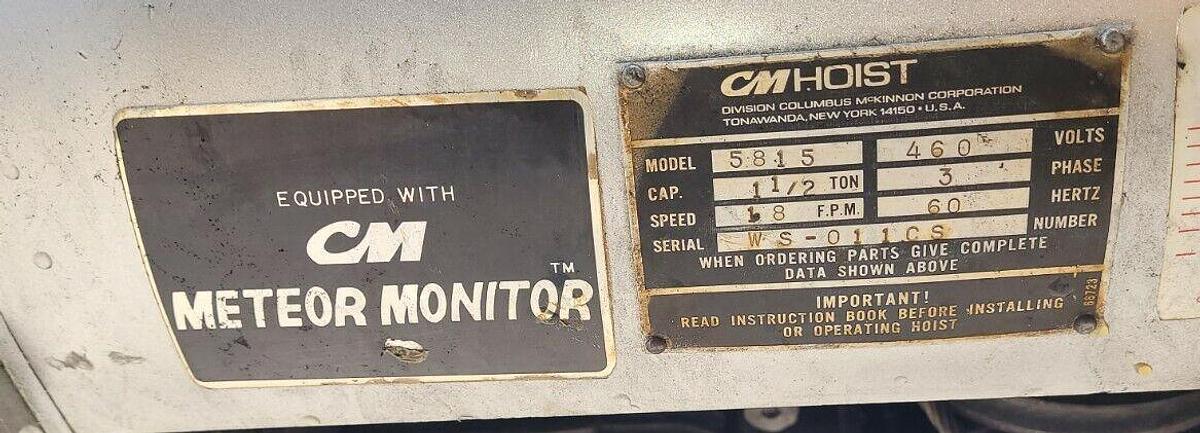

• Serial Number: WS-011CS (Manufactured: Sept 2015)
• Capacity: 1-1/2 Ton (3,000 lbs)
• Lift Height: 20 Feet
• Lifting Speed: 18 FPM (High Productivity)
• Power: 460V | 3-Phase | 60 Hz
• Medium: 1/4" Industrial Wire Rope (Cable)

KEY FEATURES

• METEOR MONITOR™ DIAGNOSTICS: Includes a factory-integrated digital diagnostic system that tracks motor starts, total running hours, and overload events. This "black box" technology ensures transparent maintenance and maximum safety.
• PRECISION LIFTING: The wire rope drum design provides a stable, "swing-free" vertical lift. This is the gold standard for shops requiring exact placement of heavy dies or machined parts.
• H4 HEAVY-DUTY RATING: Built for continuous production. The motor and drivetrain are designed to handle rigorous duty cycles without overheating.
• DUAL-BRAKING SYSTEM: Equipped with both an AC magnetic motor brake and a mechanical load brake for redundant fail-safe protection.
• QUIET DRIVETRAIN: Features precision-ground helical gears operating in a continuous oil bath for cool, quiet, and long-lasting operation.
• According to data tag and serial decoding it determined this was a 2015-year model hoist. Specs subject to buyer inspection.
