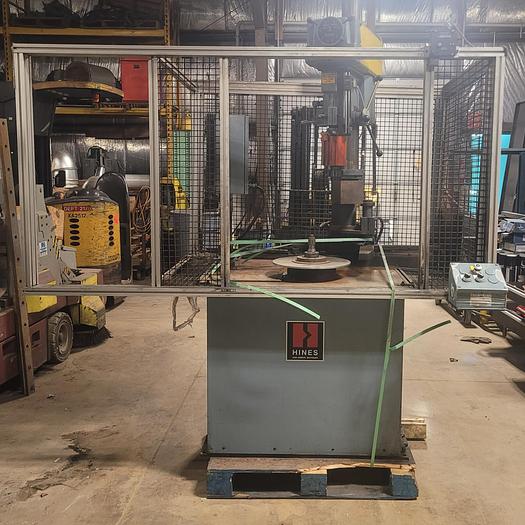

Hines HVR100 Automated Vertical Balancer w/Clausing 20'' Drill Head

Hines Automated Vertical Balancer

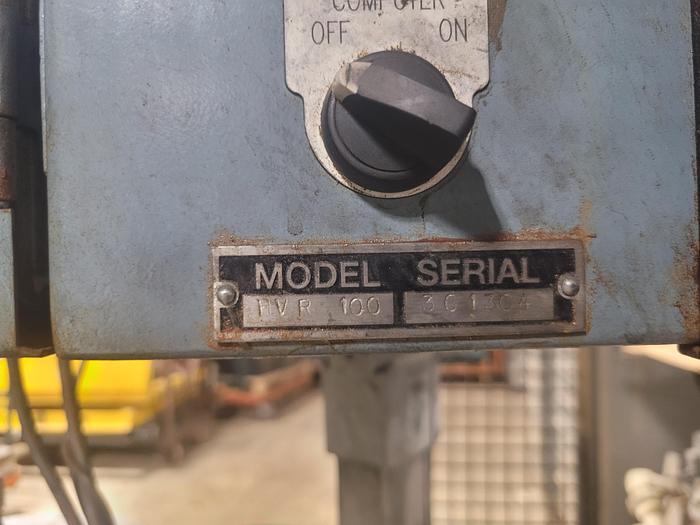

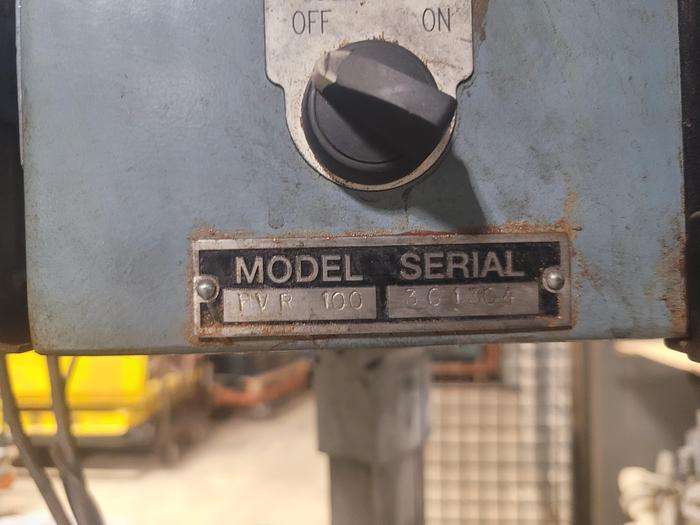

Model #: HVR100

S/N: 3C1304

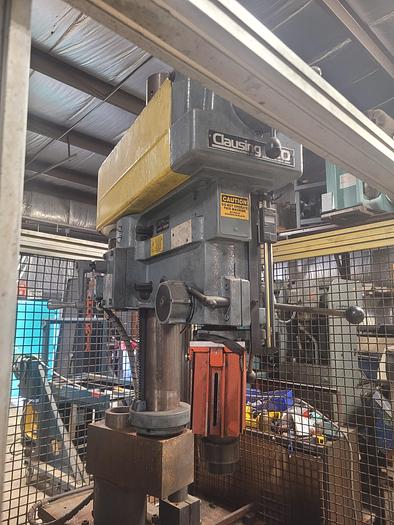

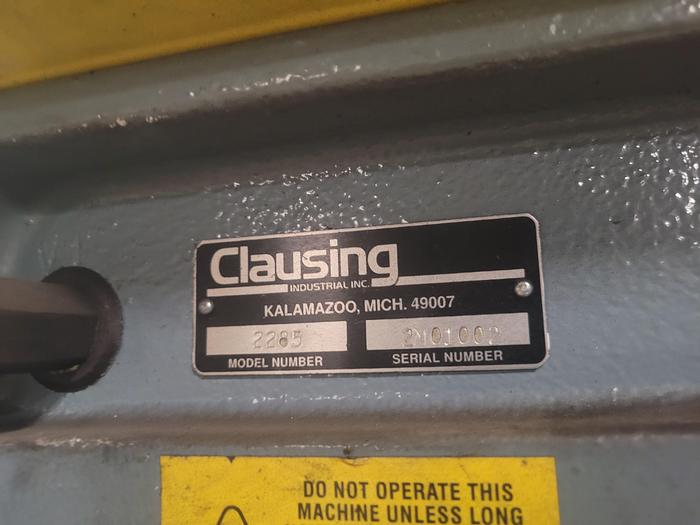

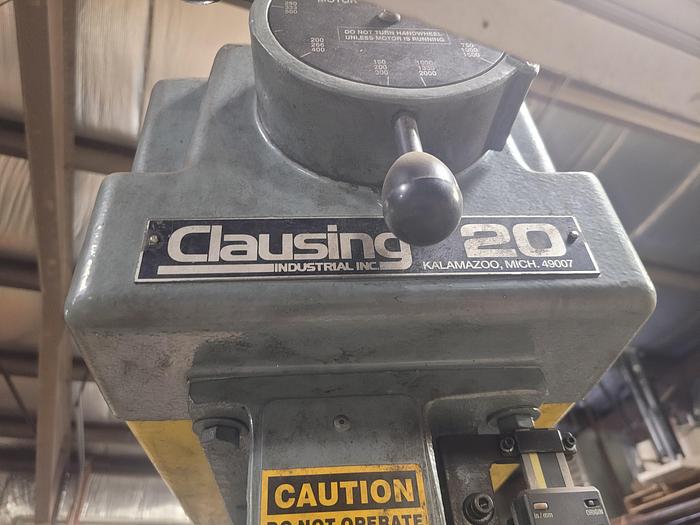

Clausing 20'' Vertical Drill Head

Model #: 2285

S/N: 2M01002

Variable Speed

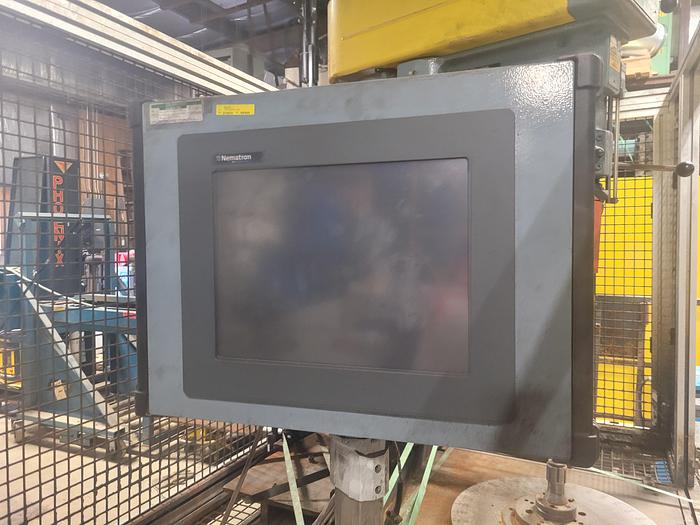

Nematron Display

Machine Base:

Base: 30" x 40" x 35"

Suspension:

Type: "Hard" vertical rotating (dynamic)

Measuring Planes: Single Plane (force / static)

Angle Ring: 16" marked 0 to 360

Drive:

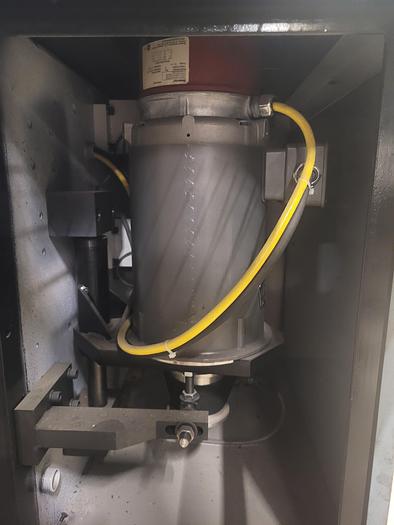

Motor Description: 2 hp, AC motor

Balancing Speed: (approximate) 420 rpm

Braking: dynamic

Machine Capacity:

Weight Capacity: 100 lbs. 4

Maximum diameter: 34"

Specifications:

Balance Repeatability: +/-0.01 oz.in +/-0.7 gm.cm.

Machine Sensitivity: 0.000,010 inches mass to geometric center

Floor Space Required: 4 ft. x 4 ft. 1.2 m x 1.2 m

Power: 440VAC/3ph/60Hz.

Balancer Paint Color: Hines slate blue
