Renishaw PH10M Motorized Probe Head PHC10-2 Controller HCU1

Renishaw PH10M Legacy System w/ PHC10-2 & HCU1

Model: PH10M | Controller: PHC10-2 | Hand Control: HCU1

System Features & Functions

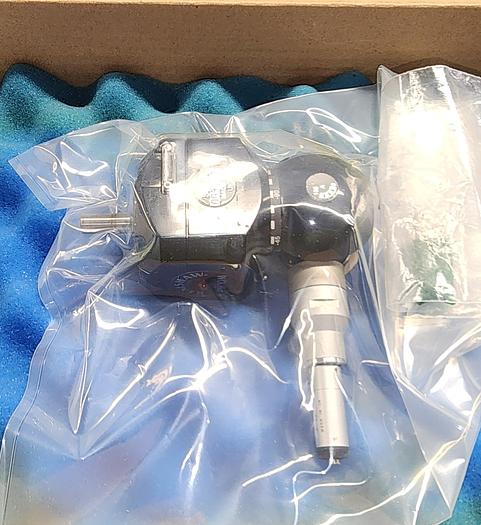

• Automated Indexing: The PH10M head provides 720 repeatable positions in 7.5° increments, allowing for complex part measurement without manual stylus changes.

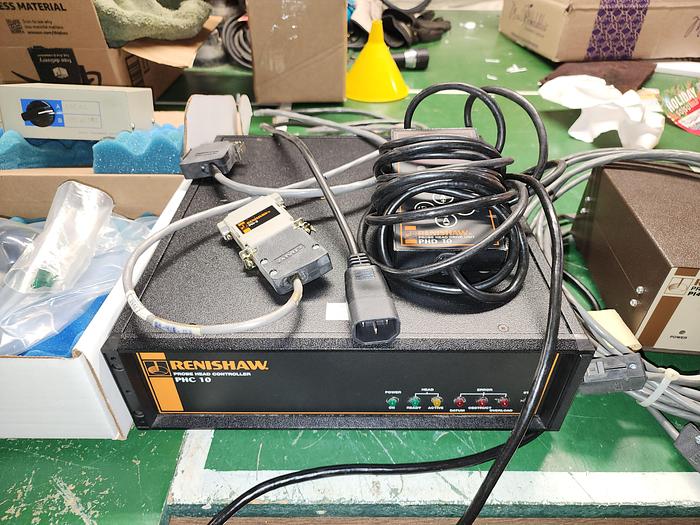

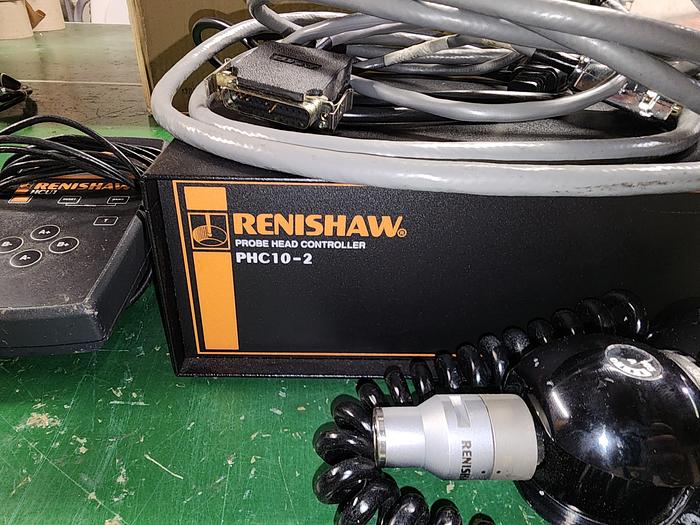

• PHC10-2 Controller: Acts as the "brain" of the system, receiving move instructions from the CMM or HCU1. It manages all head drive functions, reports positional data, and monitors for errors or obstructions.

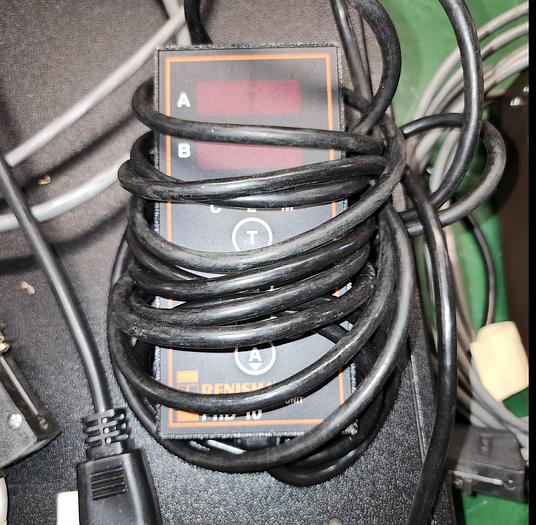

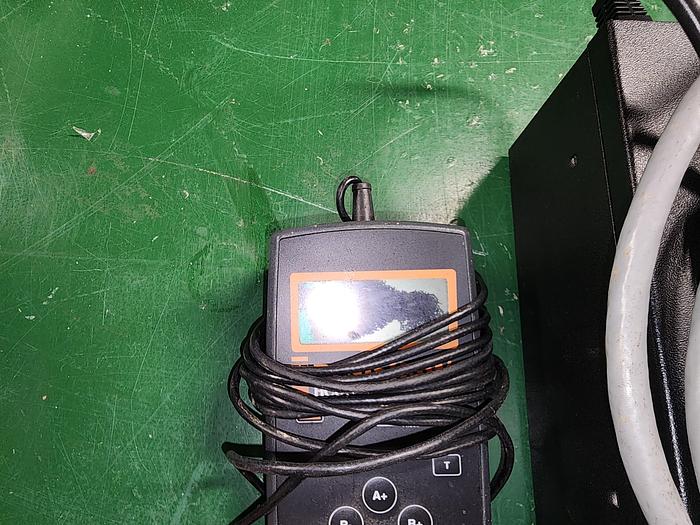

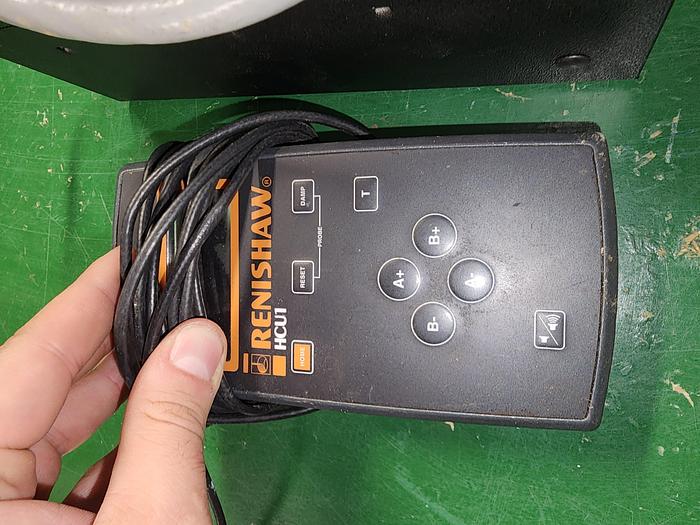

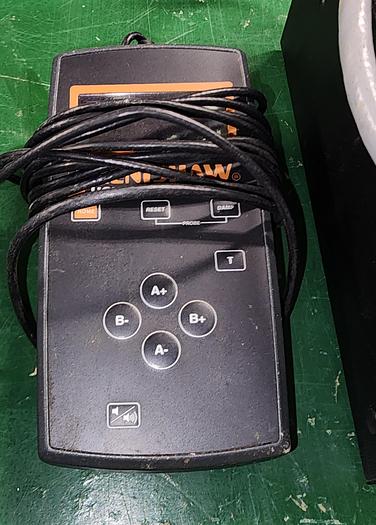

• HCU1 Hand Control Unit: Essential for manual part setup and teach-cycle programming. It features a 2-speed action (jog and rapid move) and an LCD screen for real-time status and error analysis.
• Multiwire Capability: Supports high-end probes such as the SP25M scanning probe and TP7M high-accuracy probe, transmitting signals directly through the head and controller.

Technical Specifications

• Repeatability: 0.4 µm (2σ) at a 62 mm radius
• Movement Range: A-axis (0° to 105°) | B-axis (±180°).

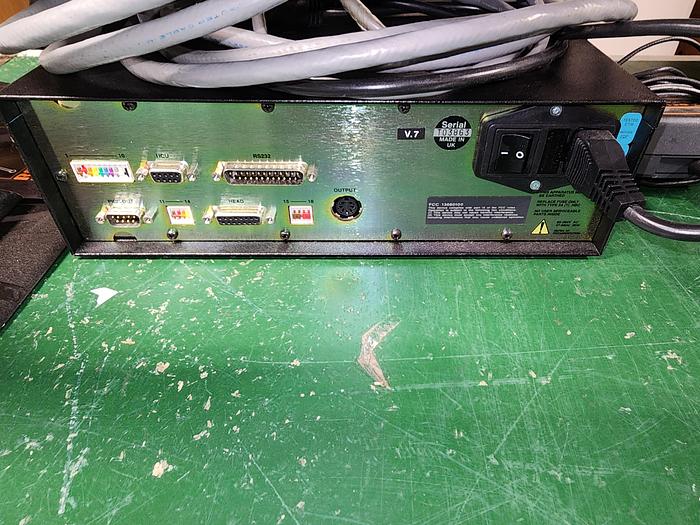

• Controller Interface: Supports RS232 or IEEE data transmission.
• Electrical: Universal auto-selecting power supply (85 V to 264 V).

Dealer Note for Listing

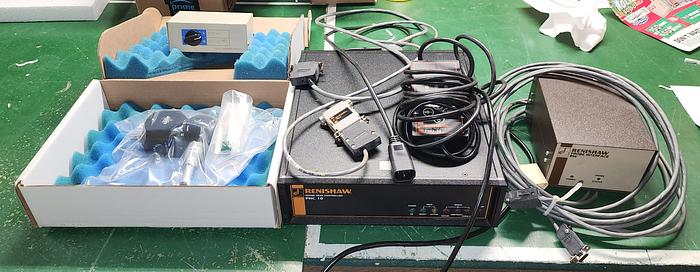

"This is a fully integrated legacy kit designed for seamless replacement or upgrade of existing CMM cells. The HCU1 allows for intuitive manual control, making it invaluable for initial setup or teaching new measurement routines. This system offers the proven reliability of Renishaw's classic architecture at a fraction of the cost of a new PH10 Plus system."
