2006 Hyster E65Z-40 Electric Forklift | Only 2,073 Hrs | 6500lb Cap | 193" Lift

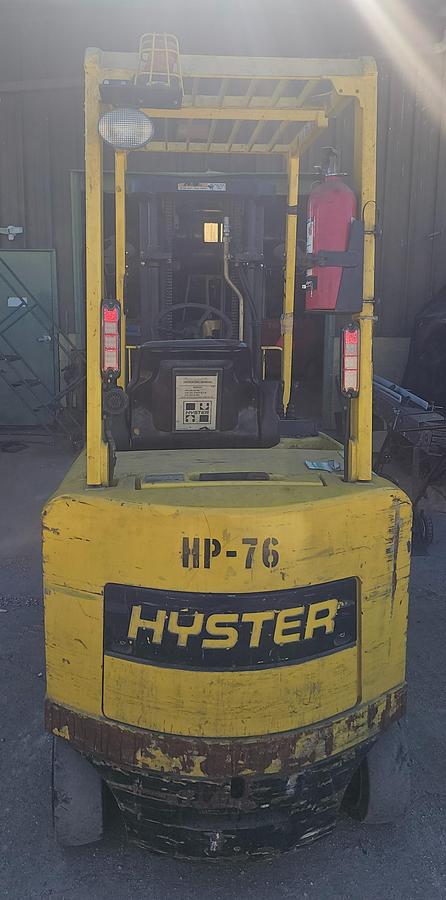

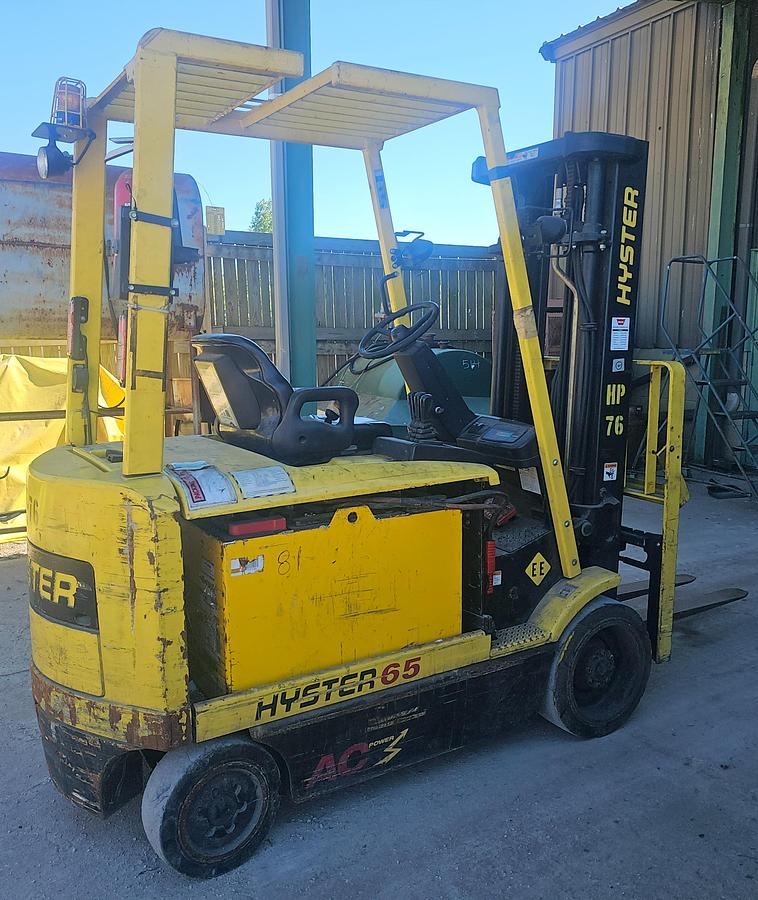

2006 Hyster E65Z-40 Electric Cushion Tire Forklift

Hours: 2,073 (Verified) | Capacity: 6,500 lbs | Power: 48V Electric

Professional Overview

The Hyster E65Z-40 is engineered for high-capacity indoor warehousing where space is at a premium but power is non-negotiable. This specific unit features a High-Visibility Triple-Stage Mast, providing a maximum lift height of 193.7" (approx. 16 feet) while maintaining a lowered height capable of clearing standard warehouse doors. Its 48-volt electrical system offers superior travel speeds and lifting torque compared to lighter 36V models, making it ideal for heavy-duty pallet handling and manufacturing support.

Technical Specifications

• Lift Capacity: 6,500 lbs @ 24" Load Center.

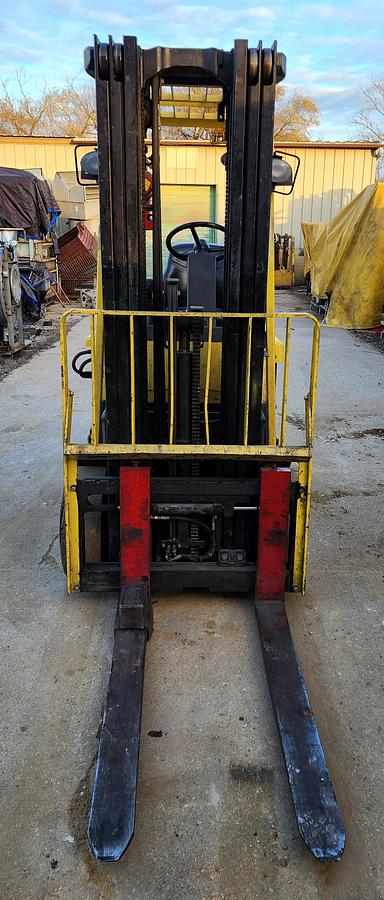

• Mast Type: 3-Stage "Hi-Vis" Triplex.
• Max Lift Height: 193.7 inches.
• Lowered Mast Height: Approx. 88 inches.
• Power: 48V Battery System (Industrial Grade).
• Tire Type: Smooth Cushion (Indoor/Finished Floor).
• Hour Meter: 2,073 Actual Hours.
• Included Accessories: Industrial 48V Battery Charger & Side-Shift Carriage.

Dealer Highlights

• Ultra-Low Hour Unit: Most 2006 units on the market have exceeded 10,000+ hours. At just over 2,000 hours, the traction and hoist motors on this Hyster have substantial life remaining.
• High-Reach Capability: The 16-foot reach is perfect for double and triple-stacked racking systems.
• Cushion Tire Versatility: The smooth cushion tires provide a tight turning radius and excellent stability on concrete floors, making it the preferred choice for narrow-aisle loading.
• Package Value: This listing is "Plug-and-Play," including the required industrial charger (a $1,500 value on its own).
• Side-Shift Integration: Equipped with a side-shifting carriage, allowing the operator to adjust the load laterally without repositioning the truck—crucial for fast-paced loading docks.
• Battery Condition is poor and will need replacement to run a full shift.
• Charger Included
• Power Designers USA Wall Mount Industrial Battery Charger
• Model #: LMT-10kW-48-250T
• Input Voltage: 480 Volt, 3 ph, 60 Hz @ 15 Amps
• Optional Output Voltage: 48V with 60 VDC Max
• Output Current: 250 Amps Max.
• Rated Power: 10kW
• Minimum # of Cells: 24
• Battery Type: Flooded Lead Acid, AGM, Gel
