Southworth PalletPal 360 Spring-Loaded Pallet Leveler | 4,500 lb Capacity | Model 4437238

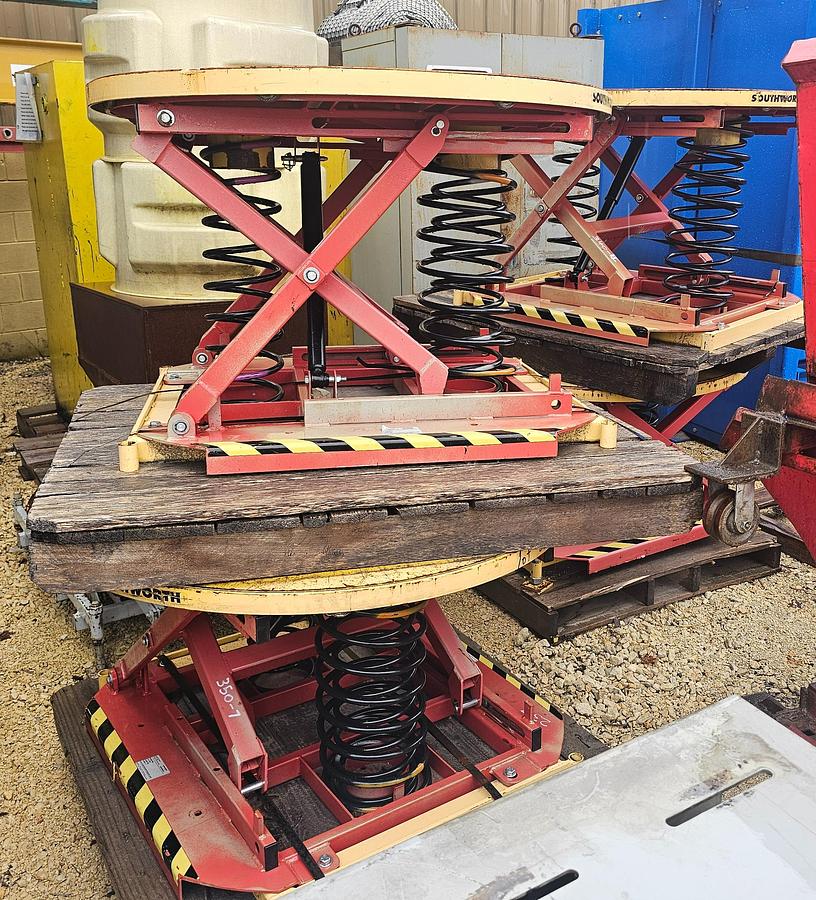

Southworth PalletPal 360 Spring Leveler

Capacity: 4,500 lbs | Type: Spring-Actuated | Model: 4437238

Technical Specifications

• Manufacturer / Model: Southworth PalletPal 360 (Spring)
• Load Capacity: 400 – 4,500 lbs (Adjustable via spring configuration)
• Turntable Diameter: 43 5/8" (Full 360° Rotation)
• Lowered Height: 9.5"
• Raised Height: 28"
• Vertical Travel: 18.5"
• Base Dimensions: 36" x 45"
• Power Requirements: None (Fully Mechanical)

Performance & Productivity

• Automatic Leveling: Utilizes a heavy-duty calibrated spring system to lift or lower the platform automatically as weight is added or removed.
• 360° Rotating Turntable: Features a near-frictionless ball-bearing turntable that allows operators to spin the load, enabling "near-side" loading without walking around the pallet.
• Forklift Portable: The base frame features integrated fork pockets, making it easy to relocate the unit to different workstations as production needs change.

Safety & Ergonomics

• Pinch Point Protection: All moving parts are contained within the diameter of the turntable ring, providing a smooth, snag-free exterior.
• Zero Utility Dependence: Because it requires no electricity or compressed air, there are no tripping hazards from cords or hoses, and it remains operational during power outages.
• Durable Construction: Built with heavy-gauge steel and a powder-coated finish to withstand the rigors of high-volume industrial environments.
