Geka Hydracrop 110/SD Ironworker - Dual Operator - 120 Ton - CNC Gauging Option

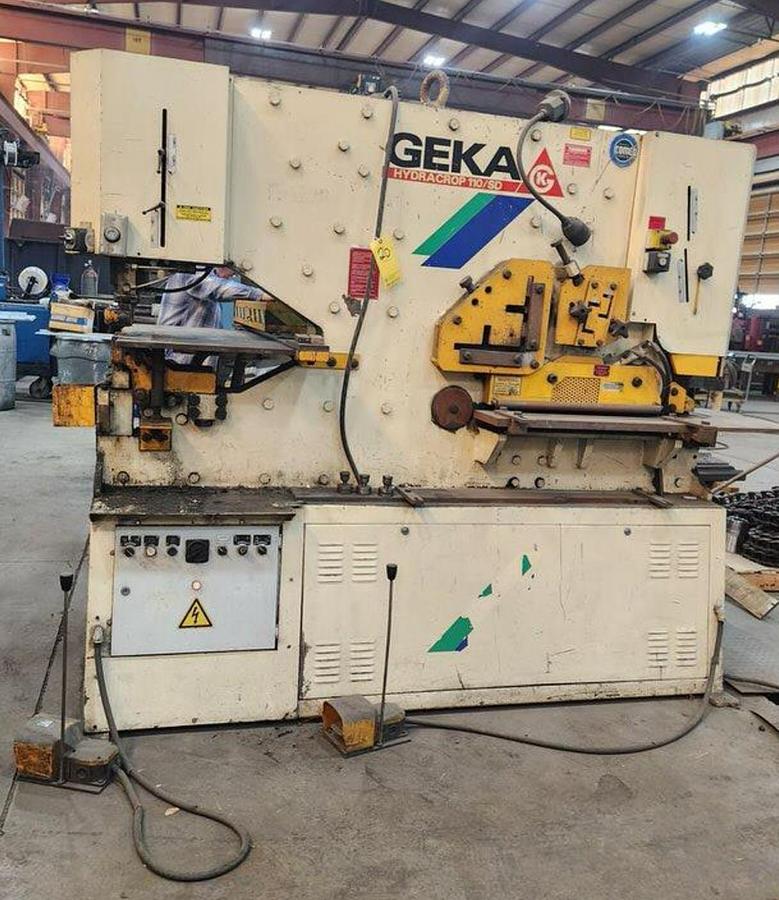

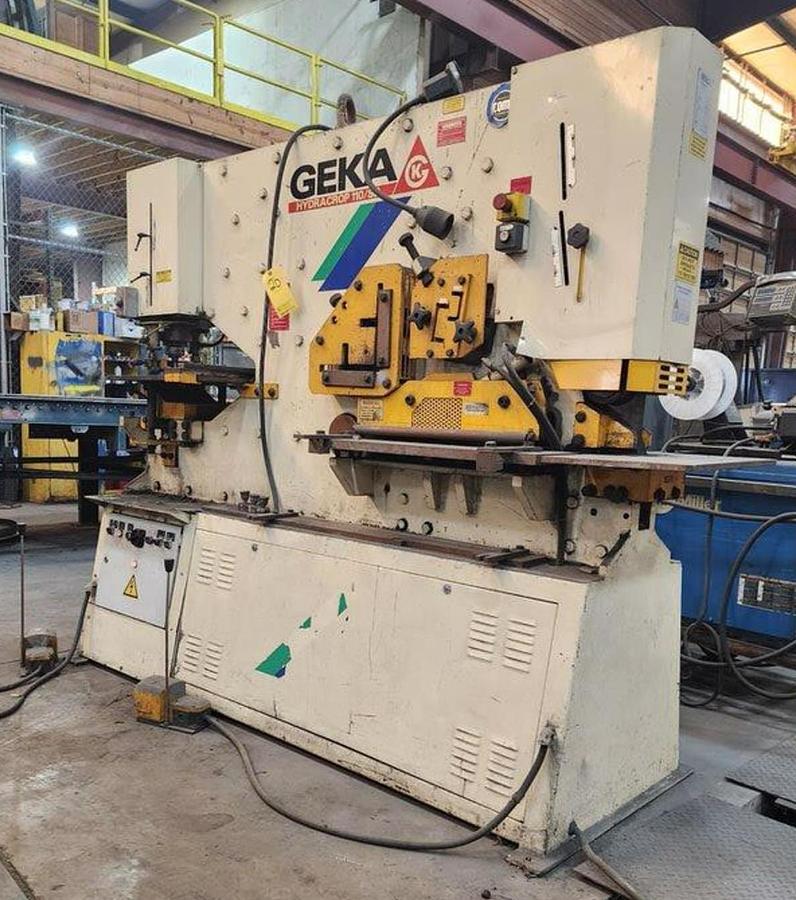

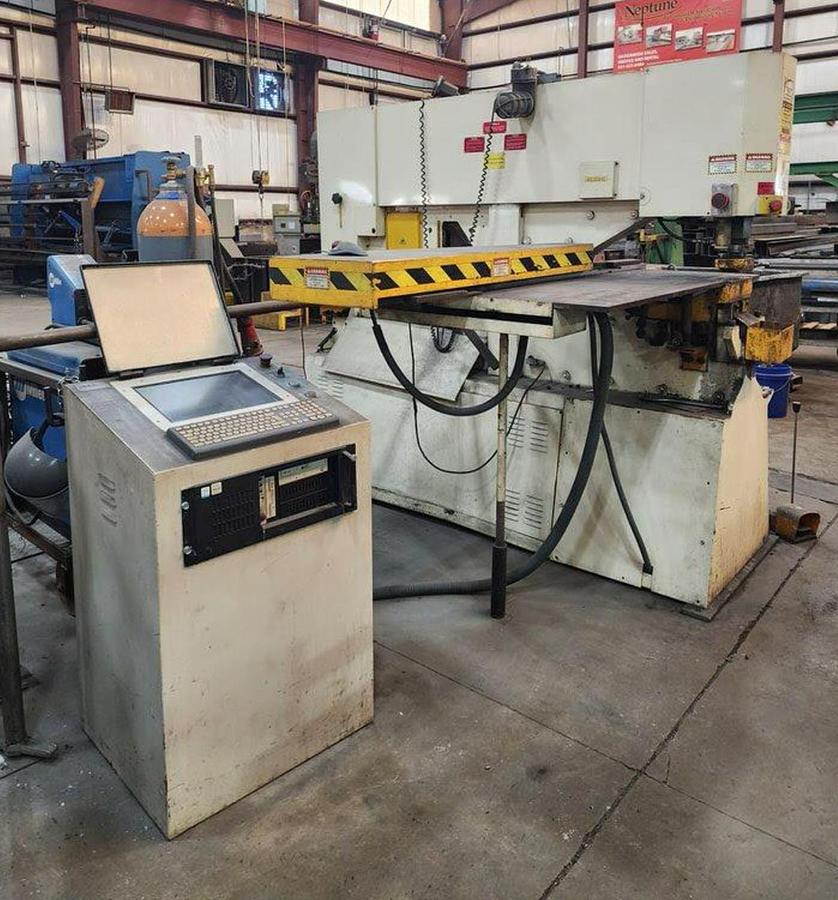

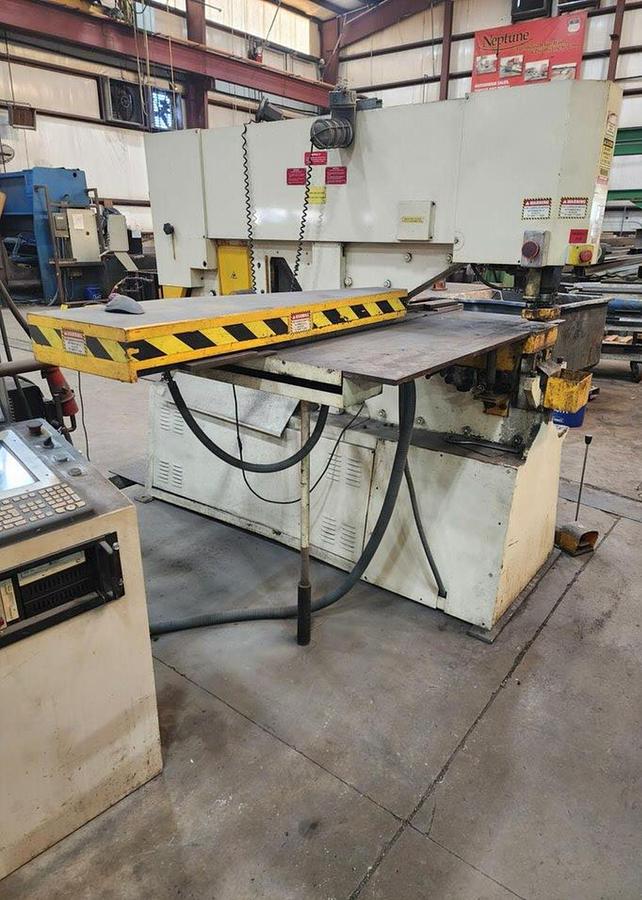

2005 Geka Hydracrop 110/SD Dual Cylinder Ironworker

120-Ton Punching Capacity | Extended 24" Throat | CNC Gauging Option

This 2005 Geka Hydracrop 110/SD is a versatile, high-capacity industrial ironworker designed for multi-operator efficiency. Featuring dual independent hydraulic cylinders, this machine allows two operators to work simultaneously—one at the punching station and another at the shearing/notching stations—without any loss of power or speed.

This specific unit includes the factory CNC Gauging/Positioning option, offering a significant production advantage for repeatable hole patterns and precision plate work.

Important Note on Condition

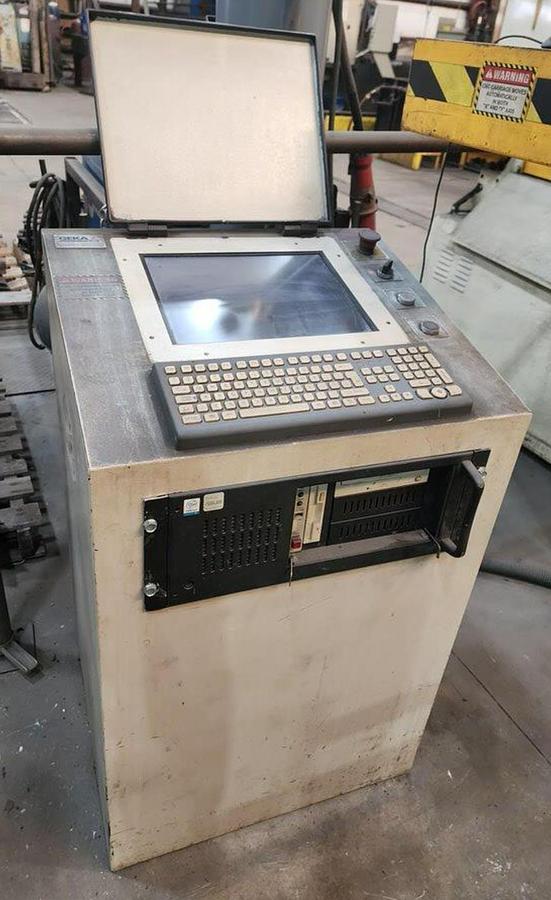

• CNC Status: The CNC gauging system is currently non-functional and requires a new servo motor to restore automated positioning.
• Tooling: This machine is being sold without a tooling package (punches/dies). It is ready for the buyer to install a new set of Geka-compatible tooling specific to their job requirements.

Machine Features & Capabilities

• Dual Cylinder Design: Two independent workstations powered by separate cylinders for maximum shop throughput.
• Extended "SD" Throat: Features a 24-inch deep throat on the punching station, ideal for working with oversized plates and structural sections that standard machines cannot reach.
• 5 Independent Workstations:

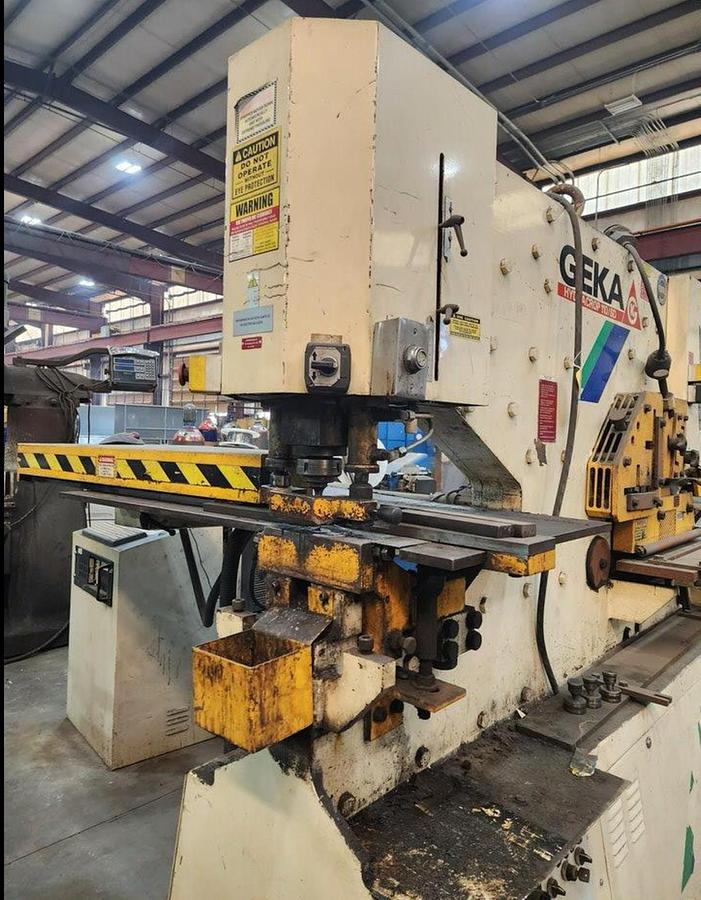

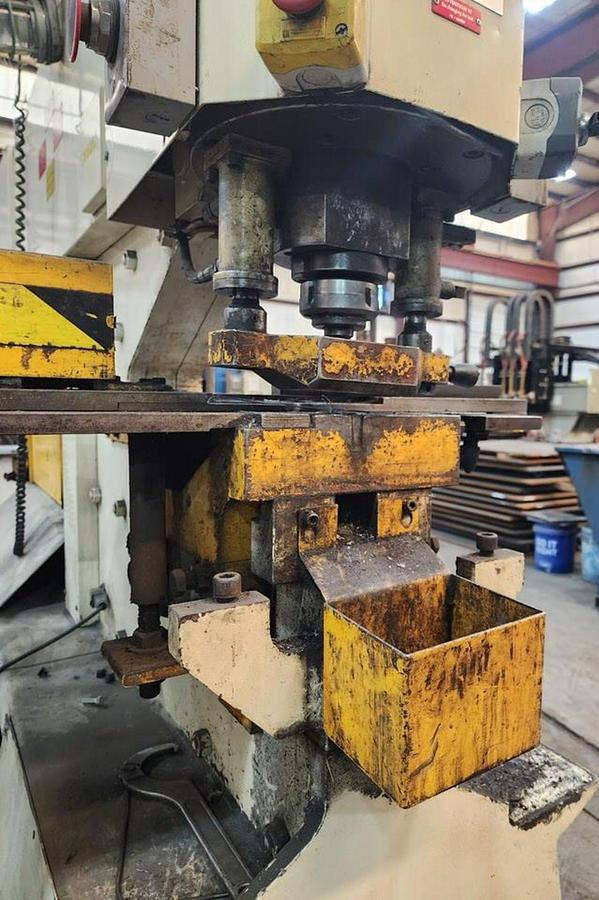

1. Punching: High-tonnage station with a quick-change punch holder and gooseneck die holder for structural beams.
2. Flat Bar Shear: Progressive shearing with minimal deformation; cuts flat bar up to 24" x 5/8".
3. Angle Shear: Patented rectilinear motion system for cutting angles up to 6" x 6" x 1/2" with zero material loss.
4. Bar Cropper: Standard blades for shearing solid round and square bars up to 2".
5. Notching: Rectangular notching station for precise cutouts in plate and tube.

• Robust Construction: Massive frame weight (approx. 8,300 lbs) ensures long-term accuracy and minimal deflection under load.

Technical Specifications

• Punching Power: 120 US Tons
• Shearing Power: 180 US Tons
• Throat Depth: 24" (Extended SD Version)
• Motor: 12.5 HP, 3-Phase
• Punch Capacity: 1-1/2" Diameter through 3/4" Plate
• Flat Shear Length: 24" Blade
• Angle Shear (90°): 6" x 6" x 1/2"
