20 Hp Baldor EM4106T Super E Three Phase General Purpose Motor 3520 RPM
20 Hp Baldor EM4106T Super E Three Phase General Purpose Motor 3520 RPM
$2,000 (USD)
Available quantity:1
or
Call 414 841 4377
Description

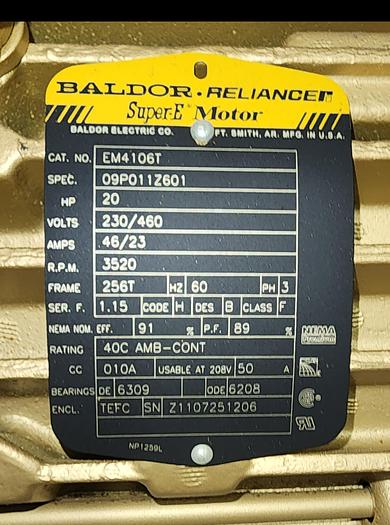

Baldor Three Phase Super E General Purpose Motor
Model #: EM4016T
S/N: Z1107251206
HP: 20
RPM: 3520
Volts: 230/460
Amps: 23/46/50
Hz: 60
Phase: 3
Frame: 256T
Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
Enclosure Material: Iron
Mounting: Rigid
Shaft Diameter: 1.625"
Overall Length: 23.28"
Rotation: Reversible
Number of Speeds: 1
Service Factor: 1.15
Bearings: Ball
Efficiency: 91.0%
Maximum Ambient Temperature: 40° C
Insulation Class: F
Duty Cycle: Continuous
Inverter Duty: Yes
Manufacturer Model #: 09P011Z601
Ship Weight: 255 lbs.
Specifications
| Manufacturer | Baldor |
| Model | EM4106T |
| Condition | New |
| Serial Number | Z1107251206 |
| Model # | EM4016T |
| S/N | Z1107251206 |
| HP | 20 |
| RPM | 3520 |
| Volts | 230/460 |
| Amps | 23/46/50 |
| Hz | 60 |
| Phase | 3 |
| Frame | 256T |
| Enclosure Material | Iron |
| Mounting | Rigid |
| Shaft Diameter | 1.625" |
| Overall Length | 23.28" |
| Rotation | Reversible |
| Number of Speeds | 1 |
| Service Factor | 1.15 |
| Bearings | Ball |
| Efficiency | 91.0% |
| Maximum Ambient Temperature | 40° C |
| Insulation Class | F |
| Duty Cycle | Continuous |
| Inverter Duty | Yes |
| Manufacturer Model # | 09P011Z601 |
| Ship Weight | 255 lbs. |
