2002 Sullair LS20-100SH 100 HP Heavy Duty Rotary Screw Air Compressor - 460 CFM @ 125 PSI

2002 Sullair LS20-100SH | 100 HP Rotary Screw Compressor

460 CFM @ 125 PSI | Heavy-Duty Industrial Series | S/N: 003-127838

Available for sale is a Sullair LS20-100SH, widely regarded as the "gold standard" for 100 HP industrial air compressors. Built in 2002, this LS20 model is engineered for high-volume, 24/7 continuous duty applications. Sullair’s legacy air-ends are famous for their longevity, often exceeding 100,000 hours of service life.

Technical Specifications

• Model: LS20-100SH/A/SUL

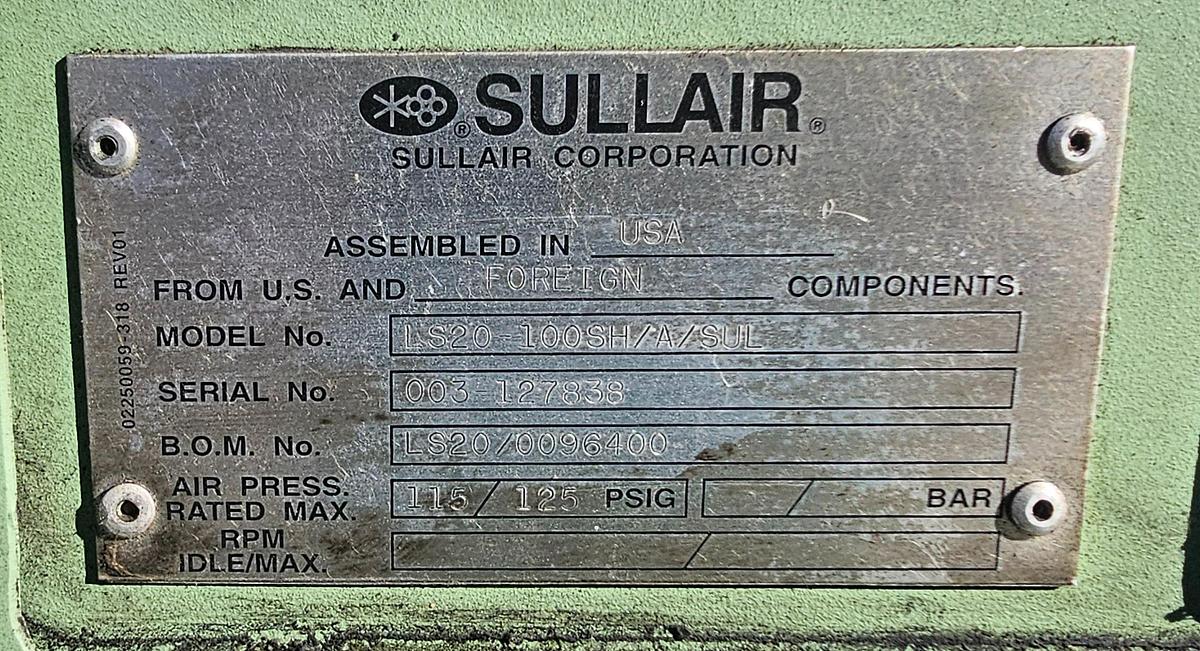

• Serial Number: 003-127838 or 003-127839 (Sister Machines)
• Year of Manufacture: 2002
• Horsepower: 100 HP
• Full Load ACFM: 460 CFM
• Operating Pressure: 115 PSIG (Rated) / 125 PSIG (Max)
• Electrical: 460V / 3-Phase / 60Hz
• Drive Motor: 100 HP / 1800 RPM / TEFC Premium Efficiency
• Cooling Type: Air-Cooled
• Discharge Size: 2" NPT

Physical Dimensions & Weight

• Approx. Weight: 3,270 lbs (Skid Only) / ~4,800 lbs (with enclosure)
• Dimensions: 94" L x 48" W x 74" H
• Footprint: Industrial Open-Frame / Heavy-Duty Steel Skid

Key Features

• Legendary Sullair Air-End: Features Sullair's precision-ground asymmetrical rotors, known for maintaining efficiency over decades of use.
• Supervisor Controller: A proven, user-friendly interface that provides real-time monitoring of discharge temperature, pressure, and maintenance intervals without the complexity of modern touchscreens.
• Efficient Separation: Multistage air/fluid separation system ensures less than 2 ppm fluid carryover, reducing downstream contamination.
• Easy Maintenance: The LS20 "SUL" (Standard Unit Layout) provides open access to all service points, including the oil filter, air filter, and cooling package.

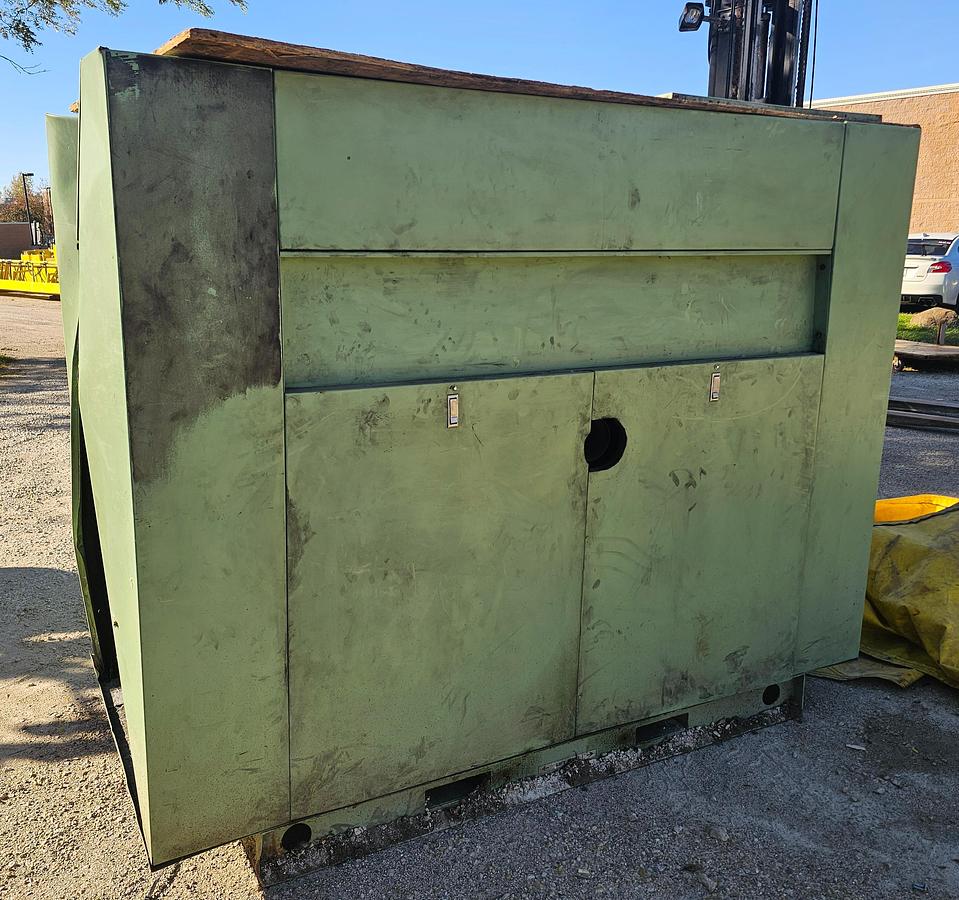

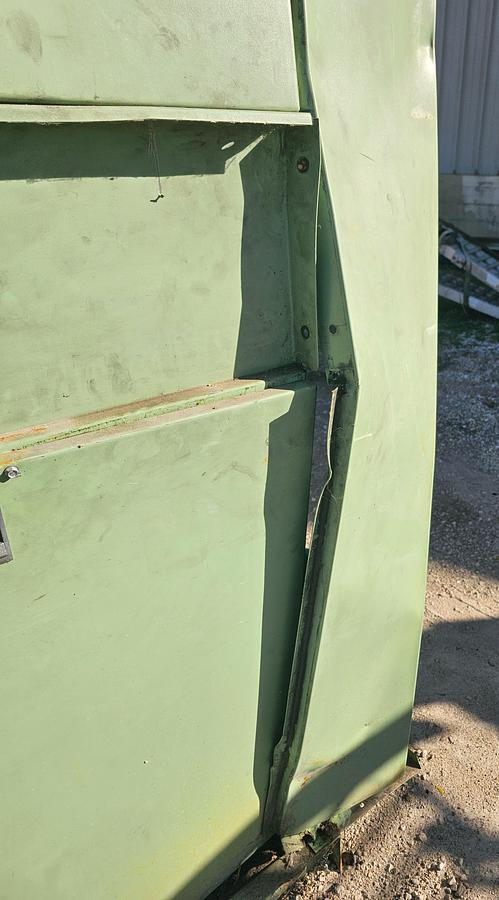

Condition Note: This unit was removed from a professional manufacturing facility. While the total hours are unknown, the machine is physically sound, the motor windings are clean, and the air-end rotates freely. This is an ideal primary machine for a large shop or a high-capacity backup unit for a critical facility. One unit has damage to sound enclosure and will either need to be straightened out or removed completely.
