2012 Southwestern Industries TRAK K3 EMX CNC Knee Mill 2 Axis, 10" x 50" Table
Featured
2012 Southwestern Industries TRAK K3 EMX CNC Knee Mill 2 Axis, 10" x 50" Table
$17,900 (USD)
Available quantity:1
or
Call 414 841 4377
Description
Southwestern Industries CNC 2 Axis Knee Mill
Model #: TRAK K3 EMX
S/N: 122DB446604
Year: 2012
Table Size: 50" x 10"

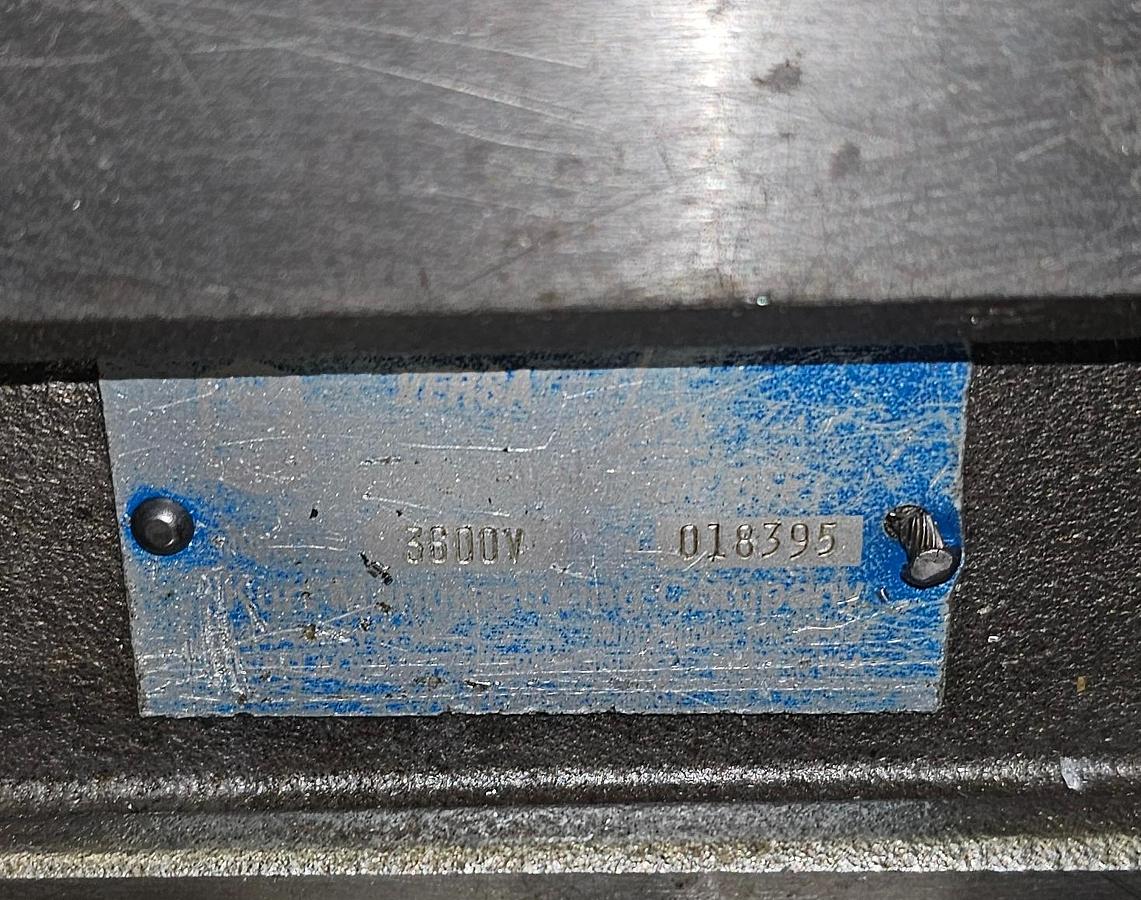

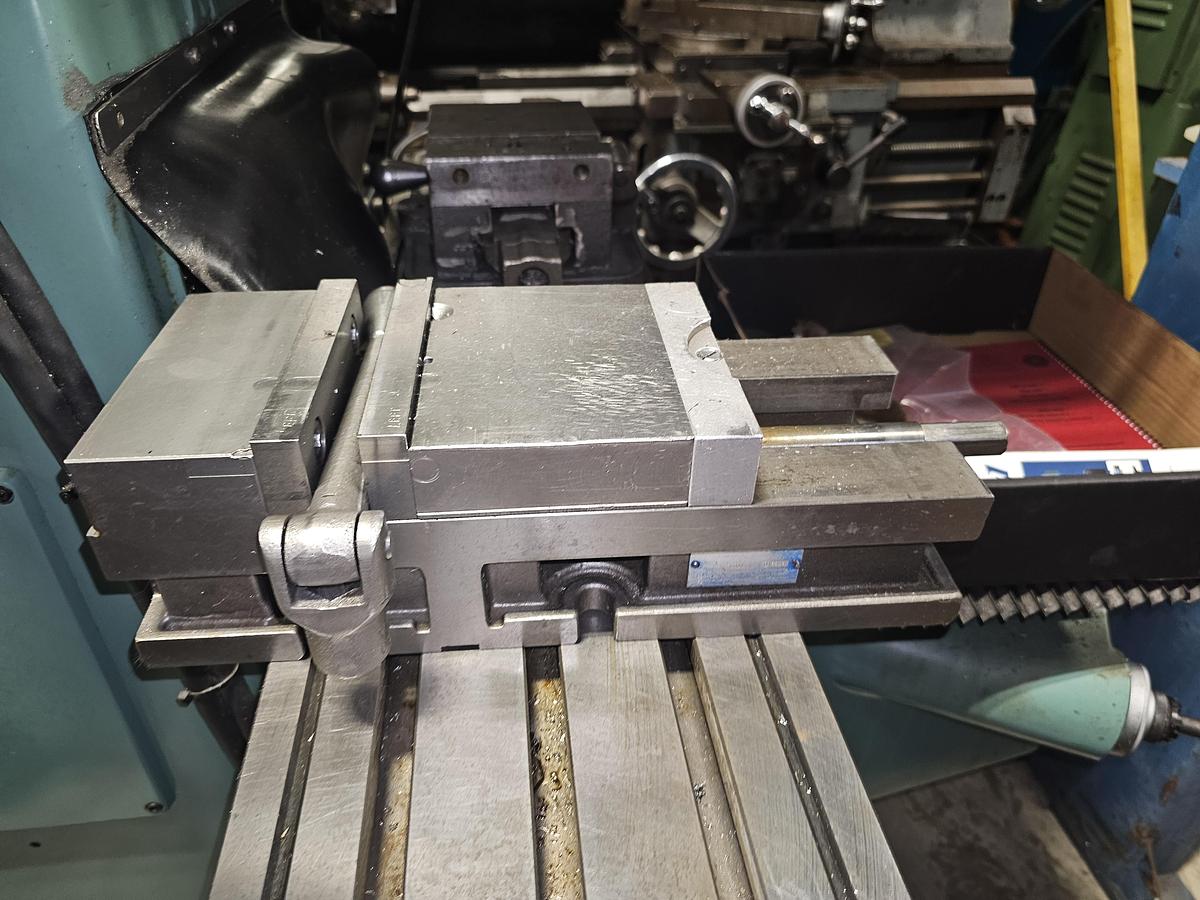

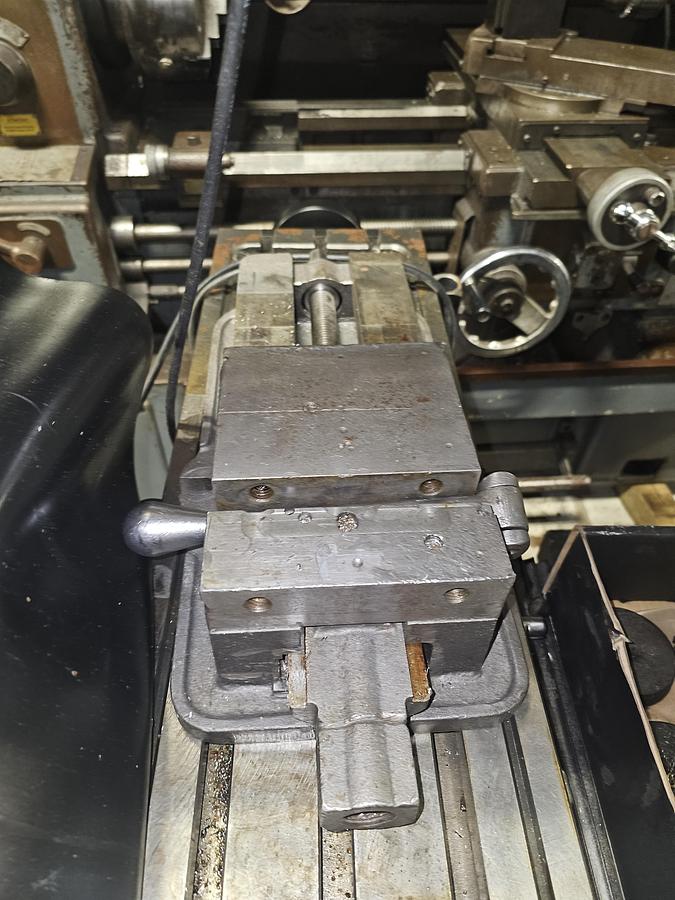

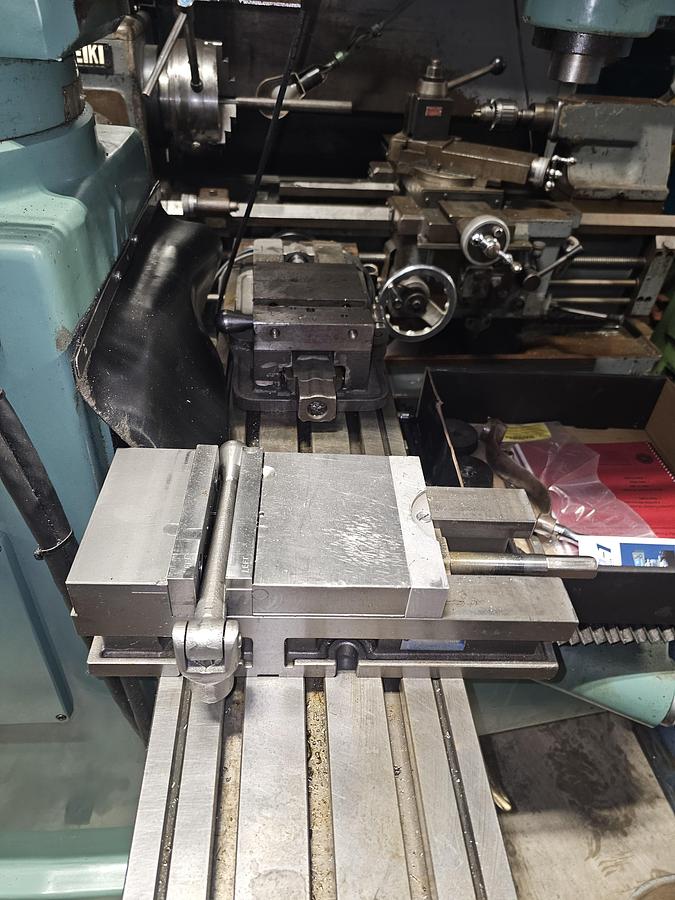

Includes 2x Kurt 6" Milling Vises (D675 & 3600V)
Max Weight of Workpiece: 850 LBS
X-Axis (Longitudinal Table Travel): 32"
Y-Axis (Cross Saddle Travel): 16"
Z-Axis (Vertical Knee Travel): 16"
Max Quill Travel: 5"
Quill Diameter: 3-3/8"
Spindle Taper: R8
Spindle Speeds: 60-4200 RPM
Max Rapid Feed: 100 IPM
Spindle Horsepower: 3 HP
Electrics 220/3/60:
Approximate Machine Dimensions: 72" x 72"
Approximate Machine Height: 90"
Approximate Machine Weight: 3,000 LBS
Specifications
| Manufacturer | Southwestern Industries |
| Model | TRAK K3 EMX |
| Year | 2012 |
| Condition | Used |
| Serial Number | 122DB446604 |
| Stock Number | J19-6 |
| Model # | TRAK K3 EMX |
| S/N | 122DB446604 |
| Table Size | 50" x 10" |
| Year | 2012 |
| Max Weight of Workpiece | 850 LBS |
| X-Axis (Longitudinal Table Travel) | 32" |
| Y-Axis (Cross Saddle Travel) | 16" |
| Z-Axis (Vertical Knee Travel) | 16" |
| Quill Diameter | 3-3/8" |
| Max Quill Travel | 5" |
| Spindle Taper | R8 |
| Spindle Speeds | 60-4200 RPM |
| Max Rapid Feed | 100 IPM |
| Spindle Horsepower | 3 HP |
| Approximate Machine Dimensions | 72" x 72" |
| Approximate Machine Height | 90" |
| Approximate Machine Weight | 3,000 LBS |
