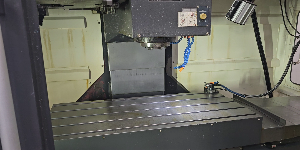

2014 Mighty Model VMC-116A VMC, 8000 RPM Spindle 24" x 49" Table

VMC-116AG/15HP/MITSUBISHI M70 VERTICAL MACHINING CENTER

Serial: 184616 / M7EX028N644

CONTROL: MITSUBISHI M70-VA

TABLE: TABLE SIZE:1250x600MM(49.21"x23.62")

T-SLOT:W18MMx5xP125MM(0.7"x5x4.9")

MAX TABLE LOAD:1200KG/2640LBS

TRAVEL: X=1100MM(43.31") Y=600MM(23.62") Z=635MM(25")

DISTANCE FROM SPINDLE END TO TABLE: 100MM-735MM(3.94"-28.94")

SPINDLE: SPINDLE TYPE: GEAR TYPE

SPINDLE SPEED: 8000RPM(OPT.)

SPINDLE NOSE TAPER: #40

FEED: CUTTING FEED RATE(XYZ):10 M/MIN

RAPID TRAVERSE: (X/Y/Z):24/24/20 M/MIN

TOOL CHANGER: AUTOMATIC

TOOL CHANGER TYPE: ARM TYPE

TOOL STORAGE CAPACITY: 24PCS

MAX. TOOL WEIGHT: 7KG/16LBS

MAX. TOOL LENGTH: 300MM(11.81")

TOOL SHANK: CAT-40 PULL STUD: P40T-1

MOTOR: SPINDLE MOTOR: 15HP -X/Y/Z-AXIS DRIVE MOTORS: 3/3/3KW STANDARD

ACCESSORIES: COOLING SYSTEM -CENTRALIZED AUTOMATIC LUBRICATION SYSTEM

AIR BLAST THROUGH SPINDLE

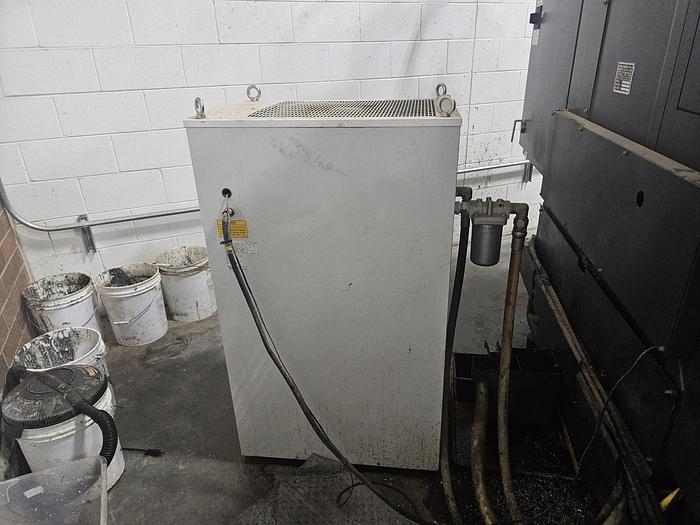

SPINDLE OIL COOLER (HABOR BRAND)

SCREW TYPE CHIP AUGER

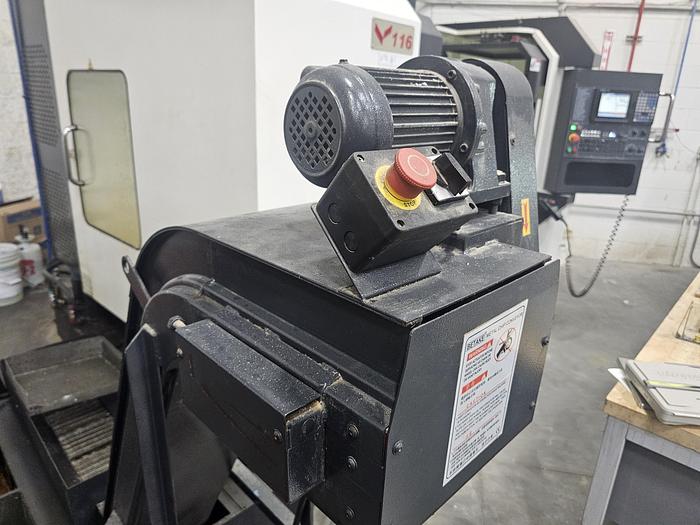

LINK TYPE LIFT-UP CHIP CONVEYOR

WORK LIGHT -SPLASH GUARD -AUTOMATIC POWER OFF(M30) -OPERATION FINISH LAMP (TRI-COLOR) -RS-232 INTERFACE -FOOT PEDAL SWITCH FOR SPINDLE CLAMP&UNCLAMP

REMOTE MANUAL PULSE GENERATOR

LEVELING BOLTS AND BLOCKS -TOOLS & TOOL BOX -OPERATION MANUAL & ELECTRICAL DRAWING -CONVECTION HEAT EXCHANGER IN CONTROL CABINET -HIWIN BRAND X,Y,Z-AXIS BALLSCREW -OIL SKIMMER -3 AXIS ABSOLUTE ENCODER -2 COOLANT NOZZLES & ONE AIR NOZZLE ON SPINDLE WITH M-CODE ON/OFF CONTROL,MANUAL PRESSURE CONTROL -COOLANT GUN & AIR GUN

OPERATION STEPS

DOOR INTERLOCK
