12" x 36" Okamoto OGM-1236UB CNC Universal ID/OD Grinder Fanuc 21-GA MDI Control

12" X 36" OKAMOTO UNIVERSAL OD/ID CYLINDRICAL GRINDER

** FANUC MDI CONTROL WITH MULTI-DIAMETER GRINDING CAPABILITY **

Model: OGM-1236UB

S/N: 31036

New: 2005

"The OGM MDI Series grinds 1, 2 or 3 different diameters in all cycles,

in any order - all in a single set-up.

Choose from 4 versatile grinding cycles. - (1) Plunge for rapid stock removal- (2) Shift-Plunge / Traverse for fast stock removal and fine finish- (3) Traverse with in feed at right end, 'eft end or both ends for fine finish- (4) Manual Traverse that eliminates the need for program input - saves time

ideal for single workpiece requirements"

 The OGM' s Servo Driven Wheelhead is designed to withstand the rigors

of high volume production work, yet deliver consistent fine finish capability to "tenths".

Its built-in rapid advance/ retract simplifies set-up - a real convenience feature.

The wheelhead incorporates a cartridge type wheelspindle (Iubed for life) that provides

the utmost in reliability and ease of maintenance.

Swing Over Table ..................... 12.6"

Distance Between Centers:............. 36"

Max. Table Travel .................... 50"

Power Table Traverse Speed ........... 0 to 400" IPM

Manual Pulse Generator ............... 0.00001", 0.0001", 0.001"

Table Feed Motor:..................... 1.2 HP AC Servo

Table Swivel Angle:................... 0 to 8.5 Degrees

Wheelhead, Total Stroke (X-axis) ..... 11.8"

Wheelhead Swivels .................... +/- 30 Degrees

Wheelhead Automatic Infeed ........... 0.00001" to 0.004"

Wheelhead Power rapid Stroke ......... 1.5"

Rapid Feedrate ....................... 400" IPM

Manual Pulse Generator ............... 0.00001", 0.0001", 0.001"

Wheelhead Feed Motor:................. 1.2 HP AC Servo

Grinding Wheel Size:.................. 14 x 1.5 x 5

Grinding Wheel Speed:................. 1770/2,000 RPM

Grinding Wheel Spindle Motor:......... 7.5 HP

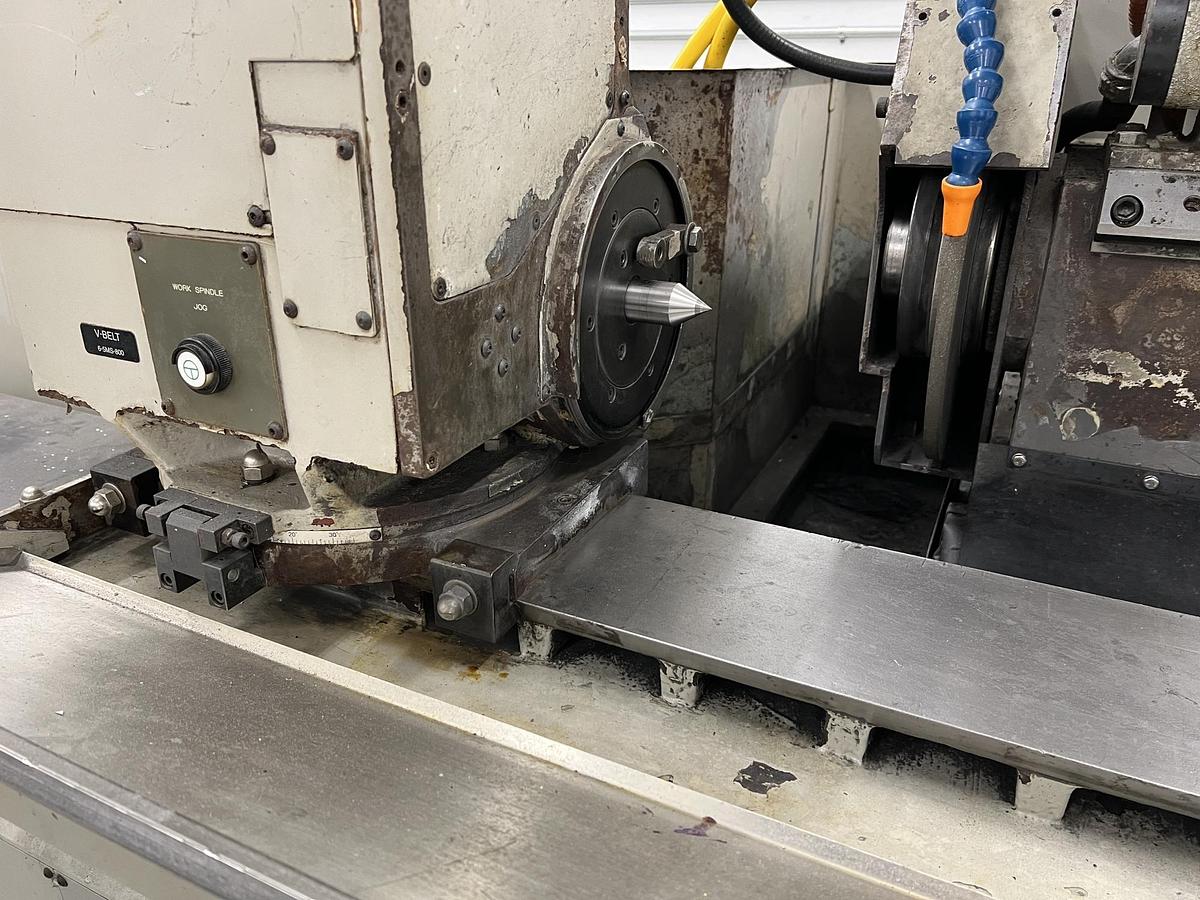

Work Head Center Taper:............... MT #4

Work Head Spindle Bore:............... 0.7"

Work Head Spindle Motor:.............. 1 HP AC Servo

Work Head Spindle Speed:.............. 10 - 500 RPM

Work Head Swivel Angle:............... +30 Degrees/- 90 Degrees

Tailstock Taper:...................... MT #4

Machine Weight:....................... 9,250 lbs.

Equipped with:

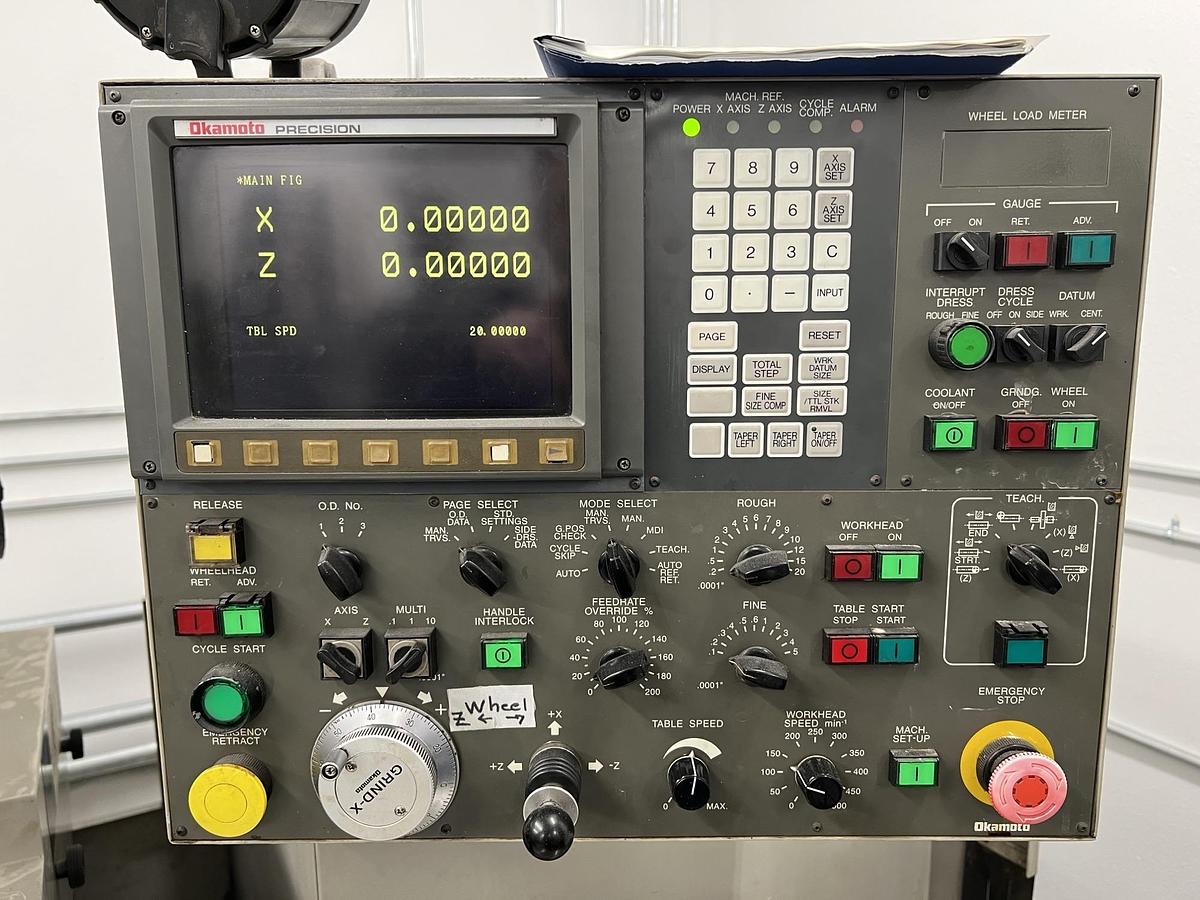

Fanuc 21-GA MDI Control (See Description Above)

Fanuc Red Cap Servo Motors for the Axis Movements

Swing Down I.D. Grinding Attachment with I.D. Spindle

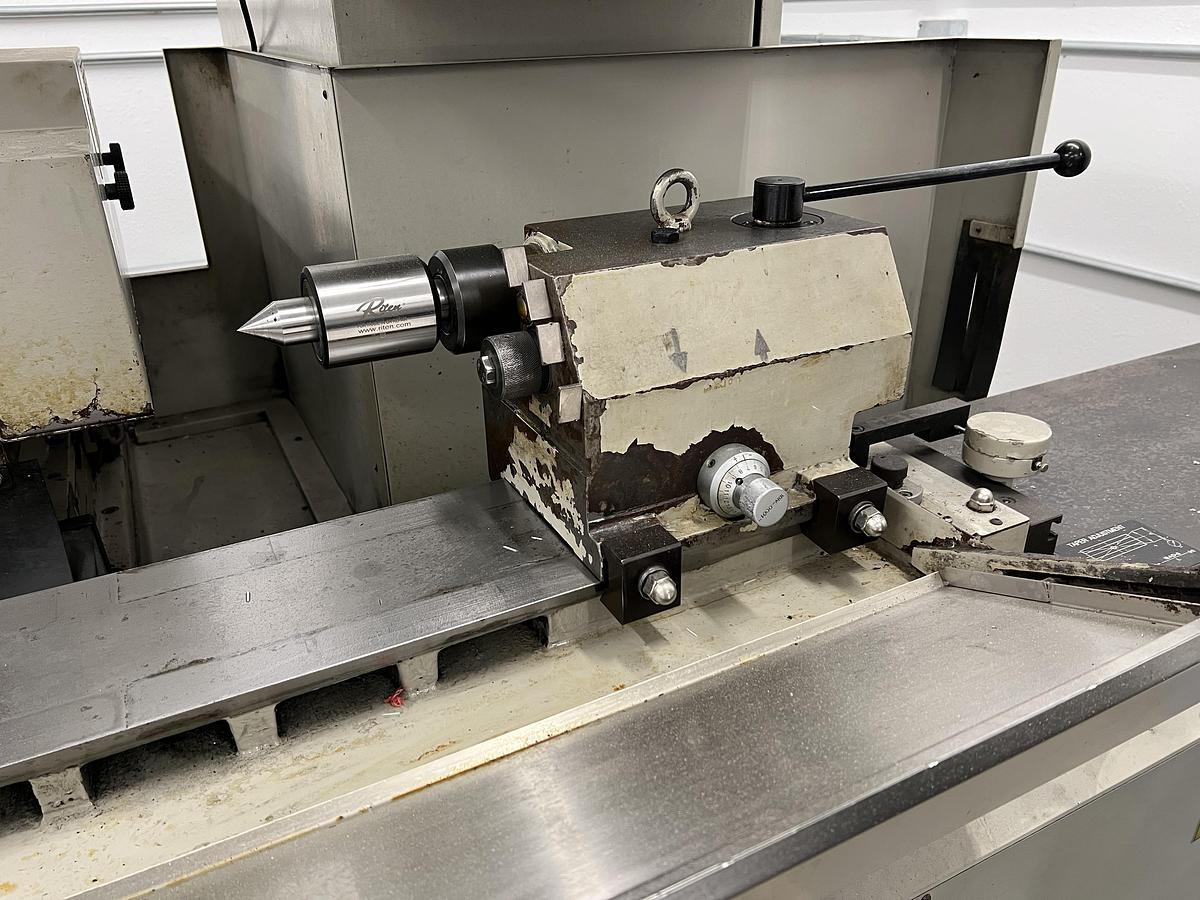

Tailstock

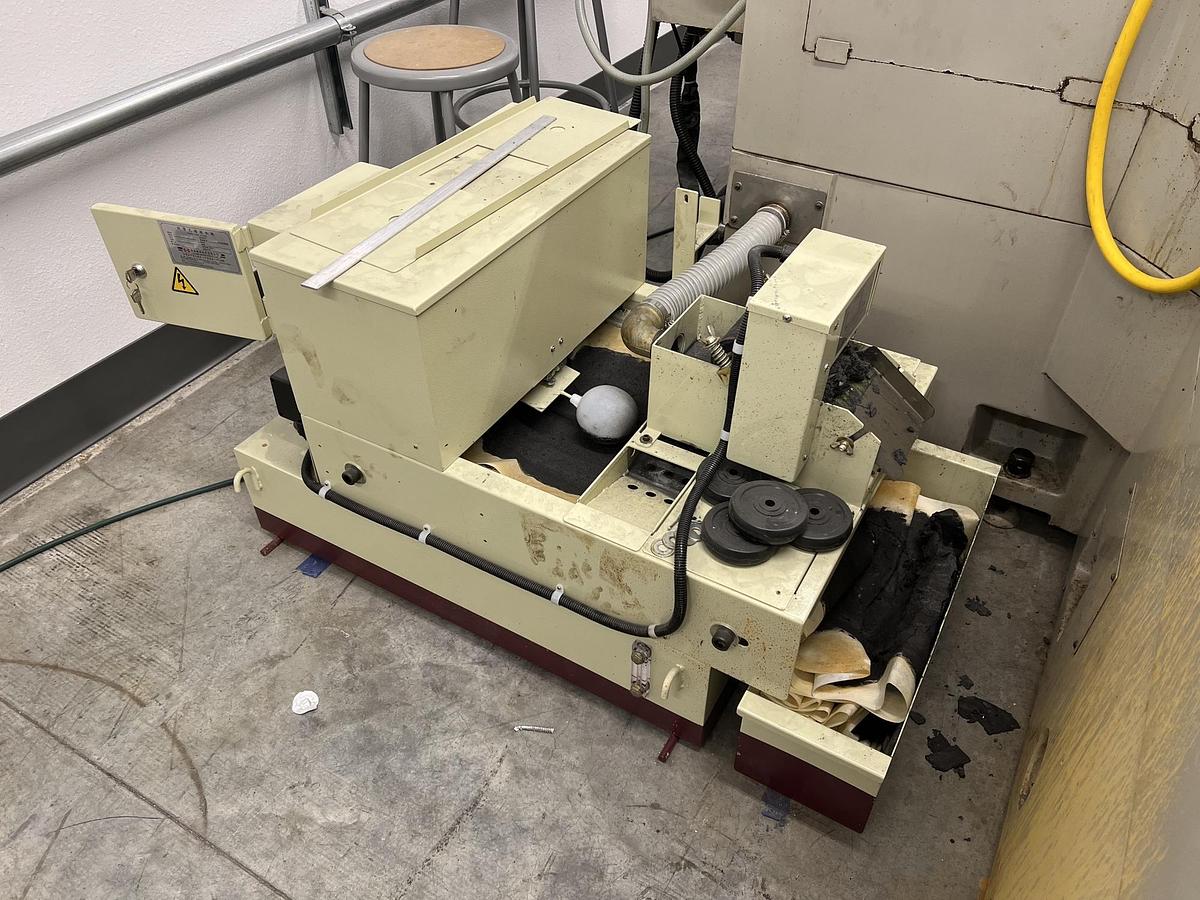

Coolant System

Wheel Dresser
