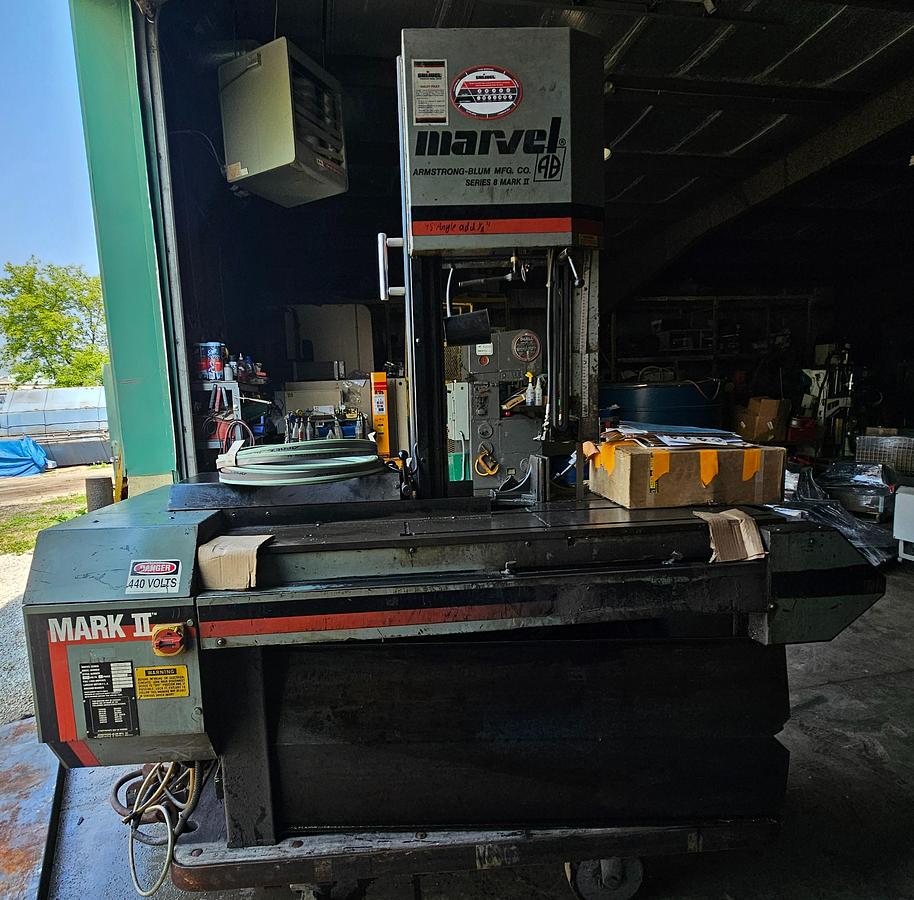

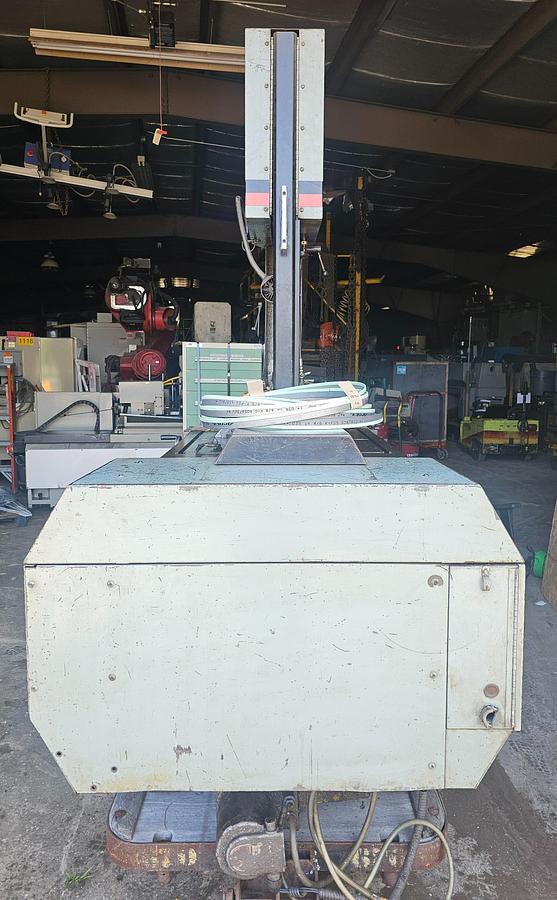

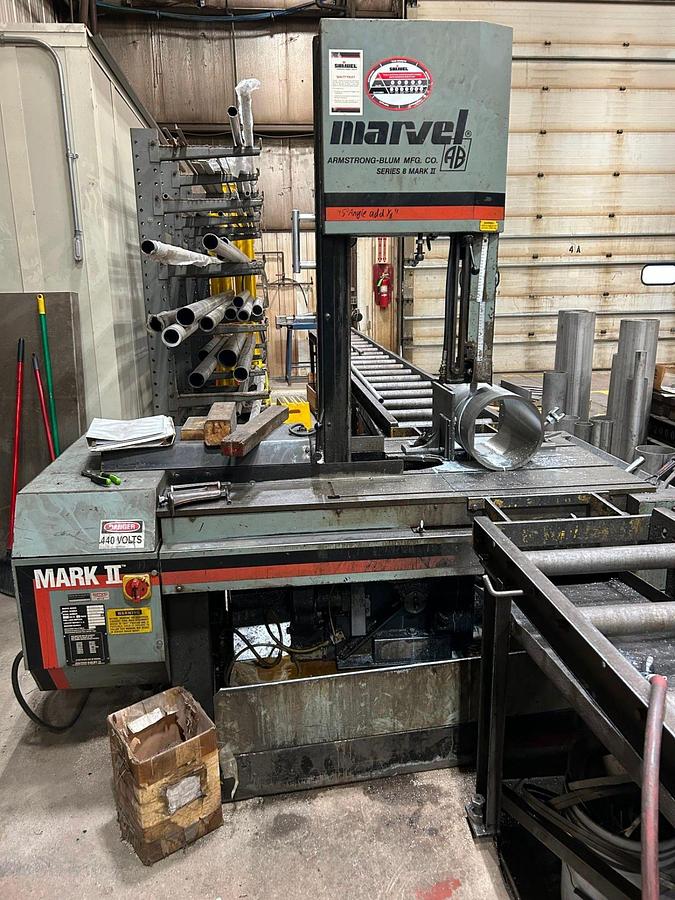

1995 Marvel Series 8 Mark II Vertical Tilt Frame Bandsaw 18" x 22" Capacity

Marvel Band Saw Series 8 Mark II

New – 1995

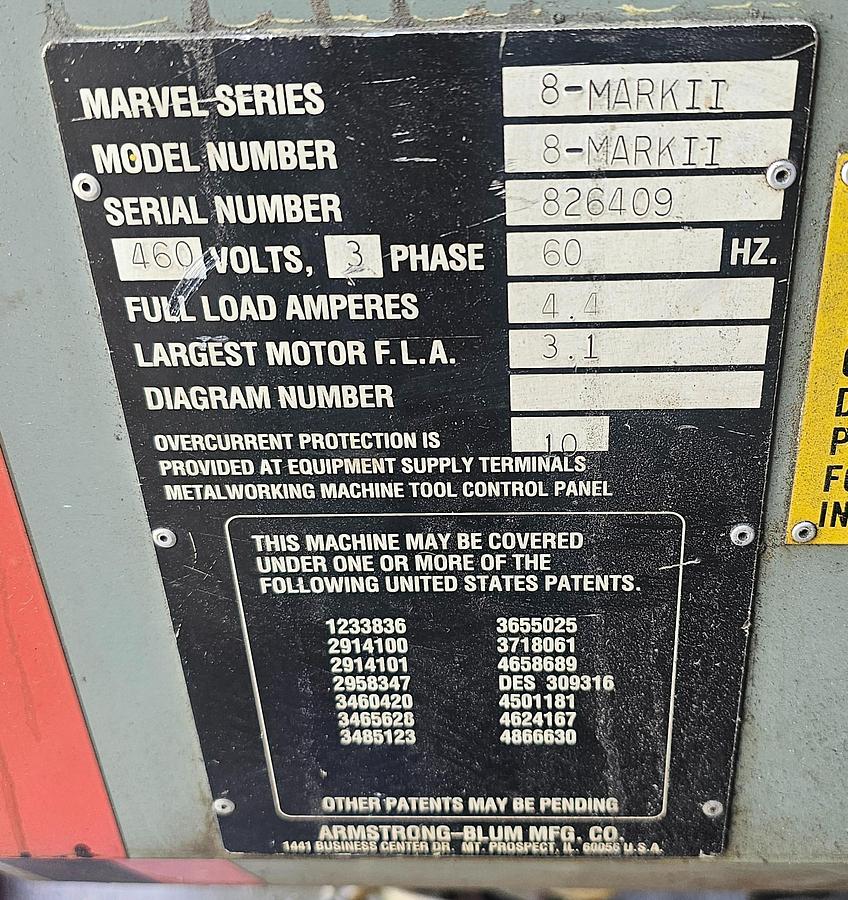

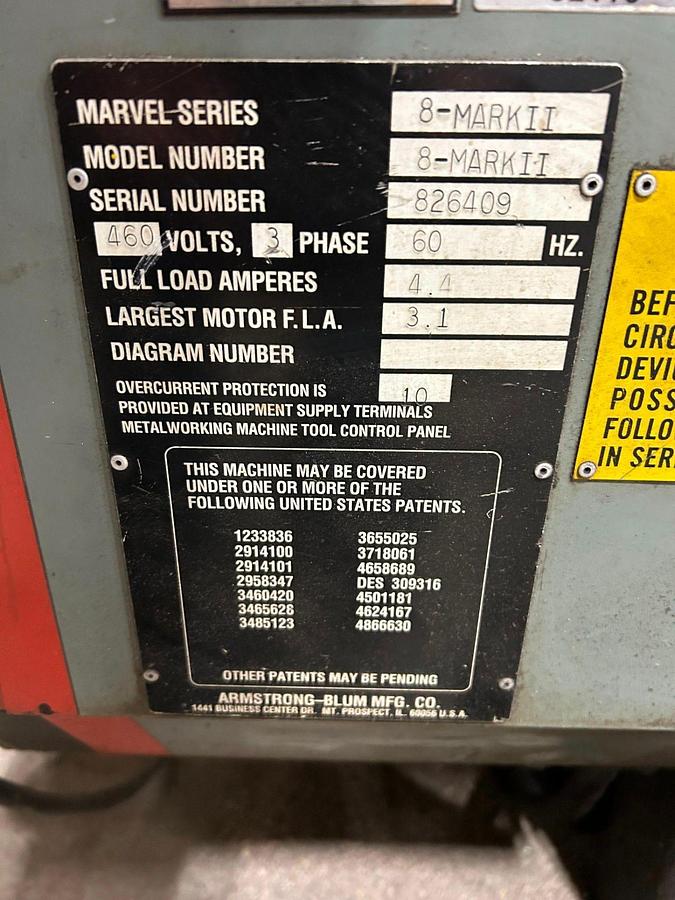

Serial No. 826409

Marvel Band Saw Series 8 Mark II

SPECIFICATIONS:

Nominal Capacity…………18″ x 18″

Maximum Capacity…………18″ x 22″

Vertical Capacity at 45 Degrees…………12-3/4″

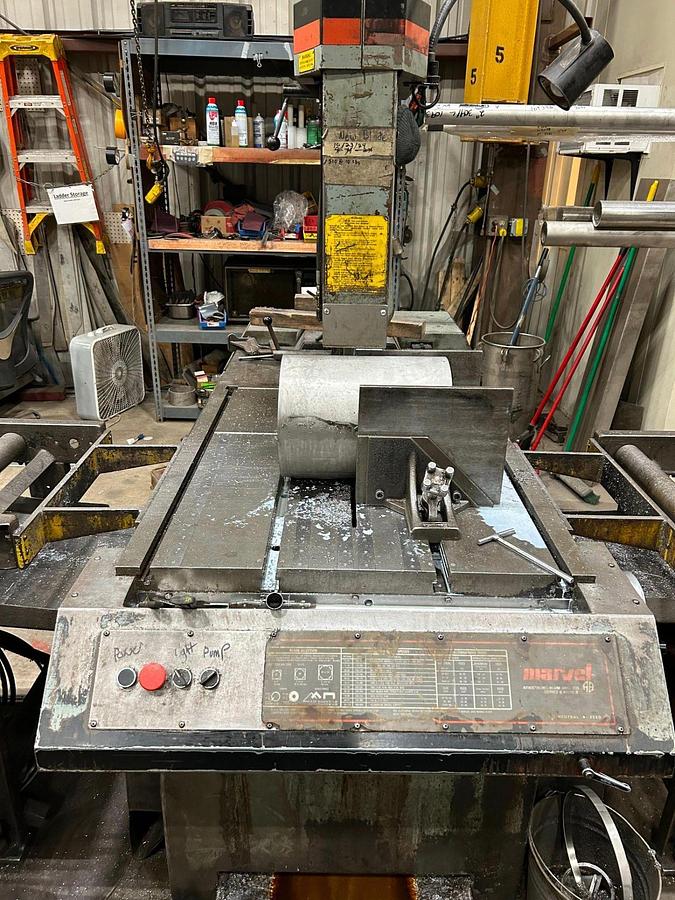

Table Working Surface…………33″ x 24-1/4″

Height of Table…………34-1/2″

Tee Slots (4)…………3/4″

Maximum Open of Vise…………20″

Vise Height…………6″

Main Drive…………2 HP, 1,800 RPM

Blade Speed Range…………50-450 RPM

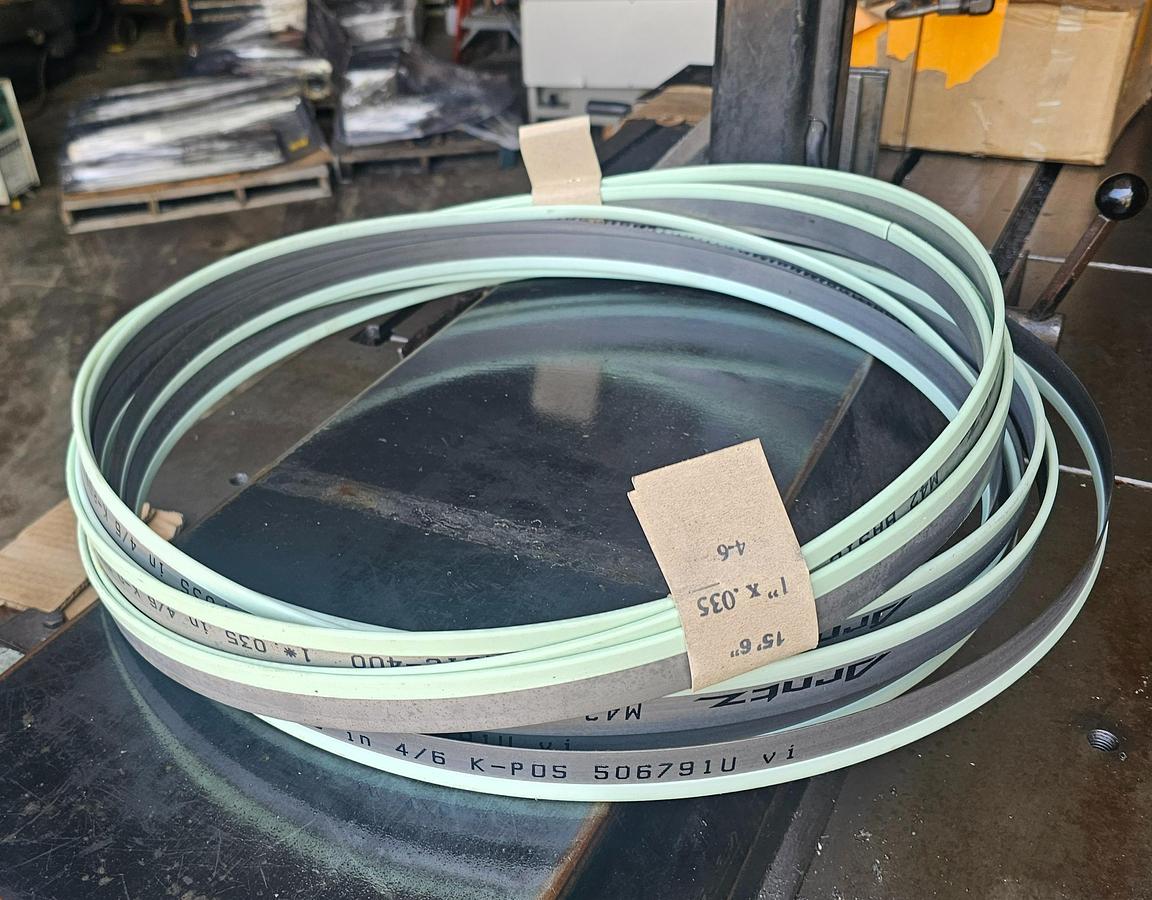

Blade Size…………0.035″ Thick/1″ Wide /14′-6″ Long

Feed Force…………0-140 Lbs.

Coolant System Motor…………1/4 HP

Reservoir Capacity…………20 Gal.

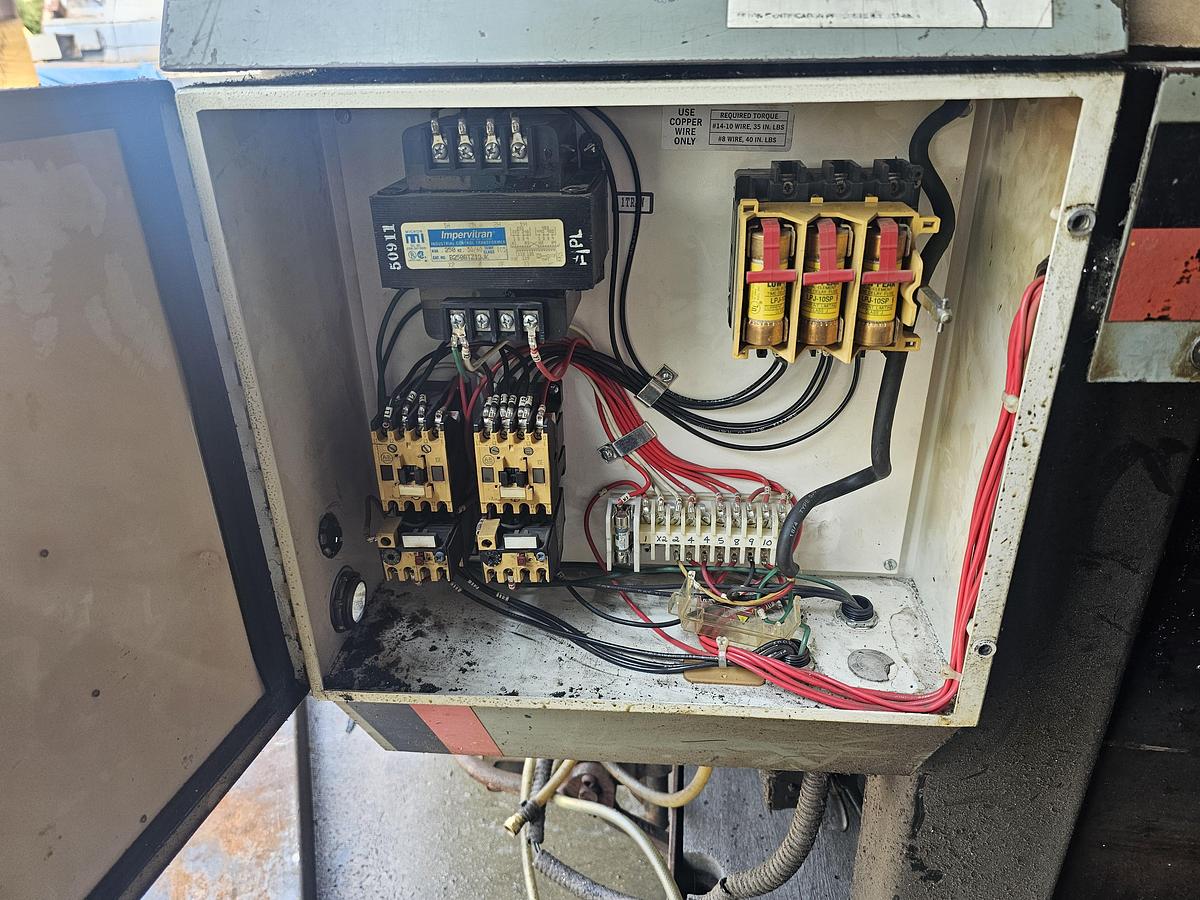

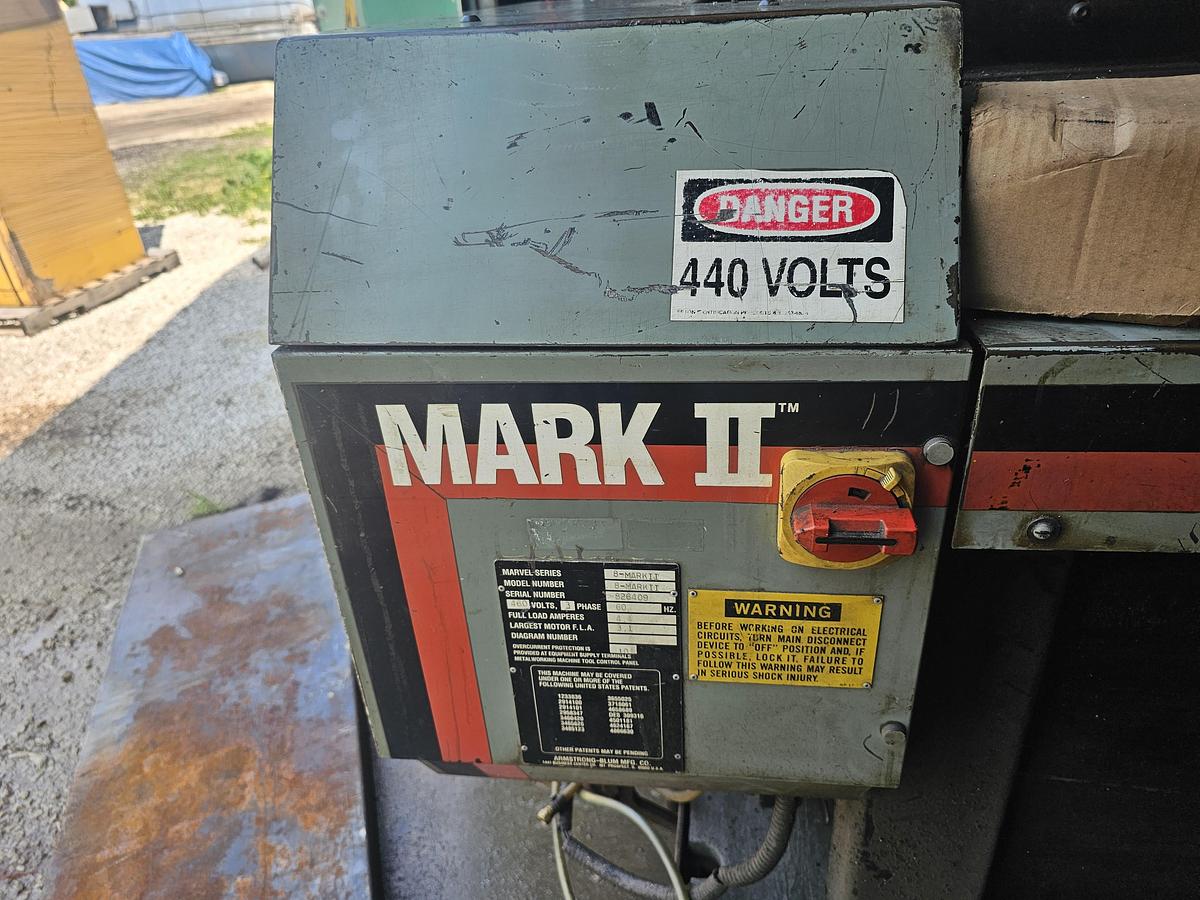

Electrics…………3/60/460

Approximate Dimensions…………79″ x 90″ x 85″(H)

Approximate Weight…………2,870 Lbs.

Marvel Band Saw Series 8 Mark 2 EQUIPPED WITH:

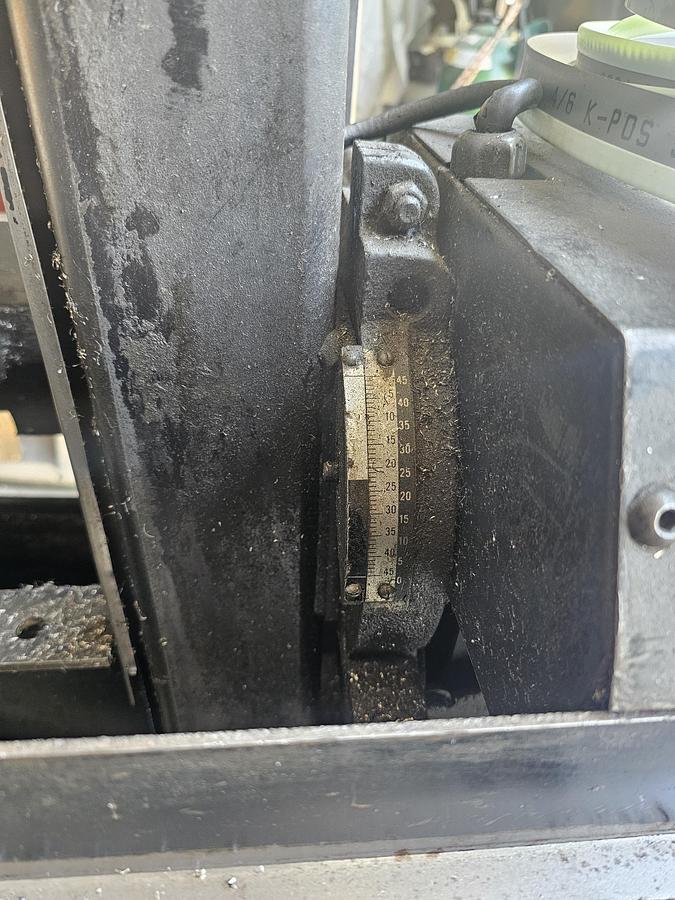

Tilt up to 45 Deg. Left and Right of Vertical

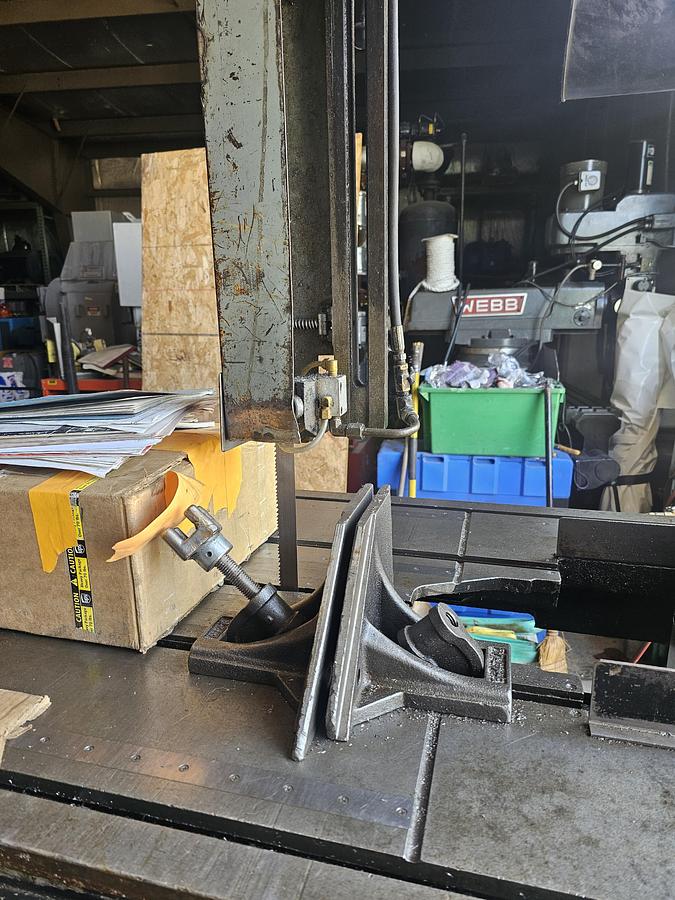

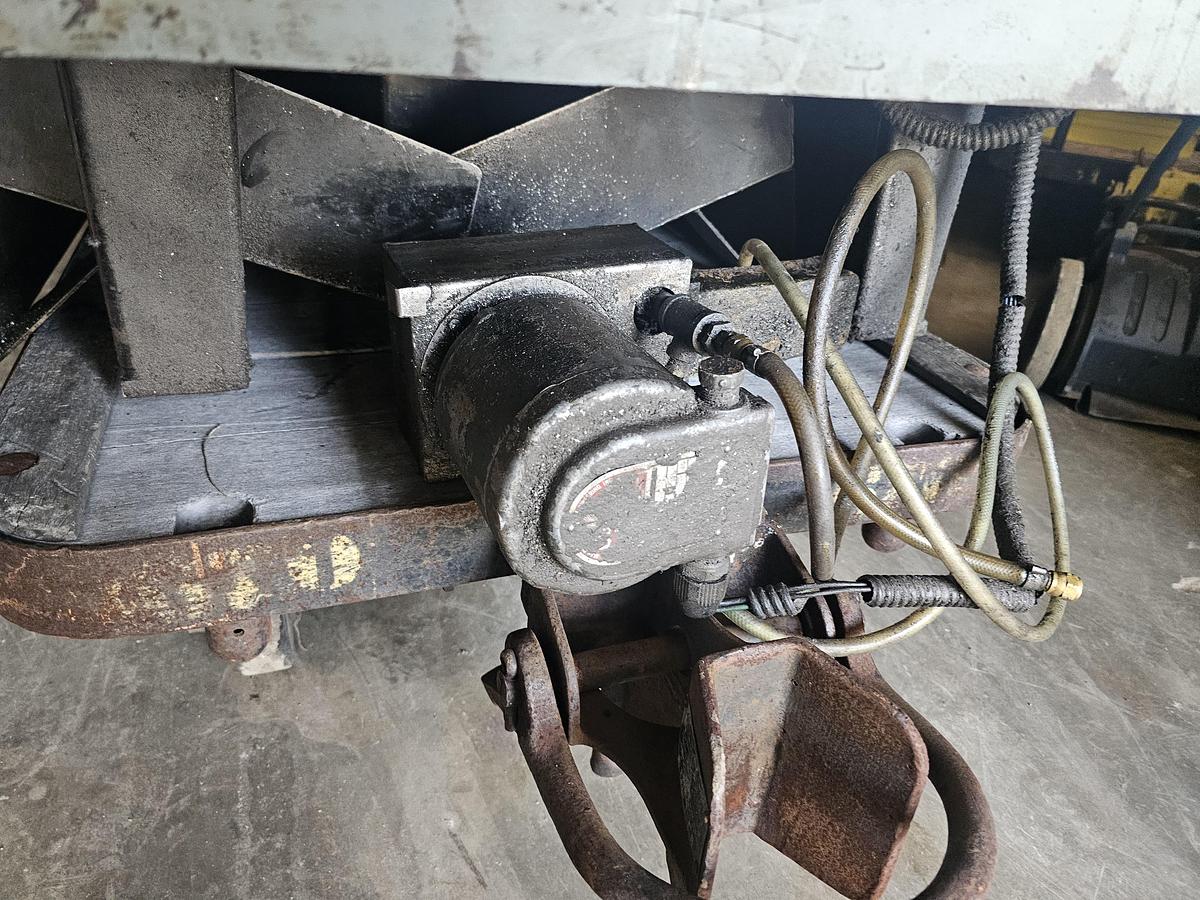

Workholding Vise: Maximum Open – 21″/ Jaw Height – 6″

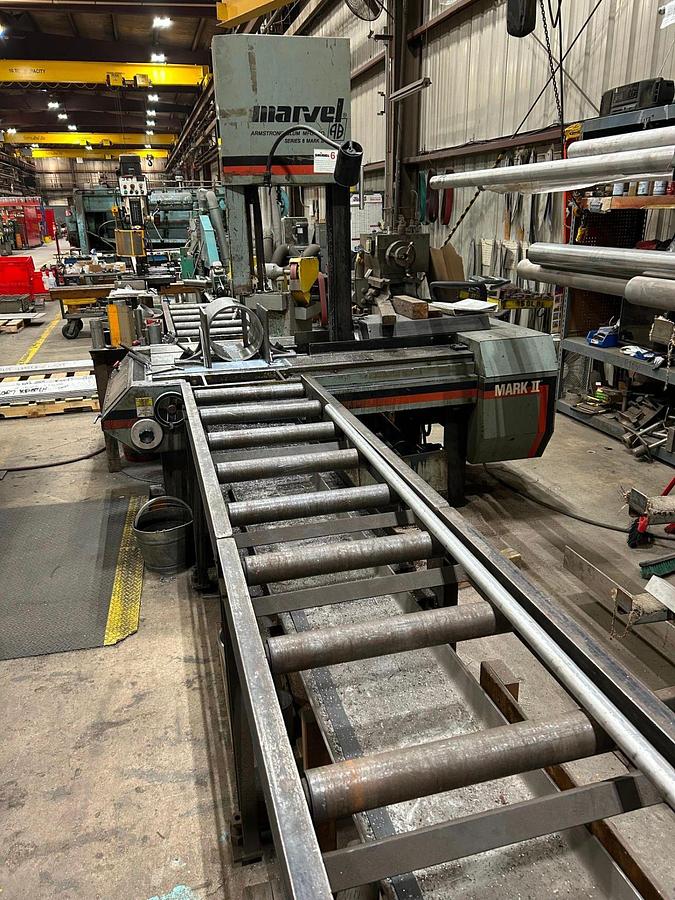

CONVEYOR SYSTEM NOT INCLUDED
