Amada HFT 80-25 S (2004) - 88 Ton Hydraulic Press Brake - 4-Axis - Needs Control Repair

2004 Amada HFT 80-25 S CNC Press Brake

88-Ton x 8’ Capacity | 4-Axis Precision | Specialized Industrial Series

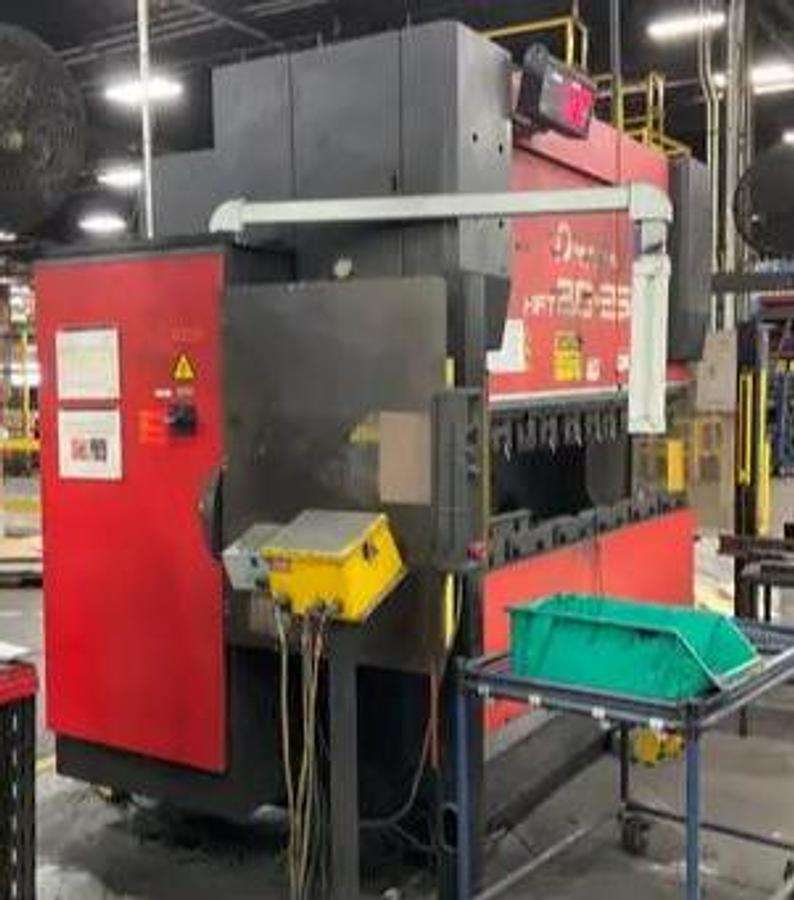

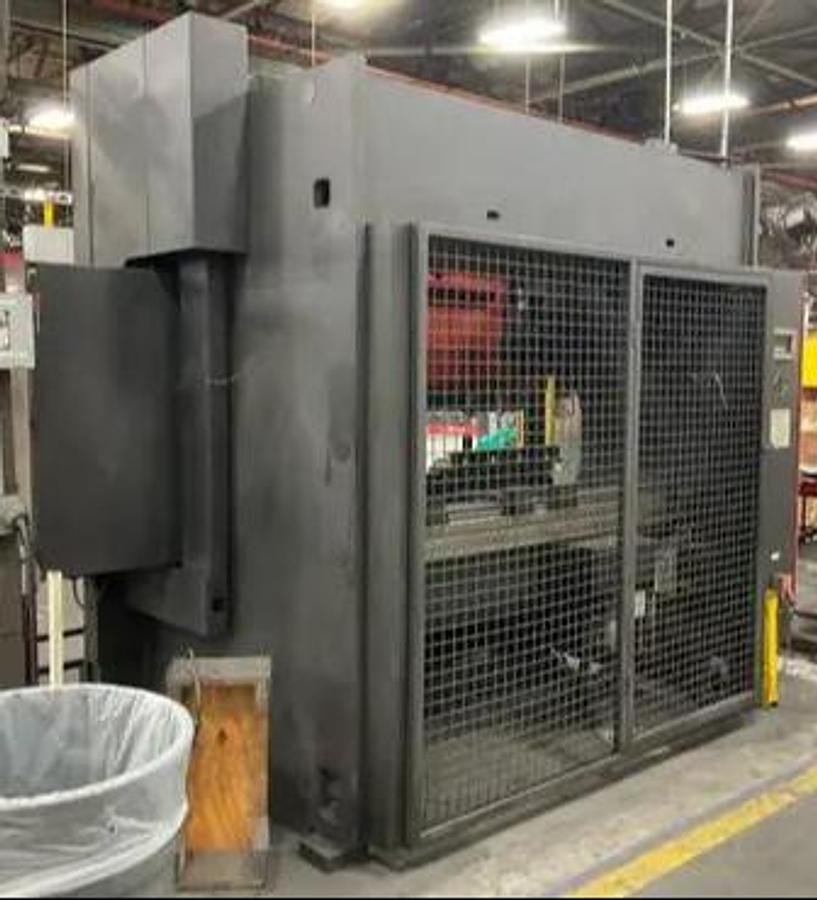

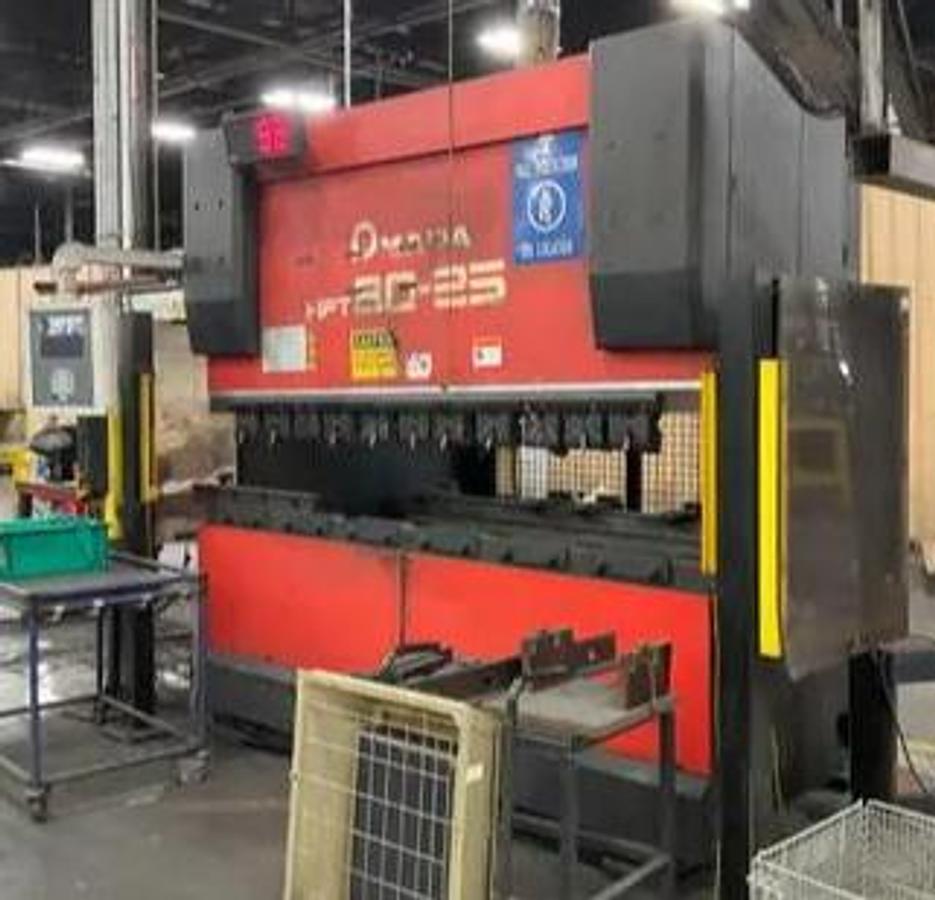

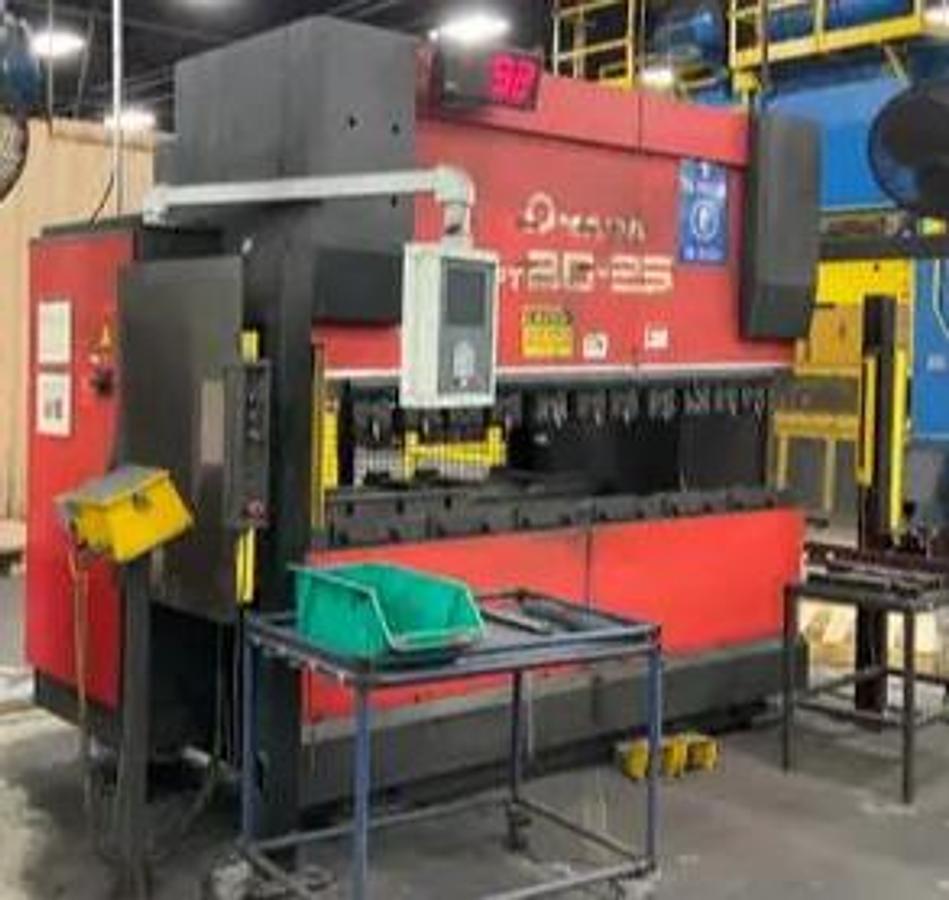

The Amada HFT 80-25 S is a high-speed, down-acting hydraulic press brake renowned for its precision and construction quality. This 2004 model offers an 8-foot bending length and 88 tons of force, making it an ideal choice for mid-range fabrication tasks requiring high repeatability and structural accuracy.

Important Note: Operator Control Status

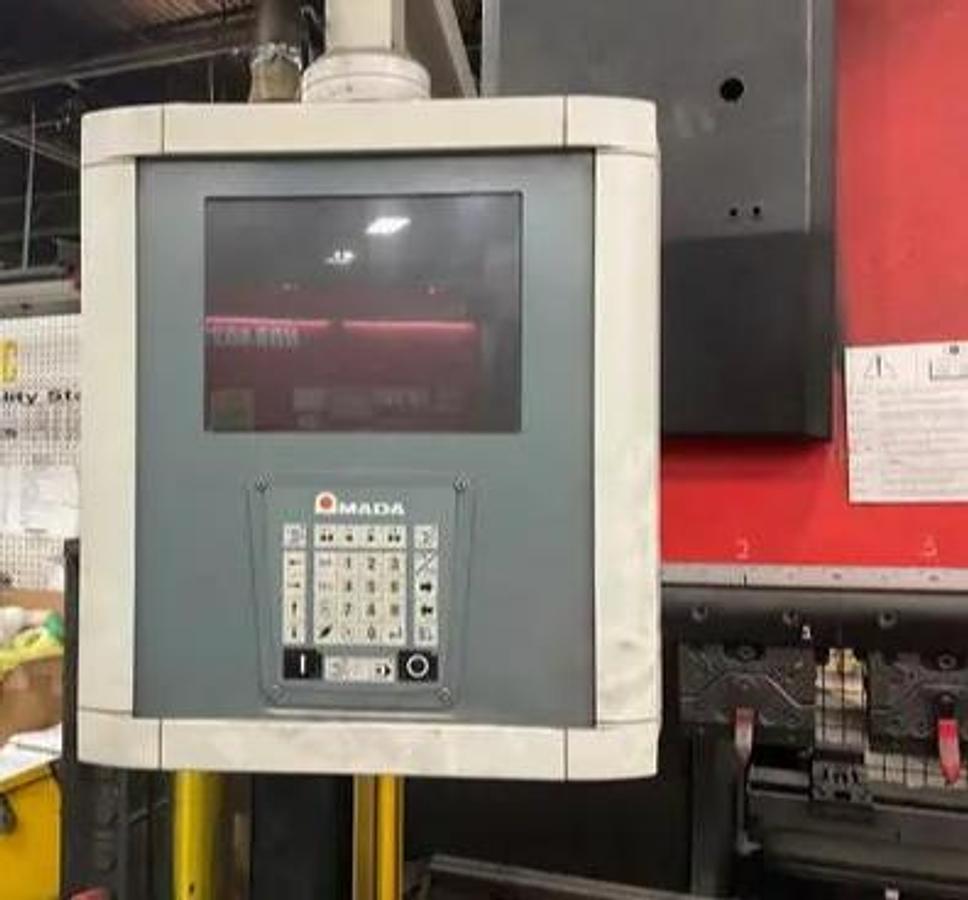

• Current Issue: This unit is being sold with a known issue in the operator's CNC control. The interface requires technical attention or a component replacement (commonly a control board or monitor interface) to restore full automated functionality.
• Investment Opportunity: This is an excellent opportunity for a shop with in-house maintenance capabilities or those looking to perform a control upgrade on a structurally sound, premium Amada frame.

Machine Features & Highlights

• 4-Axis CNC Control: Designed for complex multi-bend sequences with high accuracy across the Y1, Y2, X, and R axes.
• Superior Open Height: Features a generous 18.5” open height, providing ample clearance for deep box bending and specialized high-reach tooling.
• Deep Throat Design: The 16.5” throat depth allows for bending larger flanges and more complex part geometries compared to standard models.
• High-Speed Hydraulics: Engineered for fast approach, forming, and return speeds to minimize cycle times and maximize shop throughput.
• Rigid Down-Acting Design: Provides consistent pressure distribution across the full length of the bed for uniform bend angles.

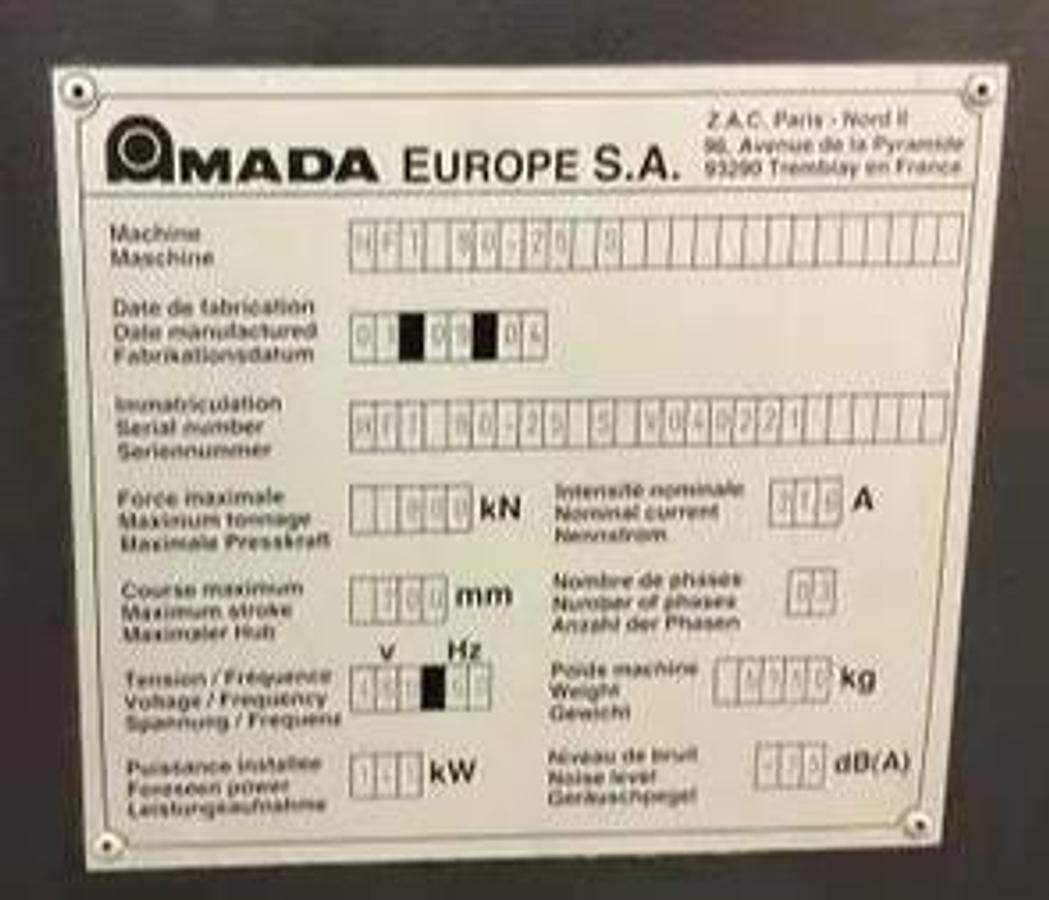

Technical Specifications

• Capacity: 88 US Tons (80 Metric Tons)
• Bending Length: 98.4” (2.5 Meters)
• Distance Between Uprights: 83”
• Stroke Length: 7.8”
• Approach Speed: 240 IPM
• Forming Speed: 23 IPM
• Return Speed: 188 IPM
• Motor: 20 HP
• Weight: Approx. 13,200 lbs
