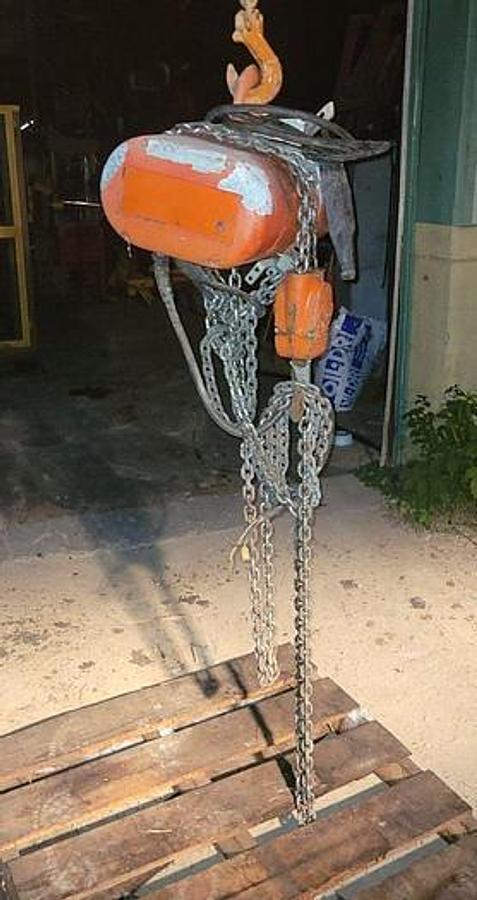

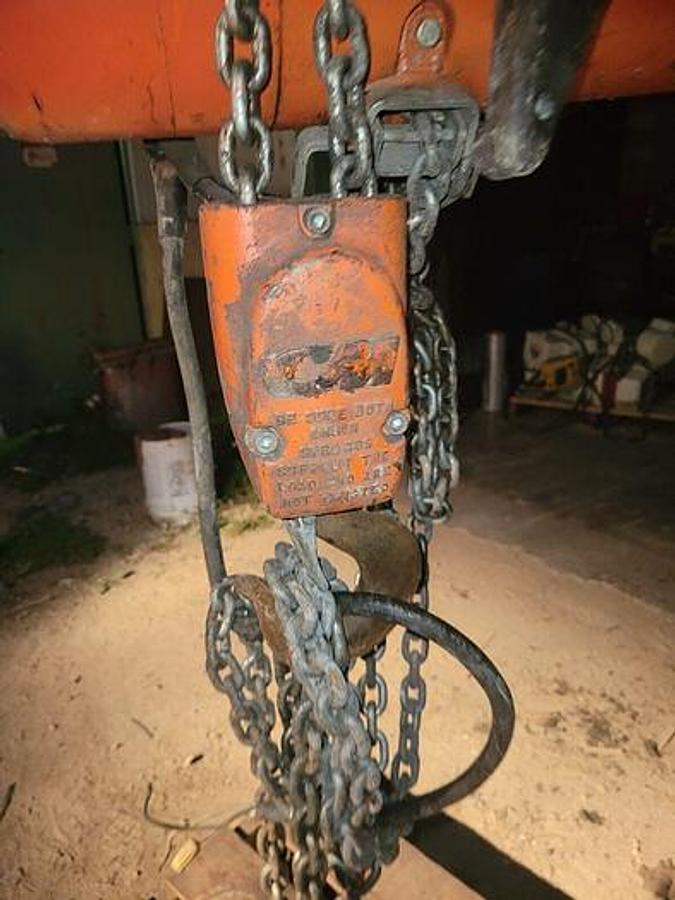

CM Lodestar Model R Electric Chain Hoist - 2 Ton Capacity, 8 FPM, H4 Duty - 1 HP

CM Lodestar Model R Electric Chain Hoist (2-Ton)

The CM Lodestar Model R is the gold standard for industrial lifting, combining legendary durability with "Next Gen" performance enhancements. Engineered for the most demanding environments, the 2-ton Model R provides a smooth, quiet, and reliable lift that exceeds H4 duty cycle requirements. Whether it’s for high-volume manufacturing, heavy equipment maintenance, or construction, this hoist is built to perform for a lifetime.

Key Features

• Heavy-Duty DC Brake: Designed for high-cycle use with easy access for quick inspection and adjustment without hoist disassembly.
• Lifetime Lubricated Gearbox: Features a non-oxidizing grease-filled gearbox, eliminating the need for hazardous oil changes and lowering maintenance costs.
• Precision 5-Pocket Lift Wheel: Enhances chain engagement for smoother lifting, reduced vibration, and significantly extended chain life.
• External Load Clutch: Positioned outside the load path to prevent load slipping during overloads, even when the power is off.
• Rugged NEMA 3R Housing: Durable aluminum alloy housing protects electrical components from harsh industrial conditions.
• Quiet Performance: Precision helical gearing reduces sound pressure by up to 80% compared to classic models.
• Finger-Safe Control Panel: Plug-and-play connectors and a clear layout make voltage changes and servicing simple and safe.
• Safety Standards: Proudly made in the USA, metric rated, and compliant with ASME B30.16 standards.

Technical Specifications

• Capacity: 2 Tons (4,000 lbs / 4,400 lbs metric rated)
• Lift Speed: 8 Feet Per Minute (FPM)
• Motor: 1 Horsepower (HP) high-torque motor
• Duty Rating: H4 (Heavy Duty)
• Reeving: 2-Part (Double fall)
• Headroom: 23-3/4 inches (Standard Hook Mount)
• Power Supply: Available in 115V Single-Phase or 230/460V Three-Phase
• Control Voltage: 115V (Standard)
• Enclosure Rating: NEMA 3R (Hoist) / NEMA 4 (Pendant Station)
• Chain: Zinc-plated Hoistaloy® load chain for corrosion resistance
• Weight: ~131 lbs (Body only)
