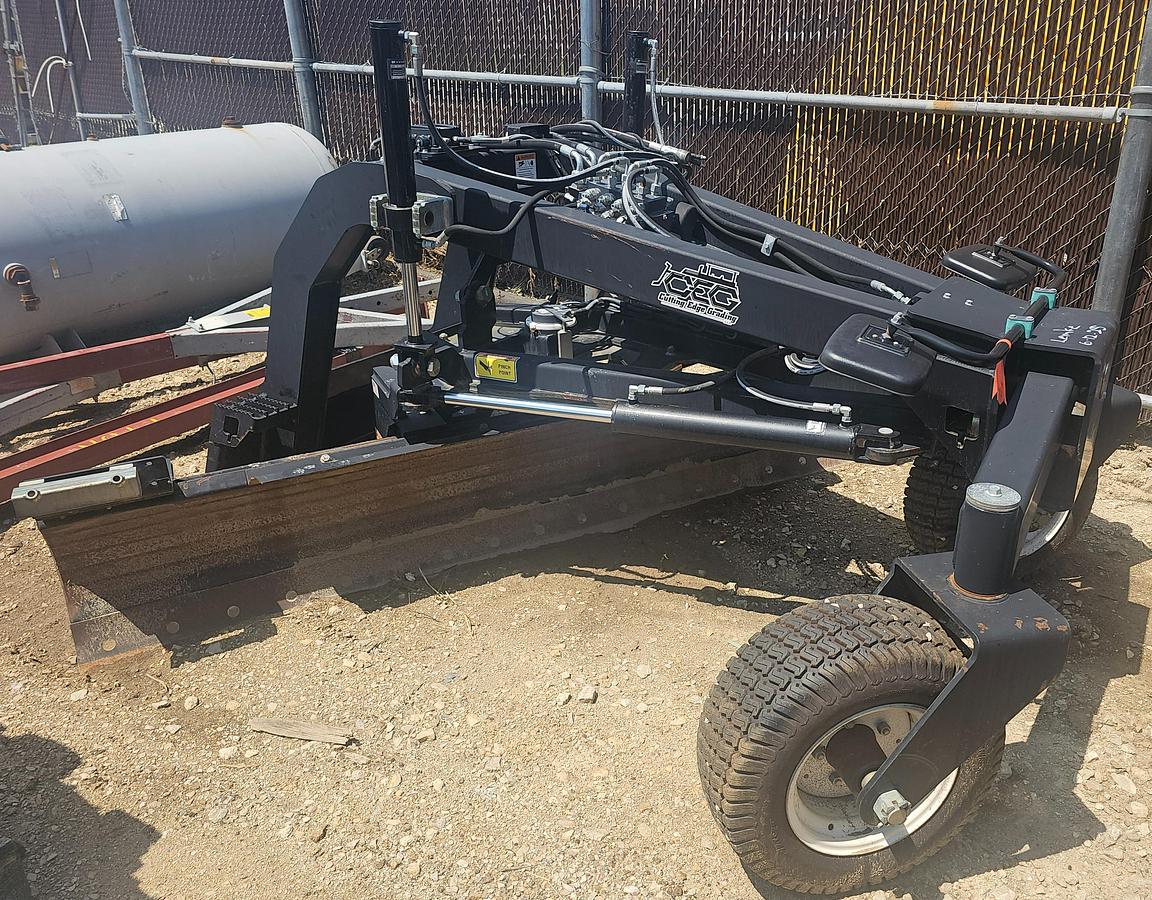

2022 CNH Industrial GB108 Quick Attach Grading Blade Attachment & Leica Control & Monitor

Here are some key specifications:

Blade Width: 108 inches (9 feet)

Blade Height: 16.98 inches

Weight: 2,620 lbs (shipping weight is 3,060 lbs)

Recommended Machine Weight: 10,000 lbs (4,563 kg)

Blade Lift: 6.94 inches

Blade Dig: 7.43 inches

Side Shift: ± 13 degrees

Rotation: ± 30 degrees

Max Tilt (one cylinder up, one down): 24.5 degrees

Moldboard Width: 108 inches

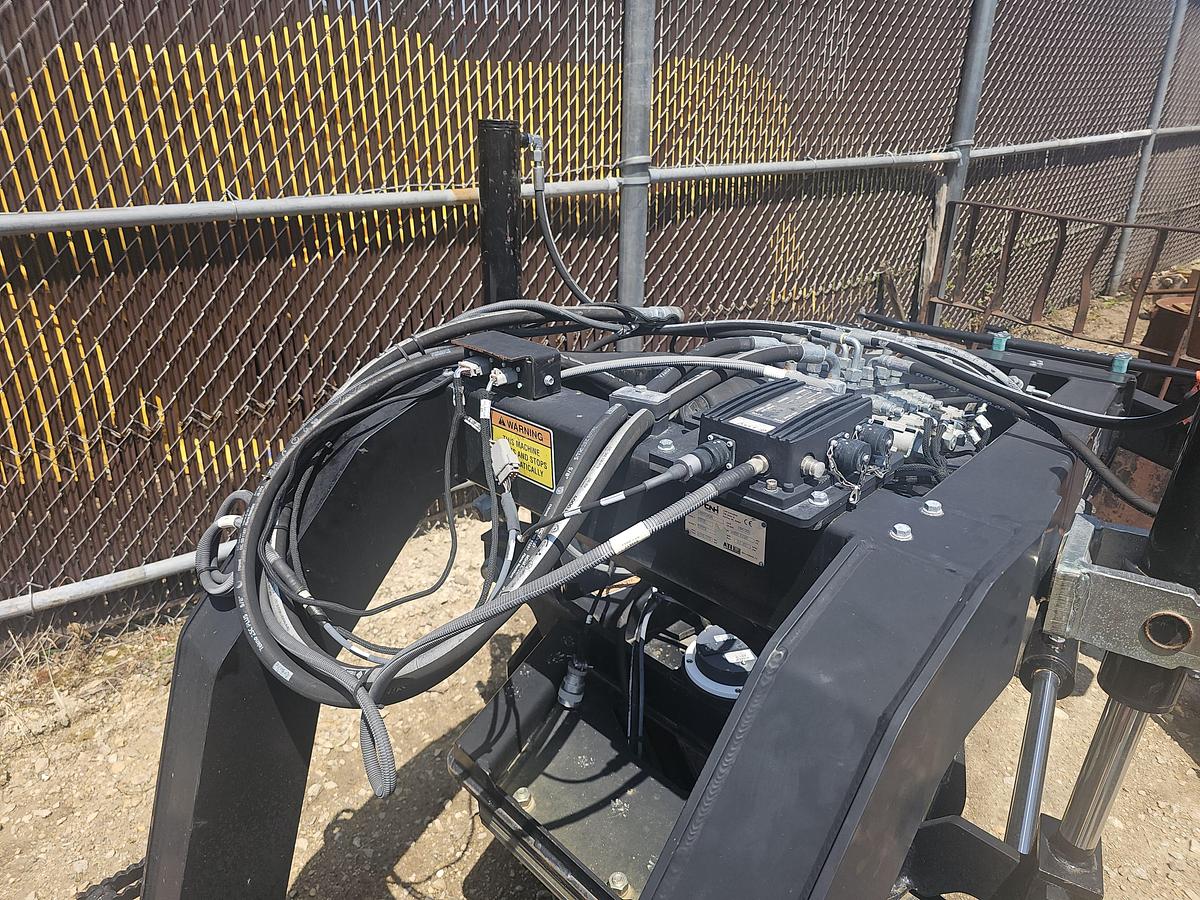

Hydraulic System:

Valve Type: 4-Spool Proportional

Minimal Flow Rate: 12 GPM (45.4 LPM)

Maximum Flow Rate: 28 GPM (106 LPM)

Maximum Hydraulic Pressure: 4060 psi (280 bar)

It offers features like:

8-way blade adjustment

Stable platform for fine grading

Oscillating front axle for stable operation

3D capability

Foam-filled tires

Powder-coated finish

Reversible cutting edge

Convex mirror for material visibility

Hoses with flat-face couplers

Leica 2D Monitor and Display
