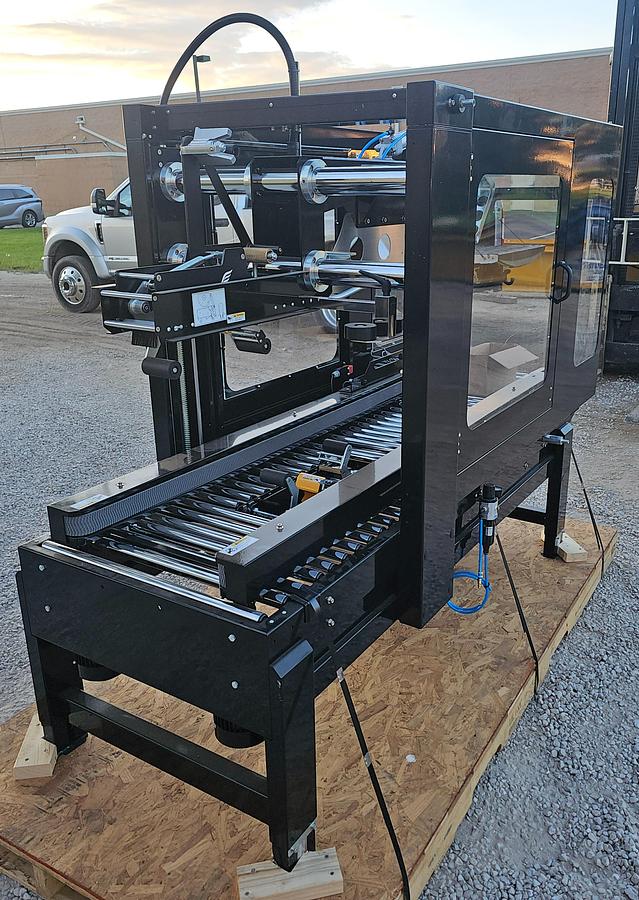

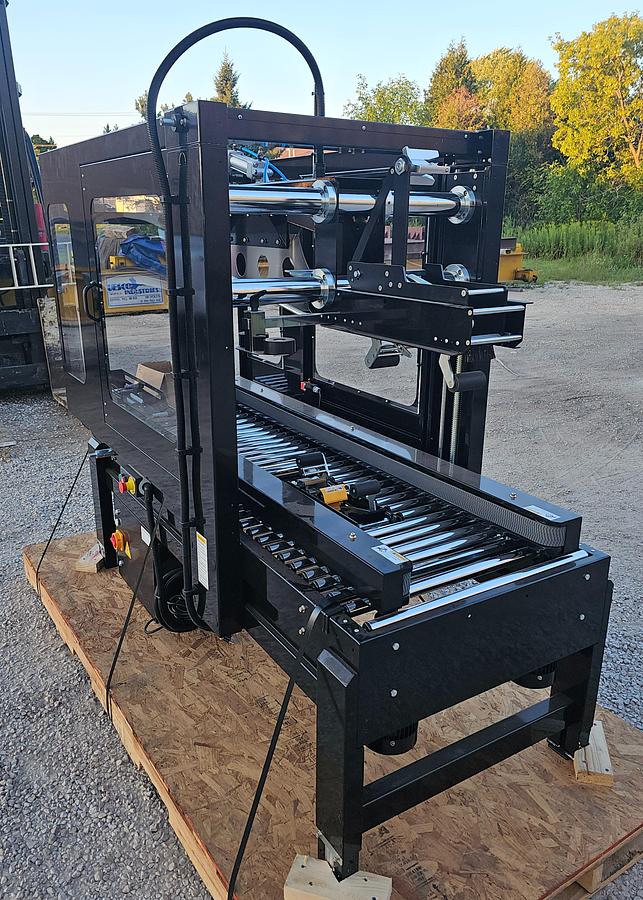

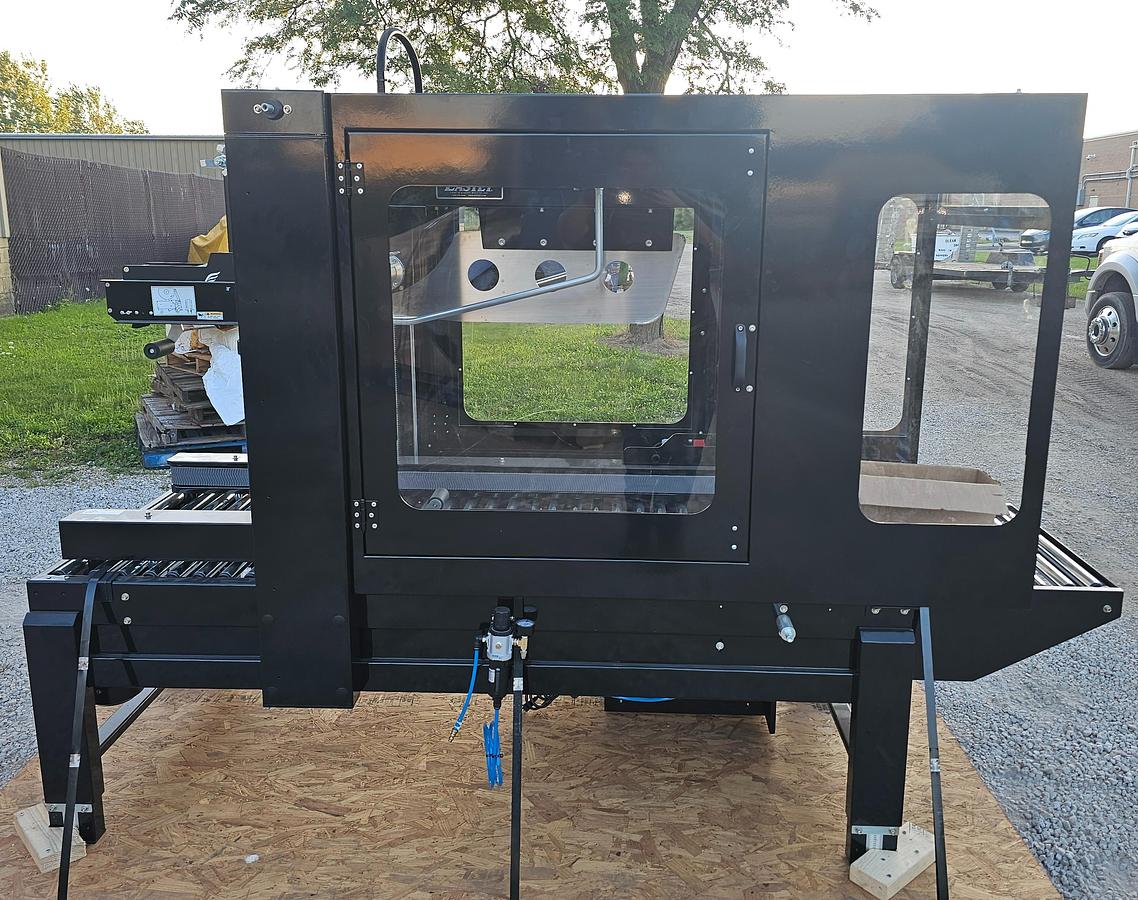

3" Eastey Packaging Systems SB-3EX-Auto 3BT Uniform Case Taper

SB-2EX Auto Uniform Case Taper

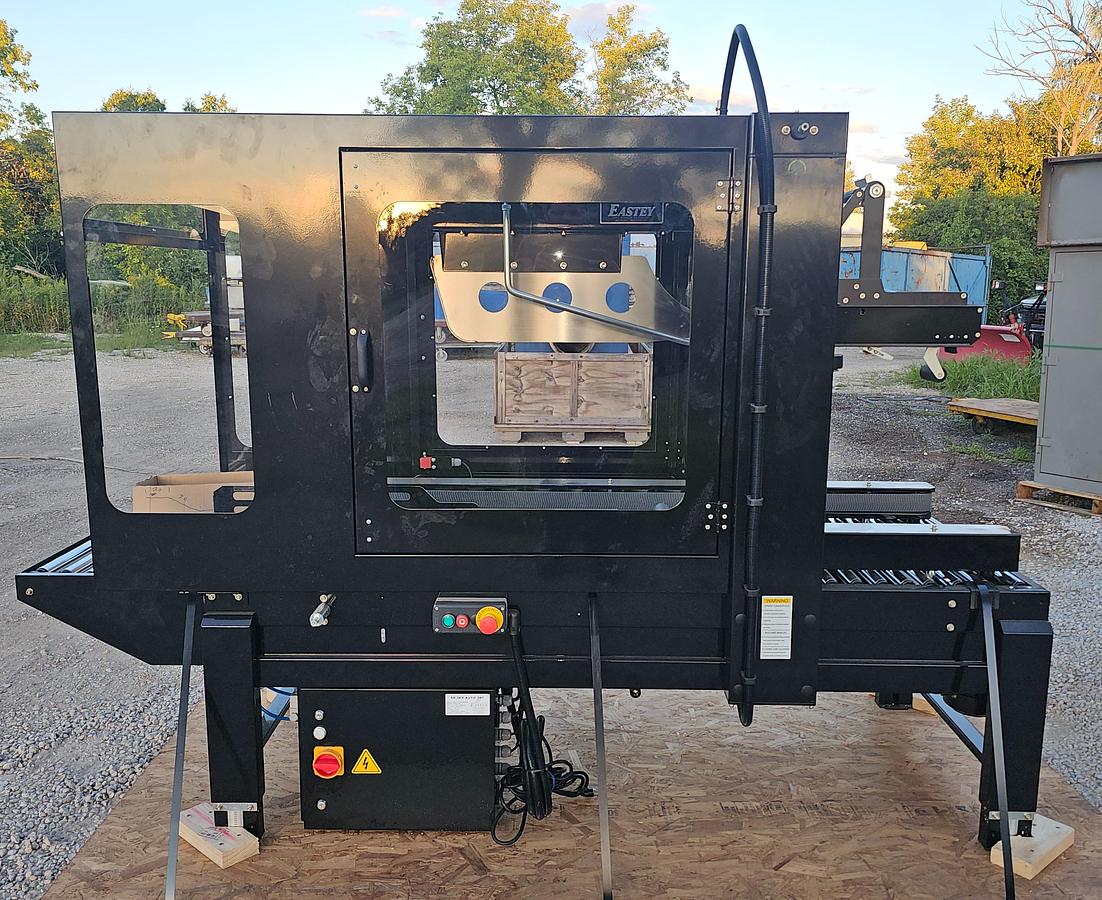

The SB-2EX Auto is an automatic uniform side belt case taper designed to close all four top case flaps and seal the top and bottom of each case. The adjustable plow system provides the utmost flexibility for varying types of carton sealing applications and provides a great alternative to hand taping. The SB-2EX Auto will seal up to 20 cases per minute.

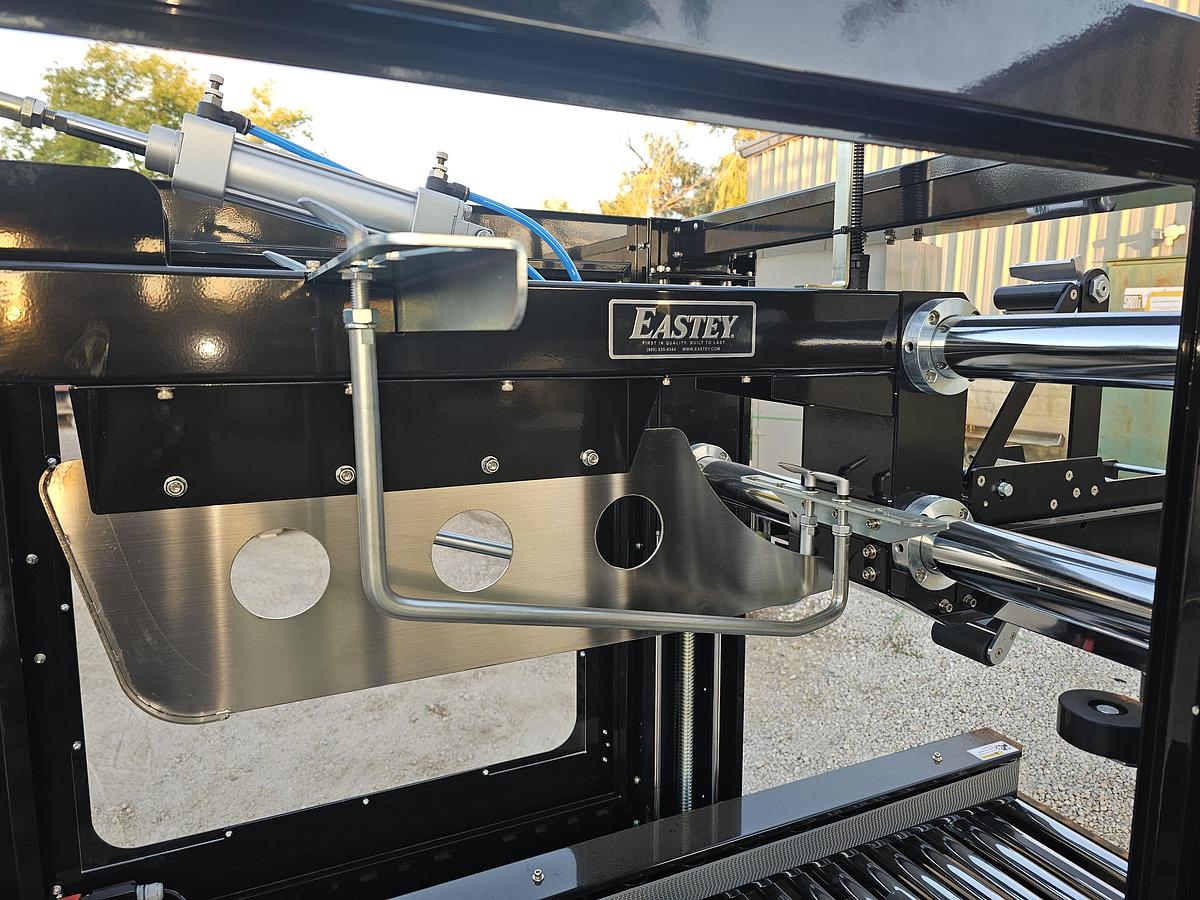

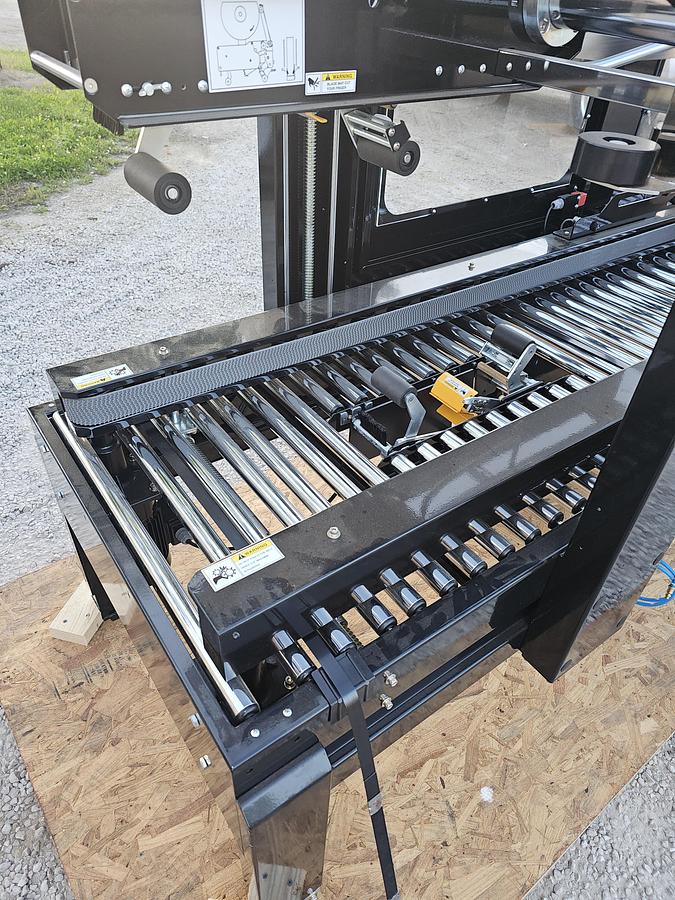

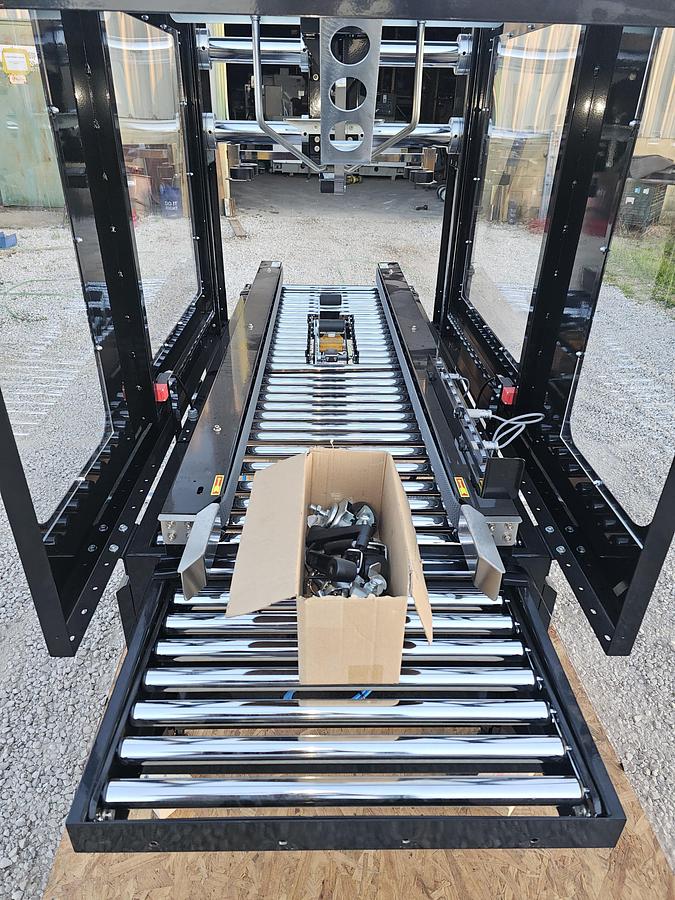

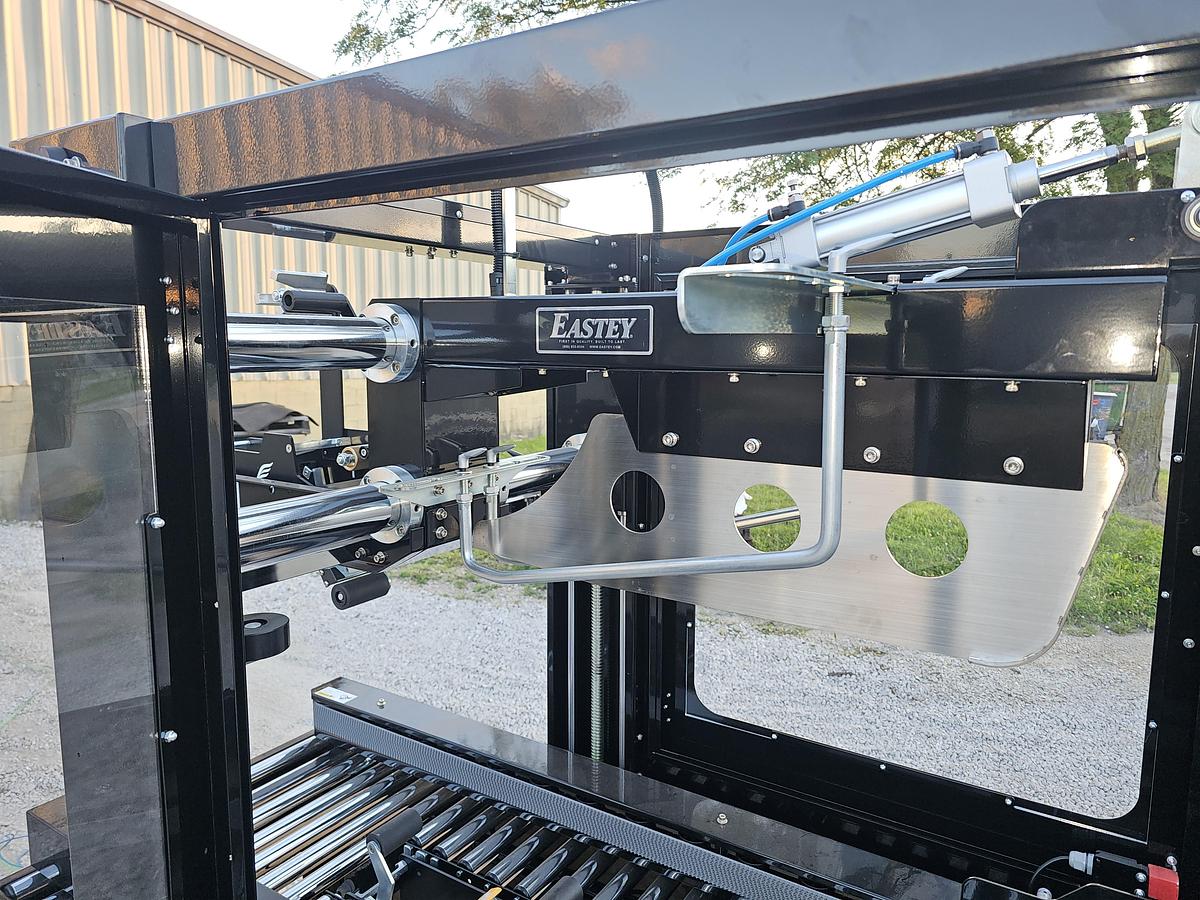

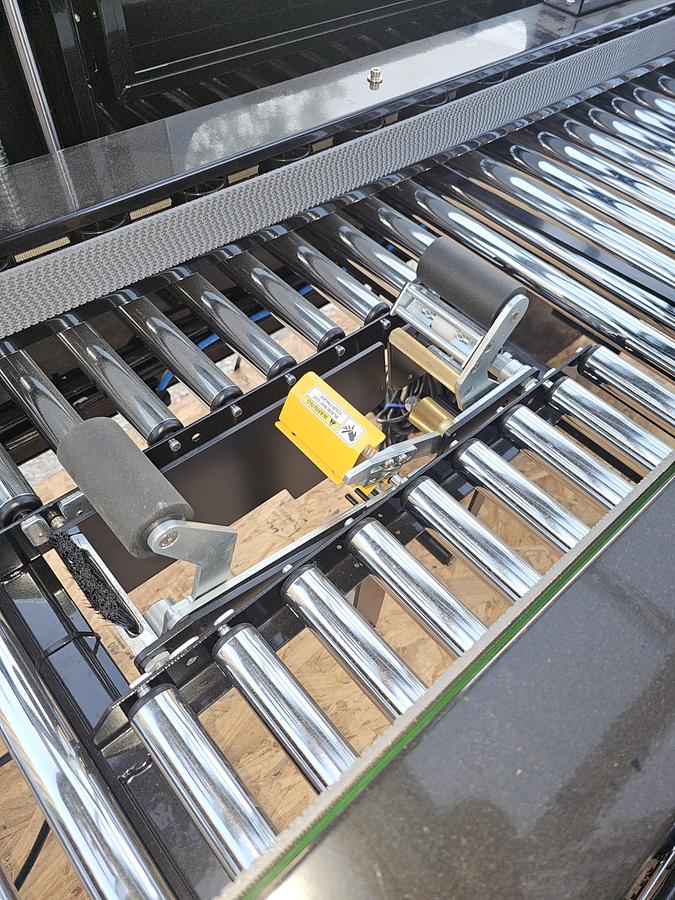

The SB-2EX Auto will accept cartons from a powered conveyor and will automatically close the top carton flaps. A rugged stainless steel plow folds down the front panel, while a rear kicker folds down the trailing minor flap prior to the major flaps being folded. The SB-2EX Auto automatically meters cartons with a photoeye controlled drop conveyor gating system. Top squeezing rollers help keep the major flaps together while keeping the carton square prior to tape application.

SB-2EX Auto offers fast and easy case changes and flexibility for boxes 5” to 24” in length. The adjustable hand cranks can be moved to either side of the machine and allow for quick carton change over. This feature allows you to locate either side against a wall, while being able to maintain control of the adjustments from the opposite side. SB-2EX Auto utilizes Eastey’s EX Quick-Load top and bottom tape cartridges and will seal boxes as narrow as 4.5” wide and as low as 5.0” tall.

Utilizes Eastey’s EX tapehead

Plug-In and go operation

Powder coated 12 gauge steel

Adjustable side guides

Industrial strength side belts

Drop conveyor gating system

Interlock safety gates in the kicker stationensions

Adjustable leg extensions

Fast and easy box size changes

Low maintenance operation

Accommodates wide case range

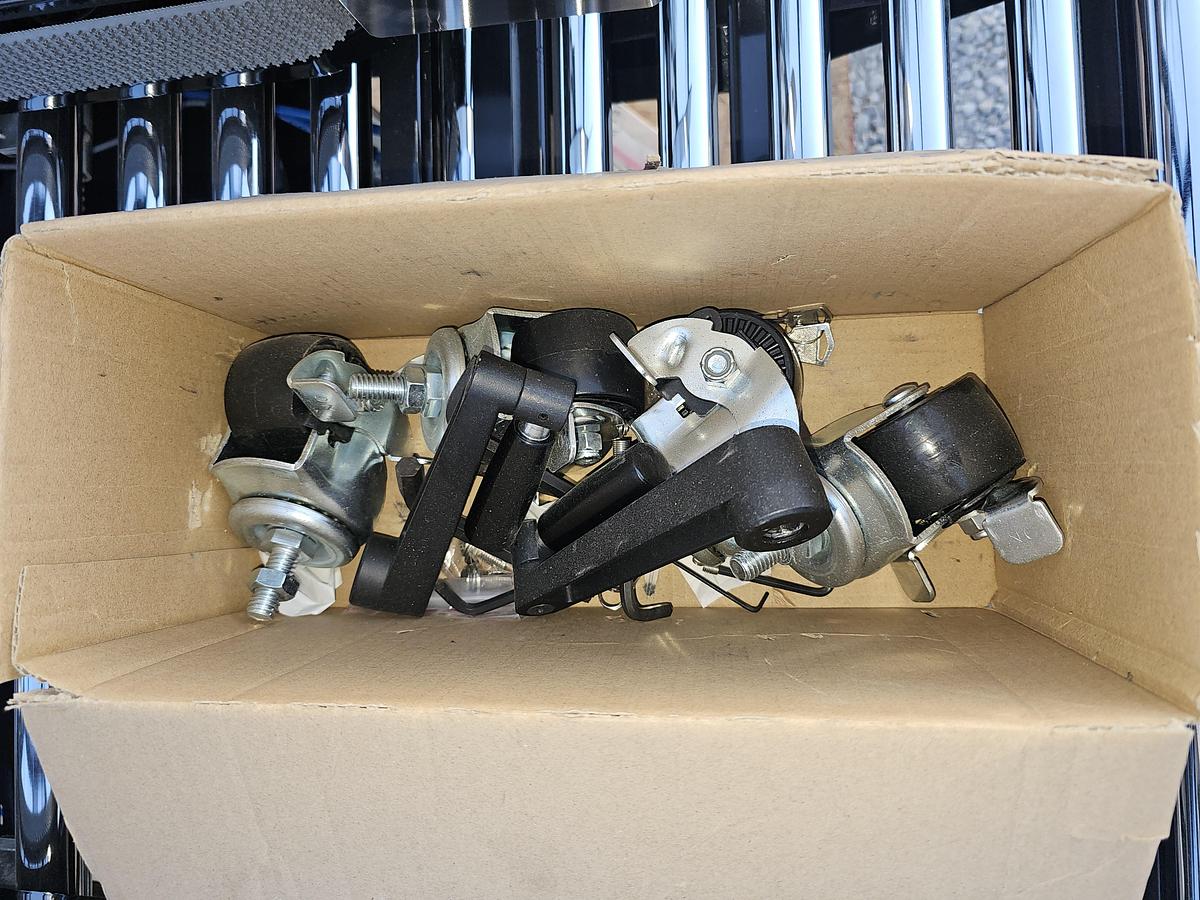

Casters for transportation within plant

Sealer Type – Fully automatic uniform side belt, top and bottom case sealer

Machinery Makeup – Industrial strength 12 gauge steel, powder coated for durability

Belt Speed – 75 feet/per minute (23 meters/minute)

Tape Speed – 20 cases/per minute, depending on box size and operator efficiency

Height Adjustment – Standard adjustable legs for 27” (685.8mm) to 34.6” (878.8mm) conveyor heights

Tape Size – 2” wide pressure sensitive tape, up to 15” diameter rolls, optional 3” wide tape

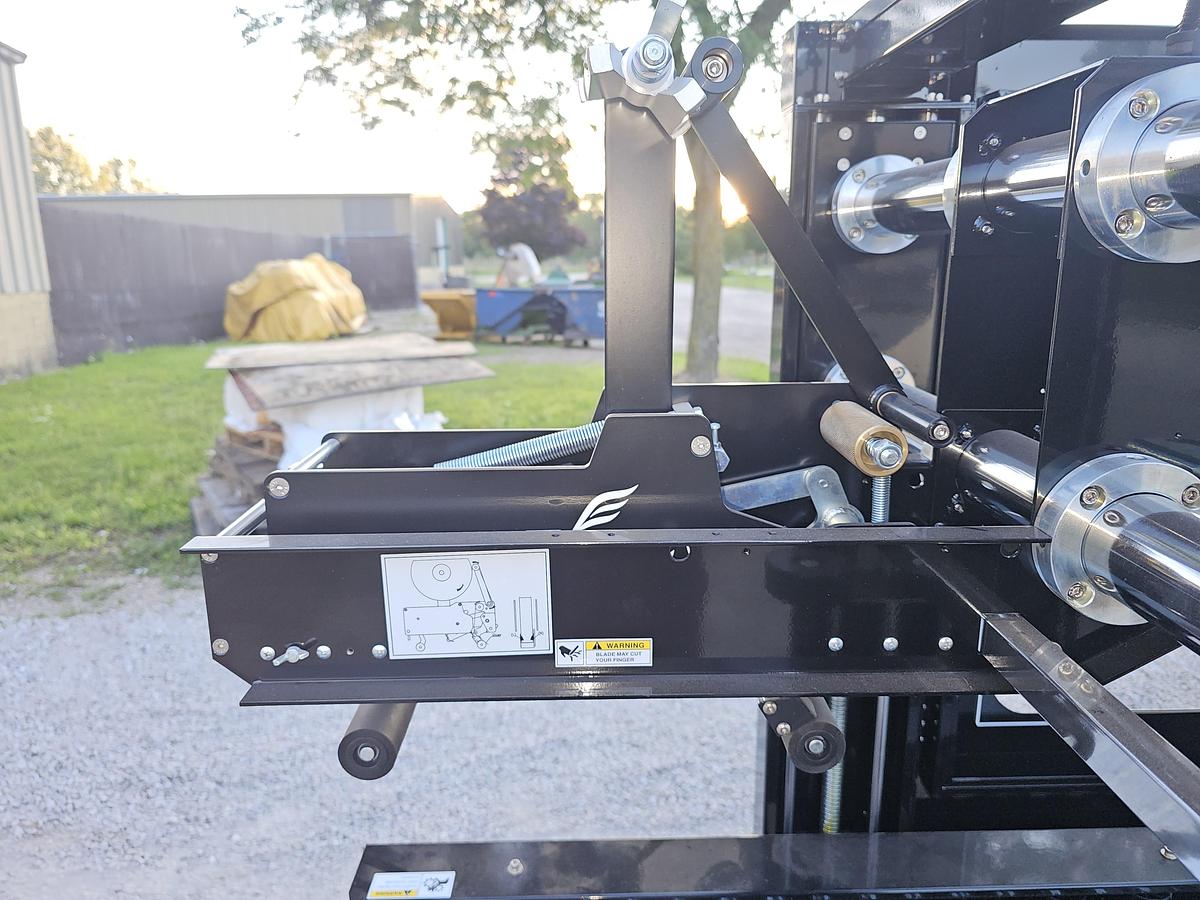

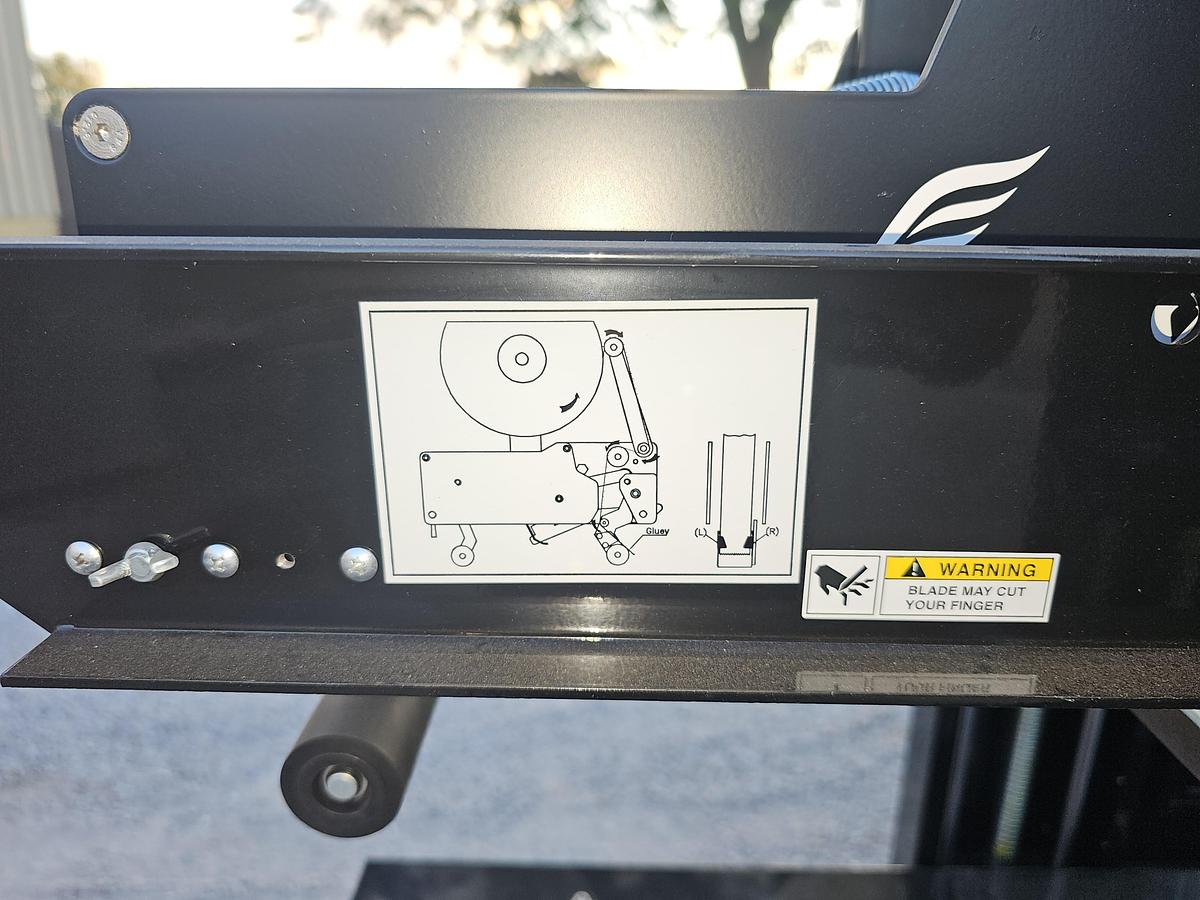

Tape Cartridge – Proven design requires no lubrication, tips back for simple tape threading, removable for maintenance and interchangeable with top or bottom cartridges

Air Requirements – 85 psi

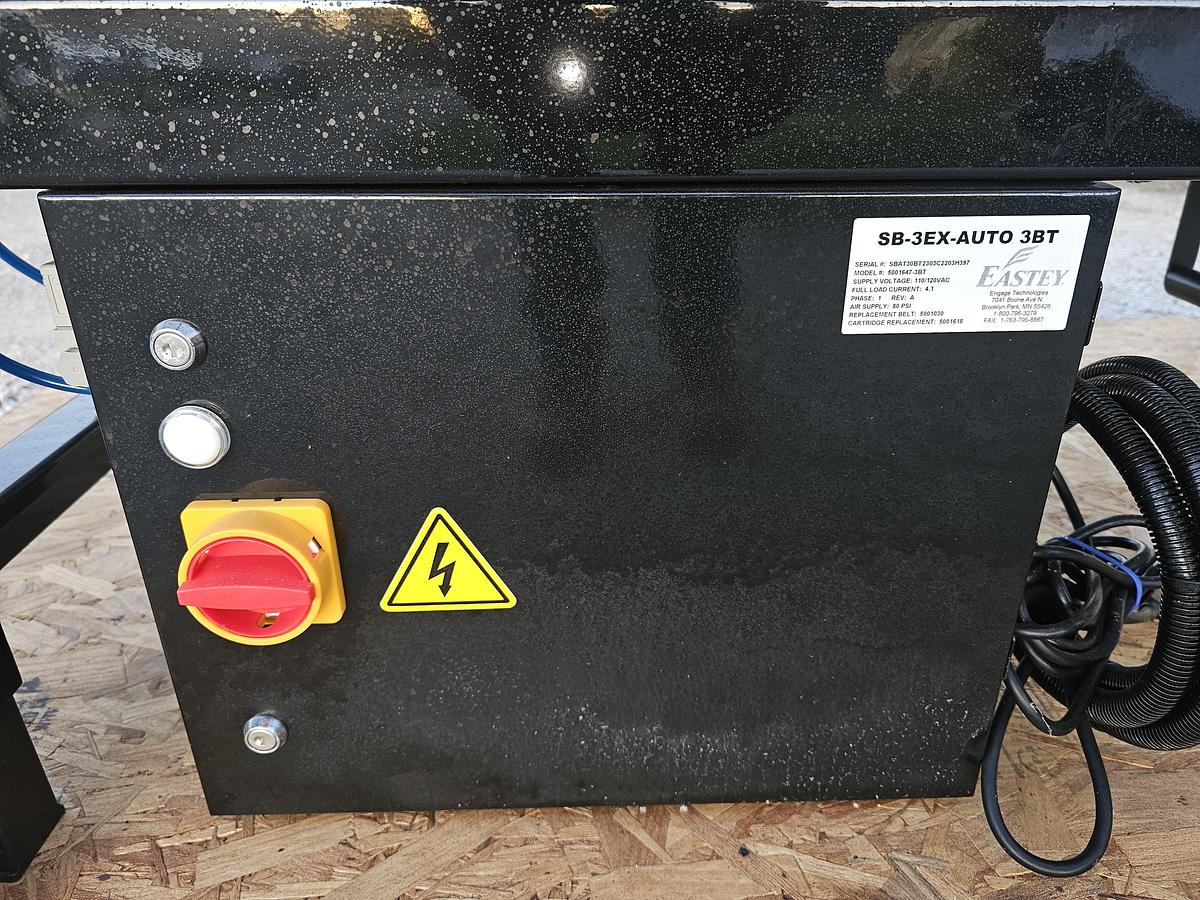

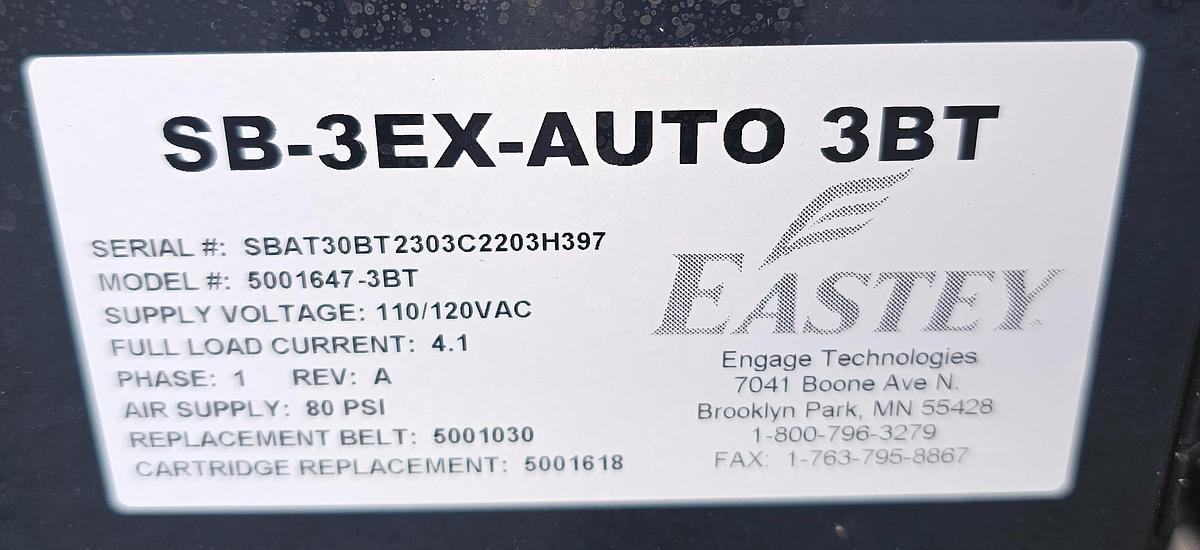

Electrical Requirements – 110 VAC, 60Hz, 4.0A

Agency Approvals – CE Certification
