2003 Lincoln Ranger 3 Phase Welder Generator - 480V - 481 Hours - Code 11079

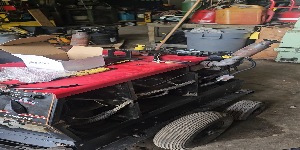

2003 Lincoln Ranger 3 Phase Welder/Generator (480V)

Low Hours: 481 Original Hours | Code: 11079 | S/N: U1030901147

Available for immediate sale is an exceptionally well-preserved Lincoln Ranger 3 Phase. This specialized unit is the industry standard for portable 480V power, making it the "go-to" machine for agricultural irrigation circles, field pumps, and powering large 3-phase industrial tools or plasma cutters where utility power is unavailable.

With only 481 original hours, this machine has spent its life in standby/light-duty use. It features Lincoln’s proprietary Chopper Technology, delivering an incredibly smooth, stable DC arc for superior multi-process welding performance.

Technical Specifications

• 3-Phase Auxiliary Power: 11,500 Watts Peak / 10,500 Watts Continuous
• 3-Phase Voltage: 480V AC (Equipped with covered NEMA L19-20R outlet)
• Single-Phase Auxiliary Power: 10,500 Watts Peak / 9,000 Watts Continuous (120/240V)
• Welding Output: 225A AC / 210A DC @ 100% Duty Cycle
• Engine: 23 HP Kohler OHV Command (CH730) Gasoline Engine
• Fuel Capacity: 12 Gallons
• Dimensions: 30" H x 21.5" W x 42.3" L
• Weight: 538 lbs

Key Features

• Standby Condition: Sub-500 hour units are increasingly rare; this machine starts reliably and holds a steady load across all phases.
• Chopper Technology: Provides extremely low spatter and easy starts, whether you are stick welding (SMAW) or running a wire feeder (GMAW/FCAW).
• Enclosed Case: Fully enclosed design protects the engine and components from the elements while providing quiet operation (76.4 dBA at 23 ft).
• Dual Digital Meters: High-visibility displays for Amps and Volts allow for precise procedure setting—critical for high-spec fabrication or code-work.
