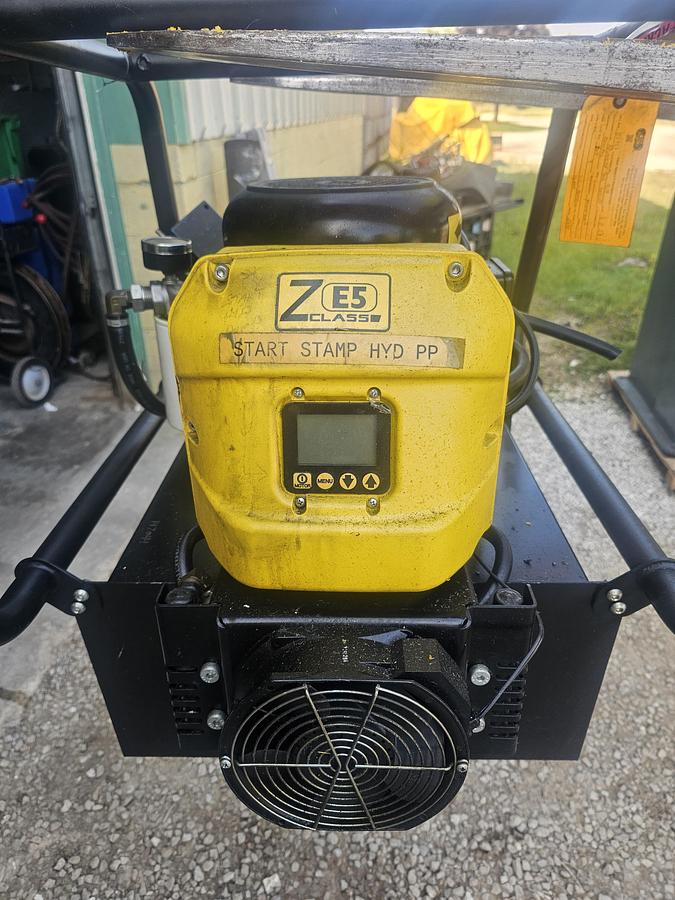

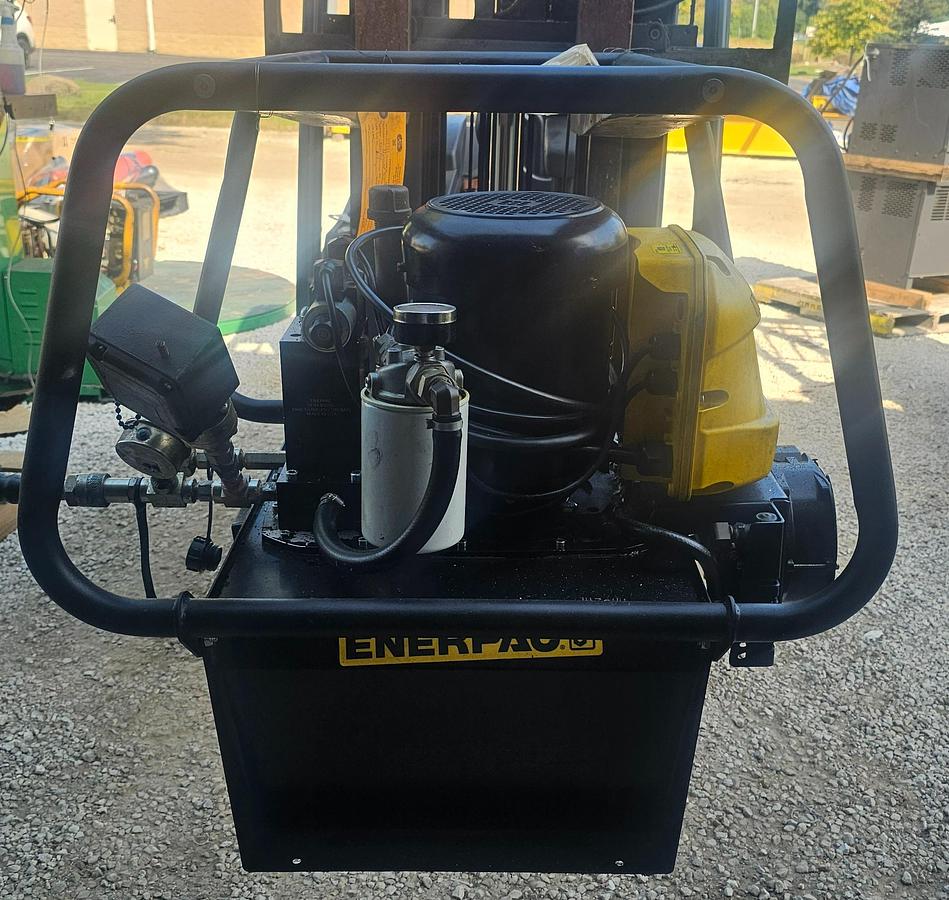

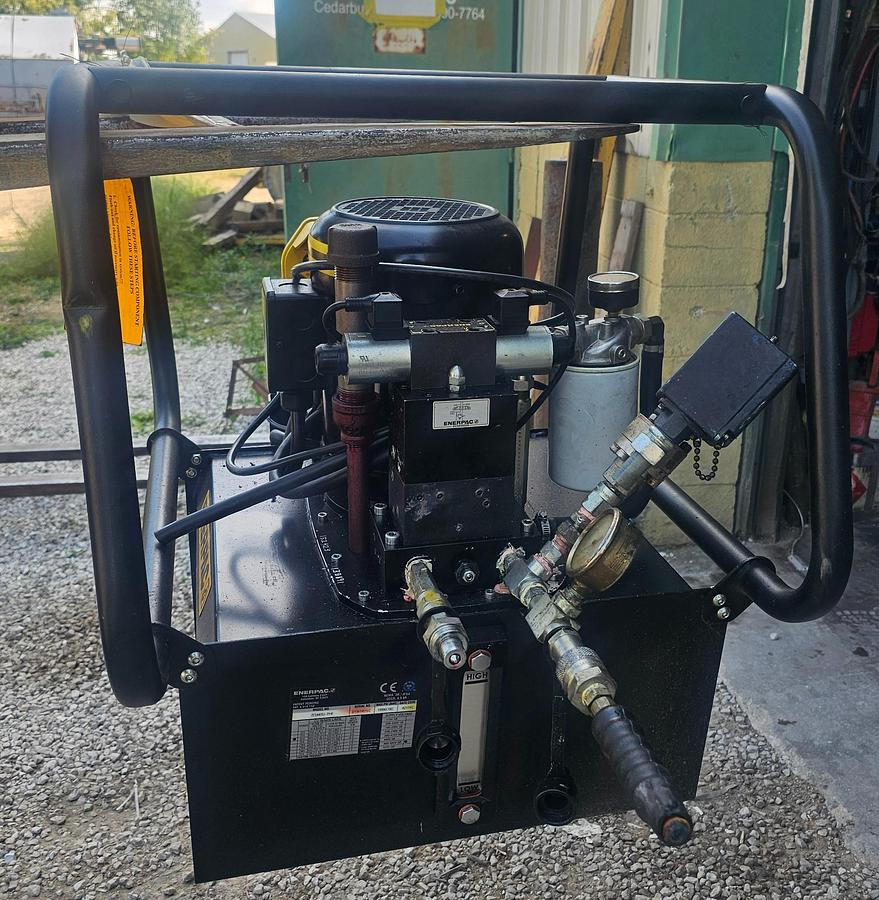

2.5 Hp Enerpac ZE5440SJ-FHR Electric Hydraulic Pump 10,000 PSI

Enerpac Electric Hydraulic Pump

ZE5 Series

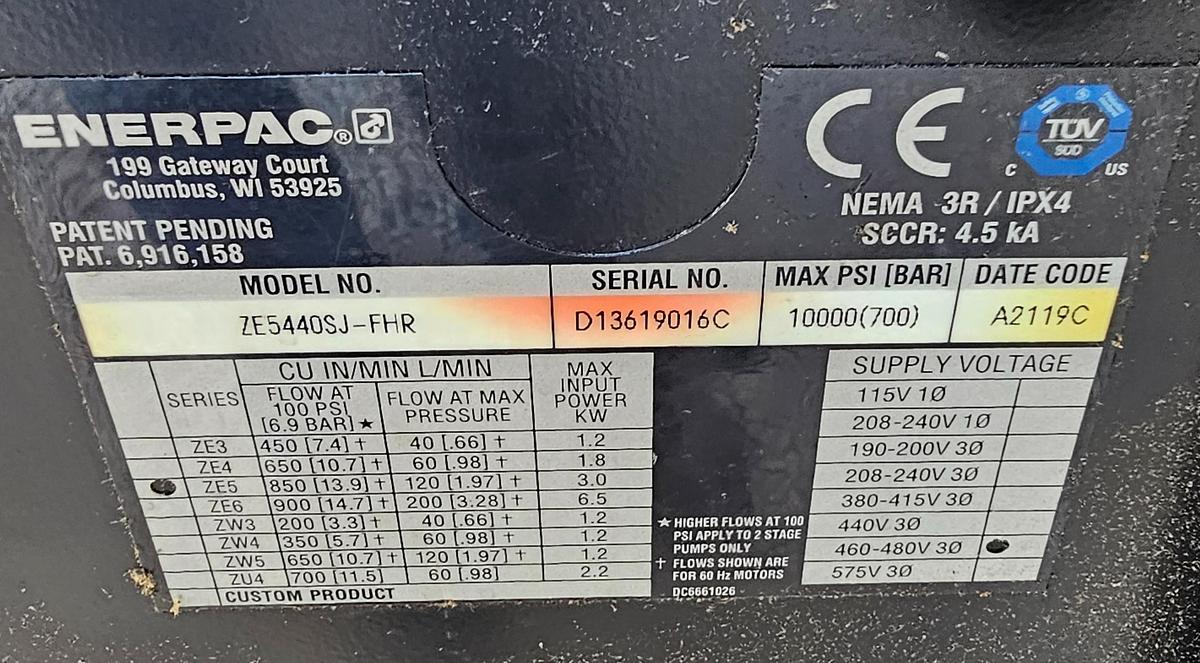

Model #: ZE5440SJ-FHR

S/N: D13619016C

The Enerpac ZE5440SJ-FHR is an electric hydraulic pump from the high-flow ZE series, configured for use with double-acting hydraulic cylinders. The specific suffix "-FHR" indicates that this model features an electric box, an LCD, and a heat exchanger.

General specifications:

Max Operating Pressure: 10,000 psi (700 bar)

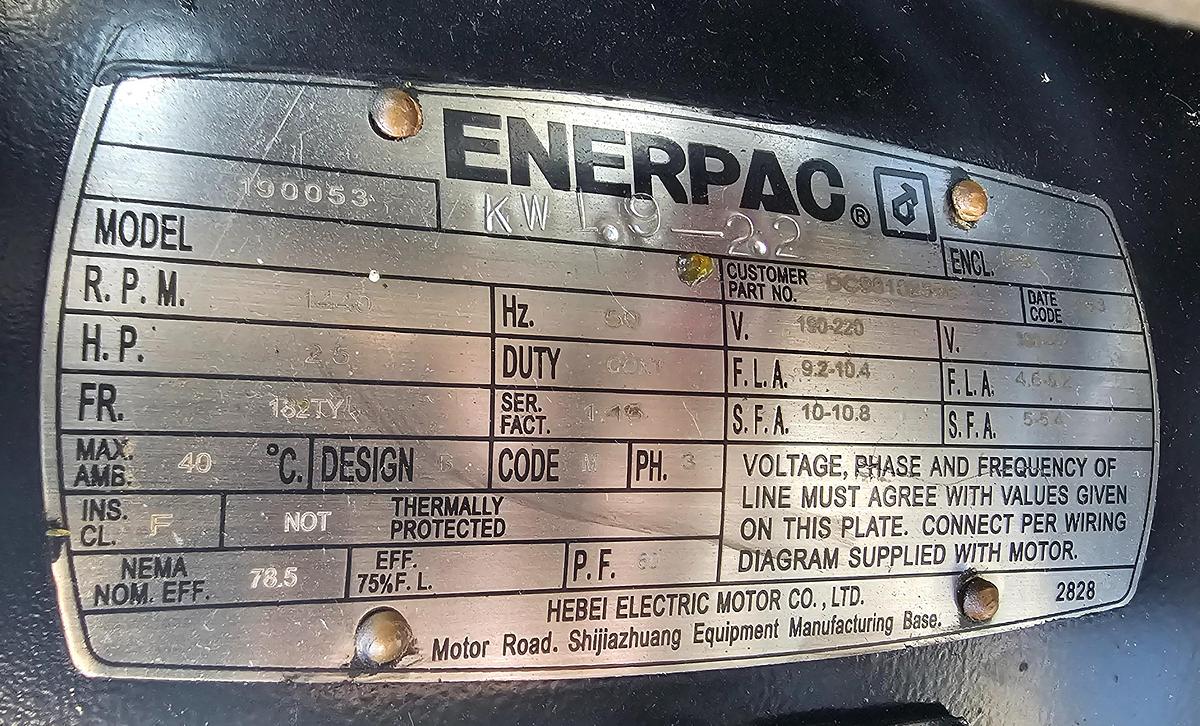

Motor: 3 hp, three-phase, induction

Voltage: 190-220/380-440V AC

Flow Rate: 120 in3/min at 10,000 psi

Usable Oil Capacity: 10 gallons (40 liters)

Reservoir Material: Steel

Sound Level: 75 dBA

Cylinder Compatibility: Double-acting

Weight: 112.53 kg (248 lb)

Valve, control, and features

• Valve Operation: Solenoid
• Valve Type: 4-way, 3-position, tandem center
• Pump Control: Pendant
• LCD: Yes, for self-test, diagnostics, and readout
• Heat Exchanger: Included (indicated by "H" in the model number suffix)
• Relief Valve: User-adjustable, with a range of 1,000 to 10,000 psi
• Electrical Box: High-strength, molded box to protect electronics
