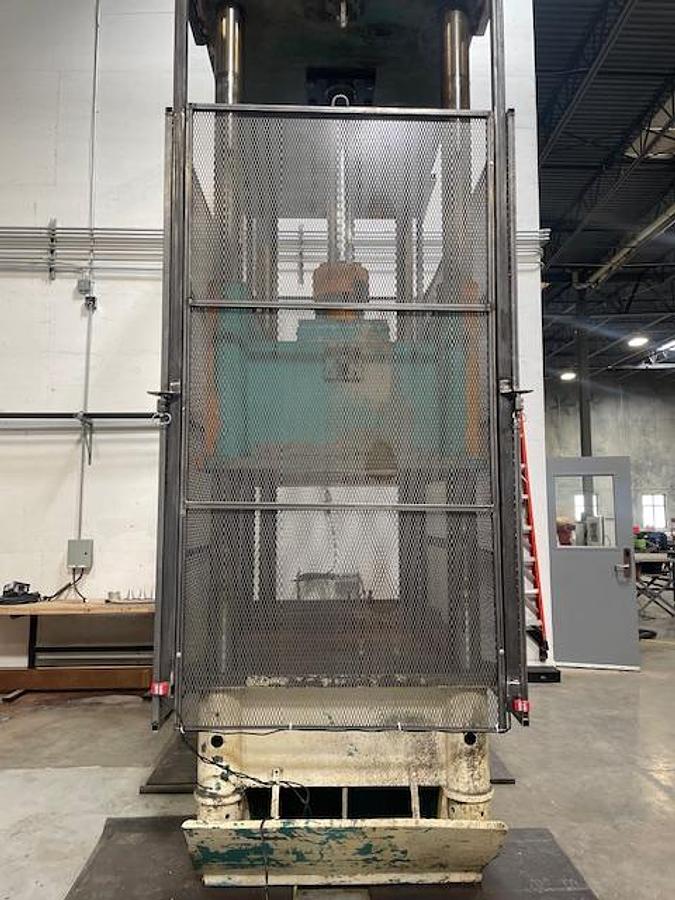

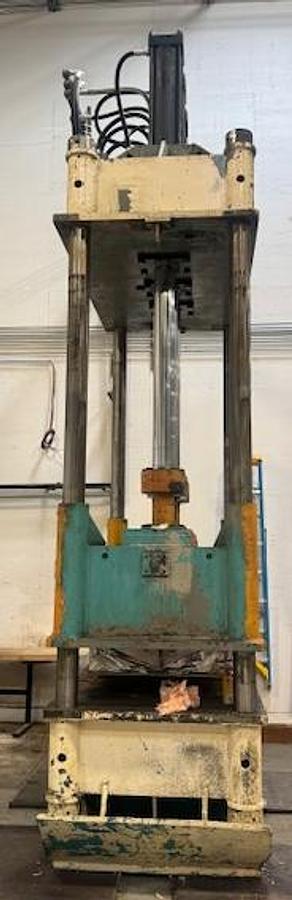

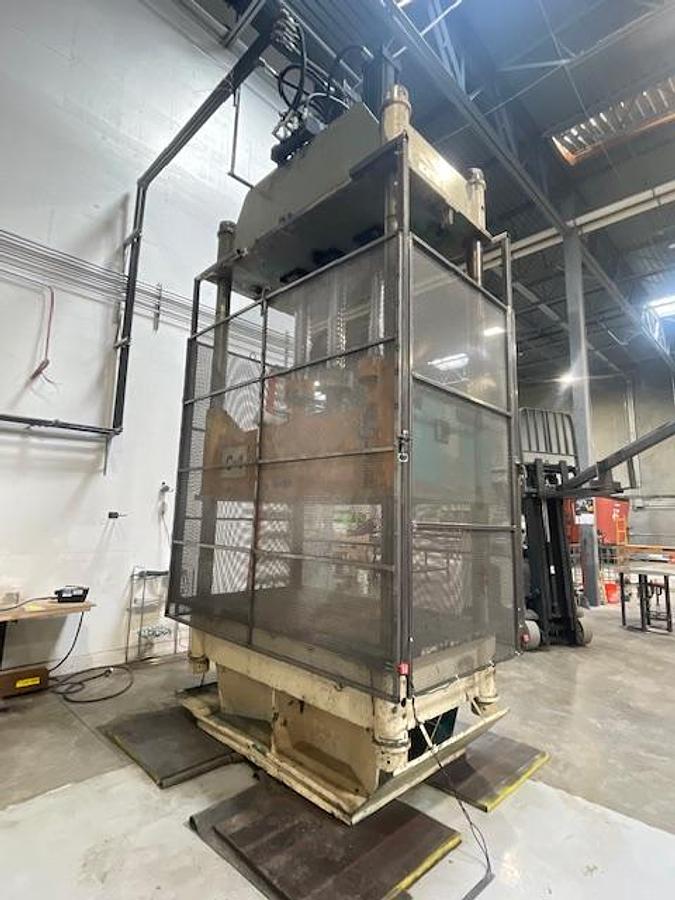

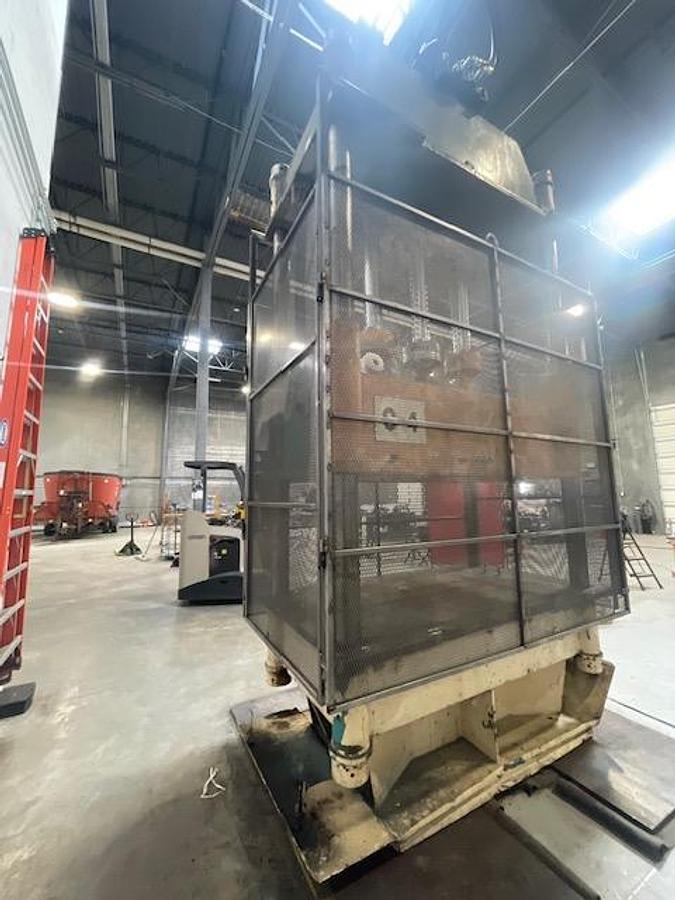

Verson 200-HD2-72-4P 200T Modified Verson 4-Post Compression Press
Verson 200-HD2-72-4P 200T Modified Verson 4-Post Compression Press
$115,000 (USD)
Available quantity:1
or
Call 414 841 4377
Description
Specifications:
- Capacity: 200T
- Max Stroke: 54"
- Daylight to bed: 26" Min - 80"Max
- Bed area approx. 86" x 54" (RL x FB)
- Distance Between Post: 74" 32" (RL x FB)
- Usable Bed and ram area 74" x 54" (RL x FB)
- Cylinder Size: two 7" Diameter Cylinders - Modification: CYLINDER SIZE THREE 8" DIA. CYLINDERS
- Rod Sizes: Two 5.5" Diameter Rods - Modification: ROD SIZES THREE 5.5" DIA. RODS
- Post Size: 5.5" Diameter
- Floor to bed: 36"

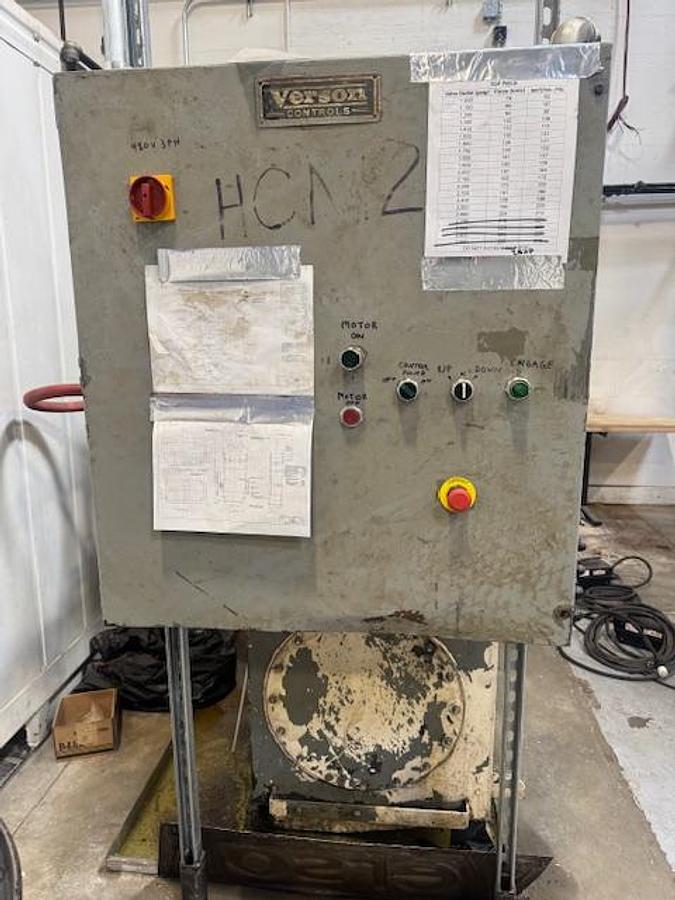

- Press Controls: Verson Controls - Modification - PRESS CONTROLS MODIFIED ELECTROMECHANICAL

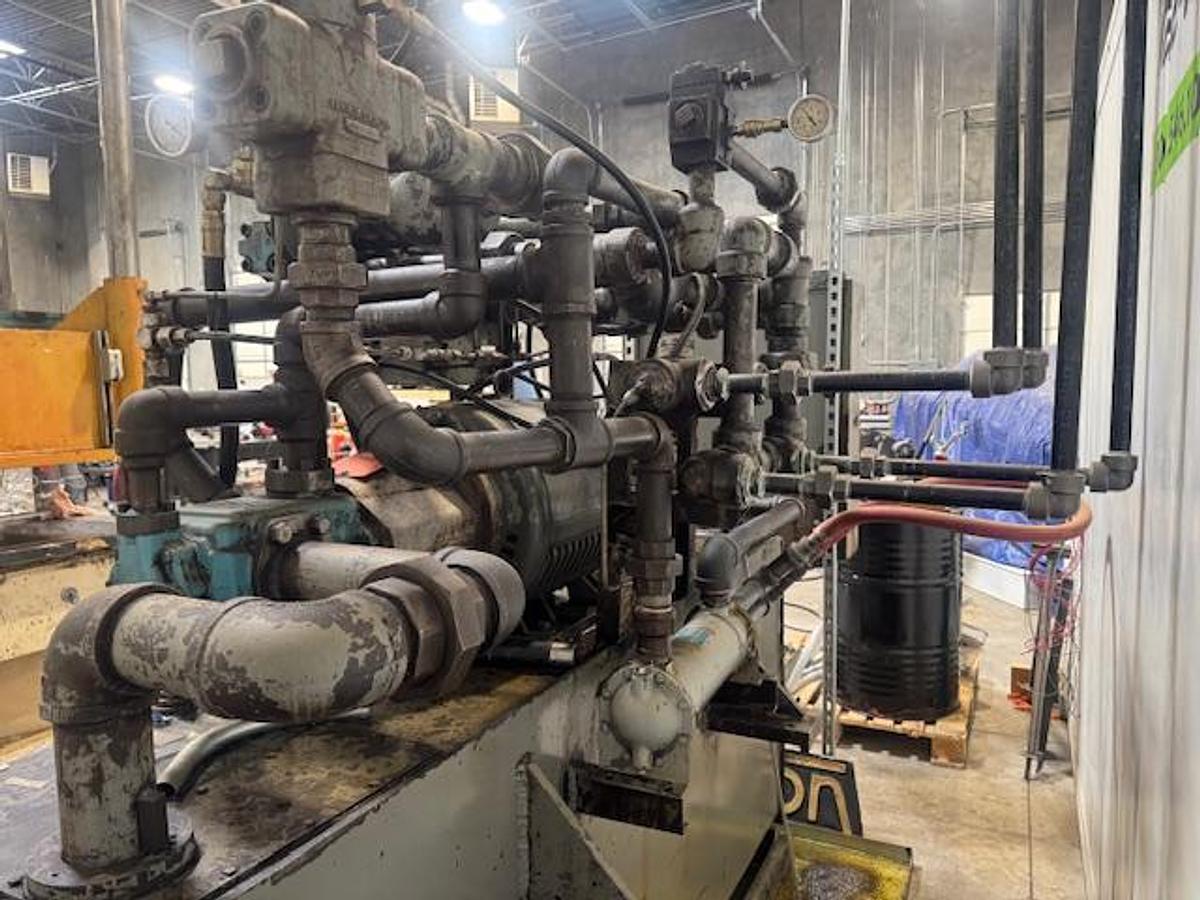

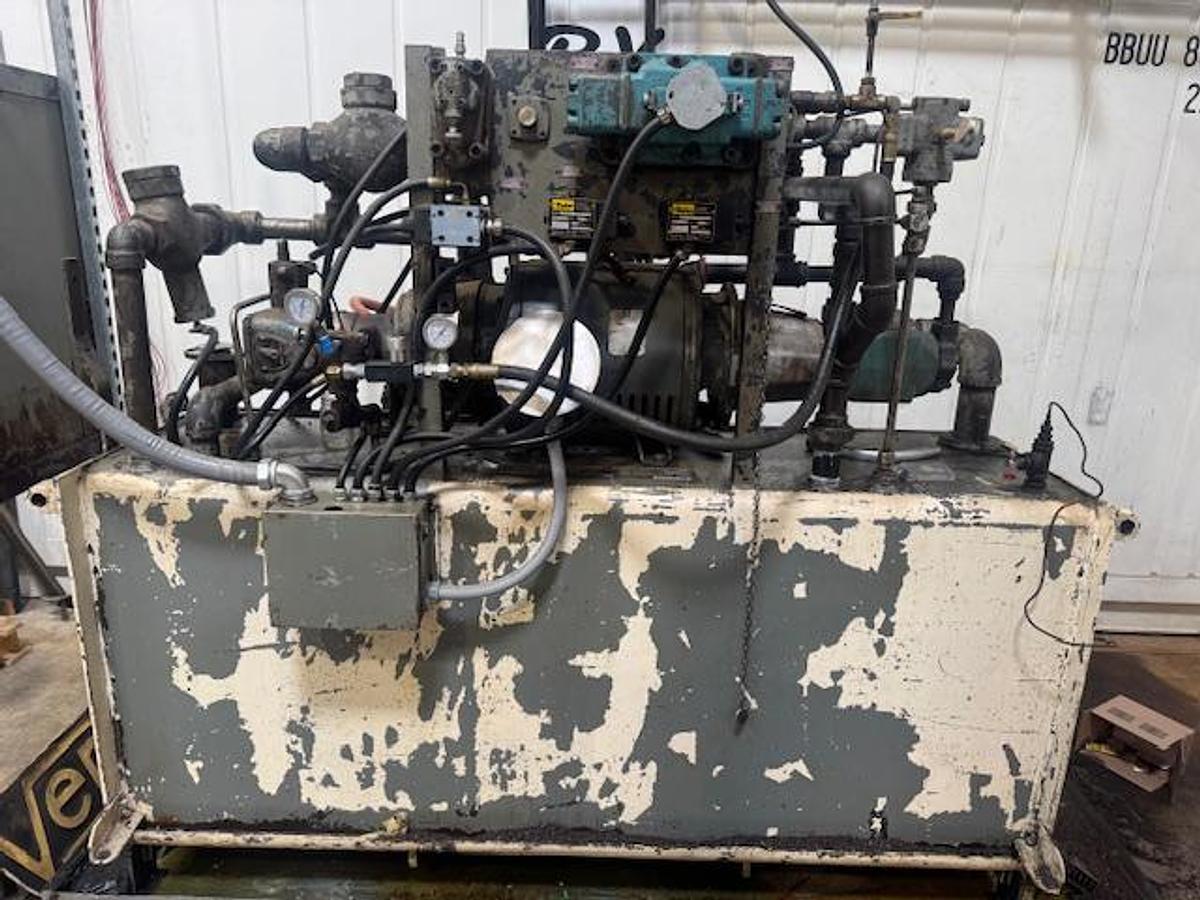

- Hydraulics: Abex Denison Hydraulic Pump - Parker Valve D63W1B44Y
- Electrics: 25HP Lincguard Lincoln Motor - Modification: • 480V - 3PH - 60HZ | 37.7 AMP
Specifications
| Manufacturer | Verson |
| Model | 200-HD2-72-4P 200T |
| Condition | Used |
| Stock Number | J19-8 |
| * Capacity | 200T |
| * Max Stroke | 54" |
| * Daylight to bed | 26" Min - 80"Max |
| * Post Size | 5.5" Diameter |
| * Floor to bed | 36" |
