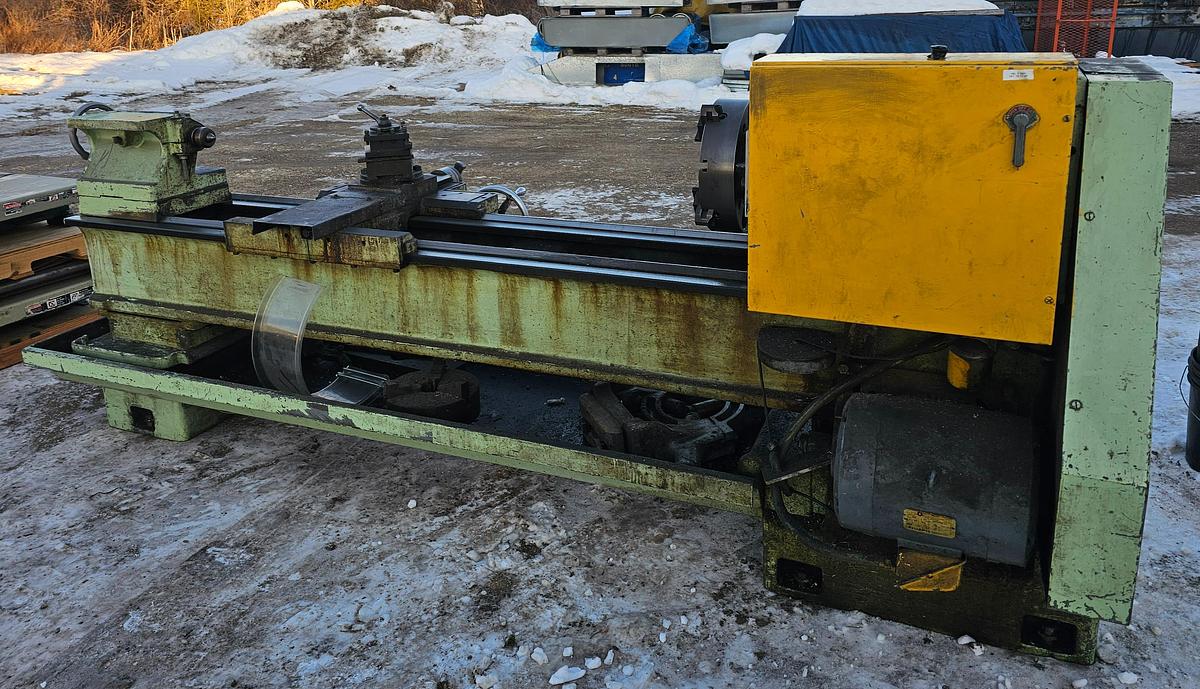

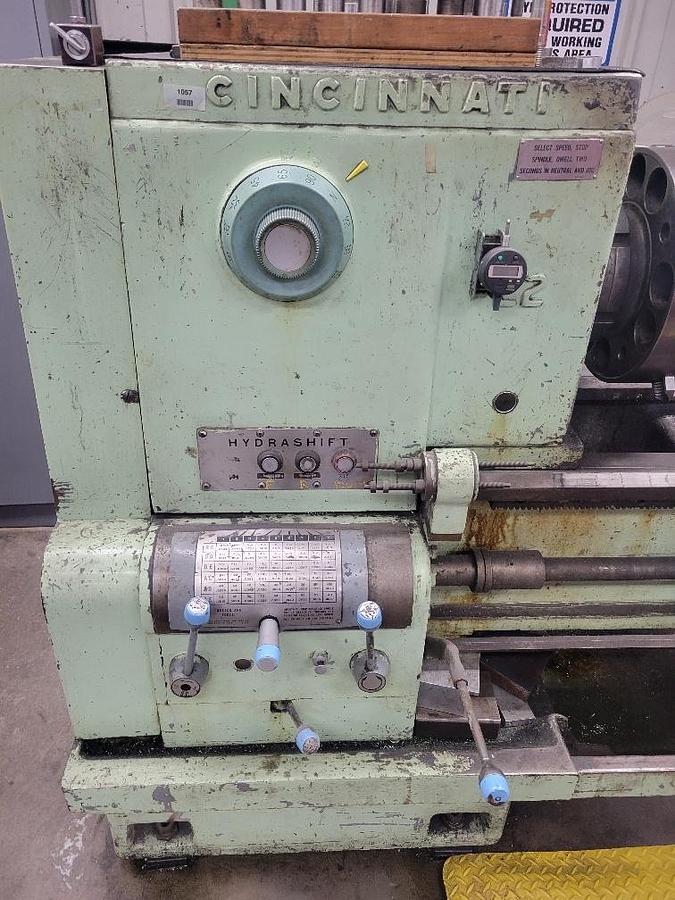

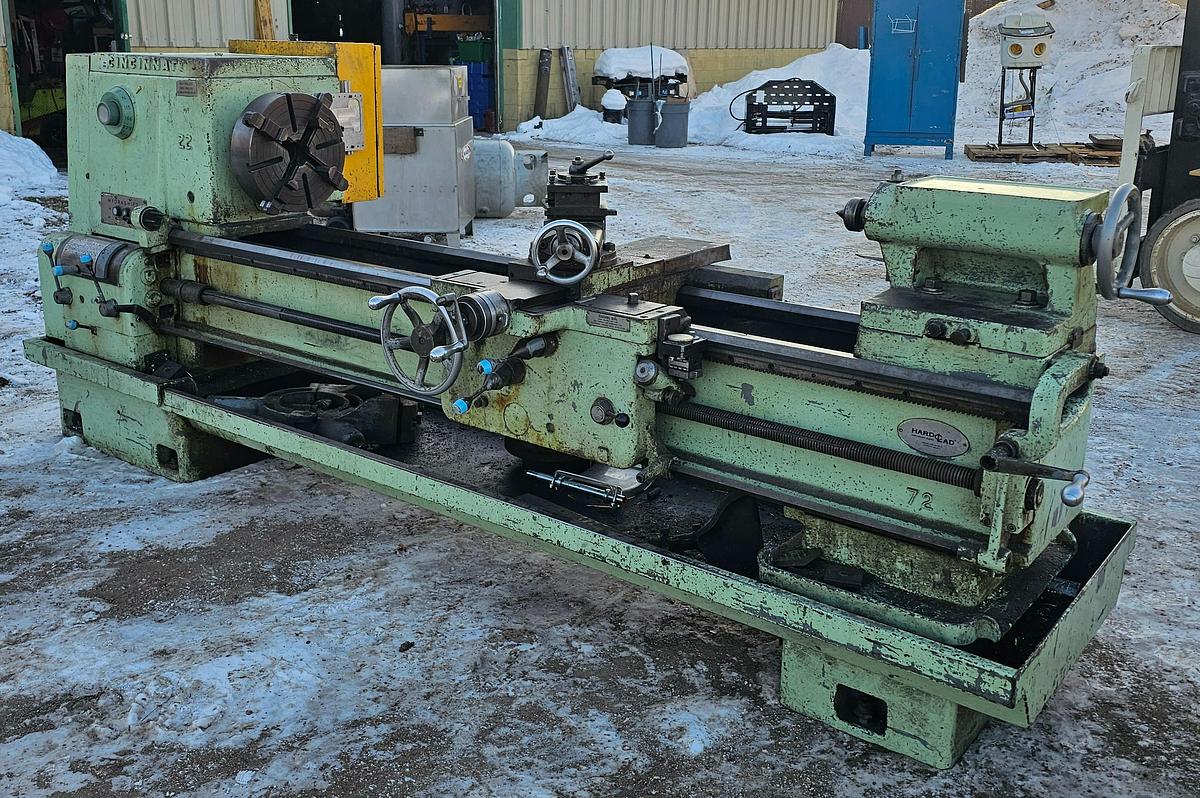

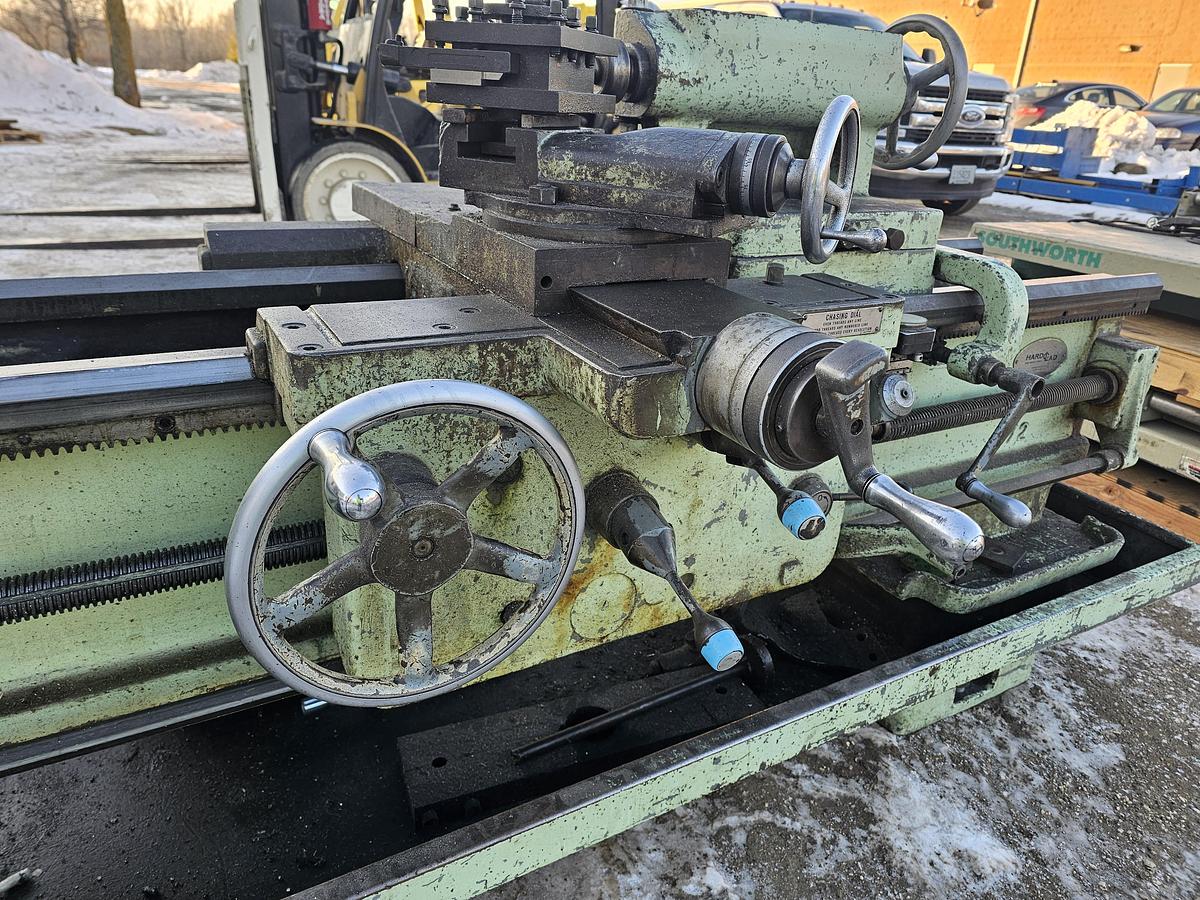

Cincinnati Hydrashift 22 Engine Lathe 23.5" Swing x 72" Centers

The Cincinnati Hydrashift 22 lathe has a 23.5-inch swing over the bed and 13.5-inch swing over the cross slide, with a 48-inch distance between centers. It features 12 spindle speeds ranging from 16 to 640 rpm, a 10 HP motor, and specifications for its feeds, threading, and other components.

Includes:

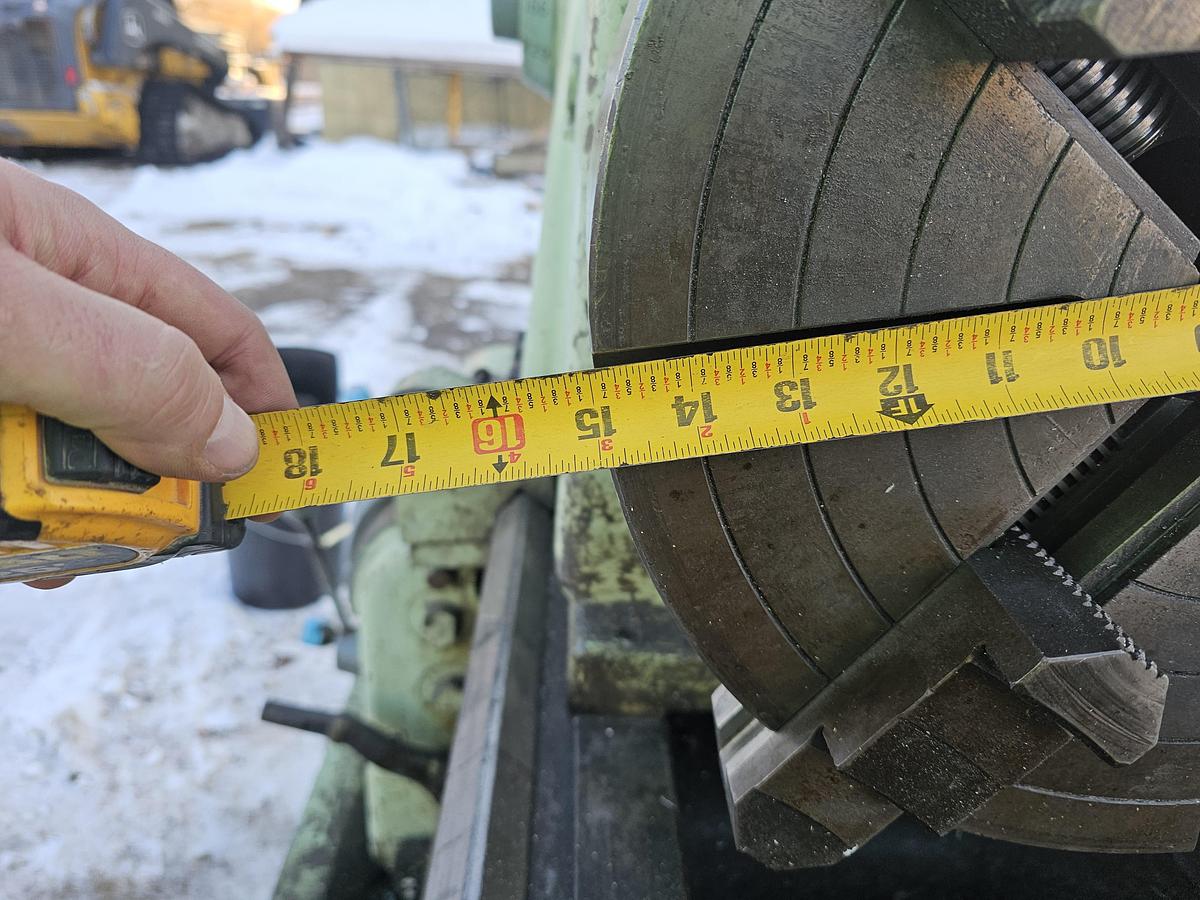

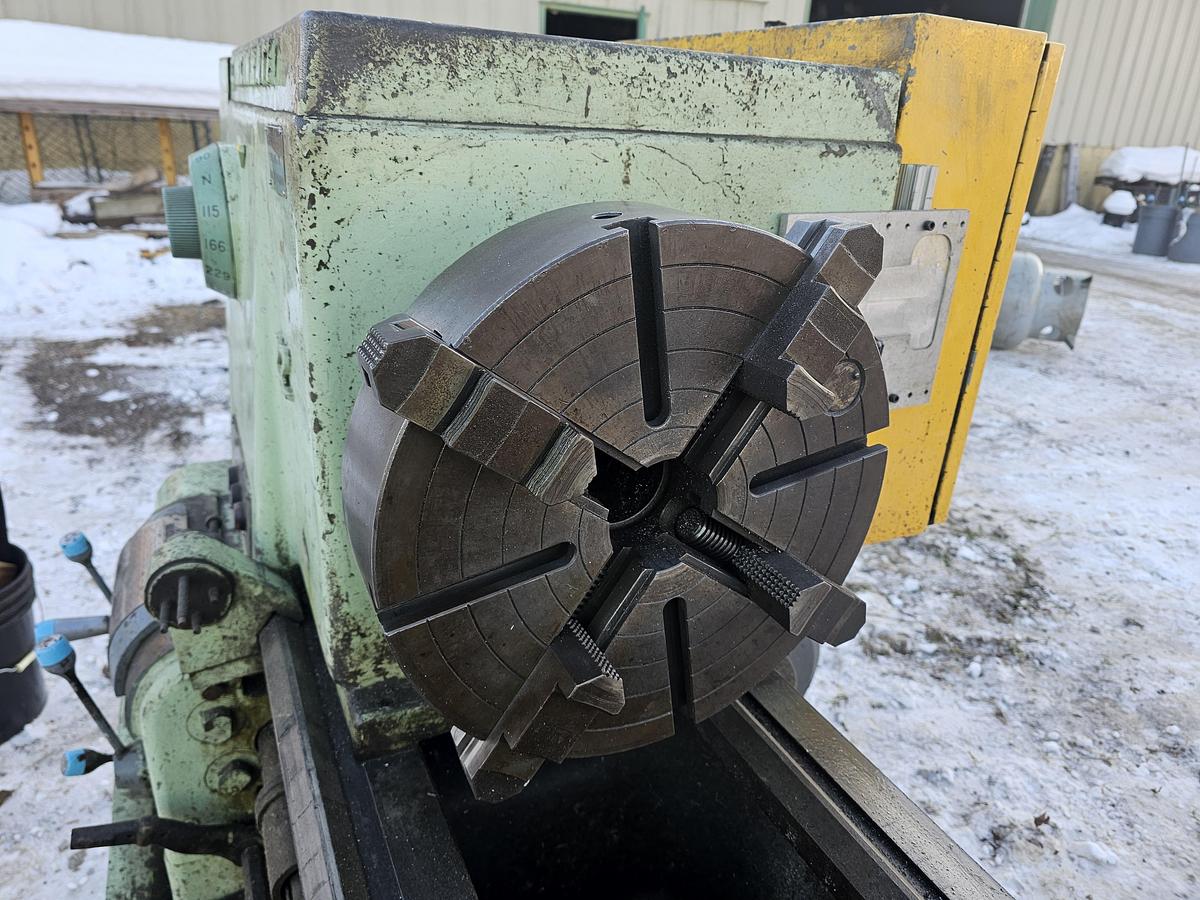

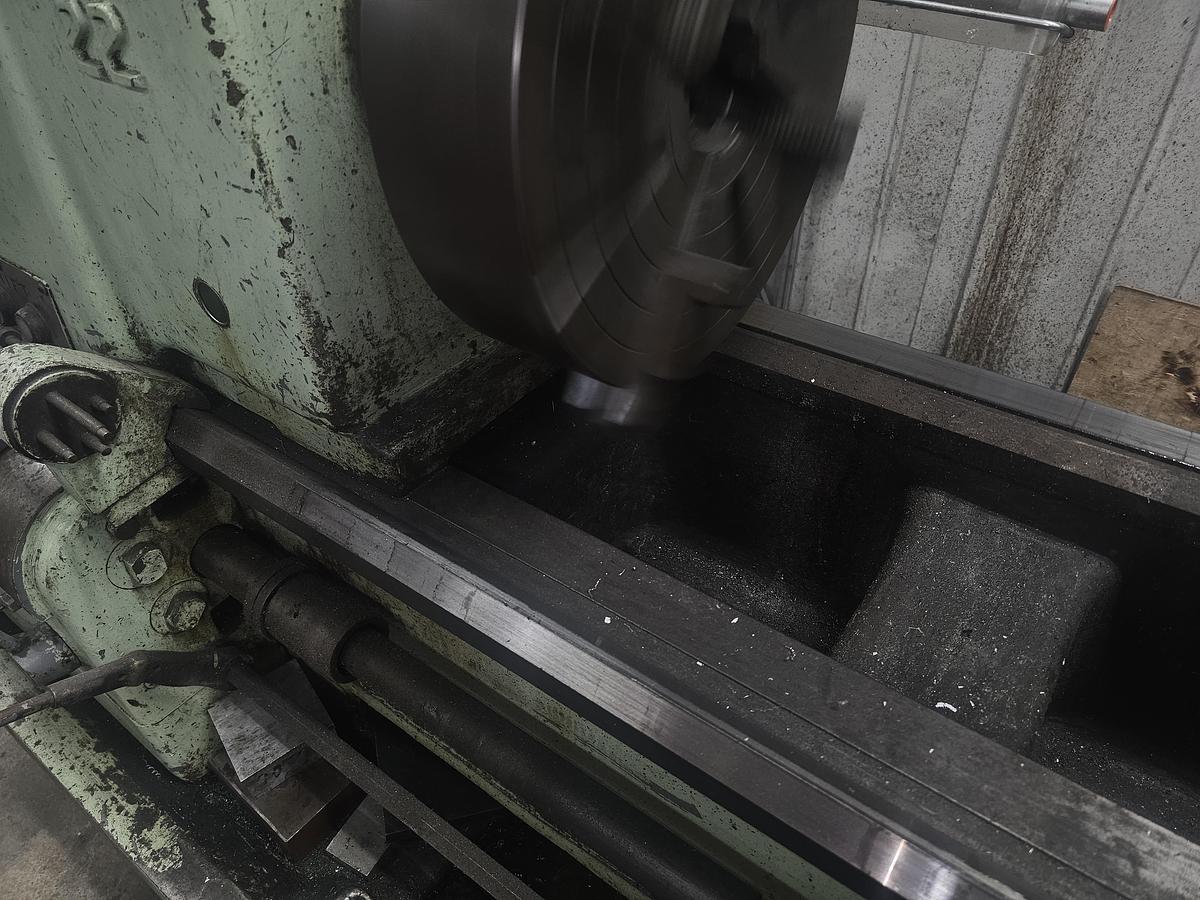

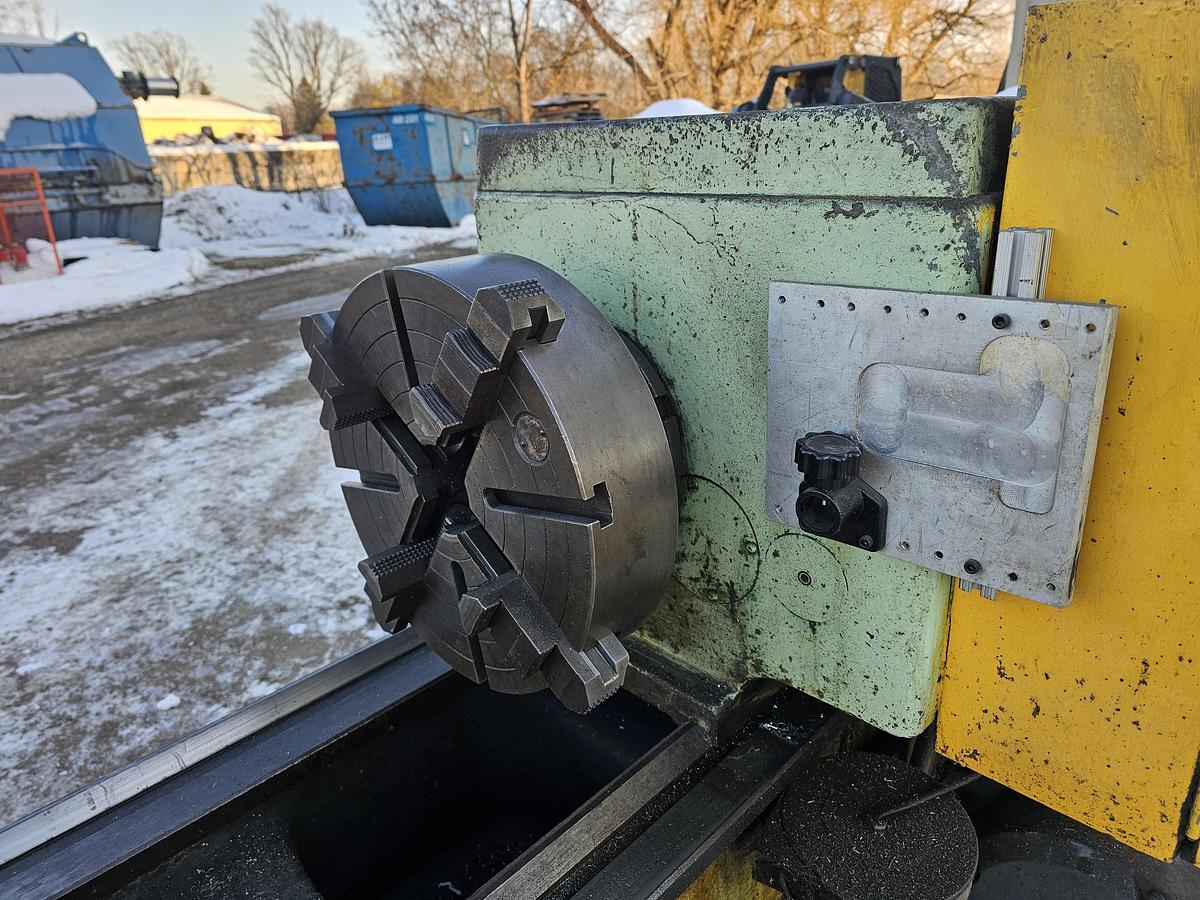

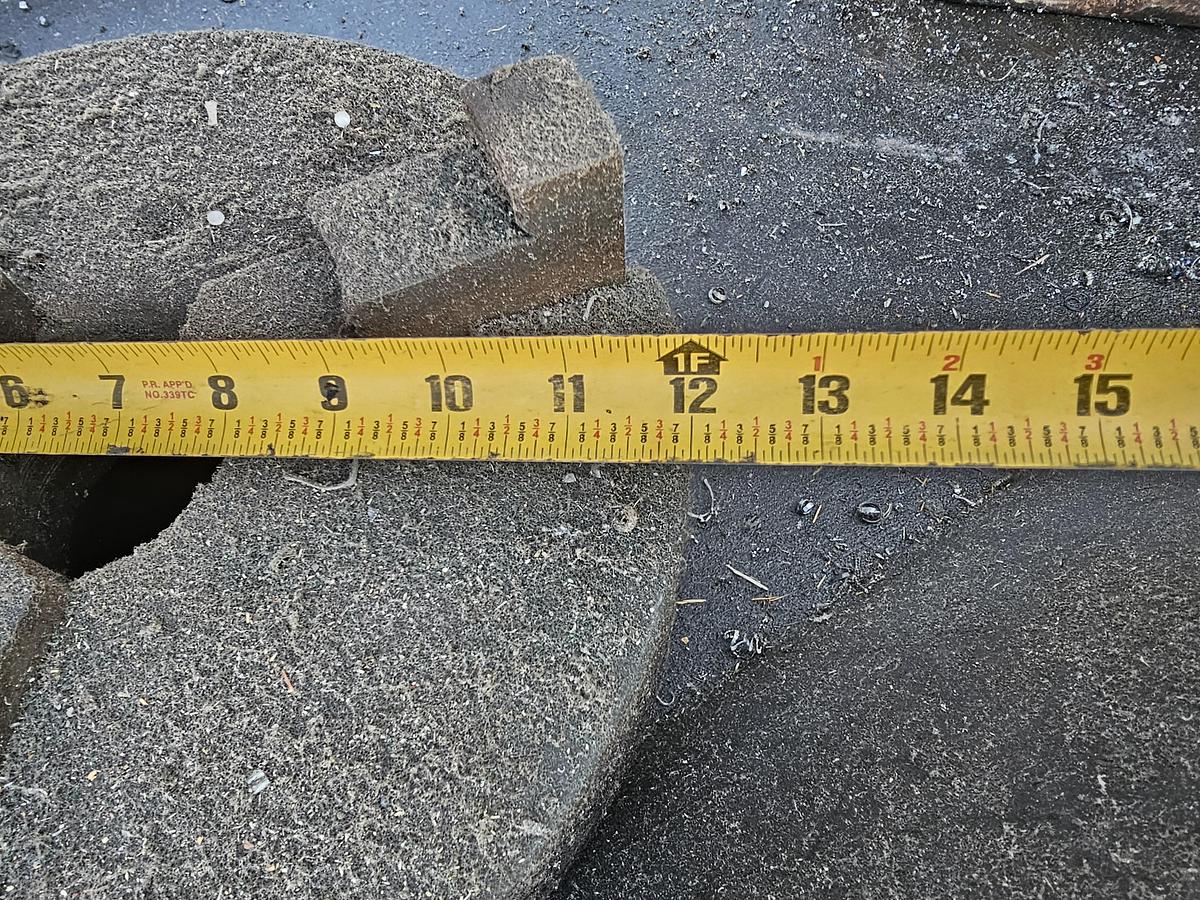

15" 4-Jaw Lathe Chuck

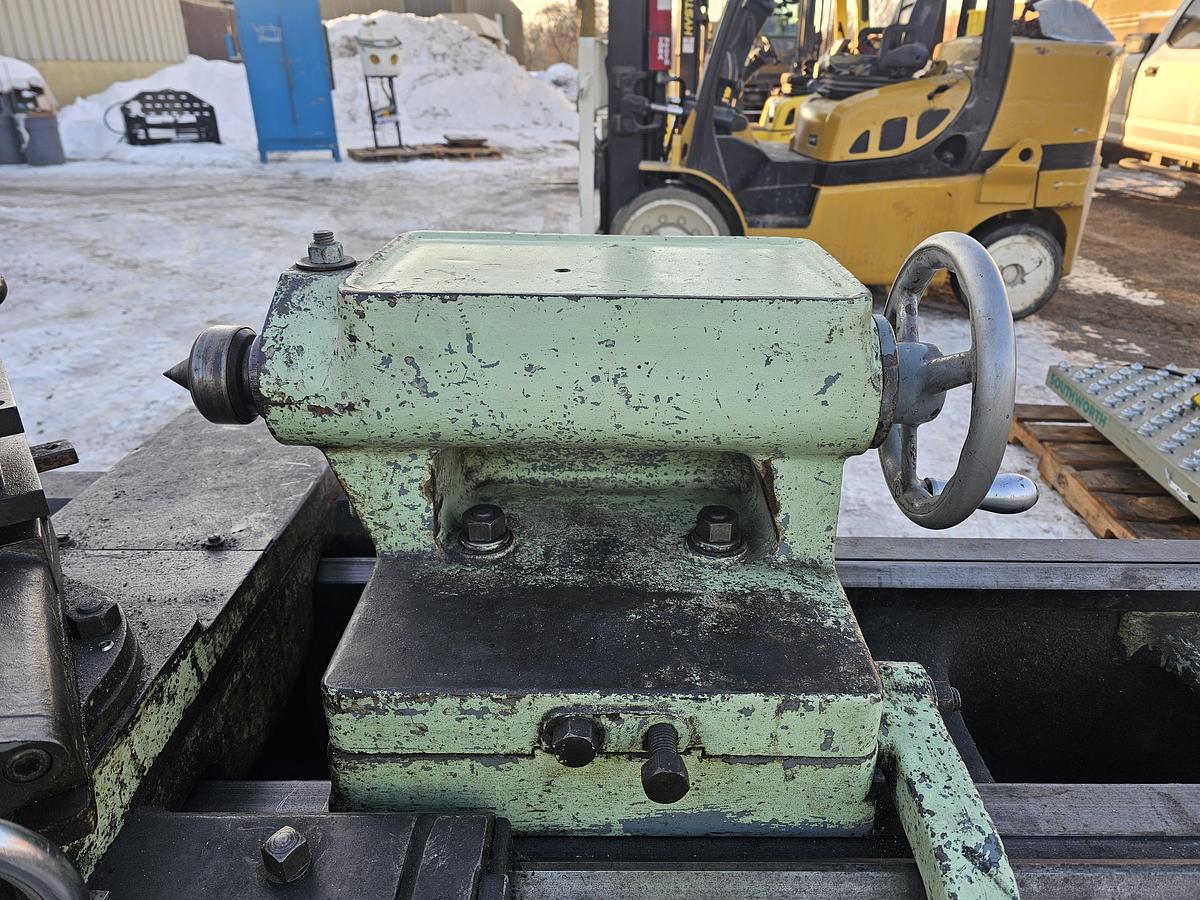

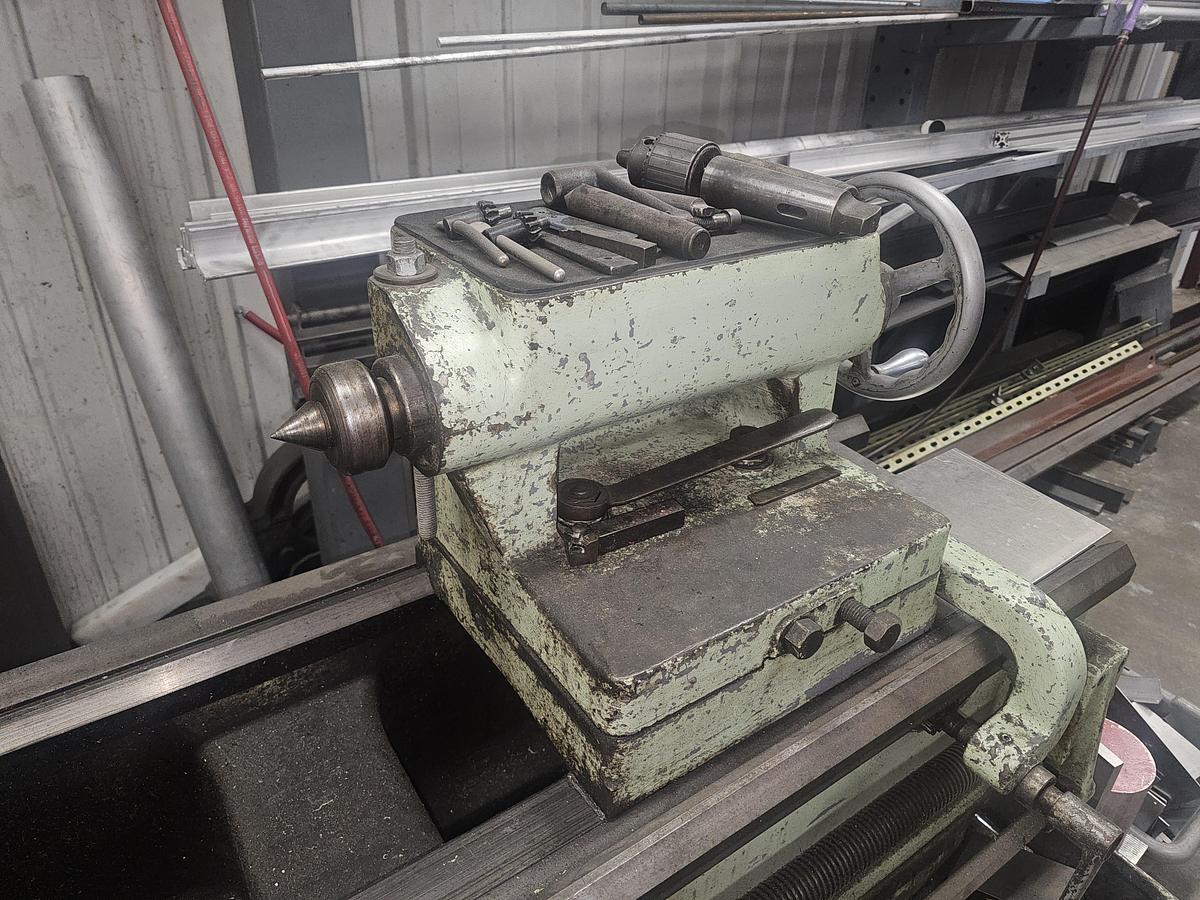

Tailstock

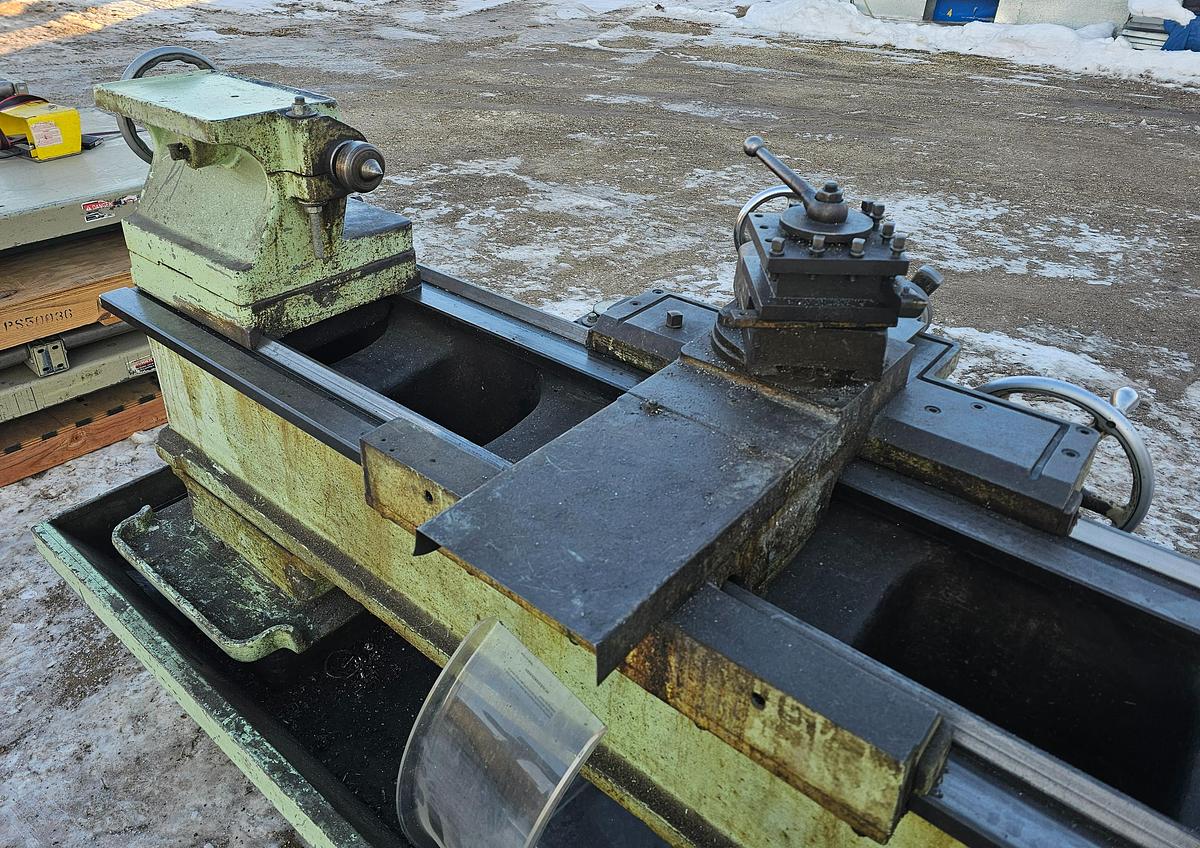

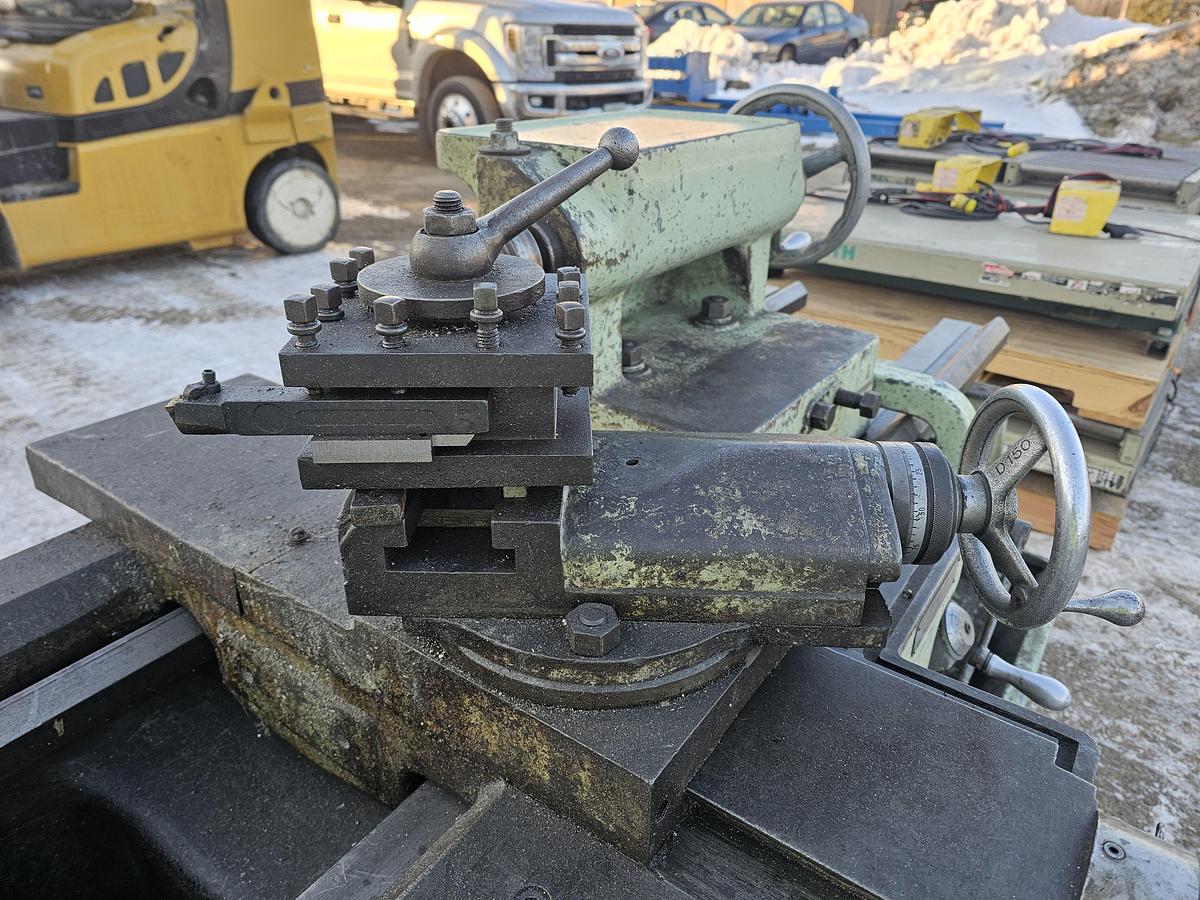

Tool Post

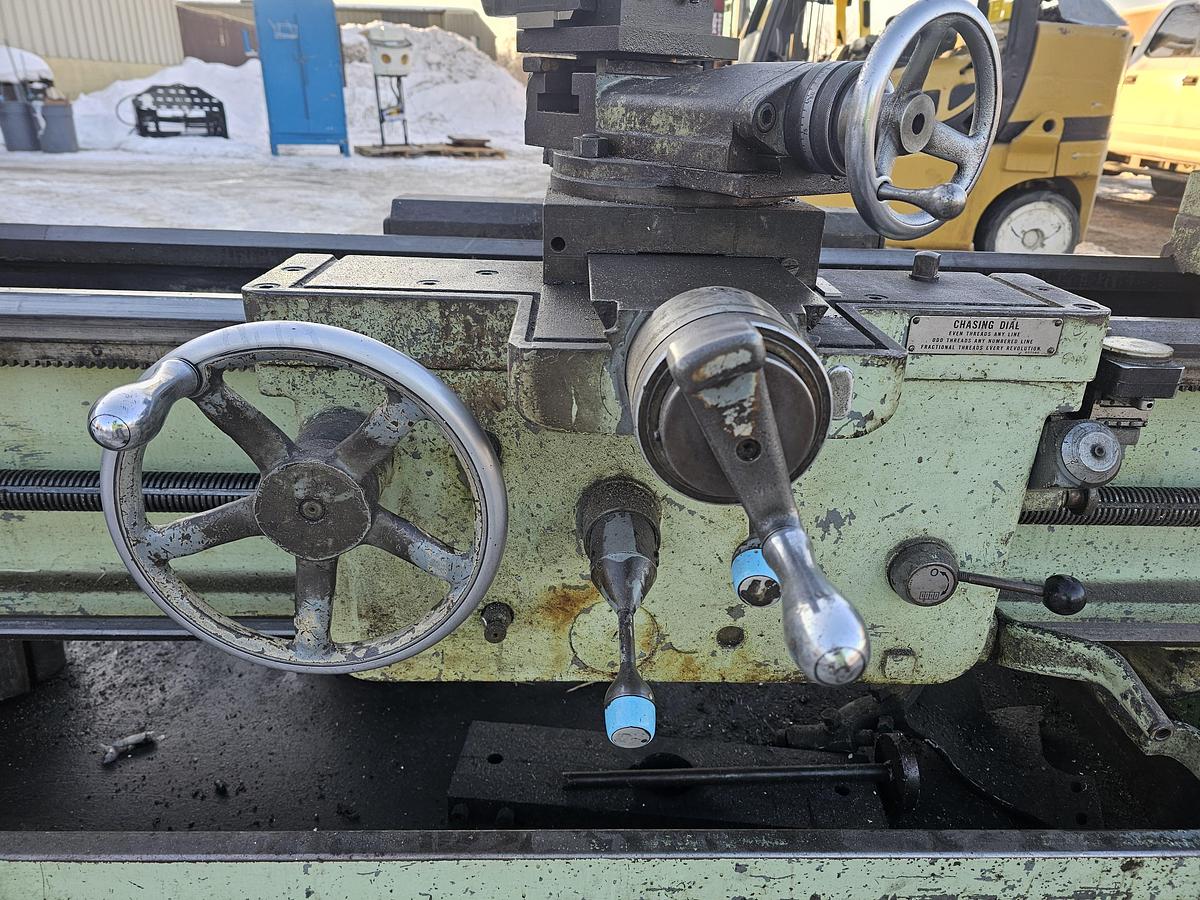

Power Feed

General specifications

• Swing over bed: 23.5 inches
• Swing over cross slide: 13.5 inches

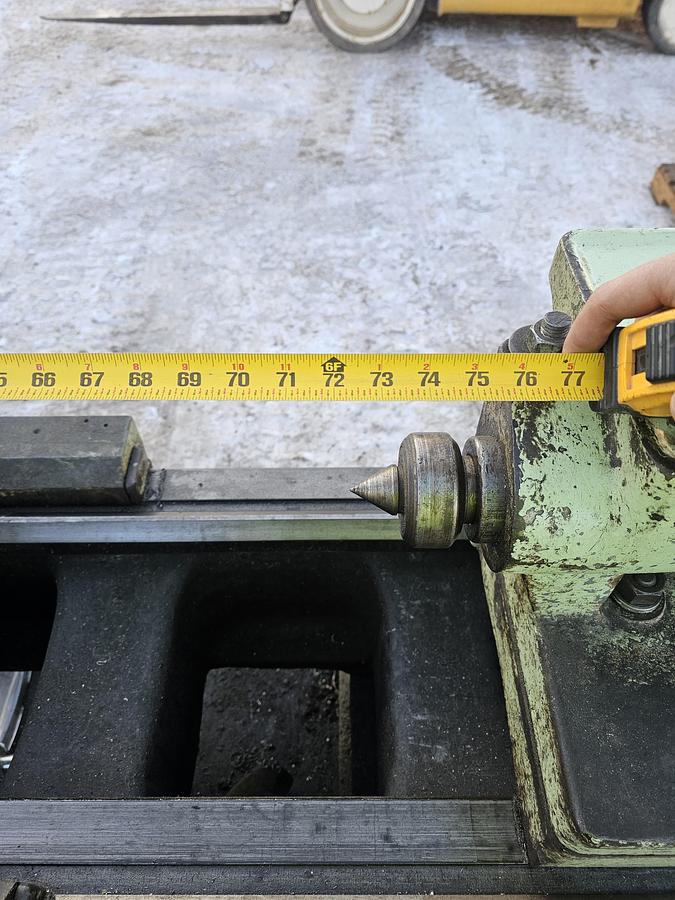

• Distance between centers: 72 inches
• Weight: Approximately 6,750 lbs
• Dimensions: Approximately 80" L x 36" D x 54" H

Drive and speeds

• Spindle speeds (12): 16 - 640 rpm

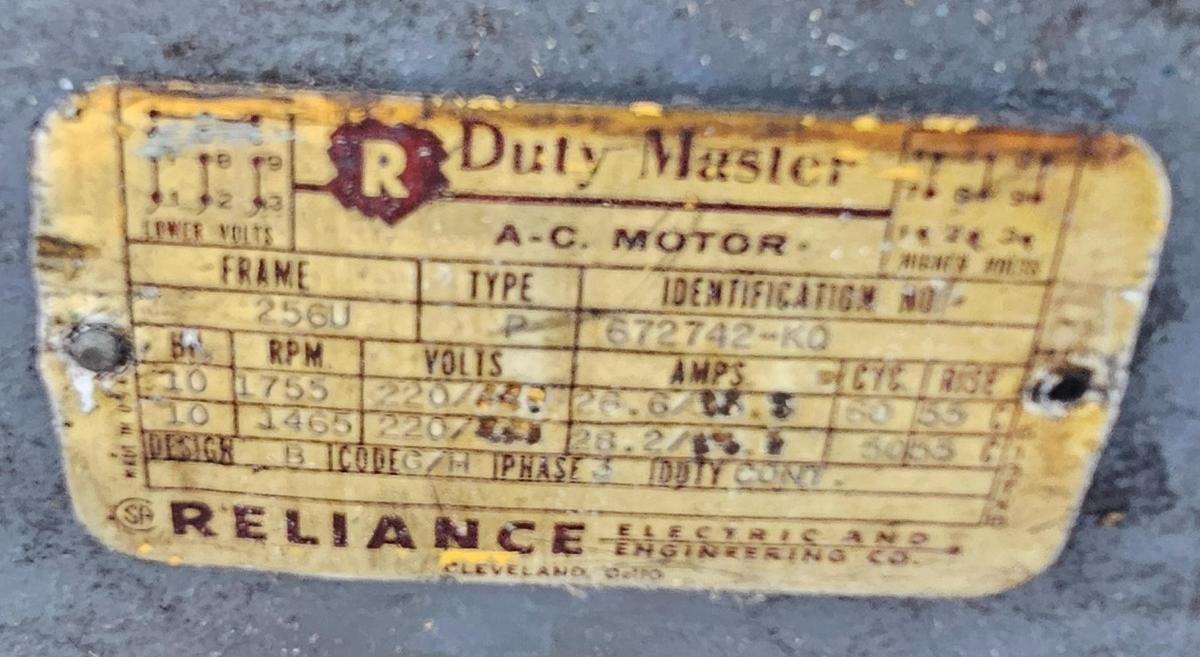

• Main motor: 10 HP / 3-phase / 60-cycle / 230/460V
• Spindle nose: Long taper key drive, L2

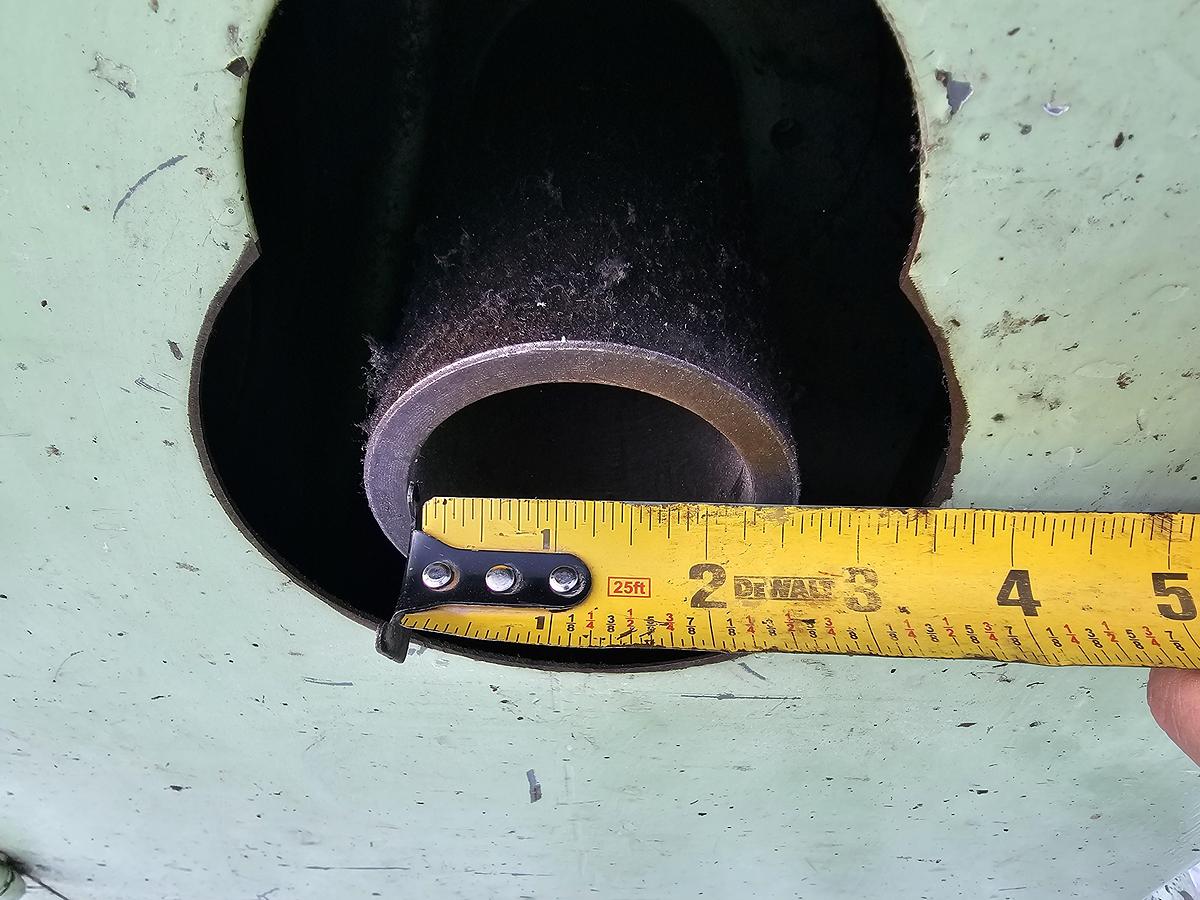

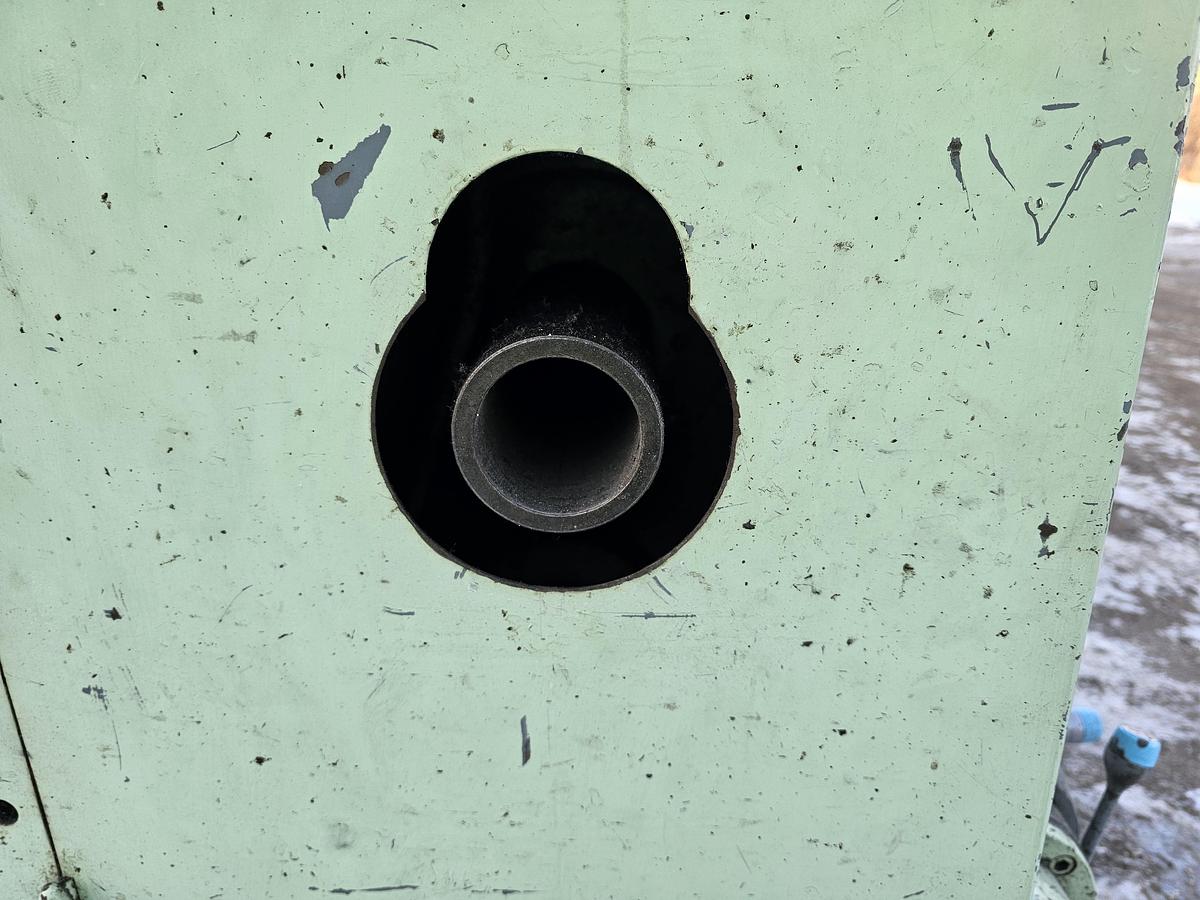

• Hole through spindle: 2-5/16 inches

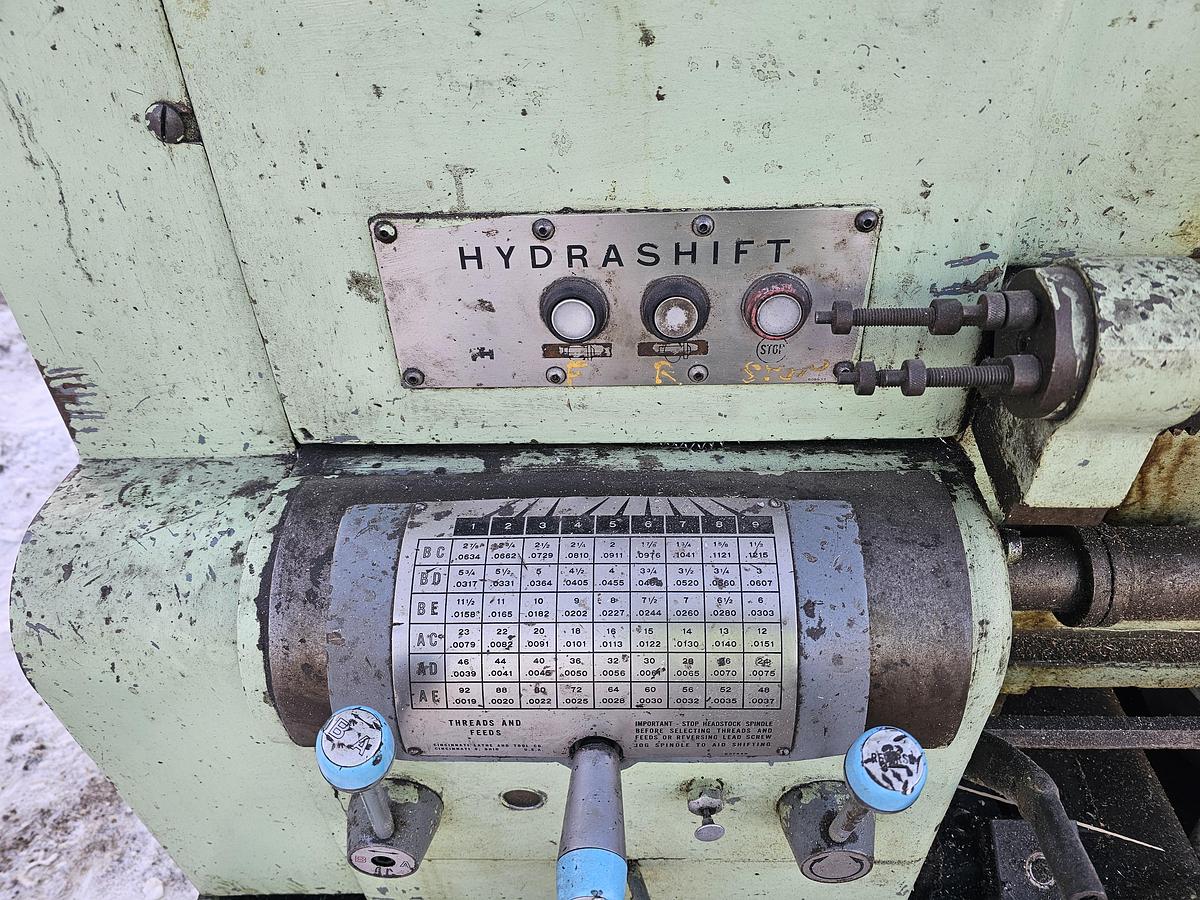

Feed and threading

• Longitudinal feeds (54): 0.0019 - 0.1215 ipr
• Cross feeds: 0.0009 - 0.0578 ipr
• Threads (54): 1-1/2 to 92 tpi

Carriage and tailstock

• Cross slide travel: 16-3/4 inches
• Compound slide travel: 4-1/2 inches
• Tailstock quill travel: 6 inches
• Tailstock quill taper: #5 MT
