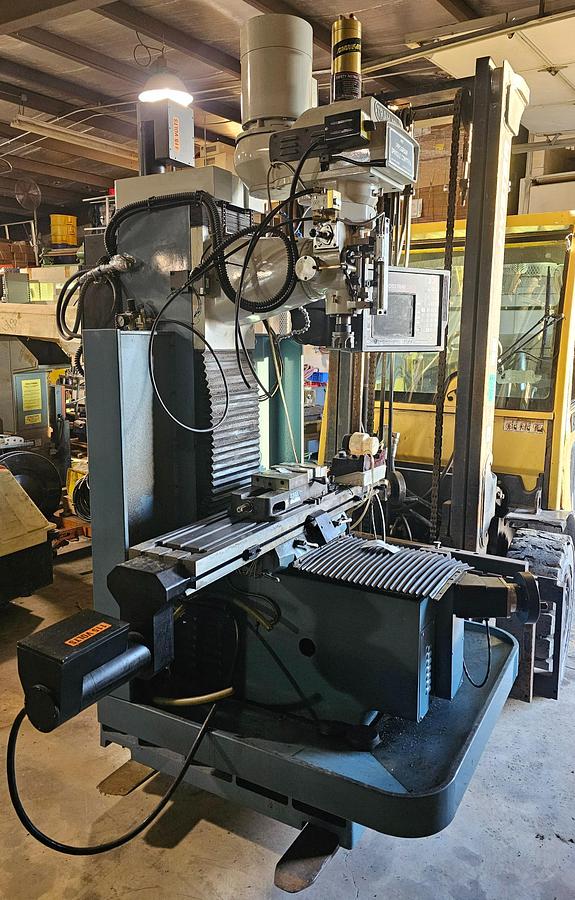

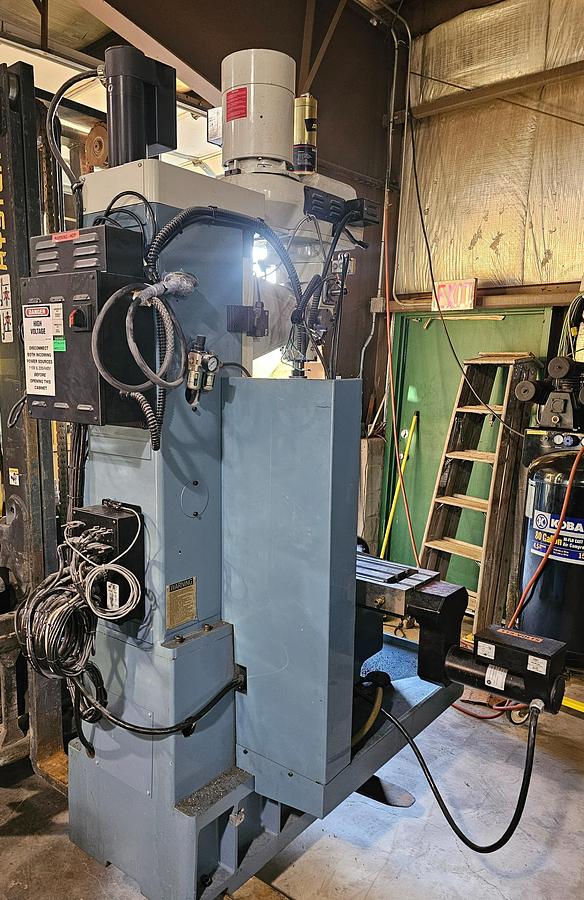

SWI Southwestern Industries TRAK DPM3X2P 3-Axis CNC Milling Machine & Kurt 6" Vise

SWI Southwestern Industries CNC Bed Mill

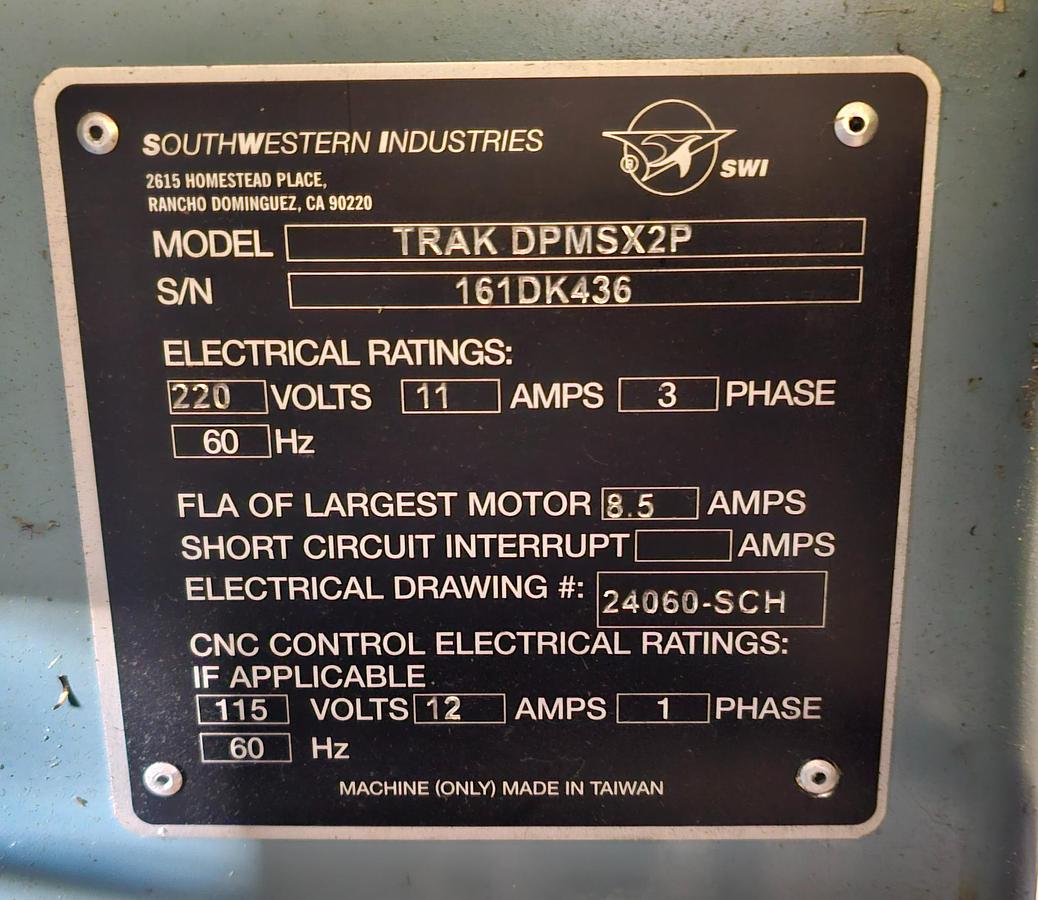

Model #: TRAK DPM3X2P

S/N: 161DK436

3-Axis CNC

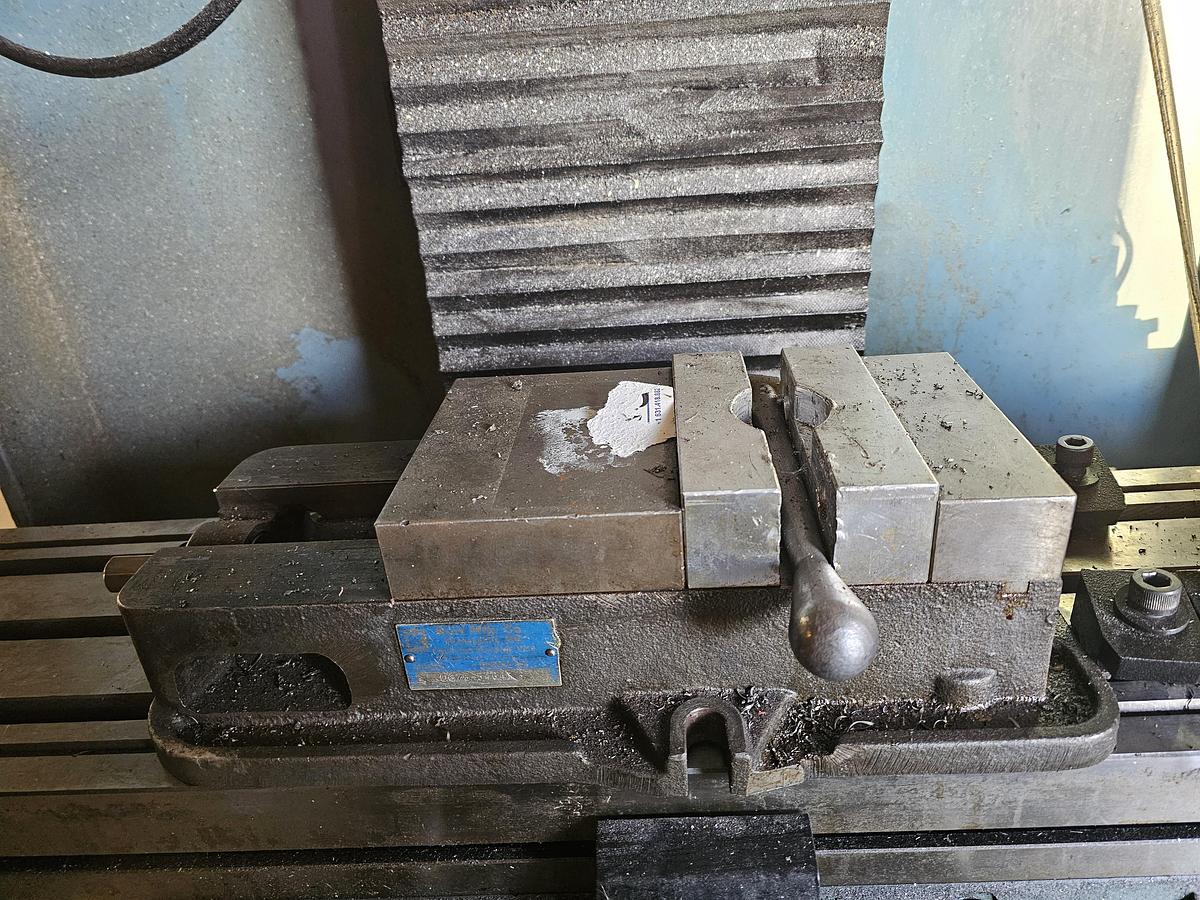

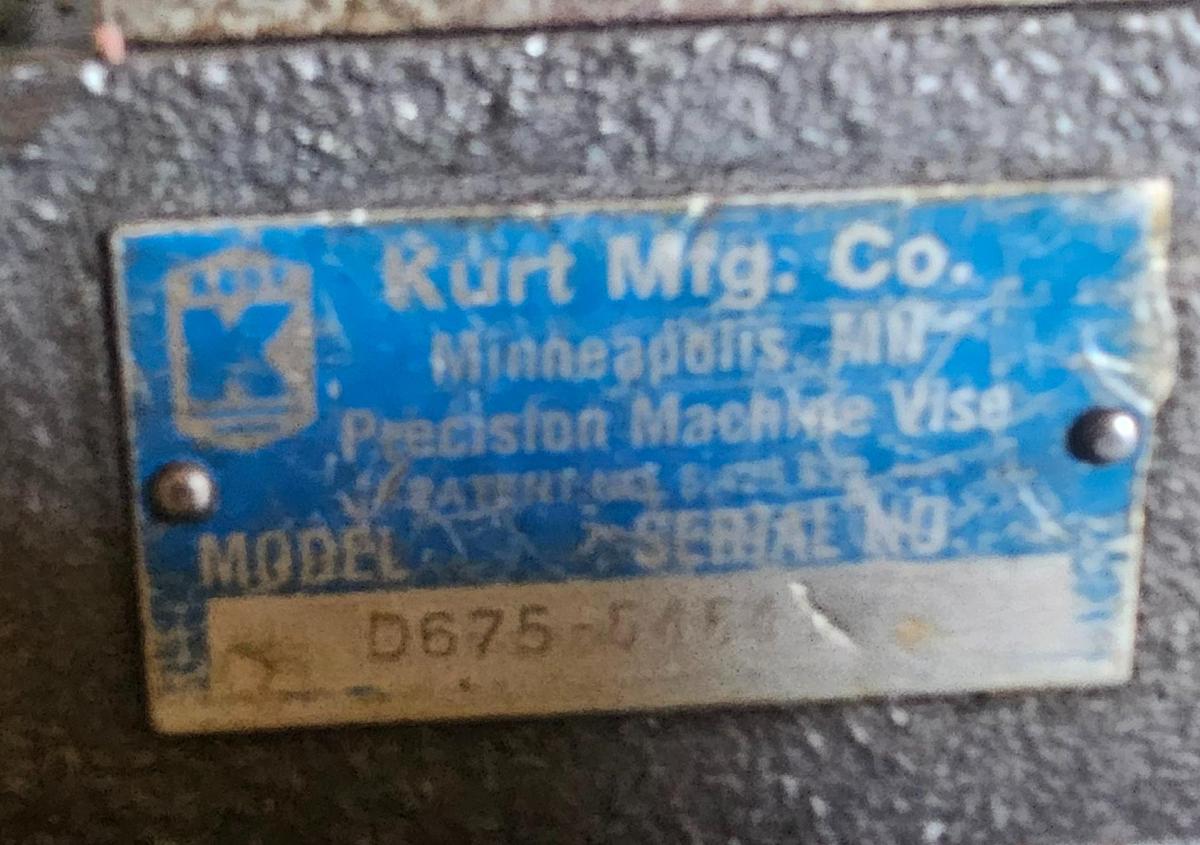

Includes 6" Kurt Vise

Model #: D-675

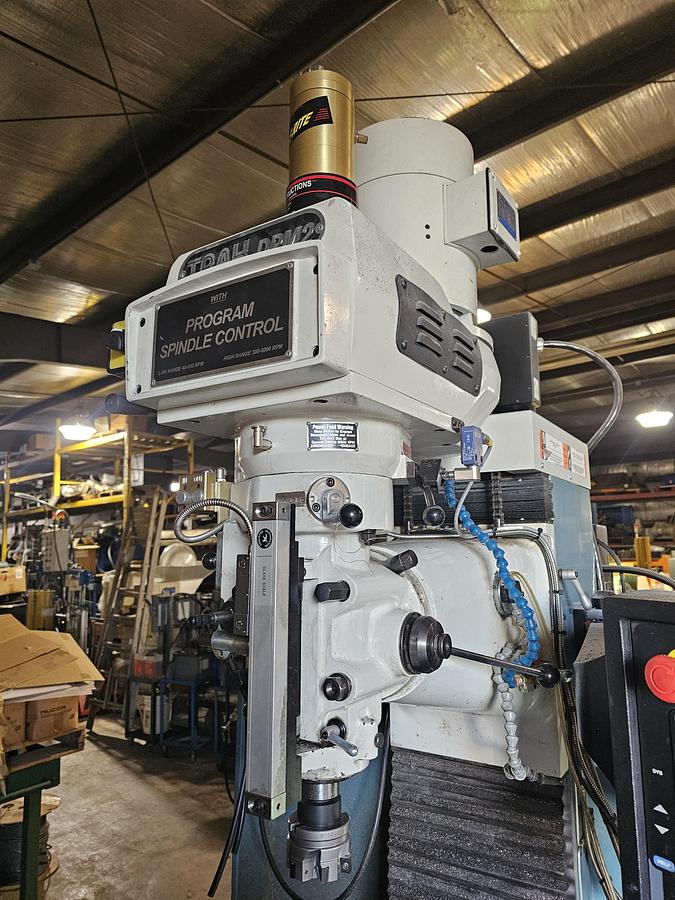

The Southwestern Industries TRAK DPM3X2P is a 3-axis CNC bed mill with a 10" x 50" table, 31" X-axis travel, 17" Y-axis travel, and 23.5" Z-axis travel (often listed as ram or knee travel). It is equipped with a 3 HP spindle motor, NMTB 40 taper, and a variable spindle speed range of 70-4200 RPM. The machine includes a ProtoTRAK CNC control, an air-actuated power drawbar, and a coolant system.

Key specifications

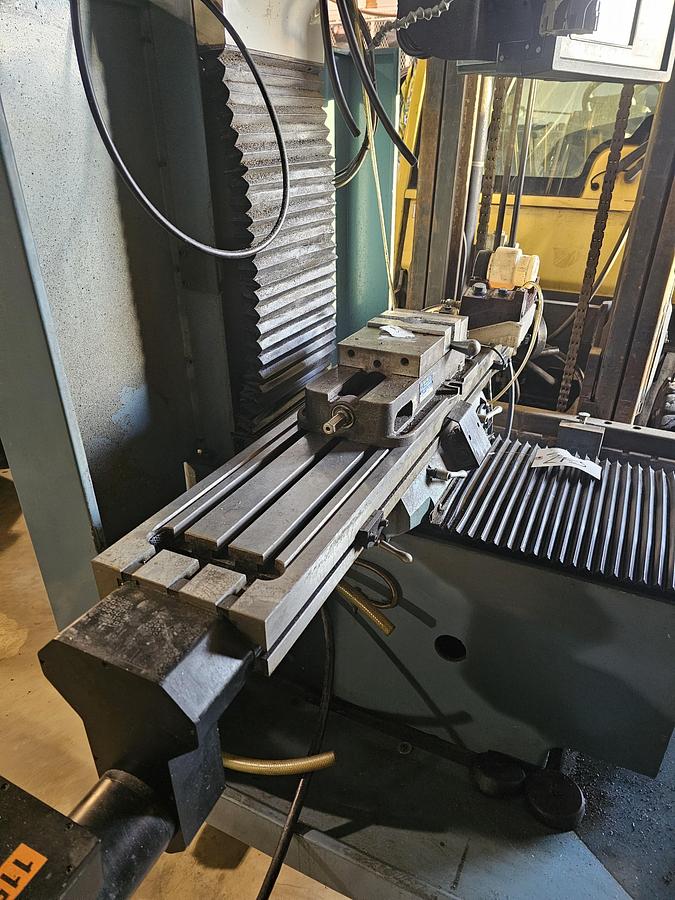

• Table: 10" x 50"
• X-Axis Travel: 31"
• Y-Axis Travel: 17"
• Z-Axis Travel: 23.5"
• Quill Travel: 5"
• Quill Diameter: 3 15/16"
• Spindle Taper: NMTB 40
• Spindle Speed: 70–4200 RPM (variable)

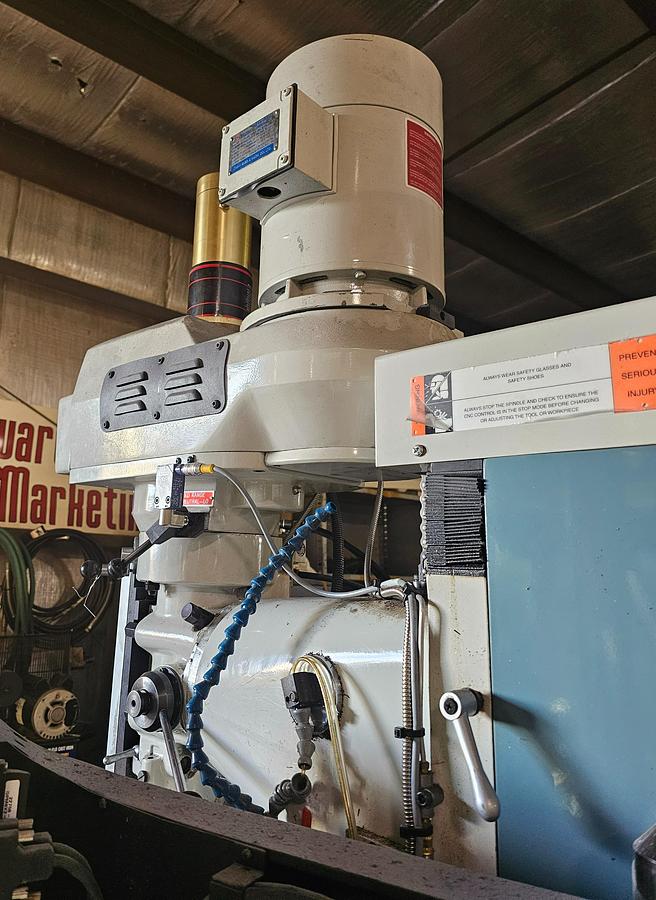

• Motor: 3 HP

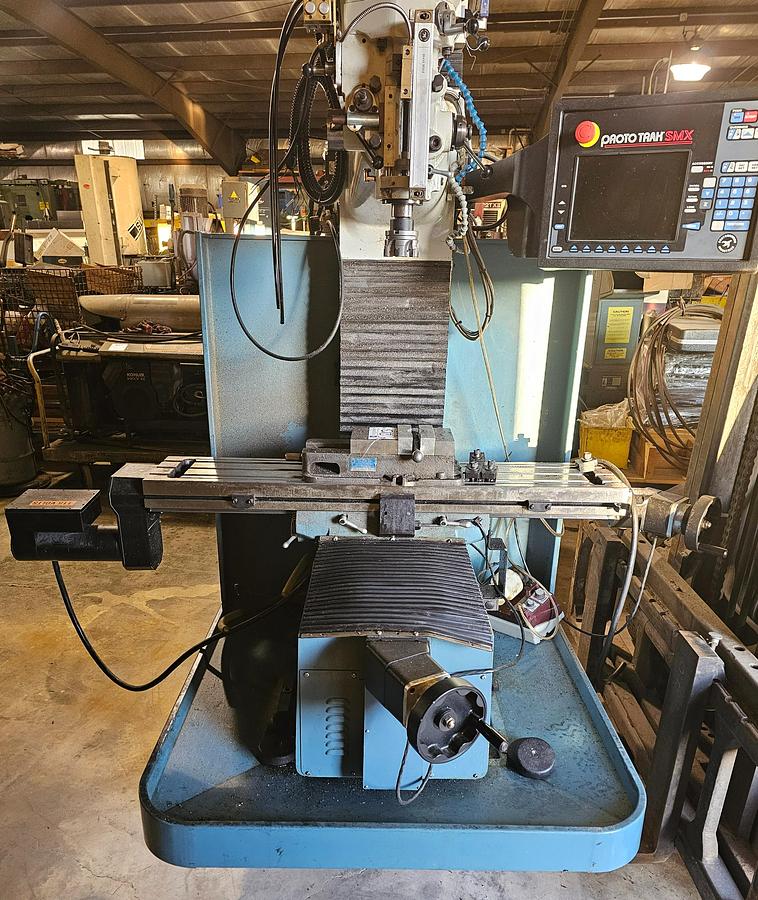

• Control: ProtoTRAK (often listed as SMX or similar)
• T-Slots: 3 x 16mm
• Max Workpiece Weight: 1,320 lbs

Included features

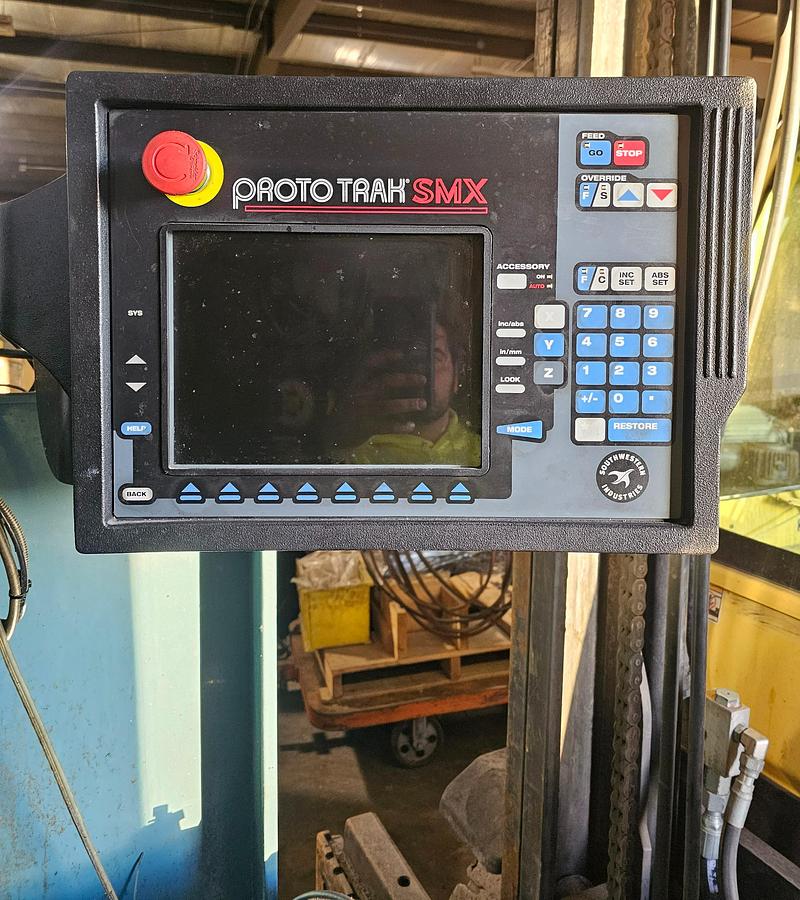

• ProtoTRAK control system

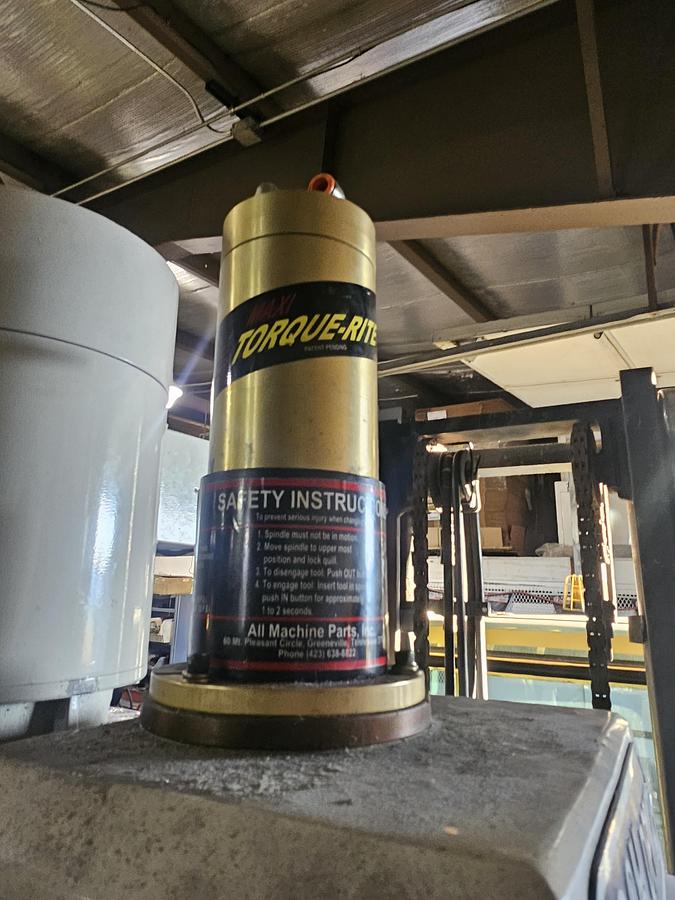

• Air-actuated power drawbar

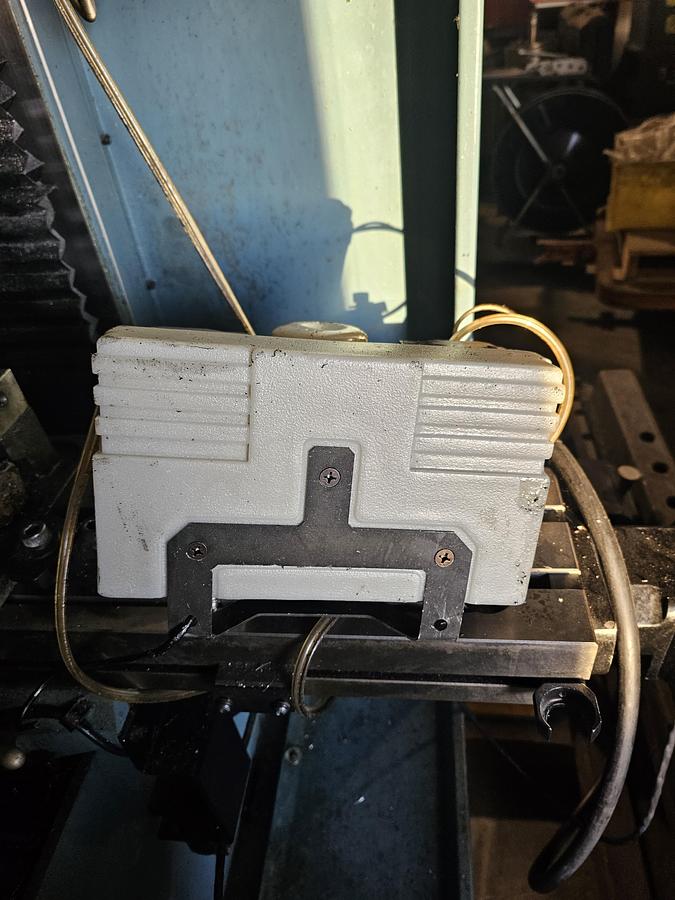

• Auto lube pump

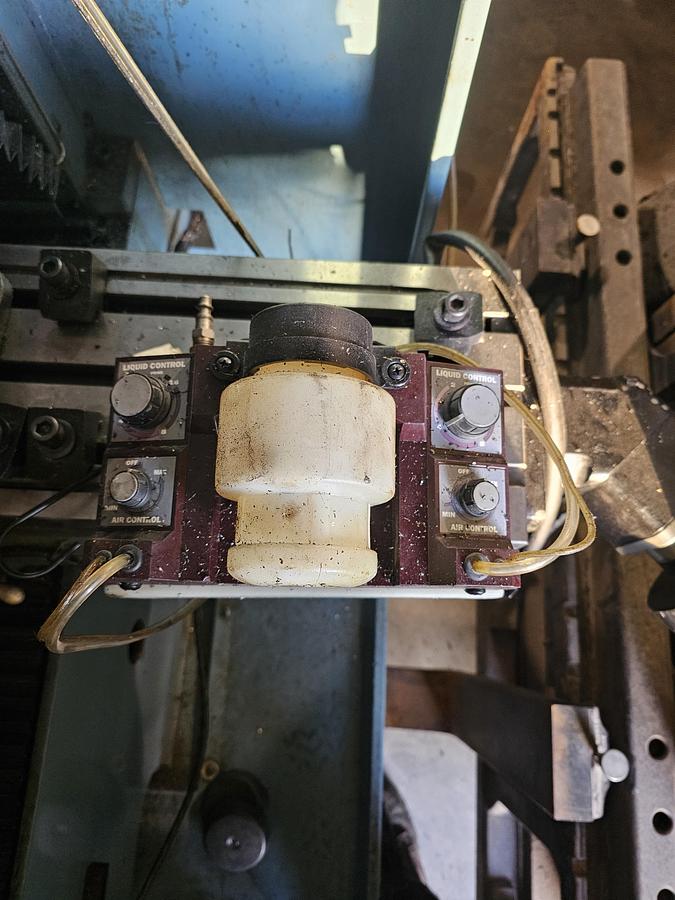

• Coolant system
• High-quality castings and ways
