2021 Schmalz JumboFlex 50 Vacuum Lifter | 3.5HP High-Flow Pump | 65kg Alum. Jib

2021 Schmalz JumboFlex 50 Vacuum Lifting System

Premium High-Cycle Work-Cell | 65kg Aluminum Jib | Upgraded 3.5 HP Power Unit

This 2021 Schmalz JumboFlex 50 is a professional-grade solution designed for rapid, ergonomic palletizing and parcel sorting. Engineered for high-speed e-commerce and manufacturing environments, this specific unit is an "over-spec" configuration. By pairing the agile JumboFlex handle with a heavy-duty 3.5 HP motor and a 65kg-rated aluminum crane, it offers significantly more suction power and smoother movement than standard base models.

System Components & Specifications

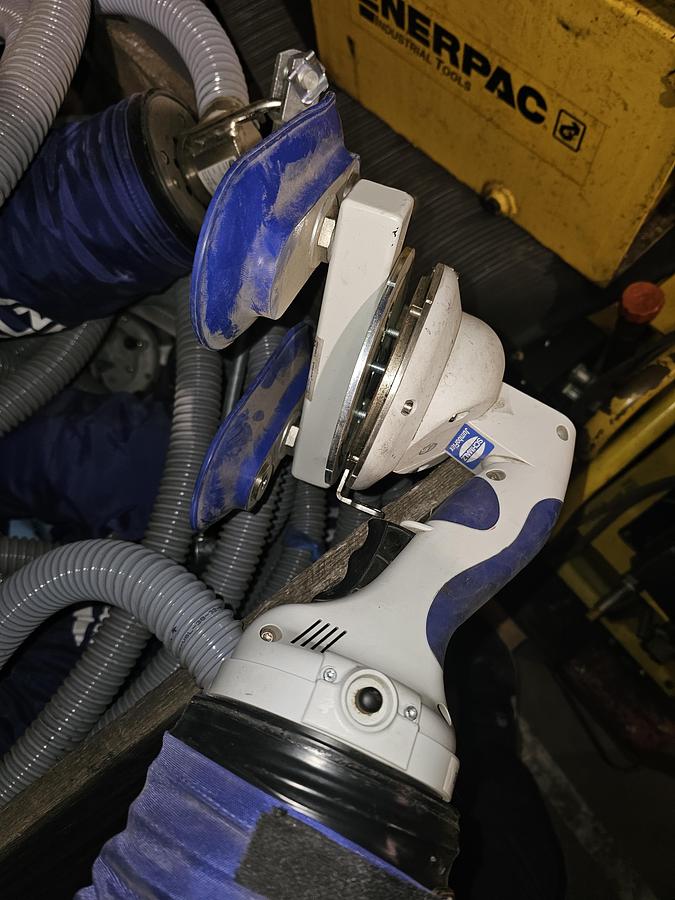

1. Operator Interface: JumboFlex One-Hand Handle

• Intuitive Control: Features a "pistol-grip" trigger system that allows the operator to lift, lower, and release loads with a single hand.
• Ergonomic Design: Symmetrical handle works for both right and left-handed users, drastically reducing worker fatigue and the risk of repetitive strain injuries.
• Quick-Change Adapter: Includes a tool-free integrated adapter, allowing you to swap between different suction pads (for boxes, bags, or crates) in seconds.
• 360° Rotation: Integrated rotary union allows for continuous rotation of the load without tangling the vacuum hose.

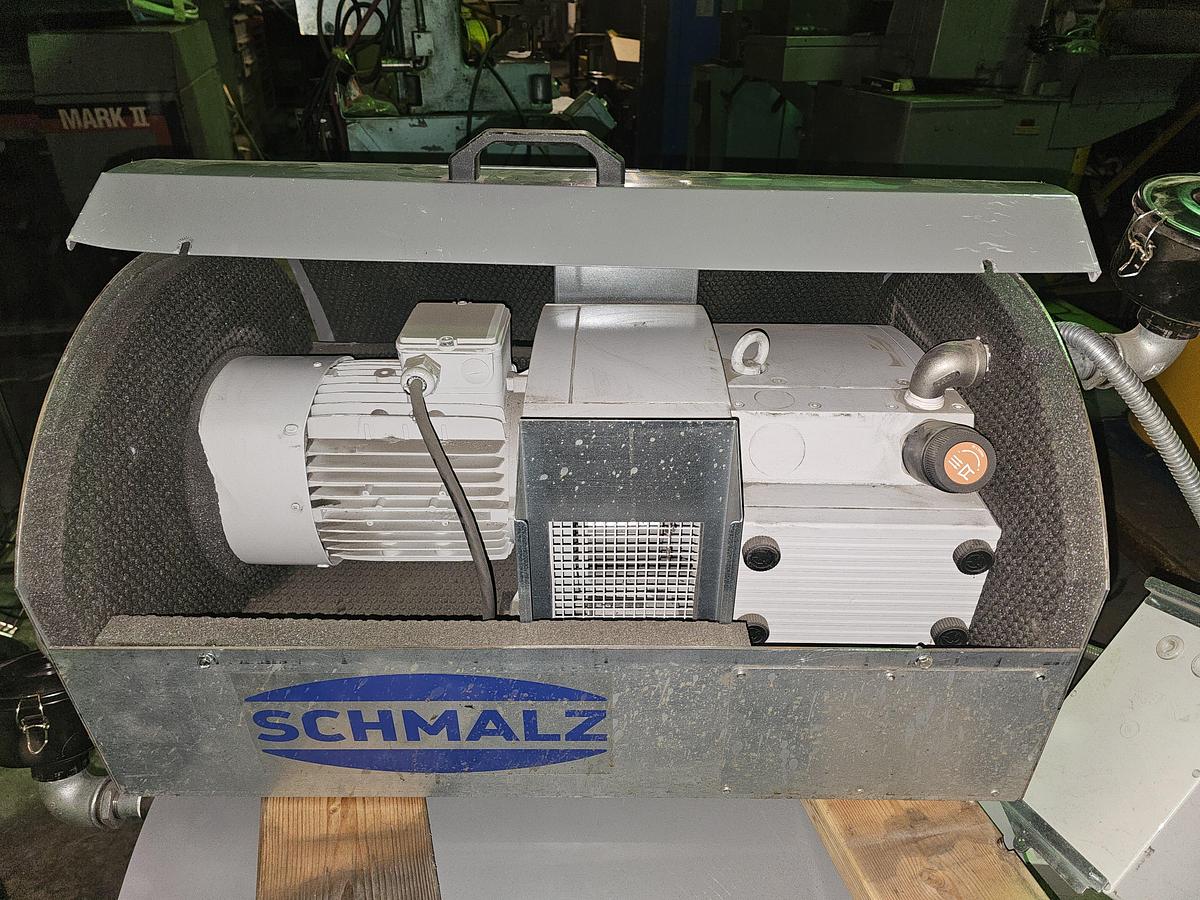

2. Upgraded Vacuum Generator: EVE-TR 50 AC3

• High-Output Motor: Equipped with the upgraded 3.5 HP (2.6 kW) motor—a significant performance jump over the standard 1 HP units.
• Performance: Delivers a high-volume suction rate of 60 m³/h, providing a nearly instantaneous grip and the ability to hold porous loads securely.
• SBB Silencer Box: Housed in a Schmalz SBB-EVE-ST-VZ galvanized steel enclosure. This premium accessory reduces decibel levels for a quieter, OSHA-compliant workspace and protects the pump from debris.
• Electrical: 3-Phase AC (Multi-voltage 208-230/460V @ 60Hz compatible).

3. Premium Crane: 10' Aluminum Jib (65kg Rated)

• Reach: 10-foot (3,000 mm) high-strength aluminum profile beam.
• Structural Overhead: While the lifter is rated for 50kg, the crane is 65kg rated, ensuring the beam does not sag and maintains its "ultra-low friction" glide even at full capacity.
• Mounting: Standard pillar/column mount (approx. 11.5' total height).

Optimized Applications

• Cardboard Boxes: The 3.5 HP motor is the "Gold Standard" for box handling. It provides the necessary suction volume to overcome air leakage through porous cardboard, ensuring a 100% secure grip on everything from glossy totes to rough shipping cartons.
• Porous Bags & Sacks: Ideal for paper or plastic bags containing dry goods, powders, or grains.
• Machine Tending: Perfect for loading CNC machines or saws with parts up to 110 lbs where precision and speed are required.

Condition & Value

• Model Year: 2021 (Current generation hardware).
• Compatibility: The universal EVE-TR 50 power unit is also compatible with JumboErgo 65 and JumboSprint systems.
