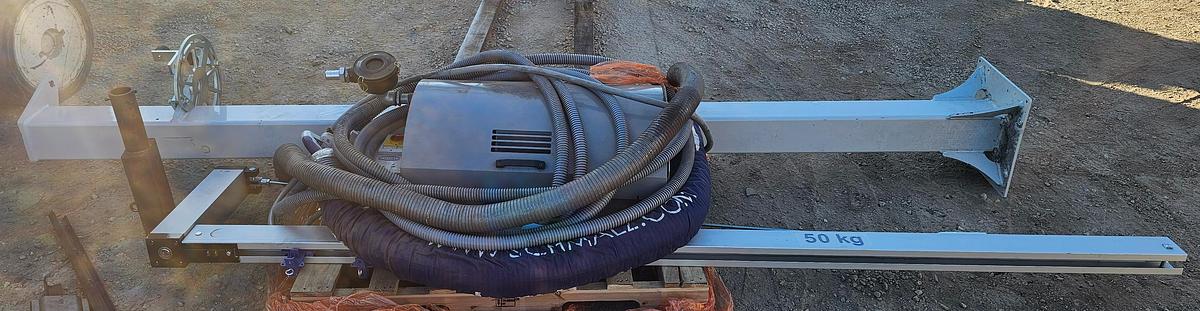

50 Kg Schmalz SBB-EVE-ST-VZ Vacuum Lifter Ergo Handler 10' Arm x 11' HUB Jumbo ERGO 65

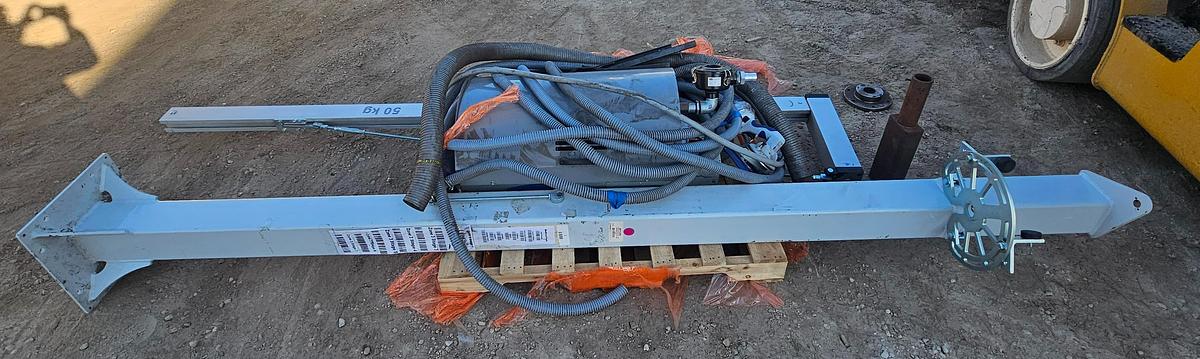

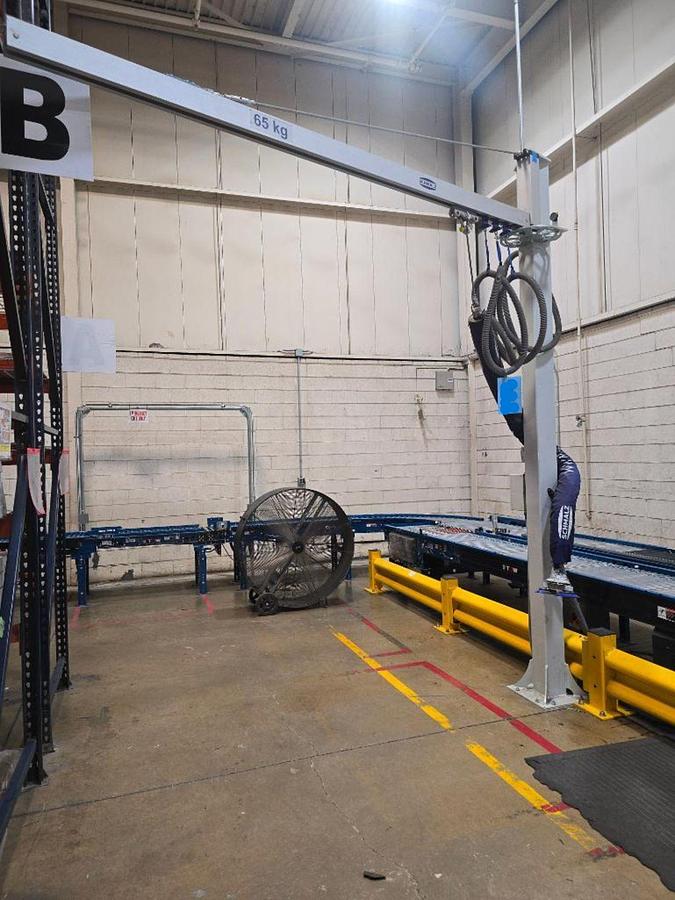

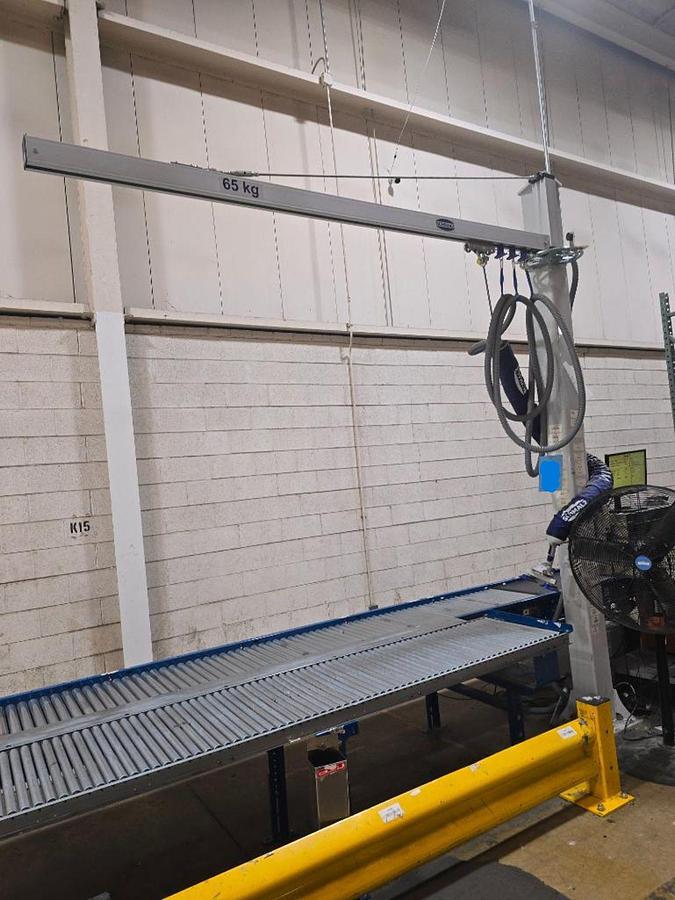

Schmalz Ergo Freestanding Vacuum Lifter

Self Contained Vacuum Generator & Jib Crane

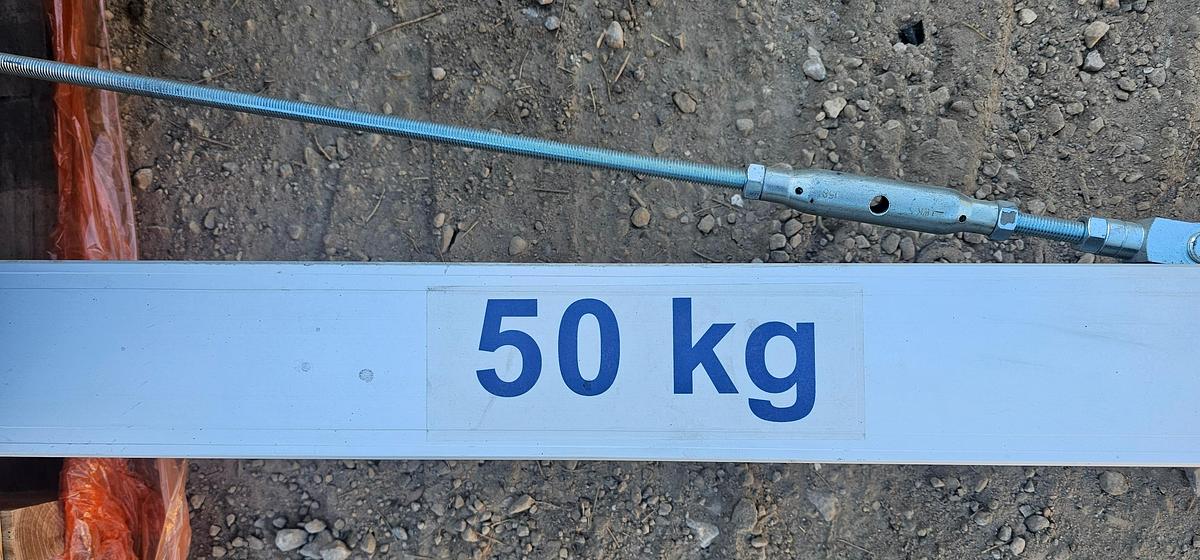

Capacity: 50 Kg

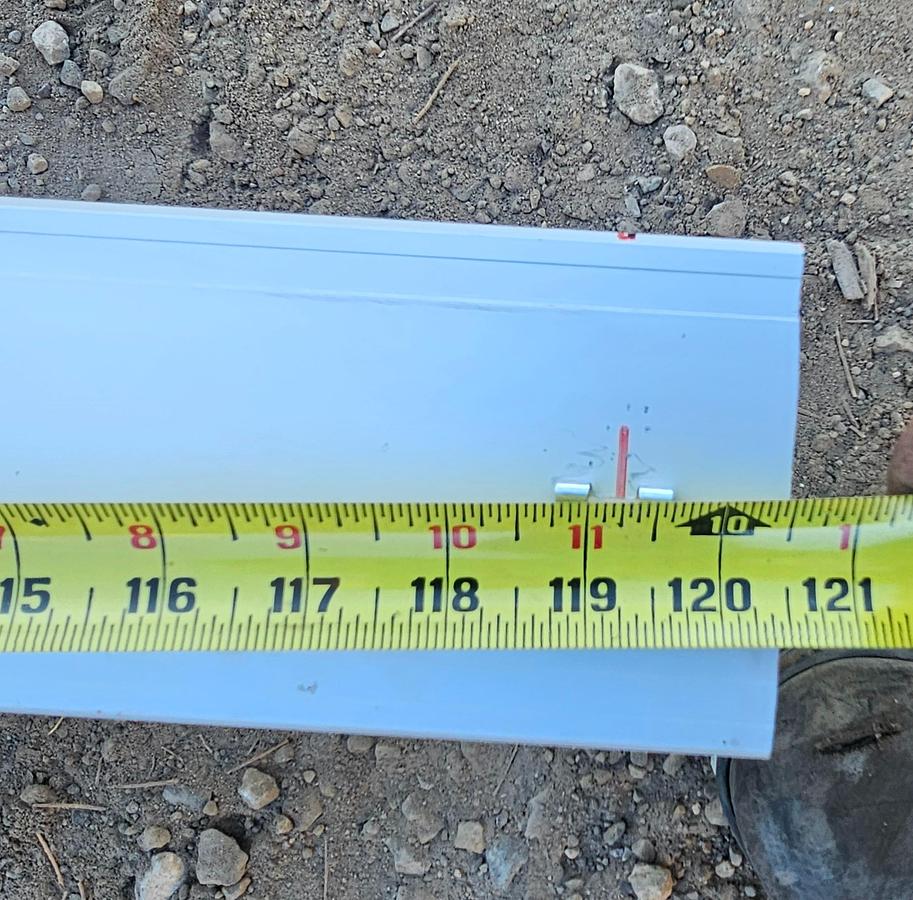

Jib Crane Arm: 10'

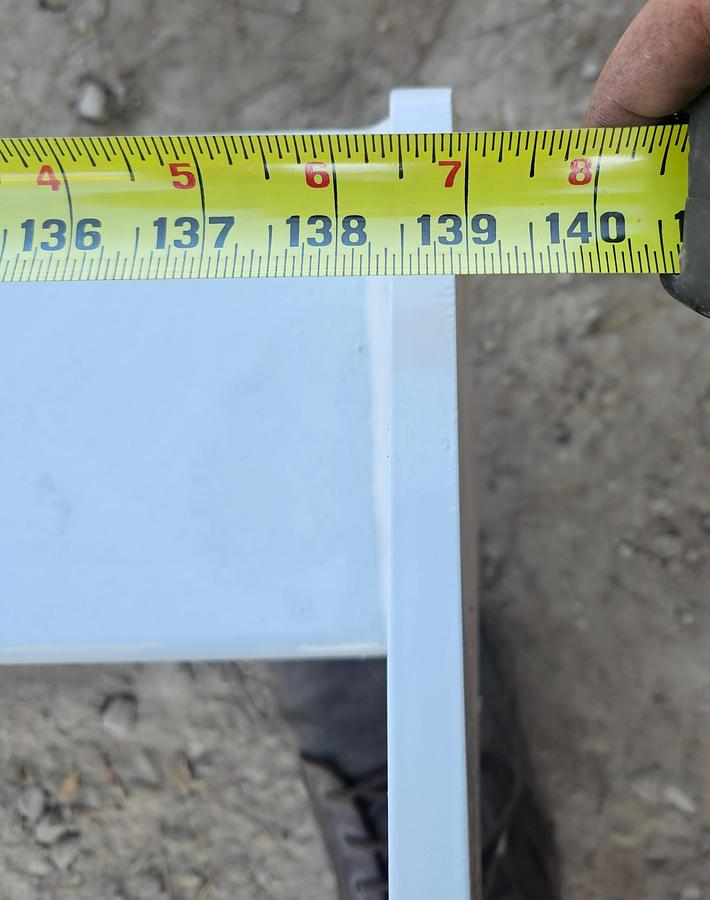

Post Height: 139"

Height Under Beam: Approx 11'

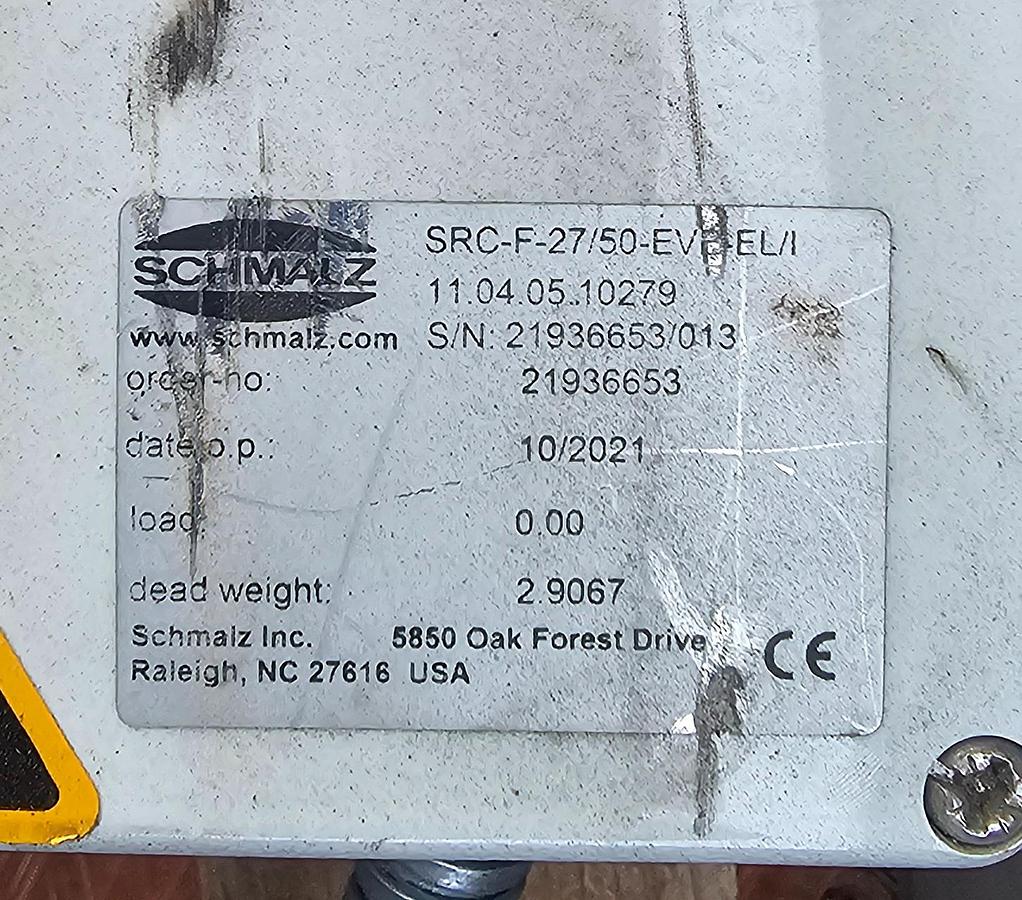

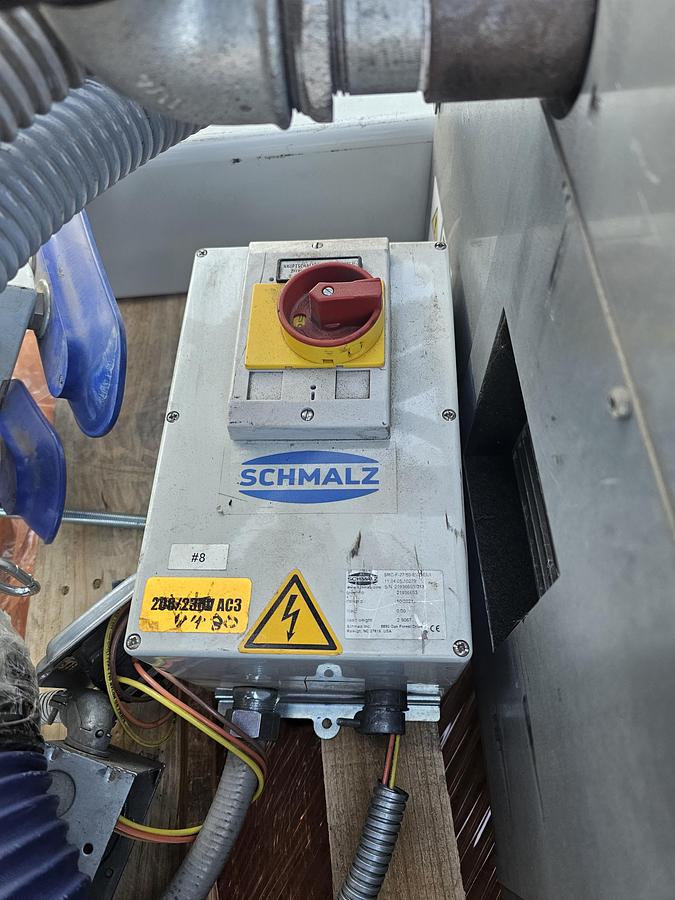

Schmalz Emergency Stop: SRC-F-27/50-EVE-EL/I

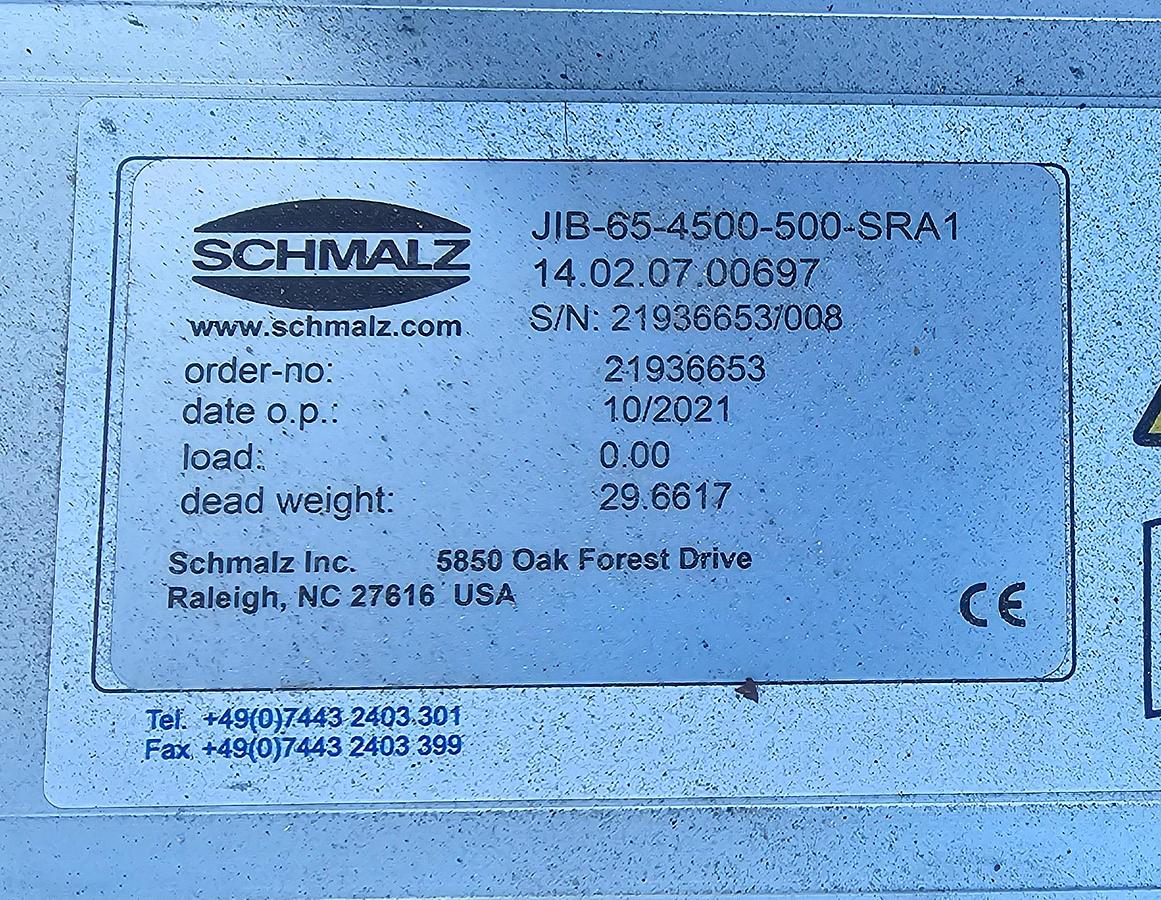

Jib Crane Model #: JIB-65-4500-500-SRA1

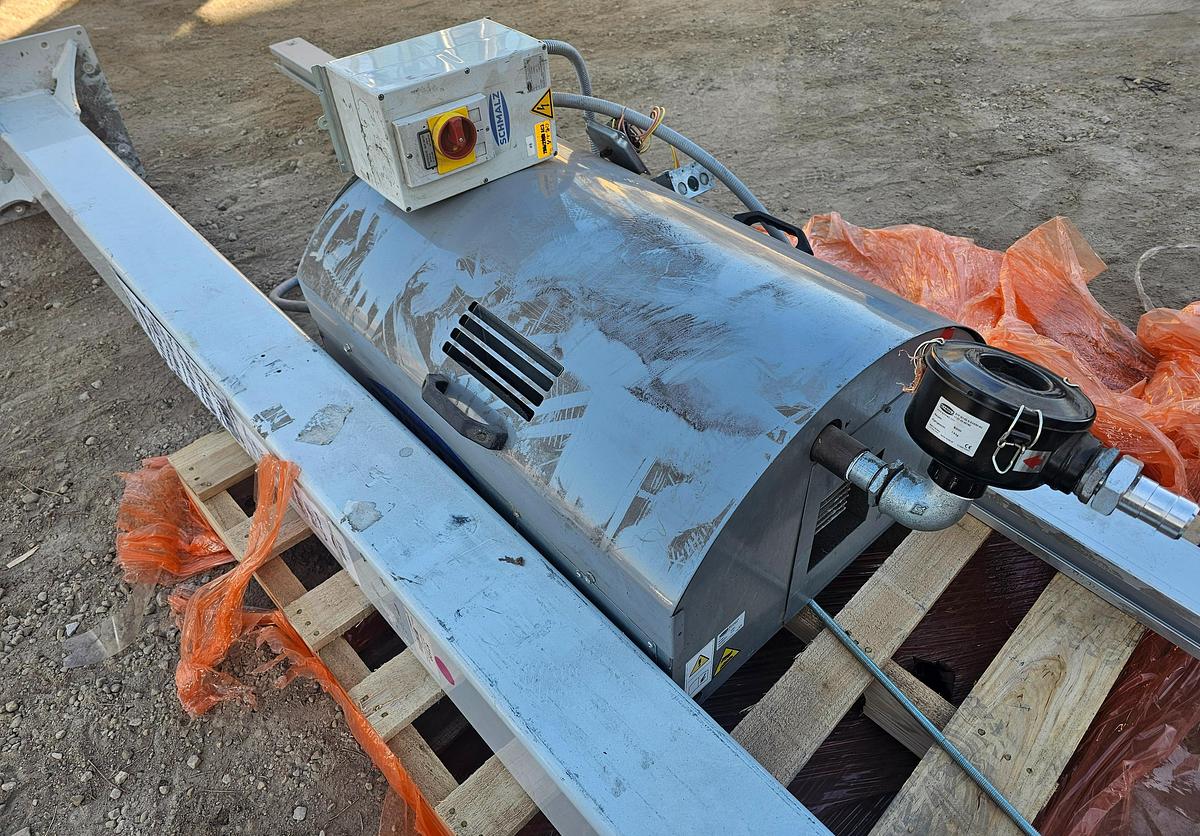

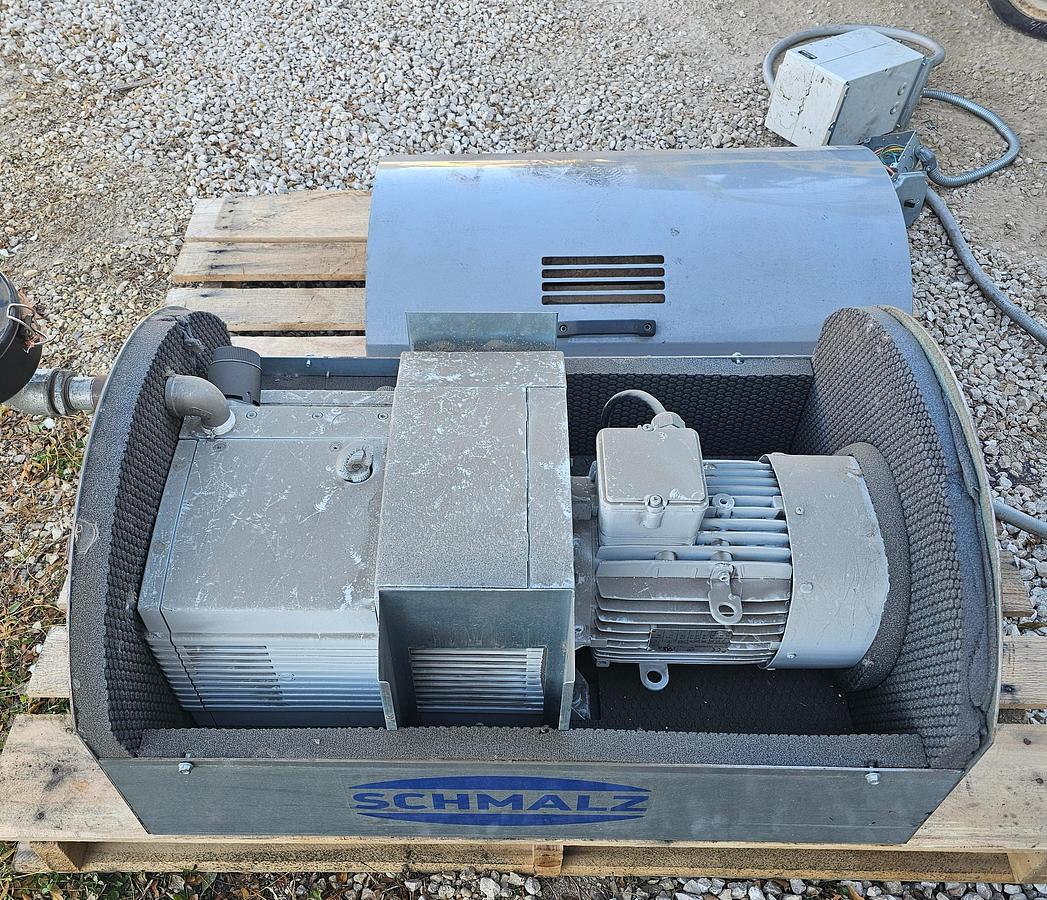

Vacuum Generator Spec

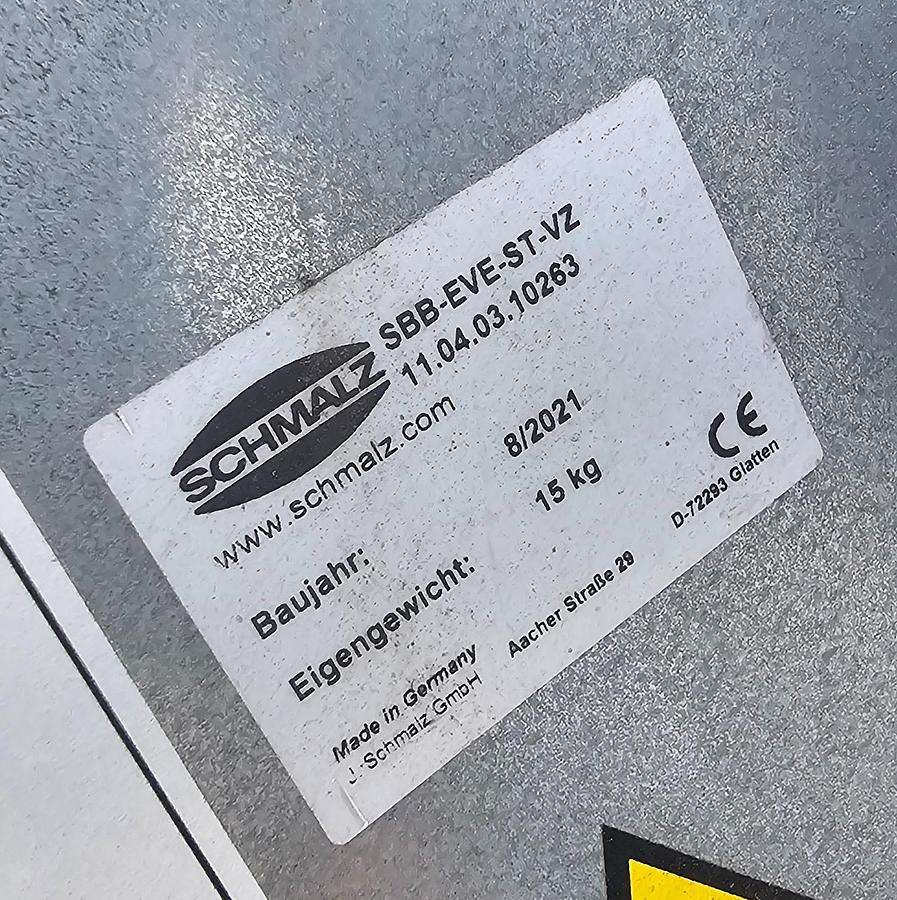

Model #: SBB-EVE-ST-VZ

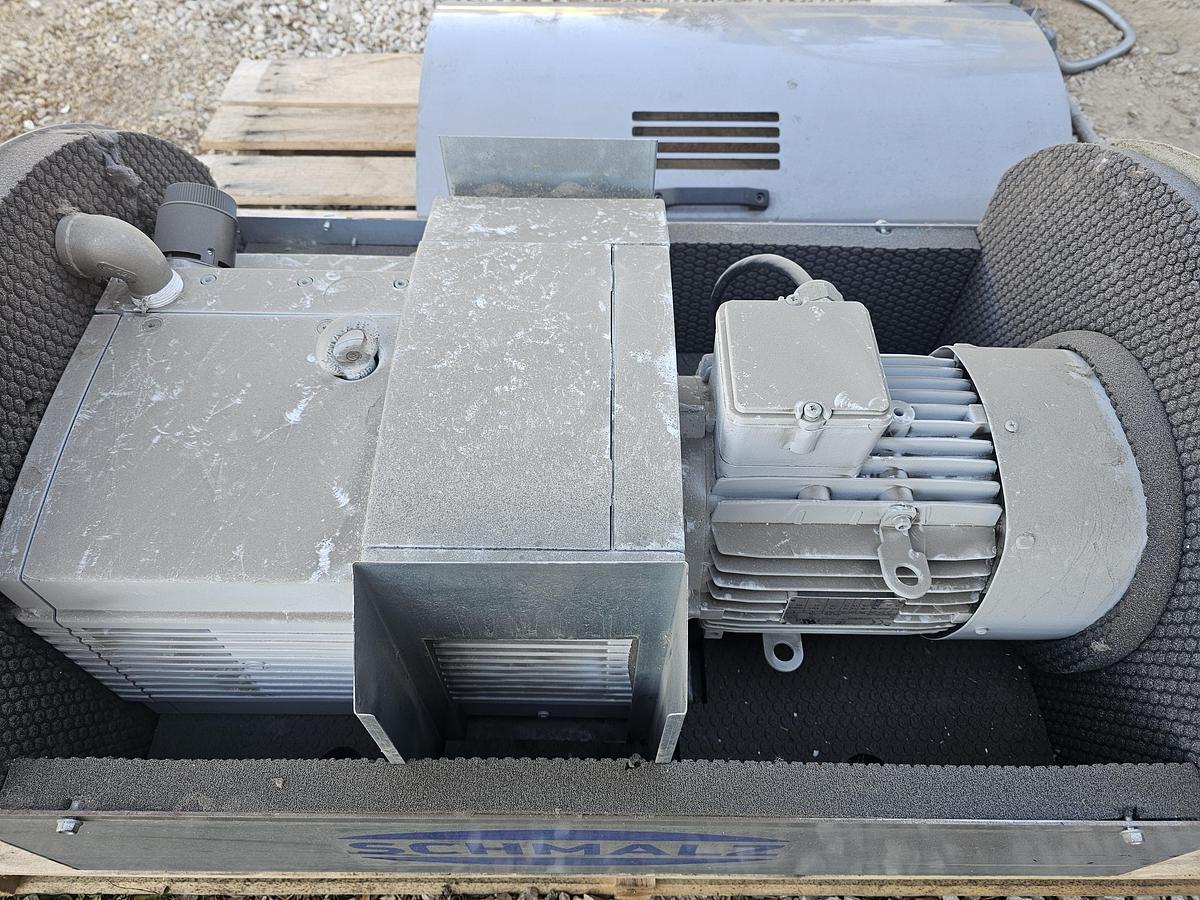

The Schmalz SBB-EVE-ST-VZ is an electric vacuum generator that includes an EVE-TR 25 AC3 F pump, with specifications including a suction rate of up to \(25.000m/h\) at 50 Hz (or \(30.000m/h\) at 60 Hz), a maximum vacuum of \(-850mbar\) (at 50 Hz), rated power of \(0.75kW\) (at 50 Hz), and a weight of \(27.000kg\). The product is designed for electrical operation and features a dry-running rotary vane pump.

Key specifications:

Suction Rate \(25.000m/h\) (50 Hz) / \(30.000m/h\) (60 Hz)

Maximum Vacuum \(-850mbar\) (at 50 Hz)

Rated Power \(0.75kW\) (50 Hz) / \(0.90kW\) (60 Hz)

Weight \(27.000kg\)

Sound Pressure Level \(62.0dB(A)\) (at 50 Hz)

Features Electric Operation: This generator produces vacuum without using compressed air, powered entirely by electricity.Dry-Running: It is a dry-running rotary vane pump, which means it does not require oil for its operation.High Efficiency: The unit is designed for high efficiency and includes an EVE-TR 25 AC3 F pump.Energy Efficient: It can be controlled to an energy-saving mode, where it stops generating vacuum once a specific level is reached.
