250# Gorbel Twin Bridge Freestanding Crane 26' Span x 45' Runway w/ Schmalz 50 Kg Vacuum Lift Systems

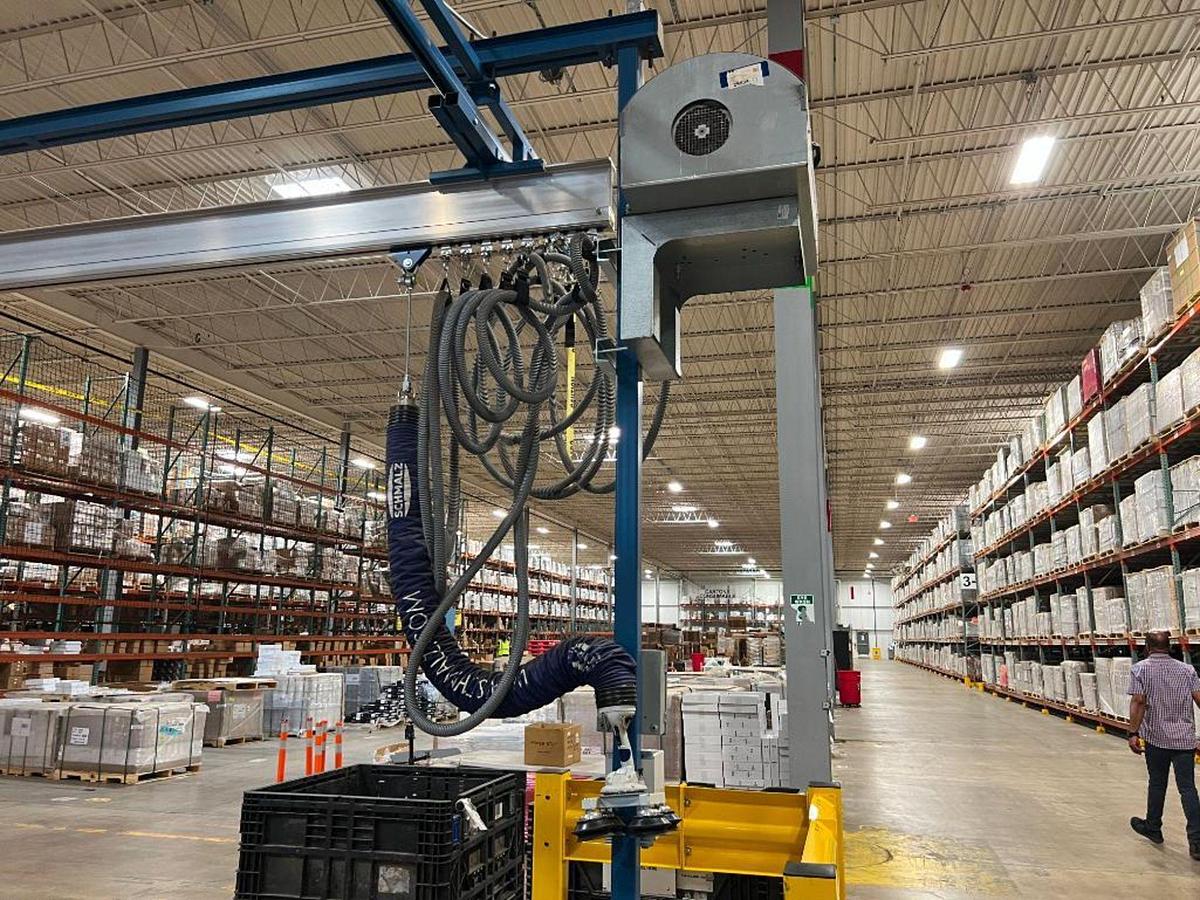

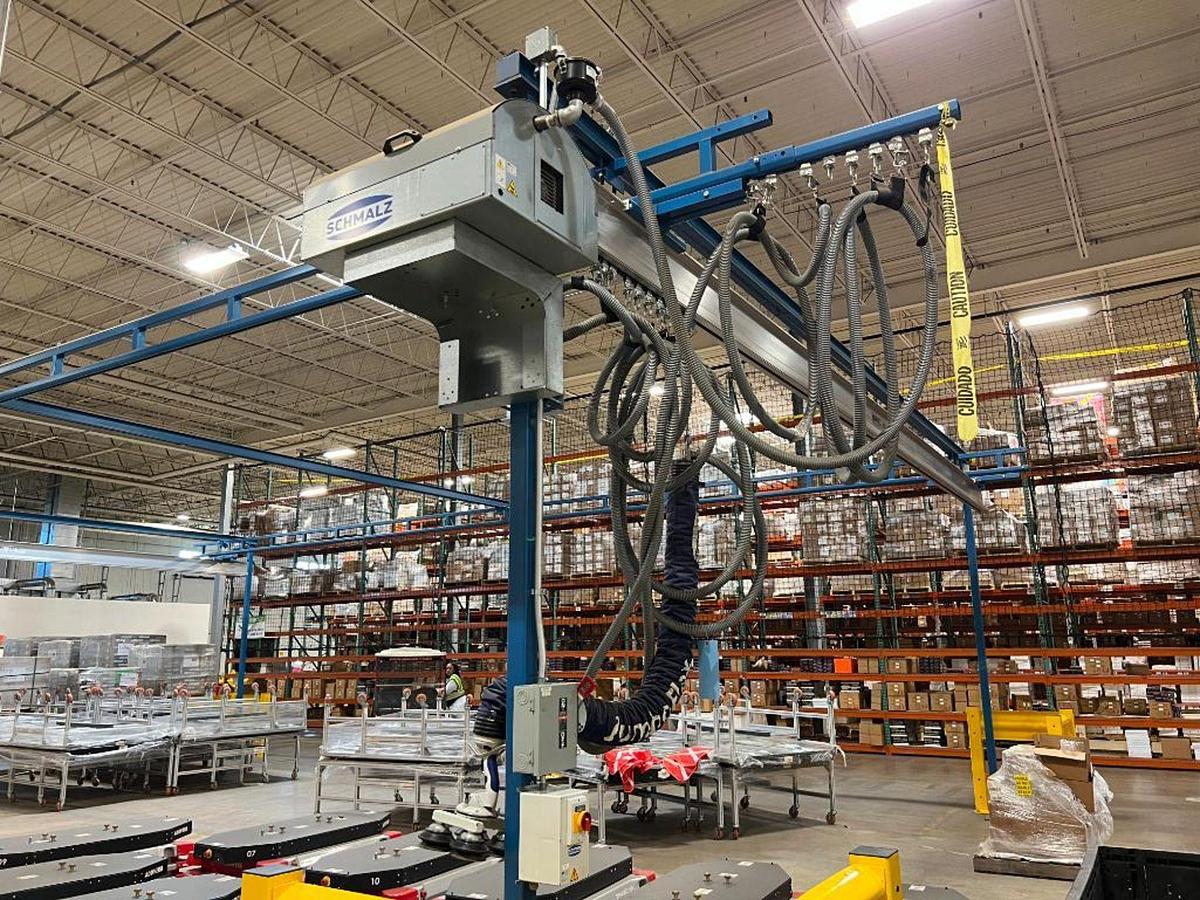

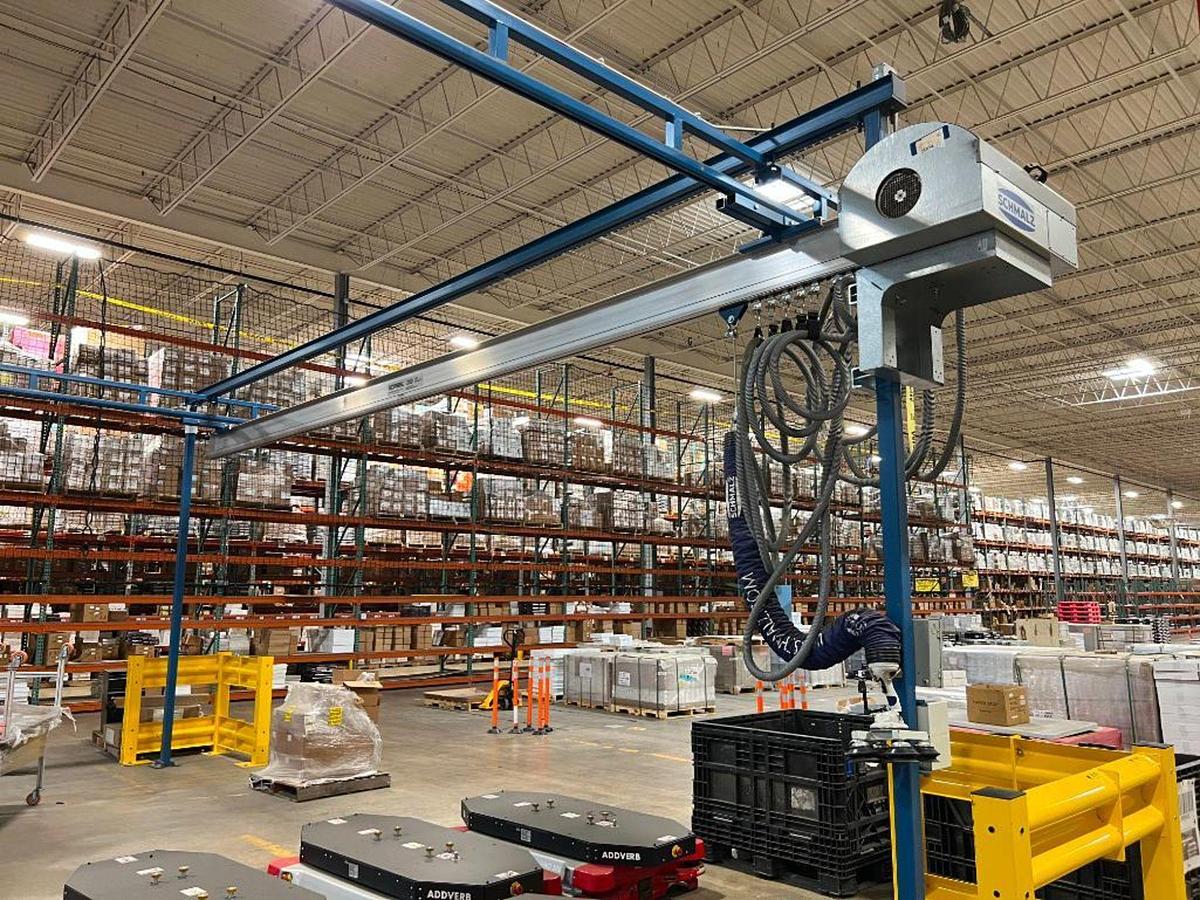

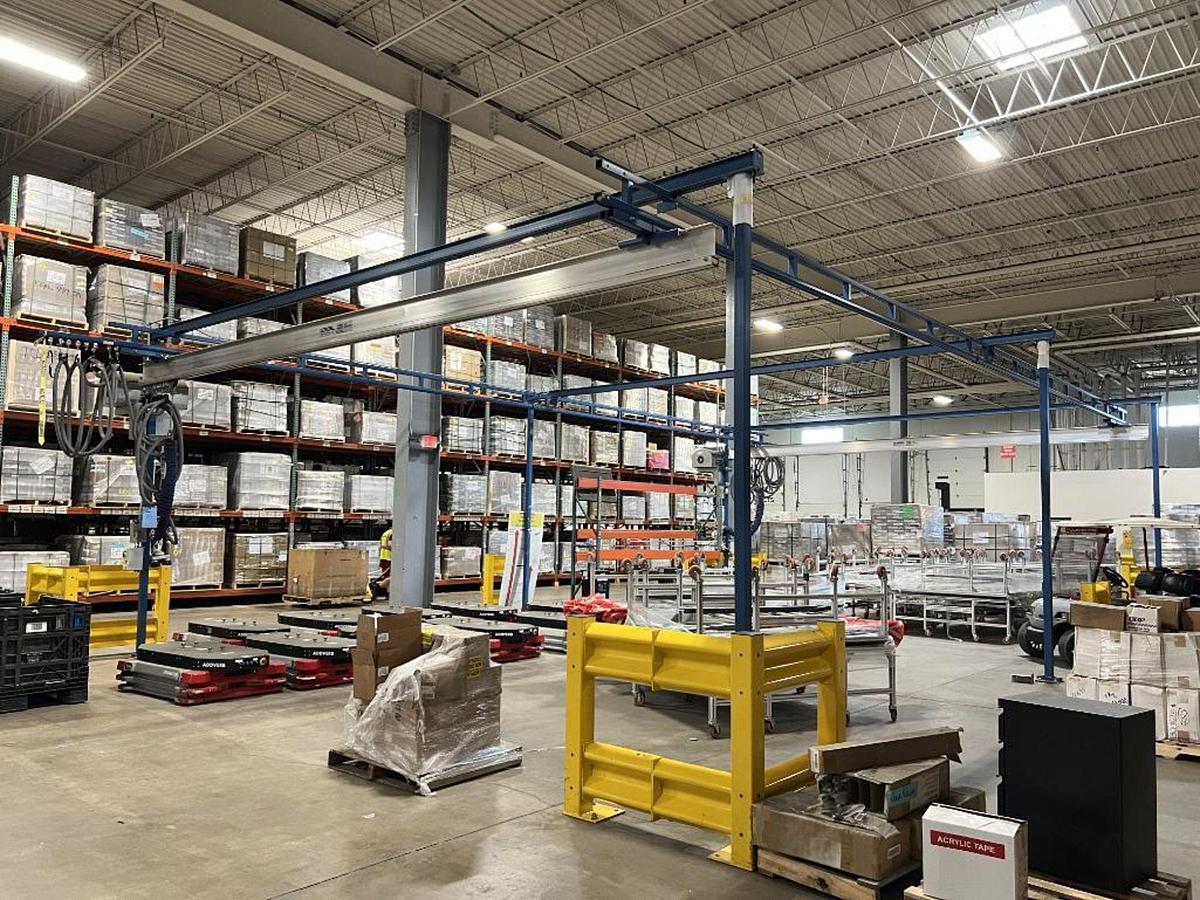

Gorbel Complete Freestanding Overhead Twin Bridge Crane System w/ERGO Schmalz Vacuum Systems

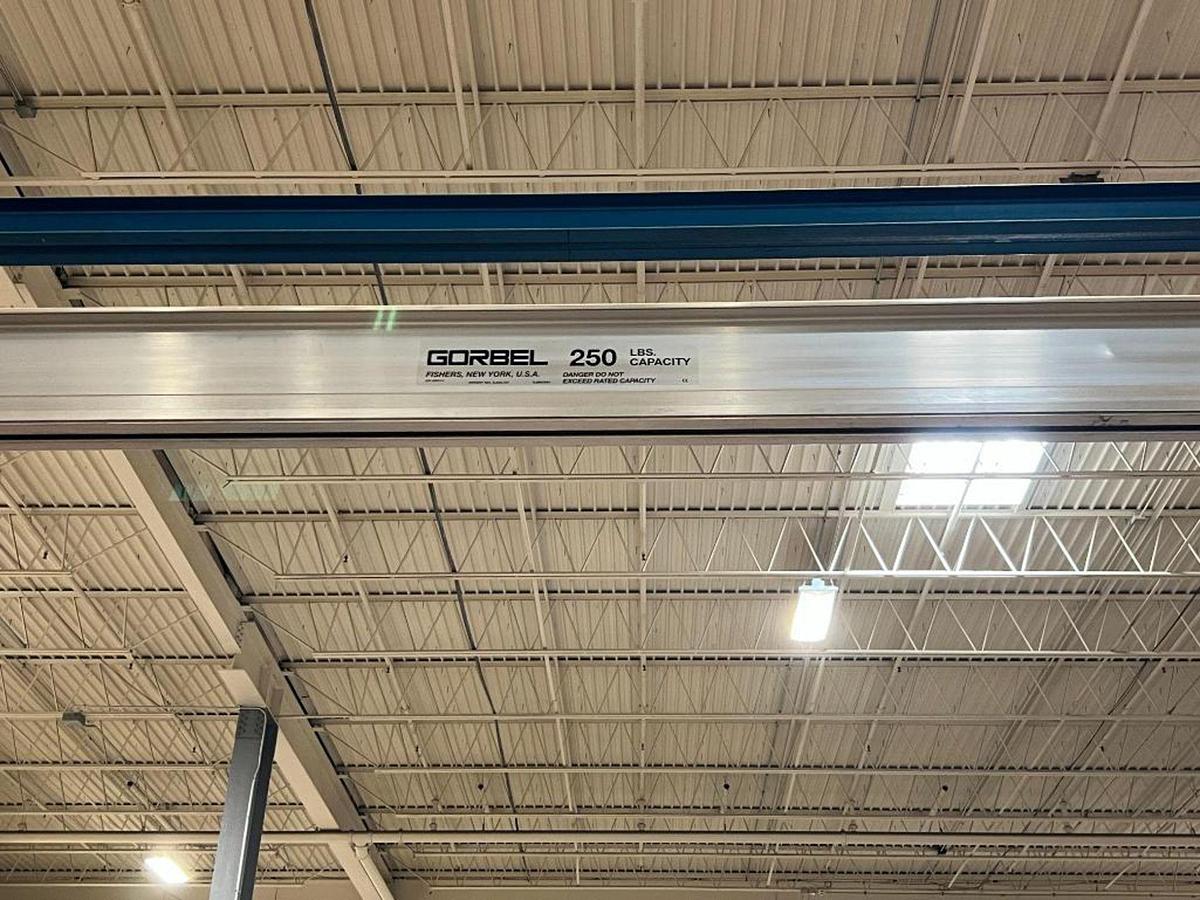

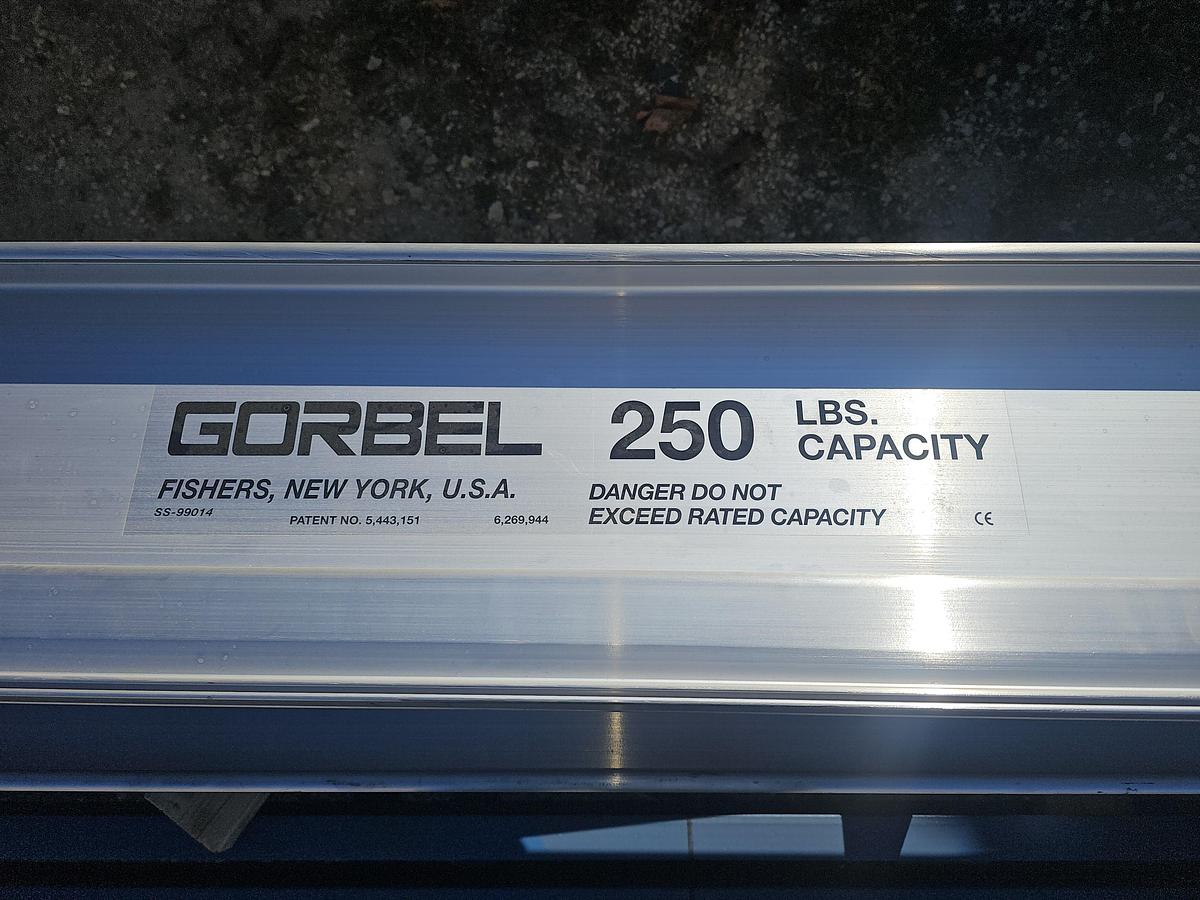

Capacity: 250 lbs

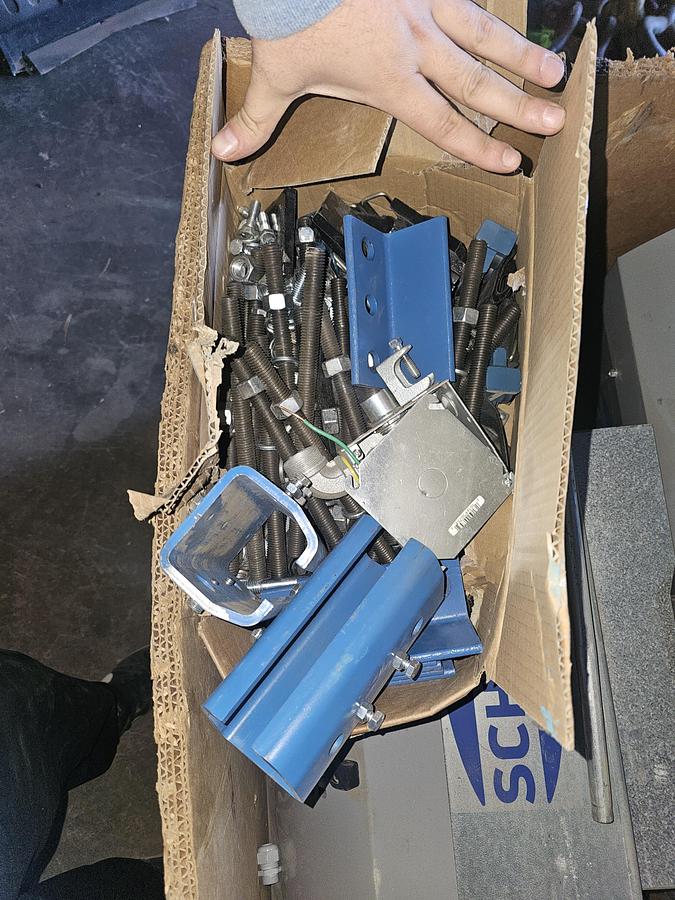

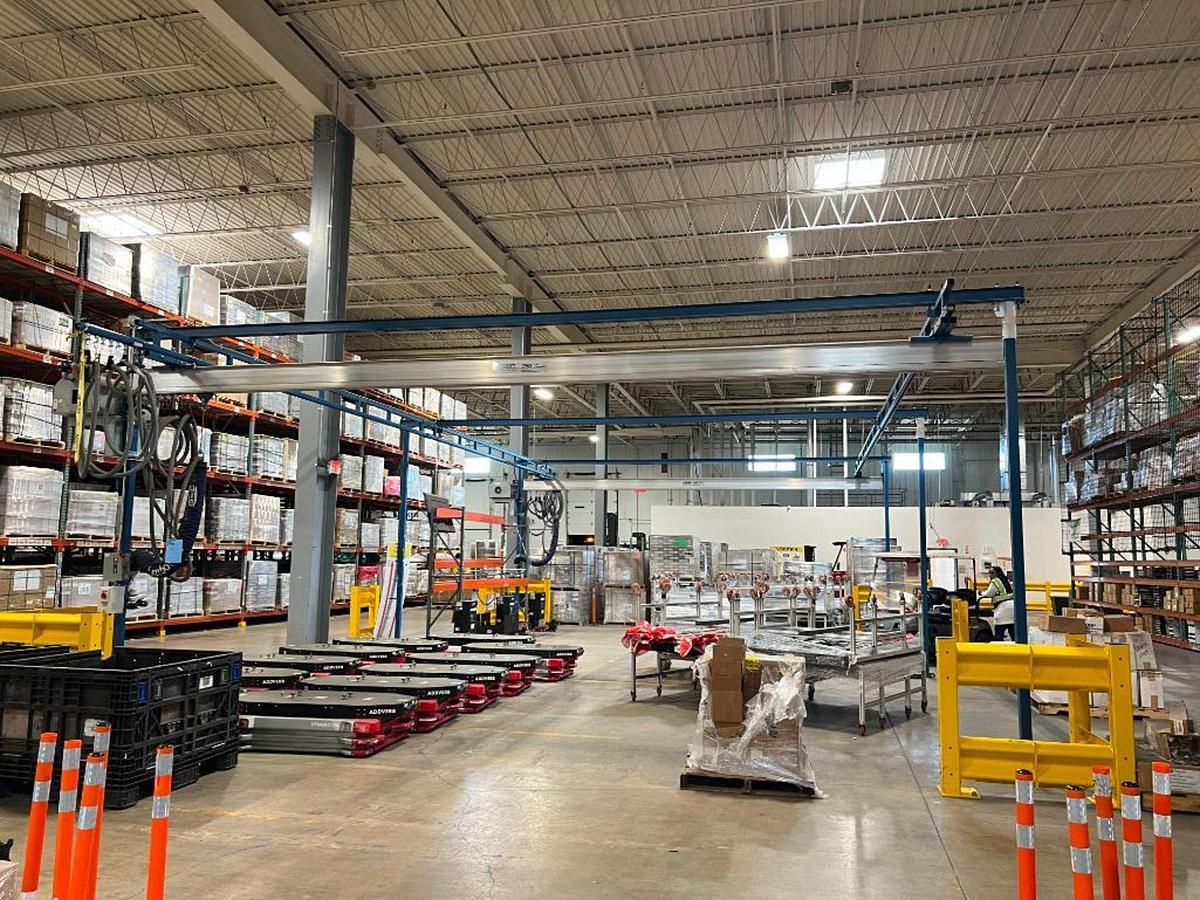

Complete Freestanding Turnkey System with Hardware

Bridge Span: 26'

System Has Two Bridges

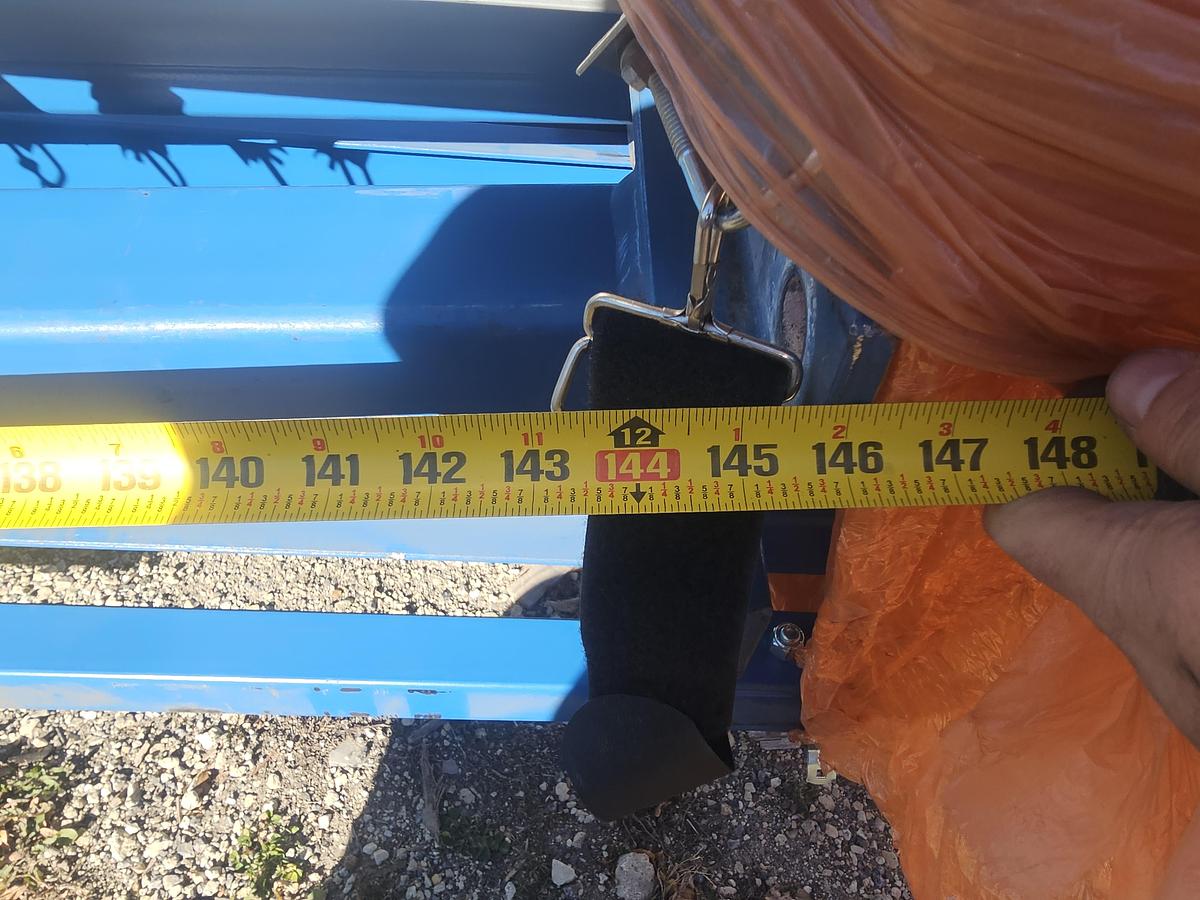

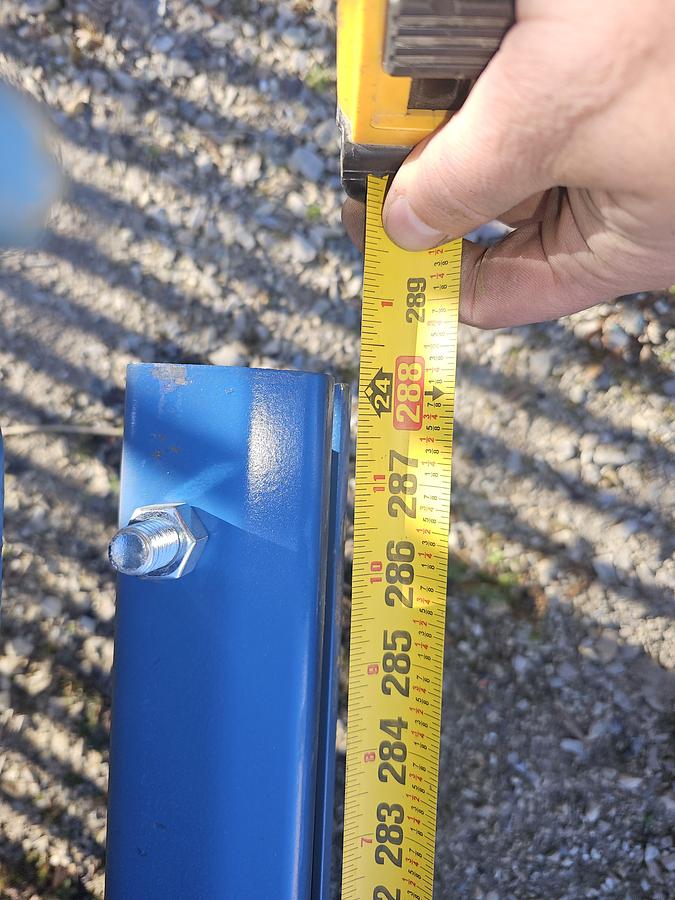

Upright Height: 147"

Approx Under Beam Height: 12'

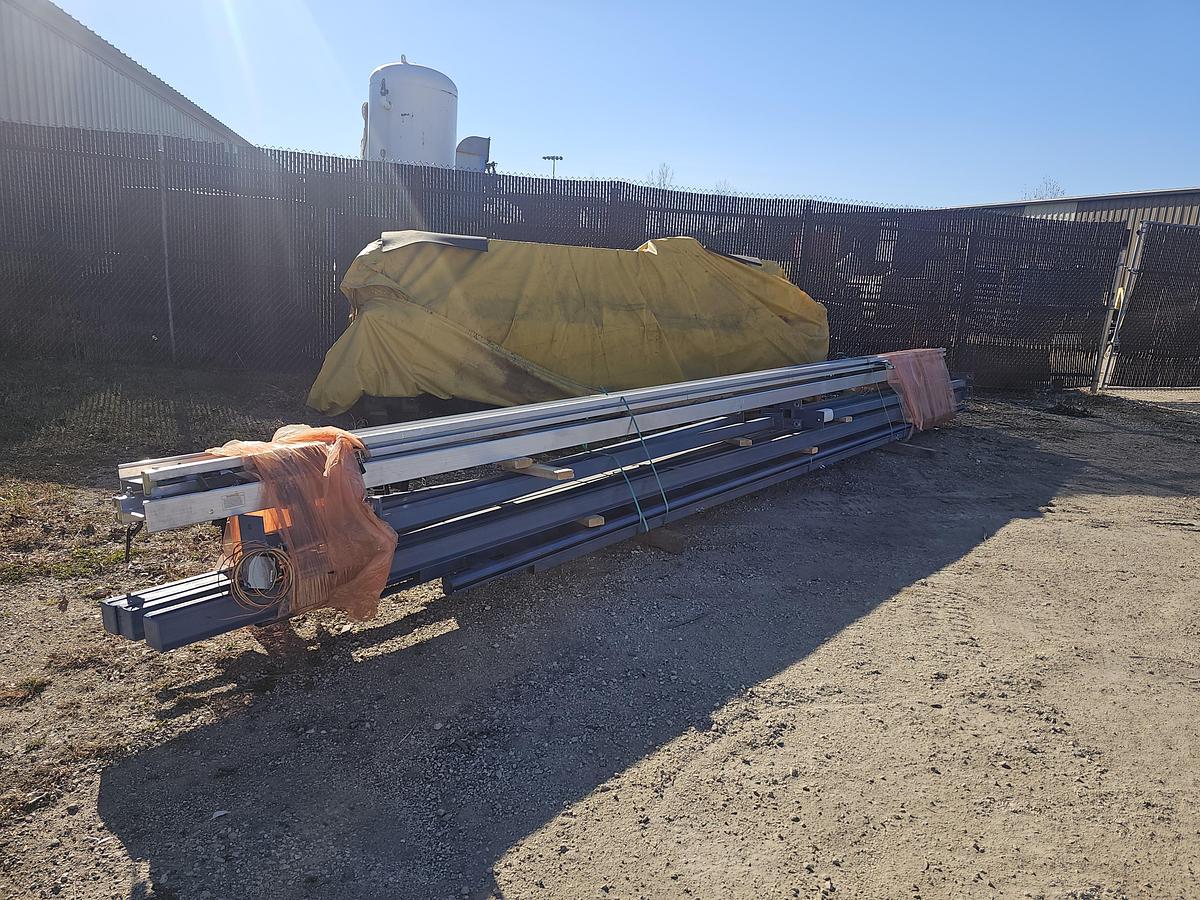

3x Cross Beam Supports

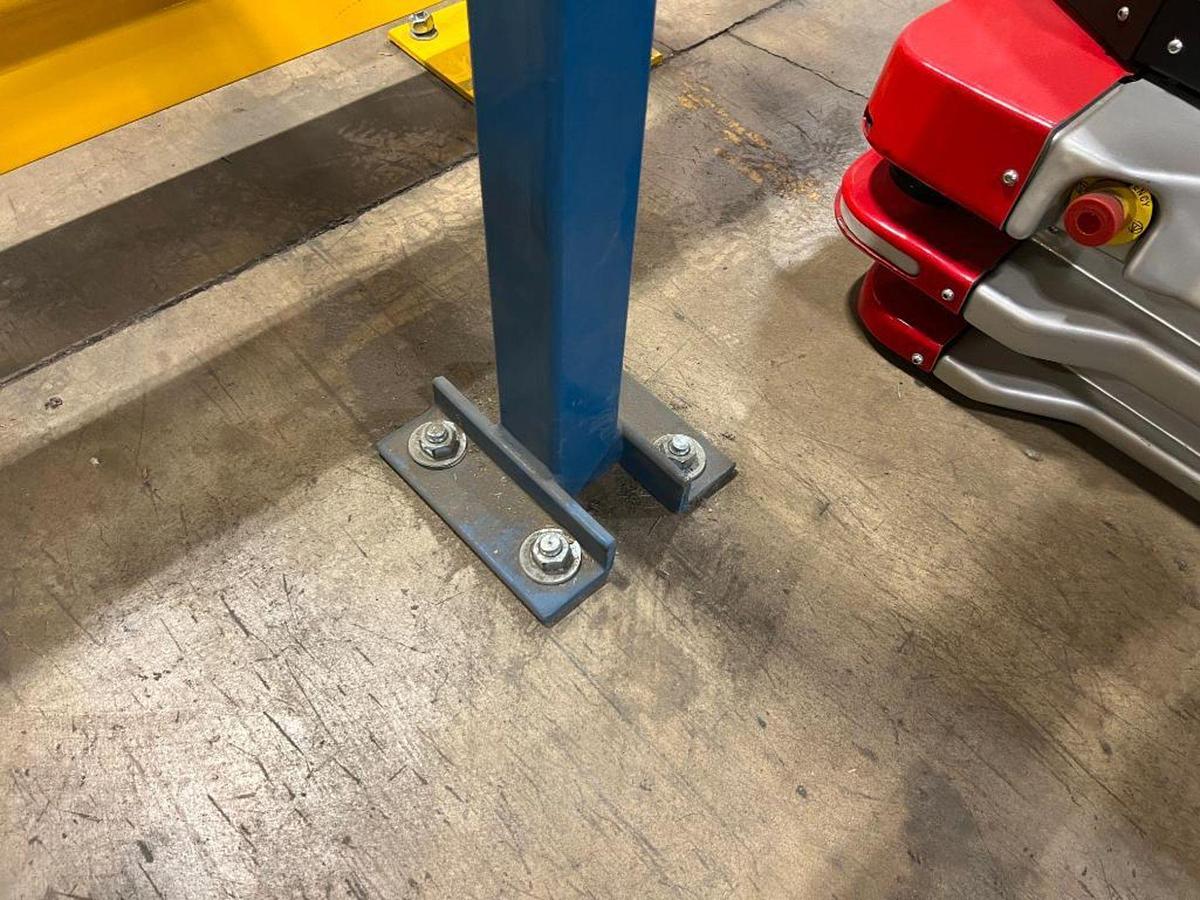

6x Uprights

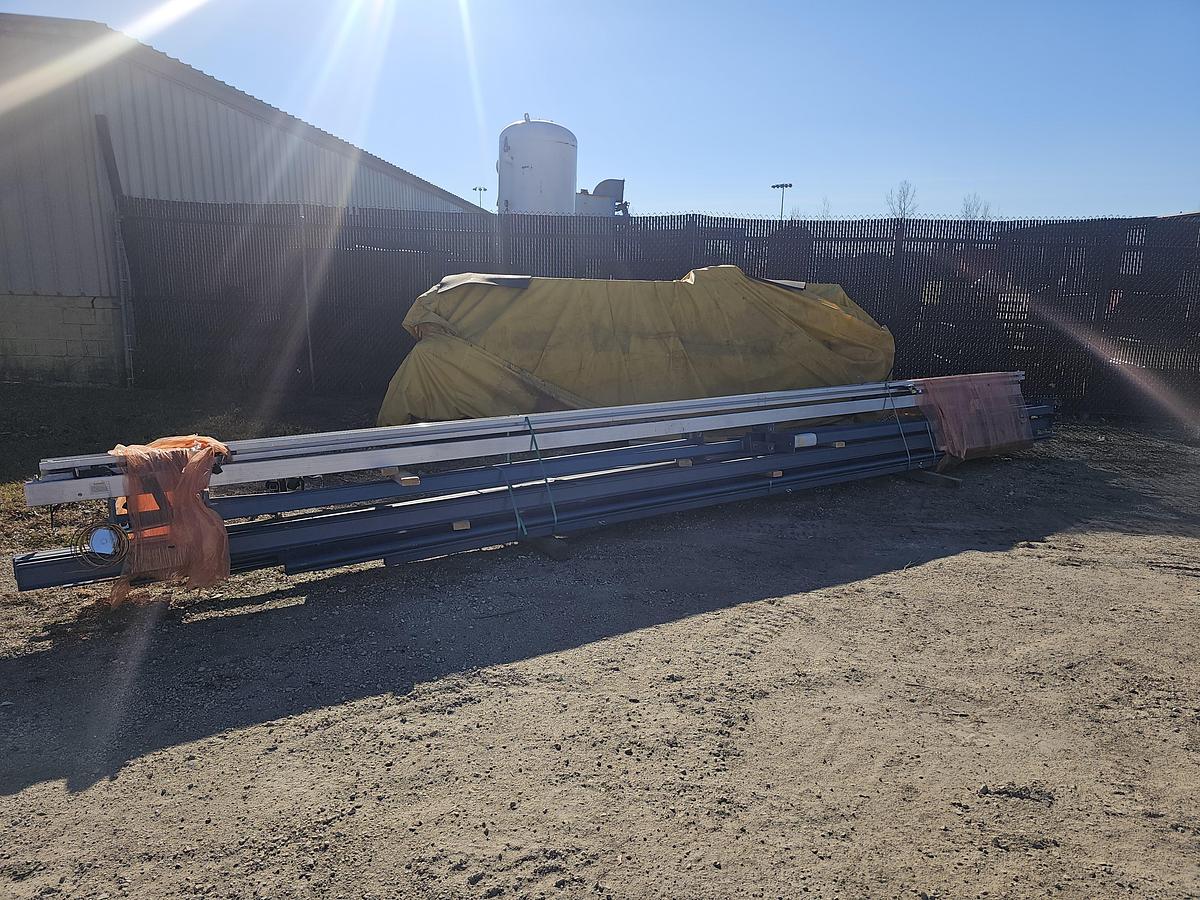

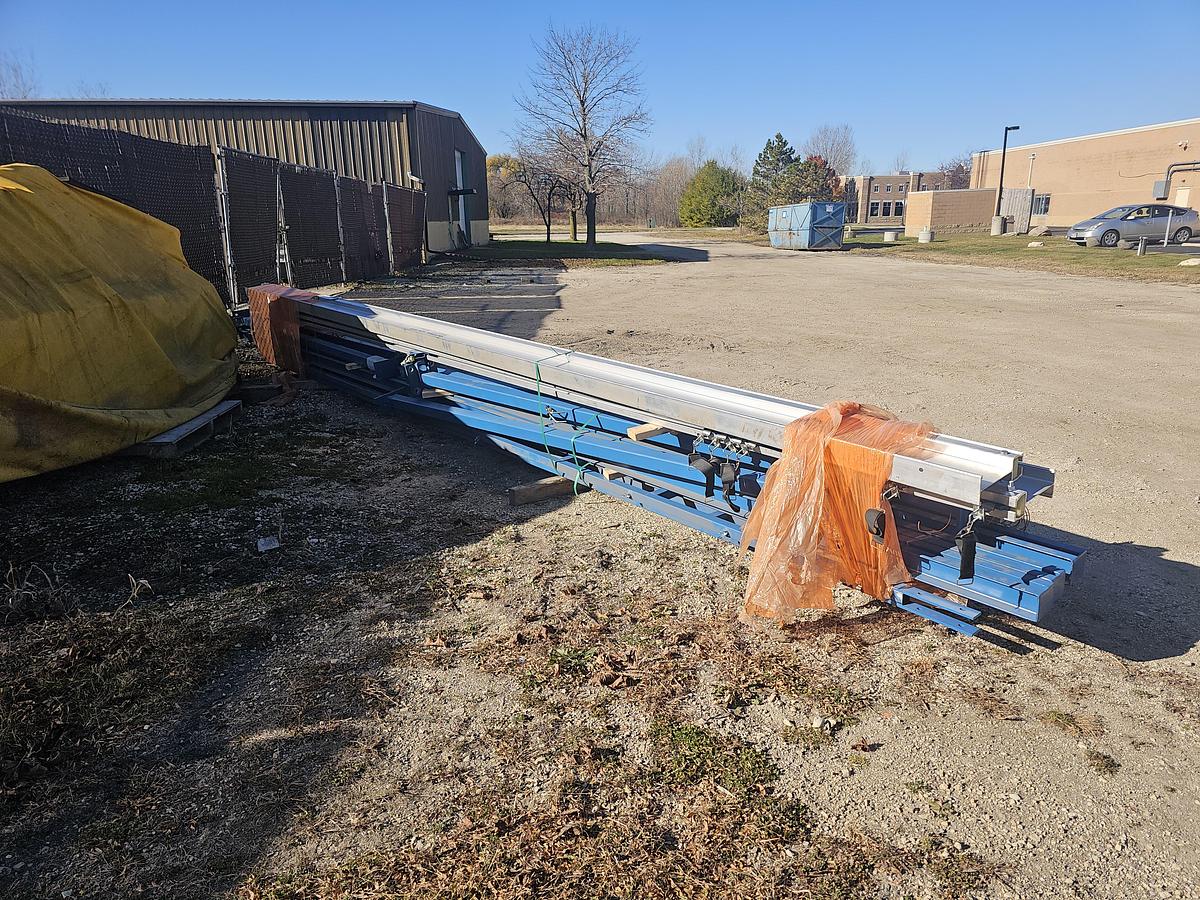

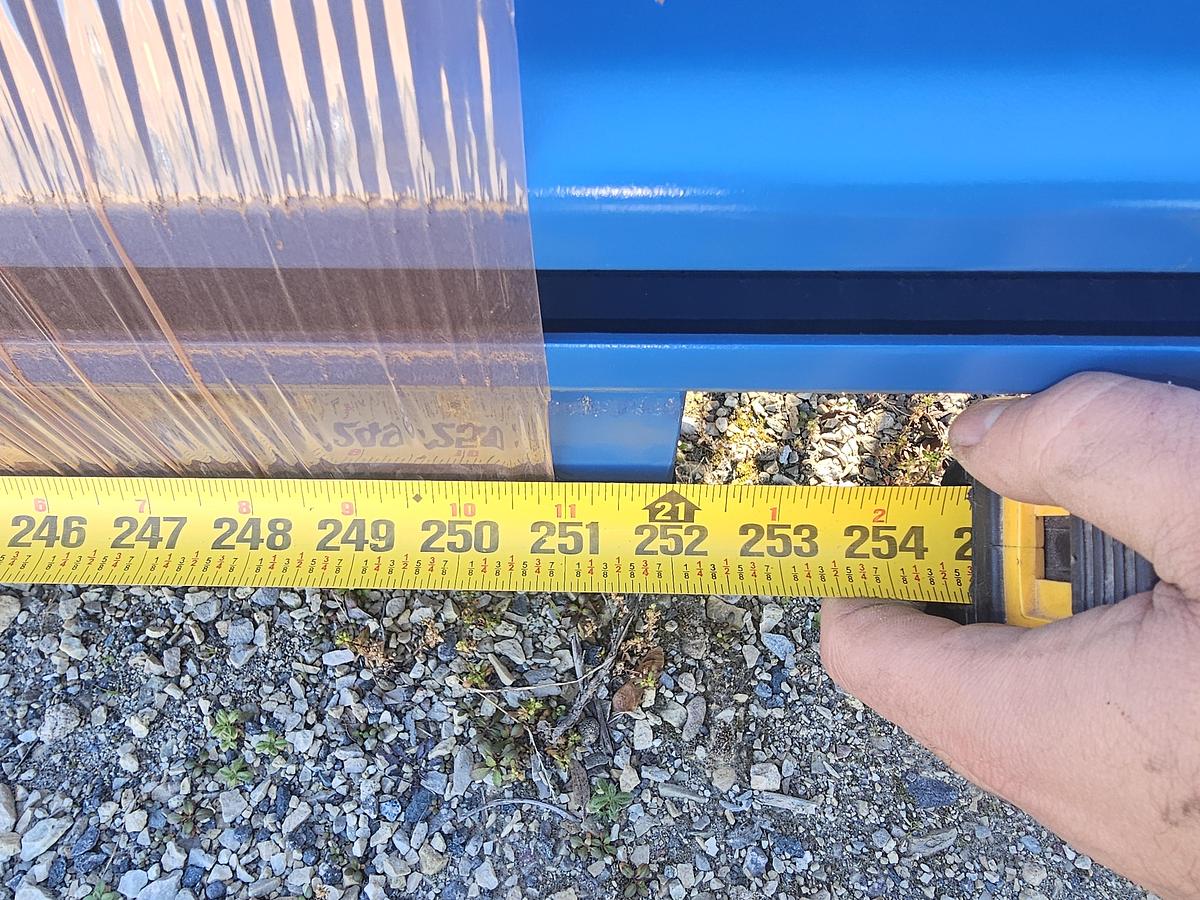

Total Runway Length: 45' (2x 24' Sections / 2x 21' Sections)

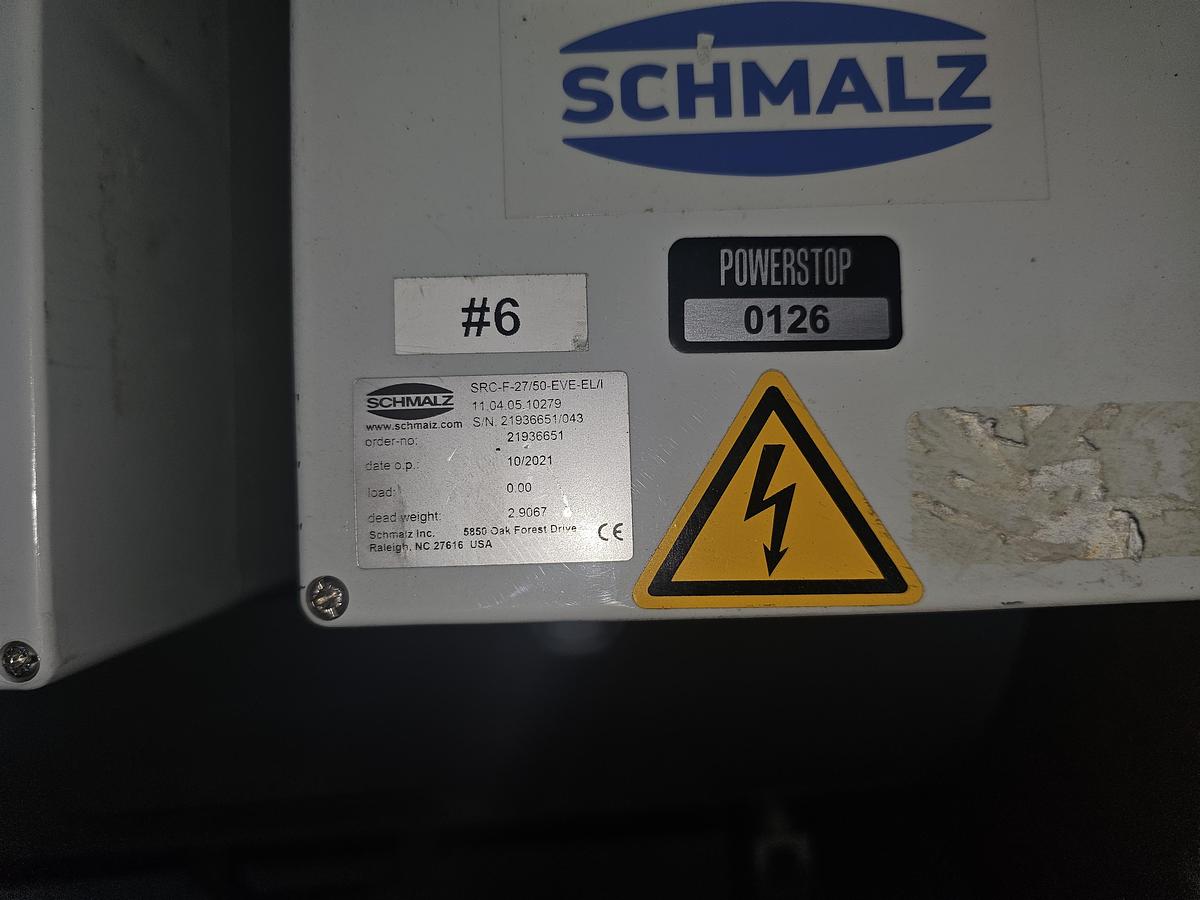

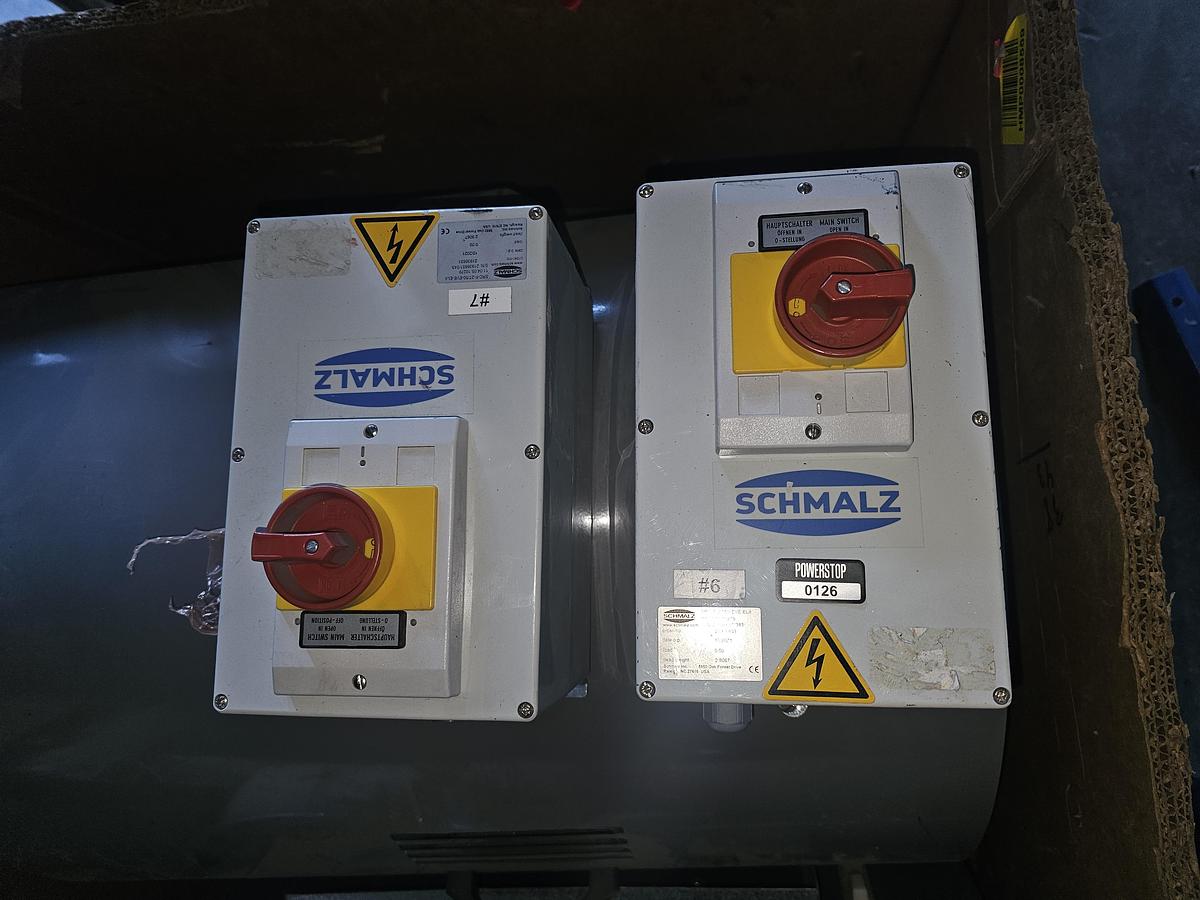

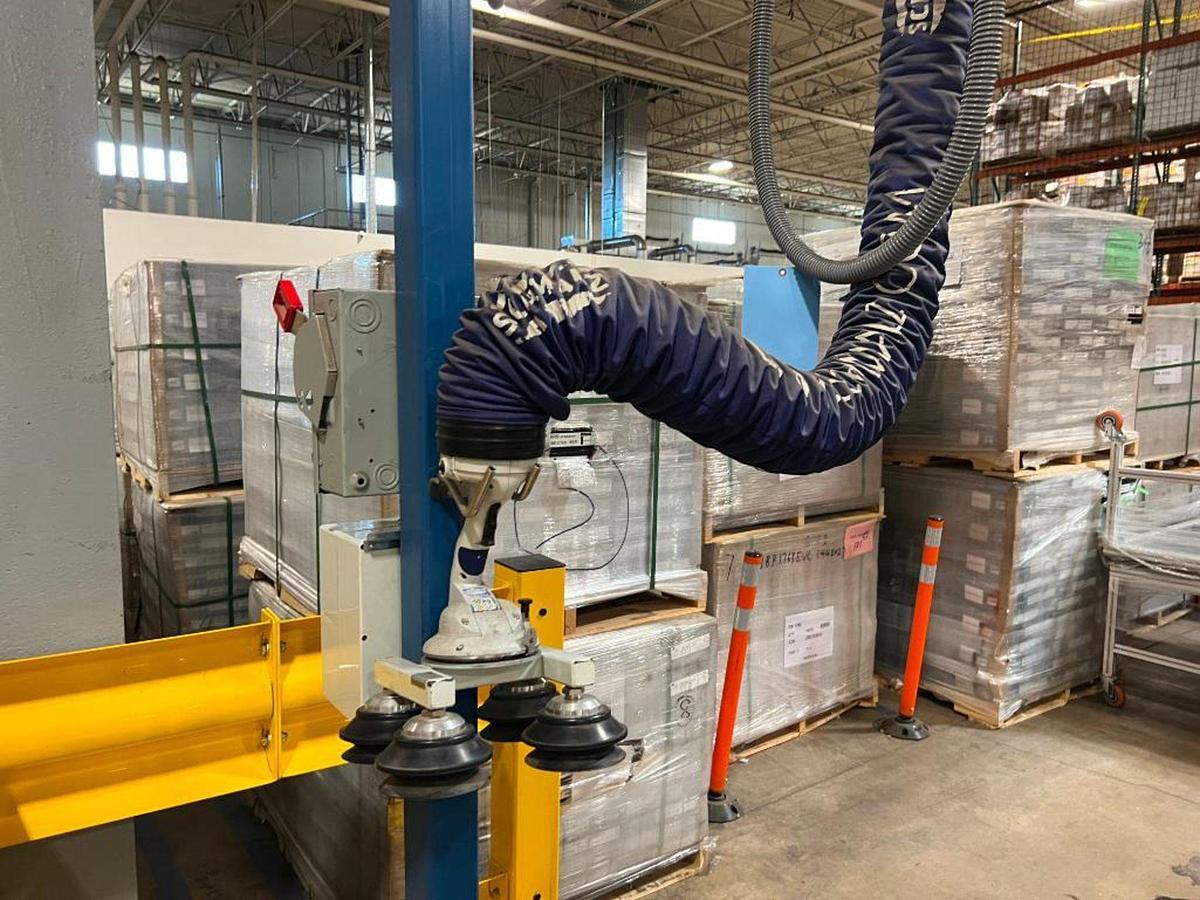

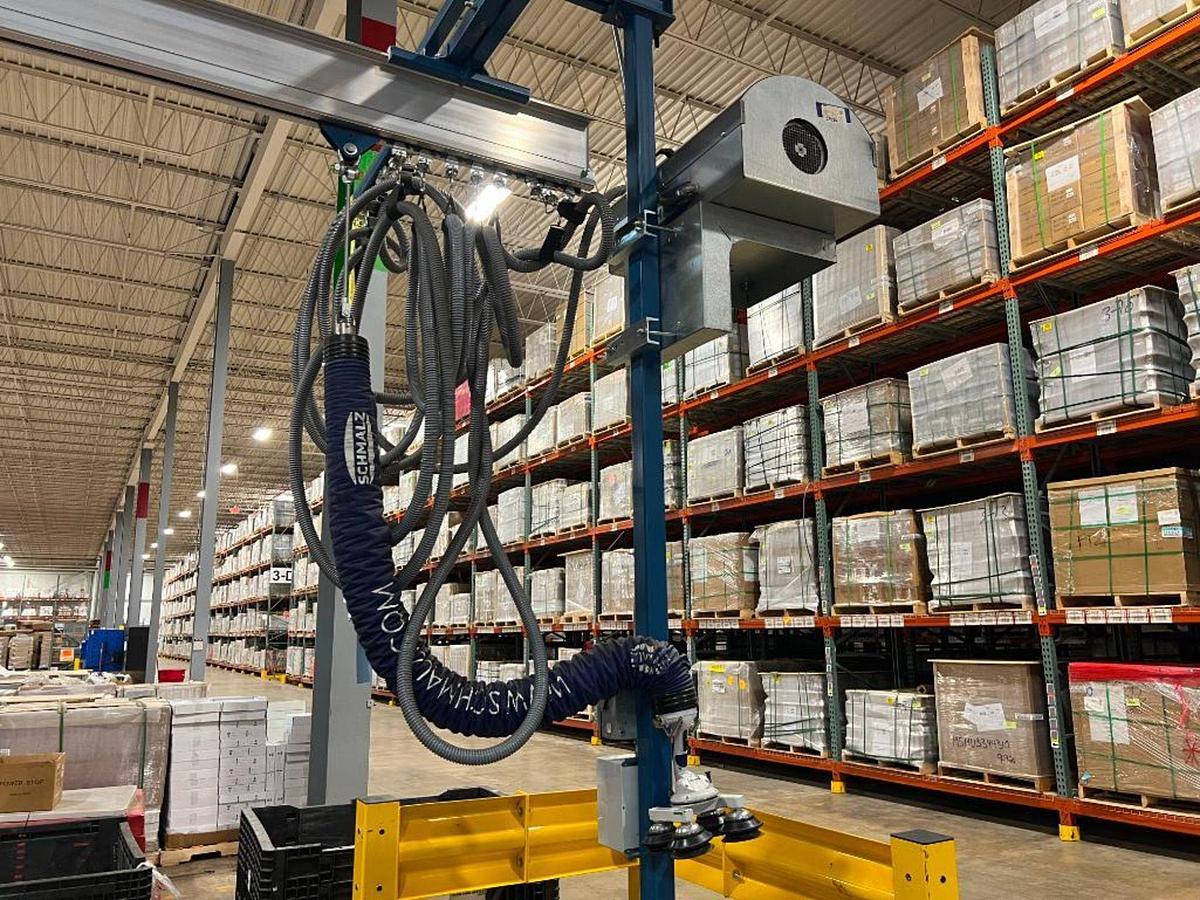

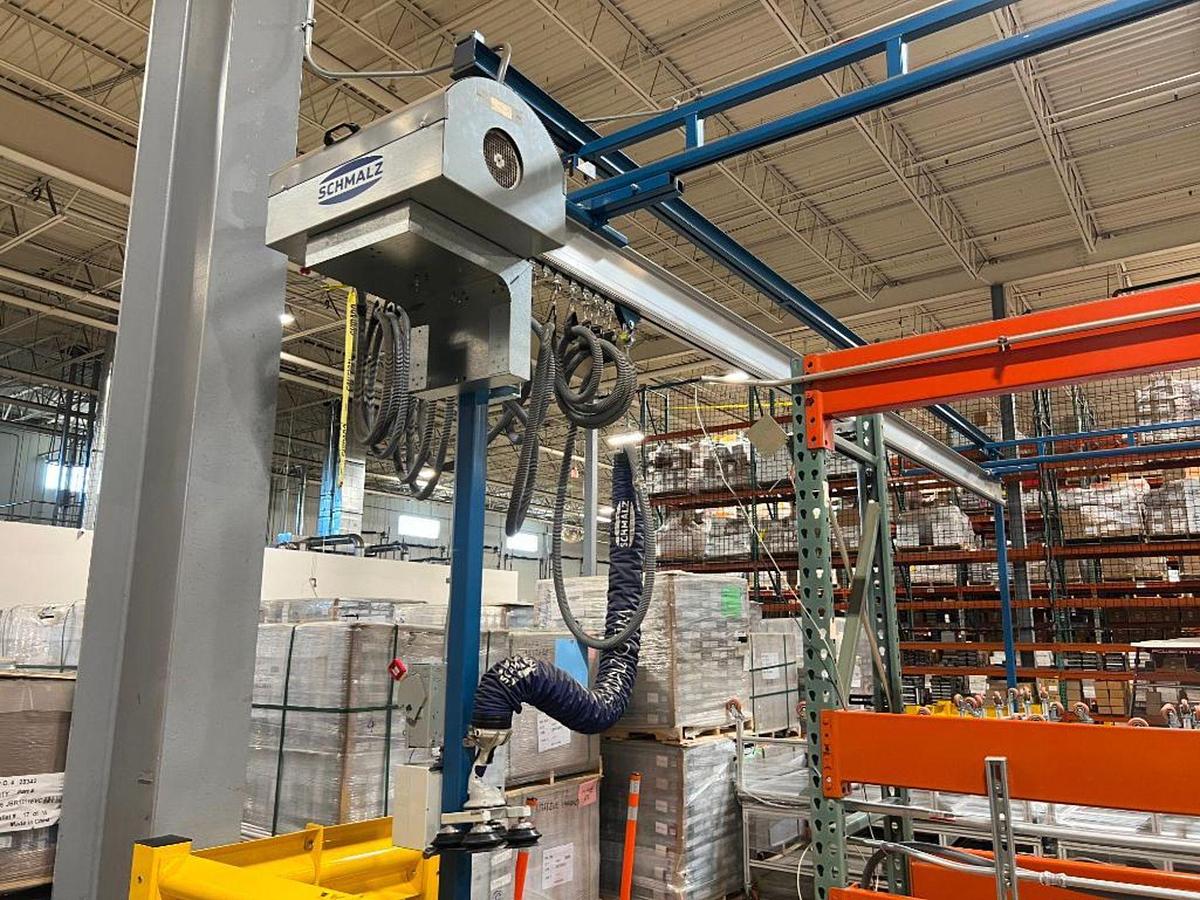

Schmalz Vacuum Generator Systems and Handlers

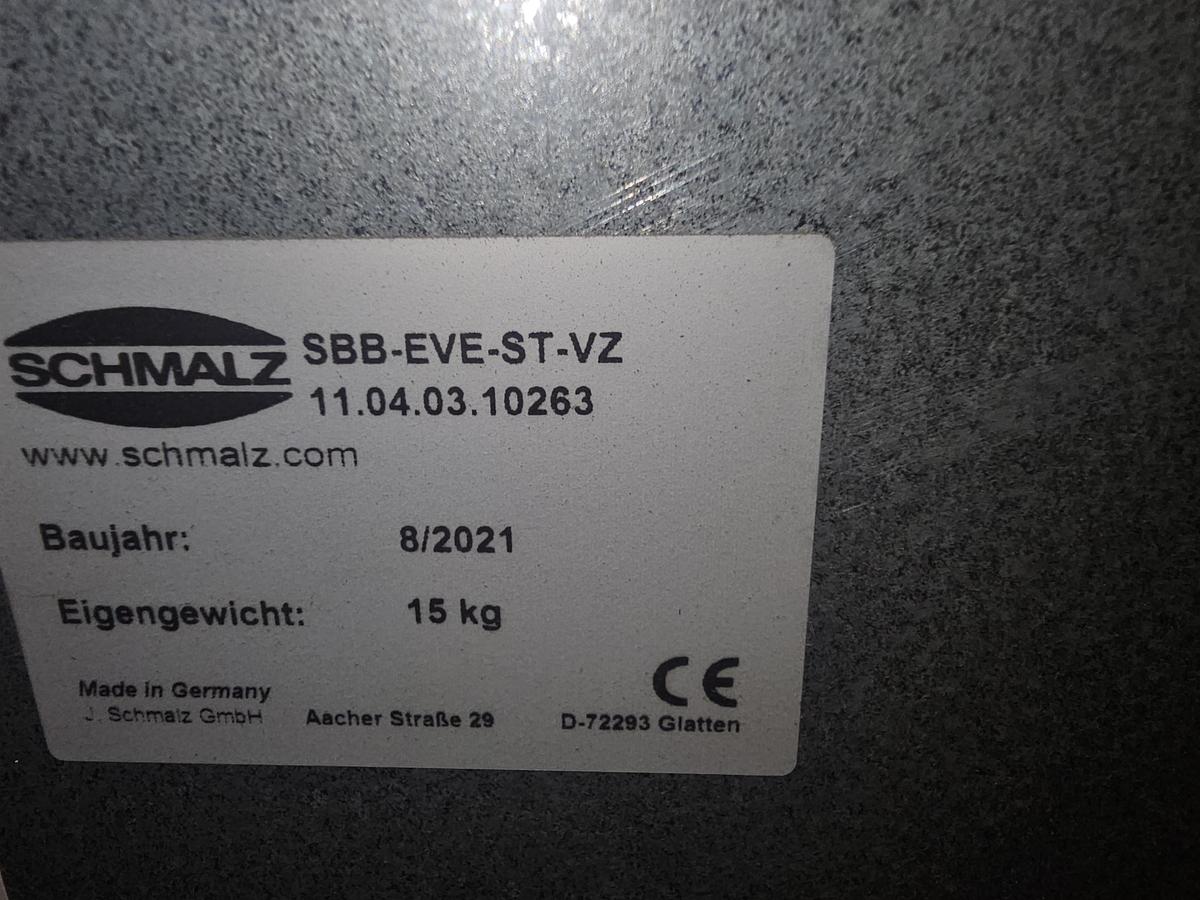

Model #: SBB-EVE-ST-VZ

08/2021

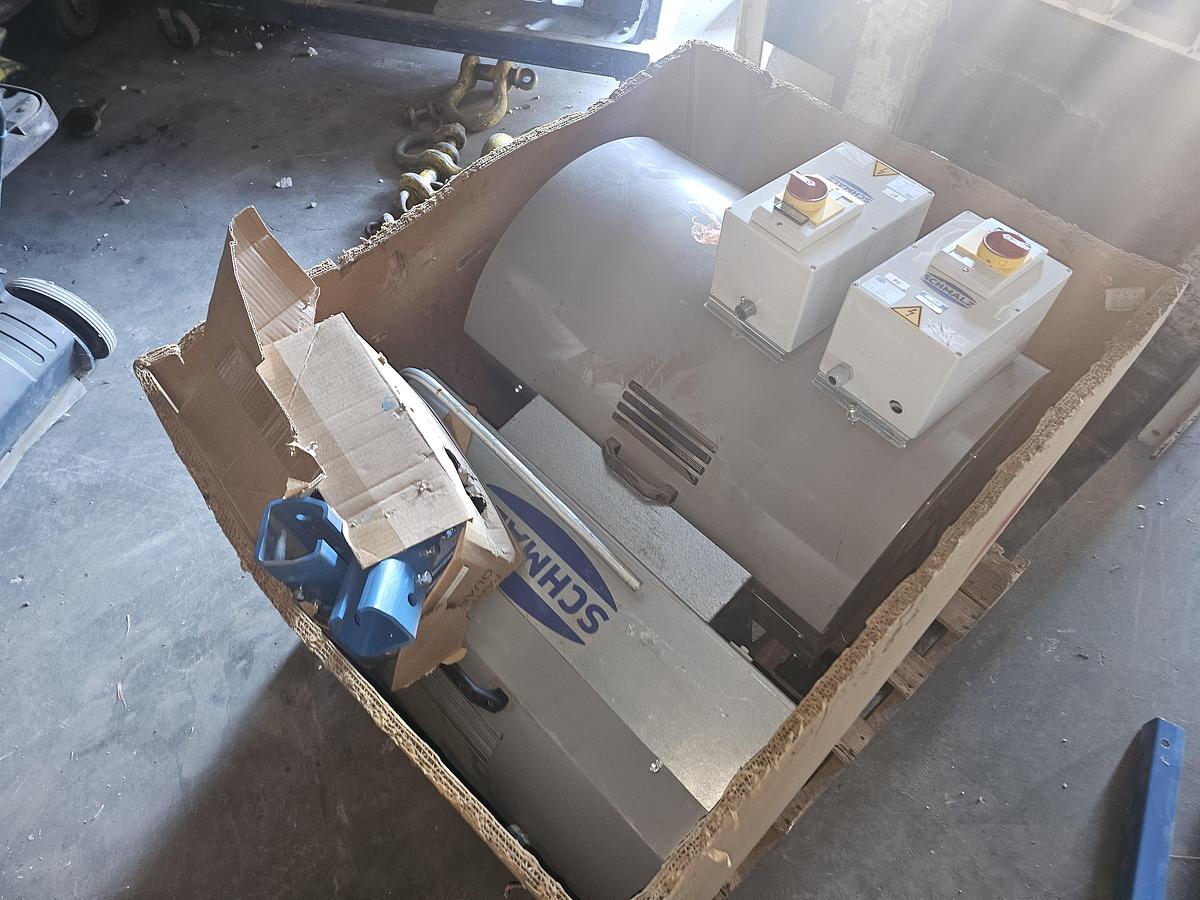

Vacuum Pump Spec:

Electrical specifications

Rated Power (50 Hz): \(0.75\) kW

Rated Power (60 Hz): \(0.90\) kW

Voltage (50 Hz): \(190-242\) V / \(342-440\) V AC3

Voltage (60 Hz): \(190-265\) V / \(342-500\) V AC3

Performance specifications

Maximum Vacuum: \(-850\) mbar

Suction Rate (50 Hz): \(25.000\) m³/h

Suction Rate (60 Hz): \(30.000\) m³/h

Physical and operational specifications

Weight: \(27.000\) kg

Sound Pressure Level (50 Hz): \(62.0\) dB(A)

Series: EVE-TR (dry-running rotary vane pump)

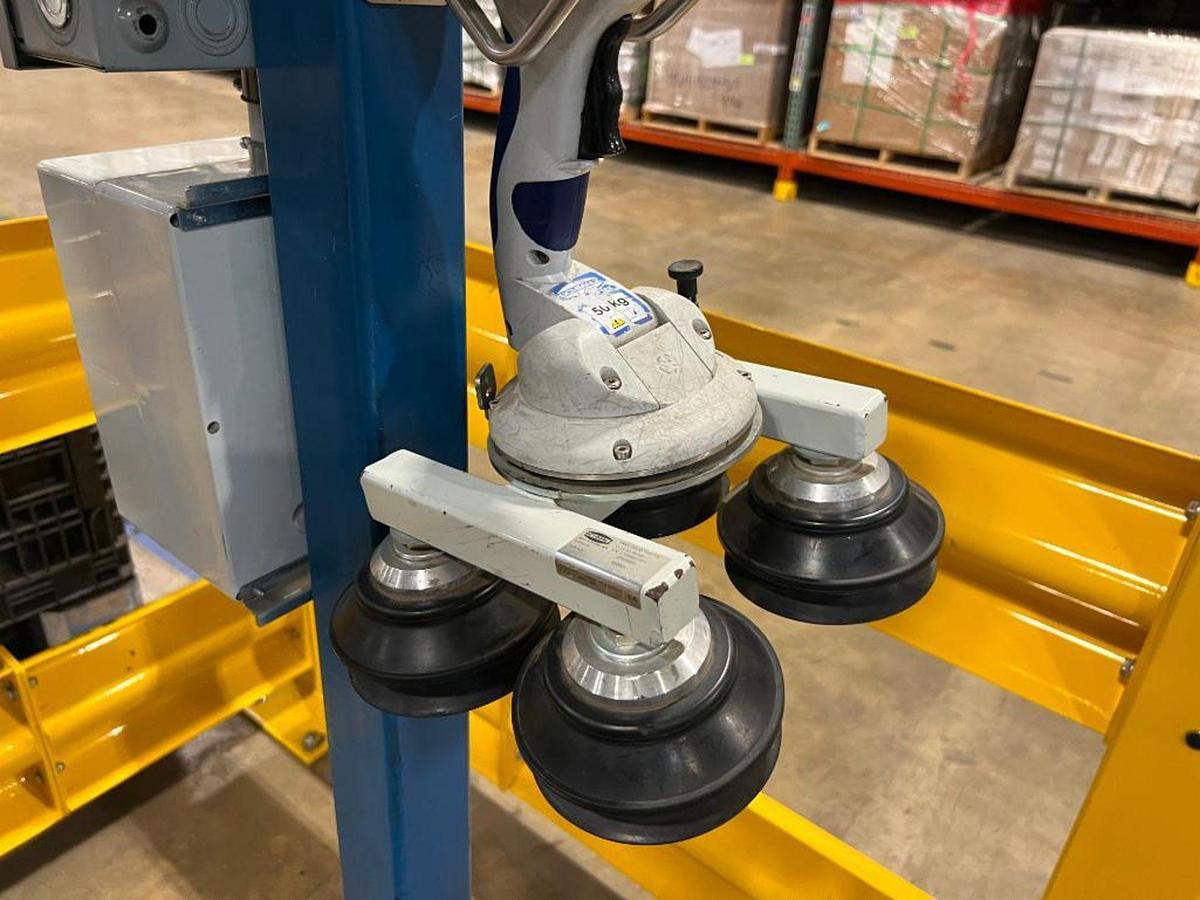

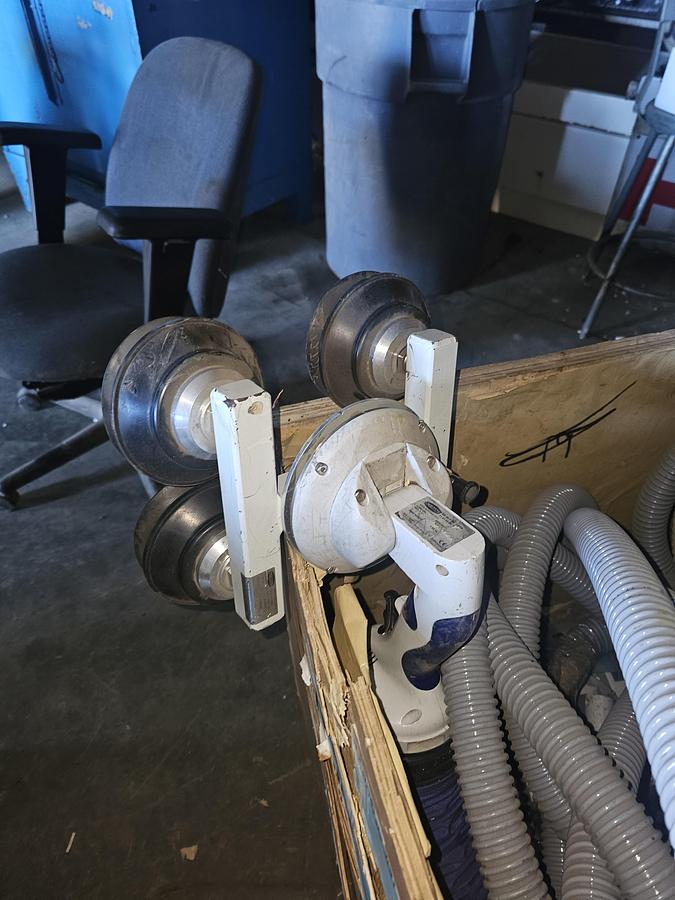

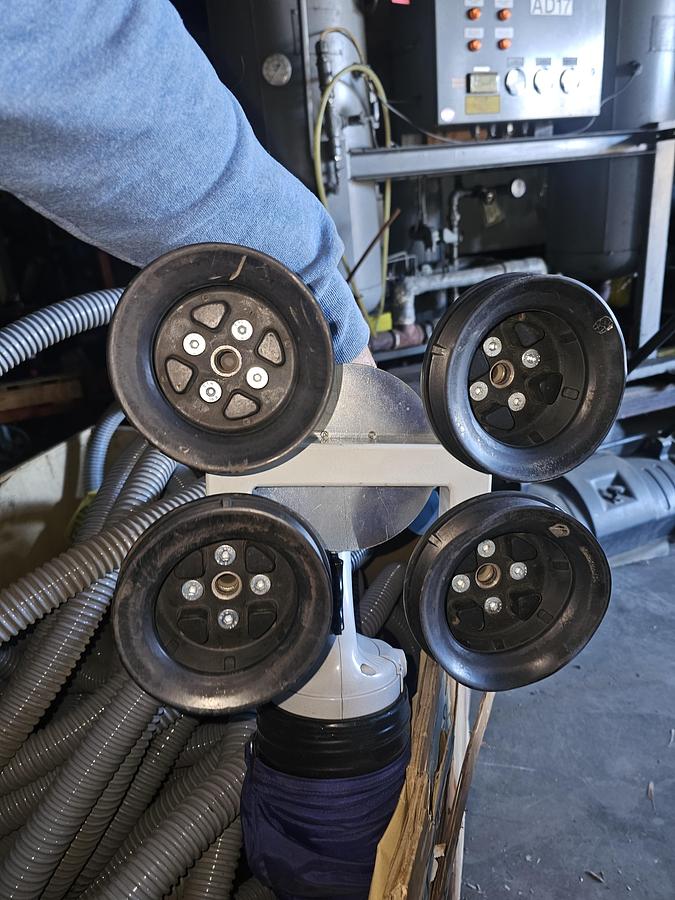

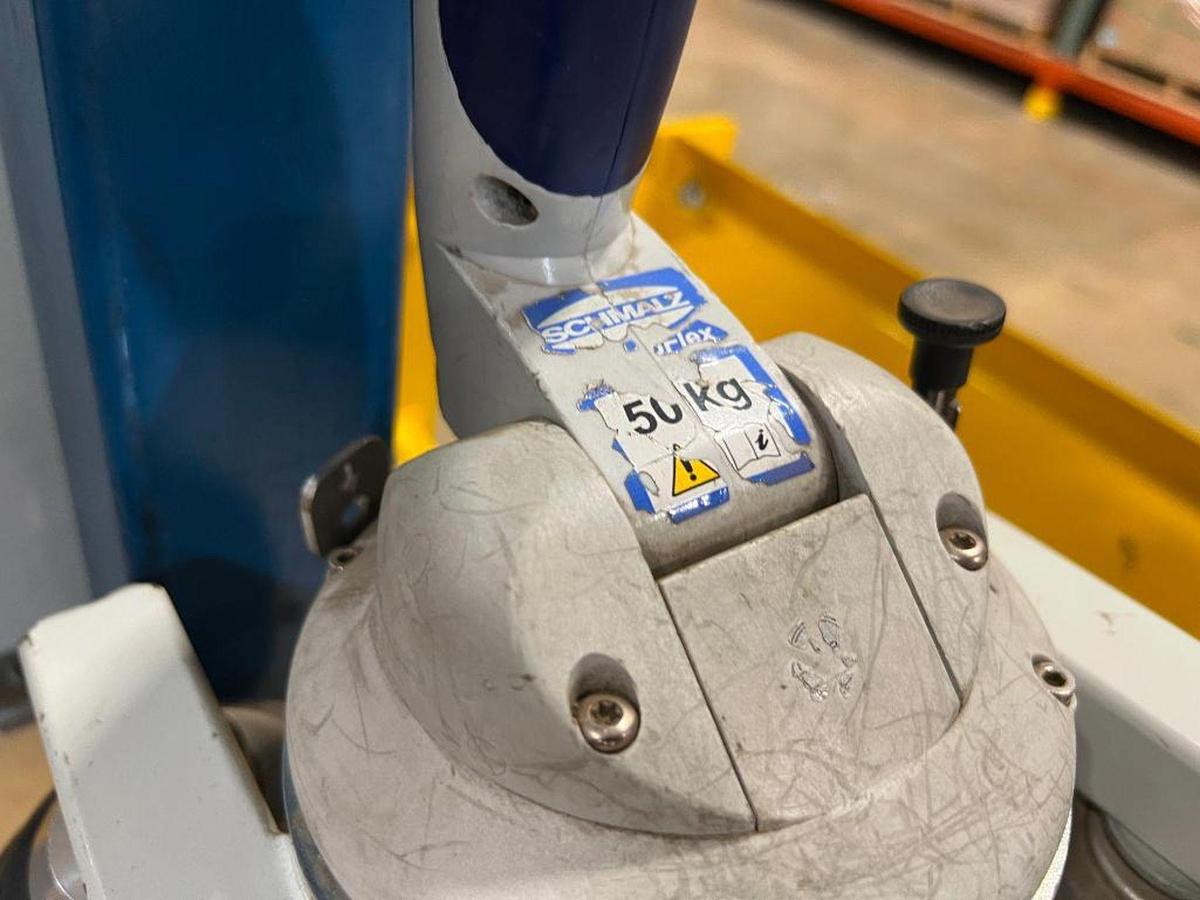

Vacuum End Effector Spec:

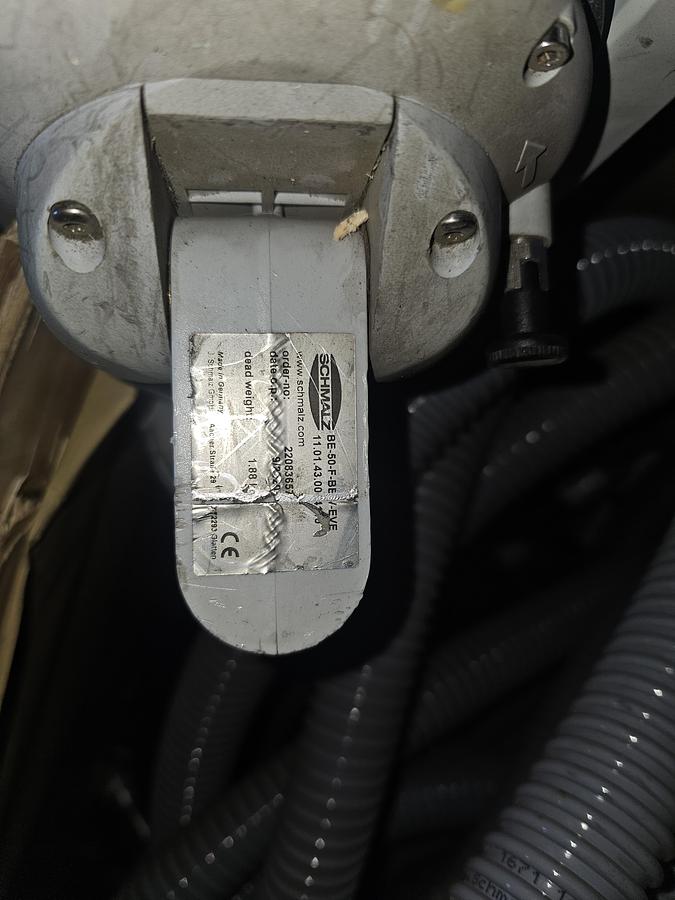

Model #: BE-50-F-BEV-EVE

Dead Weight: 1.88 Kg

Each Bridge and End of Crane Has Its Own Vacuum Lift System
