30 Hp Curtis R/S 30 B Rotary Screw Air Compressor A/E-B160 & 120 Gallon Tank 135 CFM @ 125 PSI

Curtis Tank Mounted Rotary Screw Air Compressor Package

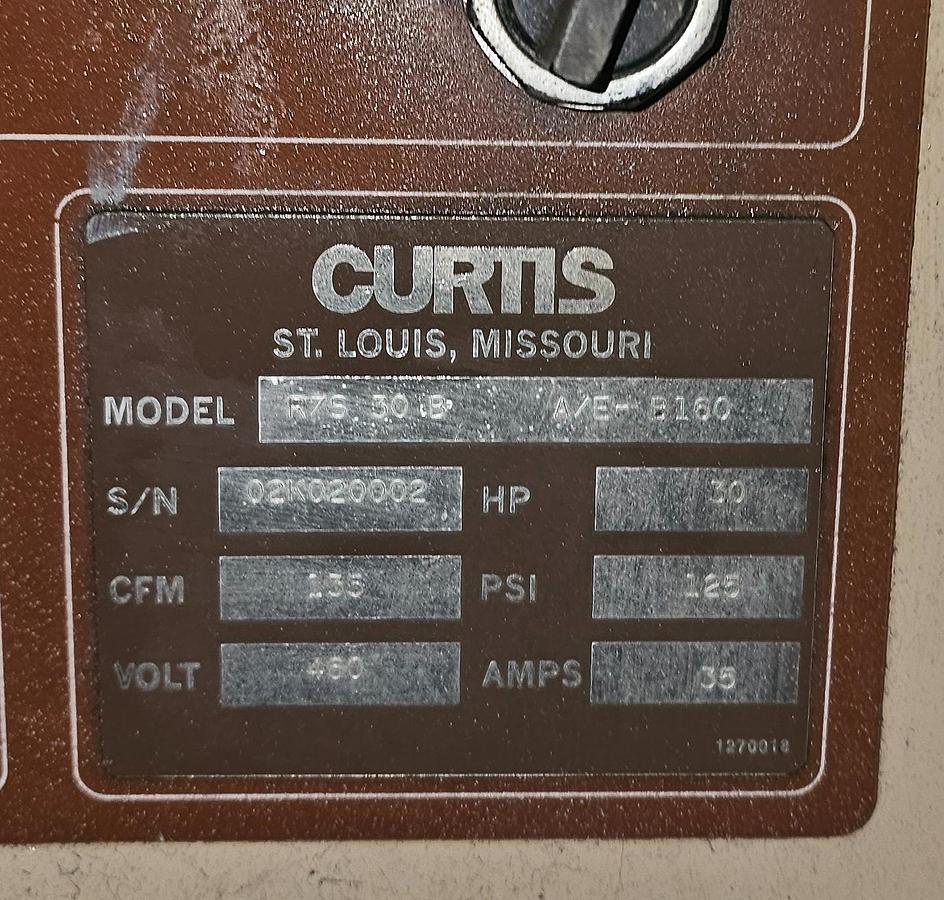

Model #: R/S 30-B A/E-B160

S/N: 02K020002

Horsepower: 30

CFM Flow Rating: 135 CFM

Pressure Rating: 125 PSIG

Hours: 17,350

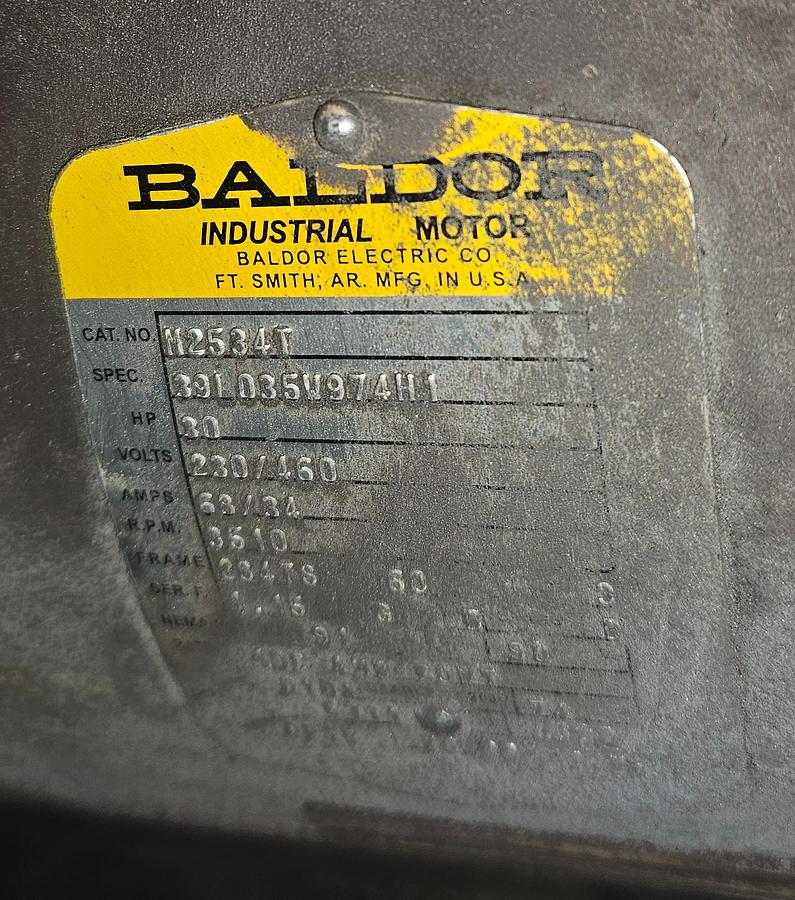

Voltage: 230/460V, 3 ph @ 60 Hz

Mounted on 120 Gallon Horizontal Receiver Tank

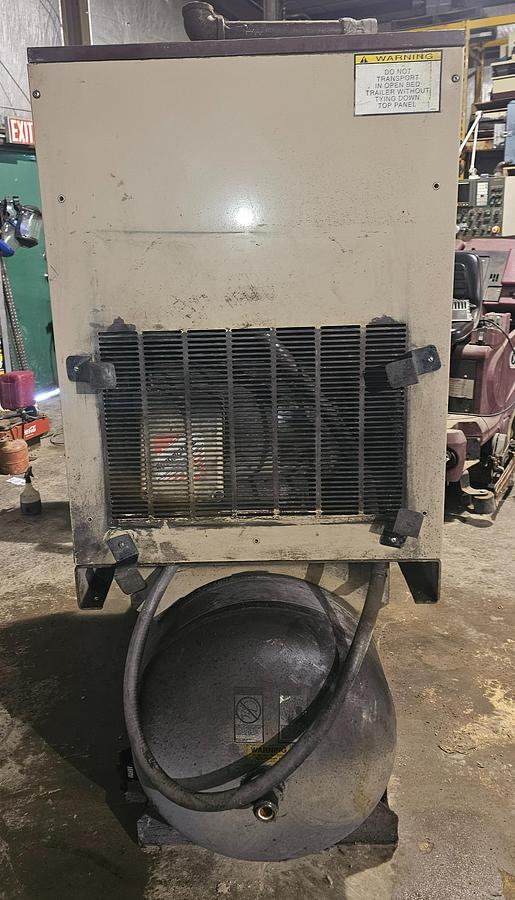

2002 Curtis RS-30B Tank-Mounted & Enclosed Rotary Screw Compressor

30 HP | 120 Gallon Tank | Premium "Quiet" Enclosure Package

For sale is a high-performance, low-hour Curtis RS-30T (Serial: 02K020002). This unit is the ultimate "all-in-one" solution for a medium-to-large industrial shop. By combining a high-output 30 HP rotary screw compressor with a factory-integrated 120-gallon horizontal receiver tank and a sound-dampening enclosure, this machine delivers consistent industrial power without the excessive noise or footprint of separate components.

Core Specifications

• Model: RS-30B (Tank-Mounted / Enclosed)
• Manufacture Year: 2002
• Horsepower: 30 HP
• Capacity (CFM): 135 CFM @ 100 PSI | 125 CFM @ 125 PSI

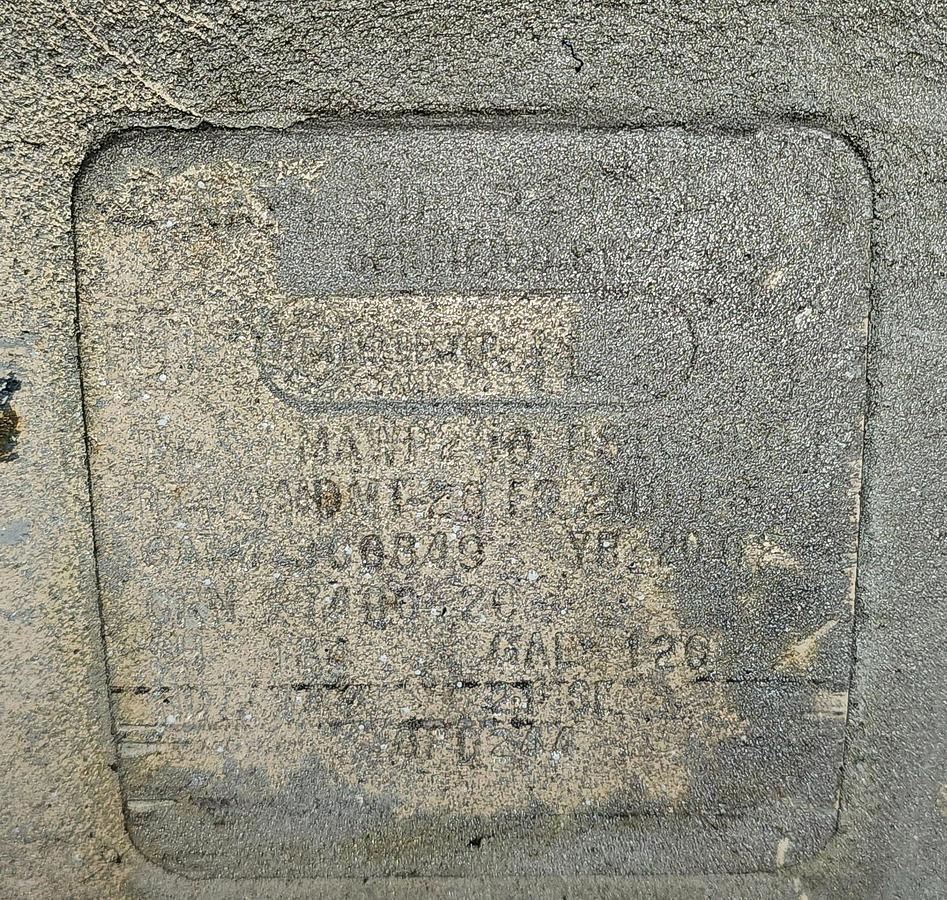

• Air Receiver: 120 Gallon Horizontal ASME Tank
• Enclosure: Factory Sound-Attenuated Steel Cabinet
• Dimensions: 77" L x 41" W x 69" H
• Weight: Approx. 1,420 lbs

Key Features & Performance Benefits

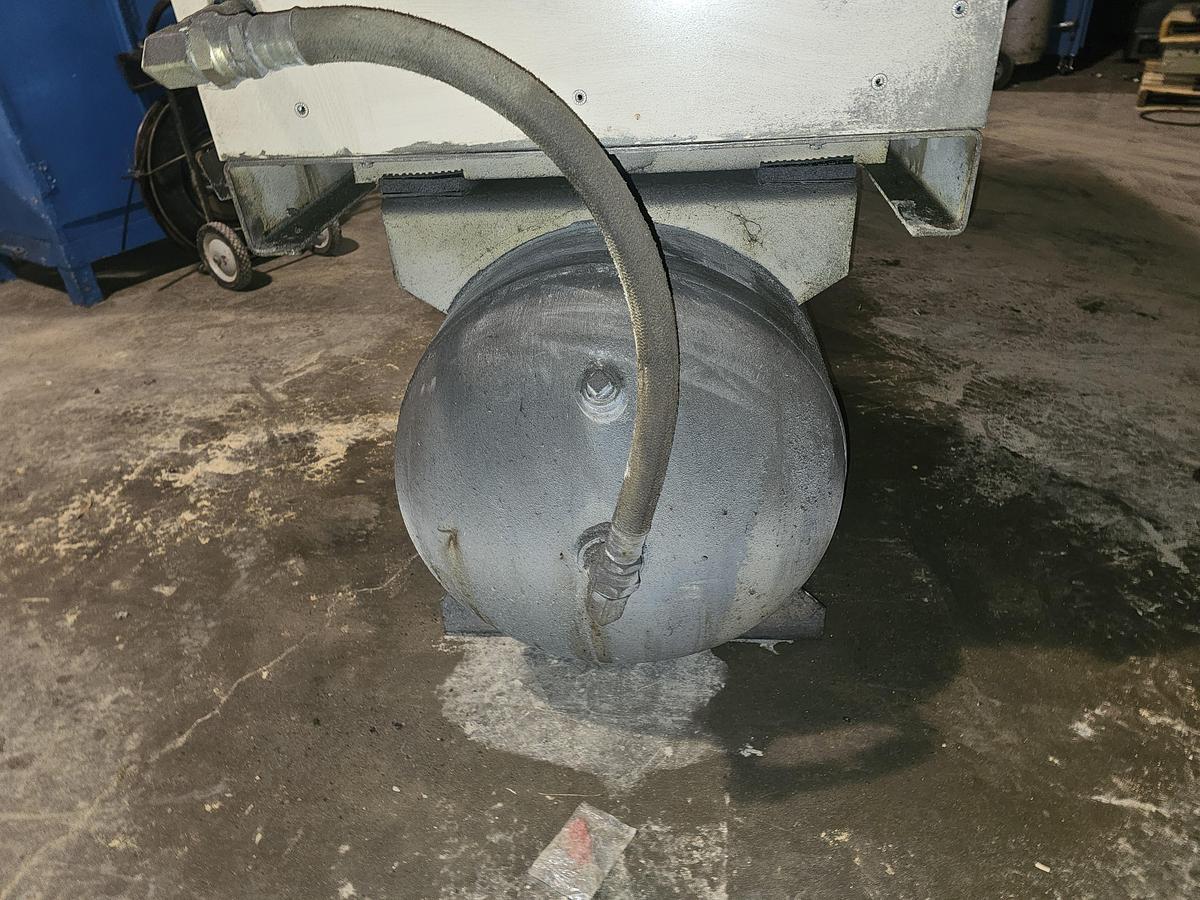

1. Integrated 120 Gallon Storage The factory-mounted tank provides a significant air buffer, reducing the "stop-start" cycling of the motor. This leads to lower energy costs and less wear on the internal components compared to base-mounted units.

2. Factory "Quiet" Enclosure The heavy-duty steel cabinet is lined with industrial sound-dampening insulation. This drastically reduces decibel levels, allowing you to install the unit closer to your staff or in environments where noise regulations are a priority.

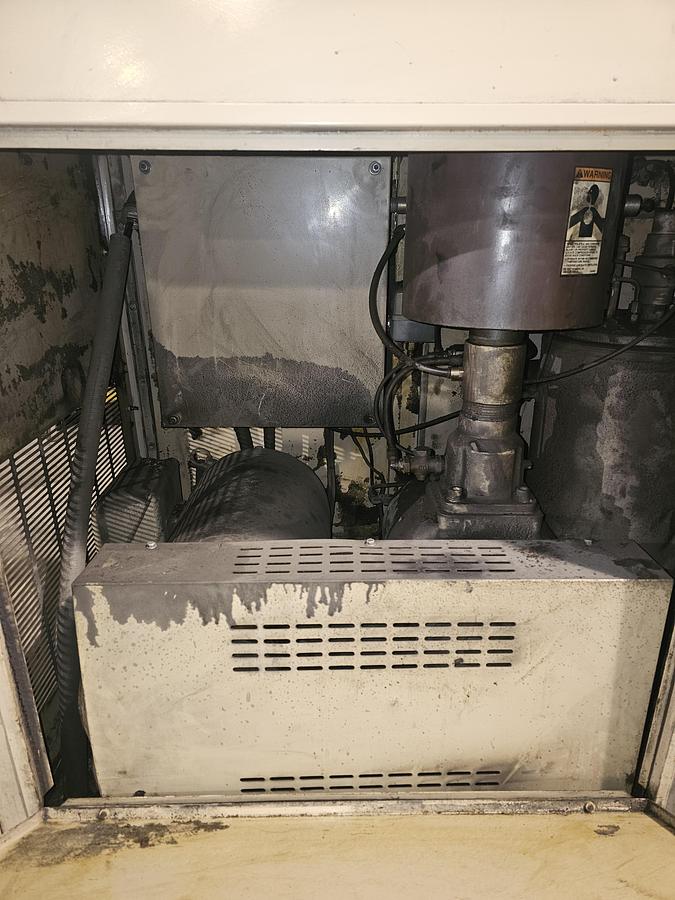

3. Low-Speed, High-Efficiency Airend Curtis is known for using oversized, slow-turning airends. By turning at a lower RPM than competitors, this machine runs cooler, uses less power, and offers a much longer service life—ideal for a "low hour" 2002 unit that still has decades of work left in it.

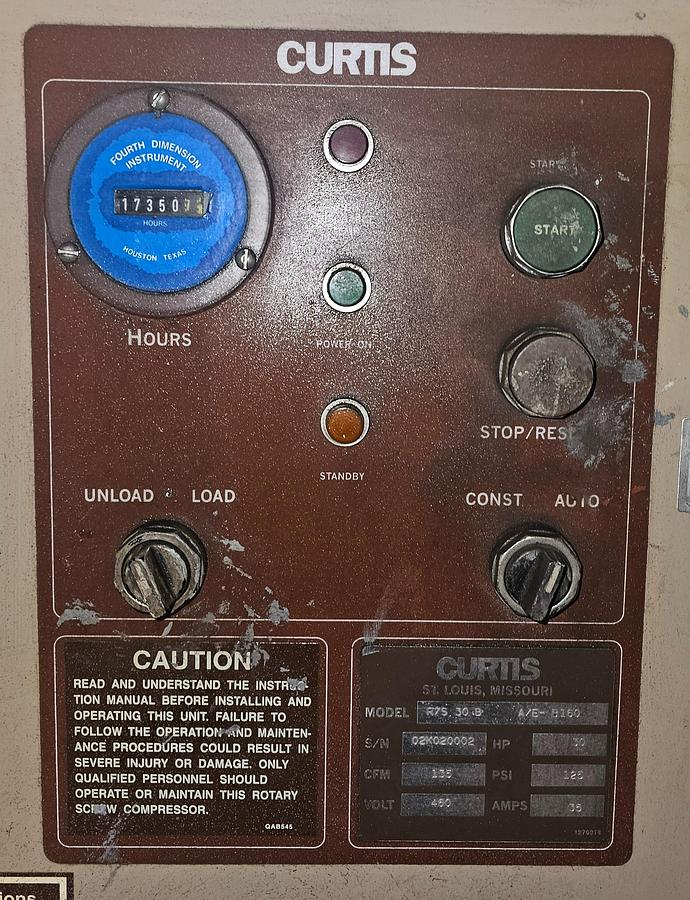

4. Simple, Reliable Analog Control Includes the standard Curtis control panel featuring an integrated hour meter, discharge and sump pressure gauges, and high-temperature safety shutdown indicators. These analog components are legendary for their long-term durability and ease of repair compared to modern touchscreen computers.
