Ficep 1001 DDB CNC Drill & Saw Line with Material Handling Conveyor System

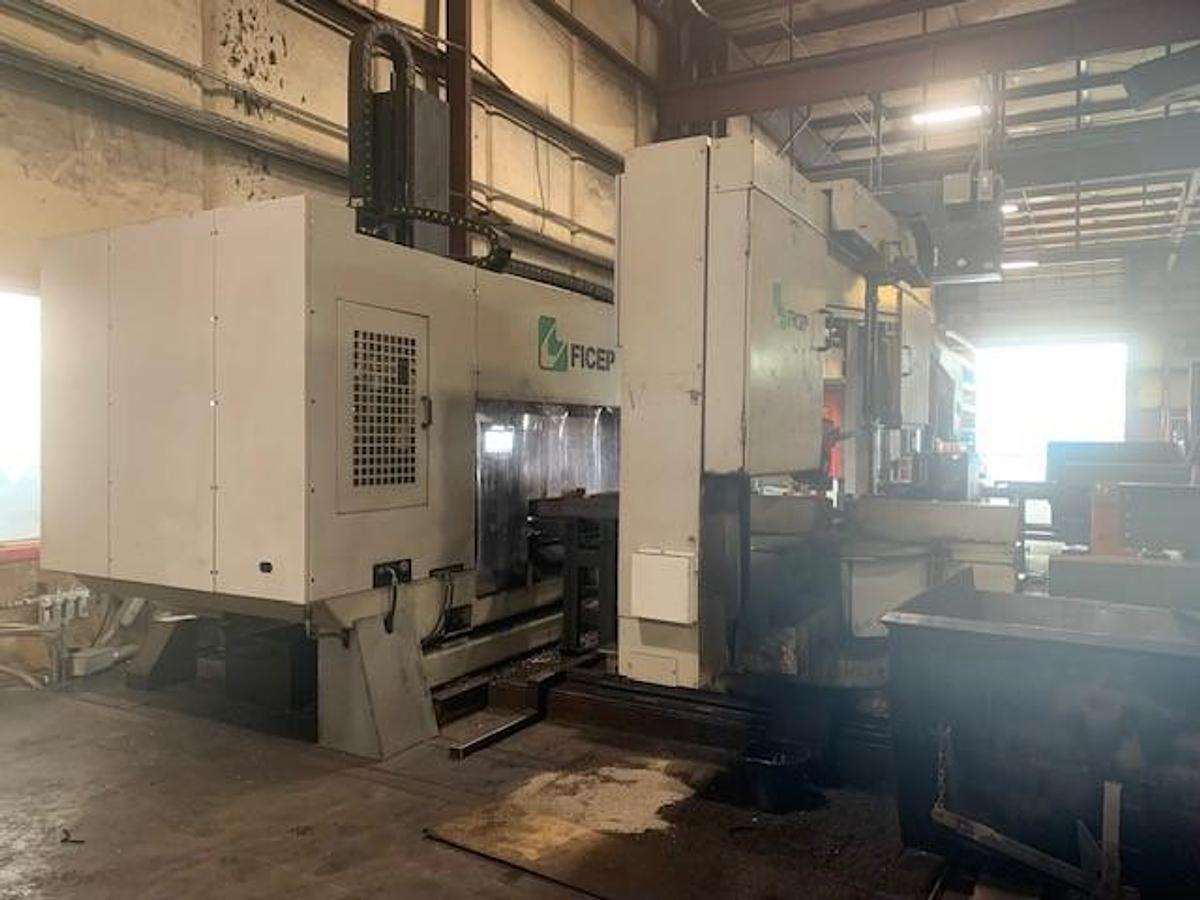

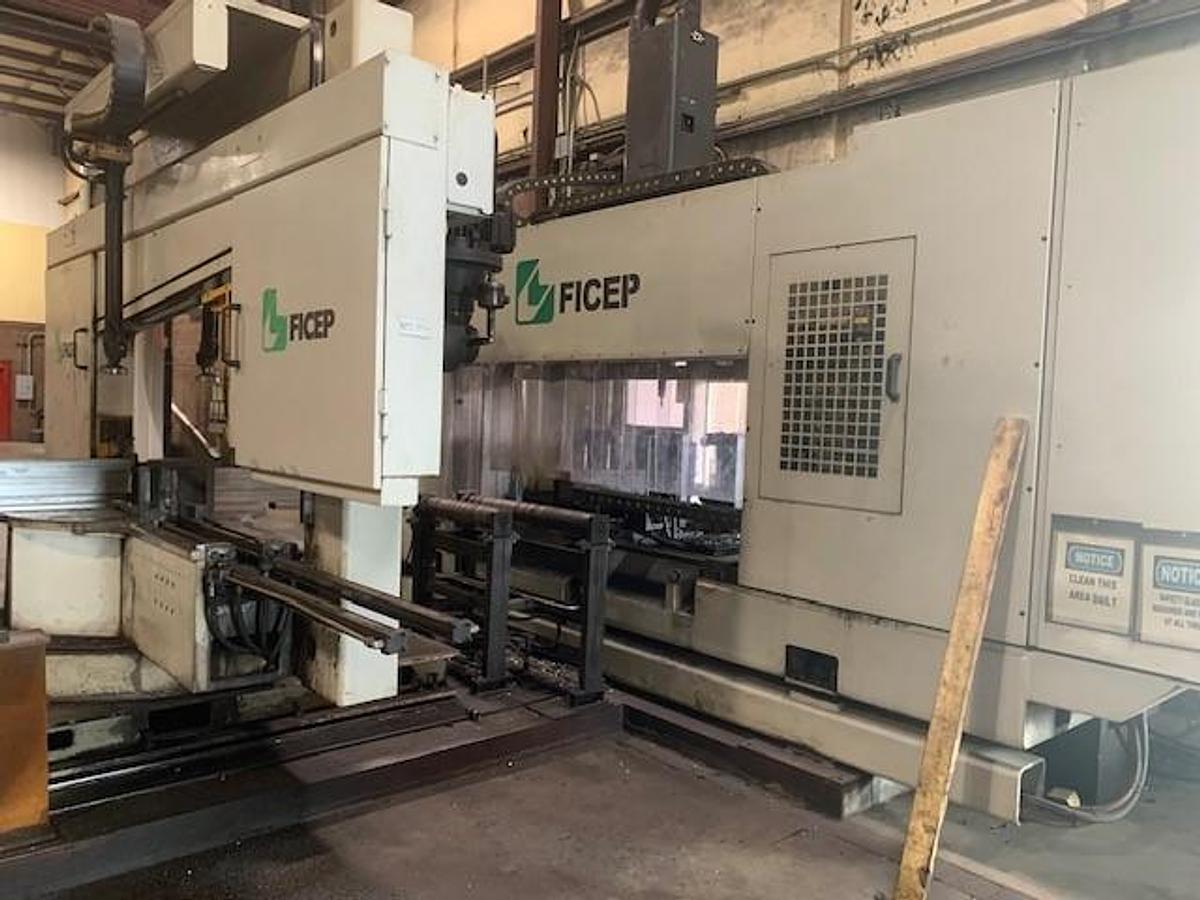

FICEP 1001 DDB DRILL:

No. Of Spindles, Rotating1

Beam Depth, Min - Max3-1/8" - 40"

Flange Height, Min - Max3/8" - 17-3/4"

Maximum Drill Diameter1-9/16"

Maximum Drill Thickness4"

Spindle Motor22 HP

Spindle Speed180 - 2500 RPM

FICEP K100 BAND SAW:

Max. Sawing Capacity at 90°40" x 17-3/4"

Sawing Capacity at 45°24-3/8" x 17-3/4""

Sawing Capacity at 60°13-3/4" x 13-3/4"

Blade Speed196 - 557 FPM

Motor Power12 HP

Equipped With:

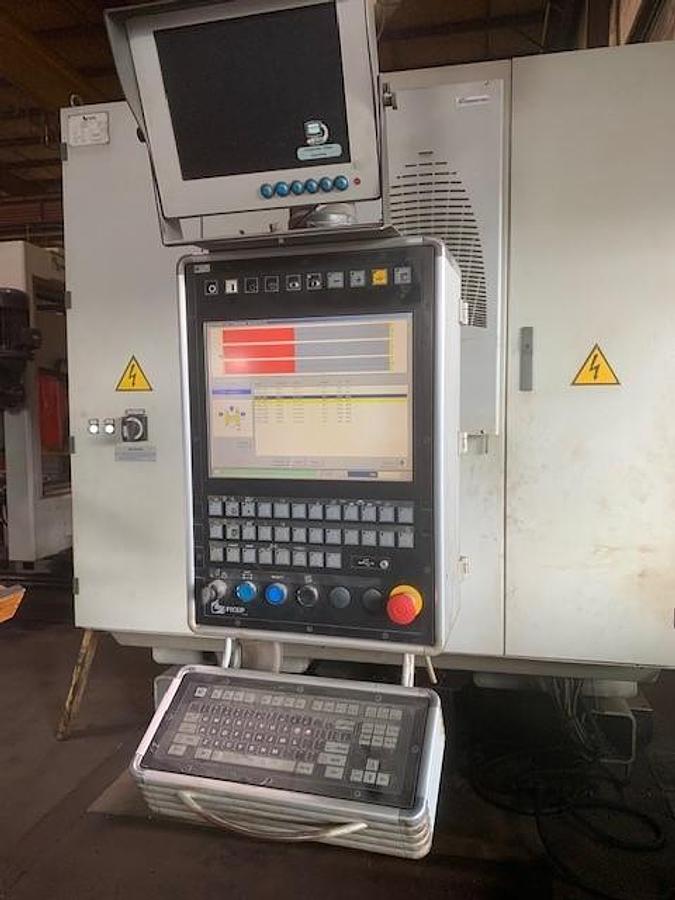

Ficep Pegaso CNC Control

(1) Monospindle 180 Degree Rotary Drilling Spindle For Drilling On 3-Sides

(6) Position Tool Changer

Scribing On 3-Sides

Carriage Feed

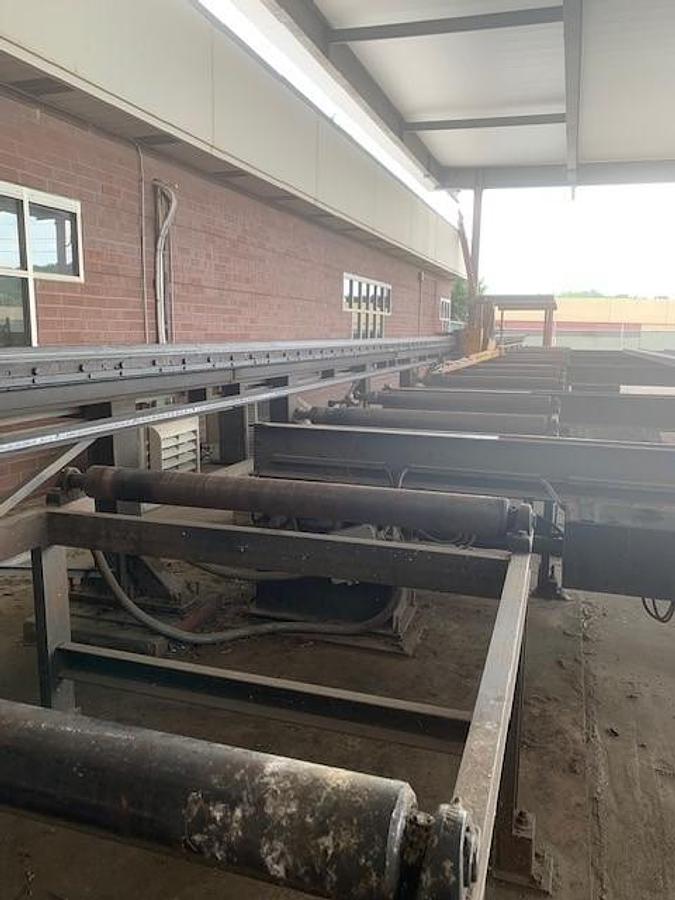

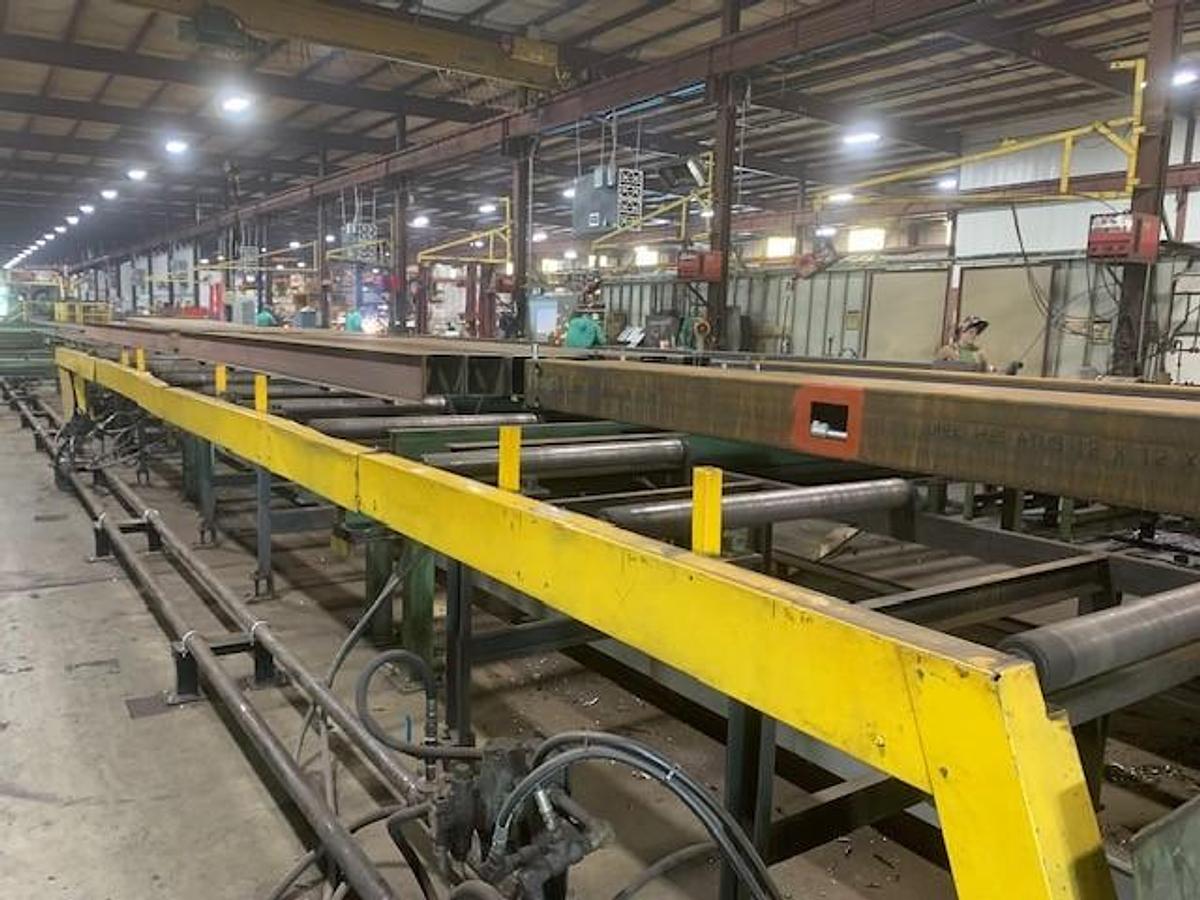

65' Powered Infeed Conveyor With Transfers

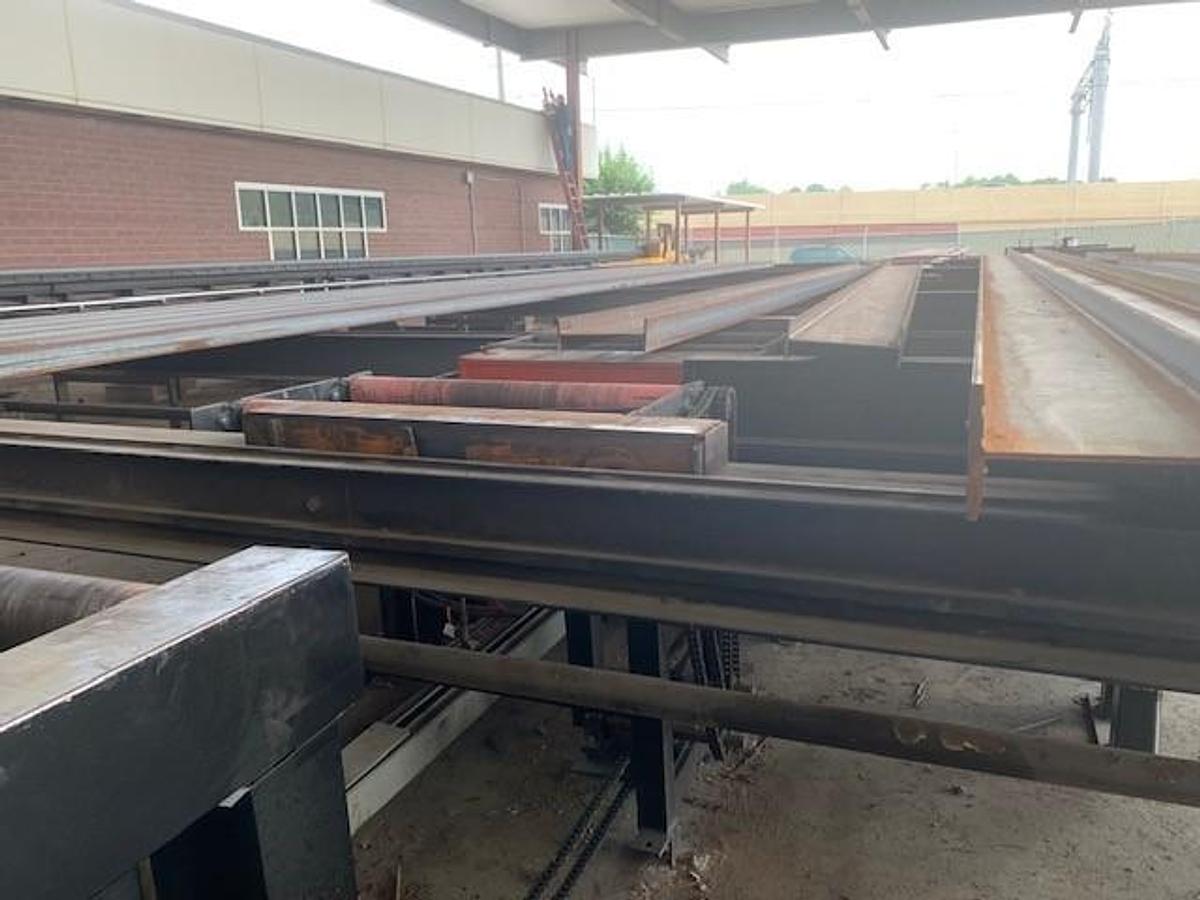

40' Outfeed Powered Conveyor

NOTE:

The line has been decommissioned & is in Storage
