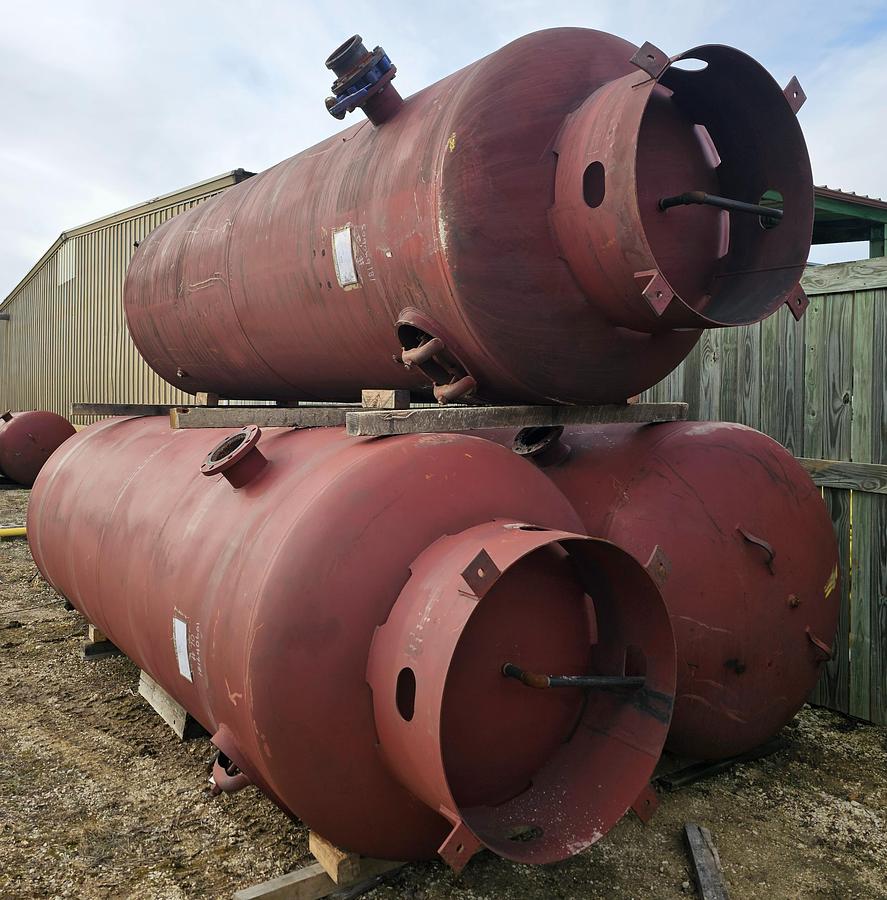

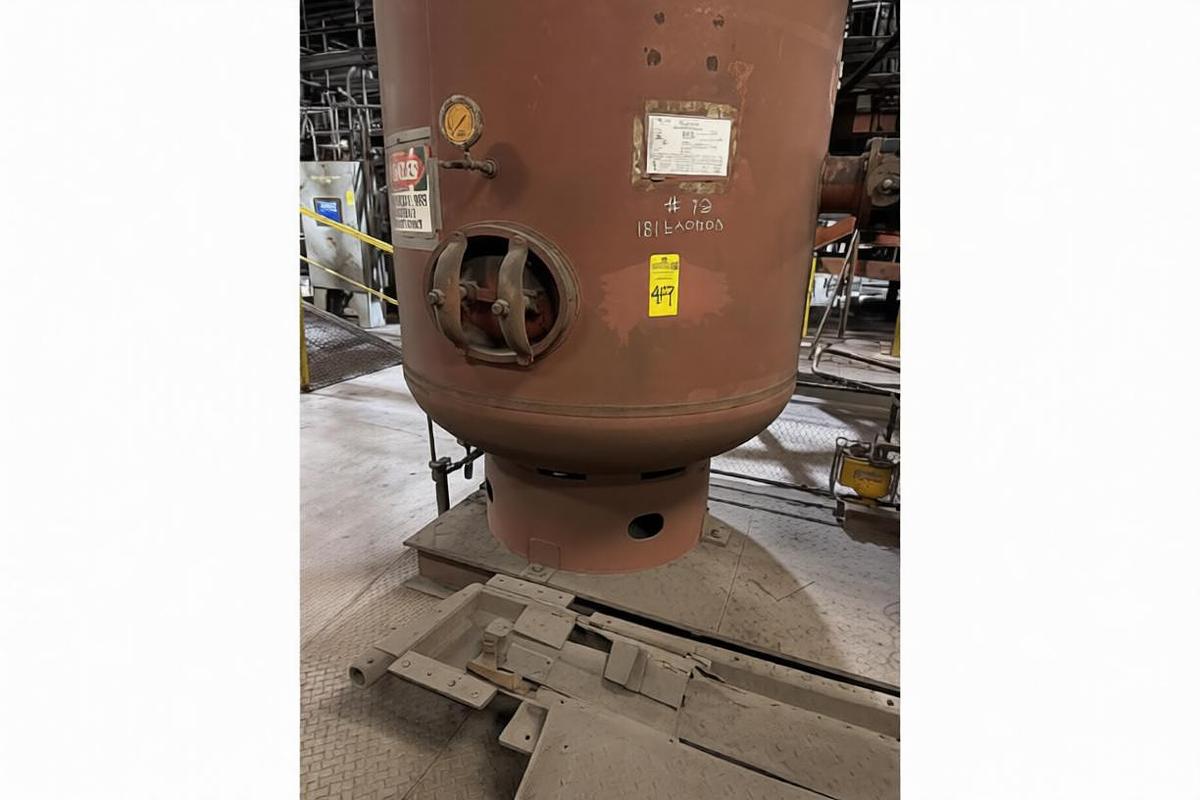

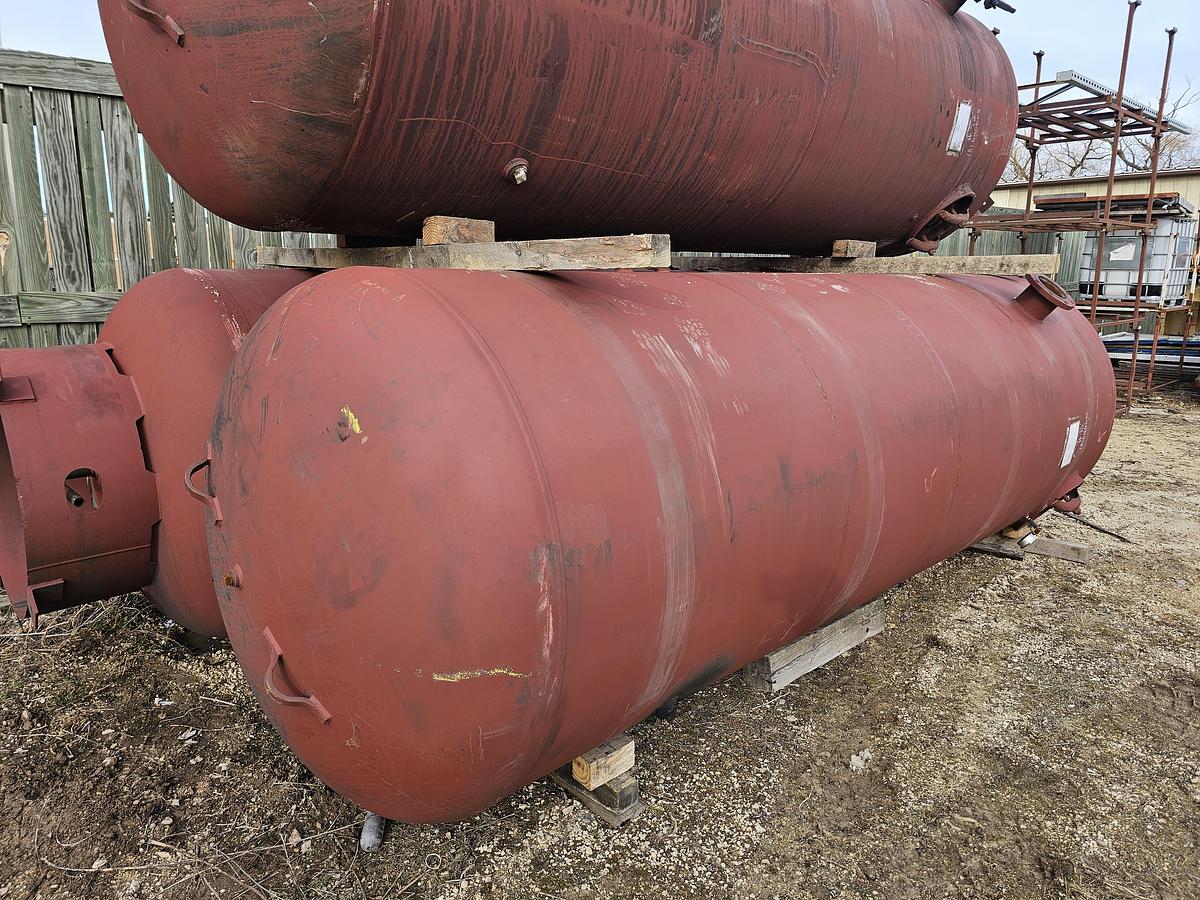

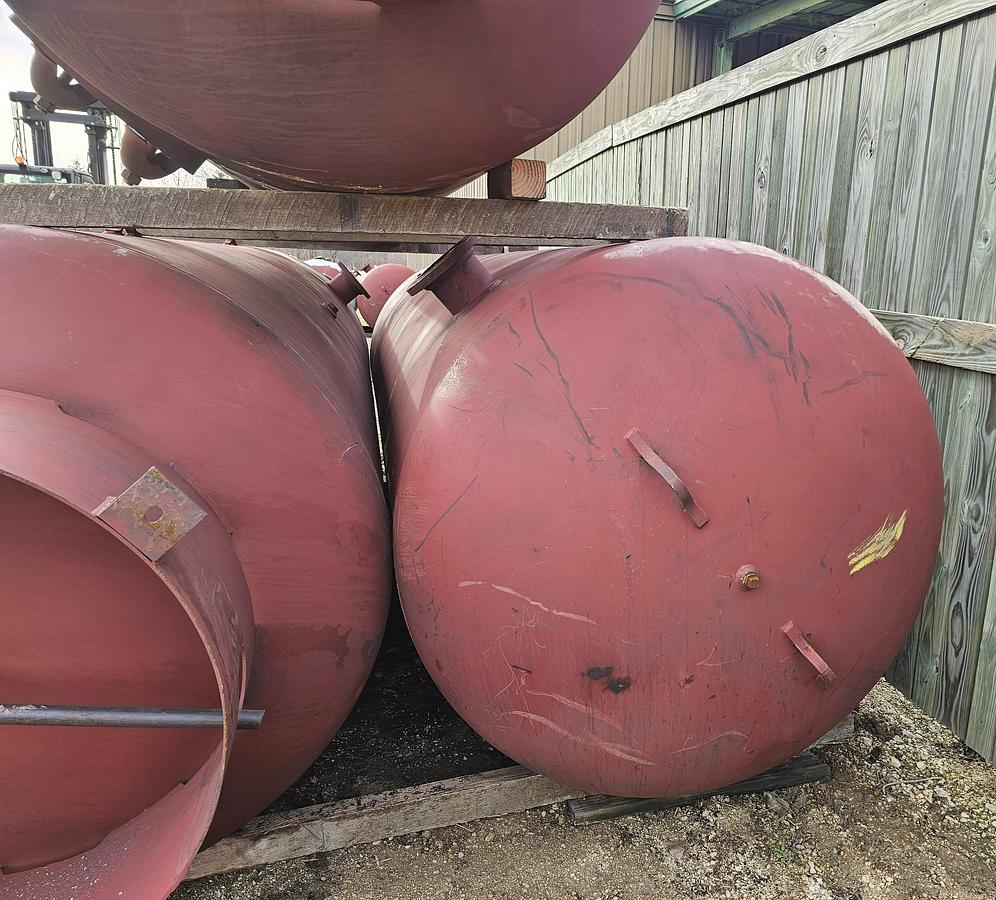

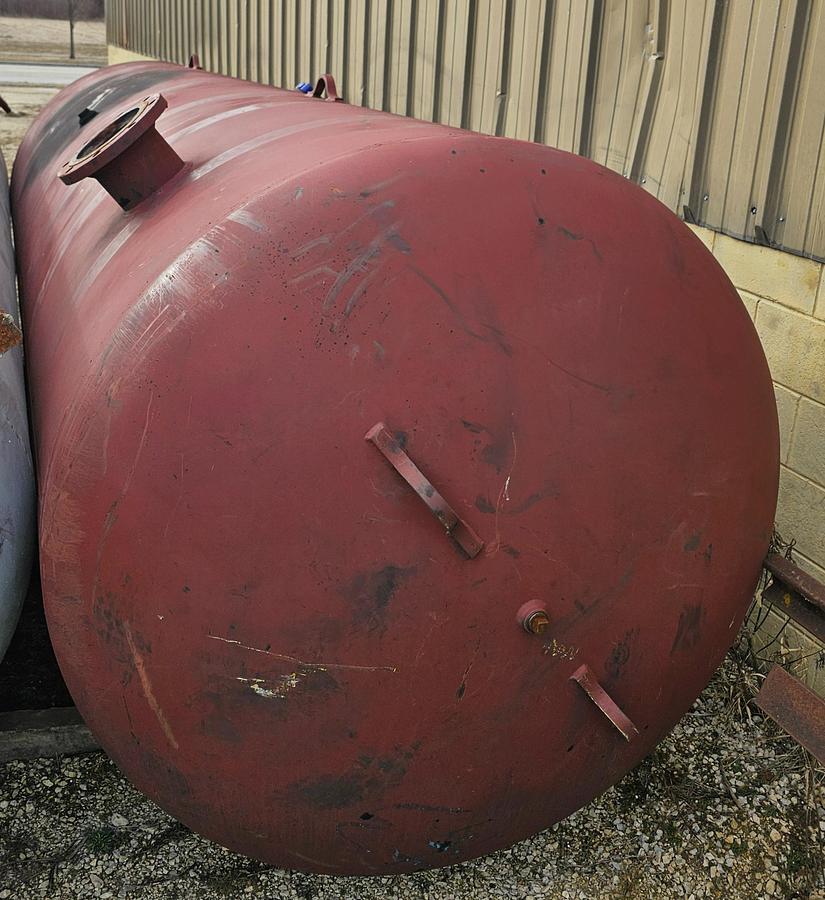

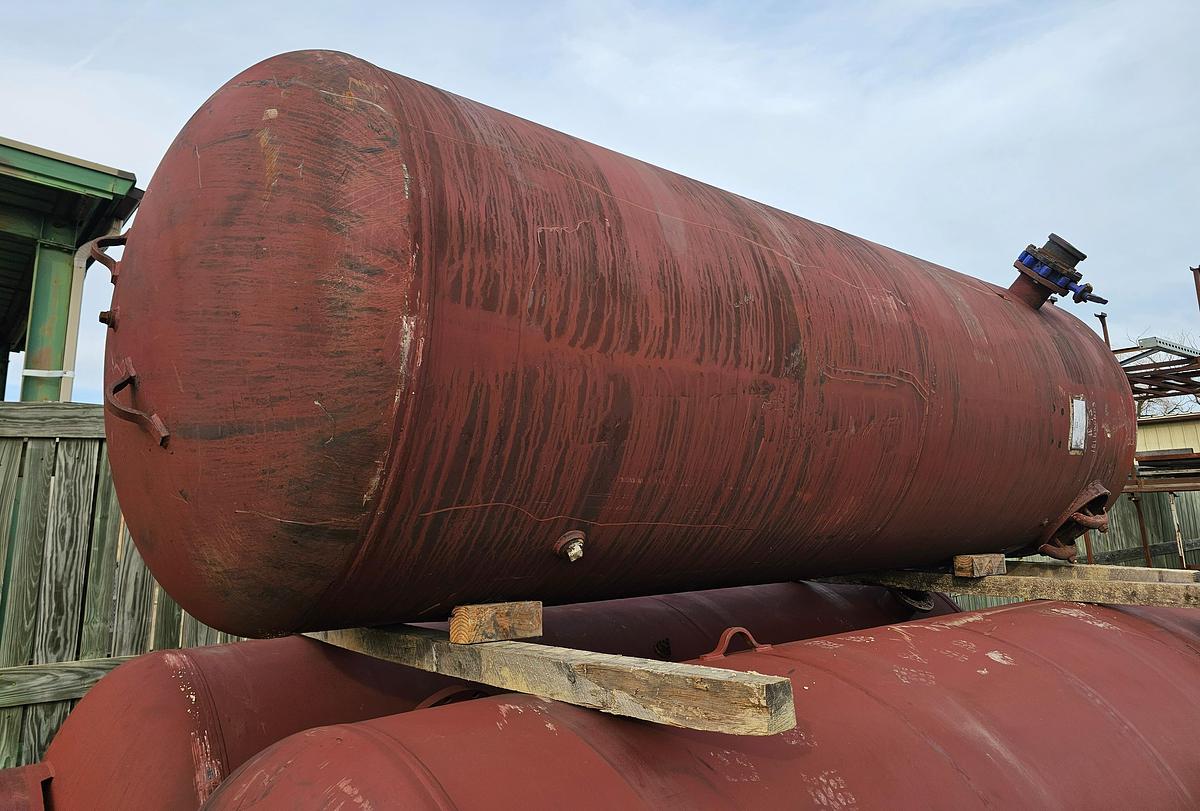

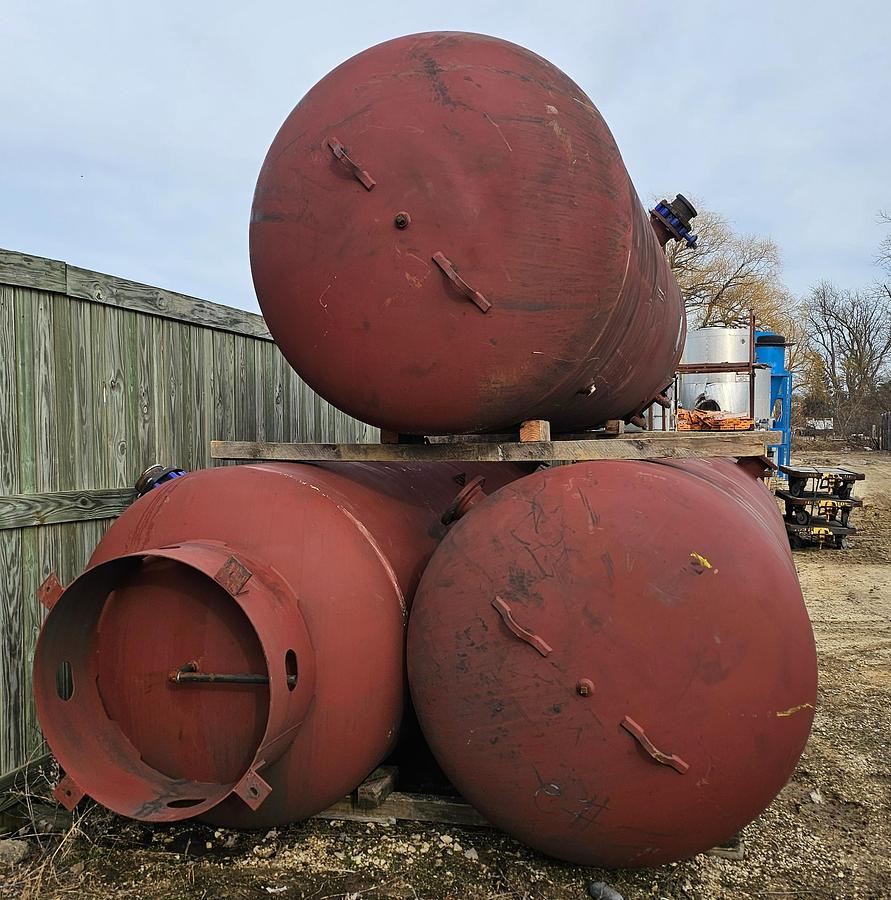

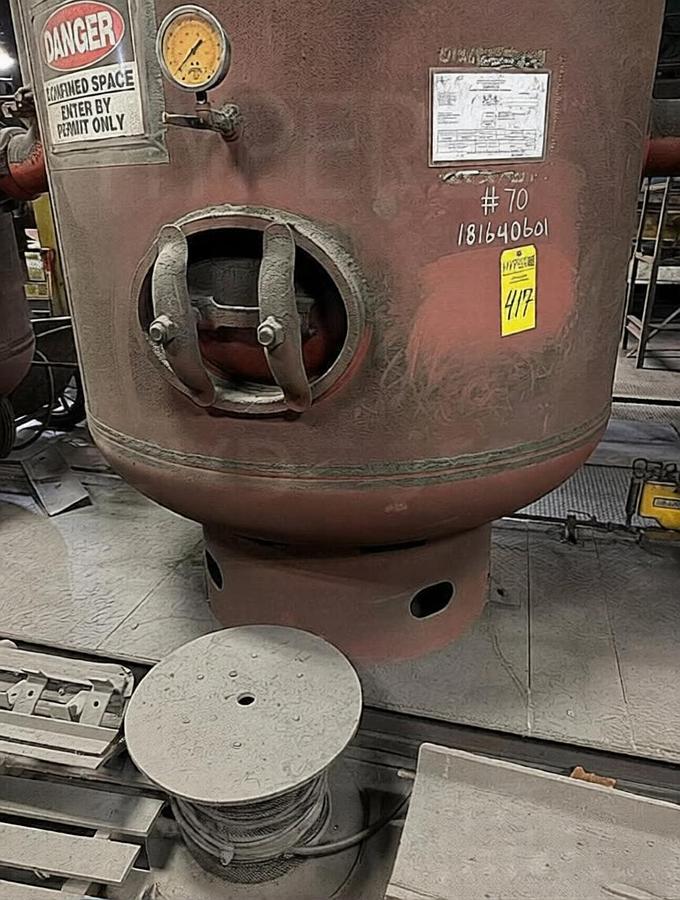

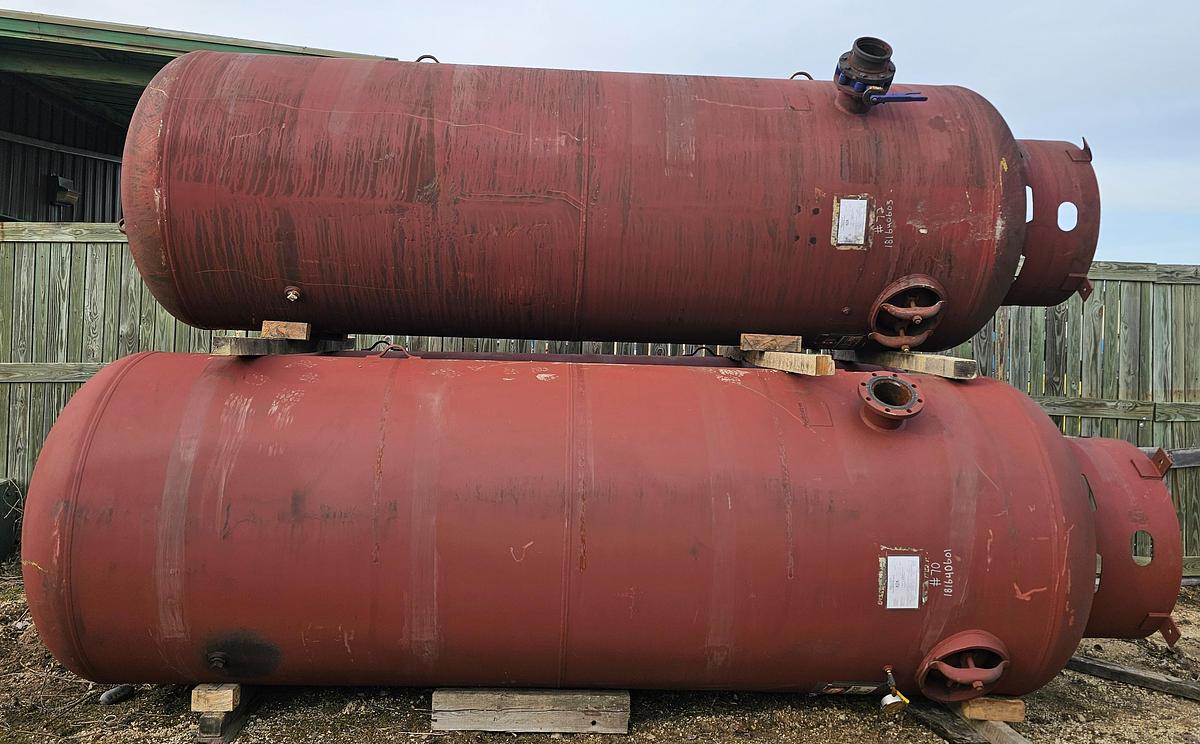

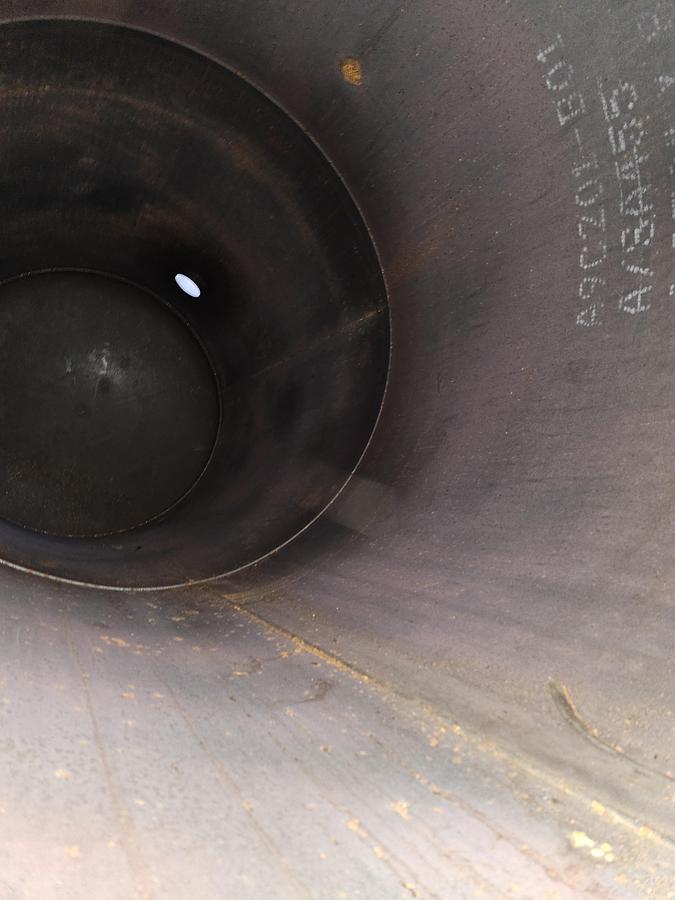

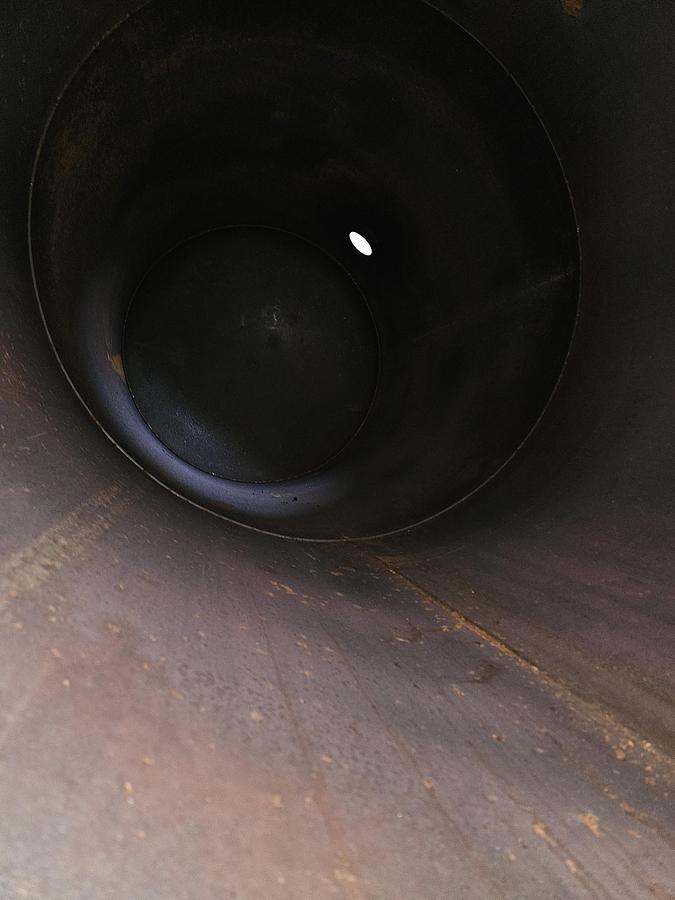

2009 Silvan 2,200 Gallon Vertical Air Receiver Tank

Model: 92-60-2200-150 | 150 PSI | ASME Section VIII Coded

Overview

The Silvan 92-60-2200-150 is a heavy-duty, large-capacity air receiver designed to handle the demands of industrial manufacturing facilities. Manufactured by Silvan Industries (a premium Samuel Pressure Vessel Group brand), this tank provides massive storage capacity to dampen pressure surges and reduce compressor cycling, significantly extending the life of your air system.

This 2009 unit is a rare "Goldilocks" size—large enough for major facility expansions but standardized for 150 PSI systems, making it a drop-in solution for most industrial pneumatic grids.

Factory Specifications & Technical Data

• Year of Manufacture: 2009
• Capacity: 2,200 Gallons
• Max Allowable Working Pressure (MAWP): 150 PSI
• Orientation: Vertical
• Diameter: 60"
• Overall Height: Approx. 190" (approx. 15' 10")
• Shell Material: Carbon Steel (ASME Coded

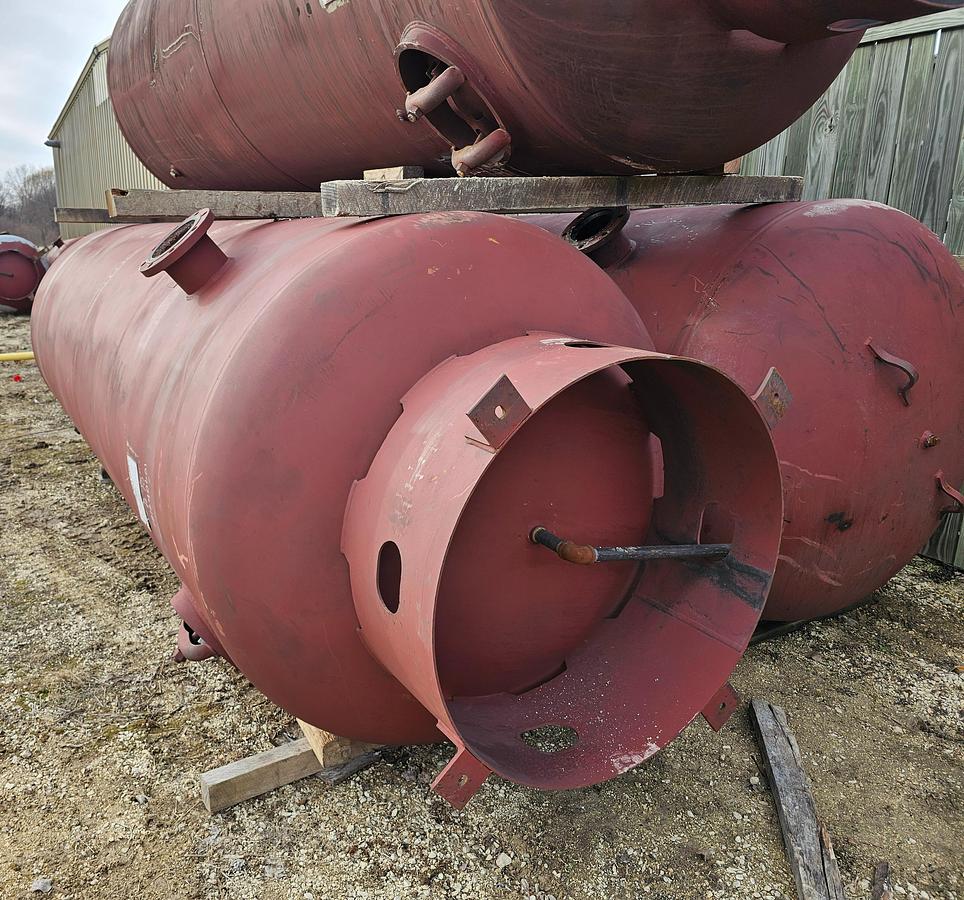

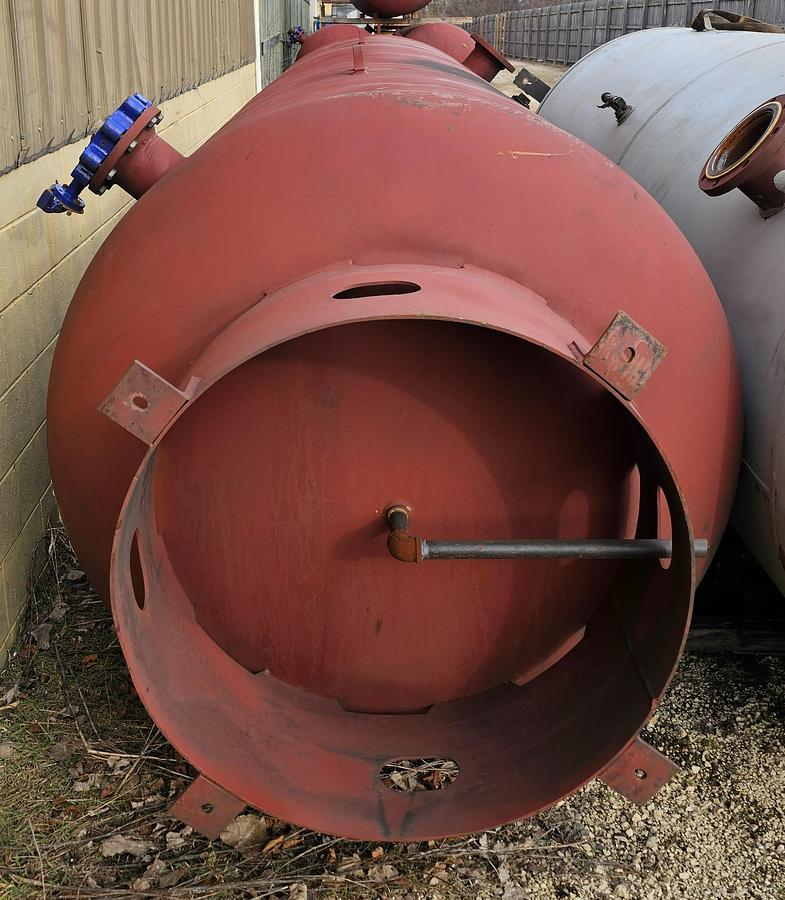

• Mounting: 12" Industrial Base Ring for Secure Floor Mounting

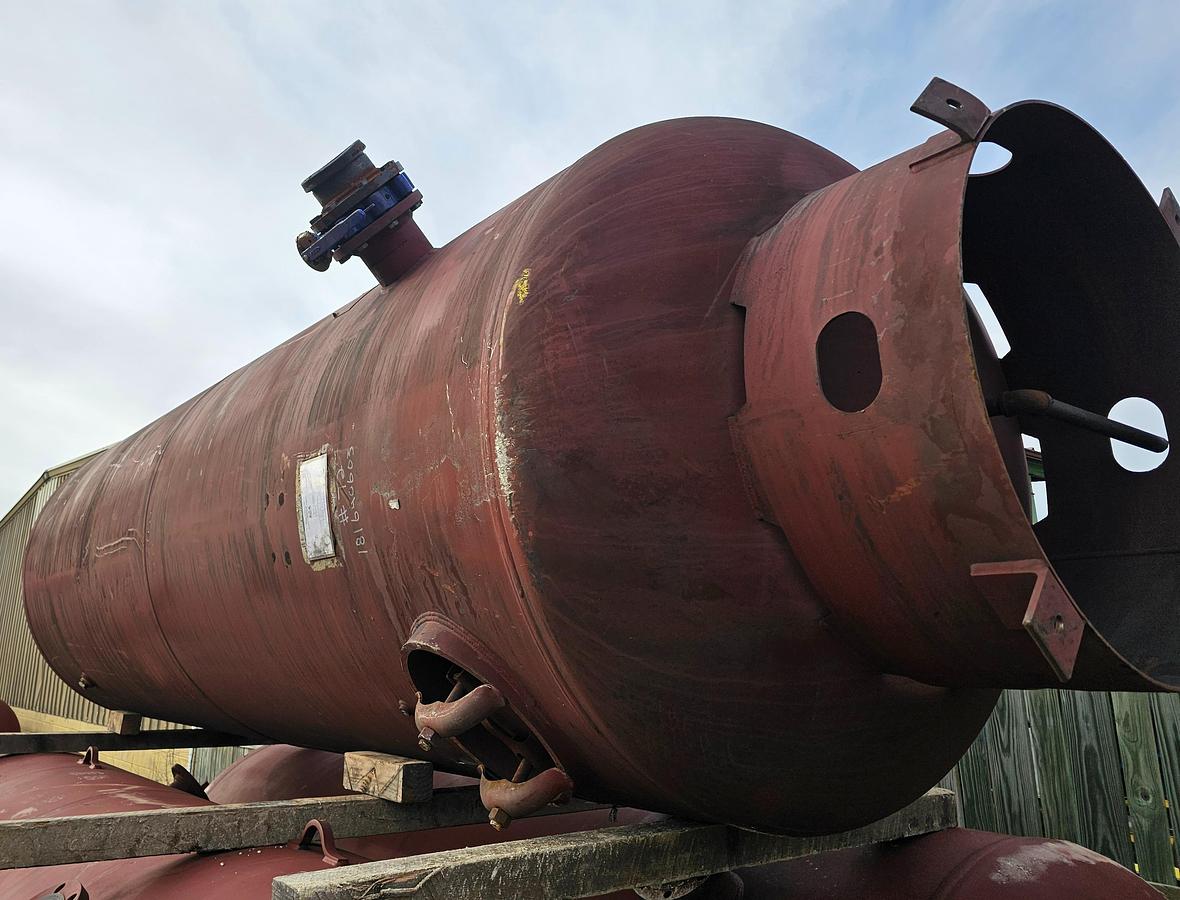

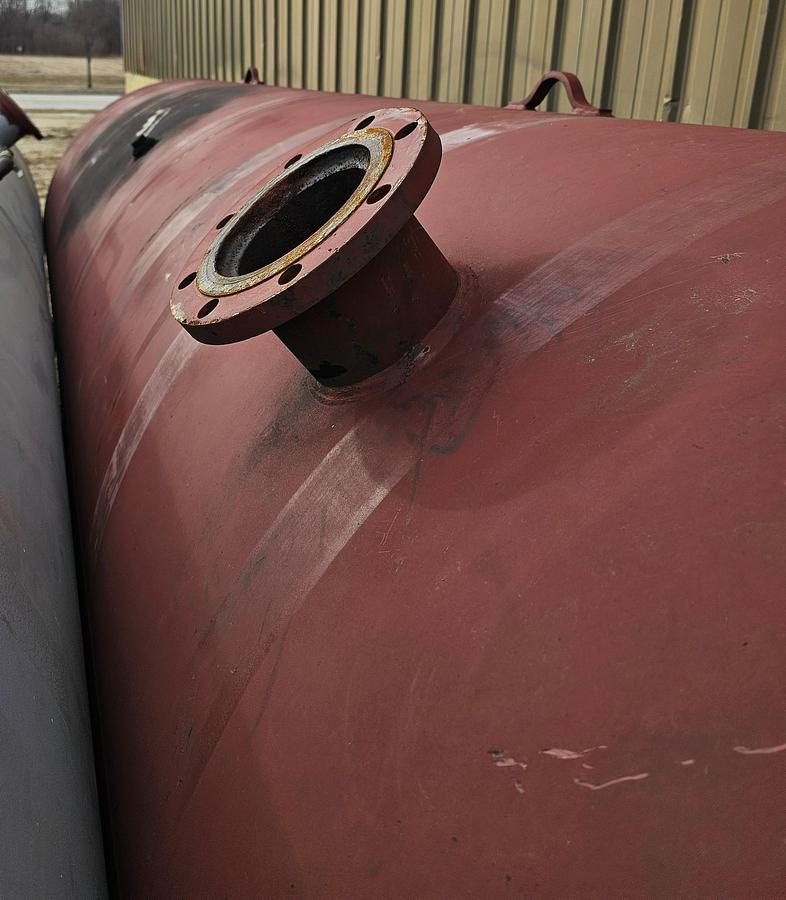

• Main Inlet/Outlet Ports: 6" Flanged (Typical for this model)
• Weight: Approx. 3,420 lbs (Dry)

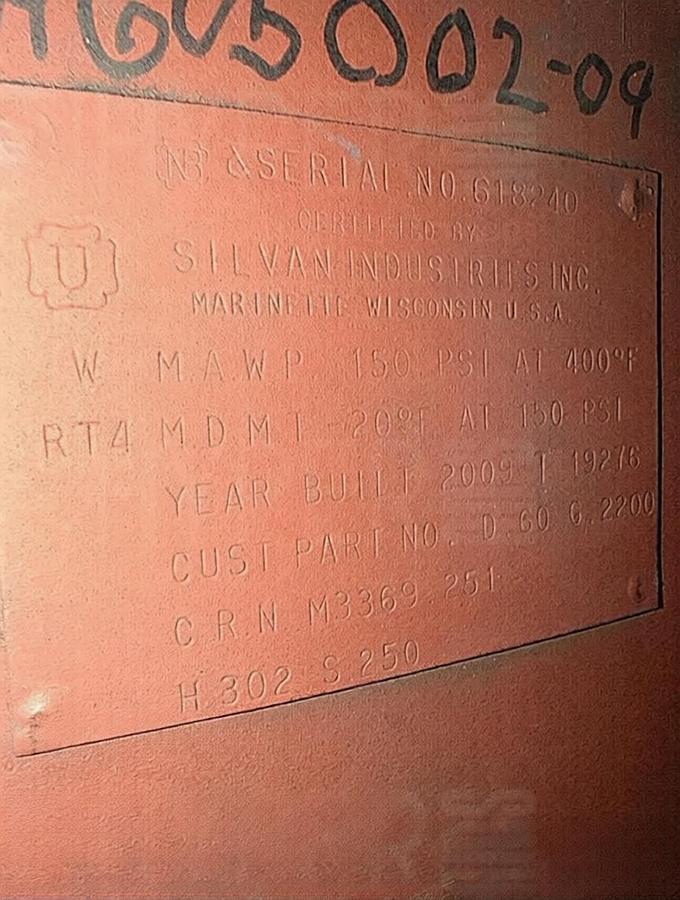

• National Board Registered: Yes

Key Features & Dealer Benefits

• Stabilize System Pressure: The 2,200-gallon volume acts as a massive buffer, eliminating the "pressure drop" during high-demand tool usage (like sandblasting or large pneumatic cylinders).
• ASME Certified Safety: Built to the rigorous ASME Section VIII Division 1 code, ensuring the highest level of structural integrity and safety for high-pressure storage.
• Energy Savings: By increasing storage volume, your compressors can remain in "unloaded" or "off" states for longer durations, directly reducing electricity costs and mechanical wear.
• Condensate Management: The vertical design allows for superior moisture separation; water naturally settles at the bottom of the 190" column for easy removal via the bottom drain port.
• Wisconsin-Built Quality: Manufactured in Marinette, WI, Silvan tanks are industry-preferred for their superior welding and corrosion-resistant exterior primers.
