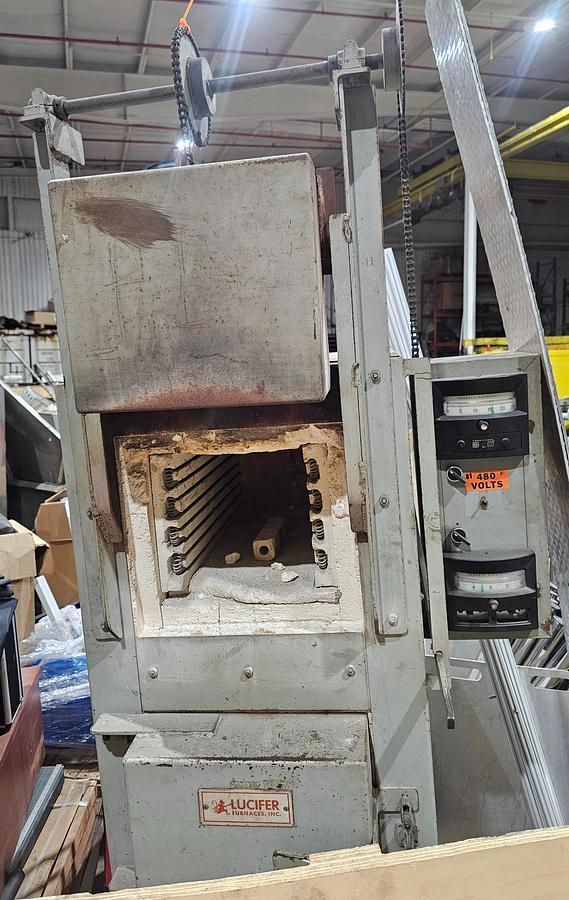

Lucifer HDL-8012-C Dual-Chamber Heat Treat Furnace | S/N 3492 | 2300°F

Classic Lucifer HDL-8012-C Dual-Chamber Furnace | S/N 3492 2300°F Hardening / 1200°F Drawing | Vertical Lift Safety Doors | 12x12x24

This Lucifer HDL-8012-C is a "Golden Era" industrial furnace, built at a time when heavy-gauge steel and premium American firebrick were the standard. Designed as a vertical space-saver, this unit allows a toolmaker to harden a part at 2300°F and immediately begin the tempering process in the lower 1200°F chamber—effectively doubling the output of a single-chamber shop.

The signature vertical lift doors are counterweighted for smooth operation, ensuring the hot face of the door remains parallel to the furnace and away from the operator. Whether you are heat-treating tool steels like D2 and A2 or performing delicate draws on carbon steel, this Lucifer system provides the thermal stability and safety that modern, lightweight imports lack.

• Dual-Zone Efficiency: Independent controllers for upper and lower chambers allow for simultaneous hardening and tempering cycles.
• Space-Saving Footprint: Occupies only a 36" x 48" floor area while providing two full-sized industrial chambers.
• High-Temp Hardening: 2300°F capability in the top chamber handles almost all standard tool and high-speed steels.
• Safety First: Hand-operated vertical doors prevent accidental contact with hot interior surfaces and provide an ergonomic workflow.
• Proven Longevity: Built in the late '80s, this frame and mechanical lift system are engineered to last another 30+ years with standard element maintenance.

Technical Specifications (S/N 3492)

• Type: Dual-Chamber "Space-Saver"
• Upper Chamber (Hardening): 2300°F Max
• Lower Chamber (Tempering): 1200°F Max (Standard for '80s C-models)
• Chamber Size: 12" H x 12" W x 24" L

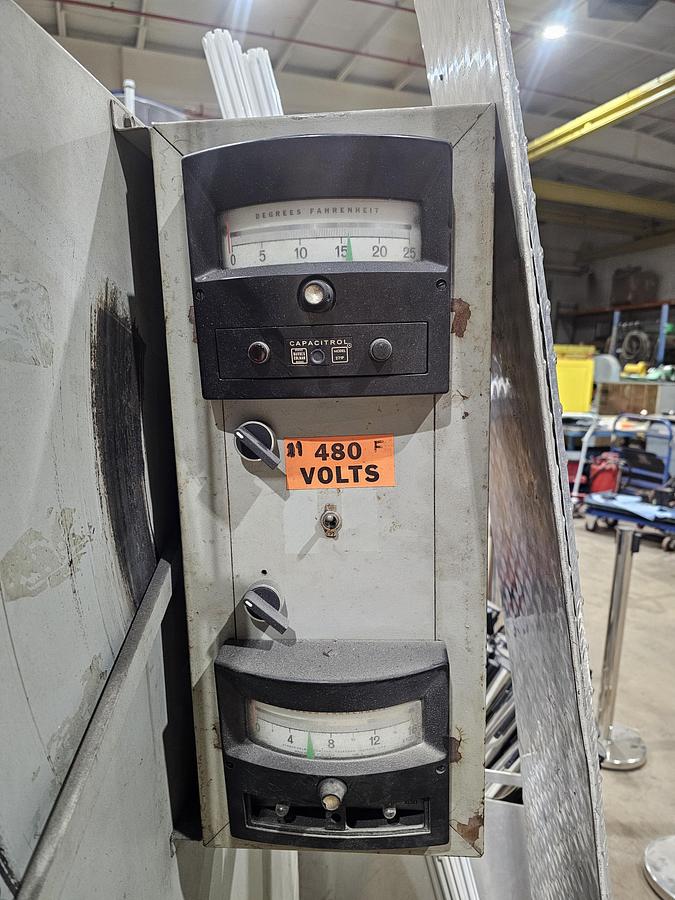

• Controls: Original units featured analog West or Barber-Colman controllers (most surviving units have been upgraded to digital Honeywell or Eurotherm).
• Insulation: 4.5" of high-temperature firebrick backed by 2" of mineral wool.
