General Electric 600 HP DC Motor 5CD466KA812C802 Kinamatic 466AT 500V

General Electric Kinamatic 600 HP Direct Current Motor

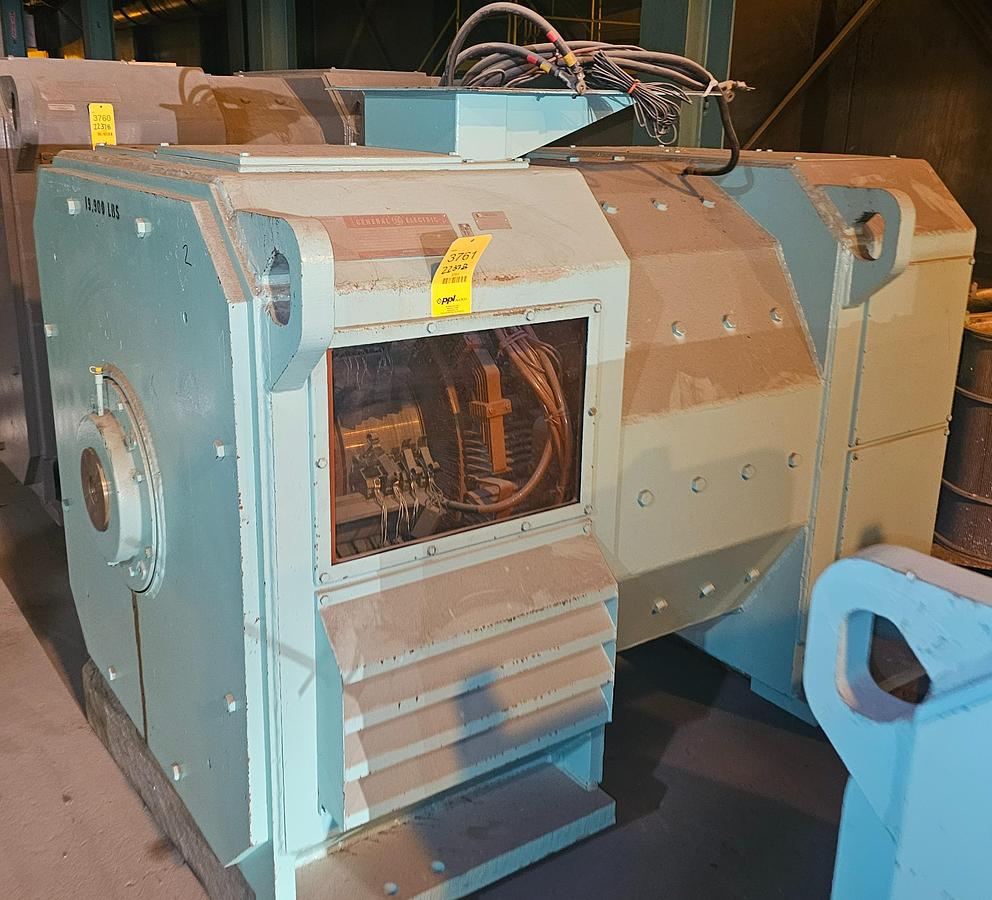

Available now is a heavy-duty 600 HP GE Kinamatic DC Motor, Model 5CD466KA812C802. Engineered for the most demanding industrial applications, this Kinamatic series motor provides superior reliability and precise speed control for high-torque processes.

Built on the rugged 466AT frame, this unit features GE’s proprietary TREC® (Tough Rigid Epoxy Coil) system, providing excellent thermal protection and mechanical strength for long-term continuous duty. The "KA" winding configuration ensures high horsepower delivery in a compact, efficient footprint.

This motor is an ideal drop-in replacement or critical spare for:

• Industrial Extruders & Mixers
• Metal Rolling Mills & Shredders
• Large-Scale Conveyor Systems
• Crane & Hoist Drives

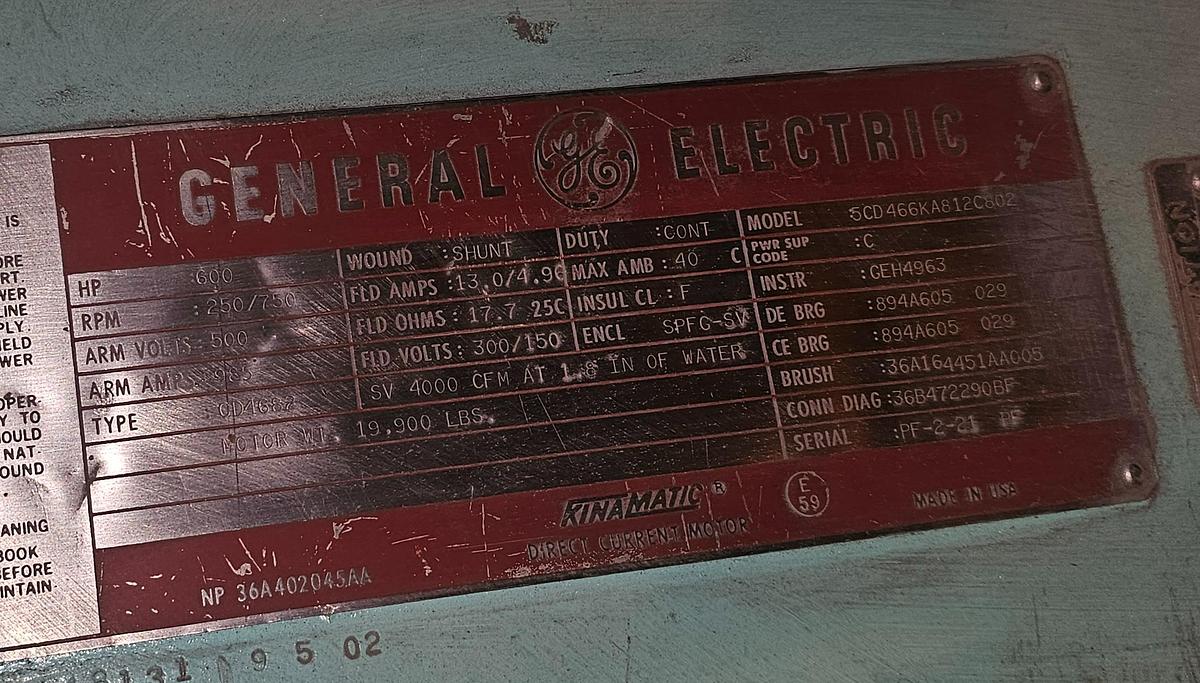

Technical Specifications:

• Horsepower: 600 HP
• Model Number: 5CD466KA812C802
• Frame Size: 466AT
• Armature Voltage: 500 VDC
• Armature Amperage: ~960 Amps
• Base Speed: 250/750 RPM
• Winding Type: Shunt Wound (SSW)
• Insulation Class: F
• Duty: Continuous
• Approx. Weight: 7,500 lbs

Condition Note: Reconditioned/Rebuilt Spare from Paper Mill
