250 HP GE Kinamatic DC Motor | 250/750 RPM High-Torque | 500V | CD466 Frame

High-Torque 250 HP GE Kinamatic DC Motor - 250/750 RPM - 500V

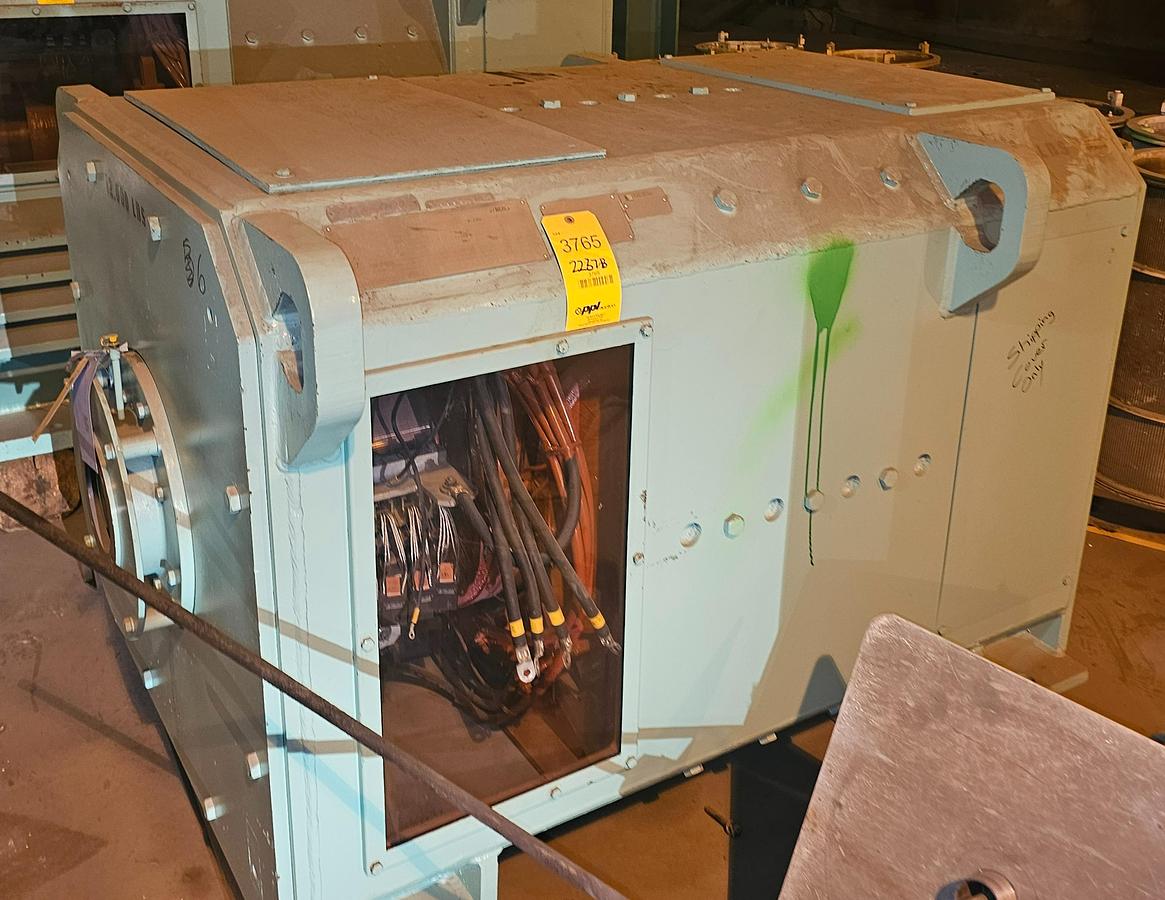

Available for immediate sale is a rare, high-torque 250 HP GE Kinamatic DC Motor. This unit is engineered for low-speed, high-power industrial applications, delivering a full 250 HP at a base speed of only 250 RPM. Built on the rugged CD466 frame, this motor provides the massive torque required for the most demanding process machinery.

A base speed of 250 RPM is a massive selling point. In the world of DC motors, lower base speeds require significantly more internal copper and a larger frame to generate the necessary torque. This makes your motor a "high-torque" specialist, which is far more valuable than a standard 1150 or 1750 RPM motor.

Because this motor can produce its full 250 HP at such a low speed, it is the "gold standard" for heavy-duty extruders, rubber mills, and shredders that need raw power without high-speed gearing.

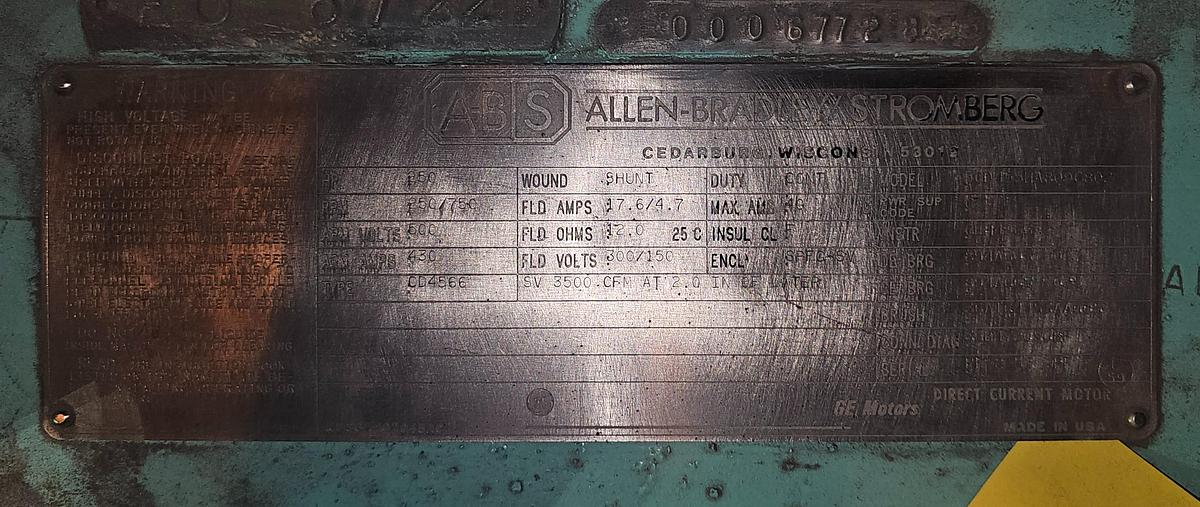

Technical Specifications:

• Manufacturer: General Electric (GE) / Allen-Bradley Stromberg
• Model: 5CD466KA809C802
• Horsepower: 250 HP
• Speed: 250 RPM (Base) / 750 RPM (Max)
• Armature Voltage: 500 VDC
• Armature Amperage: 430 Amps
• Field Voltage: 300 / 150 VDC
• Field Amperage: 17.6 / 4.7 Amps
• Frame Size: CD466
• Winding: Shunt Wound
• Enclosure: SPFG-BV (Blower Ventilated)
• Duty: Continuous

Condition: Reconditioned/Rebuilt from Paper Mill Operation
