Zeks 500 SCFM Refrigerated Air Dryer | Model 500NCEA500 | 460V 3-Phase

2015 Zeks 500NC High-Capacity Air Dryer | 500 SCFM | 460V 3-Phase

Available for sale is a late-model 2015 Zeks 500NC Refrigerated Air Dryer. This high-efficiency, non-cycling unit is rated for 500 SCFM, providing consistent moisture removal for large-scale industrial air systems (100–150 HP compressors).

Built with Zeks’ patented stainless steel heat exchangers, the 500NC is designed for a low pressure drop, ensuring your pneumatic tools and automated machinery receive clean, dry air without sacrificing system pressure. This 2015 unit features the updated digital monitoring interface for real-time performance tracking.

Key Features:

• Modern Vintage: 2015 manufacture with updated R-404A refrigeration system.
• High Throughput: 500 SCFM capacity with massive 3" NPT connections.

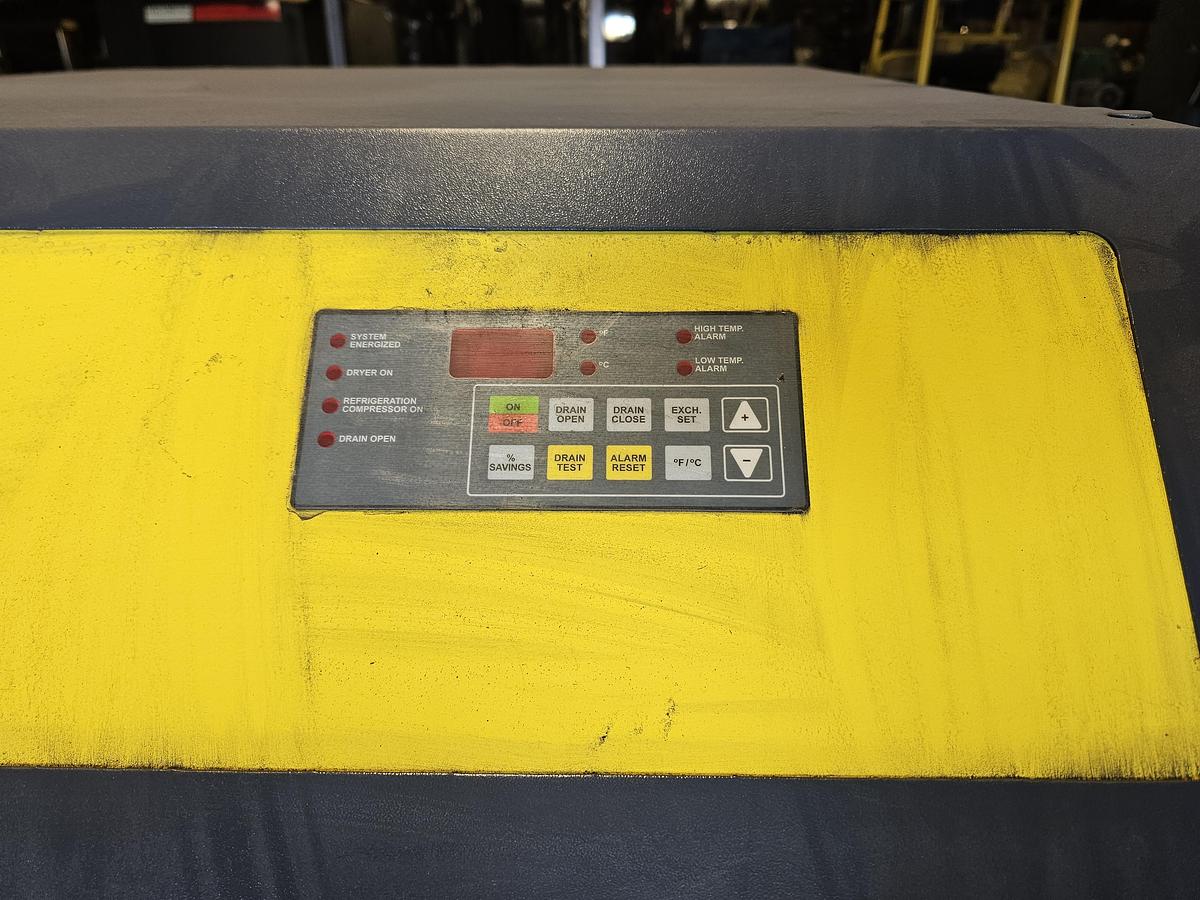

• Digital Control: Integrated monitoring for dew point and system status.
• Industrial Build: Heavy-duty cabinet with easy-access maintenance panels.

A 2015 model is considered "modern era" for industrial air dryers. It likely features the digital controller (often the Zeks CPC or DPC interface) which provides precise dew point monitoring and fault history—a major selling point compared to older "analog gauge" dryers.

Technical Specifications (Verified for 500NC Series)

• Flow Capacity: 500 SCFM
• Manufacture Year: 2015
• Inlet/Outlet: 3" NPT
• Electrical: 460V / 3-Phase / 60Hz
• Max Pressure: 250 PSIG
• Refrigerant: R-404A (Standard for this 2015 vintage)
• Heat Exchanger: Corrugated All-Stainless Steel (Zeks patented design)
• Drain Type: Electric Timed Solenoid or Zero-Loss (Verify if it has the "Savair" drain)
