Delta T Systems 5-Ton Industrial Chiller | ITAC-F460 | 460V 3-Phase

Delta T Systems 5-Ton Industrial Chiller | ITAC-F460 | 460V 3-Phase

For sale is a Delta T Systems ITAC-F460 5-ton air-cooled industrial chiller. This is a robust, self-contained process cooling unit featuring an integrated high-flow pump and a 40-gallon insulated reservoir.

Condition Note: This unit is mechanically sound and was in good working order prior to decommissioning. The R22 refrigerant charge was professionally recovered for use in another system. The refrigeration circuit remains sealed and is ready for a fresh charge of R22 or a modern "drop-in" replacement (such as R-422D).

Technical Specifications

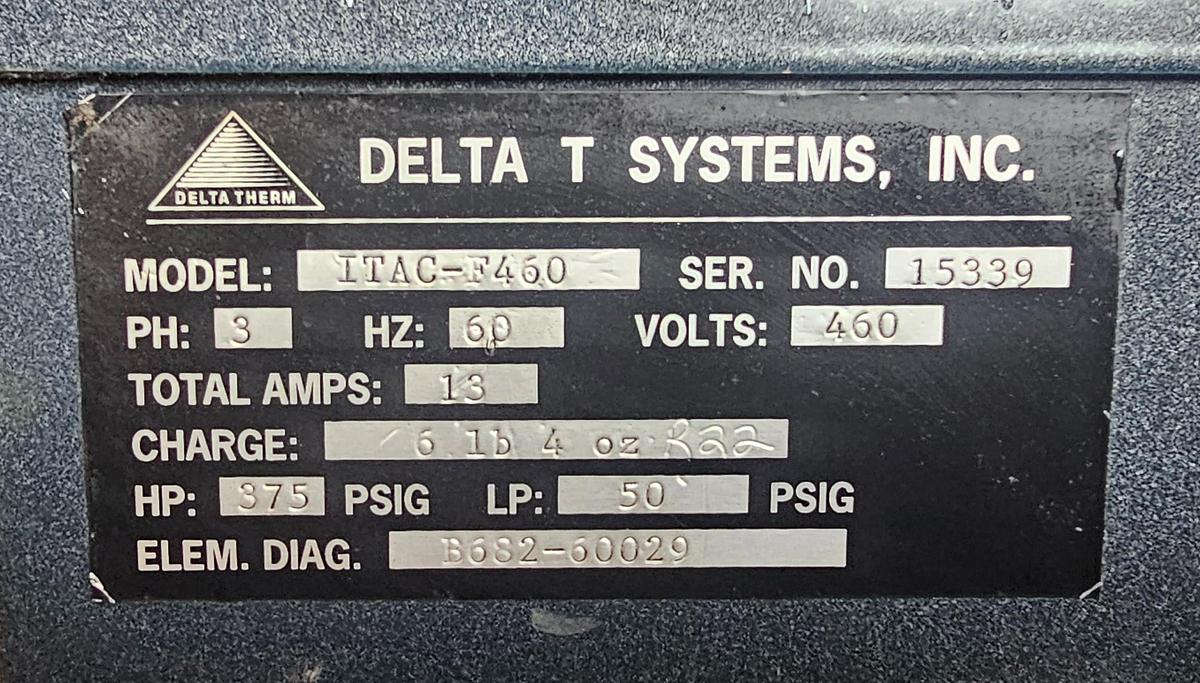

• Model: ITAC-F460
• Serial Number: 15339
• Cooling Capacity: 5 Tons (60,000 BTU/hr)
• Electrical: 460V / 3-Phase / 60Hz
• Refrigerant: R22 (Charge recovered; system is sealed)
• Pump: Integrated 1.5 HP - 2 HP High-Flow Centrifugal Pump
• Reservoir: 40-Gallon Insulated Internal Tank

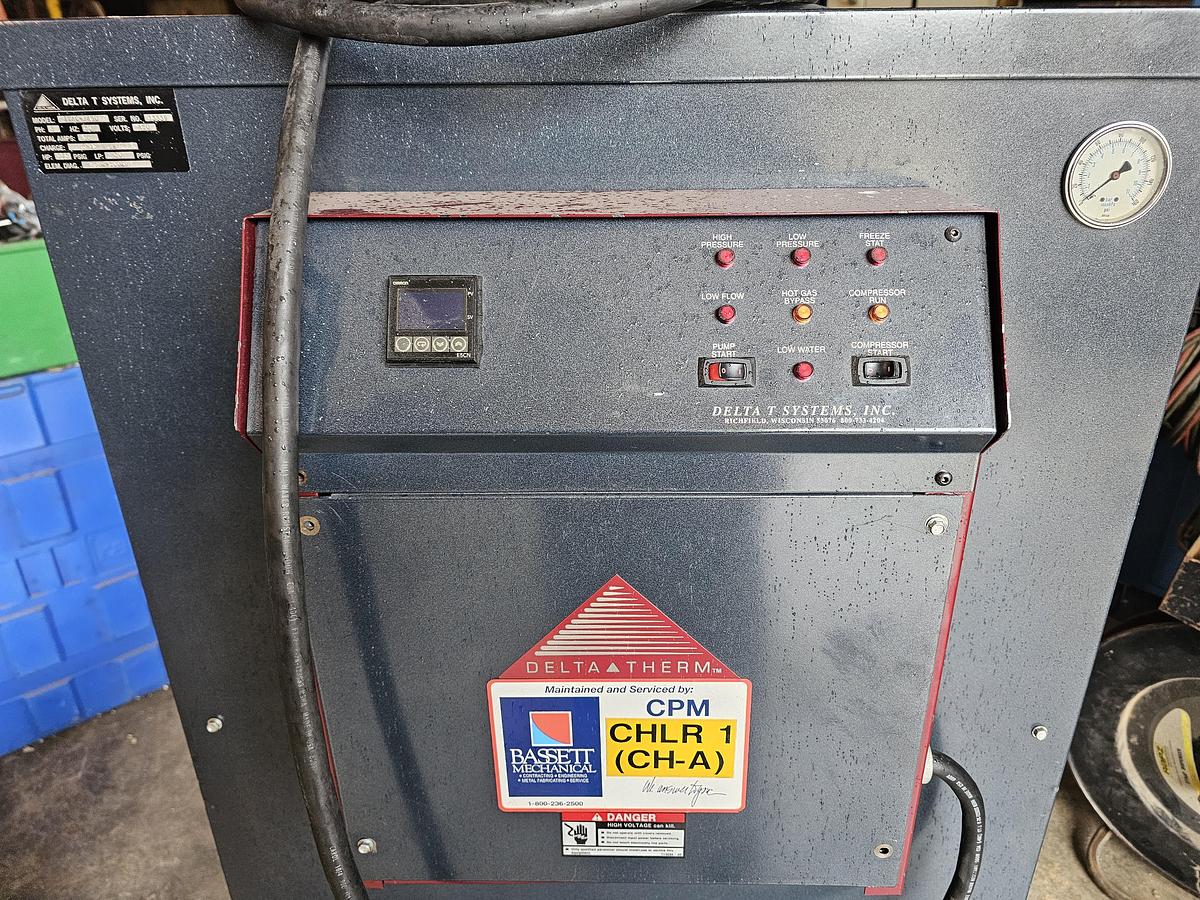

• Controller: Digital Microprocessor Interface

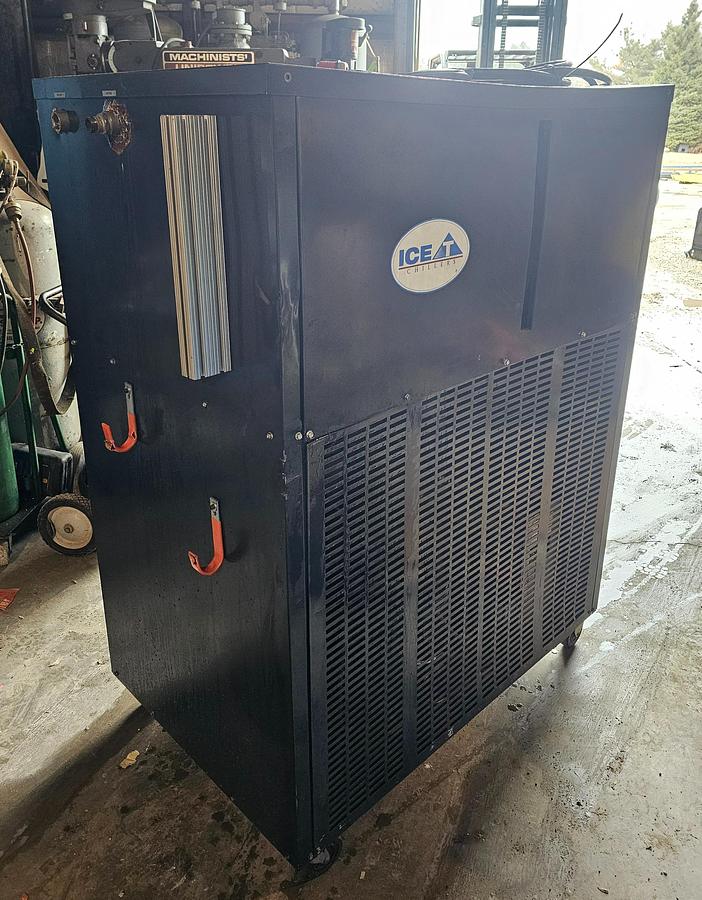

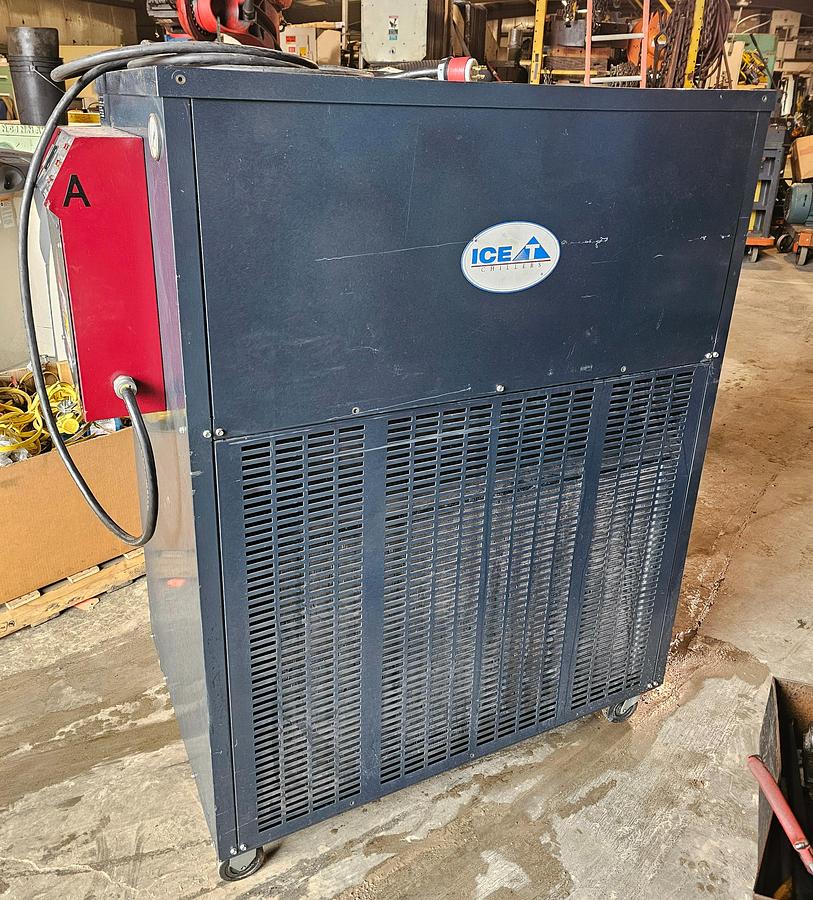

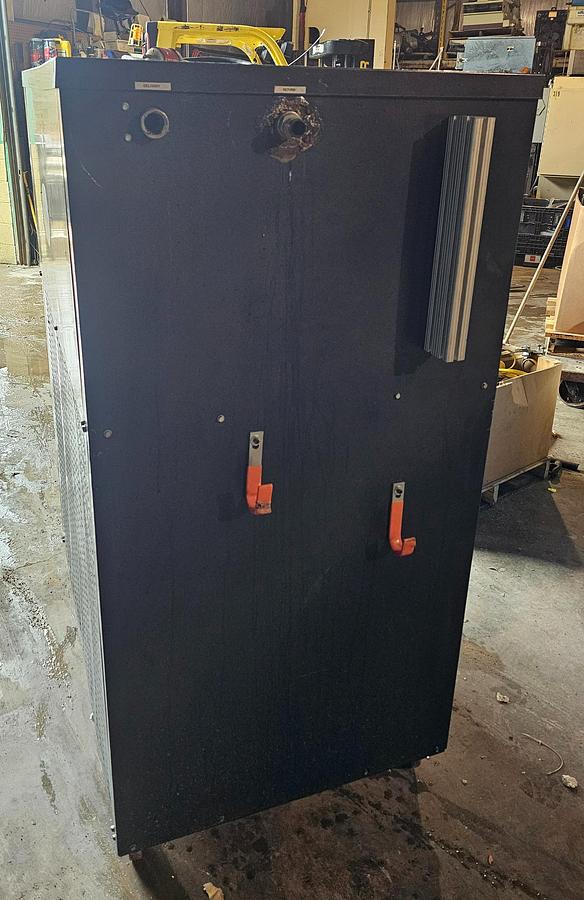

• Frame: Portable Cabinet with Heavy-Duty Casters

The ITAC-F460 is a "workhorse" size for industrial cooling. Because the charge was removed professionally and not lost to an internal leak (like a failed evaporator), the internal components—specifically the compressor and heat exchanger—have not been exposed to moisture or atmosphere. This makes it an ideal candidate for a quick "recharge and deploy" project at a fraction of the cost of a new 5-ton unit.

Key Advantages:

• Mechanically Sealed: No history of internal leaks; refrigeration circuit is intact.
• Dual Value: Can be used as a standard chiller or a high-capacity pump/tank station.
• Industrial Build: Features heavy-duty American-made components that are significantly more durable than modern economy-grade chillers.
• Ease of Conversion: Because it is an R22-era unit, it is a prime candidate for a cost-effective conversion to a modern drop-in refrigerant.
