2017 Temptek 5-Ton Digital Scroll Chiller | R-410A | CFD-5A-41HFX

2017 Temptek 5-Ton Digital Scroll Chiller | R-410A | CFD-5A-41HFX

Available for sale is a premium 2016 Temptek CFD-5A air-cooled portable chiller. This 5-ton unit (4.9 Ton / 58,800 BTU nominal) is a high-efficiency asset equipped with Copeland Scroll Digital™ technology. Unlike standard "on/off" chillers, the digital scroll allows the compressor to modulate capacity from 20% to 100%, providing exceptional energy savings and precise temperature stability for sensitive industrial processes.

This self-contained, "plug-and-play" system includes an integrated 2 HP stainless steel process pump and a 25-gallon insulated reservoir, all housed in a compact, portable cabinet.

Technical Specifications

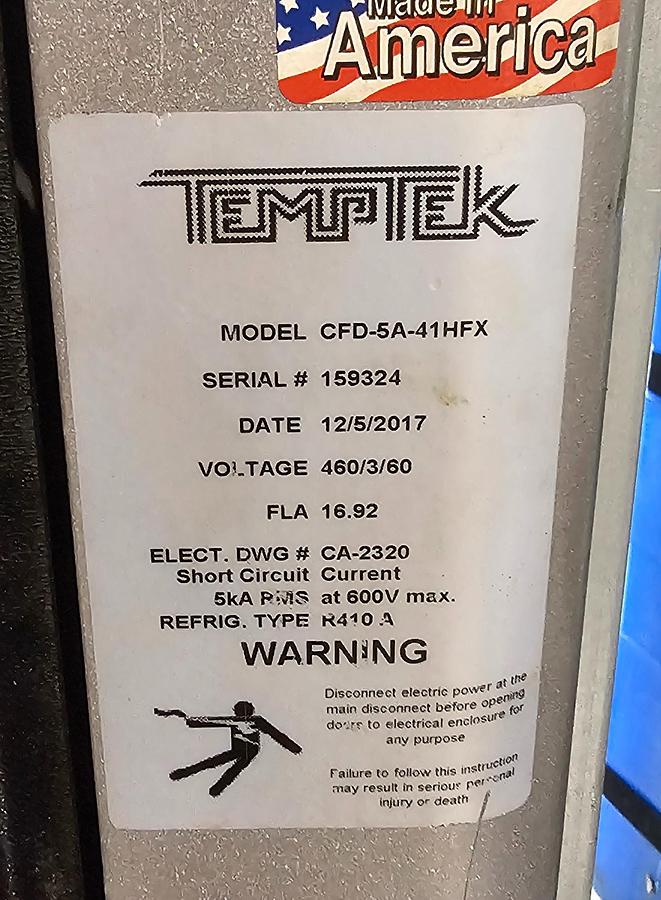

• Model: CFD-5A-41HFX
• Serial Number: 159324
• Year of Manufacture: 2017
• Cooling Capacity: 4.9 Tons (58,800 BTU/hr)
• Refrigerant: R-410A (Environmentally friendly/Modern)
• Compressor: 5 HP Copeland Digital Scroll (Modulating)
• Process Pump: 2 HP Centrifugal (12 GPM @ 52 PSI)
• Electrical: 460V / 3-Phase / 60Hz
• FLA: 17 Amps
• Reservoir: 25-Gallon Insulated Tank
• Process Connections: 1-1/4" NPT (To/From)
• Dimensions: 40" L x 34" W x 60" H
• Weight: ~800 lbs

Key Features & Benefits

• Digital Modulation: Automatically matches the cooling output to your actual load, reducing compressor wear and lowering electricity costs.
• Modern Refrigerant: R-410A ensures long-term serviceability and compliance without the high refill costs of legacy R22 units.
• Non-Ferrous Coolant Circuit: Features a stainless steel pump and insulated reservoir to prevent rust and maintain fluid purity.

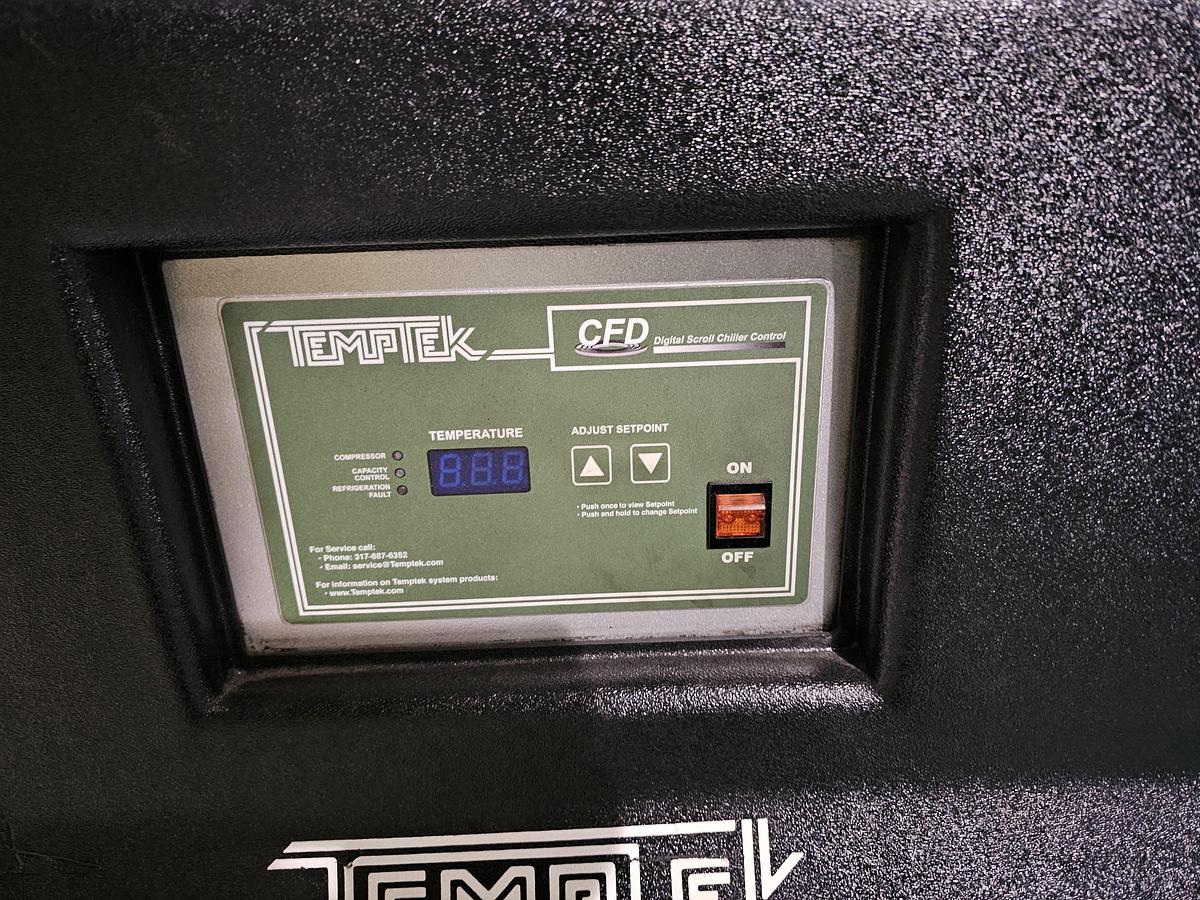

• Advanced Microprocessor Control: Features a large digital display for easy monitoring of "To Process" temperatures and diagnostic status.
• Industrial Portability: Mounted on heavy-duty casters for easy movement between workstations.
