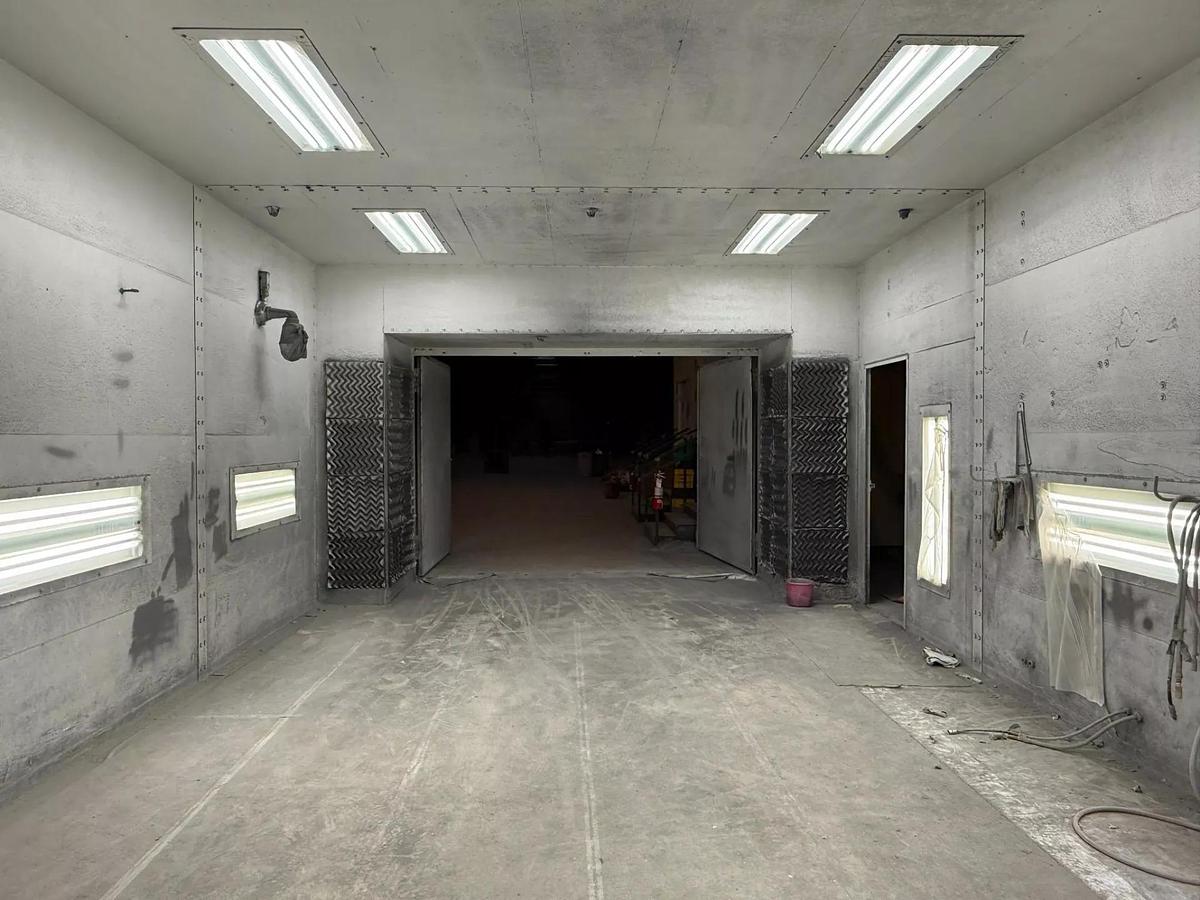

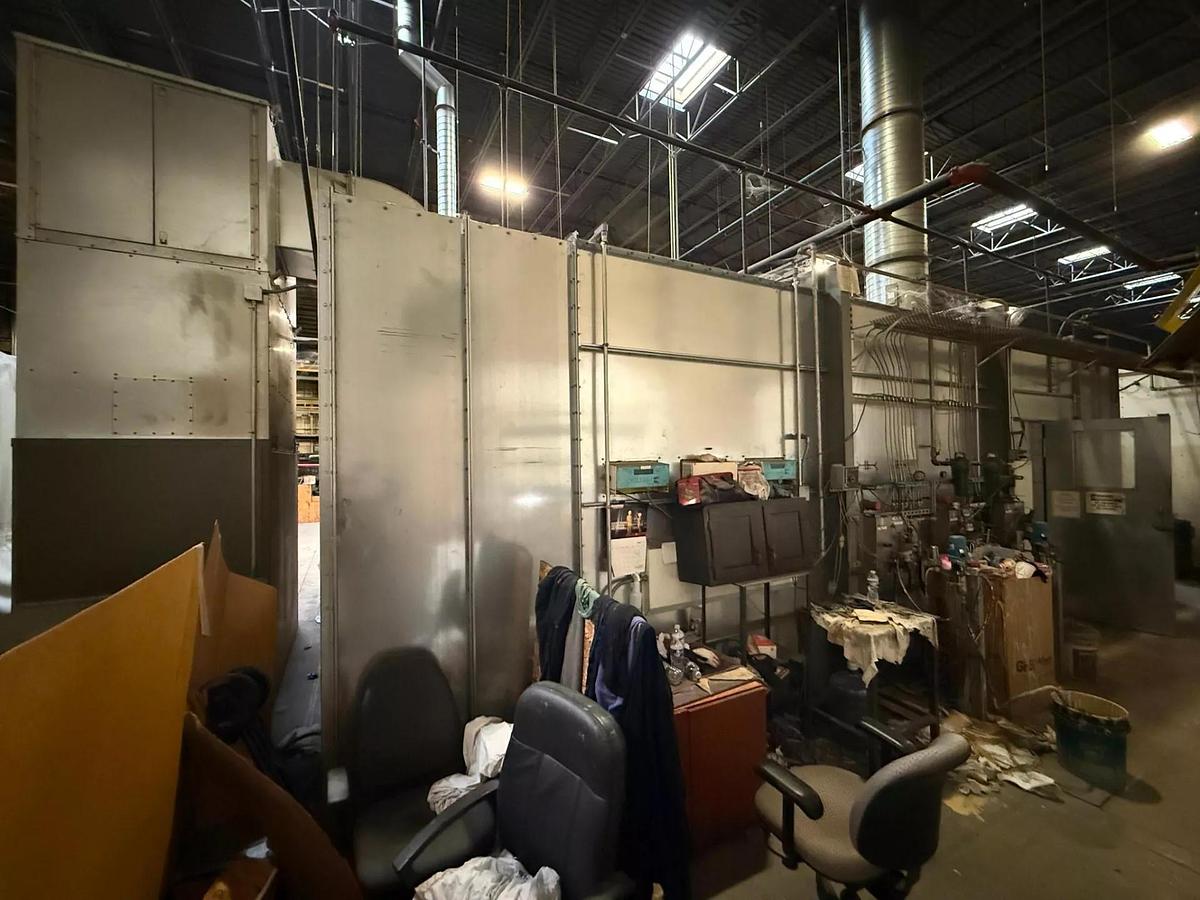

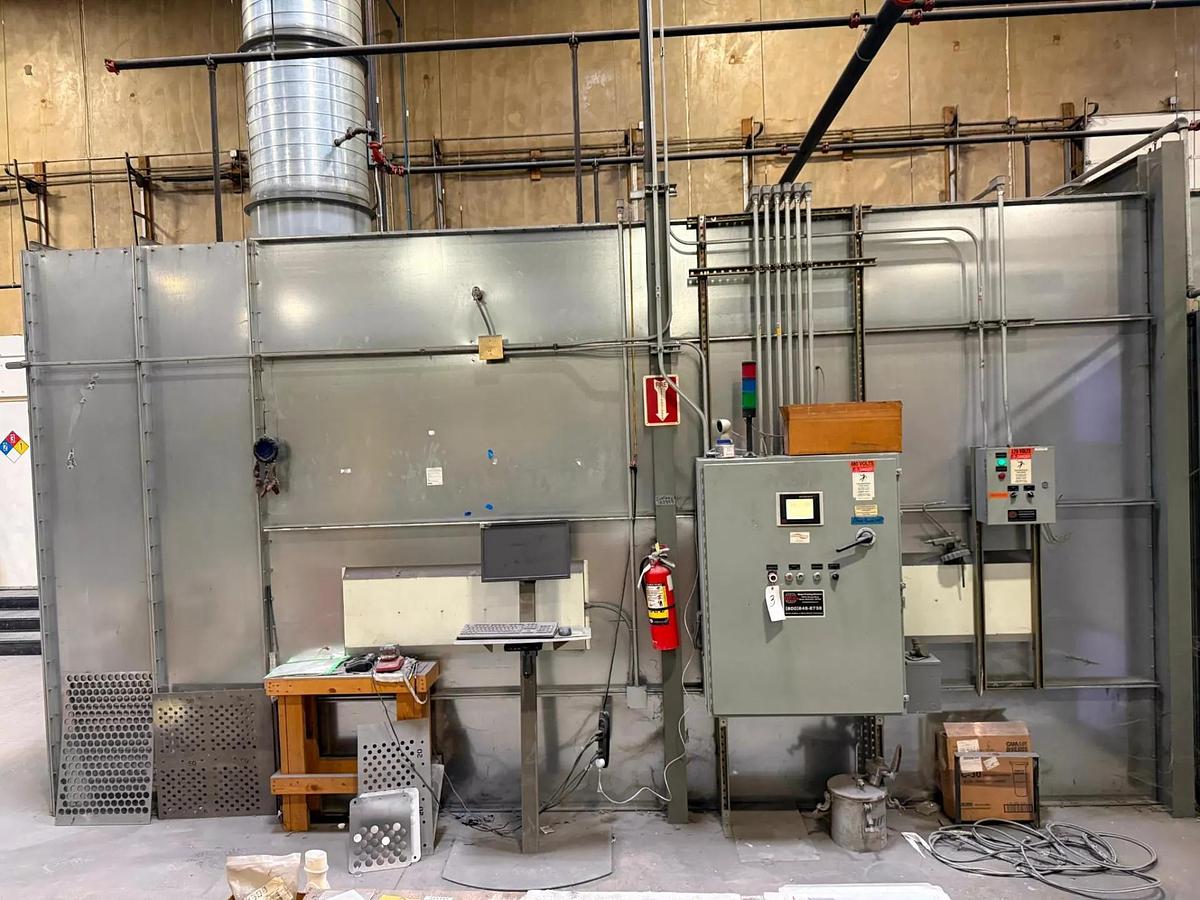

GFS CDG-1610PSB-30-S-CU-S Crossdraft Spray Booth 16' x 10' x 30' w/Mix Room & Air Makeup Unit

2011 GFS 16 X 10 X 30 CROSSDRAFT CURE / PAINT BOOTH W/ MIX ROOM AND VERTICAL INDUSTRIAL HEATER

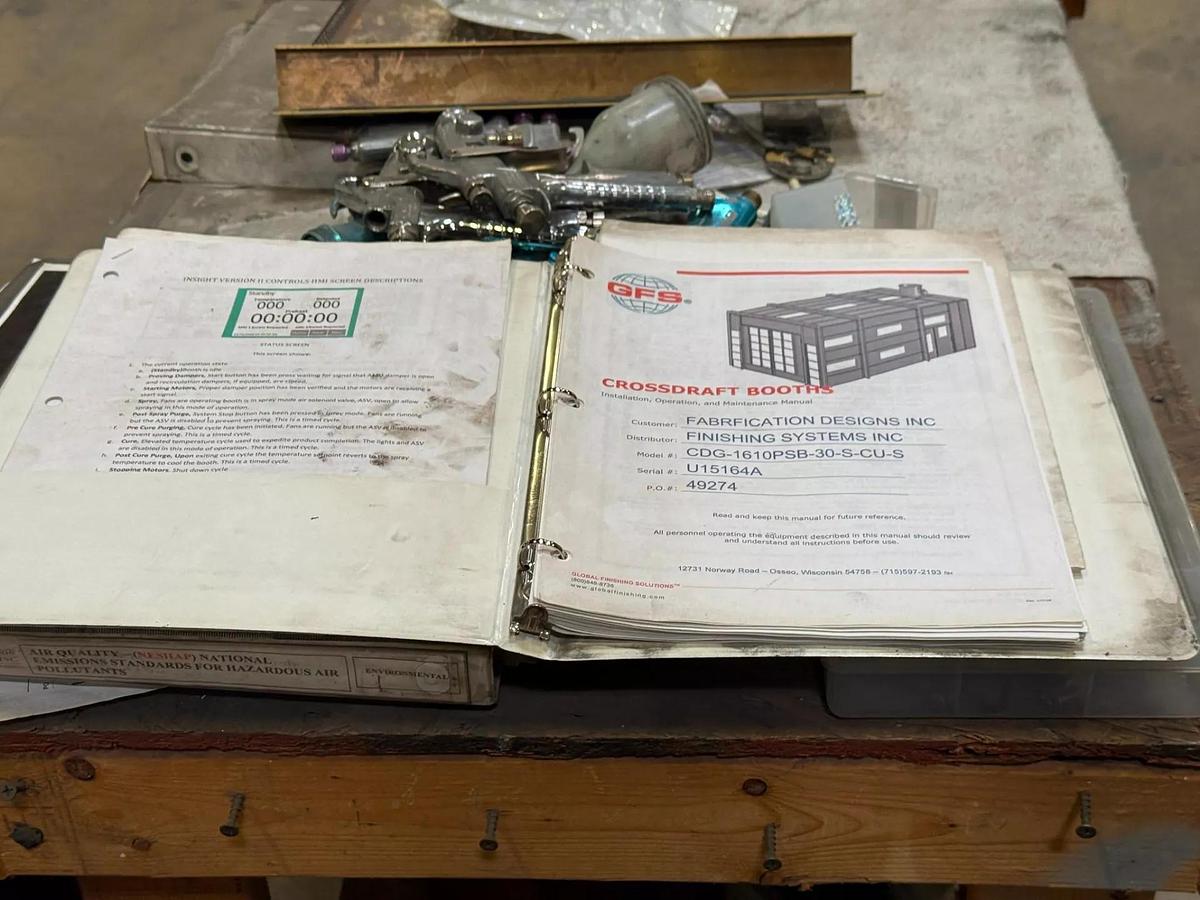

SN: 15164A

MODEL: CDG-1610PSB-30-S-CU-S

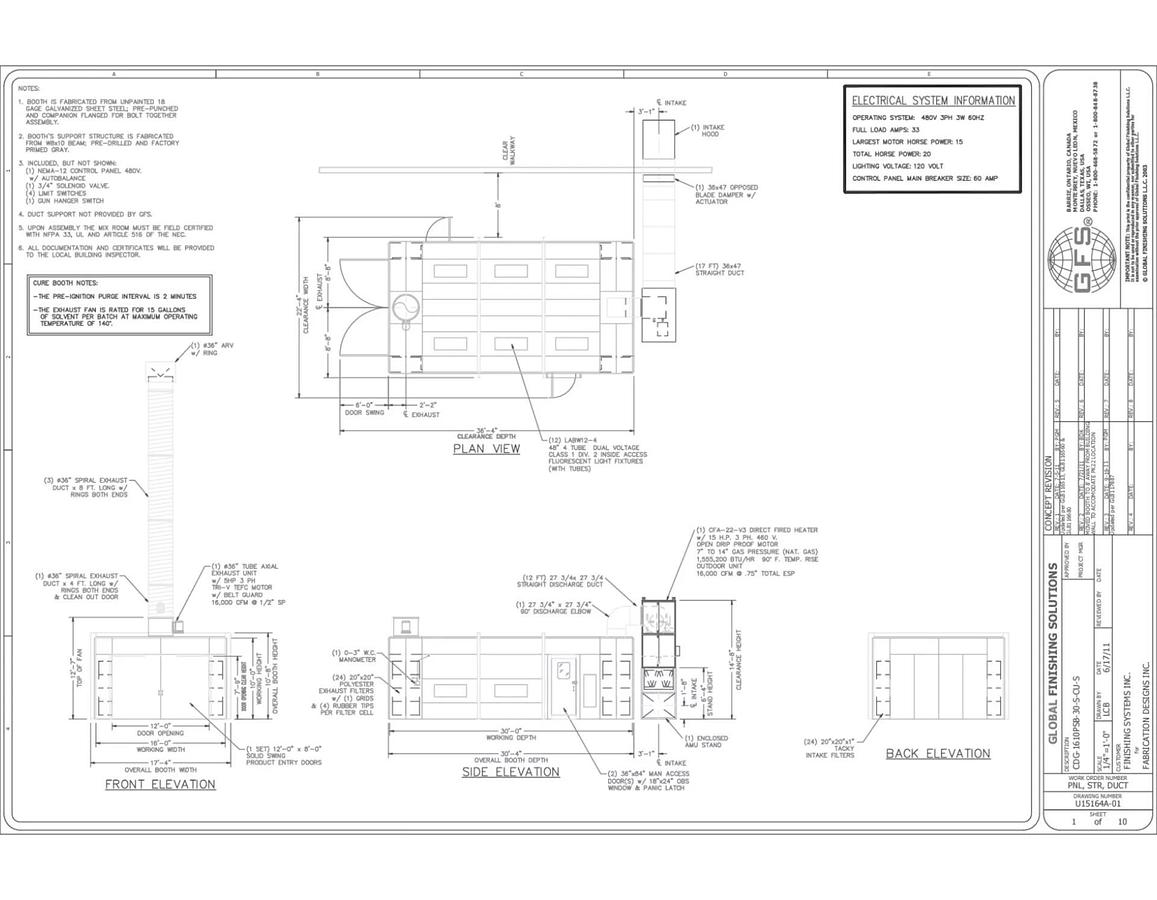

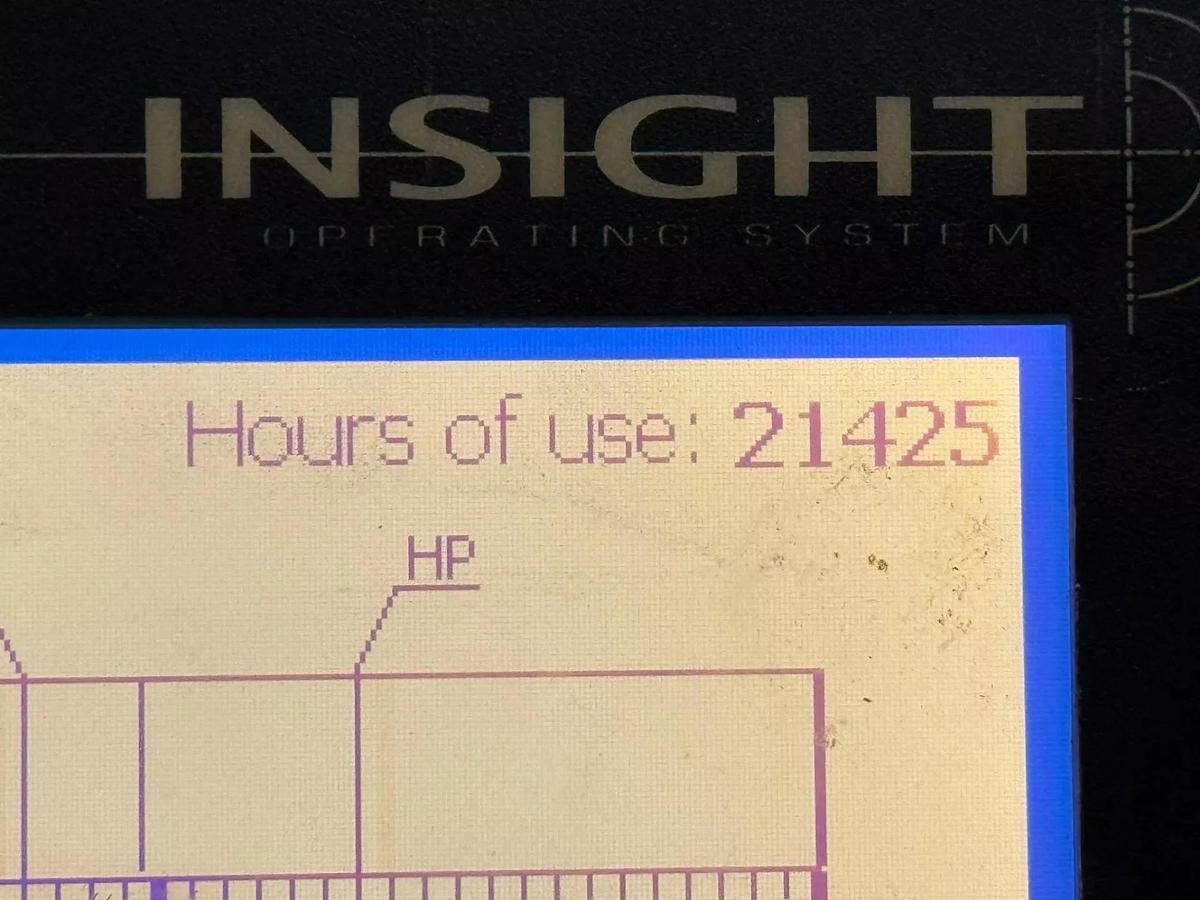

PAINT BOOTH:

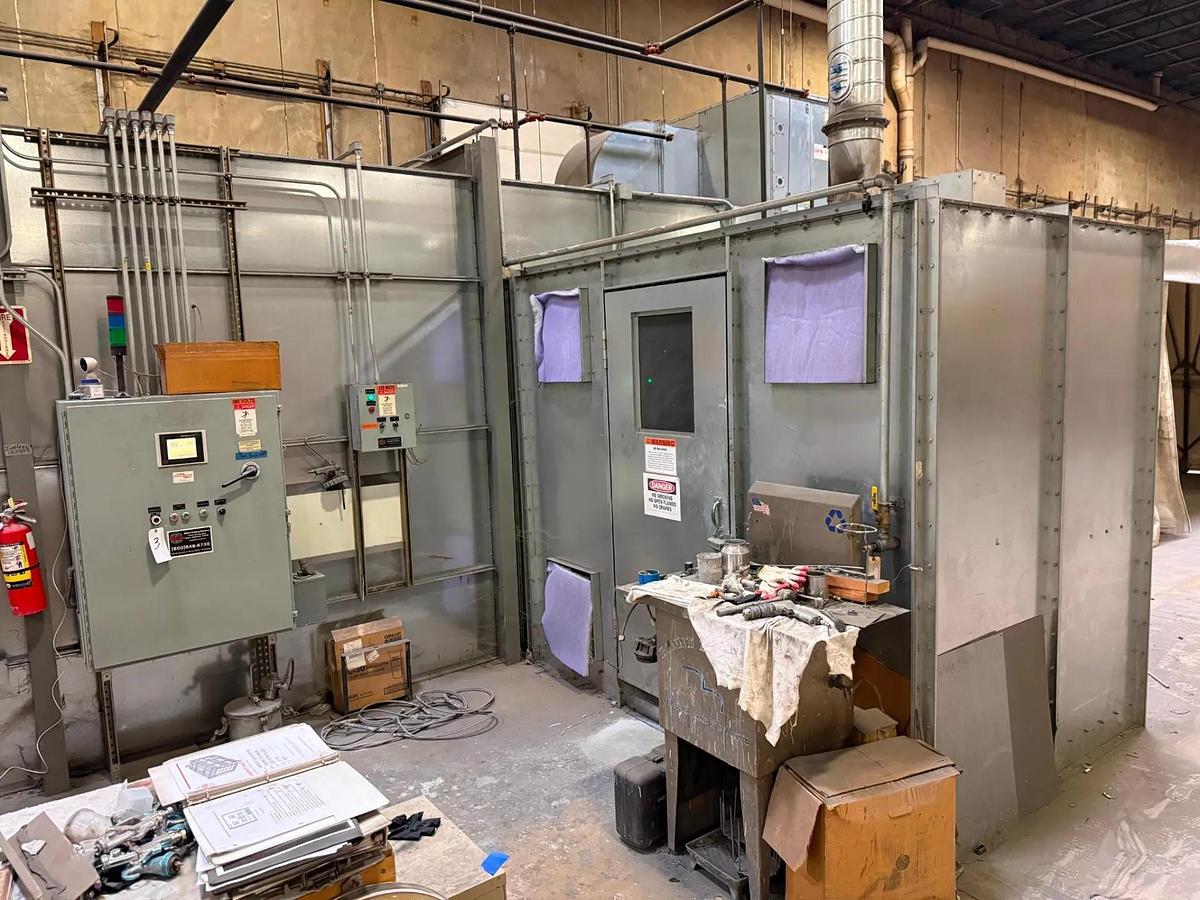

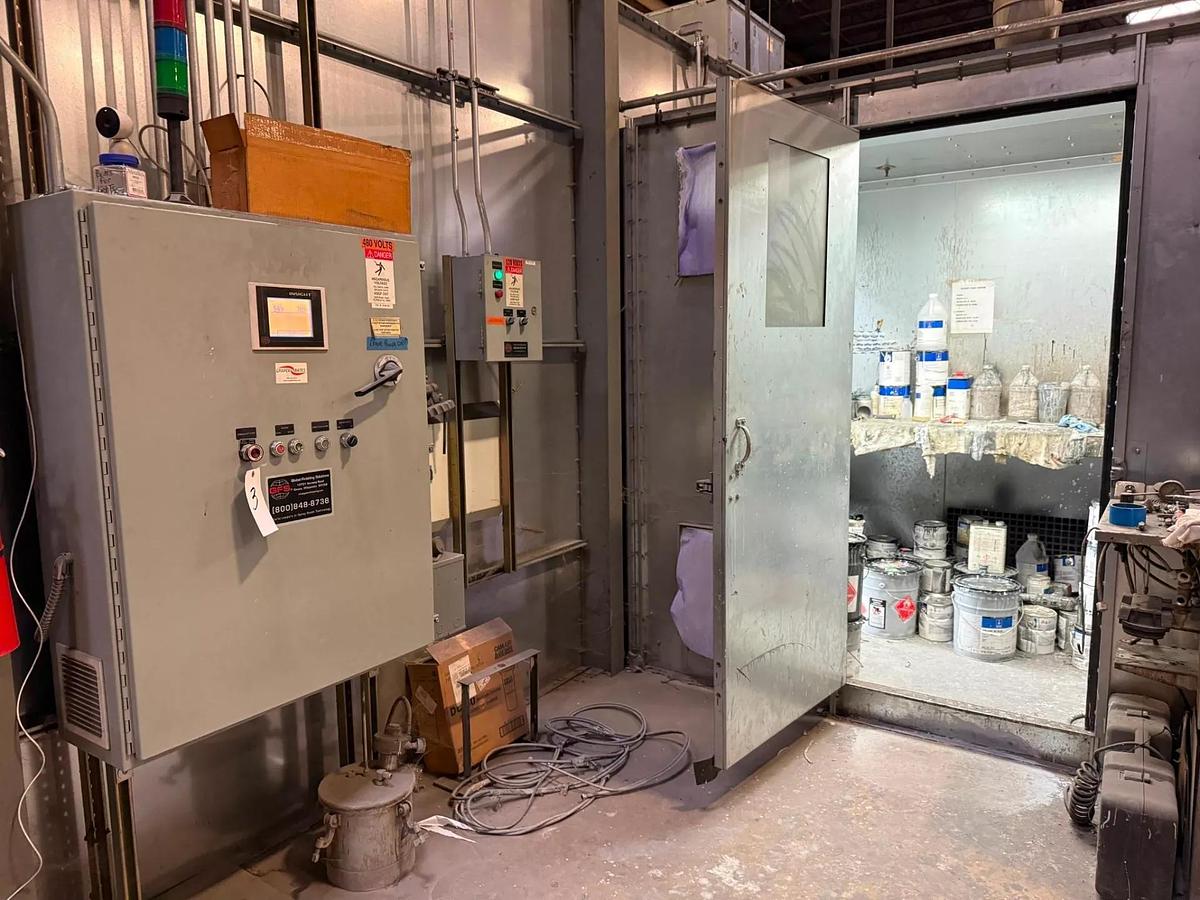

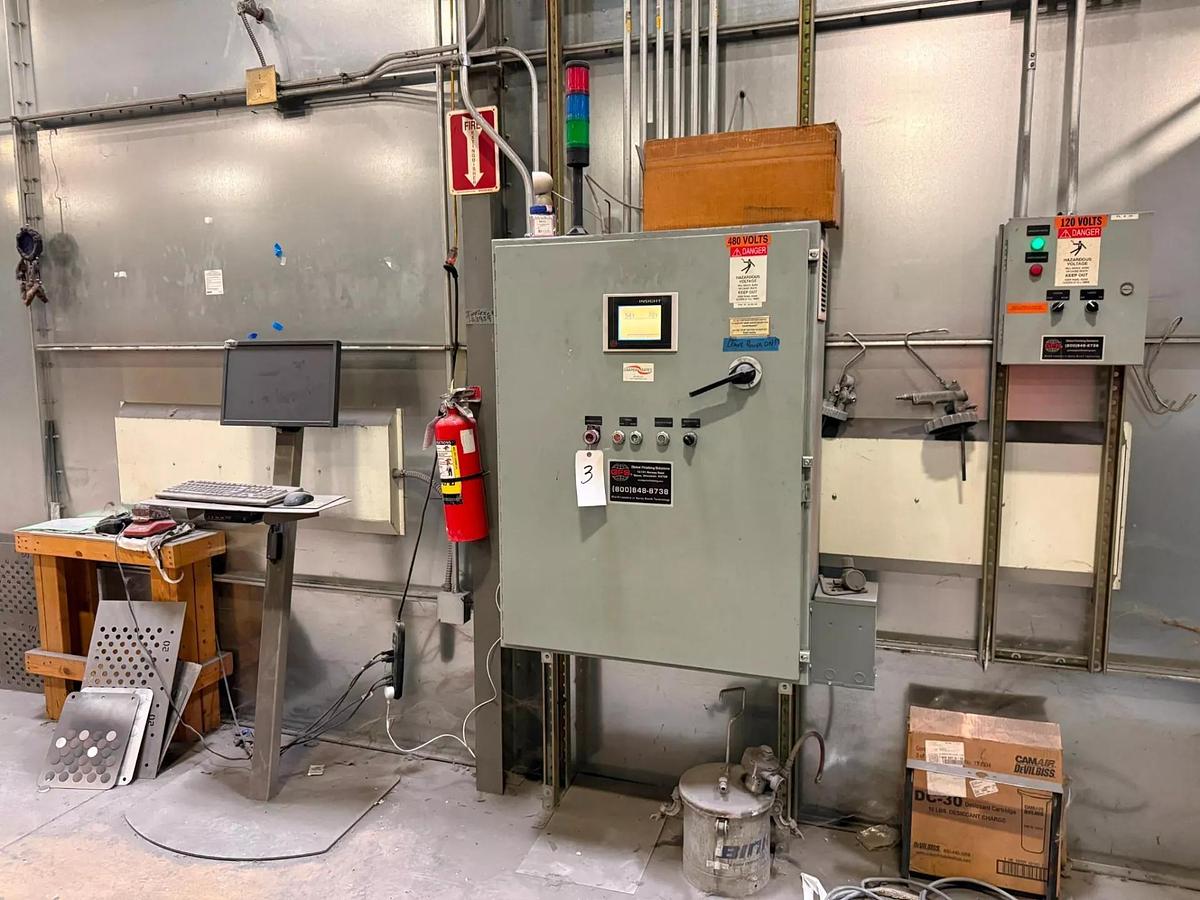

ELECTRICAL SYSTEM INFORMATION:

OPERATING SYSTEM: 480V, 3PH, 3W, 60HZ

FULL LOAD AMPS: 33

LARGEST MOTOR HORSE POWER: 15

TOTAL HORSEPOWER: 20

LIGHTING VOLTAGE: 120V

CONTROL PANEL MAIN BREAKER SIZE: 60 AMP

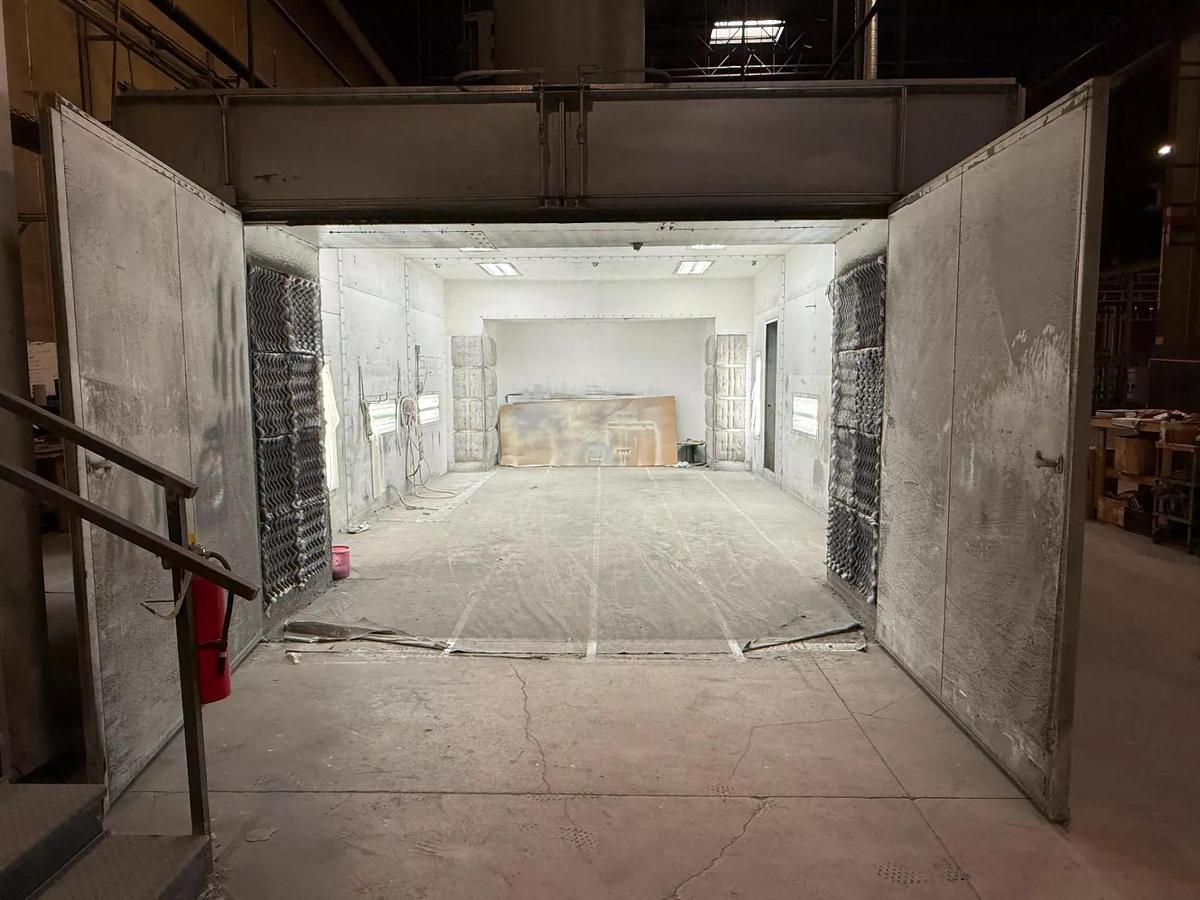

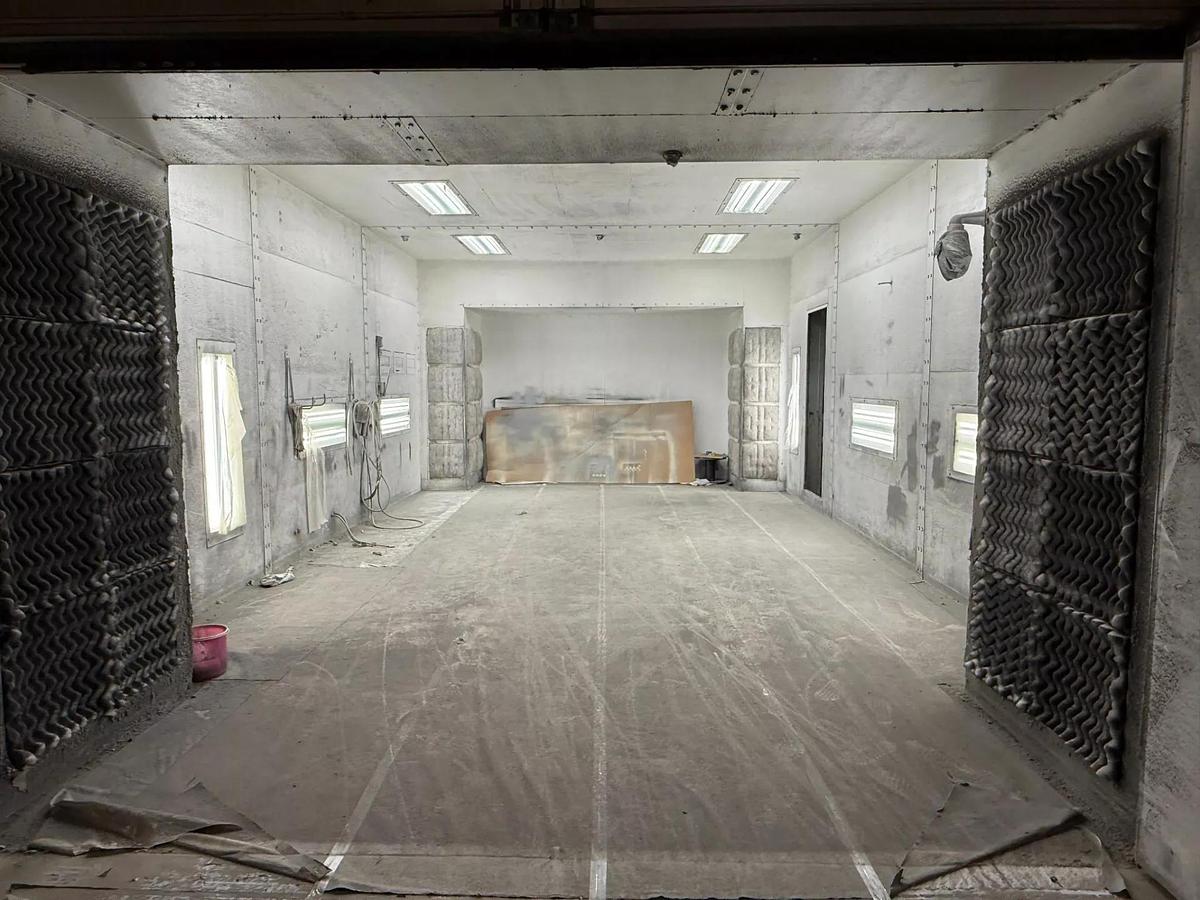

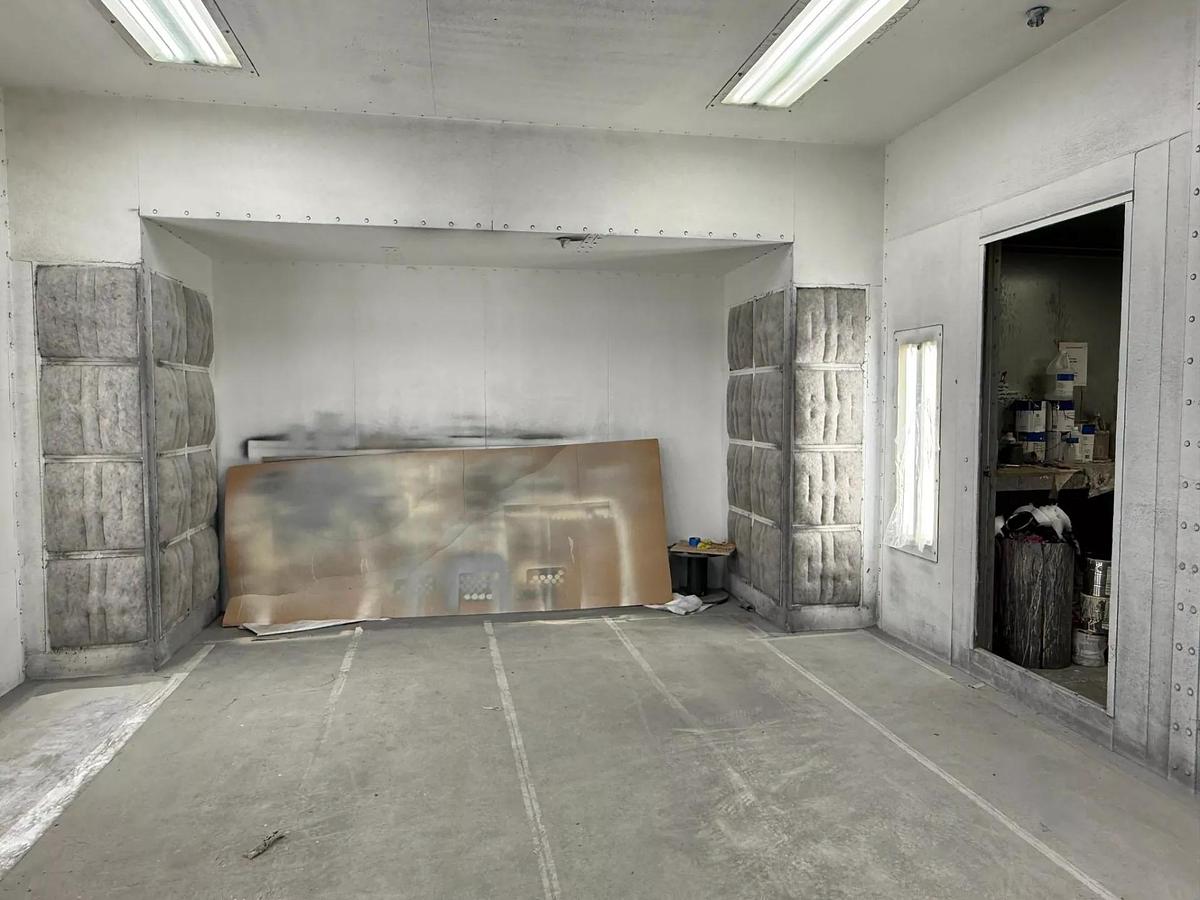

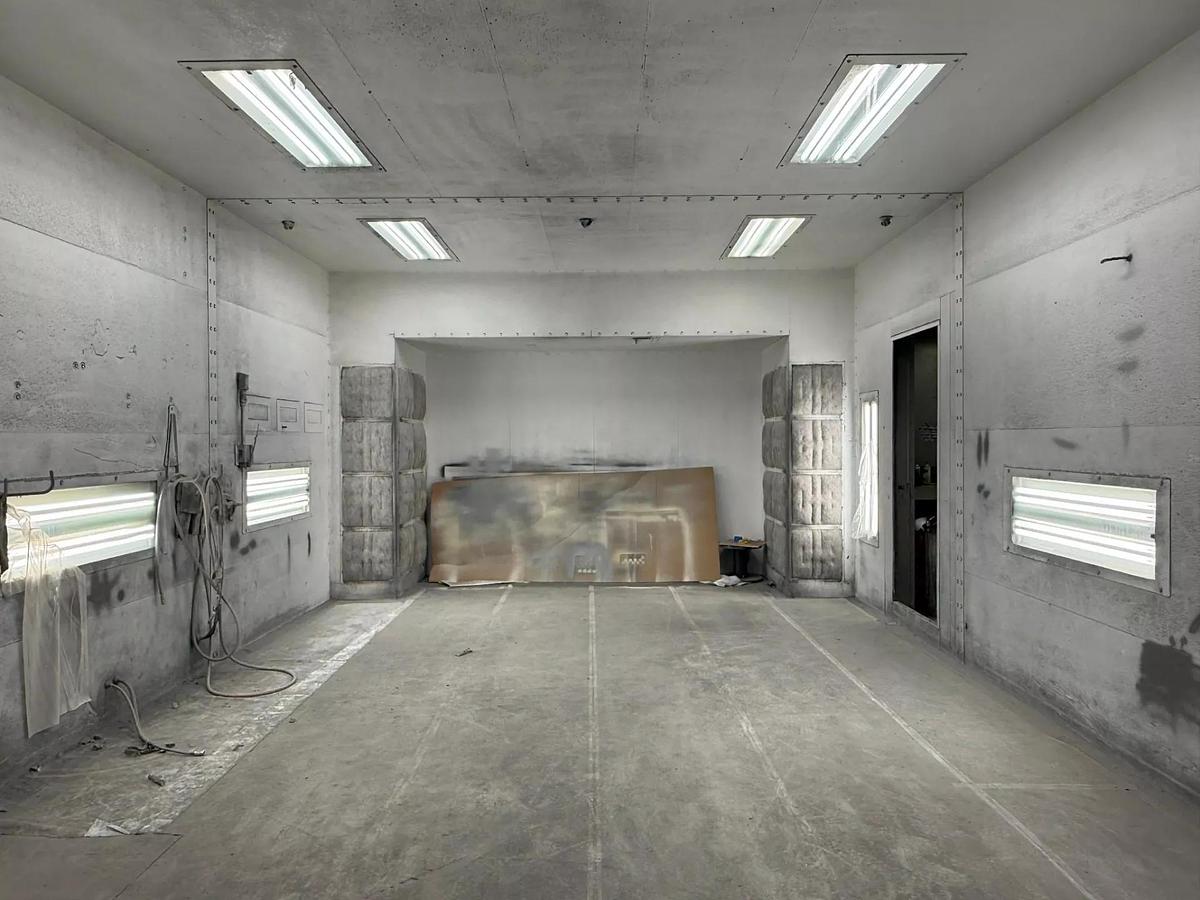

BOOTH DIMENSIONS:

WORKING DIMENSIONS:

30'D X 16'W X 10'H

OVERALL DIMENSIONS:

30'-4"D X 17'-4"W X 10'-8"H

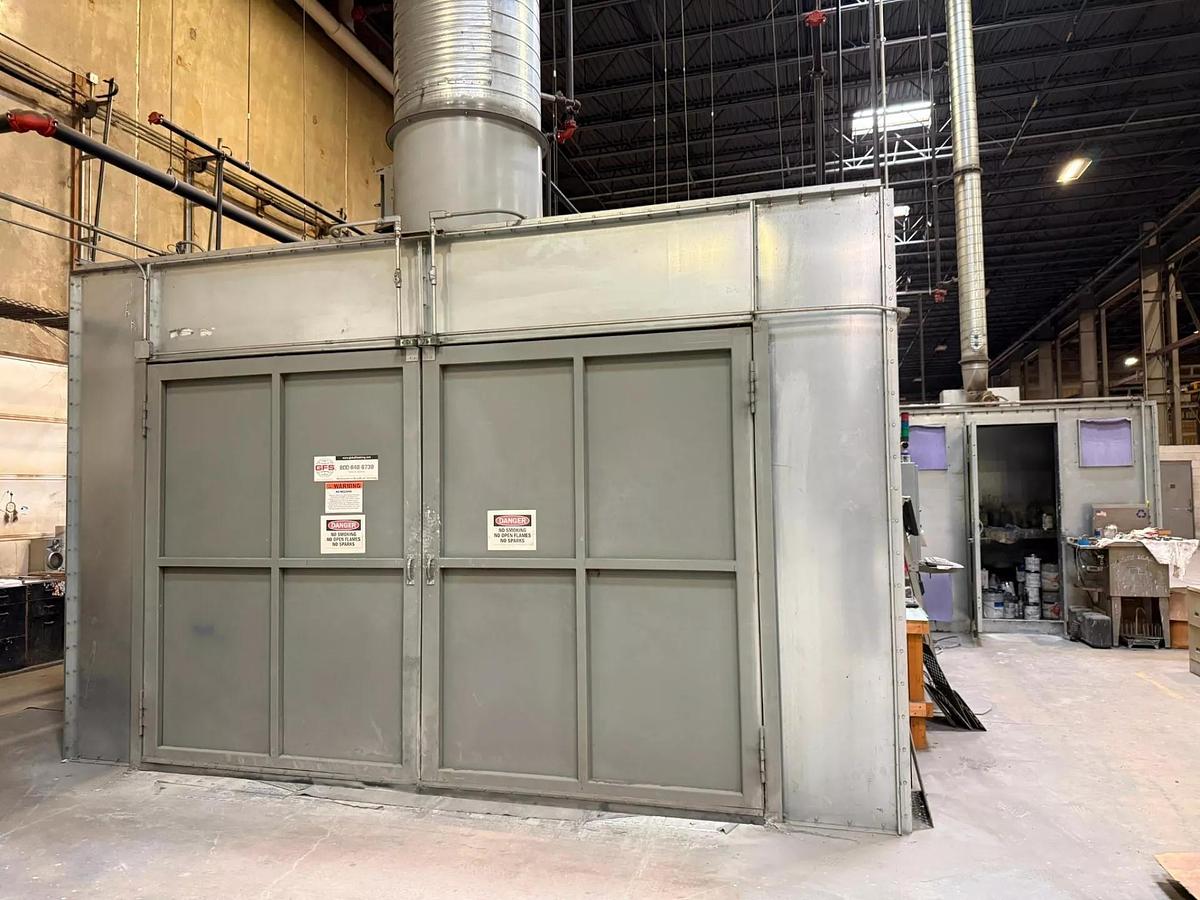

MAIN DOUBLE DOOR OPENING:

12'W, 1 SET AT 12' X 8' EACH

DOOR OPENING CLEAR HEIGHT:

7'-9"H

2X MAN ACCESS DOORS:

36"W X 84"H, W/ 18" X 24" OBSERVATION WINDOWS AND PANIC LATCH

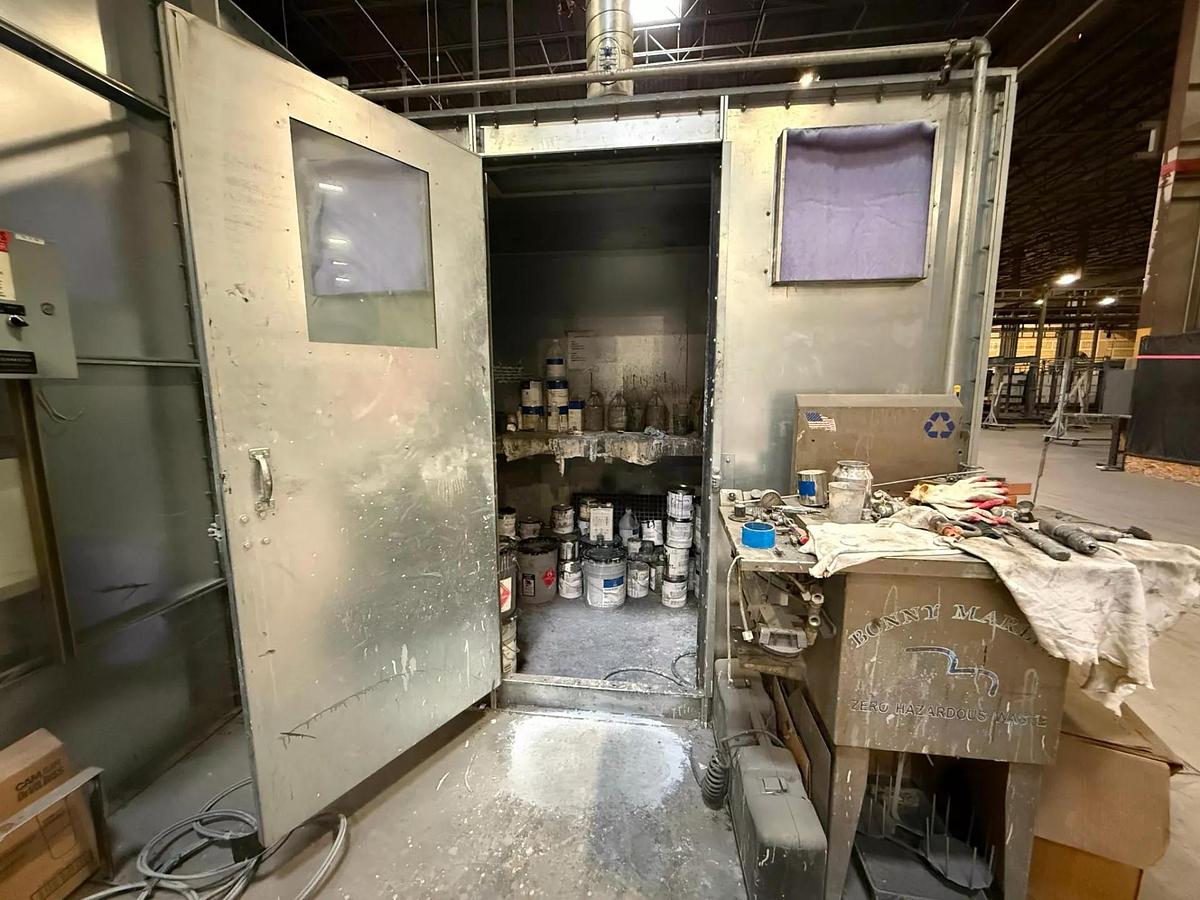

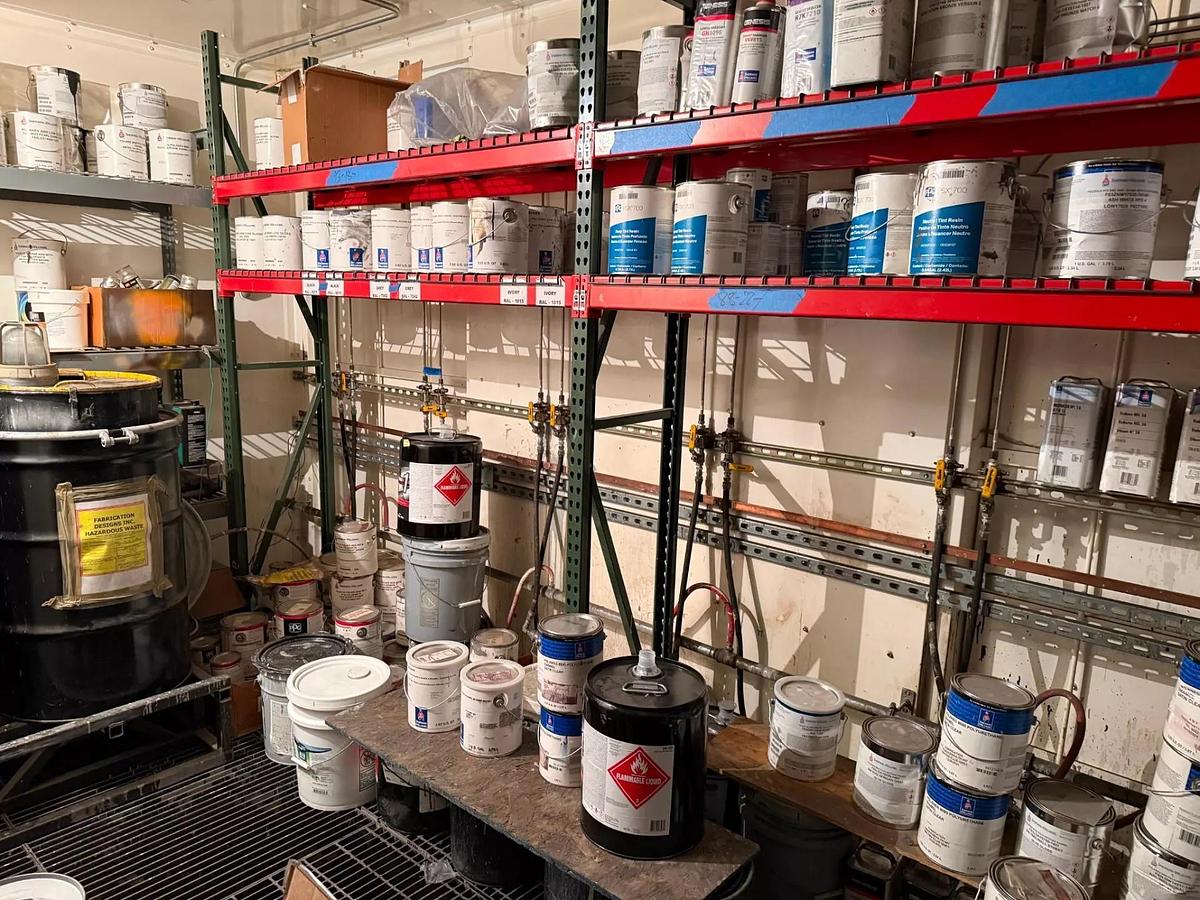

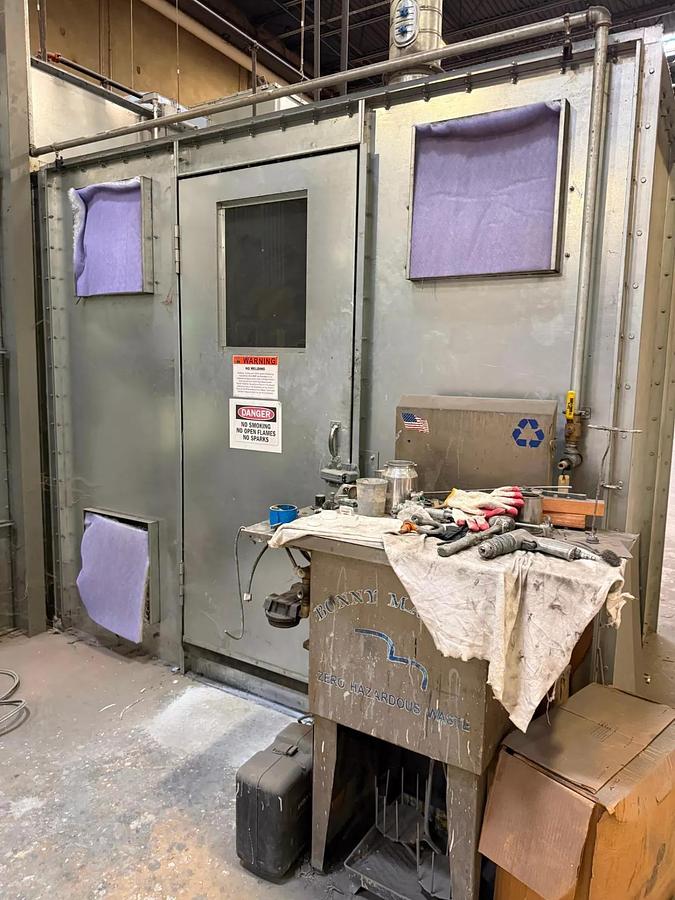

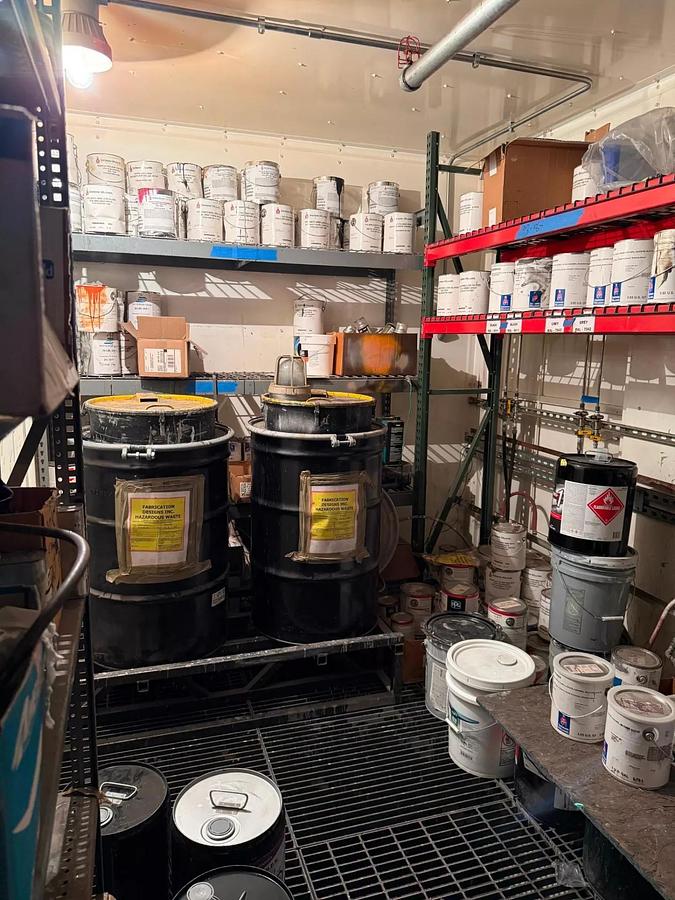

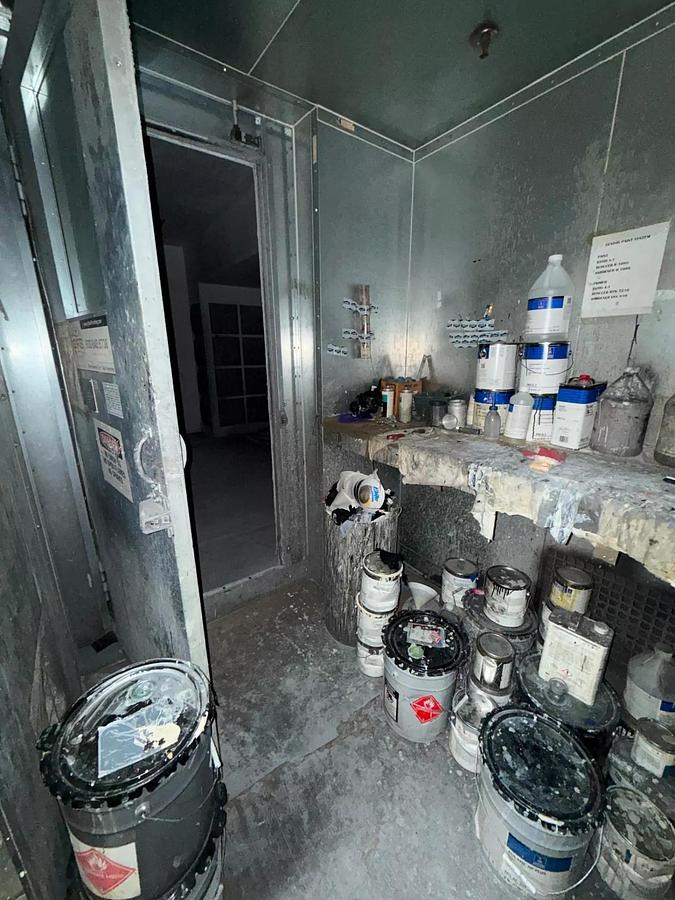

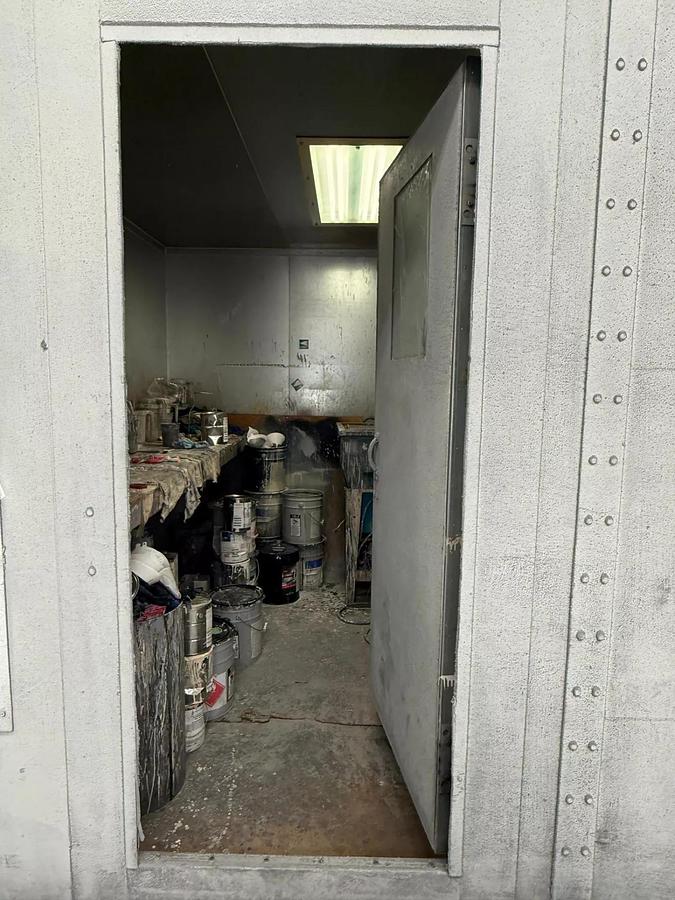

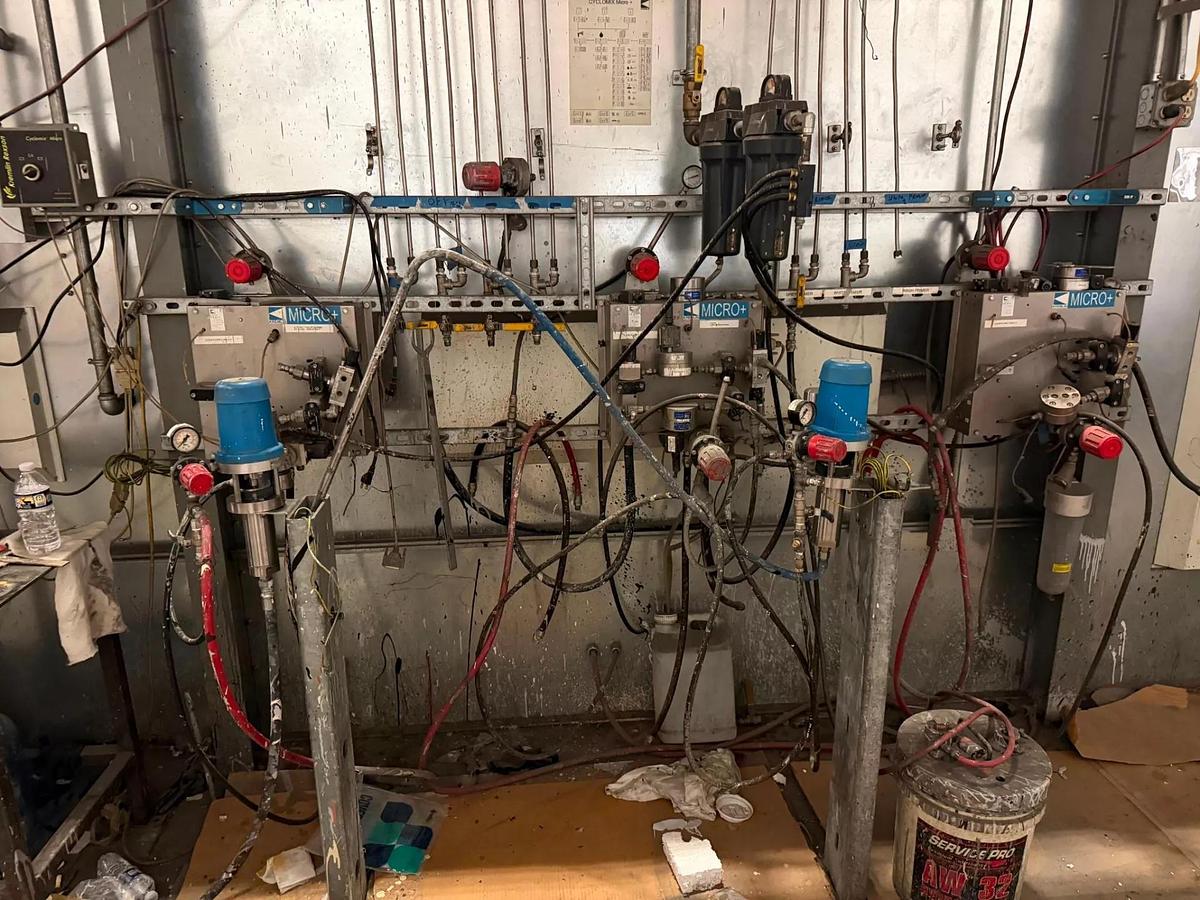

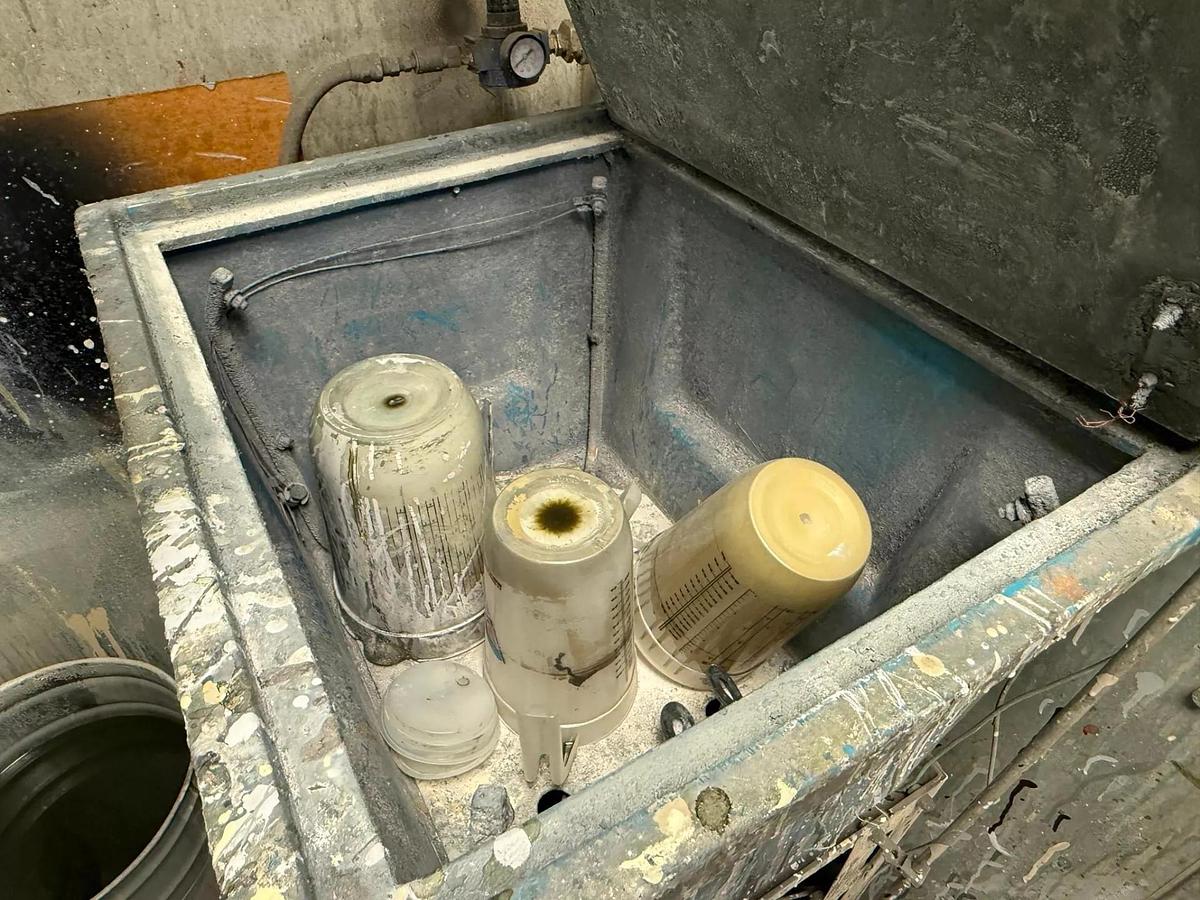

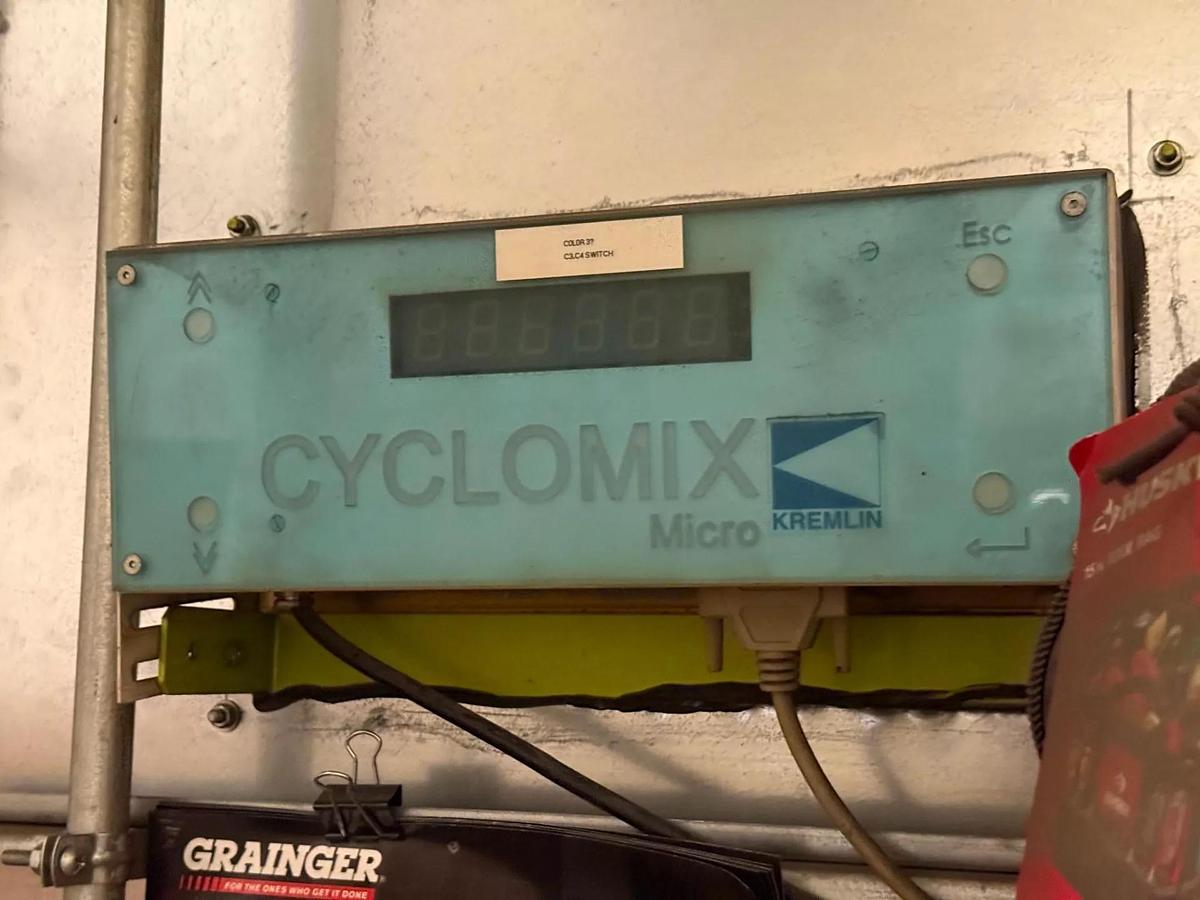

ATTACHED PAINT MIXING ROOM:

MODEL: MRG-090806-N-S

EXHAUST FAN:

CFM: 949

STATIC PRESSURE: 1/2

HORSEPOWER: 1/2

VOLTAGE: 120

PHASE: 1

LIGHTS:

SIZE: 48

TUBES: 4

TYPE: FLUORESCENT

VOLTAGE: 120/277

RATING: CLASS 1 DIV.2

MAN ACCESS DOOR:

SIZE: 3'W X 7'H

TYPE: W/OBS

ELECTRICAL INFO:

OPERATING VOLTAGE: 120V, 1PH, 2W, 60HZ

FULL LOAD AMPS: 11

LARGEST MOTOR HP: 1/2

TOTAL HP: 1/2

LIGHTING VOLTAGE: 120V

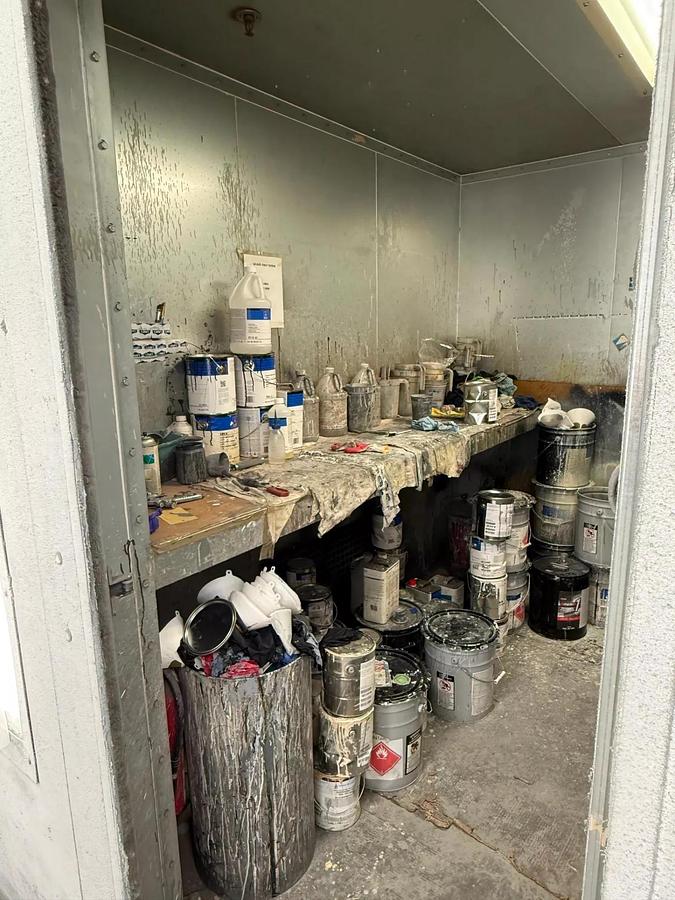

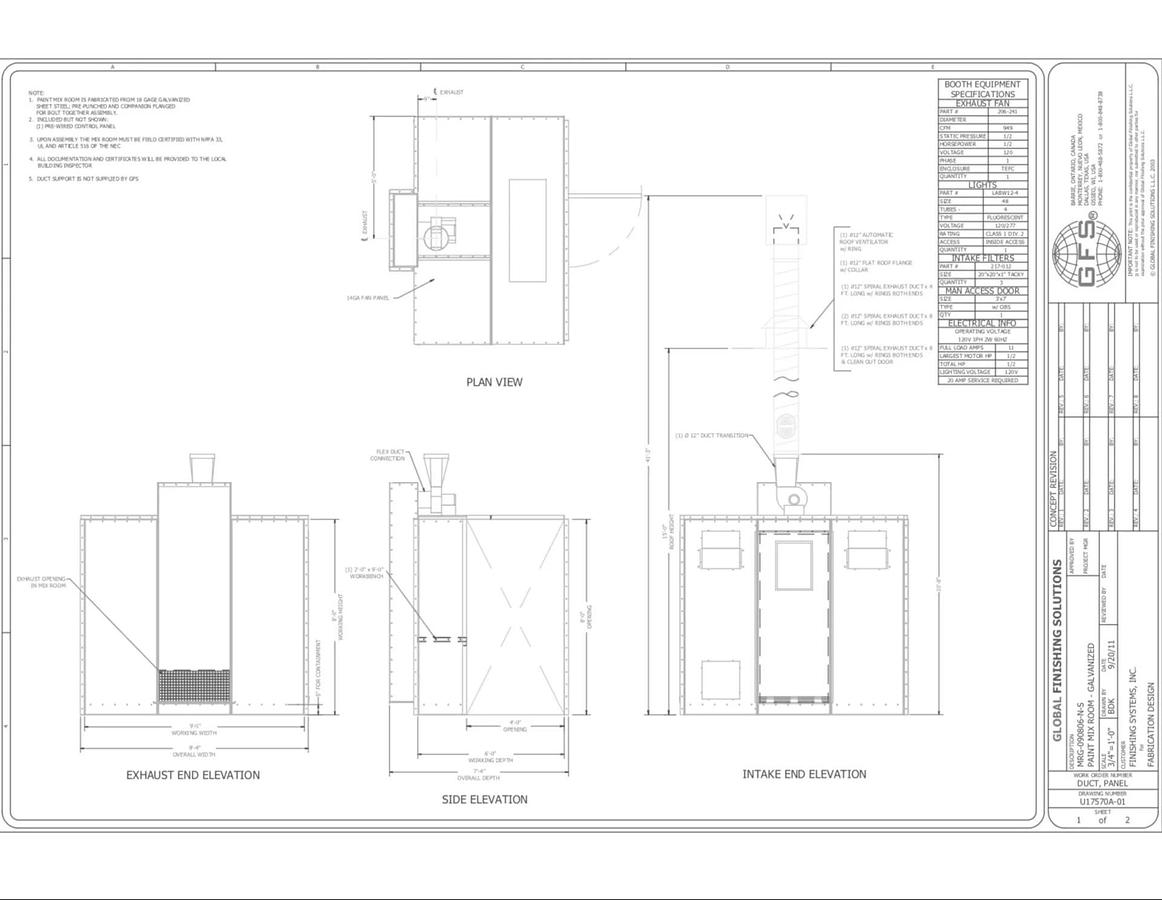

MIXING ROOM DIMENSIONS:

WORKING DIMENSIONS:

9'W X 6'D X 8'H

OVERALL DIMENSIONS:

9'-4"W X 7'-4"D X 10'-8"H (WITH DUCT TRANSITION)

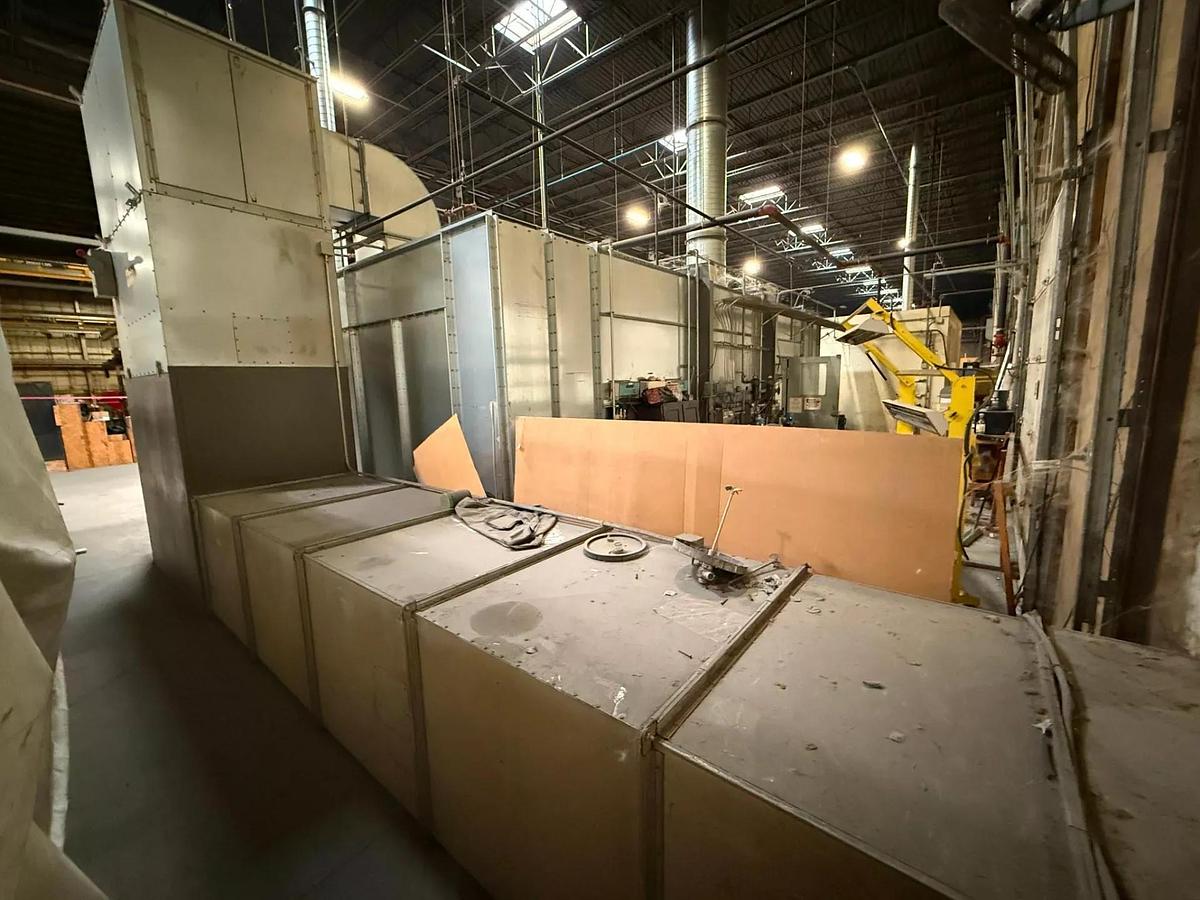

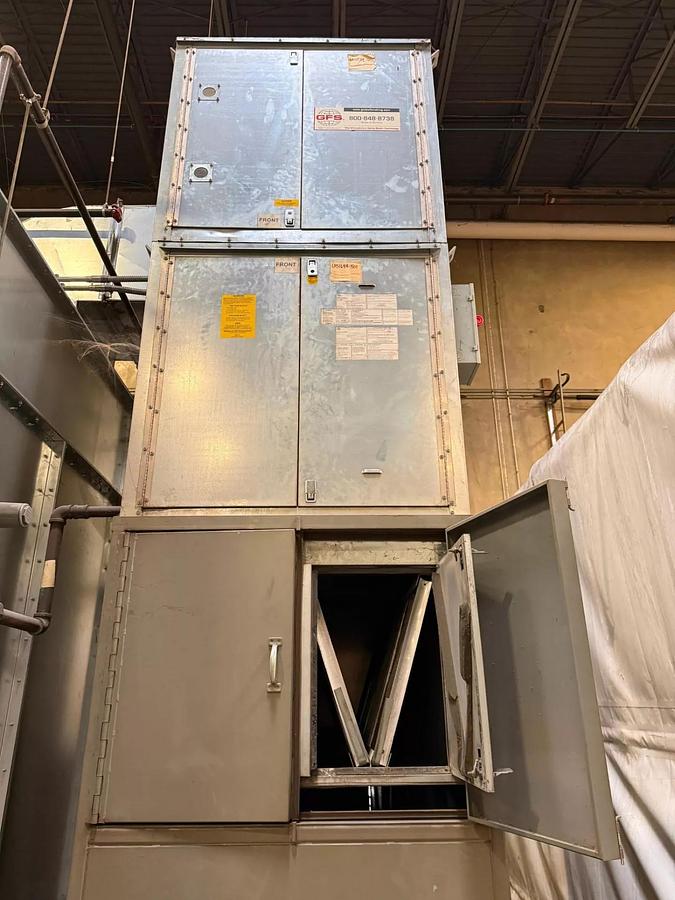

VERTICAL INDUSTRIAL HEATER WITH 36" BURNER AND 22" BLOWER:

SUPPLY MOTOR:

MODEL: 01518OP3E254T

15HP, 3PH, 460V, 18.7 FLA, ODP (OPEN DRIP PROOF)

SUPPLY MOTOR PULLEYS:

BELT:

QTY: 2

BROWNING NO.: BX74

BLOWER PULLEY:

QTY: 1

BROWNING NO.: 2B5V136

MOTOR PULLEY:

QTY: 1

BROWNING NO.: 2VP60 X 1-5/8"

TURN OUT: 3

BURNER:

MIN. OUTPUT BTU: 57,000 BTU/HR

MAX. OUTPUT BTU: 1,710,000 BTU/HR

SIZE: 36"L

GAS TYPE: NATURAL

SUPPLY PERFORMANCE:

VOLUME: 16000 CFM

RPM: 675

TS: 3888 FT/MIN

SP: 0.84" W.G. (0.750" EXT. + 0.09" INT.)

BHP: 10.062

ALTITUDE: 92', WINTER TEMP.: -20ºF

OPUTPUT BTU: 1555200, TEMP. RISE: 90ºF

INPUT BTU: 1690435

BLOWER:

ENAMEL FINISH

PILLOW BLOCK BEARING

7000-20000 CFM

40 MAX. BHP

2-3/16" X 49" SHAFT

950 MAX. RPM

VERTICAL BURNER, BLOWER, INTAKE AND VENT CLEARANCE:

CLEARANCE HEIGHT:14'-8"

ALSO INCLUDES:

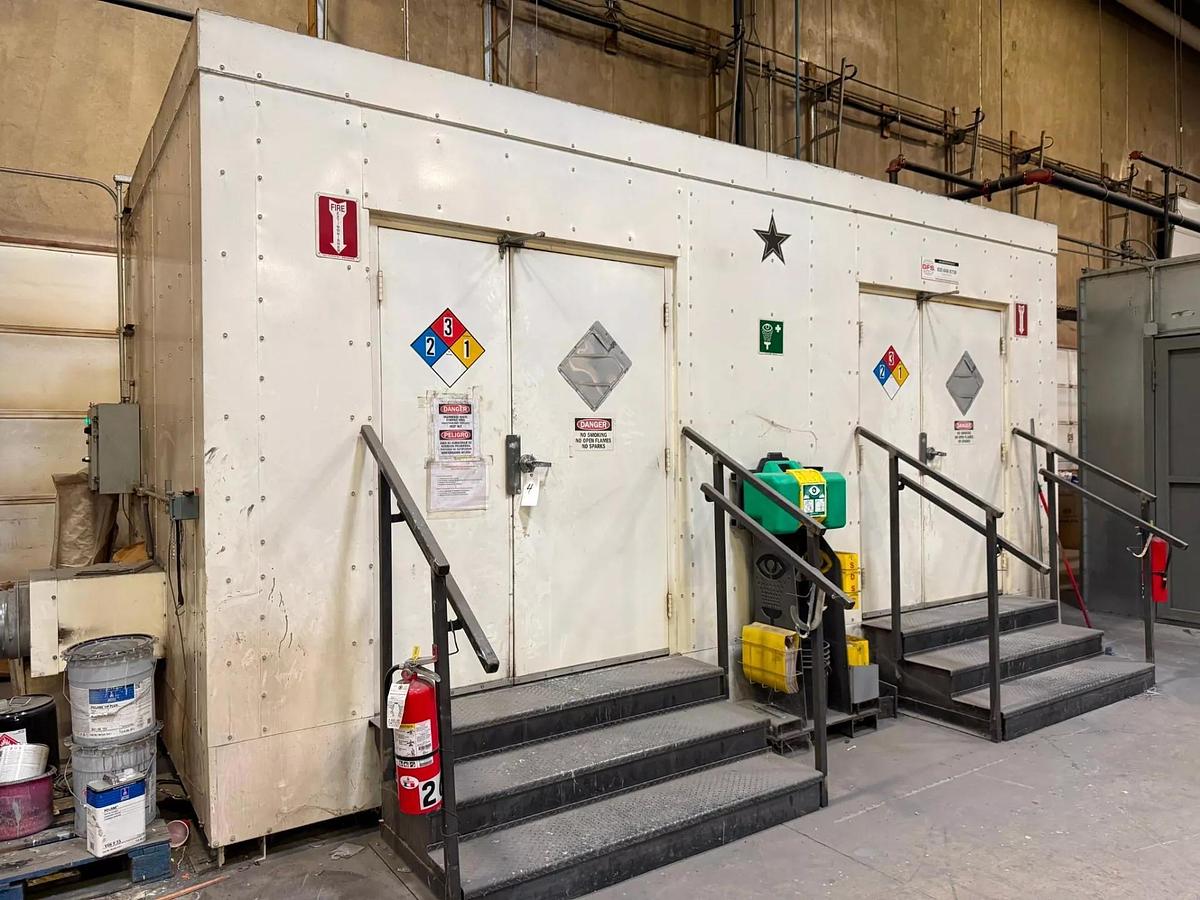

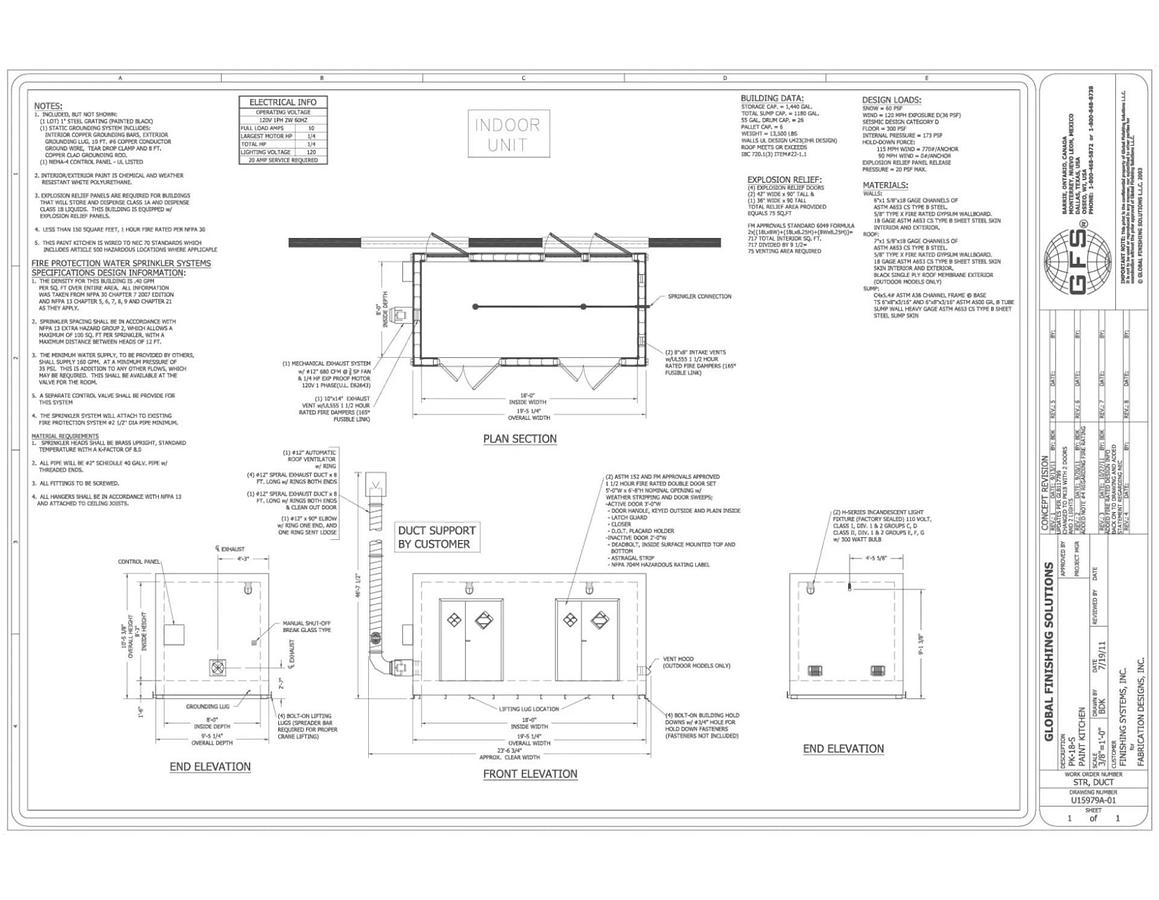

2011 GFS PAINT KITCHEN CONTAINER MODEL PK-18-S (INDOOR UNIT)

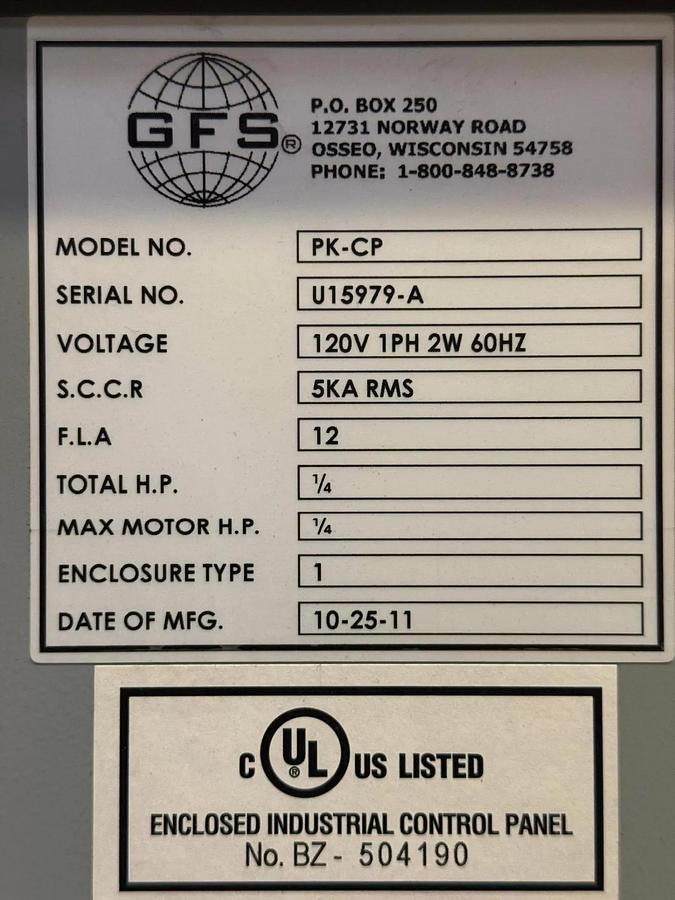

SN: U15979-A

MODEL: PK-CP / PK-18-S

ELECTRICAL INFORMATION:

OPERATING VOLTAGE: 120V, 1PH, 2W, 60HZ

FULL LOAD AMPS: 10

LARGEST MOTOR HP: 1/4

TOTAL HP: 1/4

LIGHTING VOLTAGE: 120

BUILDING DATA:

STORAGE CAP.: 1,440 GAL

TOTAL SUMP CAP.: 1180 GAL

55 GAL DRUM CAP: 26

PALLET CAP.: 6

WEIGHT: 13,500 LBS

EXPLOSION RELIEF:

4X EXPLOSION RELIEF DOORS:

2X DOORS: 42"W X 90"T

2X DOORS: 36"W X 90"T

TOTAL RELIEF AREA PROVIDED: 75 SQ.FT

DESIGN LOADS:

SNOW: 60PSF

WIND: 120 MPH EXPOSURE D (36 PSF)

SEISMIC DESIGN CATEGORY D

FLOOR: 300 PSF

INTERNAL PRESSURE: 173 PSF

HOLD DOWN FORCE:

115 MPH WIND: 770#/ANCHOR

90 MPH WIND: 0#/ANCHOR

EXPLOSION RELIEF PANEL RELEASE

PRESSURE: 20 PSF MAX.

MATERIALS:

WALLS:

6" X 1-5/8" X 18 GAGE CHANNELS OF ASTM A653 CS TYPE B STEEL

5/8" TYPE X FIRE RATED GYPSUM WALLBOARD

18 GAGE ASTM A653 CS TYPE B SHEET STEEL SKIN INTERIOR AND EXTERIOR

ROOF:

7" X 1-5/8" X 18 GAGE CHANNELS OF ASTM A653 CS TYPE B STEEL

5/8" TYPE X FIRE RATED GYPSUM WALLBOARD

18 GAGE ASTM A653 CS TYPE B SHEET STEEL SKIN INTERIOR AND EXTERIOR

BLACK SINGLE PLY ROOF MEMBRANE EXTERIOR (OUTDOOR MODELS ONLY)

SUMP:

C4 X 5.4# ASTM A36 CHANNEL FRAME @ BASE

TS 6' X 8" X 3/16" AND 6" X 8" X 3/16" ASTM A500 GR. B TUBE SUMP WALL

HEAVY GAGE ASTM A653 CS TYPE B SHEET STEEL SUMP SKIN

DOORS:

2X ASTM 152 AND FM APPROVALS APPROVED

1-1/2HR FIRE RATED DOUBLE DOOR SET

5'W X 6'-8"H NOMINAL OPENING W/ WEATHER STRIPPING AND DOOR SWEEPS

ACTIVE DOOR 3'W:

DOOR HANDLE KEYED OUTSIDE AND PLAIN INSIDE

LATCH GUARD

CLOSER

INACTIVE DOOR 2'W:

DEADBOLT INSIDE, SURFACED MOUNTED TOP AND BOTTOM

ASTRAGAL STRIP

PAINT KITCHEN MEASUREMENTS:

INSIDE DIMENSIONS:

18'W X 8'D X 8'-3"H

OVERALL DIMENSIONS:

19'-5 -1/4"W X 9'-5-1/4"D X 10'-5-3/8"H
