Contrx A-Series 1-Ton Heavy-Duty Jib Crane & Coffing Electric Hoist | 16' Span x 14' HUB

Complete 1-Ton Lifting Cell: Contrx A-Series Jib & Coffing Electric Hoist

This professional-grade, "turn-key" lifting solution features a Contrx A-Series Heavy-Duty Jib Crane paired with a Coffing 1-Ton Electric Chain Hoist. The A-Series is Contrx’s premier floor-mounted line, engineered for high-duty cycles with a "boxed" head assembly and adjustable lower rollers that ensure the boom remains level and easy to rotate under full load.

With a massive 16' span, this crane provides over 800 square feet of circular work coverage, making it an ideal choice for large-scale fabrication, machine loading, or serving multiple weld cells from a single pivot point.

Technical Specifications

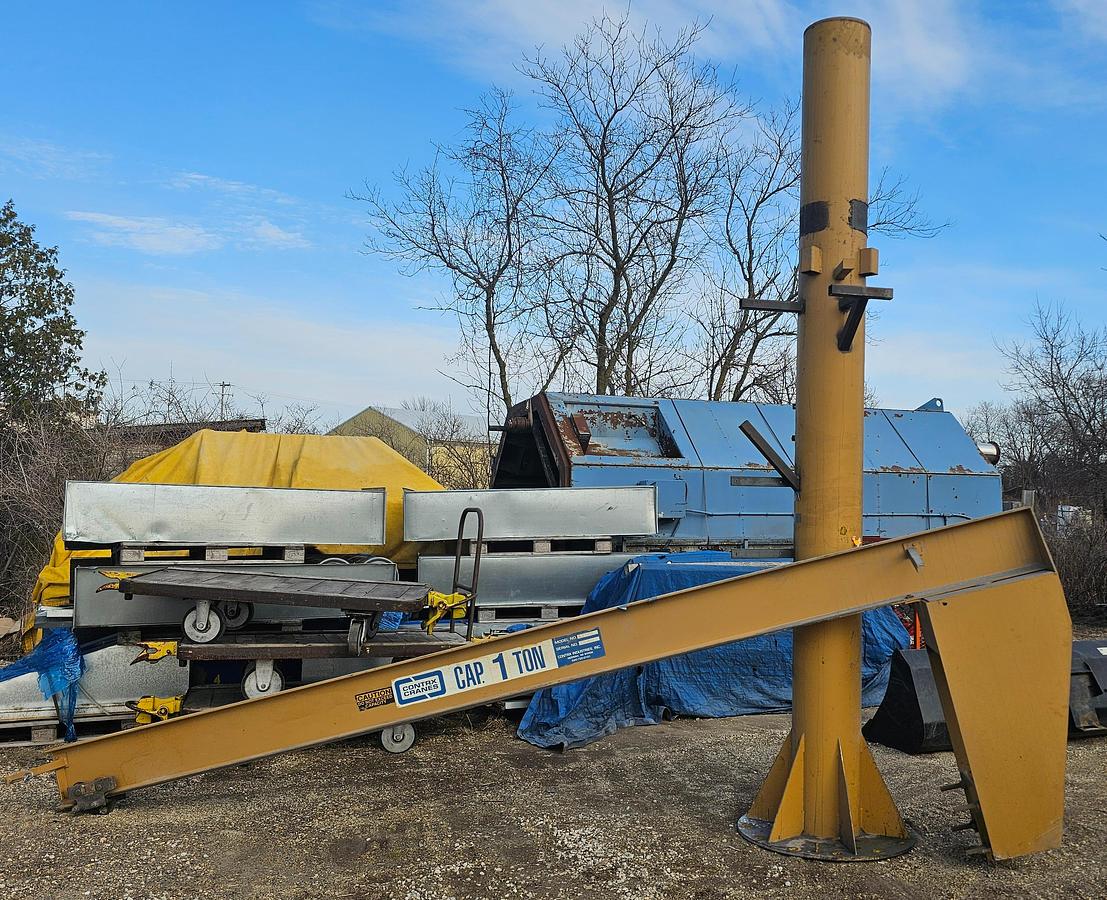

Contrx A-Series Jib Crane

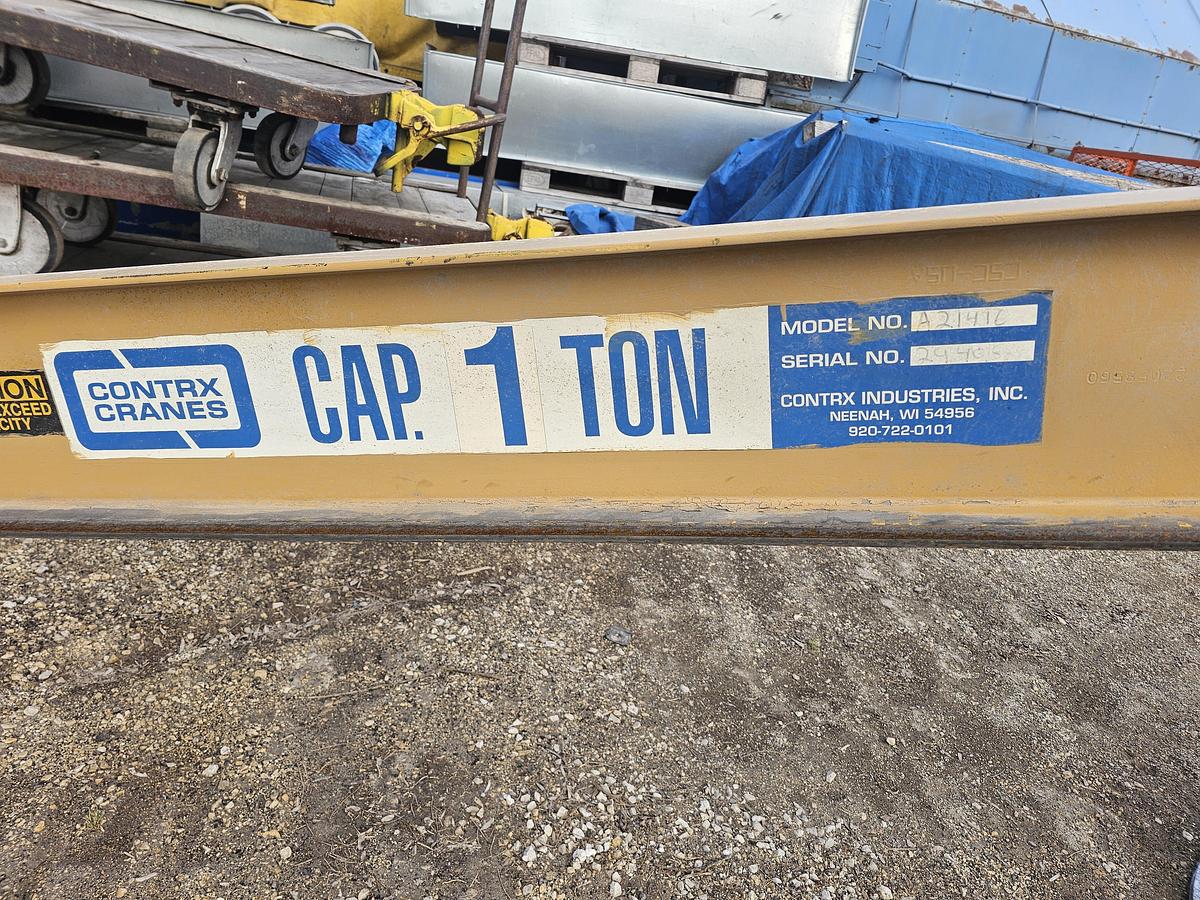

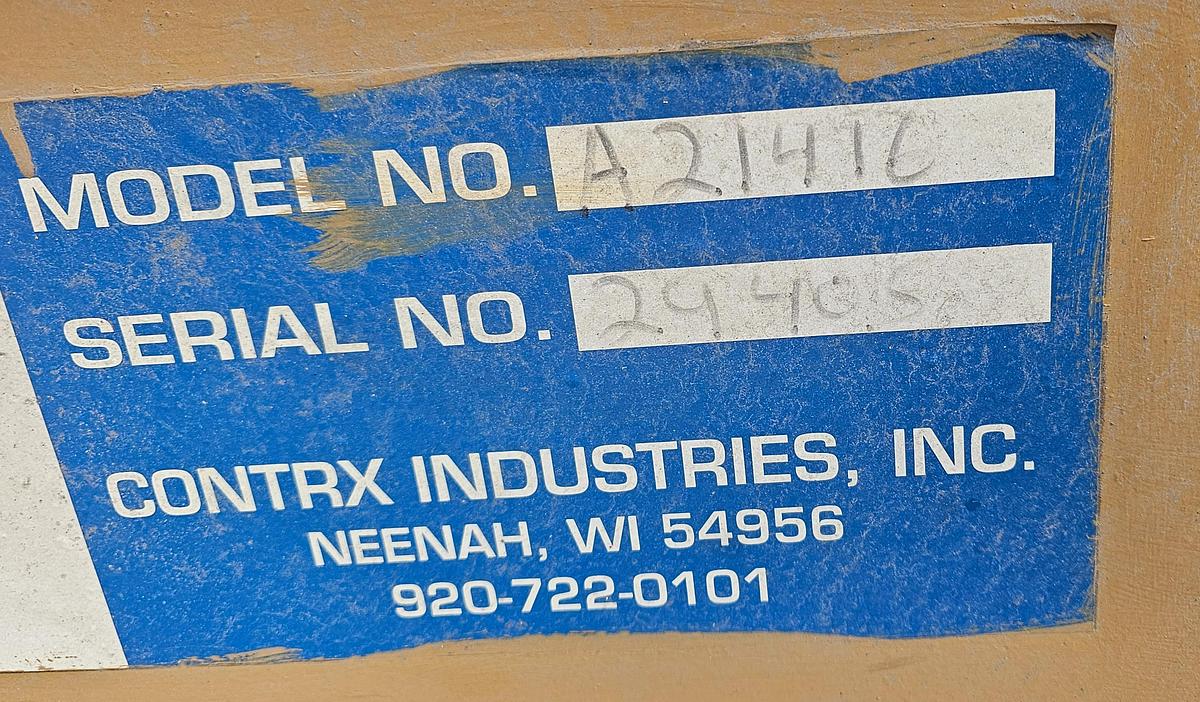

• Model: A21416
• Capacity: 1 Ton (2,000 lbs)

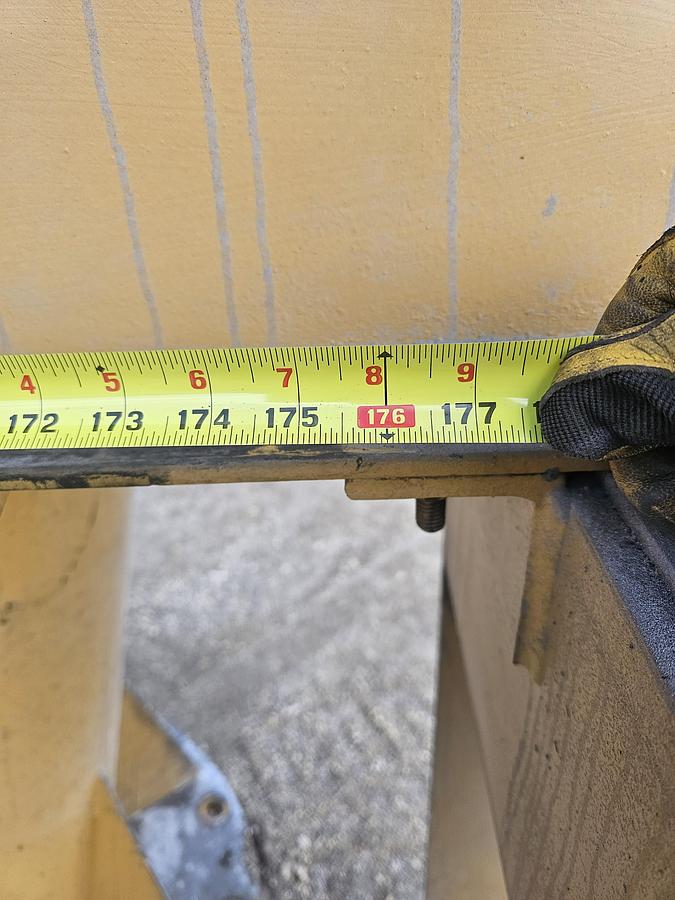

• Span (Boom Length): 16'

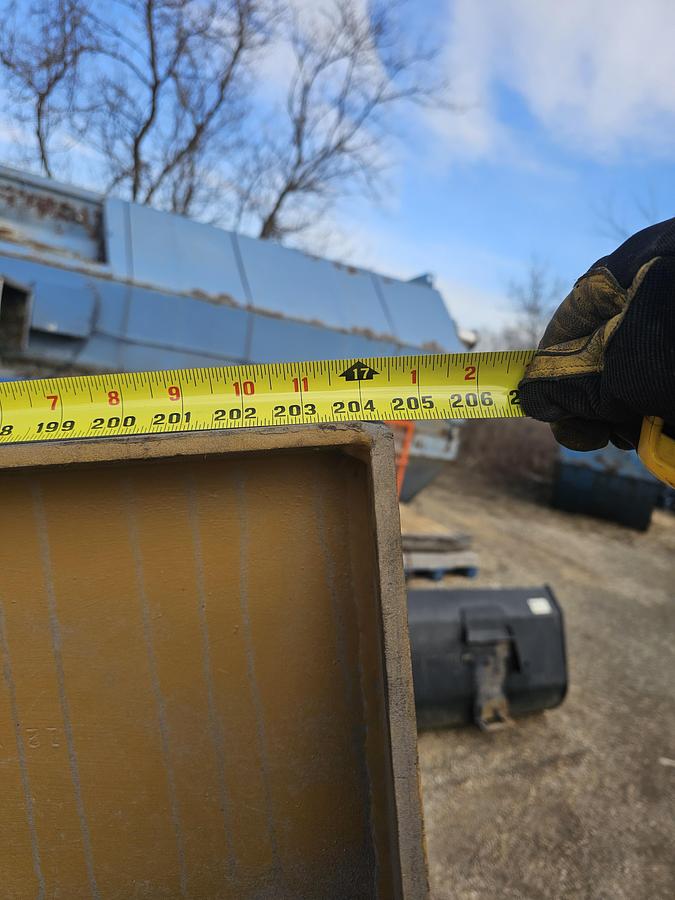

• Height Under Beam (HUB): 14'
• Rotation: 360° Manual
• Head Assembly: Heavy-duty boxed design with adjustable tension bolts for field leveling.

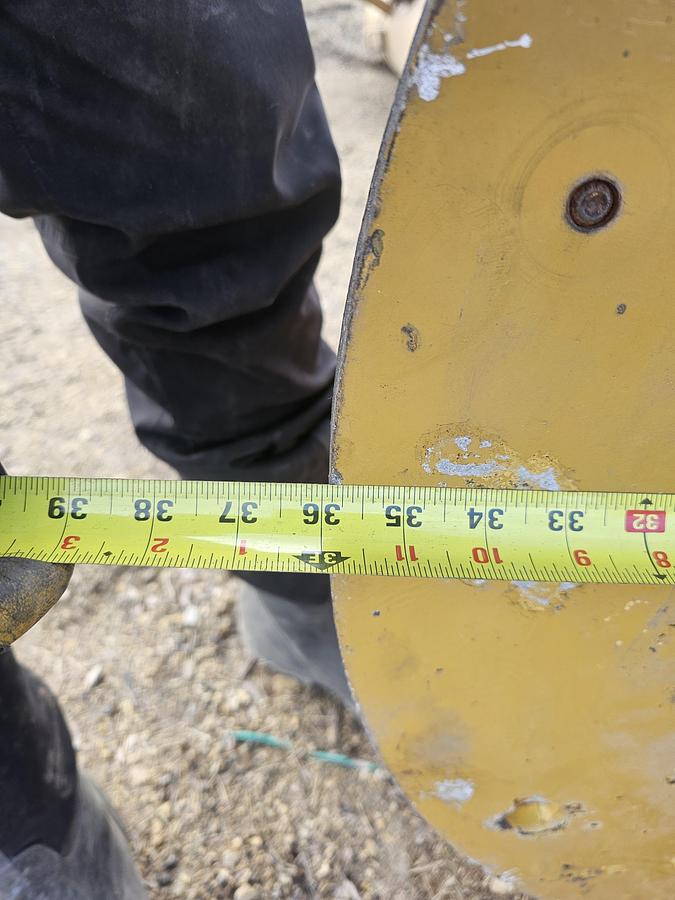

• Mast: Heavy-wall structural steel pipe with reinforced base plate gussets.
• Finish: Industrial Safety Yellow.

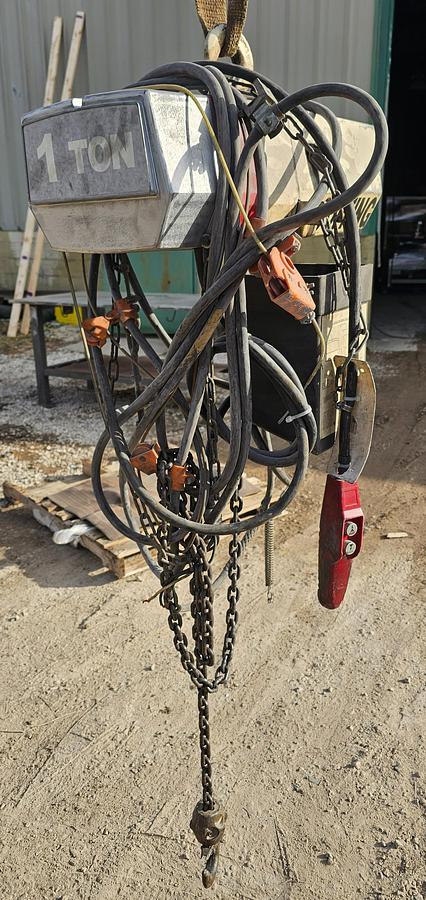

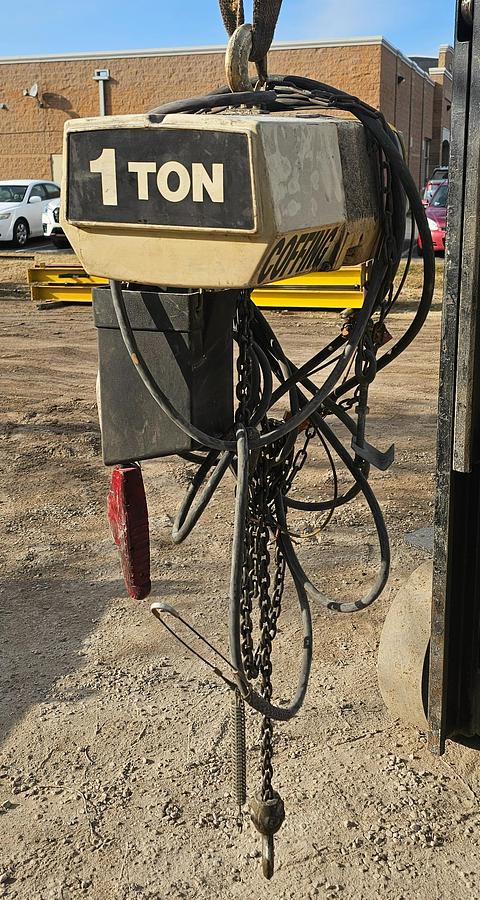

Coffing 1-Ton Electric Hoist

• Brand/Model: Coffing JLC Series (Industry Standard)
• Capacity: 1 Ton (2,000 lbs)
• Lifting Speed: 16 FPM (Standard)

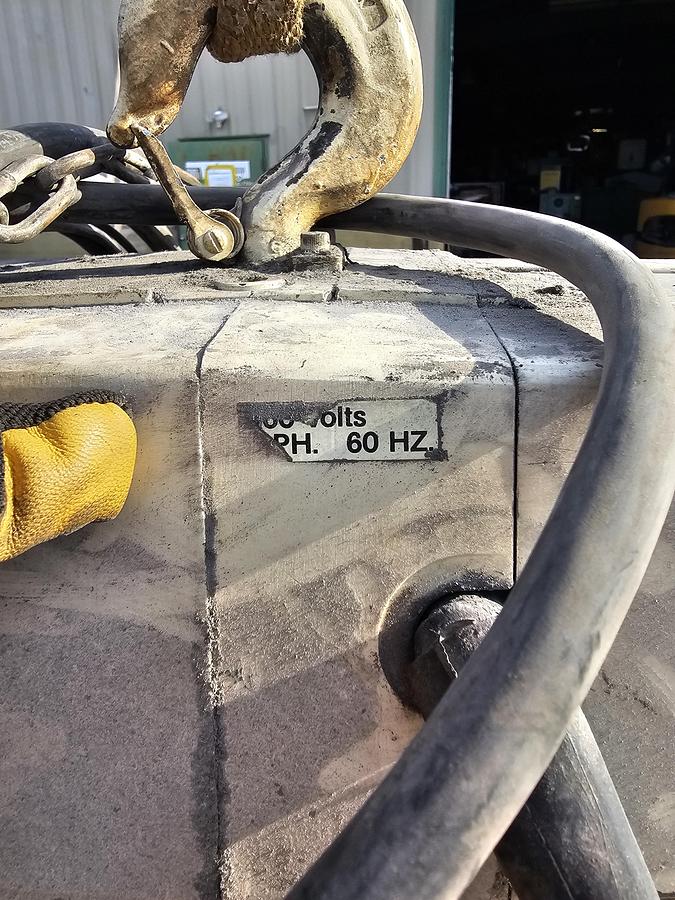

• Power: Industrial 3-Phase (460V)

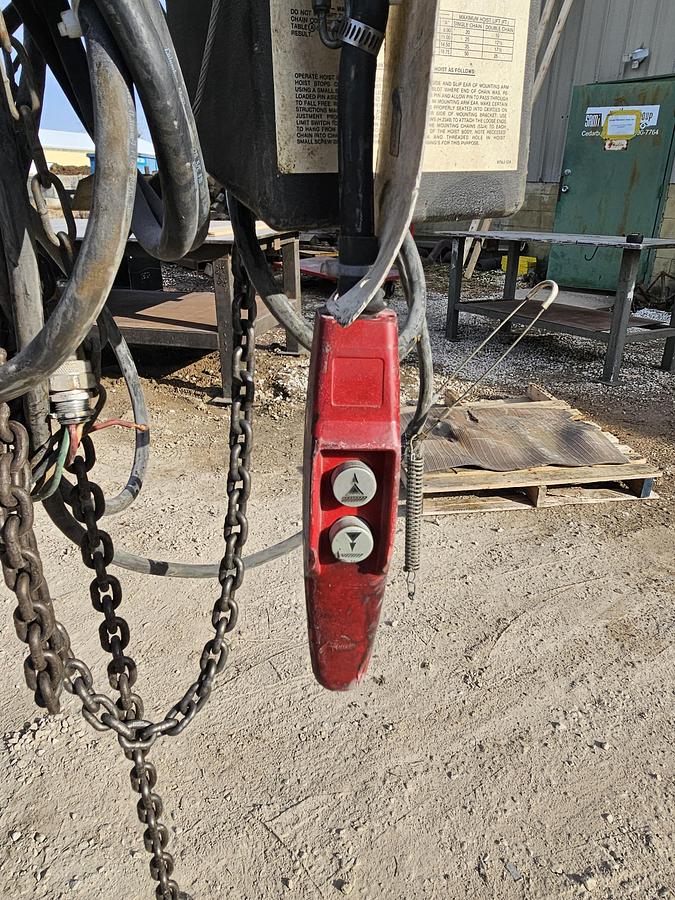

• Control: 4-button ergonomic pendant station.
• Safety Features: Mechanical overload clutch and multiple-disc motor brake for precise load spotting.
• Accessories: Includes chain container and heavy-duty trolley.
