2023 Waukesha Cherry-Burrell 220-U2 Sanitary Pump | 4" Port | Stainless Steel

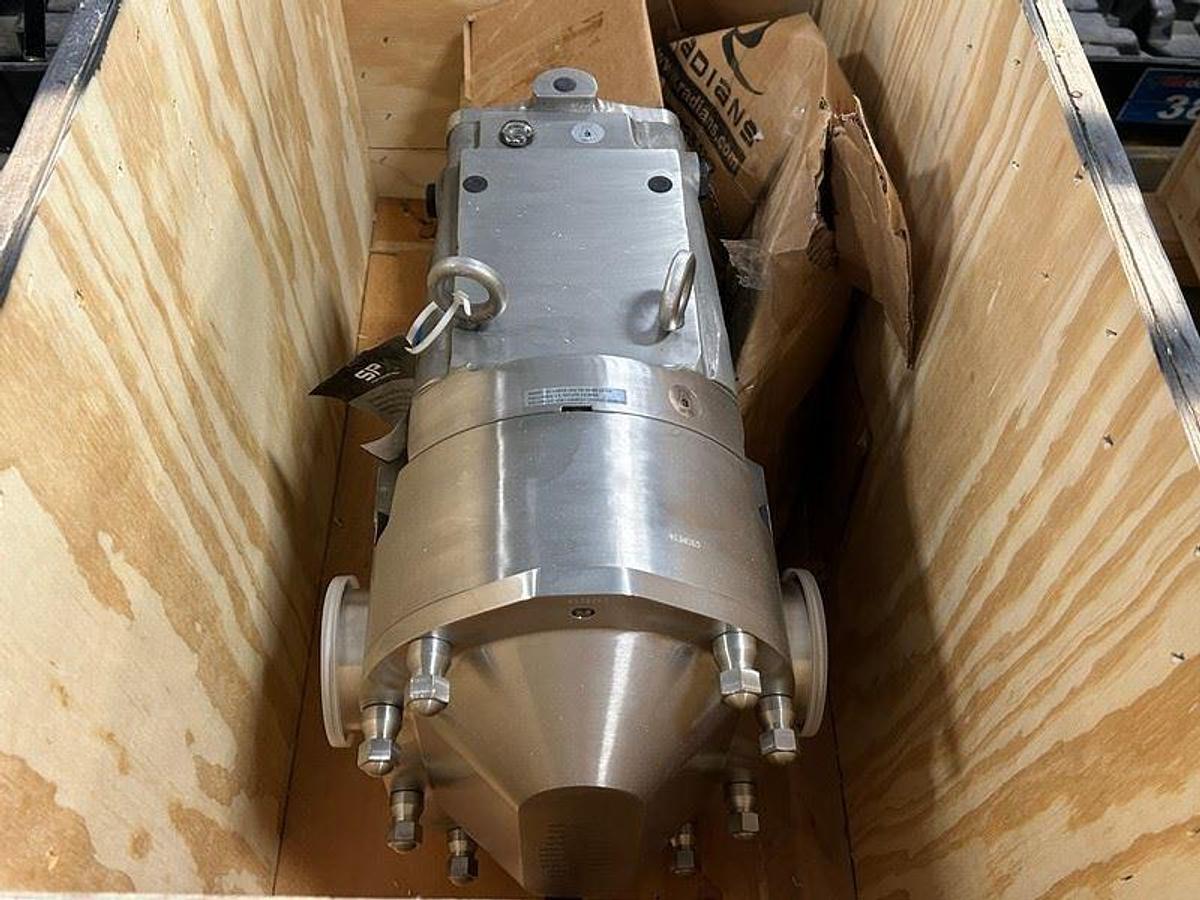

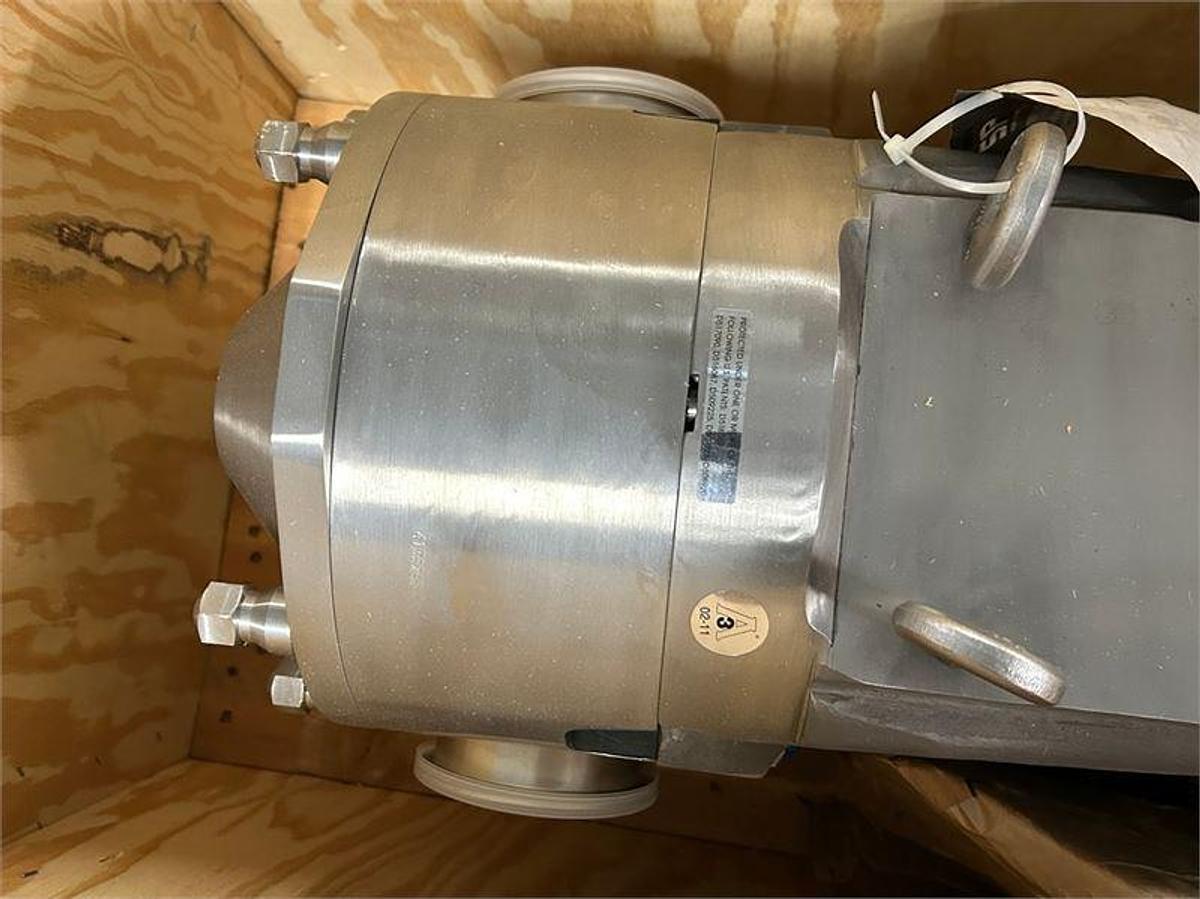

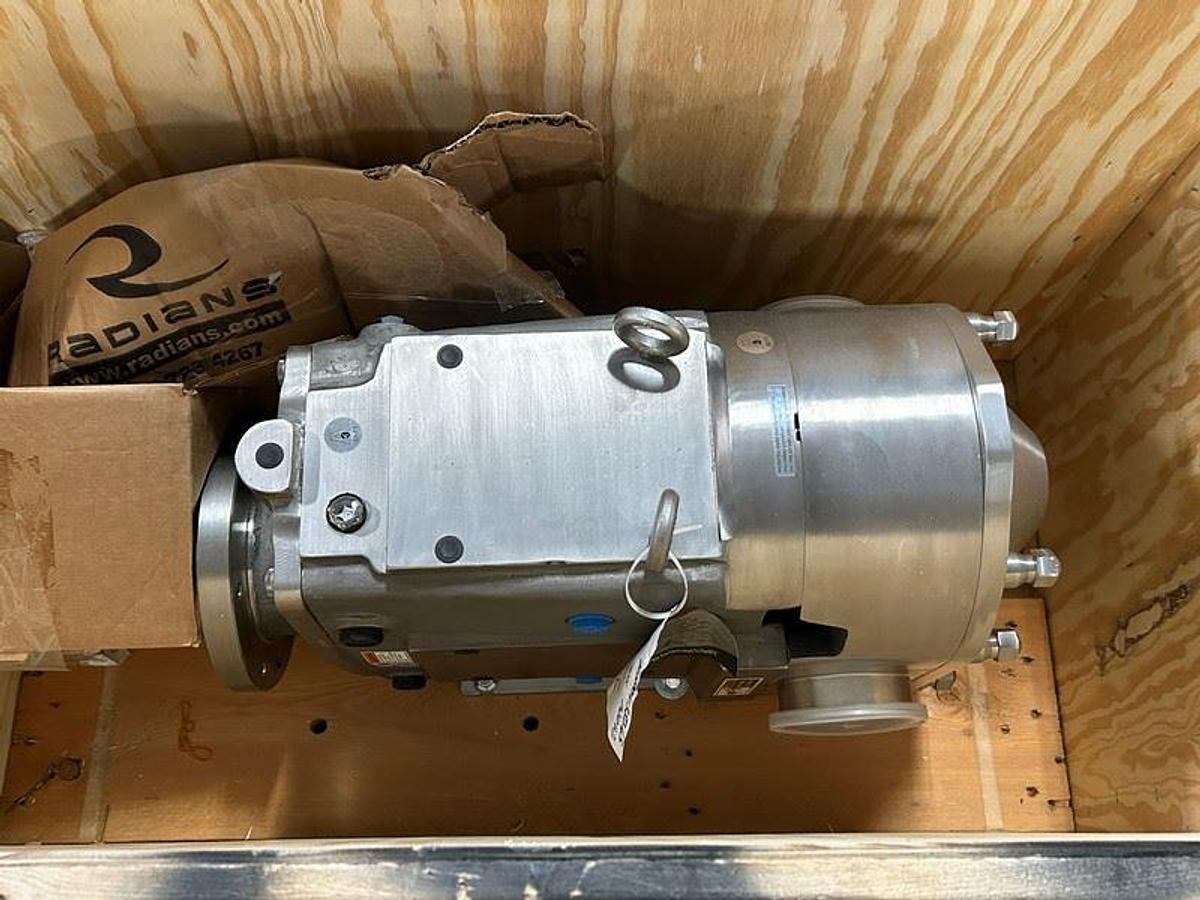

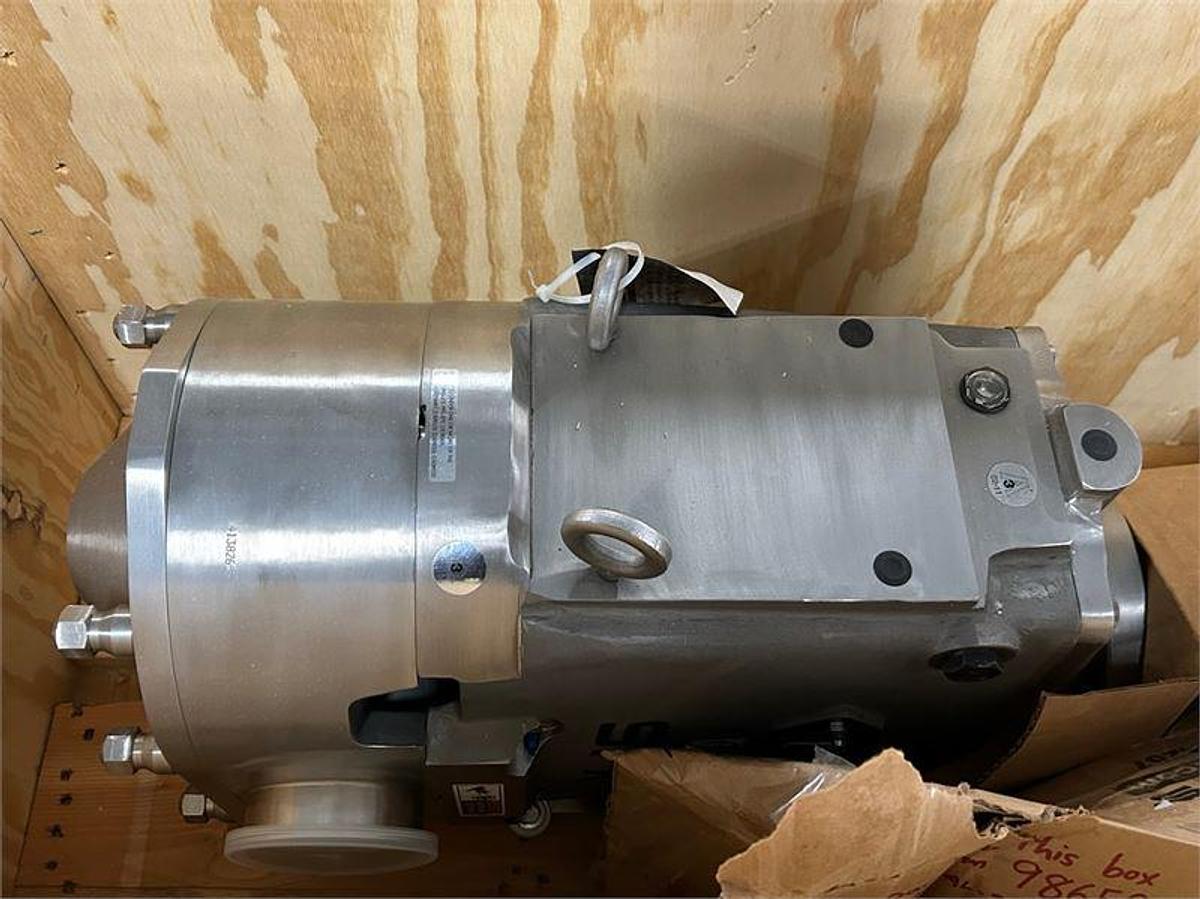

NEW OLD STOCK (NOS) 2023 Waukesha Cherry-Burrell 220-U2 Pump

Take advantage of "New-in-Box" quality without the factory lead time. This Waukesha Cherry-Burrell 220-U2 was manufactured in 2023 and has remained in climate-controlled storage as a "New Old Stock" unit. It has never been put into service, never seen product, and is in pristine mechanical and cosmetic condition.

The Universal 2 (U2) series is the industry benchmark for sanitary positive displacement pumps, specifically designed for Clean-In-Place (CIP) efficiency and high-pressure reliability.

Technical Specifications

Model: 220-U2 (Universal 2 Series)

Condition: New Old Stock (NOS)

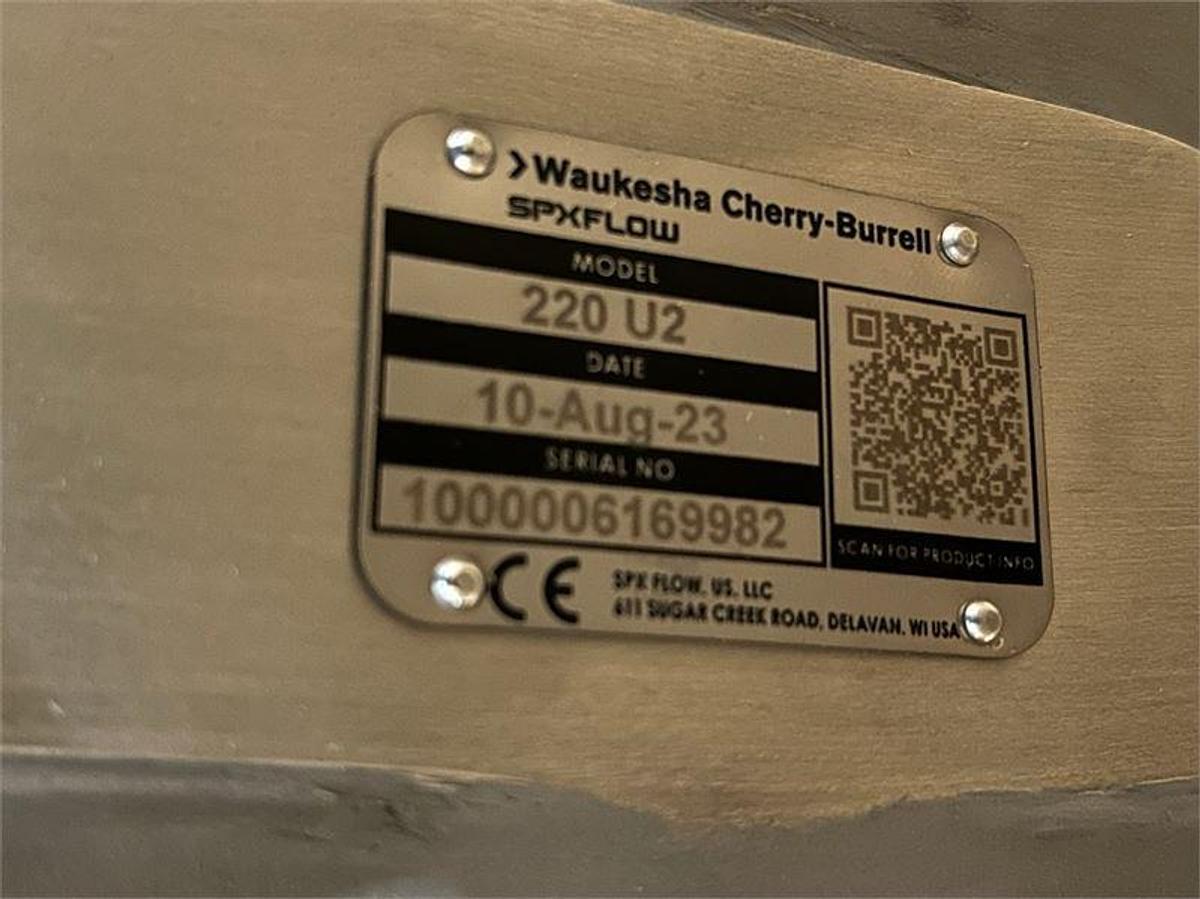

Year of Manufacture: 2023

Flow Capacity: Up to 310 GPM (1,173 LPM)

Displacement per Revolution: 0.521 Gallons (1.97 Liters)

Maximum Pressure: Up to 300 PSI (20.7 bar)

Port Size: 4" S-Line (Tri-Clamp) connections

Materials: 316 Stainless Steel Body and Cover

Shafts: High-strength 17-4 PH Stainless Steel

Rotors: Non-galling Waukesha "88" Alloy

Premium Features

Unused Condition: All internal clearances are at original factory specifications; rotors and body are free of any wear, pitting, or scratches.

Superior CIP Design: Internal O-ring seals prevent product from entering shaft splines—no manual teardown required for cleaning.

Heavy-Duty Construction: Rated for higher operating pressures (up to 300 PSI) than the standard U1 series, making it ideal for high-viscosity fluids and long piping runs.

Non-Galling Technology: Proprietary Alloy 88 rotors allow the pump to handle temperature spikes and tight clearances without seizing.
