2008 Davi MCB 3030 4-Roll CNC Plate Roll | 10' x 5/8" | One-Pass Production

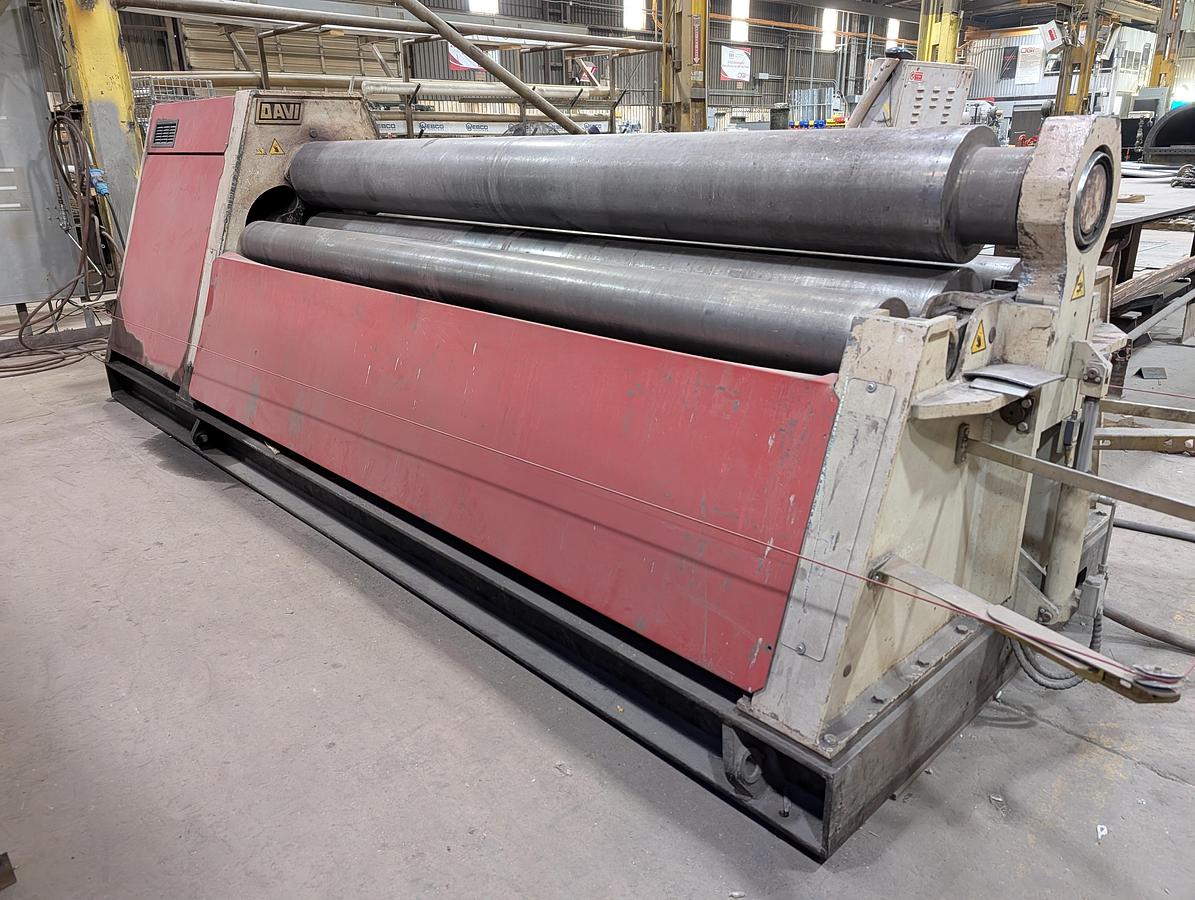

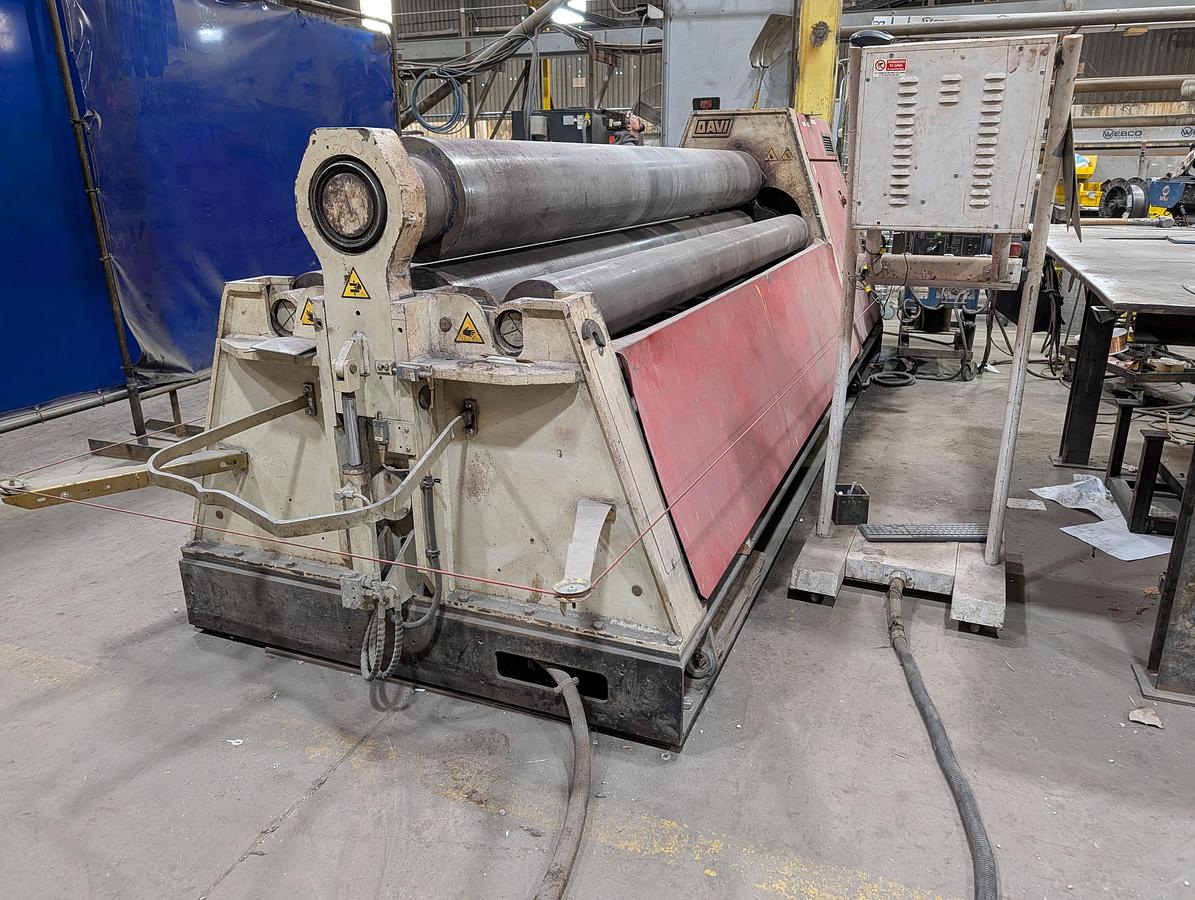

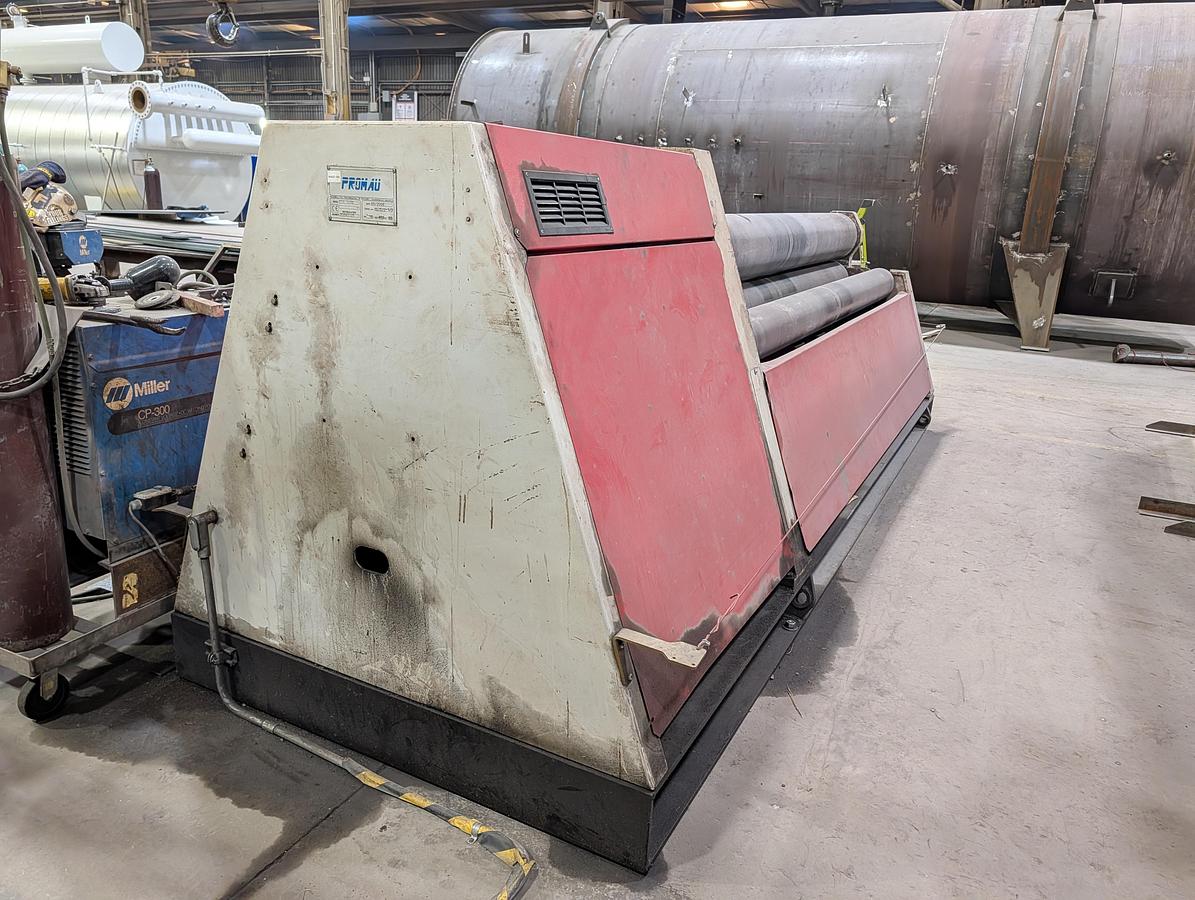

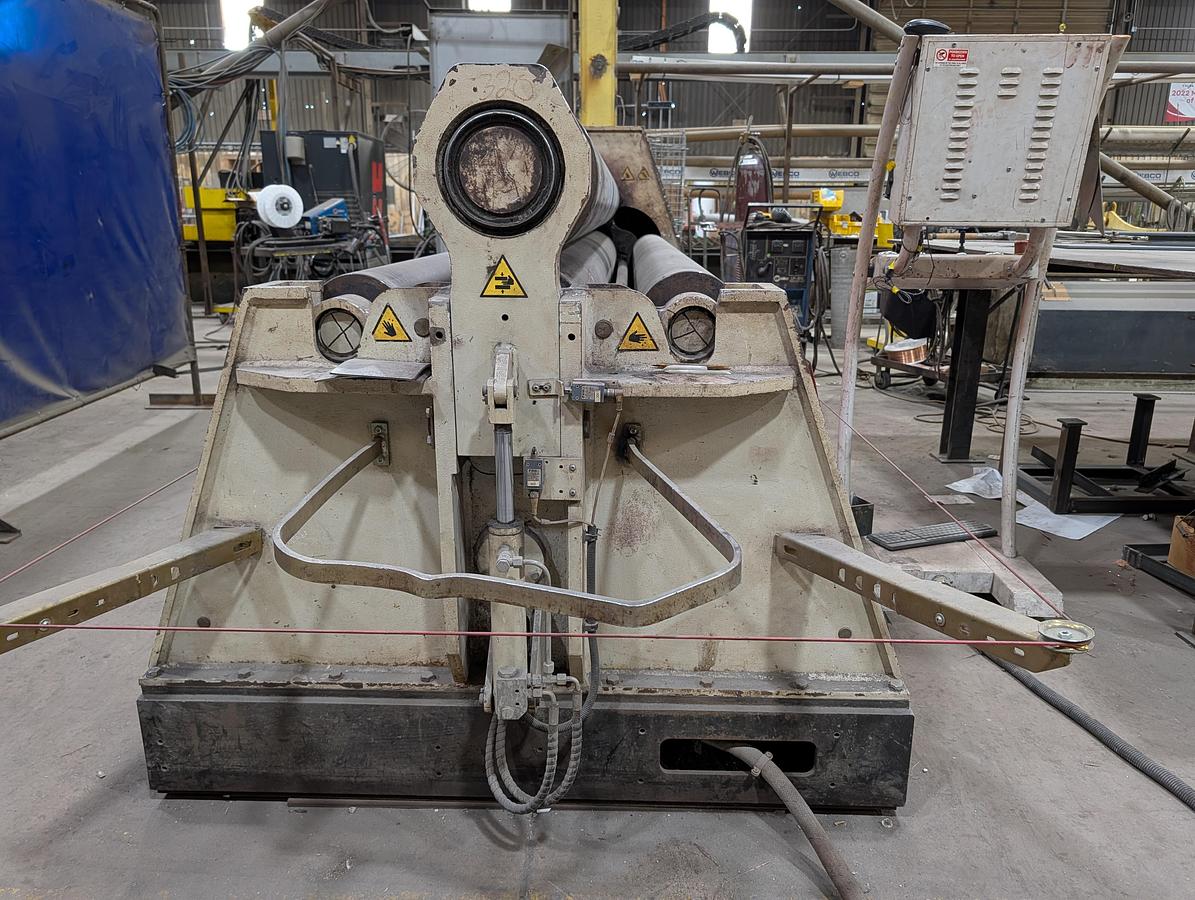

2008 Davi MCB 3030 4-Roll Hydraulic CNC Plate Roll

This 2008 Davi MCB 3030 is a high-performance, Italian-engineered 4-roll plate bending machine, designed for shops requiring precision, speed, and ease of use. As a 4-roll system, it allows for the most efficient "one-pass" rolling by pre-bending both ends of the plate without having to remove, flip, and re-insert the material.

Technical Specifications

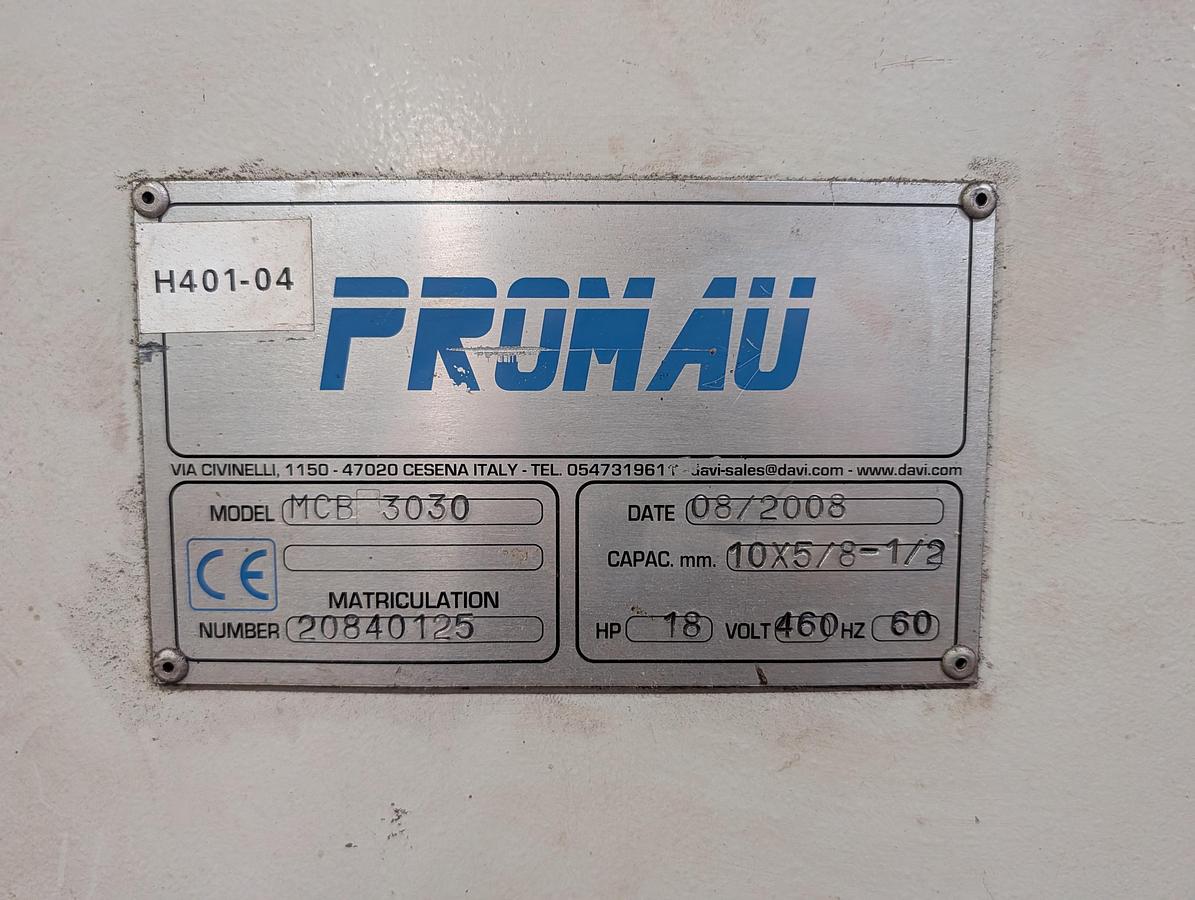

• Manufacturer: Davi (Promau S.r.l.)
• Model: MCB 3030
• Year: 2008
• Type: 4-Roll Double Pinch
• Rolling Width: 10' (3,100 mm)
• Bending Capacity: 5/8" (16 mm)
• Pre-Bending Capacity: 1/2" (13 mm)
• Top Roll Diameter: 12.5" (320 mm)

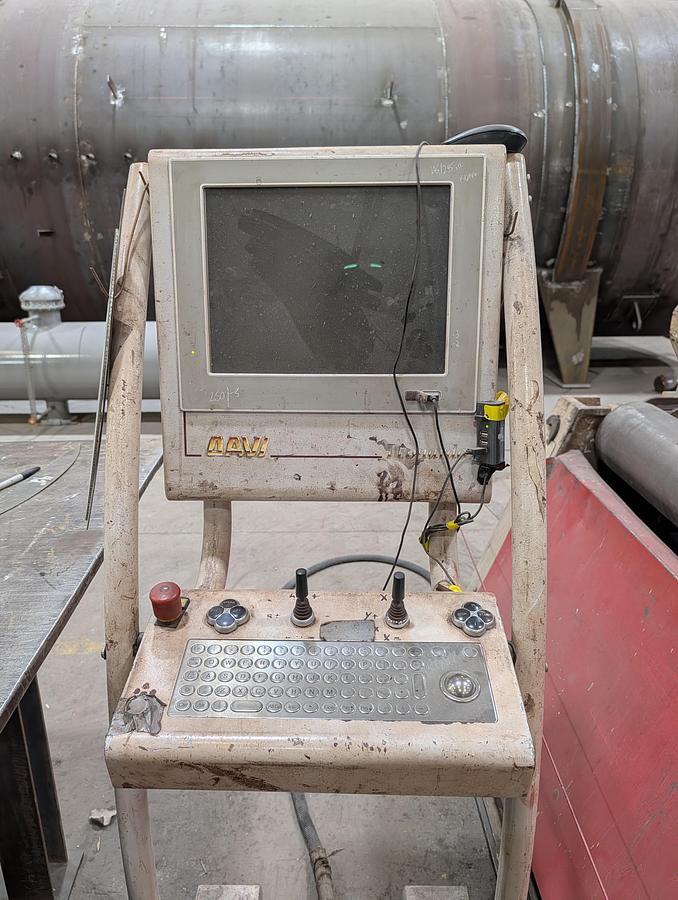

• Control System: Davi Easy PRO CNC
• Drive System: All-Hydraulic (Servo-Tronic Parallelism)

Key Performance Features

• Planetary Guide System: Davi’s friction-free pivoting arm technology allows for tighter diameters and eliminates the maintenance issues associated with traditional linear slides.
• Servo-Tronic Parallelism: Digital hydraulic control ensures the rolls stay perfectly parallel, even under maximum load, providing superior accuracy over mechanical torsion bars.
• One-Pass Productivity: The 4-roll design holds the plate securely between the top and pinch rolls, allowing the side rolls to perform precise pre-bending and rolling in a single sequence.
• Permanent Lubrication: Features high-load sealed bearings that require no daily greasing, maximizing uptime in high-volume production environments.
• Operational Video Available - Will be moved to storage by end of month.
