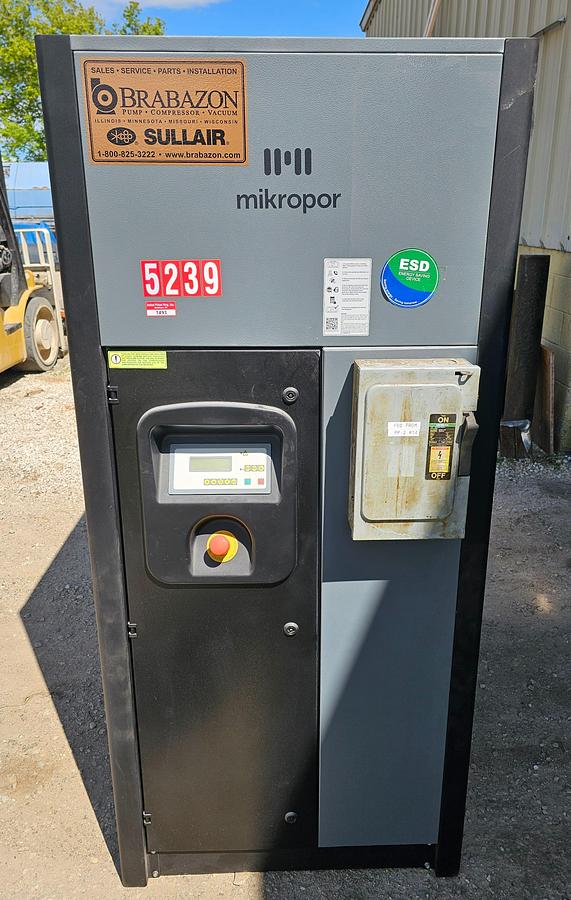

2024 Mikropor America MKUS-900-GON 900 CFM Cycling Air Dryer

Up for sale is a late-model, high-capacity 2024 Mikropor America Model MKUS-900-GON 900 CFM Digital Cycling Refrigerated Air Dryer. This modern, heavy-duty air treatment package is engineered to clean, condition, and remove moisture from high-volume plant compressed air systems, effectively protecting downstream production machinery, CNC centers, and automated pneumatic tooling from water damage.

Featuring an ultra-efficient 3-in-1 aluminum plate heat exchanger and Mikropor’s advanced ESD energy-saving digital controller, this 2024 unit delivers exceptional dew-point stability while drastically cutting power consumption during lower factory air demands. Skip the high capital costs and long factory lead times of a brand-new factory order with this work-ready, late-model industrial asset.

High-Value Key Features

• Integrated Dual-Filter Cabinet Design: Built with a factory pre-filter (1-micron water/particulate) and post-filter (0.01-micron oil coalescing) nested directly inside the cabinet frame. This "all-in-one" configuration saves thousands in external plumbing costs, cuts installation labor, and heavily reduces the physical footprint on the shop floor.

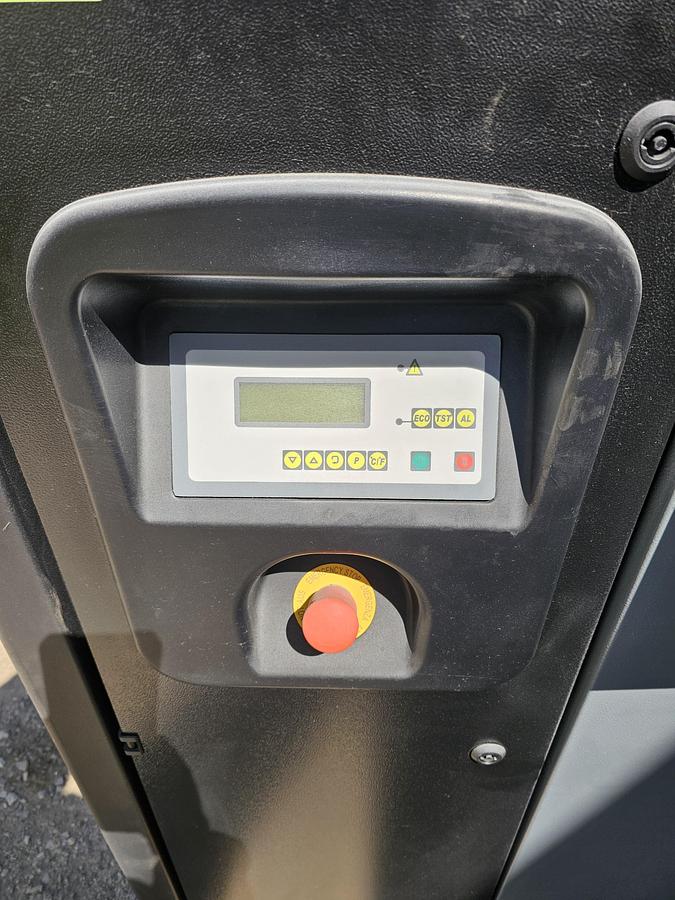

• Advanced ESD Digital Control Interface: Features a modern touch-pad digital interface providing real-time dew point monitoring, runtime tracking, automatic maintenance intervals, and smart alarm logging. The system automatically unloads or safely shuts down the cooling circuit when plant air flow drops, maximizing energy savings.
• Next-Gen Microchannel Condenser Technology: Outfitted with an advanced aluminum microchannel refrigerant condenser. This architecture allows for a lower overall refrigerant charge, minimizes air pressure drops across the dryer, and features a protective anti-corrosion coating for harsh industrial environments.
• Energy-Efficient Scroll Compressor: Equipped with a rugged industrial scroll compressor designed specifically to handle liquid refrigerant shocks while running at peak electrical efficiency compared to legacy reciprocating models.
• Zero-Clearance Service Access: Fastener-free side panels allow maintenance staff to pull the housing apart in seconds for rapid internal filter element swaps or drain cleaning, eliminating downtime during routine servicing.

Technical Specifications

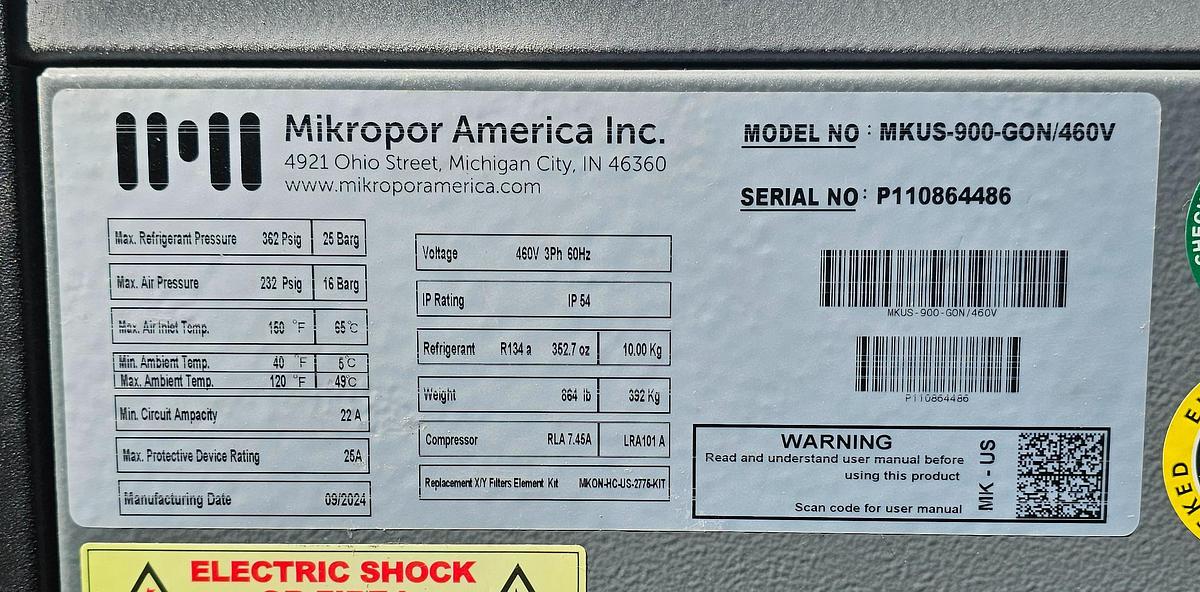

• Model Number: MKUS-900-GON/460V
• Serial Number: P110864486
• Year of Manufacture: 2024
• Flow Capacity: 900 SCFM
• Power Configuration: 460V / 3-Phase / 60Hz
• Refrigerant Type: Environmentally compliant R134a
• Nominal Working Pressure: 100 PSIG
• Maximum Working Pressure: 230 PSIG
• Maximum Inlet Air Temperature: 120°F (49°C)
• Maximum Ambient Temperature: 113°F (45°C)
• Condensate Removal: Integrated electronic zero-loss condensate drain valve

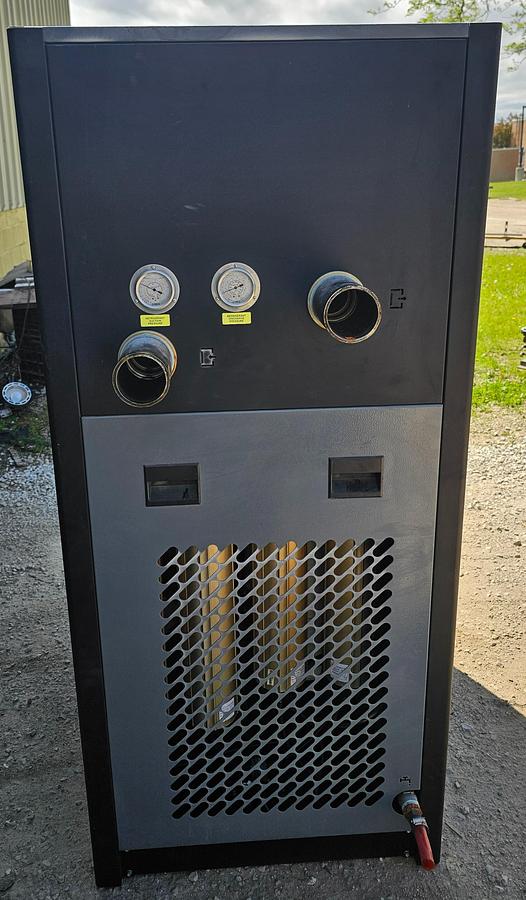

• Air Connections: Grooved piping fittings for quick, leak-free facility connection
