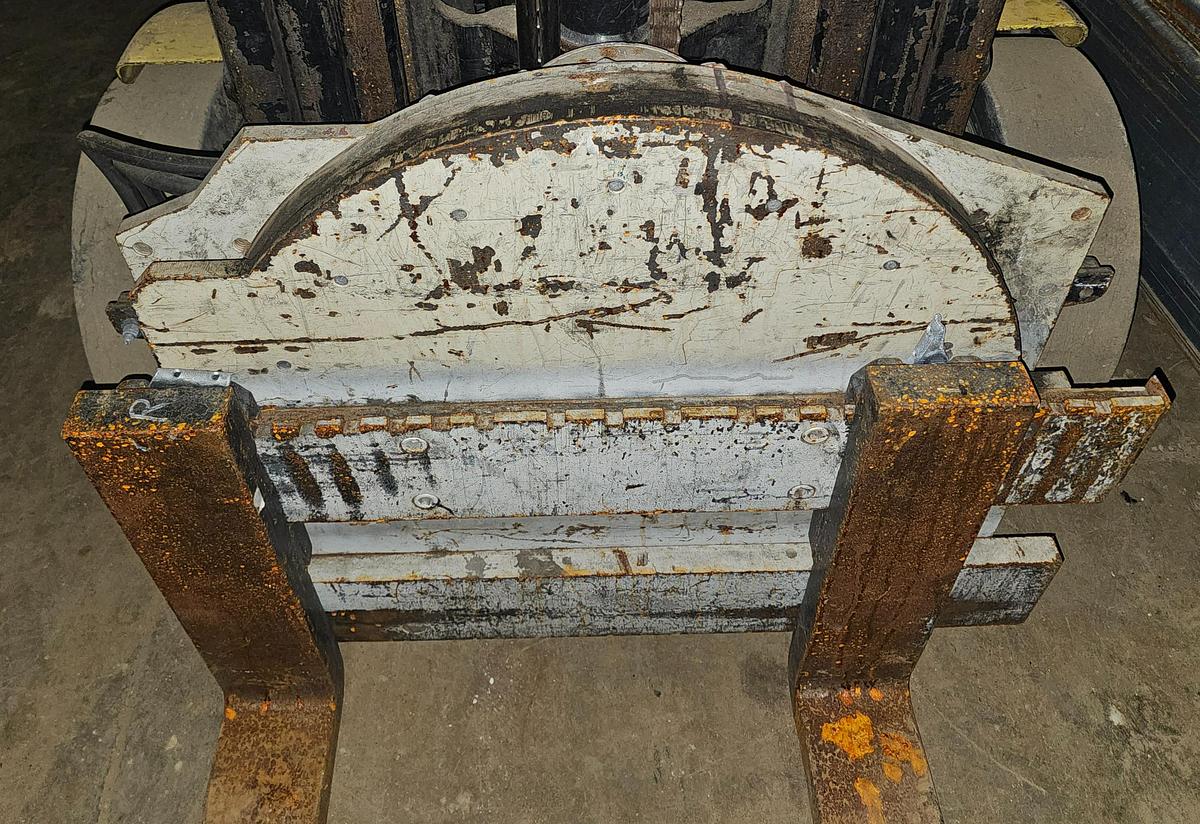

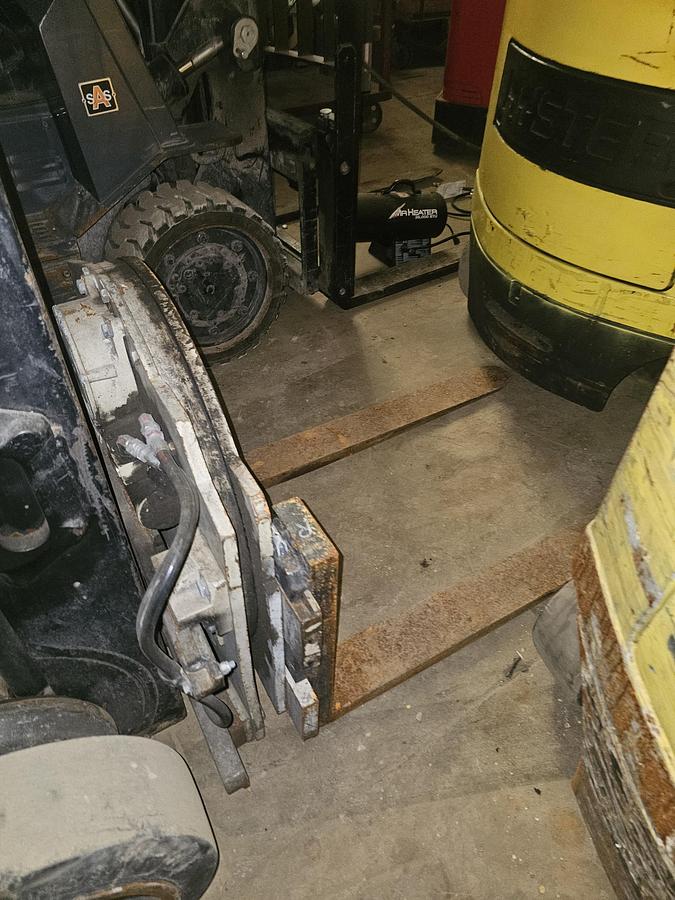

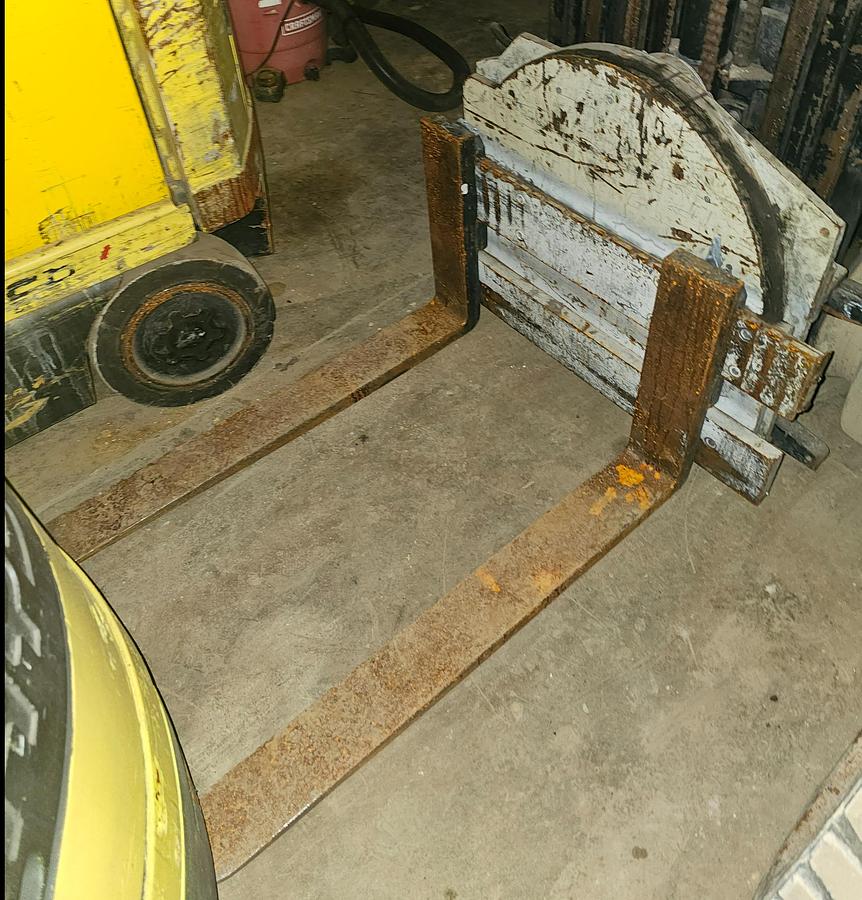

Cascade 40D-RRB-20F Forklift Rotator Attachment (w/ 1067 Drive Group) | 360° Continuous Rotation

For sale is a heavy-duty, highly reliable Cascade 40D-RRB-20F Forklift Rotator Attachment. Built on Cascade’s industry-standard 40D platform and equipped with the rugged 1067 high-torque drive assembly, this unit delivers smooth, continuous 360-degree rotation in both directions.

Perfect for agriculture, recycling, scrap handling, food processing, and chemical dumping applications, this attachment allows forklift operators to rapidly invert heavy bins or containers and return them to the upright position in one fluid motion.

Designed for standard Class II forklift carriages, it is the most universally requested and liquid rotator size on the market today.

Key Features & Value Points

• Continuous 360° Bi-Directional Rotation: Engineered for smooth, endless rotation in either direction, eliminating the need to reverse spin cycle directions mid-operation.
• High-Visibility Frame Design: Cascade’s D-Series architecture cleverly tucks the heavy drive motor and gearbox behind the frame baseplate. This gives the operator an exceptionally clear line of sight to the fork tips for safer, faster cycle times.
• Heavy-Duty 1067 Drive Group: Built with a rugged ring gear and robust drive box designed to withstand off-center, top-heavy, or unevenly distributed dumping loads without binding or premature seal failure.
• Universal Class II Mounting: Easily hooks up to standard 3,000 lb to 5,000 lb warehouse and industrial forklifts utilizing an ITA Class II carriage.
• Massive Productivity Boost: Instantly transforms a standard forklift into an efficient bulk-material dumping cell, reducing manual labor and speeding up workflow.

Technical Specifications

• Manufacturer: Cascade Corporation
• Model: 40D-RRB-20F
• Drive/Motor Group: 1067
• Capacity: 4,000 lbs (1,815 kg) @ 24" Load Center
• Rotation: 360-Degree Continuous
• Mounting Class: ITA Class II (Standard Carriage)
• Hydraulic Requirements: Requires 1 auxiliary hydraulic function on the forklift
• Approximate Weight: ~650–700 lbs (Without forks)
