Grieve Model 323 Industrial Bench Oven | 400°F, 230V 3-Phase, 15.8 Cu. Ft., Digital Controls, SS Interior

Grieve Model 323 Industrial Bench Oven

Technical Specs

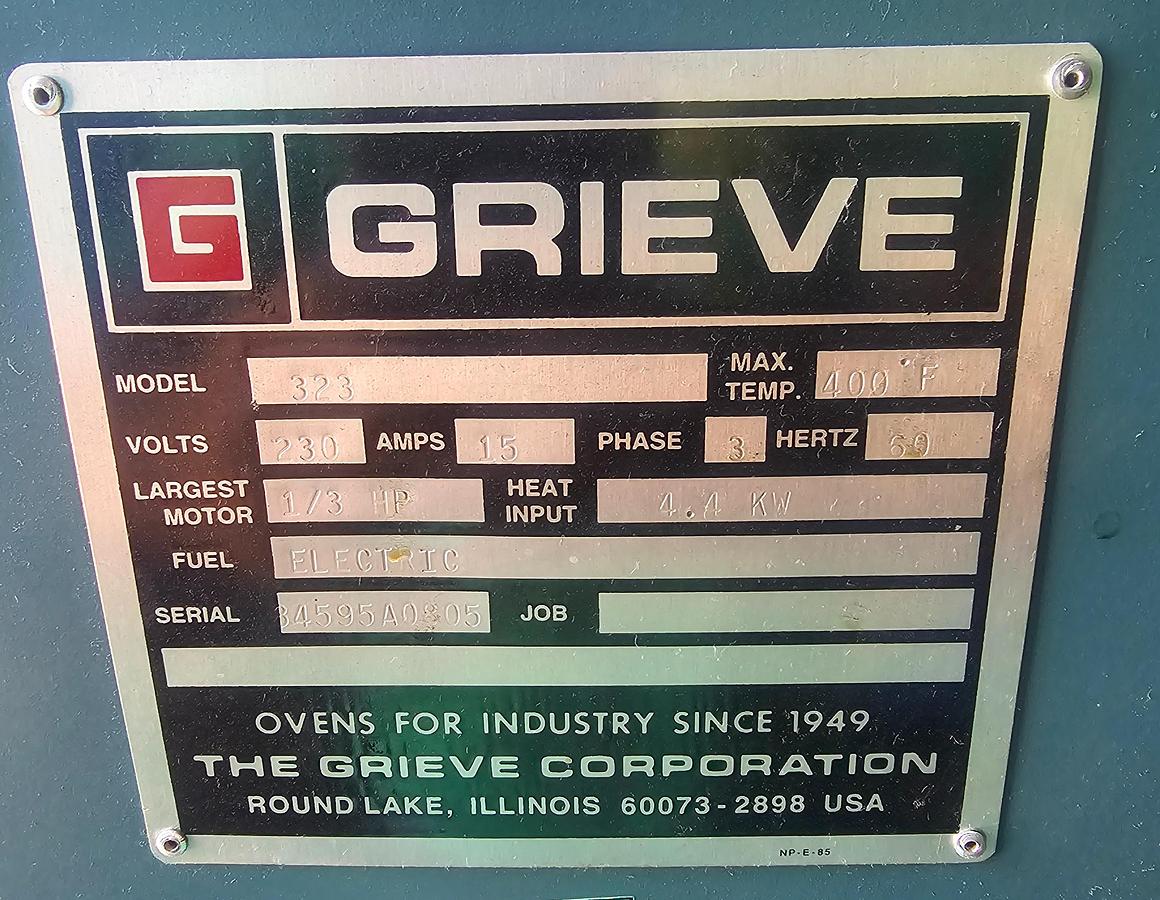

• Manufacturer: Grieve Corporation
• Model: 323
• Serial Number: 84595A0805 (Manufactured: August 2005)
• Power Configuration: 230 Volts / 3 Phase / 60 Hz
• Heating Capacity: 4.4 kW
• Maximum Temperature: 400°F (204°C)

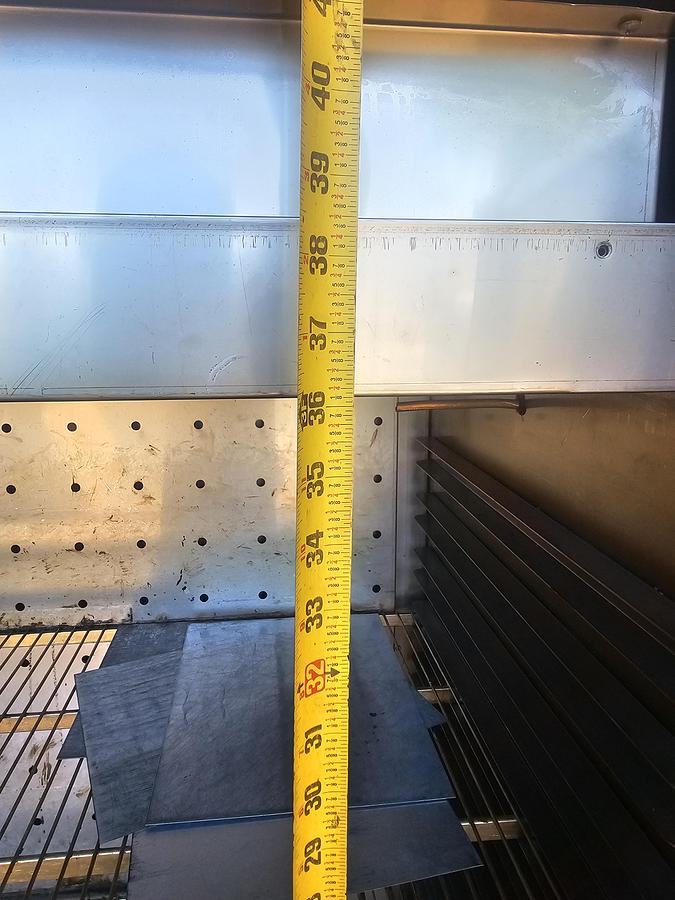

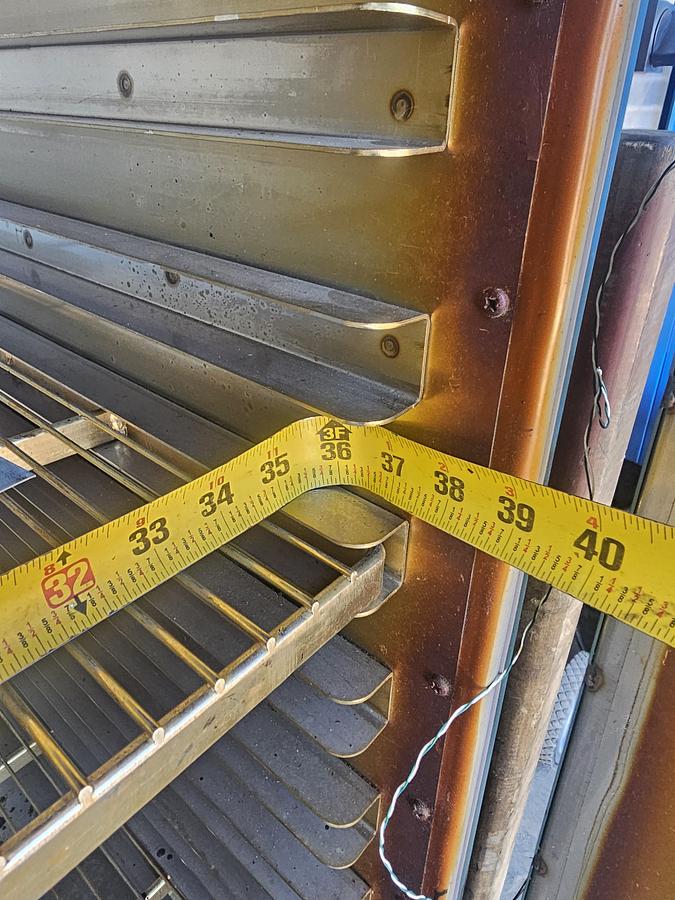

• Internal Work Space: 36" W x 21" D x 36" H (15.8 Cubic Feet Volume)

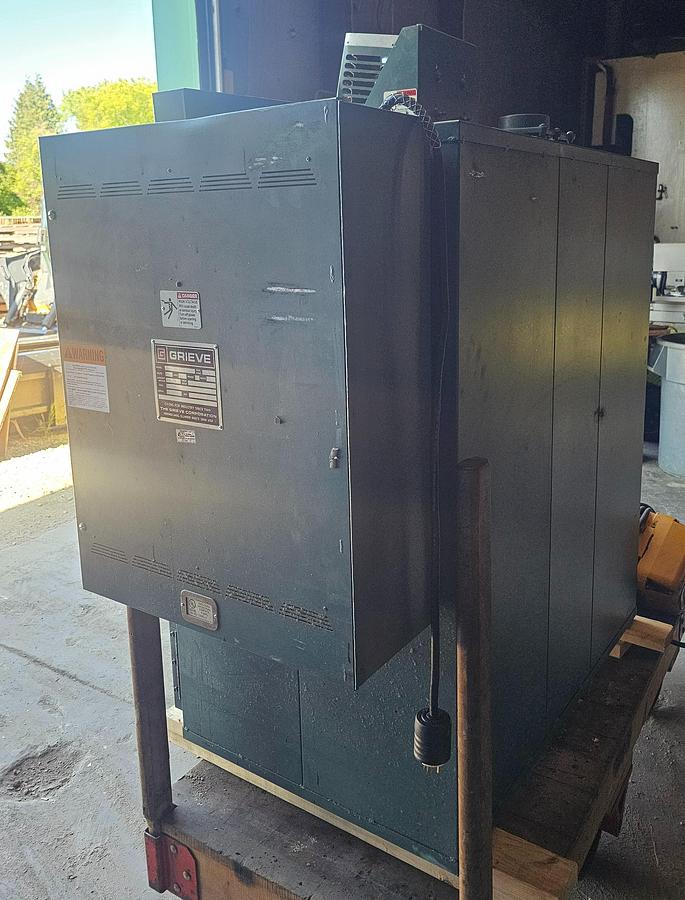

• Exterior Dimensions: 40" W x 28" D x 47" H (Width measures approx. 49" wide including the side-mounted control box; top-mounted blower motor adds approx. 10" to overall height)

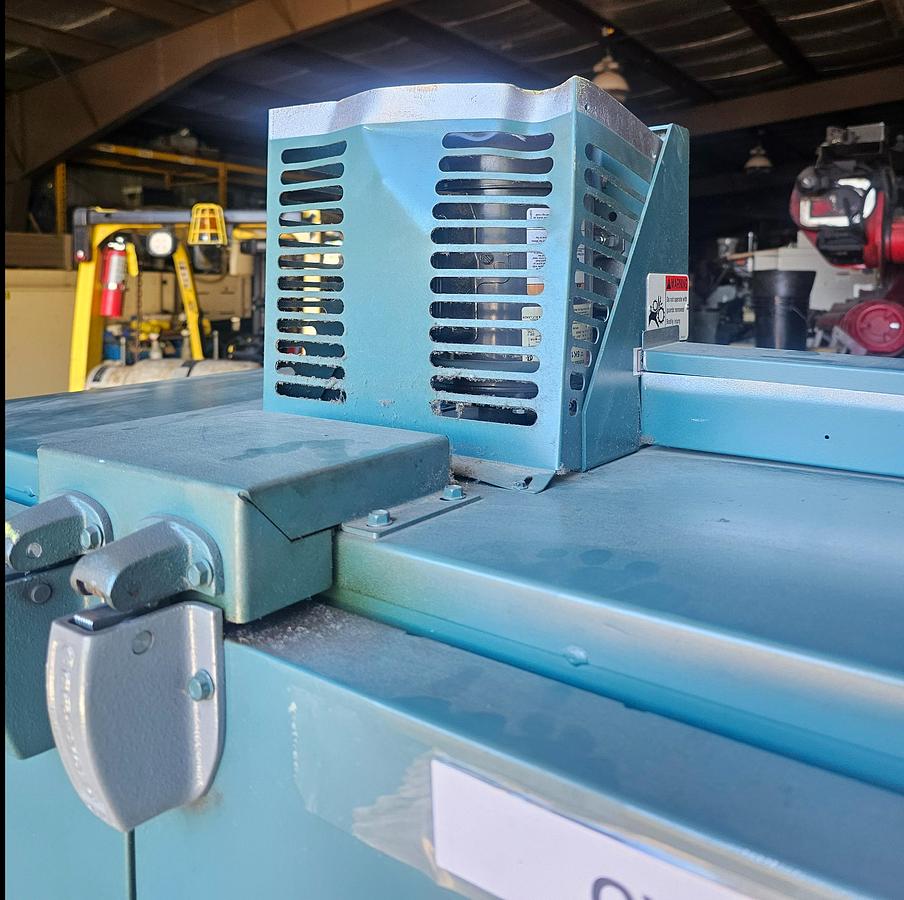

• Airflow Design: Forced air convection, 400 CFM horizontal back-to-front recirculating flow (1/3 HP blower motor)
• Interior Construction: 304 Stainless Steel liner with 2" thick rockwool insulation

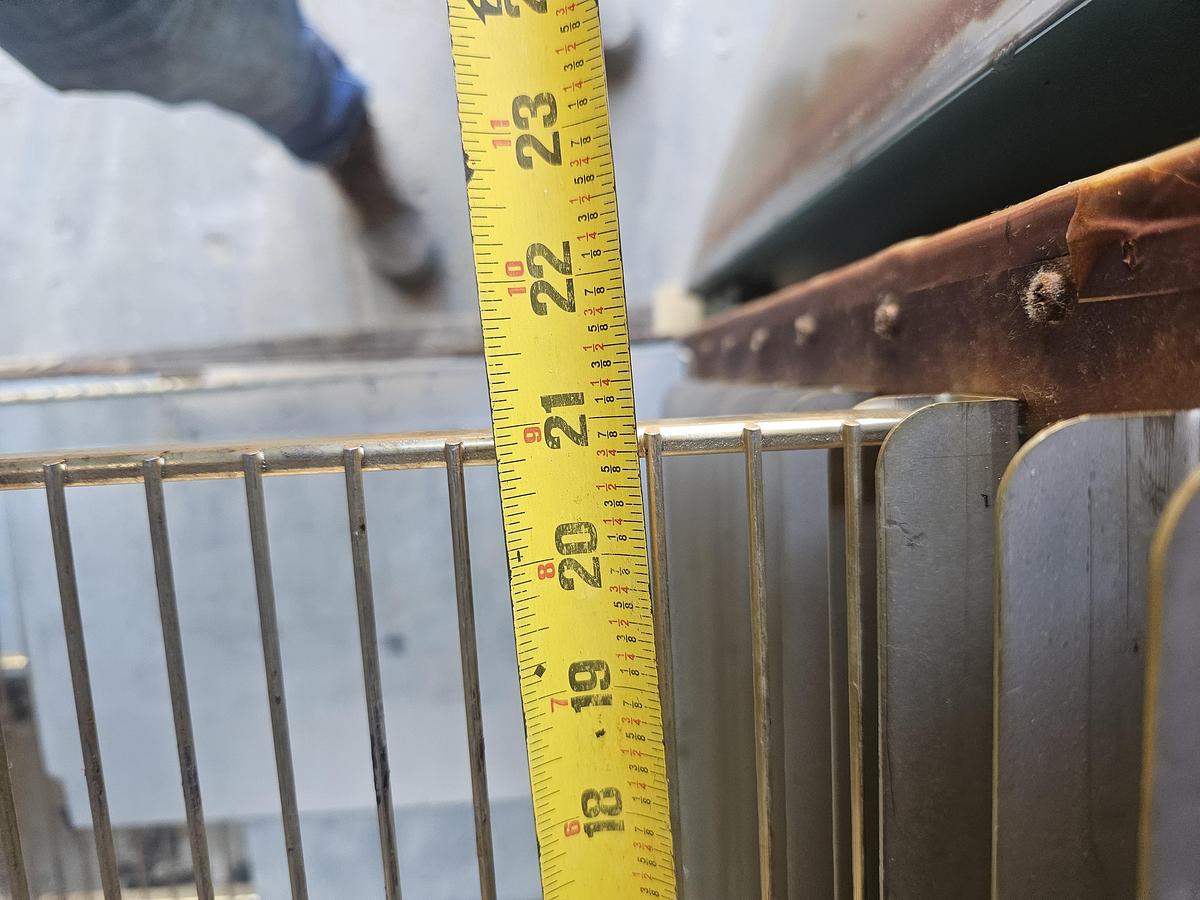

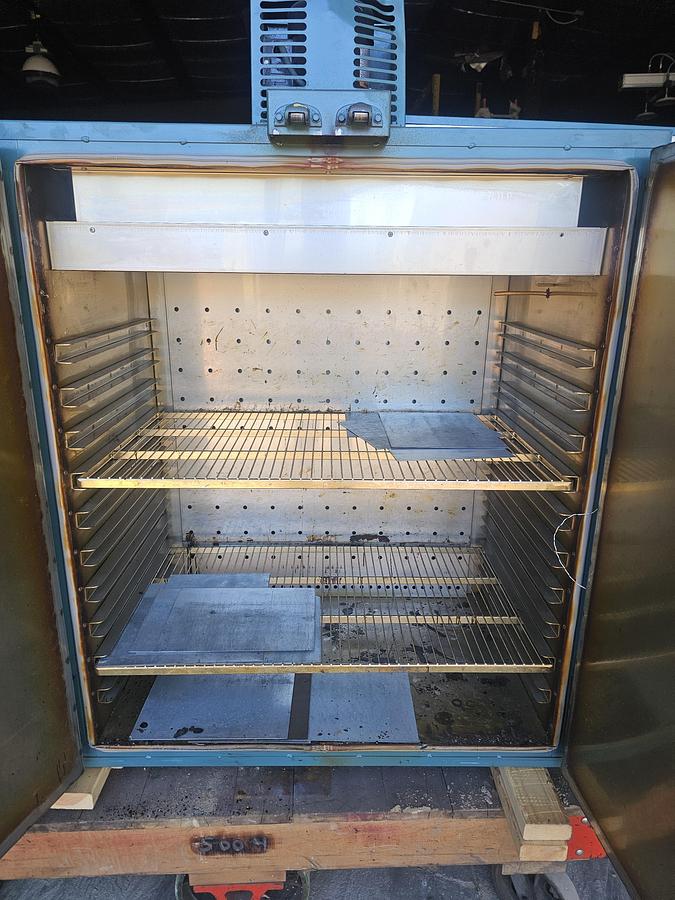

• Shelving Layout: Accommodates up to 10 positions on 3" centers (includes adjustable nickel-plated wire shelves)
• Shipping Weight: Approx. 600 lbs
• Rigging Clearance: Designed to clear a standard 30" doorway by removing the side-mounted control panel or door handle hardware if necessary

Key Features

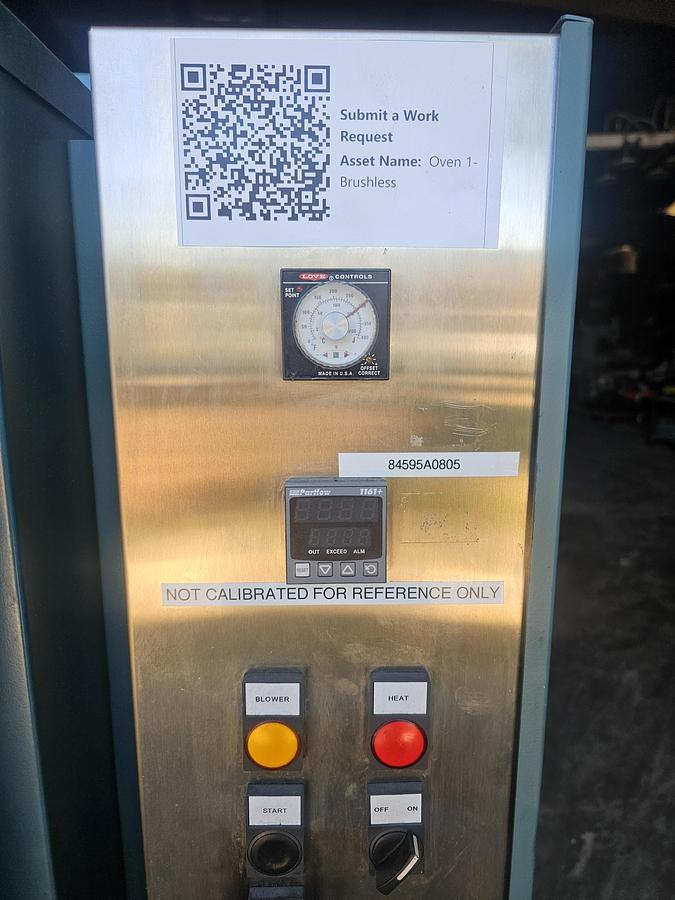

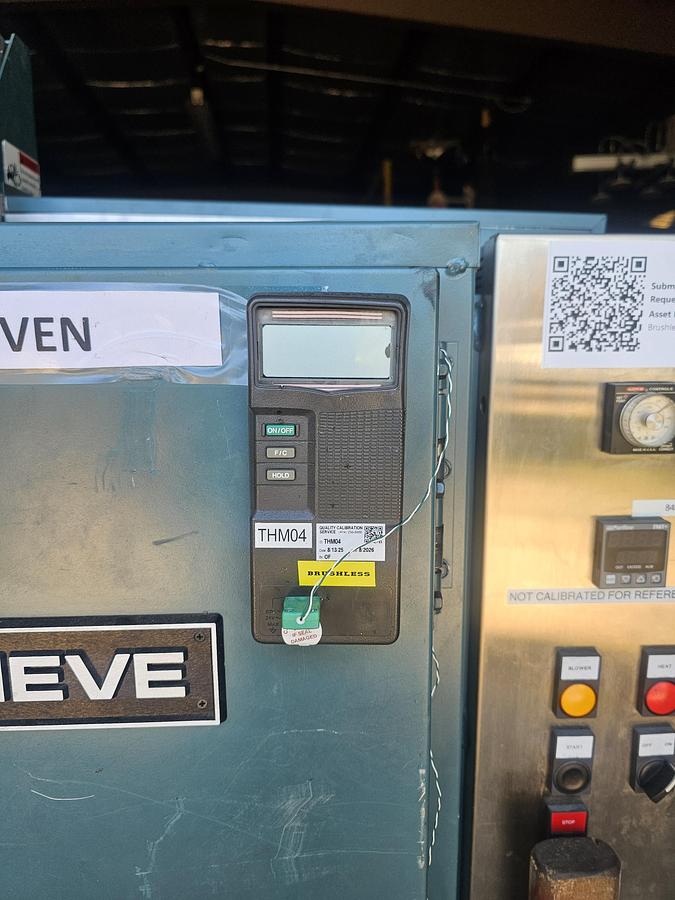

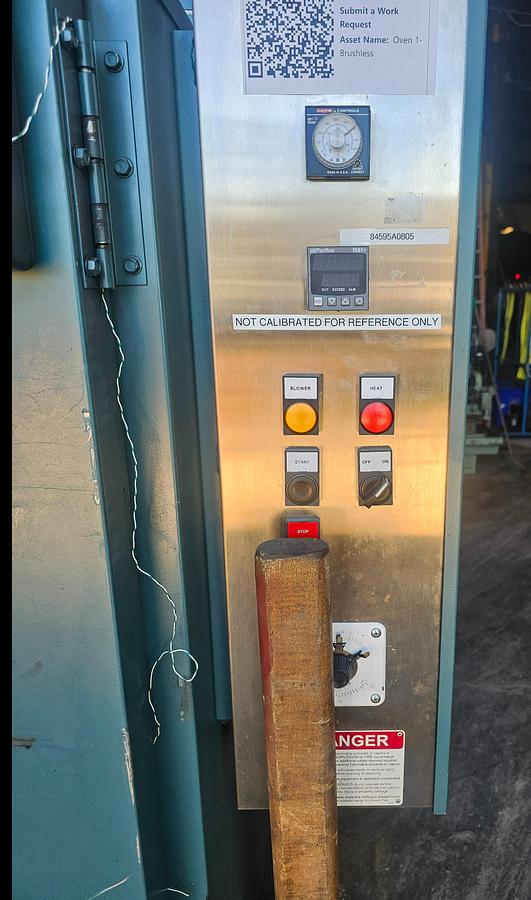

• Upgraded Digital Controls: Equipped with a digital PID temperature controller and a digital over-temperature safety limit visible on the panel
• Premium Interior: Features a heavy-duty 304 stainless steel liner that resists corrosion and thermal degradation.

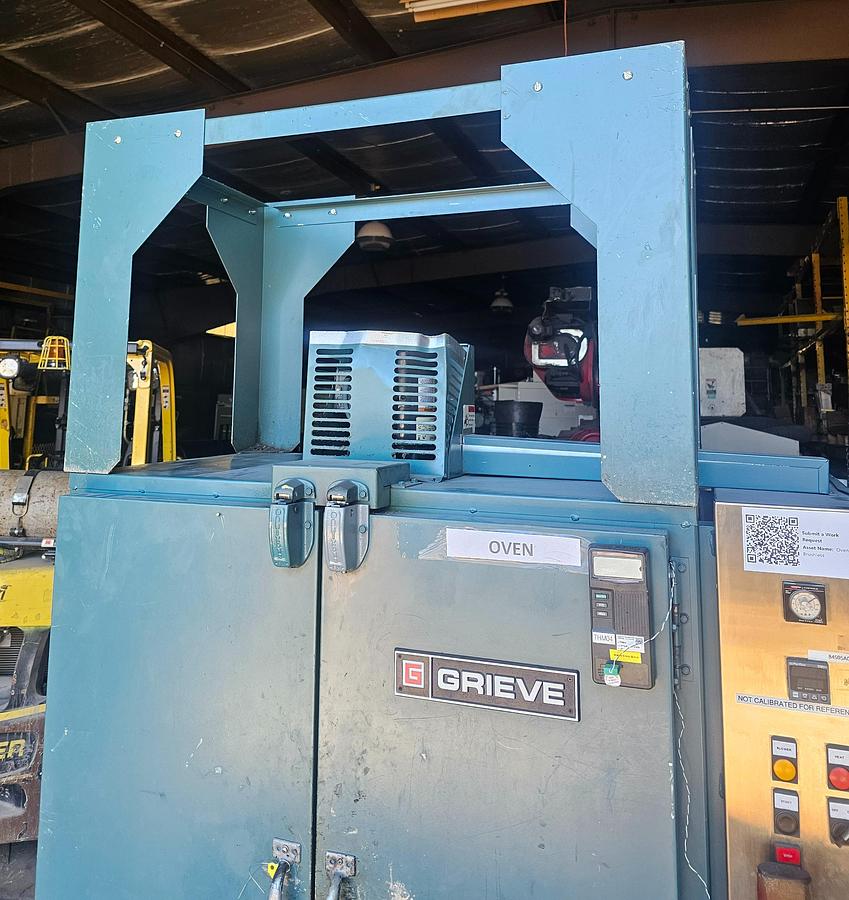

• Safety Equipment: Built-in factory-original top explosion-venting safety latches and an airflow safety switch.

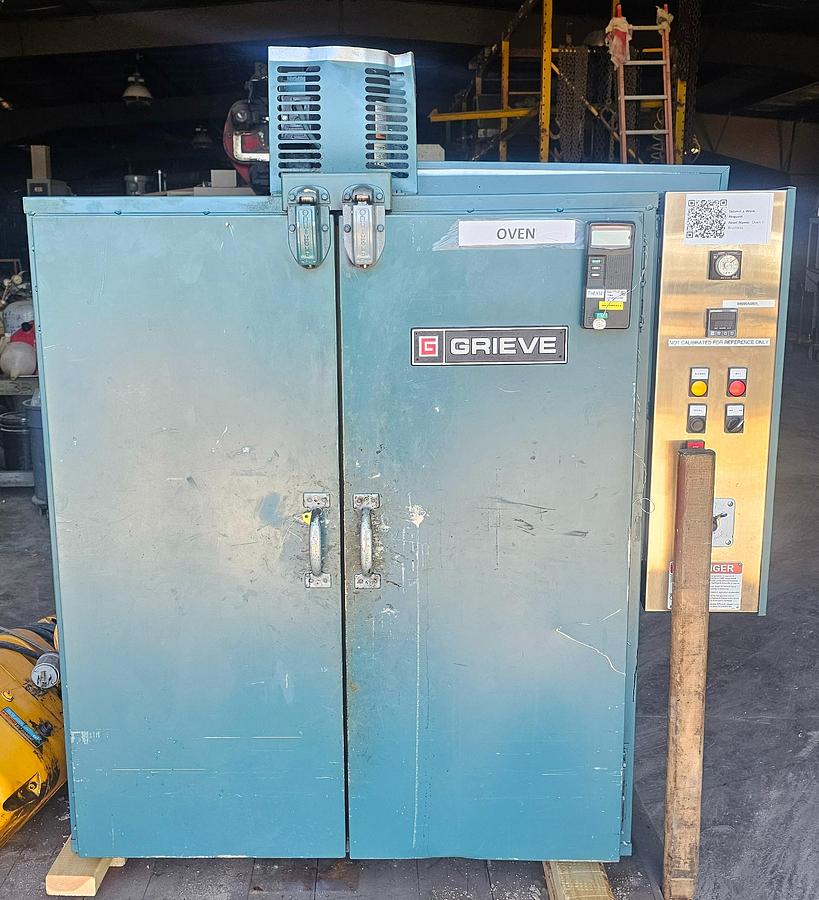

• Excellent Structural Condition: Double doors are perfectly square and level, ensuring an airtight thermal seal without hinge sag.
• Clean Cosmetics: Finished in original factory Grieve green enamel with minor light-industrial shop scuffs and an exceptionally clean brushed stainless side control enclosure.
• Includes Oven Stand
