50 Ton Enerpac Electric Over Hydraulic H-Frame Shop Press with Interchangeable Bits

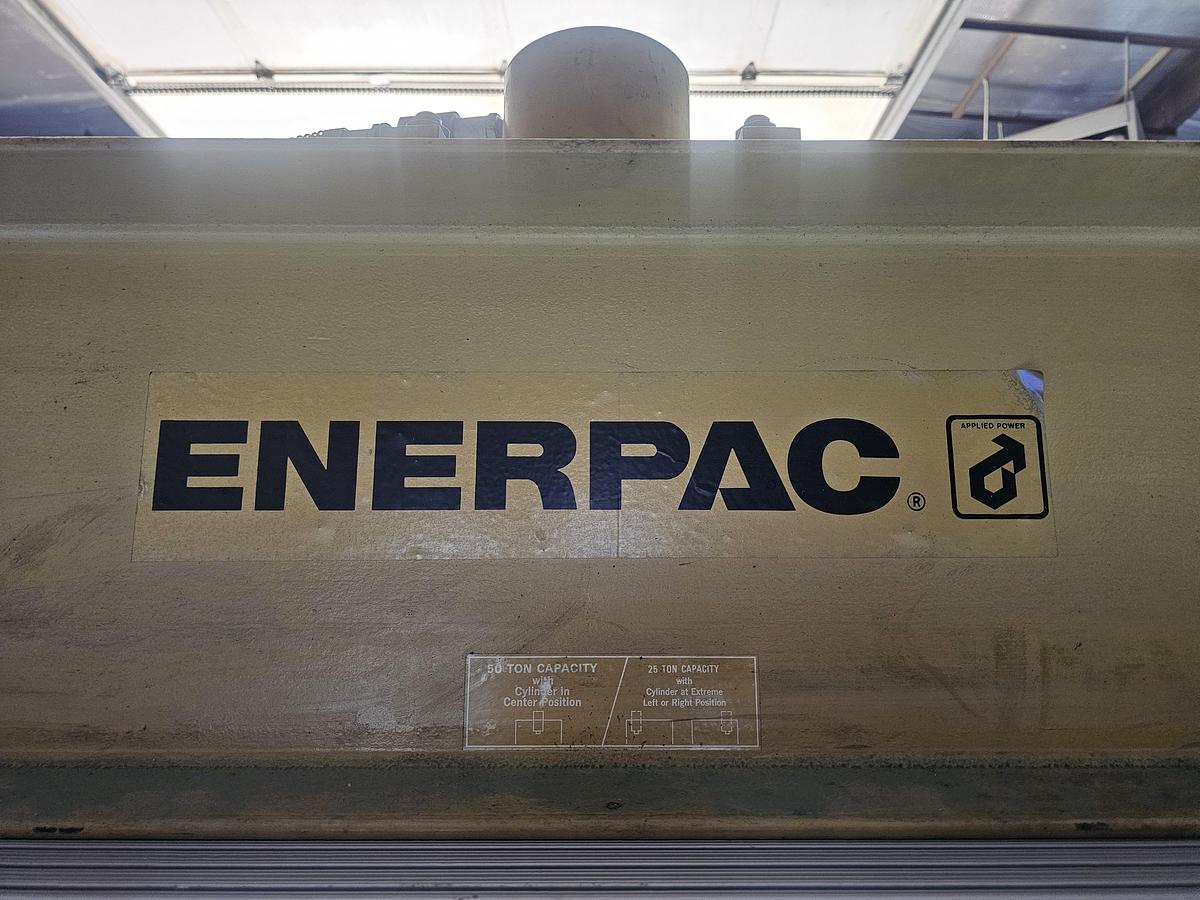

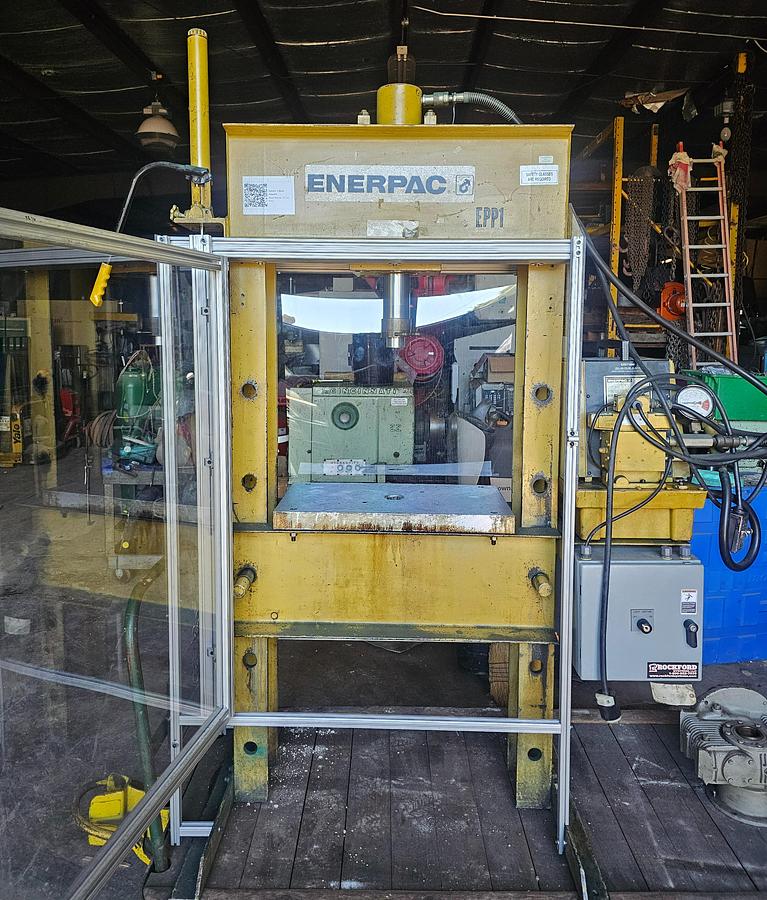

Enerpac 50-Ton H-Frame Electric Over Hydraulic Press

Technical Specs

• Press Capacity: 50 Tons (Maximum operating pressure of 10,000 PSI)

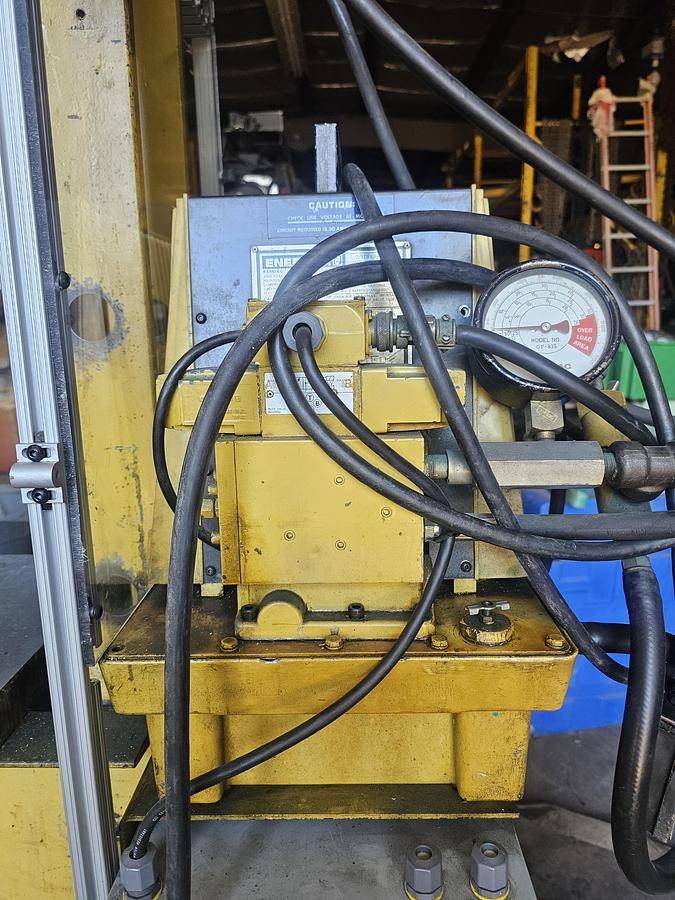

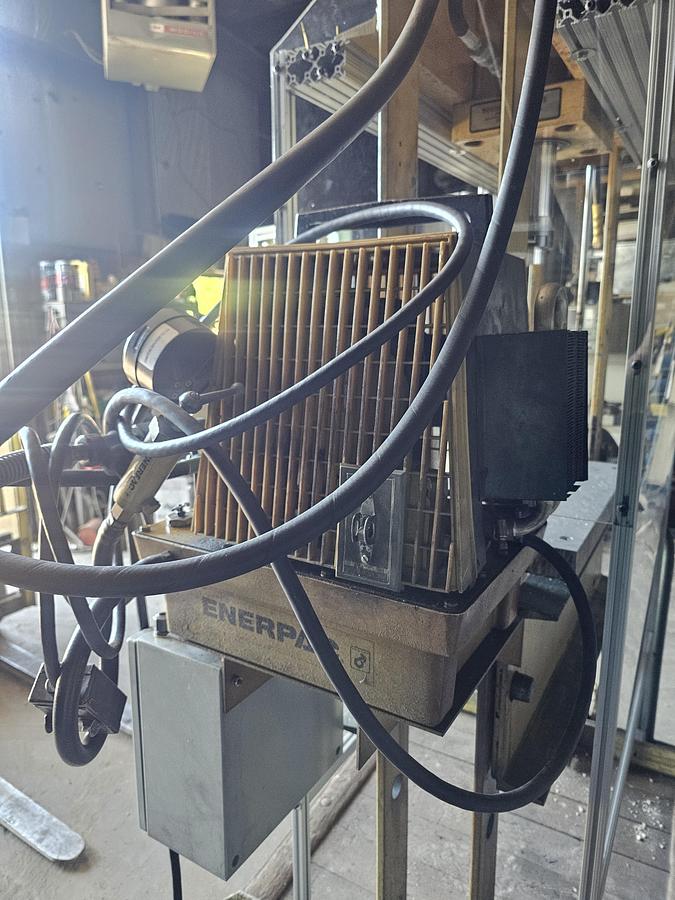

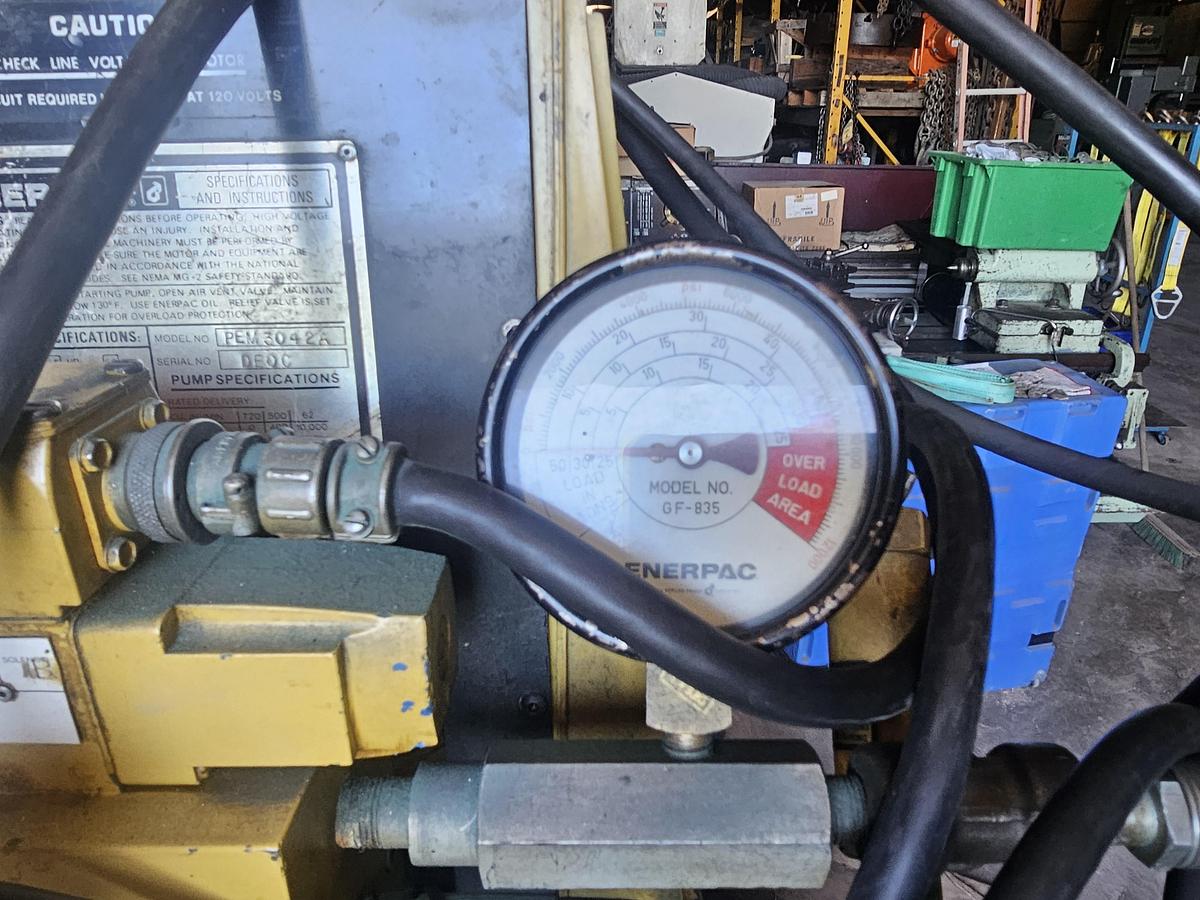

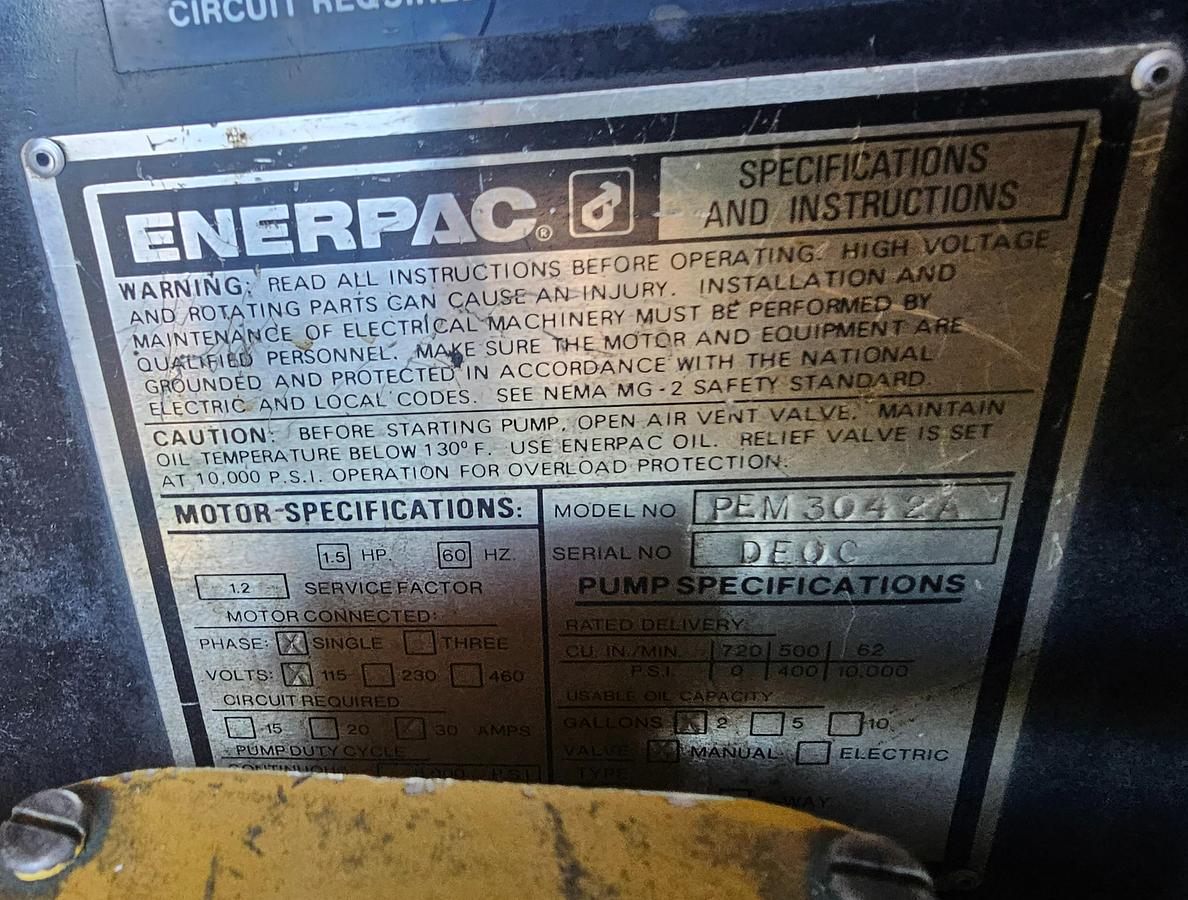

• Pump Model: Enerpac PEM-3042A "Hush Pump" Series

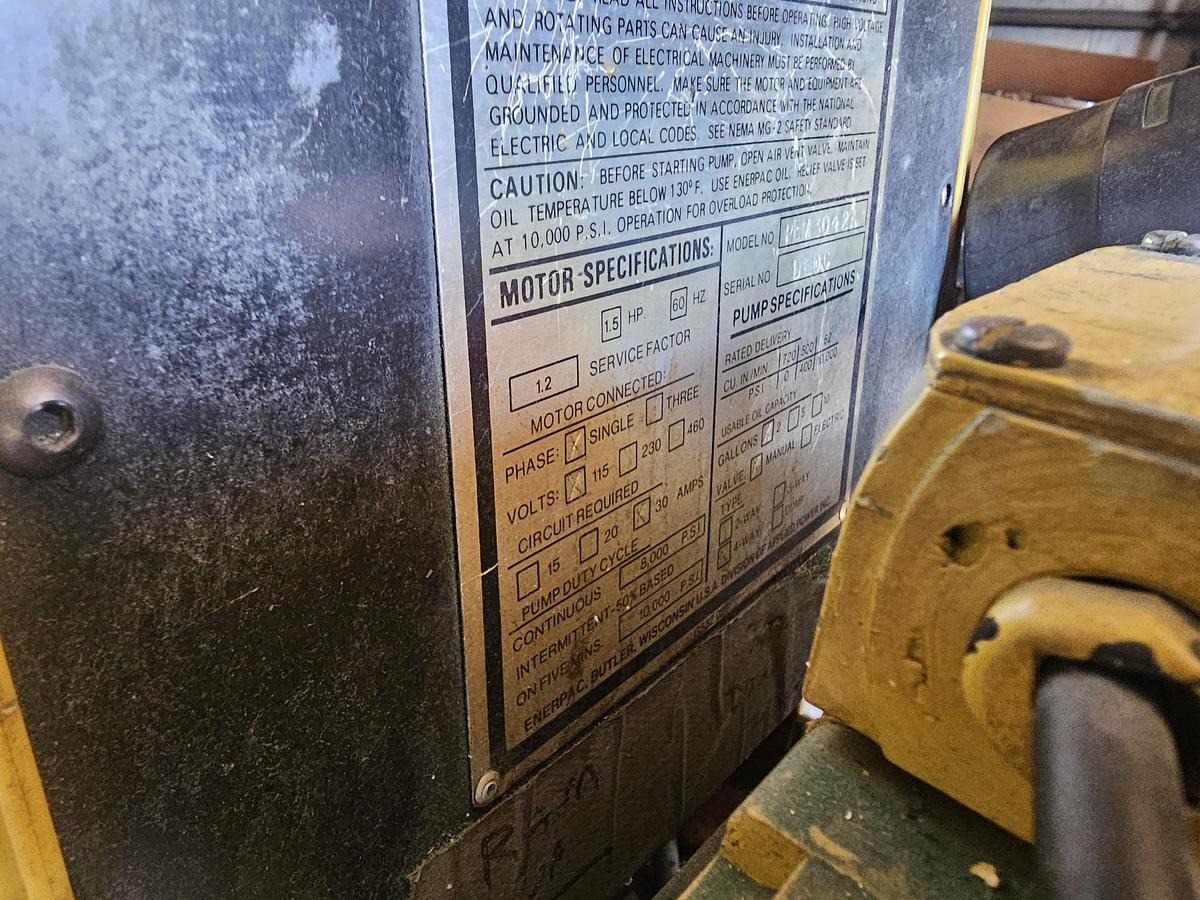

• Pump Motor: 1.5 HP, 60 Hz, Single Phase, 115/120 Volt
• Full Load Current: 28 Amps @ 120V (Service Factor 1.2)
• Pump Valve Type: 4-Way, solenoid-operated electric valve
• Usable Oil Capacity: 2 Gallons
• Pump Duty Cycle: Continuous duty up to 8,000 PSI; Intermittent duty (50% based on 5-minute cycles) up to 10,000 PSI
• Frame Design: Heavy-duty welded steel H-frame construction with open side channels
• Bed Adjustments: Friction-free, chain-driven or winch-assisted vertical bed height adjustment
• Cylinder Configuration: Typically paired with a double-acting hydraulic cylinder for fast, controlled advance and power retraction

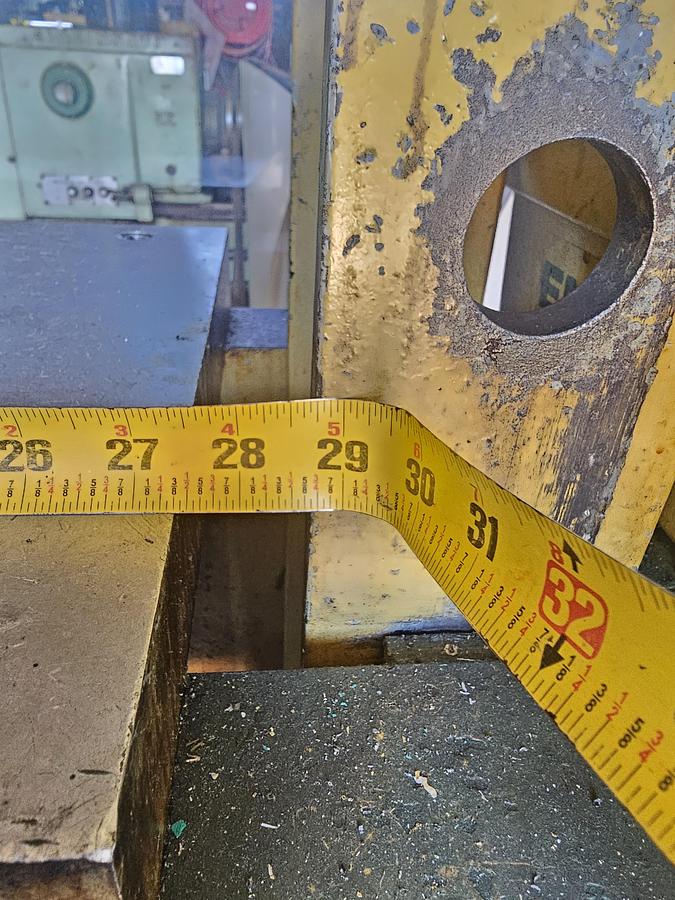

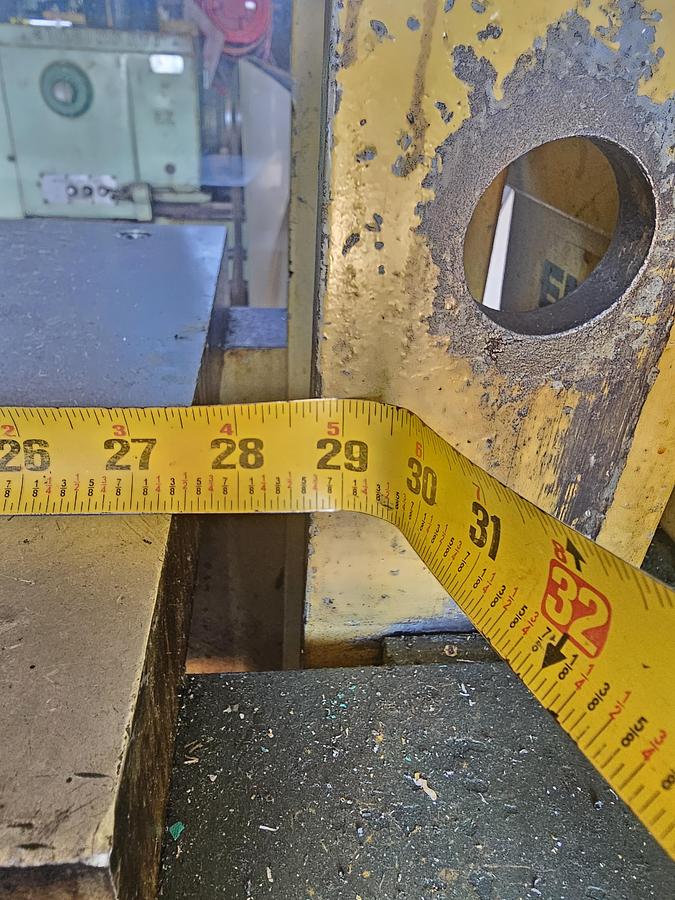

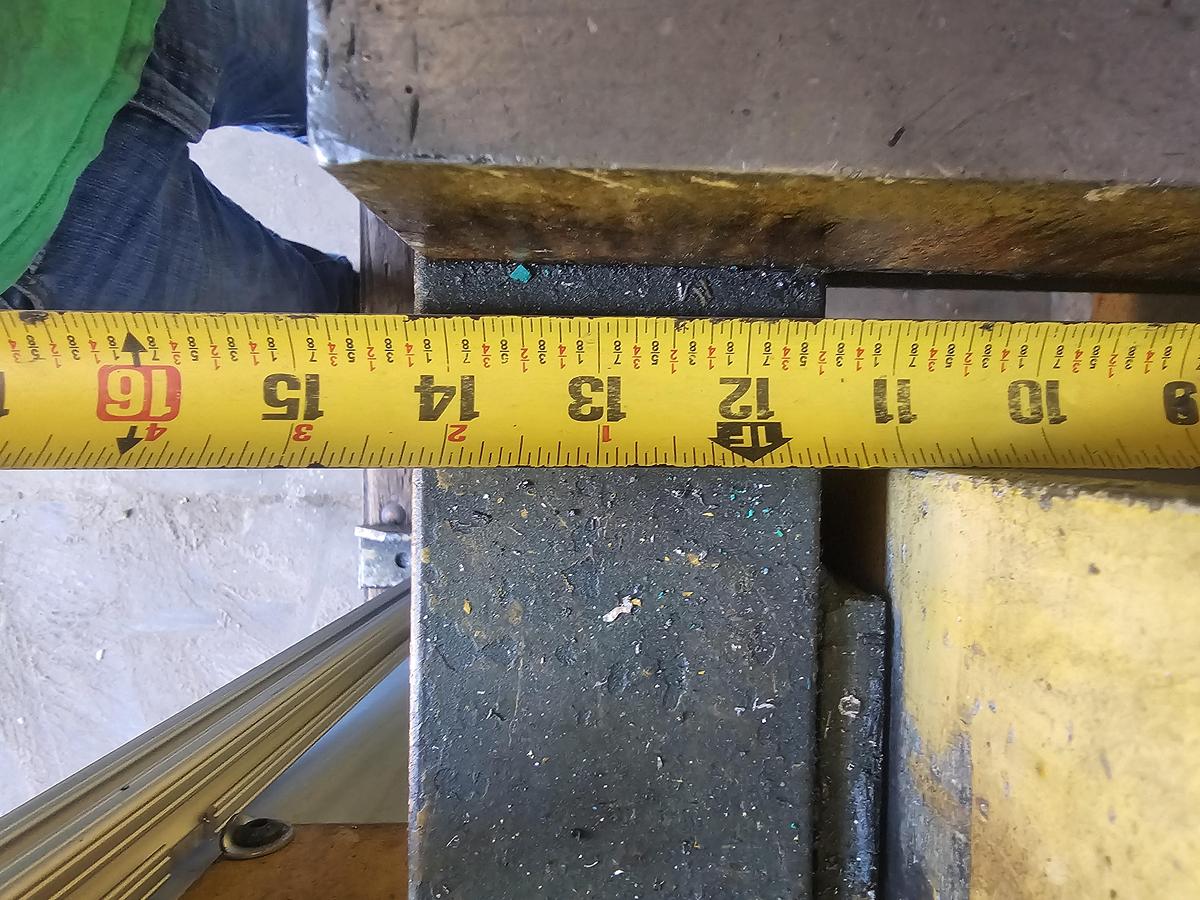

• Frame Working Width: 29"
• Stroke:
• Bed Width: 14"
• Daylight:
• Interchangeable Ram Inserts

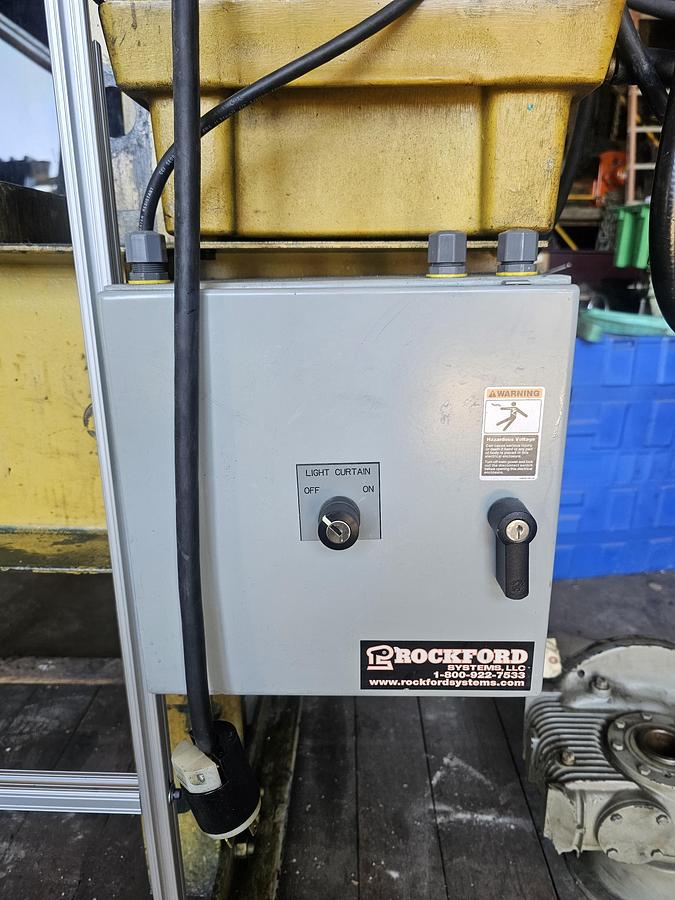

• Safety Enclosure


Key Features

• Enerpac "Hush Pump" Technology: Powered by the specialized PEM-3042A electric pump engineered to run at significantly reduced decibel levels, improving safety and comfort in enclosed shop or factory environments.

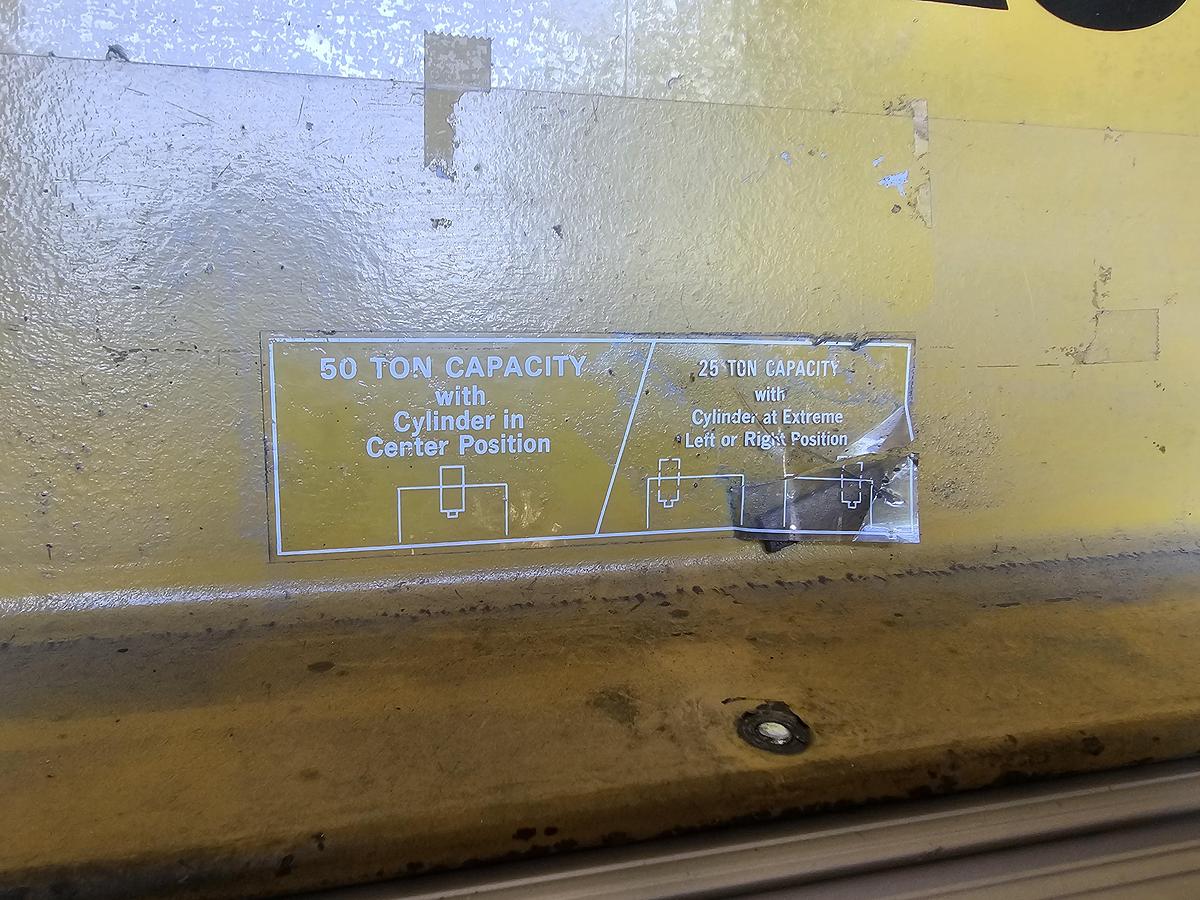

• Left-to-Right Cylinder Adjustability: The hydraulic cylinder head assembly features horizontal sliding adjustment capabilities, enabling precise alignment across the entire width of the upper bolster.
• High-Torque Single-Phase Convenience: Delivers true industrial 10,000 PSI hydraulic performance using standard 115/120V single-phase power, eliminating the need for complex 3-phase plant infrastructure.
• Premium Rigidity & Lifespan: Built on a rugged, industrial welded-steel profile that resists frame deflection and twisting under full 50-ton loads, preserving precision over thousands of press cycles.
